Thermador - 5.0 Cu. Ft. Built-In Mini Fridge - Custom Panel Ready
- Key Specs
- Color Finish: Custom
- Product Height: 34 3/10 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 34 1/4 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 34 3/10 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 26 1/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 26 1/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 5 cubic feet
- Refrigerator Style: No Freezer
- Lighting Type: LED
- Ice Maker: No
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Thermador
- Model Number: T24UR900DP
- Product Name: 5.0 Cu. Ft. Built-In Mini Fridge
- Color: Custom Panel Ready
- Color Finish: Custom
- Commercial Merchandise: false
- Dimensions
- Product Height: 34 3/10 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 34 1/4 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 34 3/10 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Counter Depth: false (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 26 1/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 26 1/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 21 1/2 inches (Measurement from the back of the product to its front, not including the door.)
- Product Weight: 160.1 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 35 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 3/16 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 9/16 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 5 cubic feet
- Refrigerator Capacity: 5 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Built-in (The size, arrangement, and physical configuration of the product.)
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: No Freezer
- Garage Ready: false (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Door-Open Alarm: true
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Touchpad
- Display Type: LCD
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: false
- Lighting Type: LED
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ice & Water
- Ice Maker: No
- Storage
- Number of External Doors/Drawers: 2
- Number of Refrigerator Shelves: 2
- Refrigerator Shelf Style: Fixed
- Refrigerator Shelf Material: Aluminum
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 274 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 33 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. Libre de PFAS, PFOA, plomo, y cadmio. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 2 years, 3 years sealed system
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 825225952008

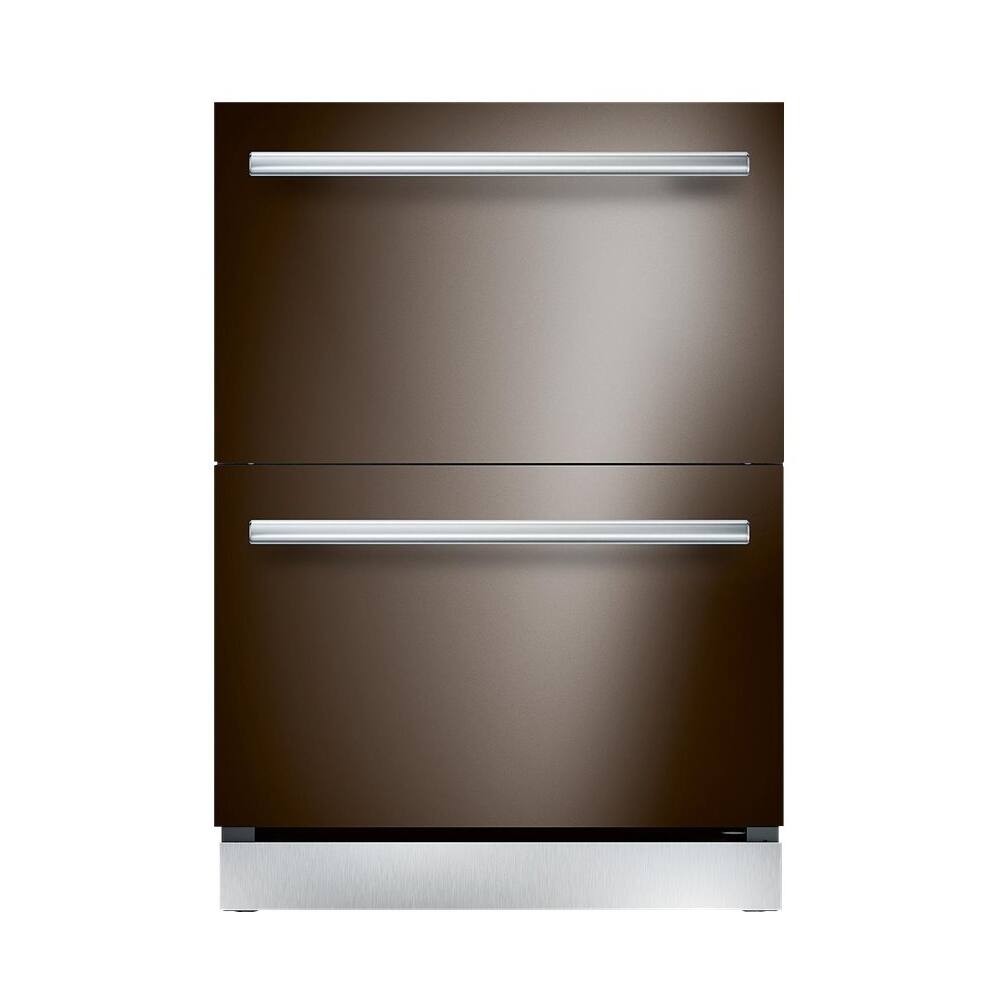

Keep chilled items organized in this 24-inch Thermador double-drawer refrigerator. Its customizable dividers and shelving provide neat storage, and its fridge, pantry and bar cooling provide optimal temperatures for different types of foods and beverages. The removable mats of this under-counter Thermador double-drawer refrigerator prevent bottles and other delicate items from slipping.
- 5.0 cu. ft. storage capacity: Provides optimal space to store your items.
- Touch sensitive controls: Quickly and easily set your cooling options.
- Divider: Makes sure your items are organized.
- 2 doors: Help ensure cooled air stays contained.
- Built-in design: Allows easy installation beneath a countertop for a seamless addition to your kitchen.
- Door-open alarm: Alerts you when the refrigerator door is accidentally left open to save energy.
- Custom Panel Ready: Requires the installation of custom panels and handle (not included)
Whats Included
- Thermador 5.0 Cu. Ft. Built-In Mini Fridge
- Owner's manual
Product Manuals
Documents
- Energy_Guide_PDF
Q: What kind of lighting is used inside the refrigerator?
A: The Thermador 5.0 Cu. Ft. Built-In Mini Fridge uses LED (Light Emitting Diode) lighting inside the refrigerator. This LED light is maintenance-free and located at the top of the interior cabinet, under the mullion.
Q: What is the total storage capacity of this Thermador mini fridge?
A: The total storage capacity of the Thermador 5.0 Cu. Ft. Built-In Mini Fridge is 5.0 cubic feet, as indicated in the product name and specifications.
Q: Does this refrigerator have a Sabbath mode?
A: Yes, this Thermador 5.0 Cu. Ft. Built-In Mini Fridge has a Sabbath mode. The Sabbath mode can be activated by pressing and holding the QUICK CHILL and FRIDGE buttons simultaneously for 3 seconds. When the Sabbath mode is activated, all lights, displays, and alarms will be disabled, and the temperature settings will be maintained.
Q: How much electricity does this refrigerator use annually?
A: The estimated annual electricity usage of this Thermador 5.0 Cu. Ft. Built-In Mini Fridge is 274 kilowatt hours. Based on this, the estimated annual operating cost is 33 United States dollars.
Q: Is this refrigerator certified for energy efficiency?
A: Yes, this Thermador 5.0 Cu. Ft. Built-In Mini Fridge is certified for energy efficiency. The product specifications indicate that it is "ENERGY STAR Certified".
Q: Does this refrigerator have separate compartments for different types of food and beverages?
A: Yes, this refrigerator has separate compartments for different types of food and beverages. It features a fridge compartment, a pantry compartment, and a bar cooling compartment, each providing optimal temperatures for different types of items. The fridge compartment is suitable for general food storage, the pantry compartment is ideal for dry goods, and the bar cooling compartment is perfect for keeping drinks chilled.
Q: What is the voltage requirement for this refrigerator?
A: The voltage requirement for this Thermador 5.0 Cu. Ft. Built-In Mini Fridge is 120 volts.
Q: How much does it cost to operate this refrigerator annually?
A: The estimated annual operating cost of this Thermador 5.0 Cu. Ft. Built-In Mini Fridge is 33 United States dollars. This cost is based on an estimated annual electricity usage of 274 kilowatt hours.
