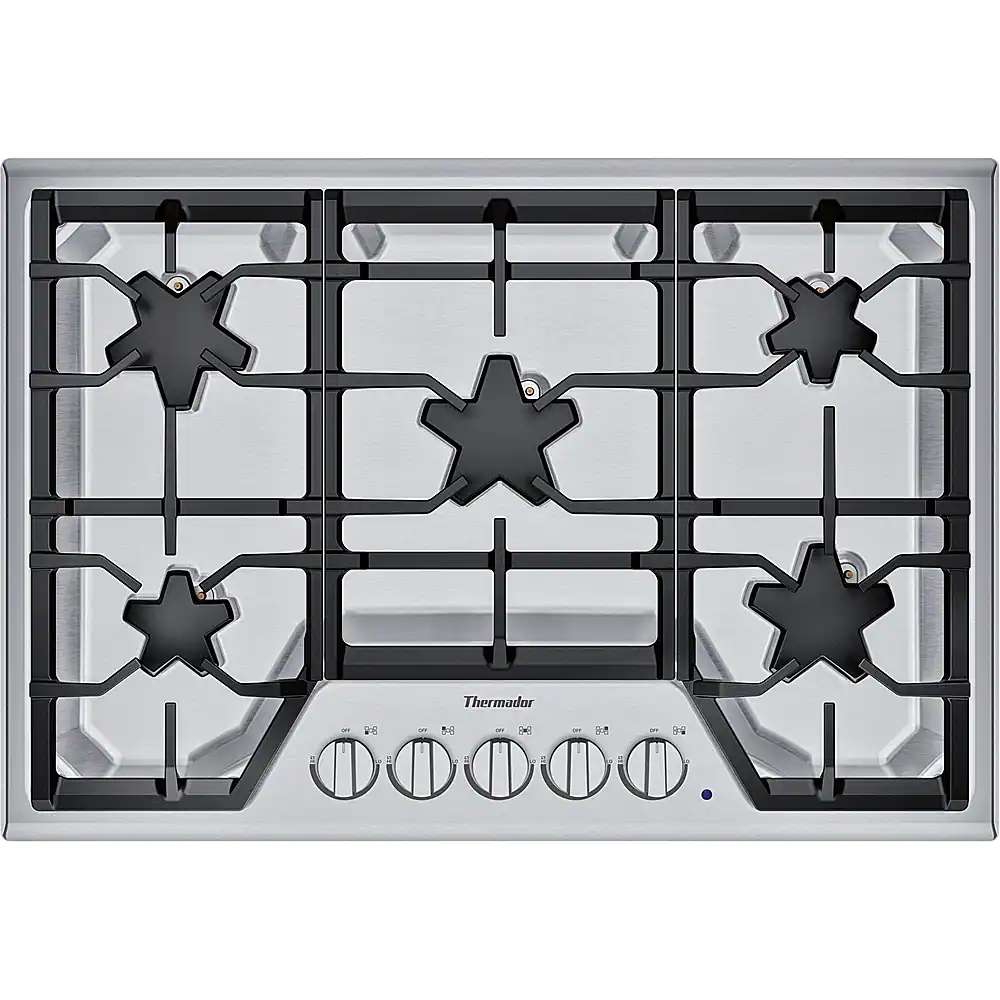

Thermador - Masterpiece 30" Built-In Gas Cooktop with 5 Star Burners and ExtraLow Select - Stainless Steel
$39.99 delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishStainless steelProduct Height5 3/8 inchesProduct Width31 inchesProduct Depth21 1/4 inchesCooktop Surface TypeGrateNumber of Burners5
- Key Specs
- Color Finish: Stainless steel
- Product Height: 5 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 31 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 5
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: Not Applicable (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Thermador
- Model Number: SGSX305TS
- Product Name: Masterpiece 30" Built-In Gas Cooktop with 5 Star Burners and ExtraLow Select
- Color: Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: Thermador Masterpiece (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 5 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 31 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 37.92 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 3 13/16 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 15/16 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 19 1/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: Analog
- Control Location: Top
- Digital Display: false
- Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Gas Type: Natural gas
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Stainless steel
- Number of Cooking Zones: 5
- Number of Burners: 5
- Sealed Burners: false (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): ExtraLow Select (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Type: Continuous (Continuous grates allow cookware to be slid from burner to burner, while individual grates require the pot or pan to be lifted when moving around the cooktop.)
- Grate Material: Cast iron
- Dishwasher-Safe Grates: false (Cooktop grates are safe to be washed in a dishwasher if they are treated with a special coating that withstands the high heat, water pressure, and detergent used in a standard wash cycle.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Burner Rating
- Burner 1 Rating: 8000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 10000 british thermal units
- Burner 3 Rating: 16000 british thermal units
- Burner 4 Rating: 8000 british thermal units
- Burner 5 Rating: 10000 british thermal units
- Total Maximum BTU Rating: 52000 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Power
- Cooktop Power Source: Gas
- Ignition Type: Electric
- Propane (LP) Convertible: true
- Propane Conversion Kit Included: false
- Propane Kit Model Compatibility: SLPKITW
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. For more information about PFAS chemicals, visit https://bshpersona.com/productdisclosures/. Libre de PFAS, PFOA, plomo, y cadmio. Para obtener más información sobre las sustancias químicas PFAS, visite https://bshpersona.com/productdisclosures/. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: Not Applicable (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 825225933052
Thermador offers an impressive 30-inch gas cooktop with 5 patented Star Burners, including a center-mounted power burner, 2 ExtraLow Select simmer burners, and 52,000 BTUs of overall heat output. The patented Star Burner's unique five-point design offers more ports and more flame distribution than a round burner. ExtraLow Select burners have 5 precise settings that is perfect for simmering or holding foods and melting chocolate without scorching or burning and a powerful 16,000 BTU center burner allows for rapid boiling and high heat searing. The 30-inch 5 burner gas cooktop provides functionality of a 36-inch cooktop in a compact kitchen environment. Continuous grates allow pots and pans to move effortlessly across the cooktop.
- Our Star Burner provides equal flame distribution: Star Burners are 56% longer than a round burner of the same size, which allows for more flame ports. The result is a burner that delivers a superior flame spread and reduced cold spots for faster and more even heating.
- 16,000 BTU Center Burner: Powerful 16,000 BTU center burner perfect for rapid boiling and high heat searing.
- ExtraLow for slowly simmering delicate recipes: Our ExtraLow feature provides a wide range of temperature control. It cycles the burners on and off to maintain a very low temperature. Perfect for simmering delicate sauces or keeping food warm without scorching or stirring.
- 30-inch cooktop with functionality of a 36-inch cooktop: 30-inch 5 burner gas cooktop provides functionality of a 36" cooktop in a compact kitchen environment.
- Continuous Grates make it easy to move pans: The connected gridwork allows for moving pots and pans effortlessly across the cooktop.
- Electronic Re-ignition keeps your flame ignited: Your burners will automatically re-ignite in case the flame goes out.
- Contemporary Grates: Redesigned with stunning contemporary grates.
- Stainles Steel: Stainless Steel Gas Cooktop for a modern look.
- Flexibility & Function: Thermador Gas Cooktops are designed for flexibility and functionality.
- Star-K Sabbath Compliant: This cooktop is Star-K certified and may be used as Sabbath Compliant appliances, making it possible to use it on the Sabbath or the holidays.
- Downdraft Ventilation Pairing: The Stainless steel Gas Cooktop pairs beautifully with Downdraft Ventilation for a sleek and integrated look.
- Our Star Burner provides equal flame distribution: Star Burners are 56% longer than a round burner of the same size, which allows for more flame ports. The result is a burner that delivers a superior flame spread and reduced cold spots for faster and more even heating.
- 16,000 BTU Center Burner: Powerful 16,000 BTU center burner perfect for rapid boiling and high heat searing.
- ExtraLow for slowly simmering delicate recipes: Our ExtraLow feature provides a wide range of temperature control. It cycles the burners on and off to maintain a very low temperature. Perfect for simmering delicate sauces or keeping food warm without scorching or stirring.
- 30-inch cooktop with functionality of a 36-inch cooktop: 30-inch 5 burner gas cooktop provides functionality of a 36" cooktop in a compact kitchen environment.
- Continuous Grates make it easy to move pans: The connected gridwork allows for moving pots and pans effortlessly across the cooktop.
- Electronic Re-ignition keeps your flame ignited: Your burners will automatically re-ignite in case the flame goes out.
- Contemporary Grates: Redesigned with stunning contemporary grates.
- Stainles Steel: Stainless Steel Gas Cooktop for a modern look.
- Flexibility & Function: Thermador Gas Cooktops are designed for flexibility and functionality.
- Star-K Sabbath Compliant: This cooktop is Star-K certified and may be used as Sabbath Compliant appliances, making it possible to use it on the Sabbath or the holidays.
- Downdraft Ventilation Pairing: The Stainless steel Gas Cooktop pairs beautifully with Downdraft Ventilation for a sleek and integrated look.
Whats Included
- Thermador MASTERPIECE SERIES 30" Gas Cooktop
- Cast iron pan support
- Thermador MASTERPIECE SERIES 30" Gas Cooktop
- Cast iron pan support
Product Manuals
Disclaimers
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
Q: Does this cooktop have a continuous grate design?
A: Yes, this cooktop features continuous grates for easy movement of pots and pans.
Q: How many burners does this Thermador gas cooktop have?
A: This Thermador gas cooktop is equipped with 5 burners.
Q: What is the BTU rating of the center burner on this Thermador gas cooktop?
A: The center burner on this Thermador gas cooktop has a powerful 16,000 BTU rating.
Q: Is this Thermador gas cooktop compatible with propane?
A: Yes, this cooktop can be converted to propane with the appropriate kit.
Q: Does this gas cooktop have an electric ignition system?
A: Yes, this cooktop uses an electric ignition system to ignite the burners.
Q: What is the advantage of the Star Burner design on this cooktop?
A: The Star Burner design offers more flame ports and better flame distribution compared to round burners, resulting in faster and more even heating.
Q: What is the BTU for the 5th burner
A: undefined
