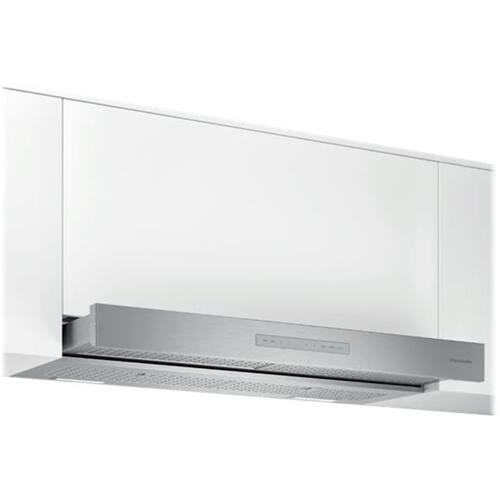

Thermador Masterpiece - 36 inches - Externally Vented & Recirculating - Under cabinet Range Hood - Stainless Steel
Delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishStainless steelProduct Height17 9/16 inchesProduct Width35 15/16 inchesProduct Depth19 7/8 inchesExhaust Vent LocationTopVent TypeDucted, Ductless
- Key Specs
- Color Finish: Stainless steel
- Product Height: 17 9/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: External, Recirculating (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Works With: Amazon Alexa, Google Home, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Thermador
- Model Number: HMDW36WS
- Product Name: MASTERPIECE SERIES 36" Convertible Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: Thermador Masterpiece (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 17 9/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Product Width: 35 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 55 pounds (The out of box weight of the item.)
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: External, Recirculating (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number of Fan Speeds: 4
- Temperature Sensor: true (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touch pad
- Display Type: None
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 2.4 watts
- Performance
- Maximum Air Flow Capacity: 600 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Filter Info
- Filter Material: Stainless steel
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): cULus (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- Works With: Amazon Alexa, Google Home, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 825225935698
This Masterpiece Drawer hood provides a flexible setup that lets you choose between a pulled canopy for wider capture and a pushed-back placement for a flat look. Maintain a quiet kitchen with the exclusive Noise Control Technology. The hood is Wi-Fi enabled which allows for remote monitoring, control of lights, fan speed and notification to clean the grease filter via the Home Connect app. The multi-level LED lights of this Thermador wall hood offer stylish and functional illumination.

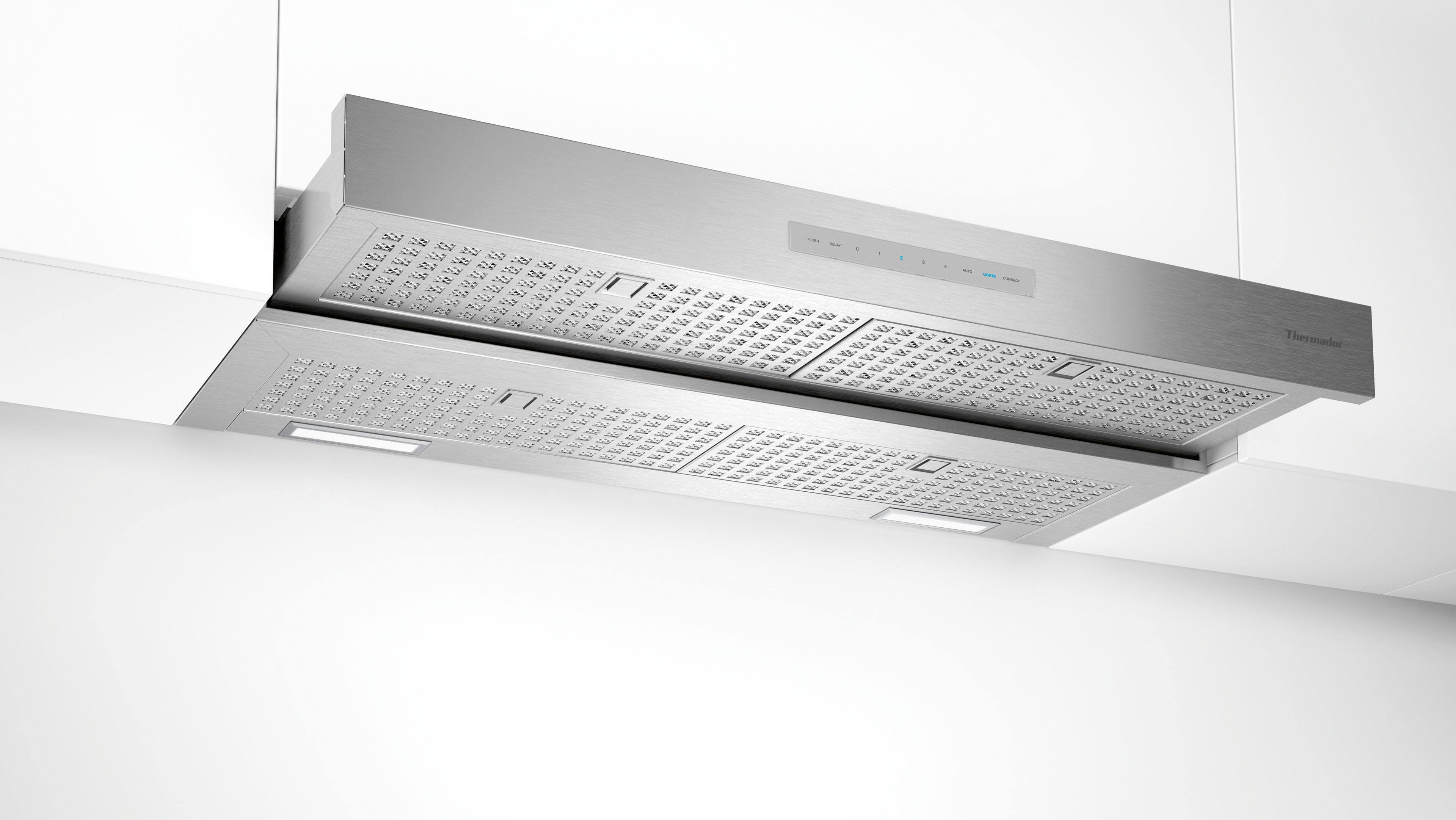

- Sliding canopy for a flush design: Featuring a sliding canopy that can be pulled forward or pushed back. You can pull the canopy open for increased capture, or push back for flush design. Creates a continuous line of sight when hood is not in use and is a great option for limited space.
- Noise Control Technology: Noise Control Technology utilizes insulation that reduces noise up to 35% compared to hoods without it - so you can focus on entertaining.
- Wi-Fi Enabled for a fully connected experience: Wi-Fi Enabled allows for remote monitoring and control of lights and fan speed, notification to clean the grease filter via Home Connect app, works with smart home devices and services like Amazon Alexa.
- Delay Shut Off & Automatic Mode: Delay Shut Off & Automatic Mode features an Automatic Mode, that adjusts the fan speed according to your cooking style, as well as Delay Shut Off, which runs the hood 10 minutes after you are done cooking to remove any lingering odors.
- Beautiful illumination with LED Lighting: LED Lighting highlights your meal from first course to last with multi-level vivid LED Lighting.

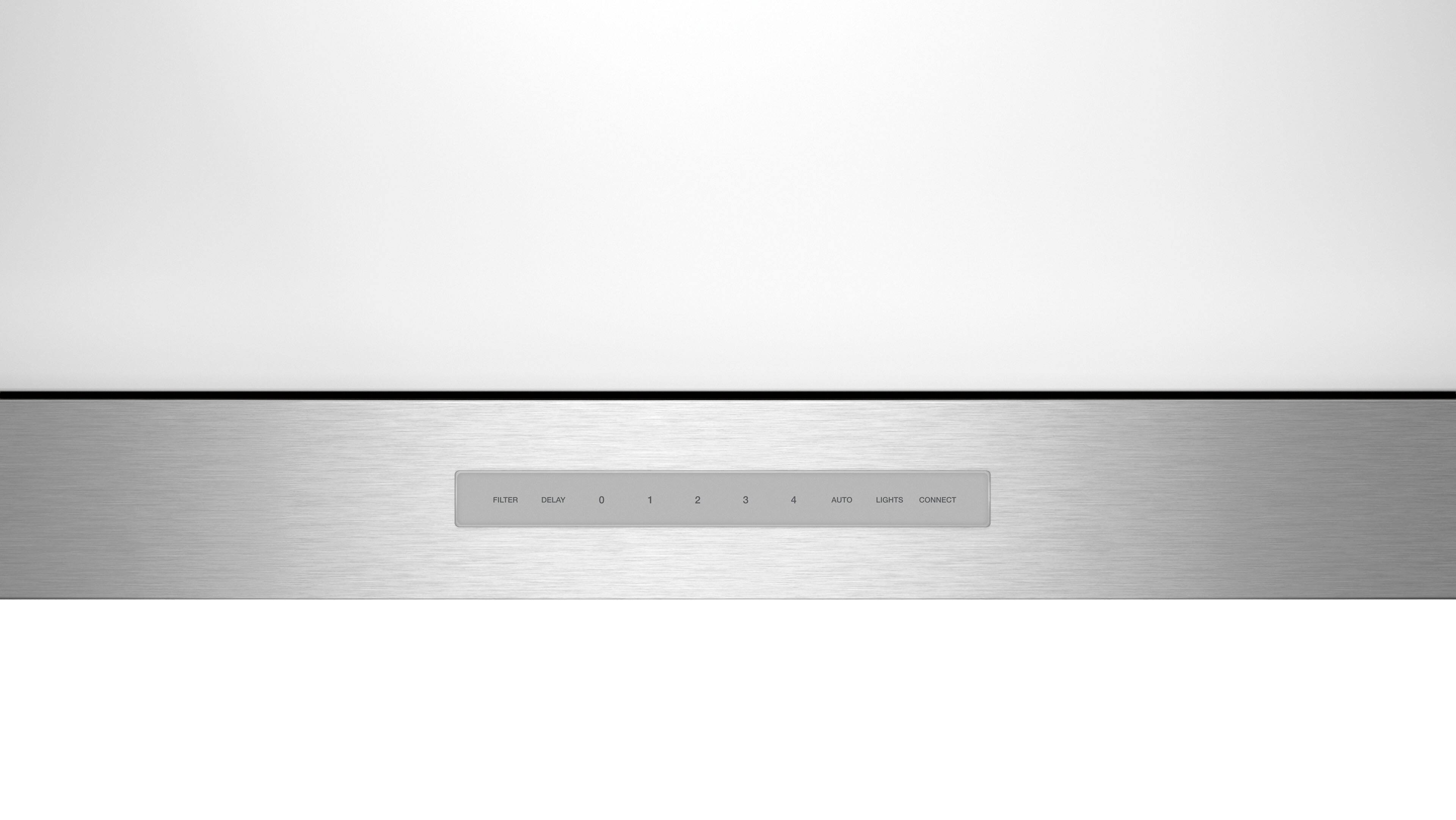

- Electronic Touch Control Panel: Sleek Electronic Touch Control Panel provides convenient control that is easy-to-use and easy-to-clean.
- Hood Sync: Freedom and Liberty Induction cooktops and matching ventilation hood can communicate to synchronize turning on task lighting and ventilation automatically when in use. Hood Sync between ventilation and cooktops is available only on Thermador Freedom and Liberty cooktops with Home Connect.
- Grease filter reminder: The filter button will illuminate when dishwasher safe grease filter needs to be cleaned to ensure optimal performance.
- 4 Fan speeds for the perfect air flow for any cooking situation: Thermador hoods can handle high-power cooking for any cooking situation with 4 fan speeds so you can choose the perfect power level to pull air and filter contaminants.
- Sliding canopy for a flush design: Featuring a sliding canopy that can be pulled forward or pushed back. You can pull the canopy open for increased capture, or push back for flush design. Creates a continuous line of sight when hood is not in use and is a great option for limited space.
- Noise Control Technology: Noise Control Technology utilizes insulation that reduces noise up to 35% compared to hoods without it - so you can focus on entertaining.
- Wi-Fi Enabled for a fully connected experience: Wi-Fi Enabled allows for remote monitoring and control of lights and fan speed, notification to clean the grease filter via Home Connect app, works with smart home devices and services like Amazon Alexa.
- Delay Shut Off & Automatic Mode: Delay Shut Off & Automatic Mode features an Automatic Mode, that adjusts the fan speed according to your cooking style, as well as Delay Shut Off, which runs the hood 10 minutes after you are done cooking to remove any lingering odors.
- Beautiful illumination with LED Lighting: LED Lighting highlights your meal from first course to last with multi-level vivid LED Lighting.
- Electronic Touch Control Panel: Sleek Electronic Touch Control Panel provides convenient control that is easy-to-use and easy-to-clean.
- Hood Sync: Freedom and Liberty Induction cooktops and matching ventilation hood can communicate to synchronize turning on task lighting and ventilation automatically when in use. Hood Sync between ventilation and cooktops is available only on Thermador Freedom and Liberty cooktops with Home Connect.
- Grease filter reminder: The filter button will illuminate when dishwasher safe grease filter needs to be cleaned to ensure optimal performance.
- 4 Fan speeds for the perfect air flow for any cooking situation: Thermador hoods can handle high-power cooking for any cooking situation with 4 fan speeds so you can choose the perfect power level to pull air and filter contaminants.
Whats Included
- Thermador MASTERPIECE SERIES HMDW36WS
- Damper kit
- Owner's manual
- Thermador MASTERPIECE SERIES HMDW36WS
- Damper kit
- Owner's manual
Q: How many fan speed settings does this Thermador range hood have?
A: This Thermador range hood offers 4 fan-speed settings.
Q: What type of ductwork is this range hood designed to fit?
A: It is designed to fit standard 8" round ductwork.
Q: Does this range hood have a grease filter reminder?
A: Yes, the filter button will illuminate when the dishwasher safe grease filter needs to be cleaned.
Q: Does this range hood come with a damper?
A: Yes, this range hood includes a damper to prevent smoke and odors from recirculating.
Q: What is the finish of this range hood?
A: This range hood has a stainless steel finish.
Q: What is the exhaust capacity of this range hood?
A: This range hood has an exhaust capacity of 600 cfm.
Q: Which parts we need to have this unit to operate with the exhaust ventilation?
A: Hi Elsa, thank you for your question and interest in Model:HMDW36WS. These are the parts needed:• Ducting as needed (refer to Equivalent Duct Lengths for Commonly Used Transitions Table) • Aluminum tape (DO NOT use duct tape) • 1/2’’ (13 mm) Conduit if required (follow local codes) • 1’’ (25.4 mm) Strain relief • Ducting as needed • Flat head and Phillips screwdrivers • Drill with 3/16’’ (4.76 mm) drill bit • Circular saw or jigsaw • 3/8’’ (9.52 mm) nut driver or socket and ratchet • Wire stripper • Protective work gloves. If you have further questions and would like to speak to a live agent, please reach out to our Customer Support Team at 800-735-4328.
Compare similar products
This Masterpiece Drawer hood provides a flexible setup that lets you choose between a pulled canopy for wider capture and a pushed-back placement for a flat look. Maintain a quiet kitchen with the exclusive Noise Control Technology. The hood is Wi-Fi enabled which allows for remote monitoring, control of lights, fan speed and notification to clean the grease filter via the Home Connect app. The multi-level LED lights of this Thermador wall hood offer stylish and functional illumination.
Enhance your Thermador cooktop experience with this 36-inch Masterpiece downdraft ventilation. It blends seamlessly into the countertop and is the perfect space-saving solution equipped with easy-to-remove, dishwasher-safe filters. Capture heat, smoke, grease, and steam with the Masterpiece 18-inch telescopic rise, and discharge using one of six different options. The heat sensing functionality automatically adjusts the fan speeds for you, while Powerfully Quiet technology keeps the blower noise to a minimum.
Enhance your Thermador cooktop experience with this 36-inch Masterpiece downdraft ventilation. It blends seamlessly into the countertop and is the perfect space-saving solution equipped with easy-to-remove, dishwasher-safe filters. Capture heat, smoke, grease, and steam with the Masterpiece 15-inch telescopic rise, and discharge using one of six different options. The heat sensing functionality automatically adjusts the fan speeds for you, while Powerfully Quiet technology keeps the blower noise to a minimum.
This stainless steel wall mount kitchen hood looks great and provides the right amount of ventilation for every meal you prepare thanks to the 3-speed, 400 CFM motor class. Bright, long-lasting LED task lighting makes it easy to see what you're cooking. Plus, the range hood's convertible ventilation means you can vent vapors and odors outside or filter them and recirculate the air, depending on your kitchen ventilation system setup. When venting at low speed, sound levels can get as low as 44 dBA.
Specs
Reviews
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Well made terrific kitchen pull out exhaust hood!
My wife and I love this exhaust hood. We opted to replace a Kitchen Aid pull out exhaust hood with the same style of hood but from Thermador. It is much more powerful and with a more sleek design. There are 4 vent filters which makes cleaning easier, The only thing we did not like was the 6 month lead time because it was back ordered. The installers were terrific!
Posted by Rong
