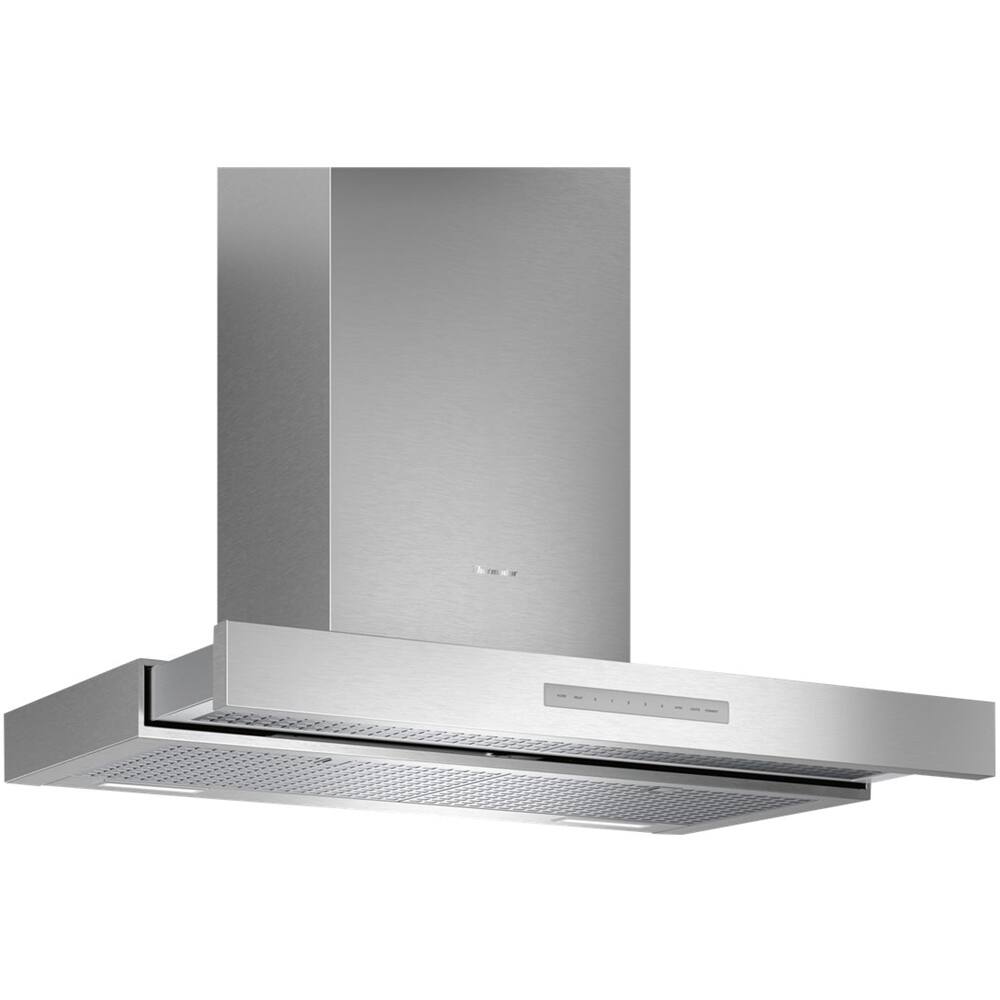

Thermador Masterpiece - 36 inches - Externally Vented & Recirculating - Wall Range Hood - Stainless Steel
Thermador Masterpiece - 36 inches - Externally Vented & Recirculating - Wall Range Hood - Stainless Steel
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Specifications
- Color FinishStainless steelProduct Height3 1/4 inchesProduct Width35 15/16 inchesProduct Depth18 3/16 inchesExhaust Vent LocationTopVent TypeDucted, Ductless
- Key Specs
- Color Finish: Stainless steel
- Product Height: 3 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 3/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: External, Recirculating (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Works With: Amazon Alexa, Google Home, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Thermador
- Model Number: HDDB36WS
- Product Name: MASTERPIECE SERIES 36" Convertible Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: Thermador Masterpiece (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 3 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Product Width: 35 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 3/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 38 pounds (The out of box weight of the item.)
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: External, Recirculating (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number of Fan Speeds: 4
- Temperature Sensor: true (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touch pad
- Display Type: None
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 2.4 watts
- Performance
- Maximum Air Flow Capacity: 600 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Filter Info
- Filter Material: Stainless steel
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): cULus (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- Works With: Amazon Alexa, Google Home, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 825225935834

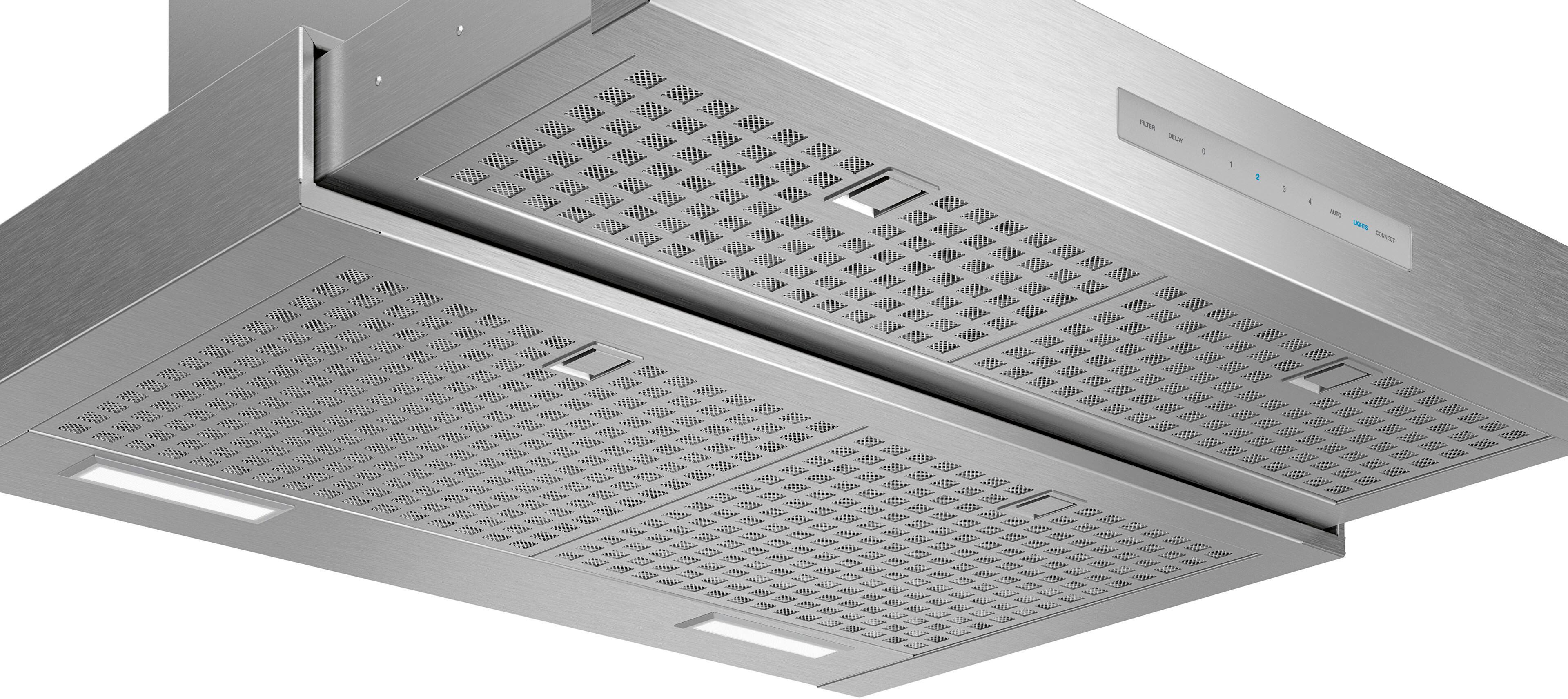

Masterpiece Chimney Drawer hoods blend luxury and performance, featuring a canopy that can be pulled forward or pushed back. Noise Control Deluxe greatly reduces noise while hood is in use. The hood is Wi-Fi enabled which allows for remote monitoring, control of lights, fan speed and notification to clean the grease filter via the Home Connect app. Auto function senses the heat from the cooking surface and adjusts the fan speeds automatically. The multi-level LED lights offer stylish and functional illumination.
- Noise Control Deluxe: Noise Control Deluxe notably reduces noise while hood is in use—so you can keep your focus on entertaining. Noise Control Deluxe utilizes perimeter filters and insulation to reduce noise.
- Wi-Fi Enabled for a fully connected experience: Wi-Fi Enabled allows for remote monitoring and control of lights and fan speed, notification to clean the grease filter via Home Connect app, works with smart home devices and services like Amazon Alexa.
- Delay Shut Off & Automatic Mode: Delay Shut Off & Automatic Mode features an Automatic Mode, that adjusts the fan speed according to your cooking style, as well as Delay Shut Off, which runs the hood 10 minutes after you are done cooking to remove any lingering odors.
- Beautiful illumination with LED Lighting: LED Lighting highlights your meal from first course to last with multi-level vivid LED Lighting.

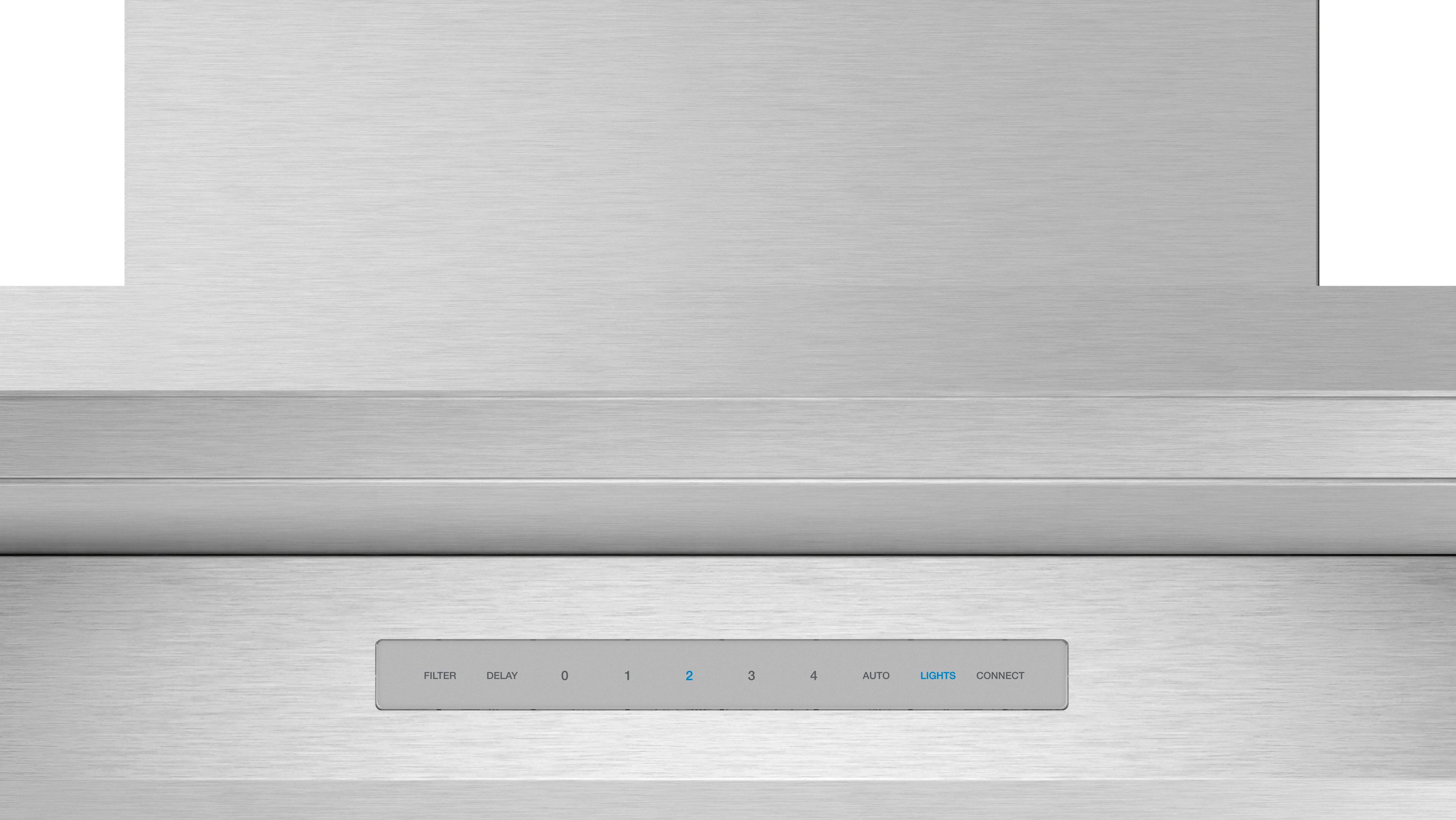

- Electronic Touch Control Panel: Sleek Electronic Touch Control Panel provides convenient control that is easy-to-use and easy-to-clean.
- Hood Sync: Freedom and Liberty Induction cooktops and matching ventilation hood can communicate to synchronize turning on task lighting and ventilation automatically when in use. Hood Sync between ventilation and cooktops is available only on Thermador Freedom and Liberty cooktops with Home Connect.
- Grease filter reminder: The filter button will illuminate when dishwasher safe grease filter needs to be cleaned to ensure optimal performance.
- 4 Fan speeds for the perfect air flow for any cooking situation: Thermador hoods can handle high-power cooking for any cooking situation with 4 fan speeds so you can choose the perfect power level to pull air and filter contaminants.
Whats Included
- Thermador MASTERPIECE SERIES HDDB36WS
- Damper kit
- Owner's manual
Q: How many fan speeds does this range hood have?
A: This range hood has 4 fan speeds to adjust ventilation.
Q: Does this range hood come with a damper?
A: Yes, a damper is included to prevent smoke and odors from recirculating.
Q: What type of ductwork is this range hood designed to fit?
A: It is designed to fit standard 8" round ductwork.
Q: Does this range hood have a grease filter reminder?
A: Yes, the filter button will illuminate when the dishwasher safe grease filter needs to be cleaned.
Q: What is the exhaust capacity of this range hood?
A: This range hood has an exhaust capacity of 600 cfm.
Q: What type of finish does the range hood have?
A: This range hood has a sleek stainless steel finish.
Q: What is the CFM for this unit? Also will this unit work to exhaust out of the exterior wall?
A: Hi SJC, thank you for your question and interest in Model:HDDB36WS. The maximum for this Range Hood is 600 CFM.
A: Hello Ahmi, thank you for reaching out with your question. It is important to follow the guidelines in the installation manual, which specify that the hood should be mounted at least 30 inches (76.2 cm) above the cooking surface. Given that kitchen layouts can differ, we recommend consulting a qualified installer to explore potential solutions. Please feel free to contact our customer care team at 1-800-735-4328 or [email protected] for further assistance.
