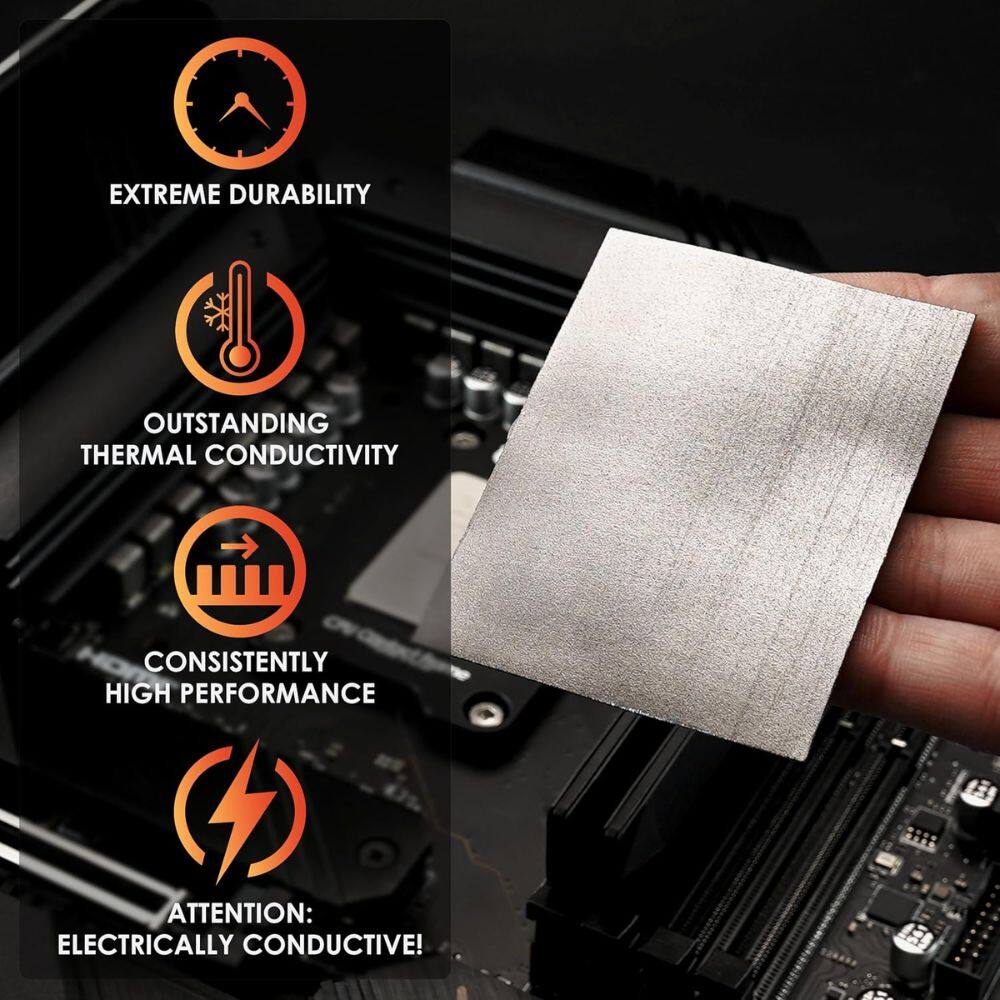

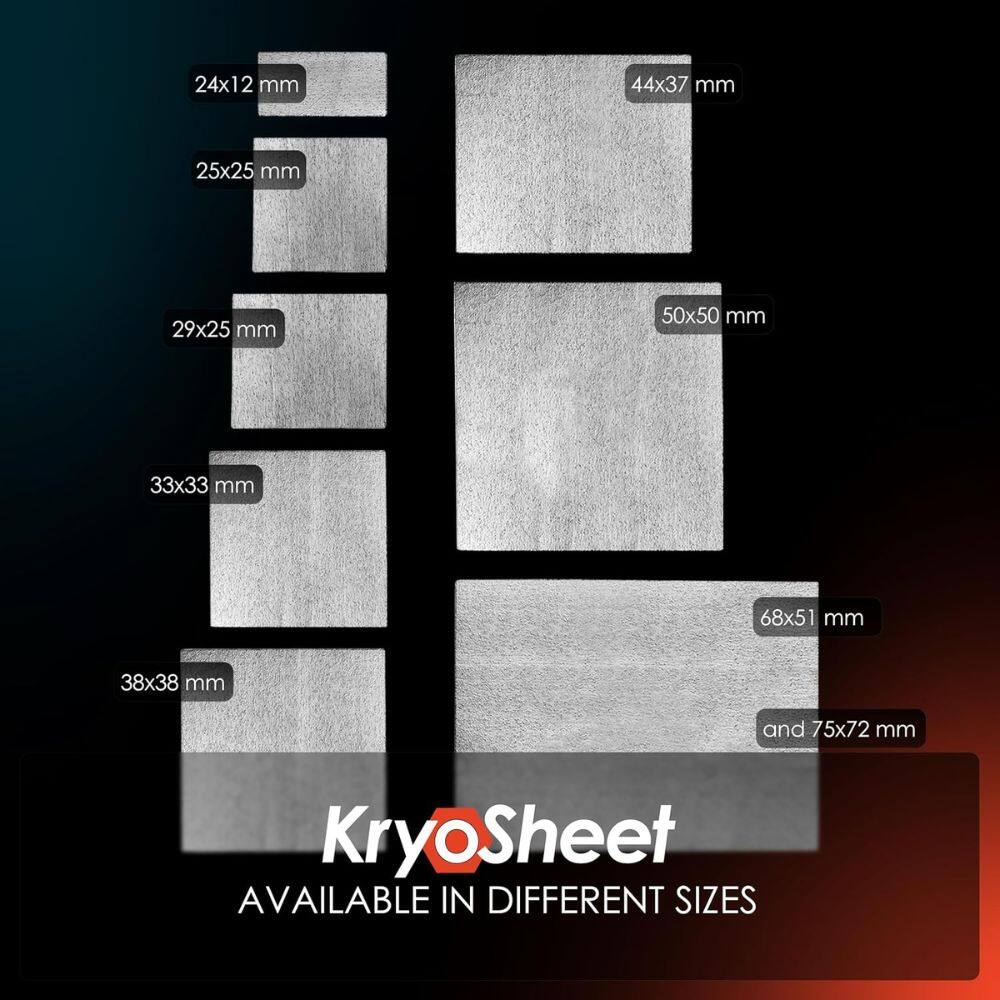

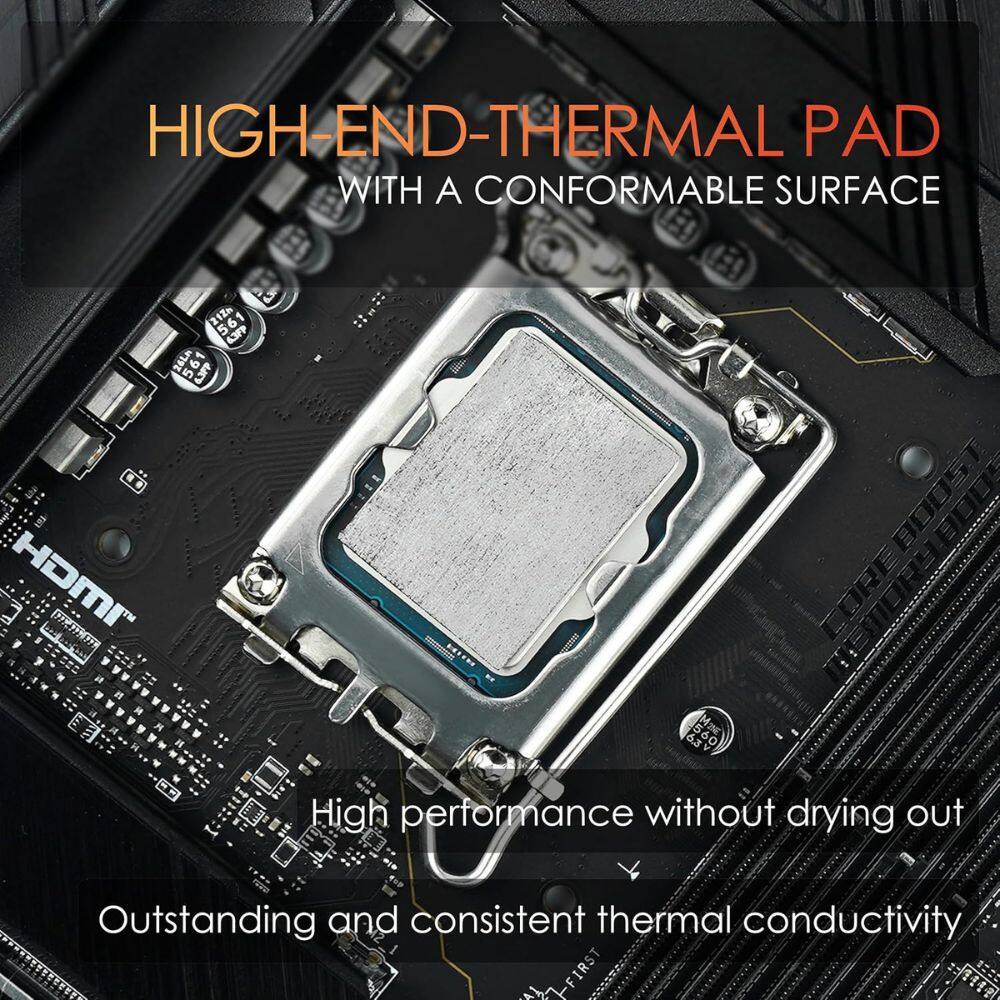

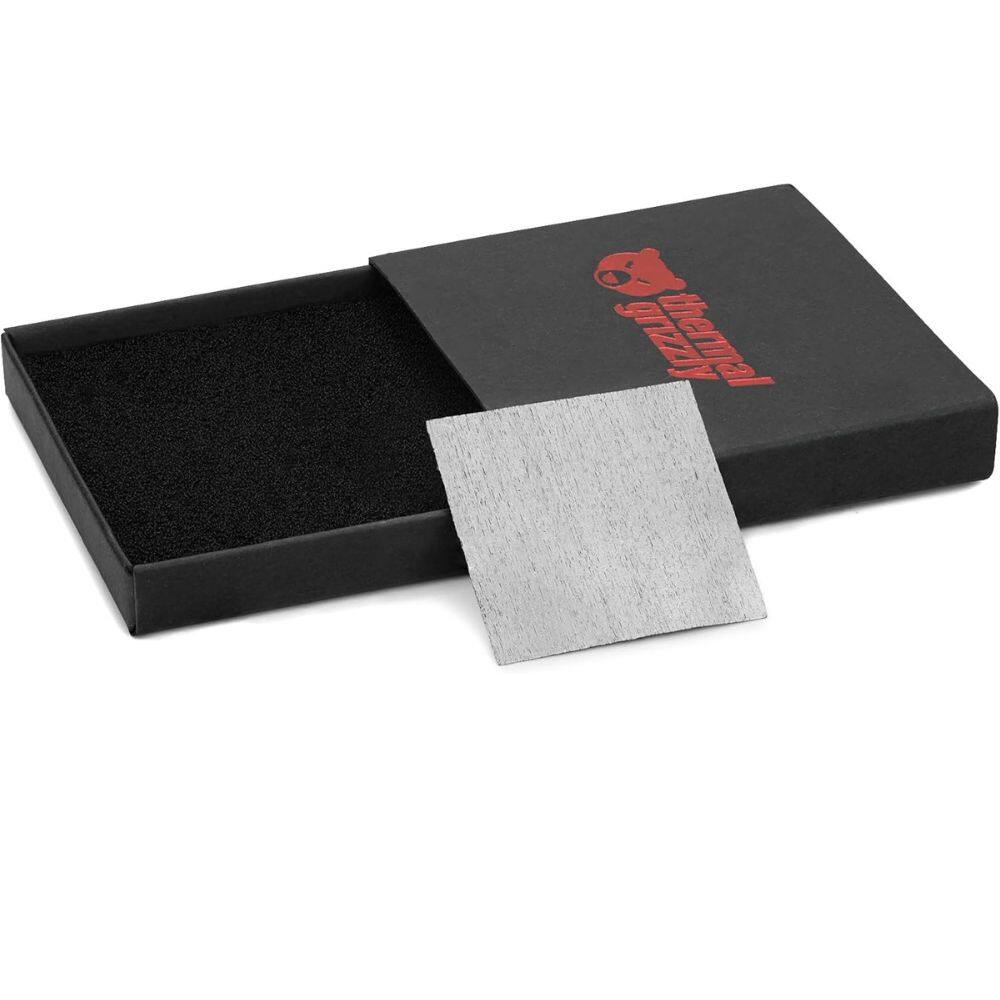

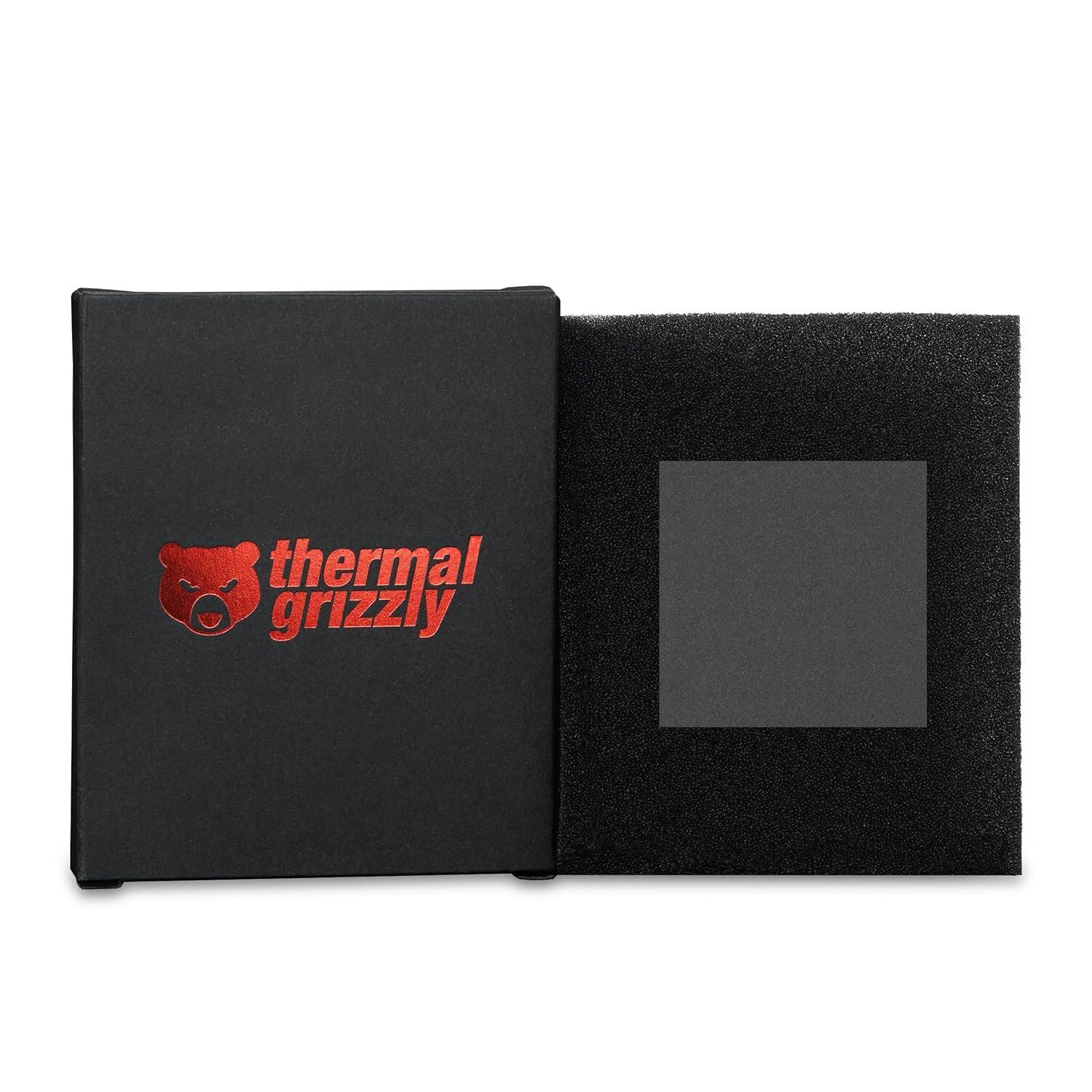

Thermal Grizzly - KryoSheet (33x33x0.2mm) – Ultra High Thermal Conductivity Graphene Thermal Pad for CPU/GPU/XBOX/PS4

The AM5 Contact Sealing Frame is specifically designed to evenly distribute pressure on the CPU and ensure optimal installation. With its precise construction, the contact frame provides increased stability and prevents unwanted stress on the processor.The optimized design improves the cooler's contact pressure, enhancing the heat transfer. This results in more efficient cooling and can positively impact both the performance and longevity of the CPU. A silicone foam inlay seals the gaps for added protection.High-Quality Accessories: Easy and Precise Installation. Included are an insulator sheet in red/black, four countersunk head screws (UNC thread 1/4"), and two hex keys (5/64" Allen key and T20 Torx key) for a secure and reliable mounting.The AM5 Contact Sealing Frame is fully compatible with the Ryzen 8000G series APUs as well as the Ryzen 9000 series CPUs, including the X3D variants.

The phase-change material on which the PhaseSheet PTM is based is solid at room temperature. The material only begins to liquefy at temperatures above 45 degrees Celsius. A high contact pressure of around 300-400N is required for optimum distribution of the liquid PhaseSheet PTM and thus the lowest possible layer thickness. PhaseSheet PTM has a very low viscosity in its liquid state and contracts again when it changes to a solid material, thus minimizing the pump-out effect. The pump-out effect is particularly pronounced when combining a copper cooler on a graphics chip because silicon and copper have different linear expansion when heated. The temperatures under load cause the heatspreader and the base plate to deform (concave or convex) and return to their original shape (straight) when they cool down. As a result, the thermal paste is slowly pressed out between the heatspreader and the base plate of the CPU cooler, for example. Outstanding thermal conductivity consistently high performance Very long service life Versatile in application Not electrically conductive Easy to use PhaseSheet PTM is more durable than traditional thermal pastes, but not as durable as KryoSheet, for example, which is virtually maintenance-free. PhaseSheet PTM develops and stabilizes its maximum thermal conductivity after around ten thermal cycles above 60 degrees Celsius. Scope of Delivery 1x PhaseSheet PTM

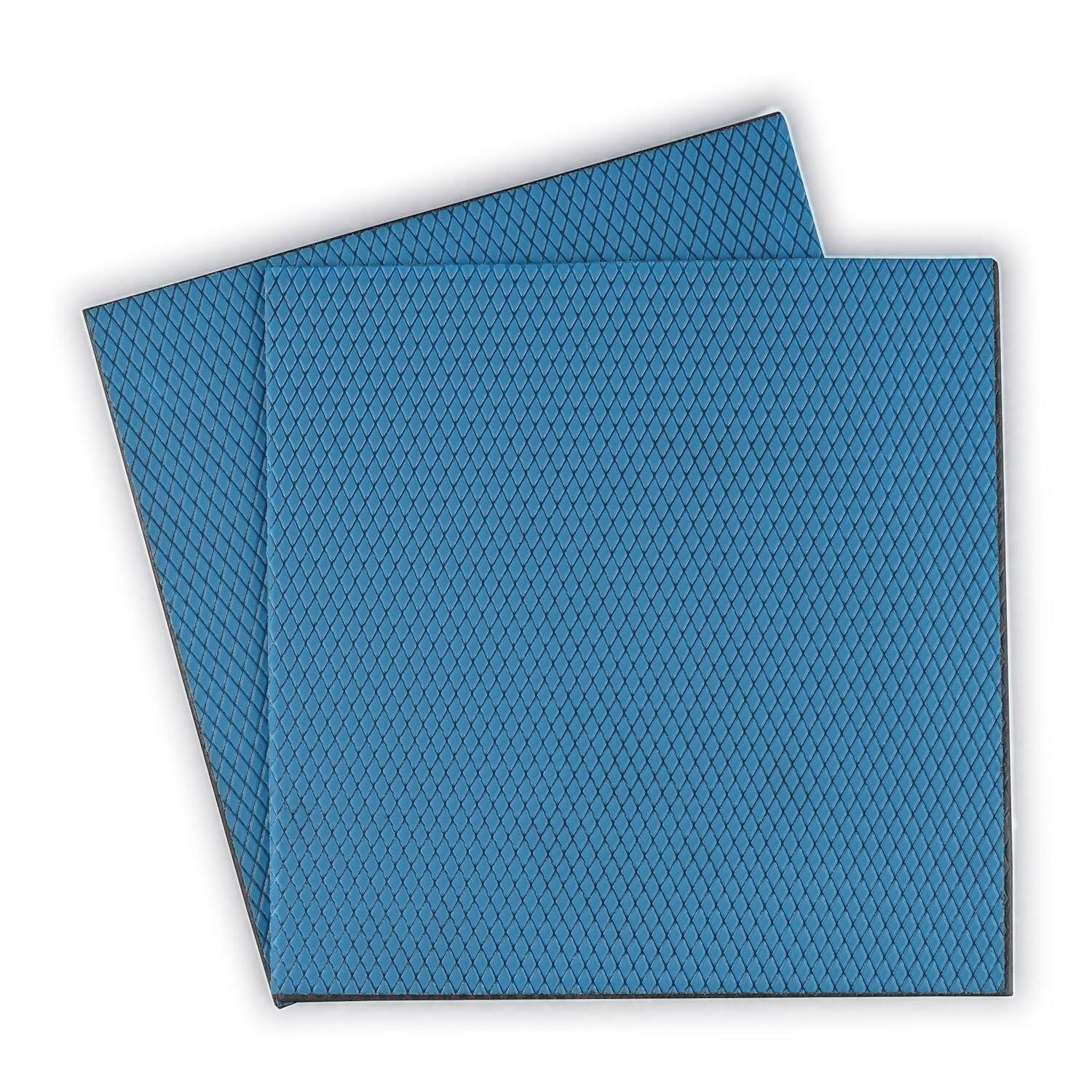

The minus pad 8 combines good thermal conductivity with a soft and flexible structure. It is designed to ensure optimal heat transfer. Thanks to its high adaptability, it perfectly compensates for surface irregularities and ensures even heat distribution.The minus pad 8 is the ideal choice for anyone in need of a reliable thermal interface solution. With its high compressibility, it adapts to different surfaces and enables efficient heat dissipation, even with low contact pressure.The minus pad 8 is available in 30x30mm, 100x100mm & 120x20mm sizes, with thickness options of 0.5mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm. Set packs are also available for some sizes.
