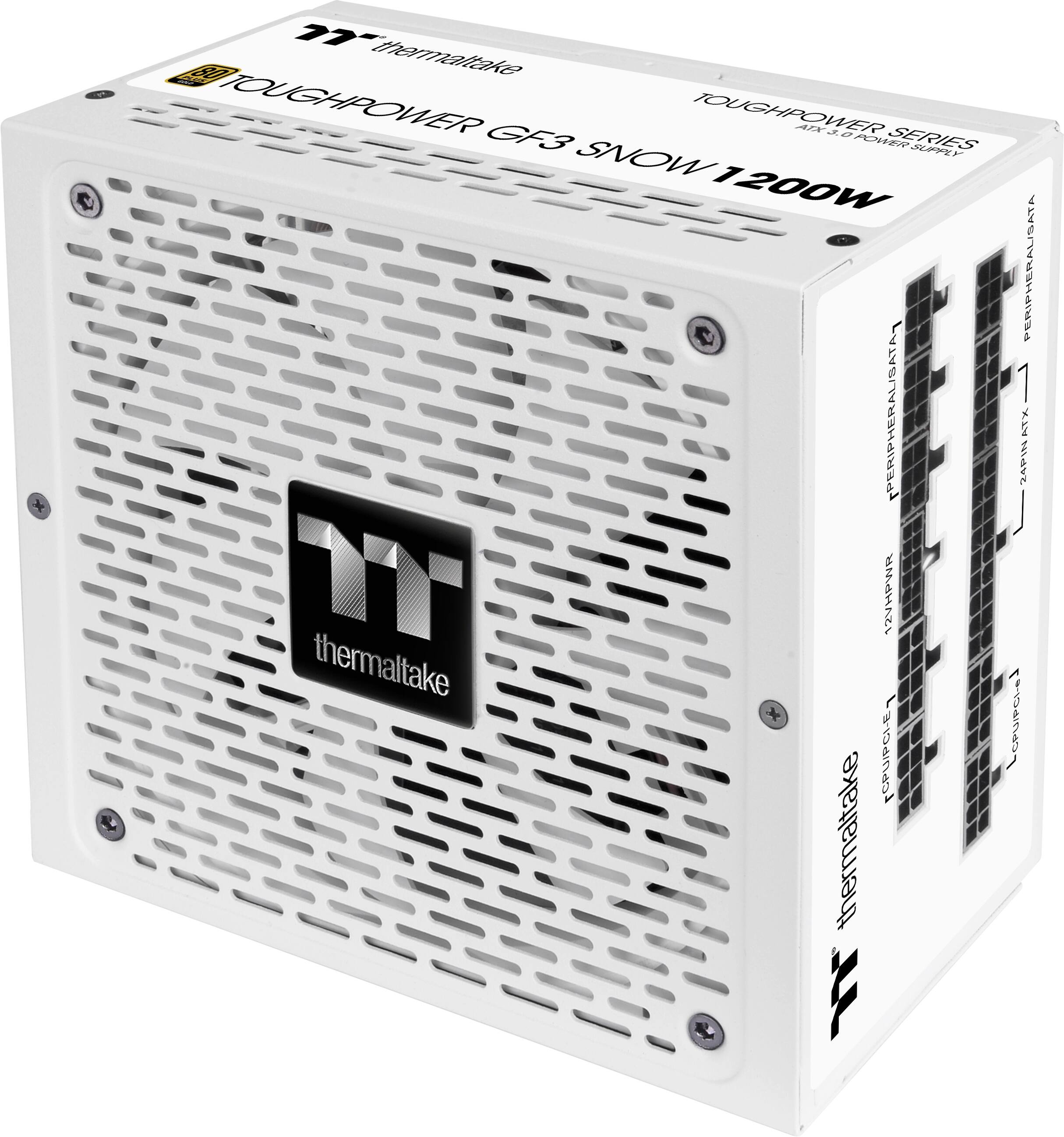

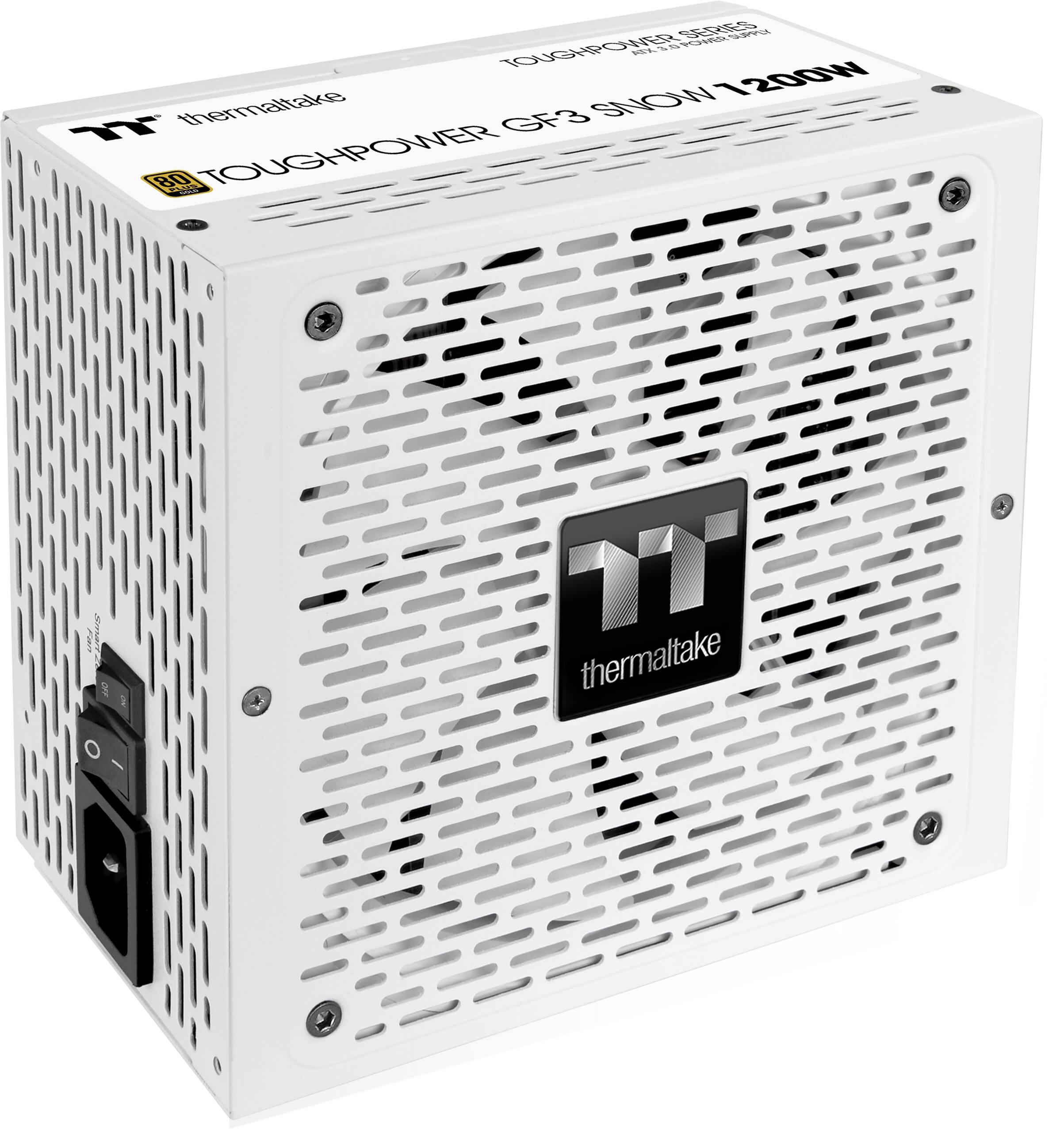

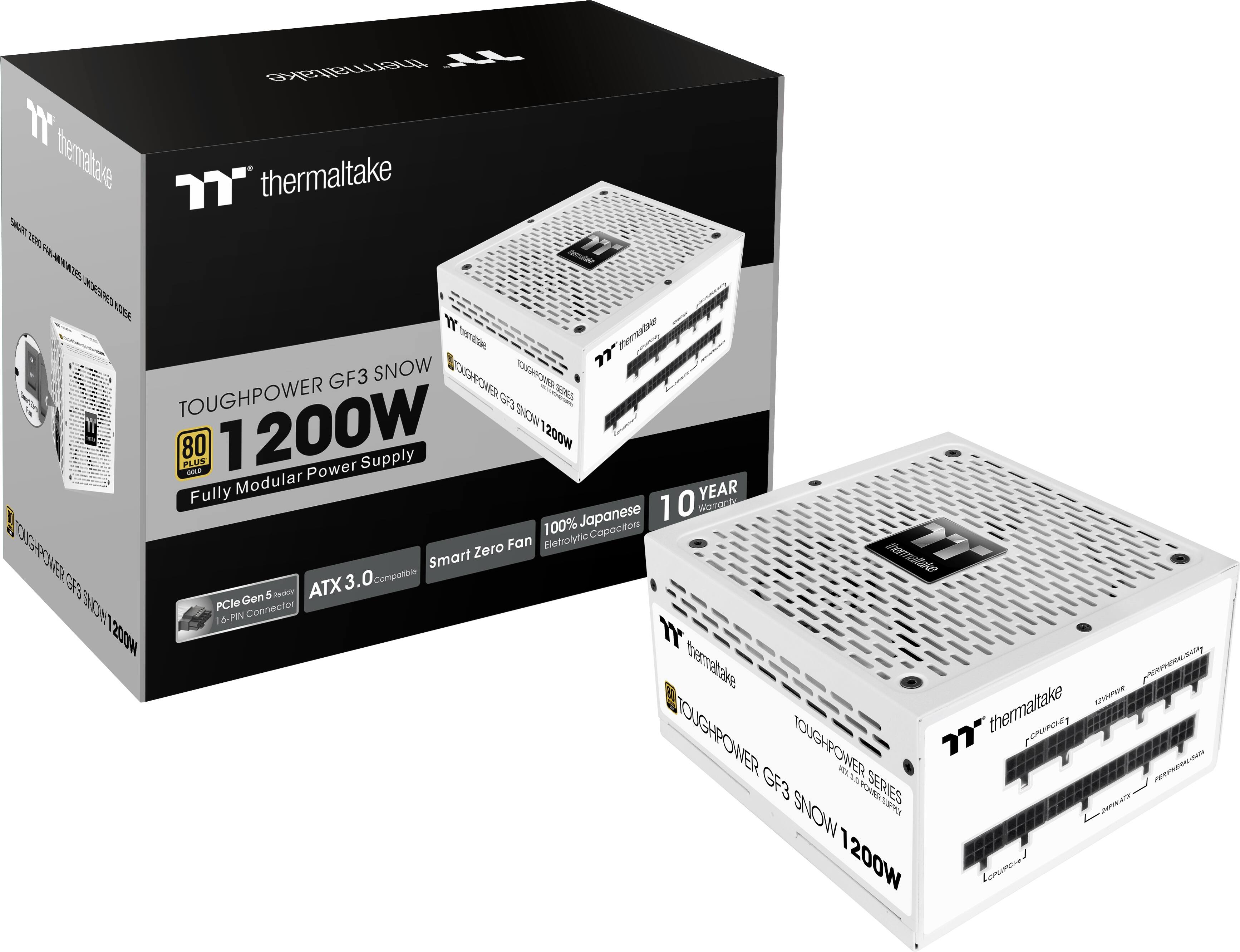

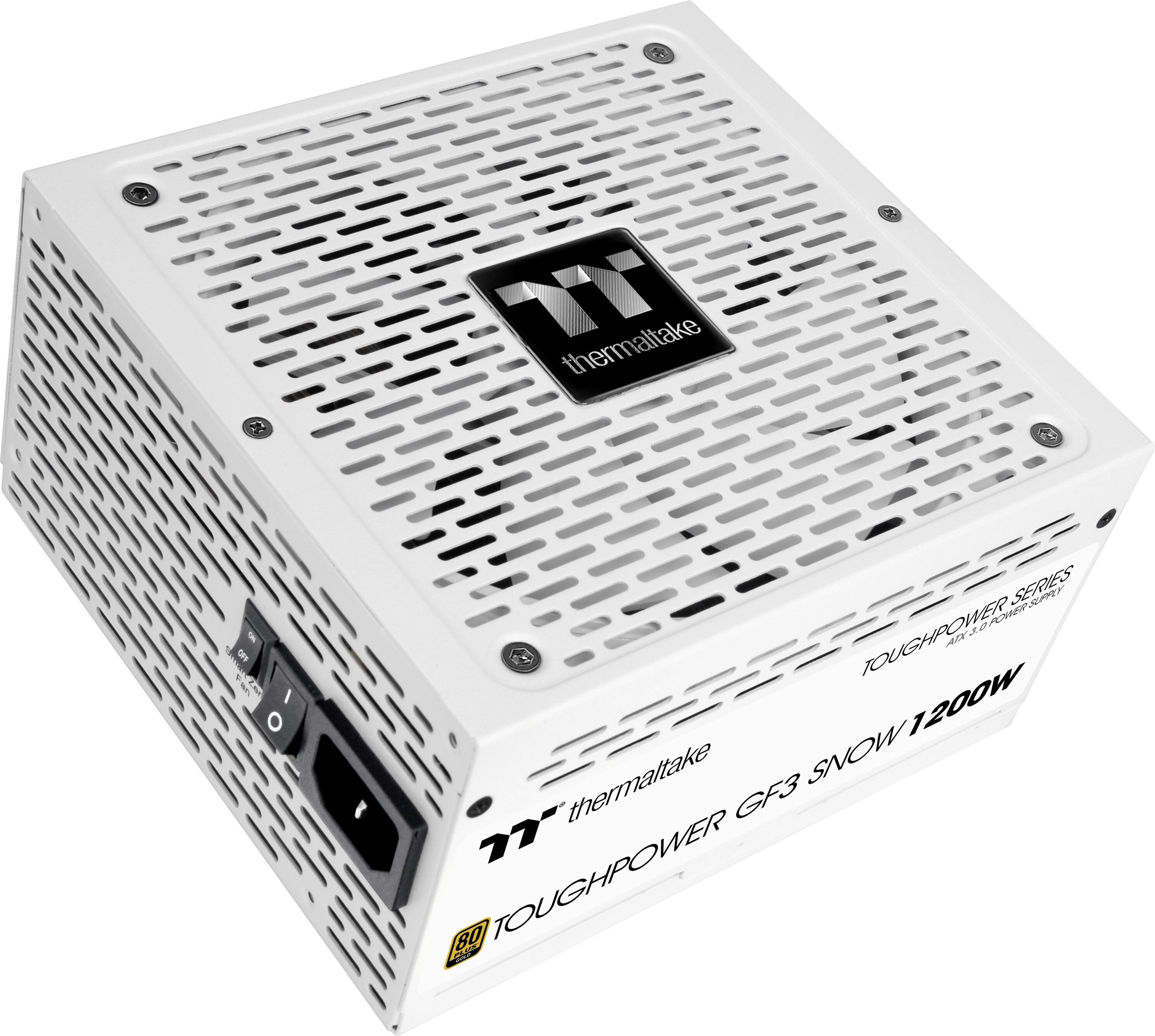

Thermaltake - GF3 1200W 80+ Gold PCIe Gen 5 ATX 3.0 Fully Modular Power Supply - Snow
Model: PS-TPD-1200FNFAGU-N
SKU: 6626423
This item is no longer available in new condition. See similar items below
- Key Specs
- Wattage: 1200 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 24pin Main connector (600mm) x 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 1 x PCI-E 12+4Pin connectors (600mm) x 1. 4 x PCI-E 6+2Pin connectors (500mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 8 x Peripheral connectors (500mm + 150mm + 150mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 8 x SATA connectors (500mm + 150mm + 150mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 x ATX 12V 4+4Pin (700mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 6.3 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: Thermaltake
- Model Number: PS-TPD-1200FNFAGU-N
- Product Name: GF3 1200W 80+ Gold PCIe Gen 5 ATX 3.0 Fully Modular Power Supply
- Color: Snow
- Power
- Wattage: 1200 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Cord Length: 1.97 feet
- Connectivity

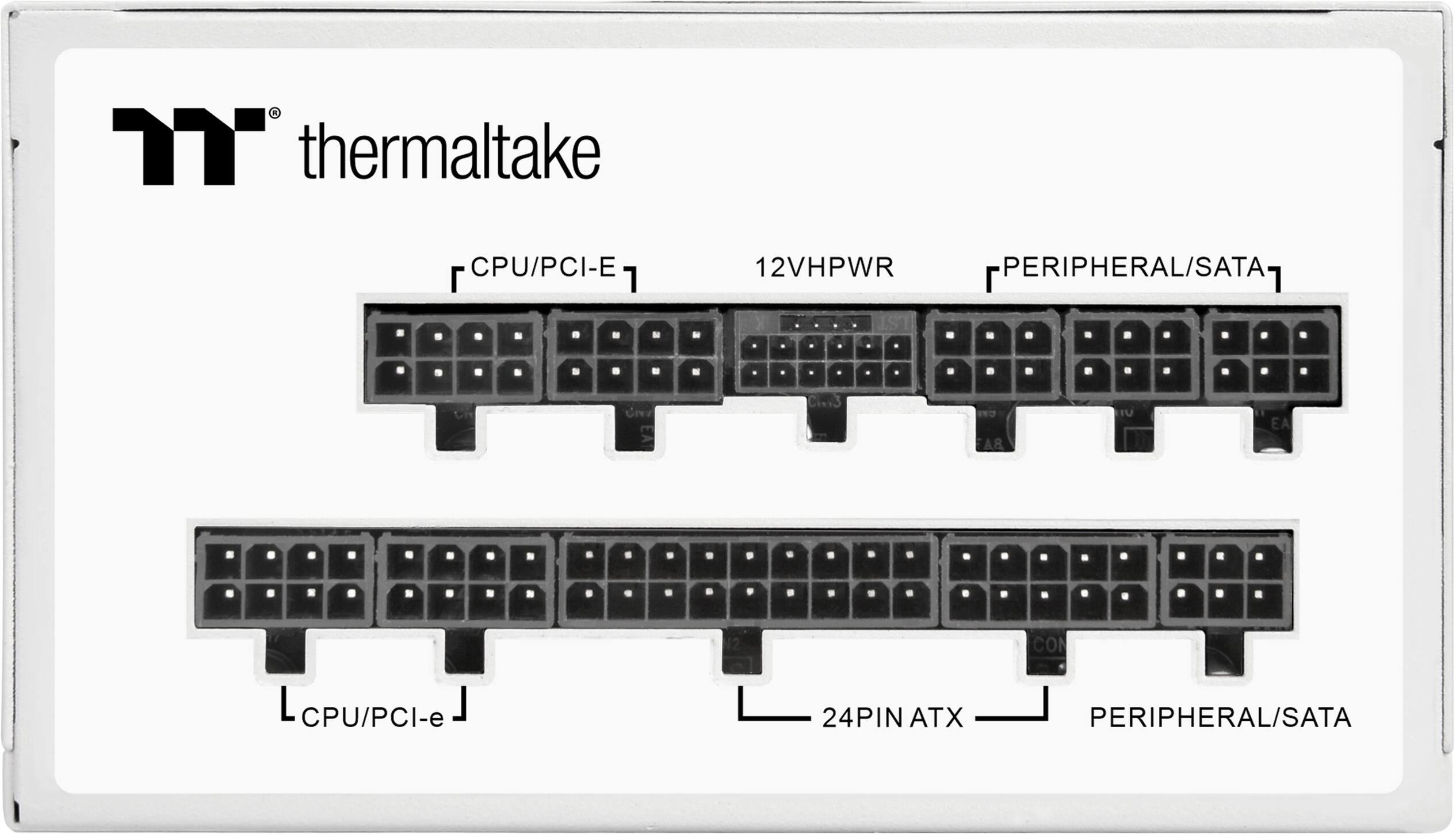

- ATX Connector: 24pin Main connector (600mm) x 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: Peripheral to Floppy adapter cable (100mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 1 x PCI-E 12+4Pin connectors (600mm) x 1. 4 x PCI-E 6+2Pin connectors (500mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 8 x Peripheral connectors (500mm + 150mm + 150mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 8 x SATA connectors (500mm + 150mm + 150mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 x ATX 12V 4+4Pin (700mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 3.4 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 5.9 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 6.3 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 4.1 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)

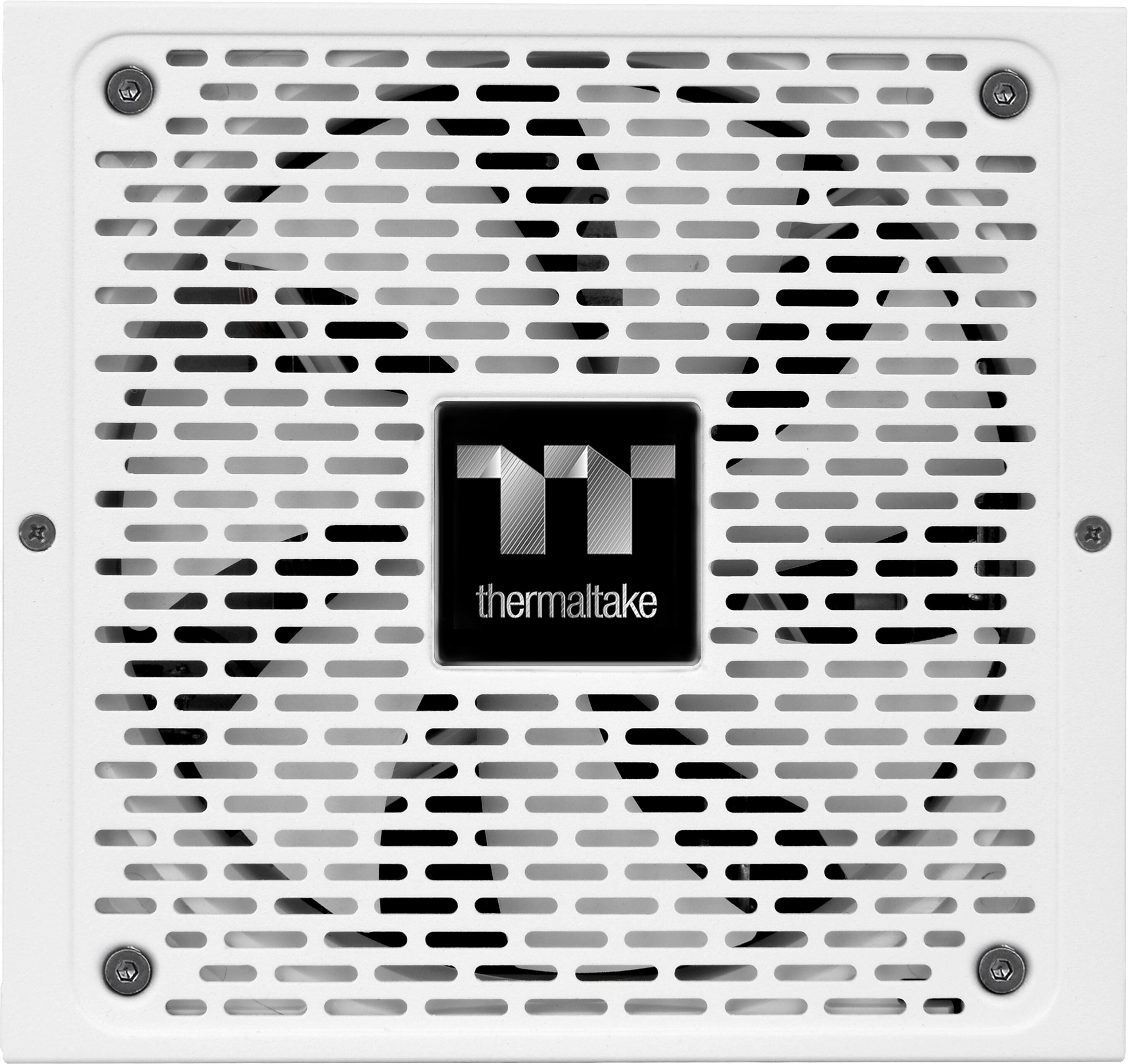

- Cooling Fan Type: 140mm Fluid Dynamic Bearing Fan
- Number of Fans Included: 1
- Features
- Lighting Type: None
- Warranty
- Warranty - Parts: 10 years
- Warranty - Labor: 10 years
- Other
- UPC: 841163090367

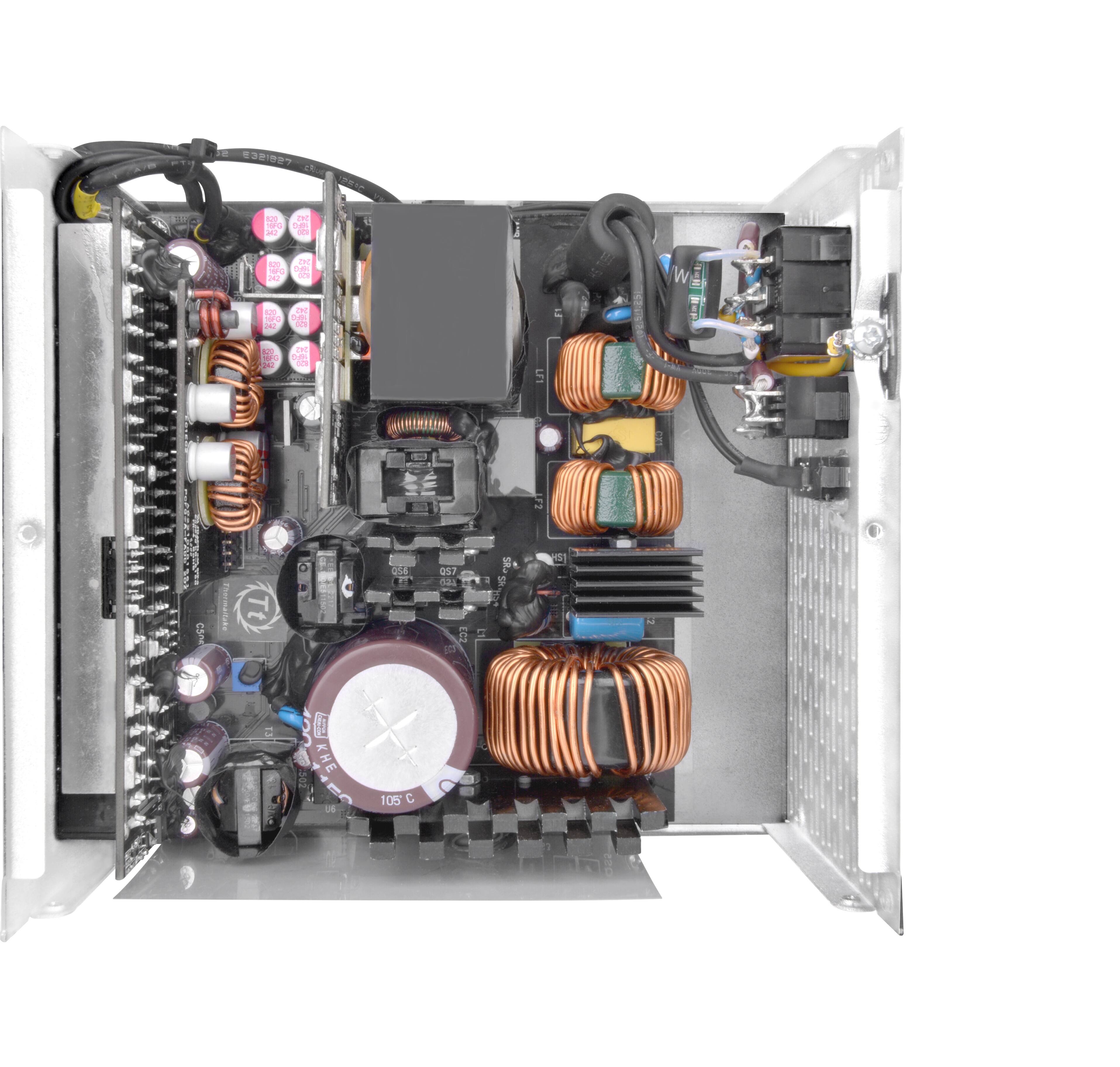

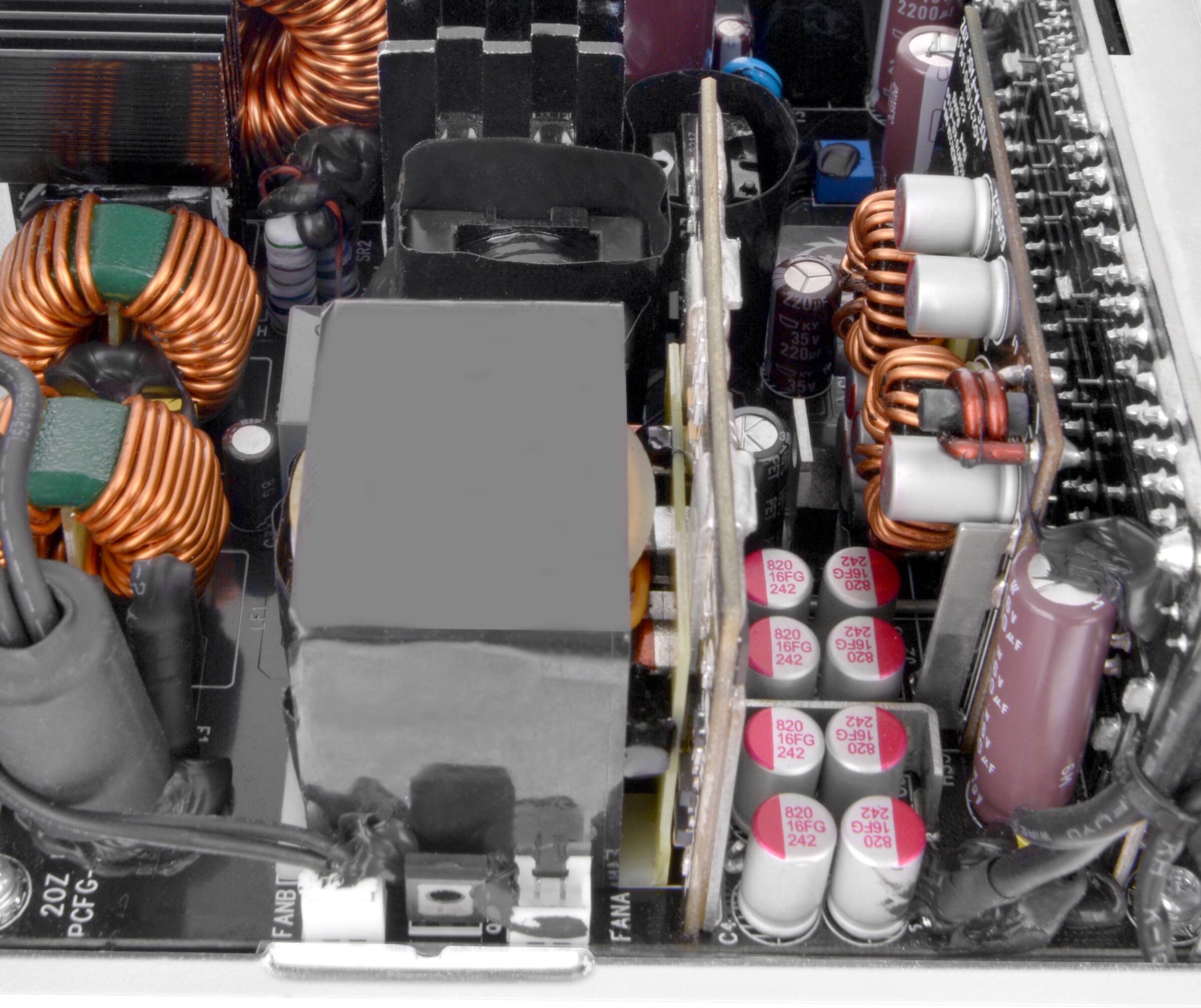

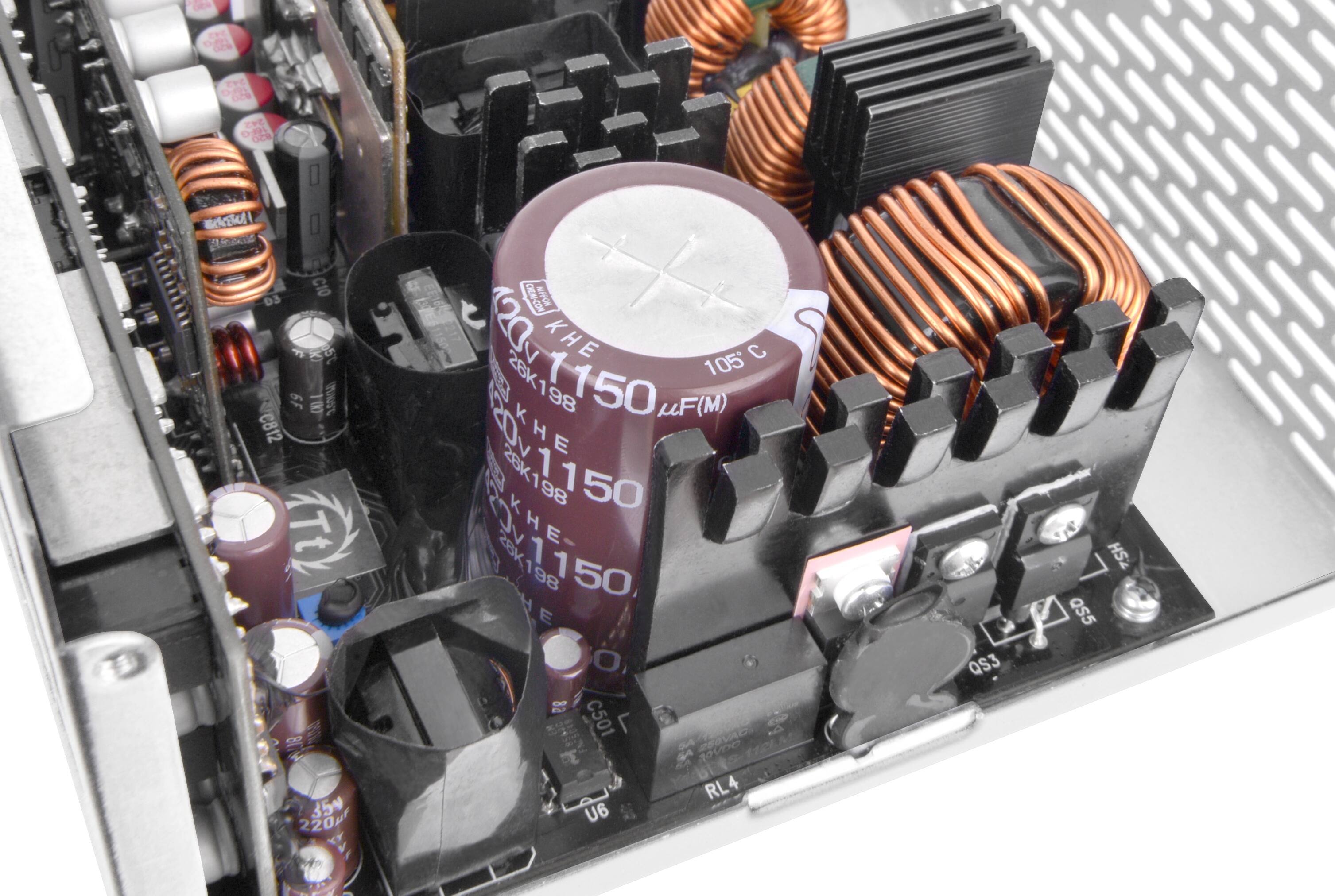

Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series is compatible with Intel‘s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards. It can pipe up to 600W of power to PCIe 5.0 graphics cards. PCIe Gen 5.0 Ready! Designed with a native PCIe 12+4pin modular connector, the Toughpower GF3 series is built for the next-gen PCIe 5.0 graphics cards and is compatible with Intel ATX 3.0 specifications. The fully modular Toughpower GF3 series comes in 1650W, 1350W, 1200W, 1000W, 850W and 750W and is built to deliver 80 PLUS Gold efficiency. Aimed at providing the best performance, the Toughpower GF3 1200W includes all the critical features such as < 30mV low ripple noise design, extremely strict voltage regulation < ±2%, hold up time> 17 milliseconds, and comes with 100% high quality Japanese capacitors and other premium components to help deliver continuous and stable power. GF3 1000W also features with Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise, and a 135mm fluid bearing fan to guarantee superior cooling performance.

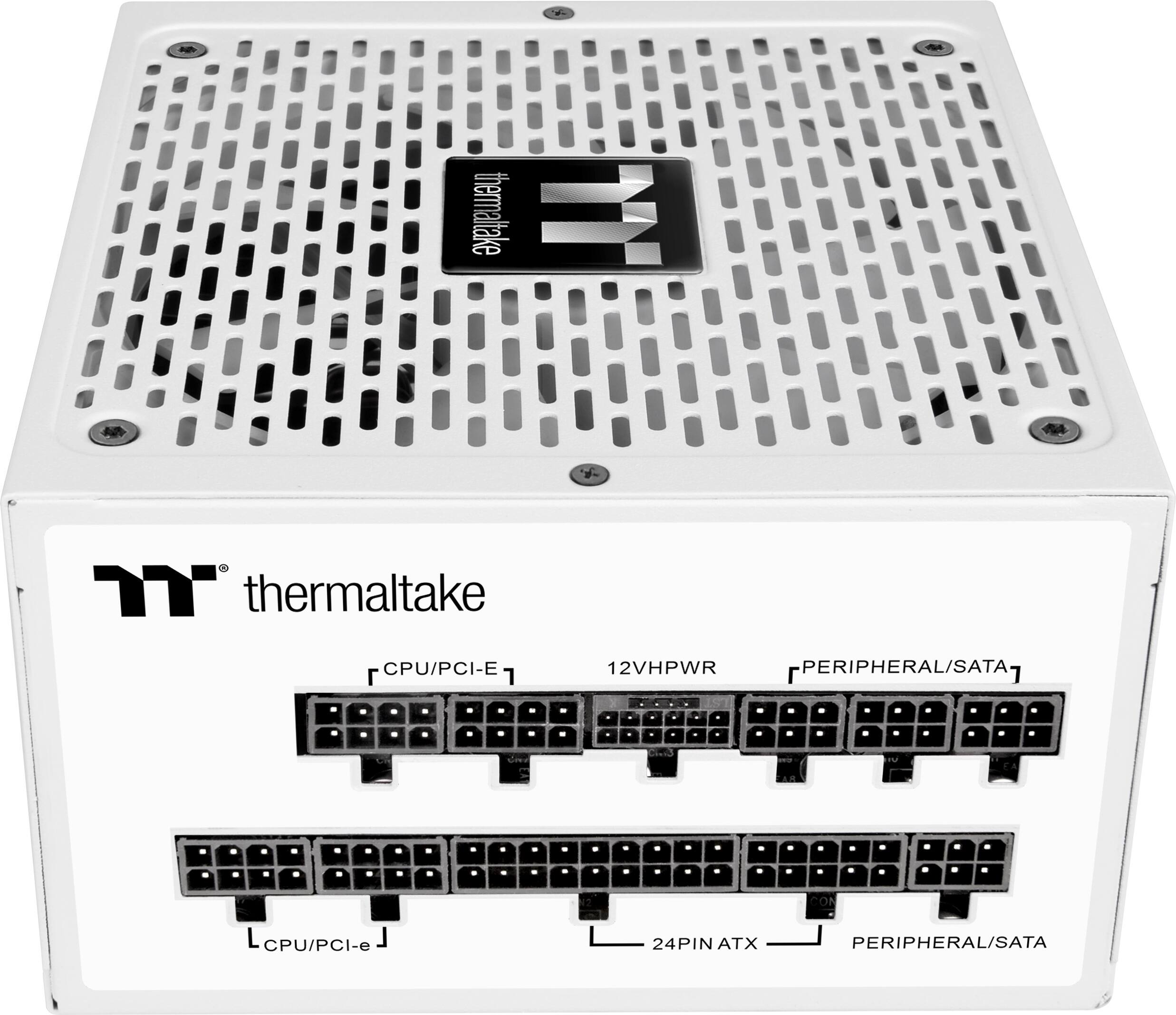

- Fully Modular: Only connect the cables your system needs, making clean and tidy builds easier.
- 135mm Fluid Dynamic Bearing Fan: Featuring a 135mm fluid bearing fan to guarantee superior cooling performance.

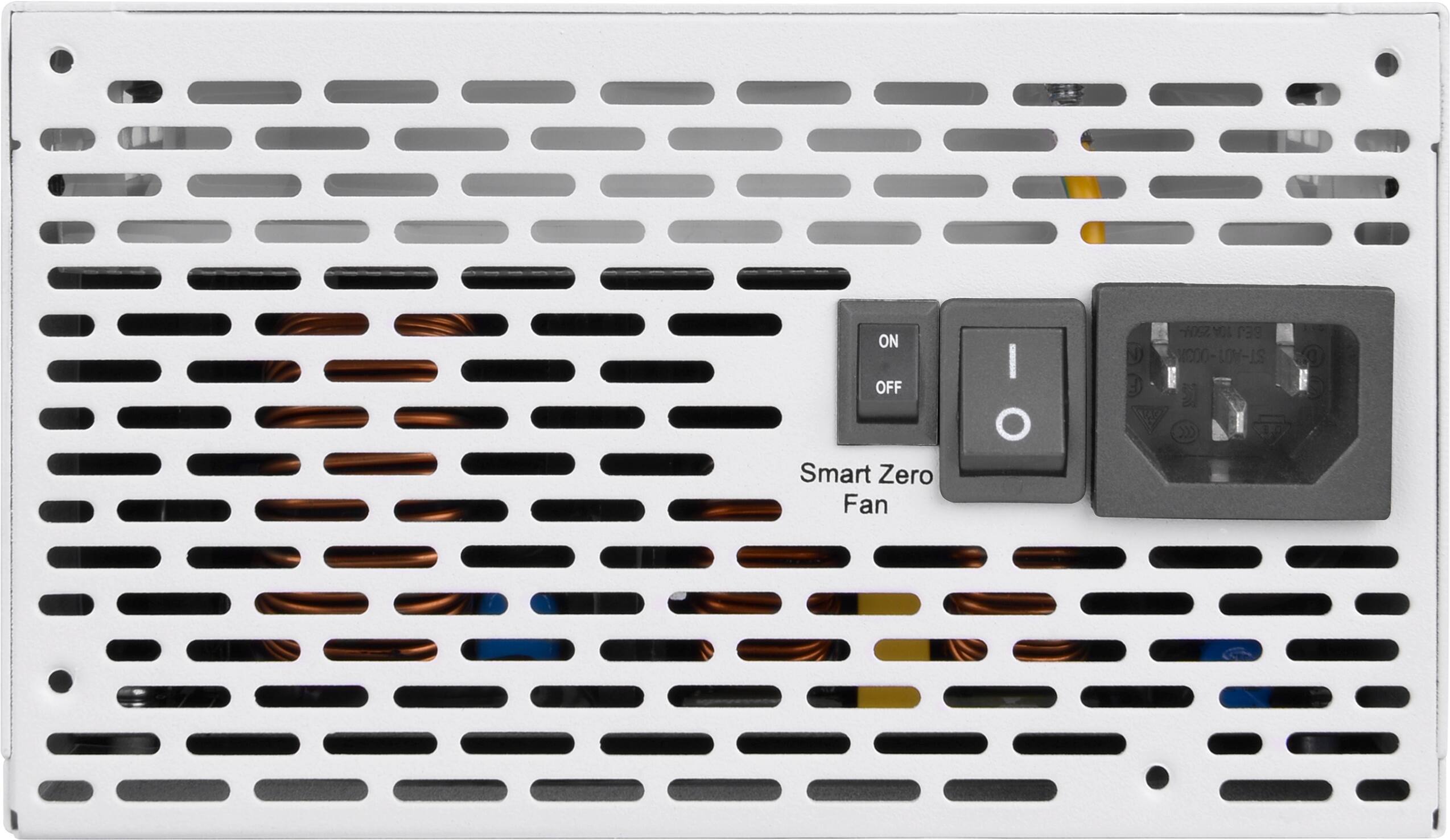

- Ultra Quiet Smart Zero Fan: Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.
- Fully Modular Low-Profile Flat Cable: Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
- Fully Compatible With Intel PSDG ATX 3.0 Specifications: Fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards. Also can sustain up to 3x GPU power excursion and 2x total power excursion.
- PCIe Gen 5.0 Ready: Comes with two 16pin connectors to offer powerful and stable performance allowing the PSU to run next-generation GPUs naturally.
- Ten-Year Warranty: Your guarantee of reliable operation that will last across several system builds
- Fully Modular: Only connect the cables your system needs, making clean and tidy builds easier.
- 135mm Fluid Dynamic Bearing Fan: Featuring a 135mm fluid bearing fan to guarantee superior cooling performance.
- Ultra Quiet Smart Zero Fan: Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.
- Fully Modular Low-Profile Flat Cable: Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
- Fully Compatible With Intel PSDG ATX 3.0 Specifications: Fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards. Also can sustain up to 3x GPU power excursion and 2x total power excursion.
- PCIe Gen 5.0 Ready: Comes with two 16pin connectors to offer powerful and stable performance allowing the PSU to run next-generation GPUs naturally.
- Ten-Year Warranty: Your guarantee of reliable operation that will last across several system builds
Whats Included
- 1x GF3 Snow 1200W 80+ Gold Power Supply
- 1x GF3 Snow 1200W 80+ Gold Power Supply
Q: Are the cords white that come with this?
A: Hello, yes they are. Best regards, Thermaltake Support
