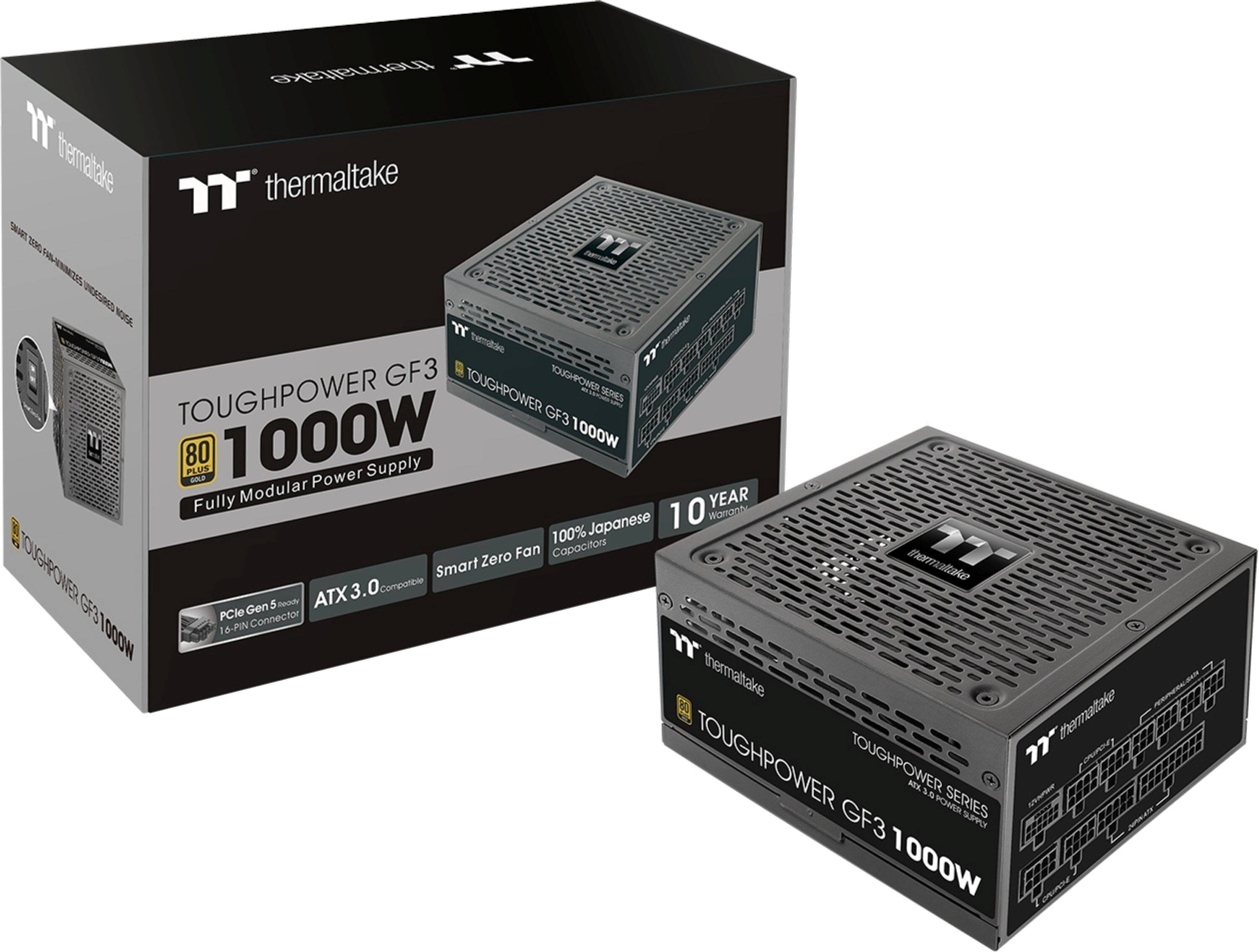

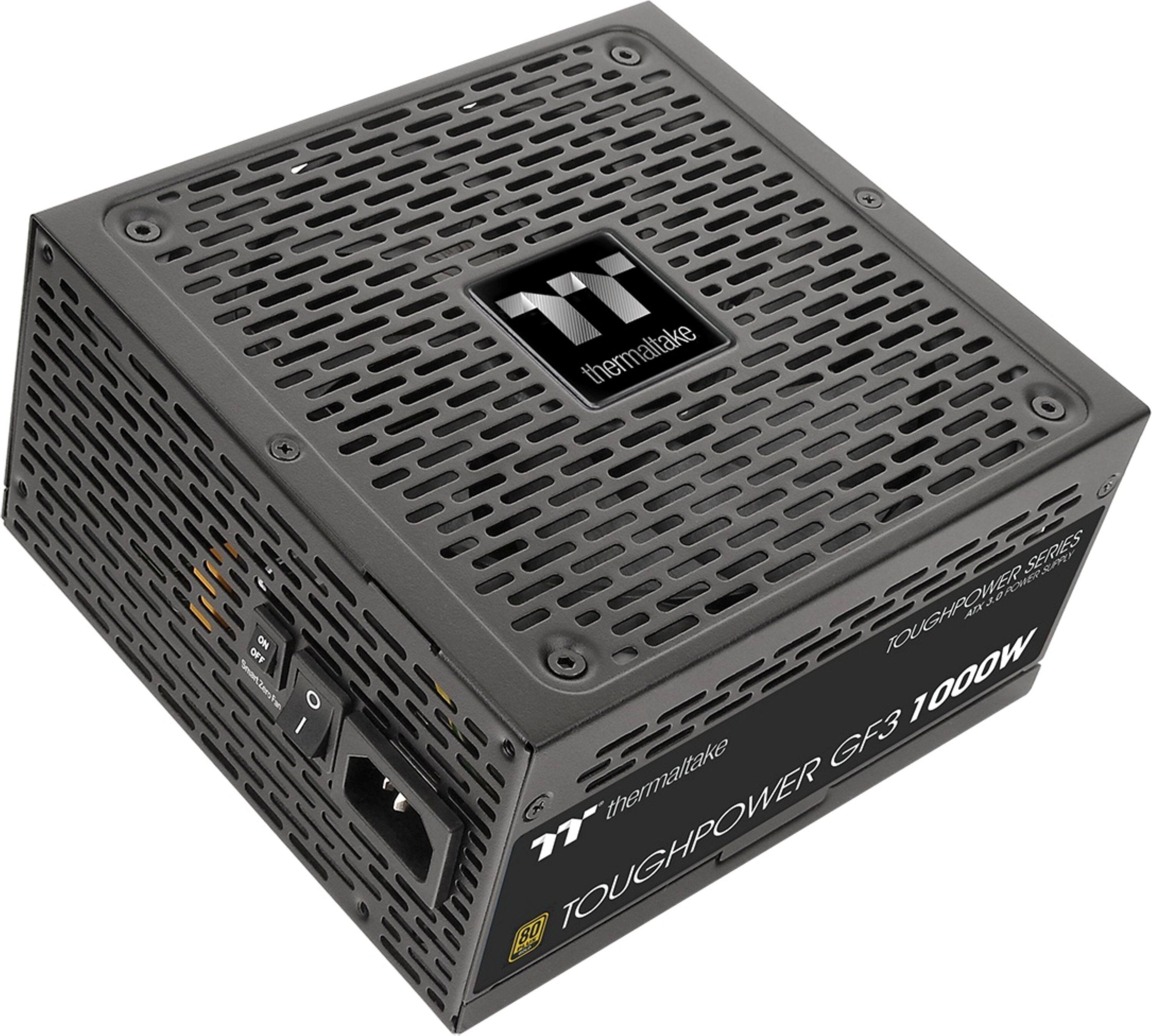

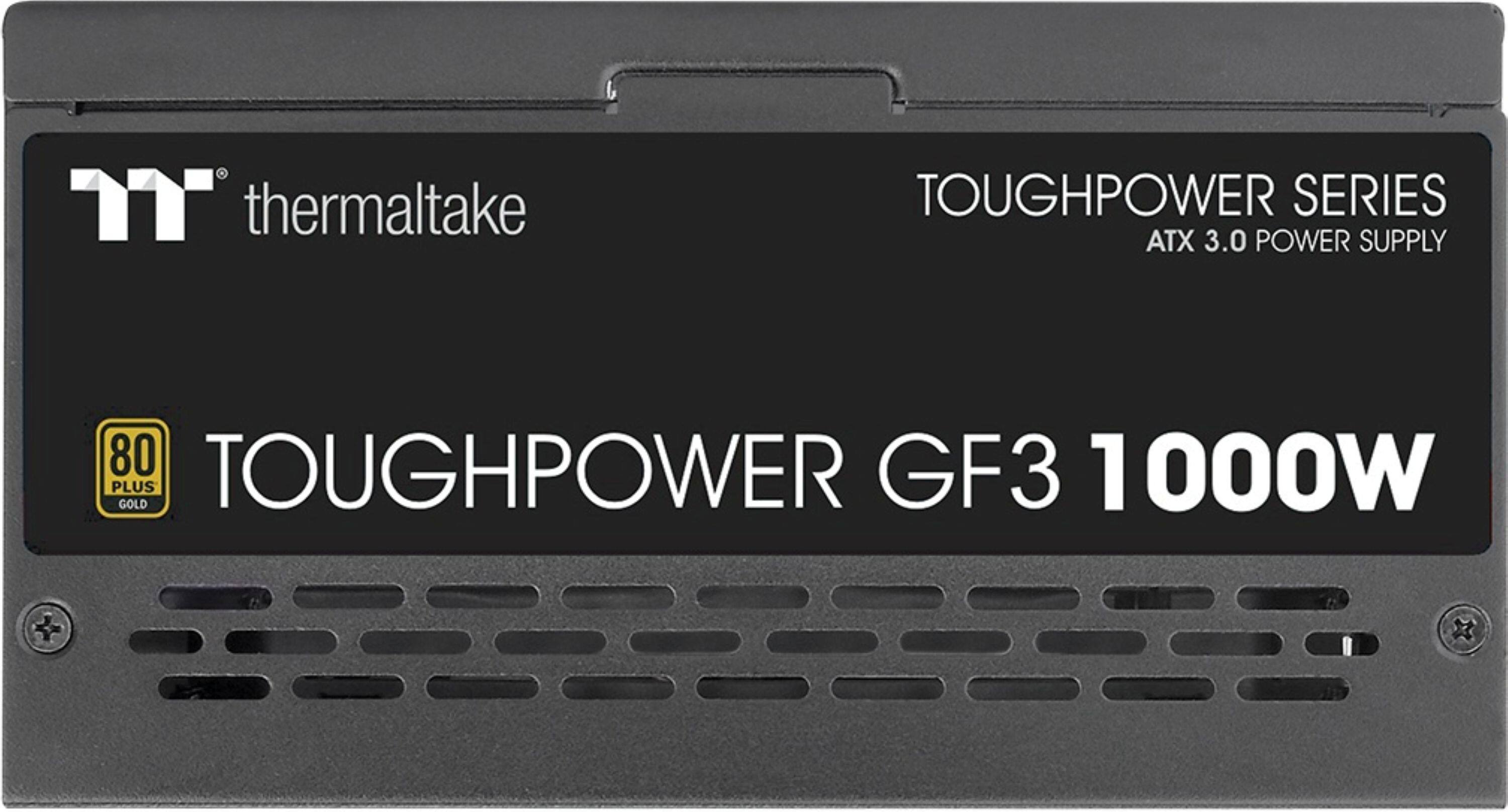

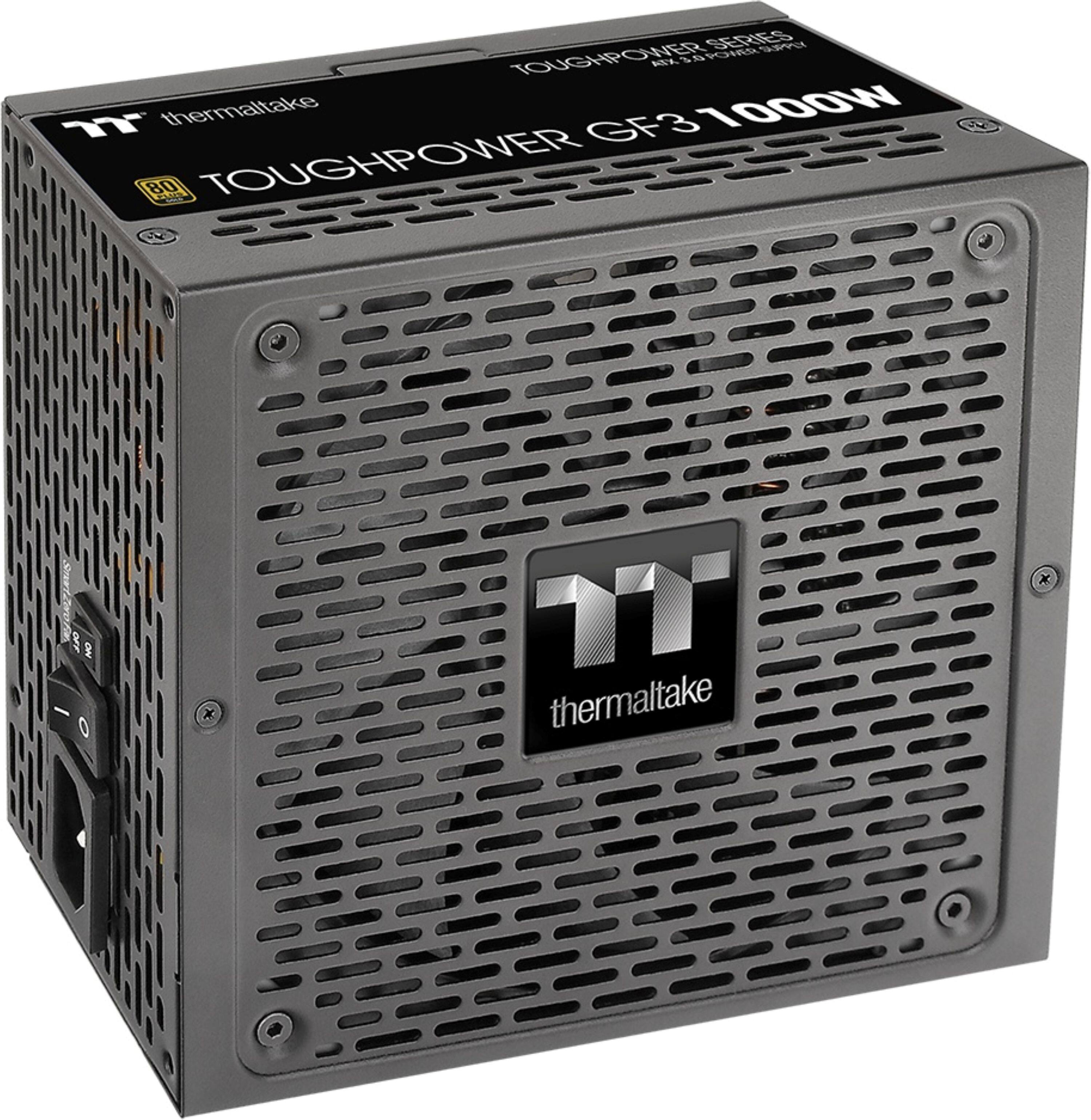

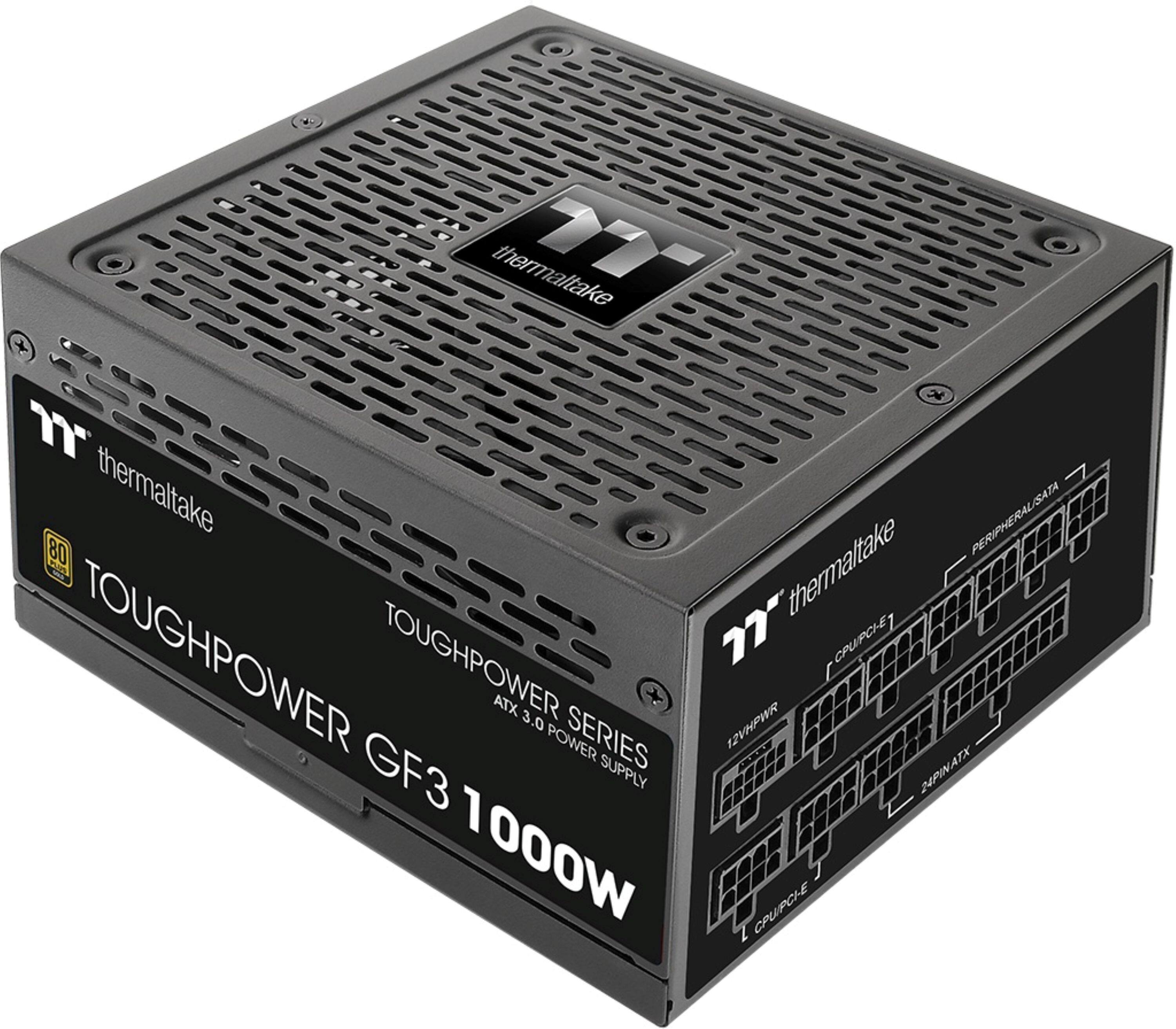

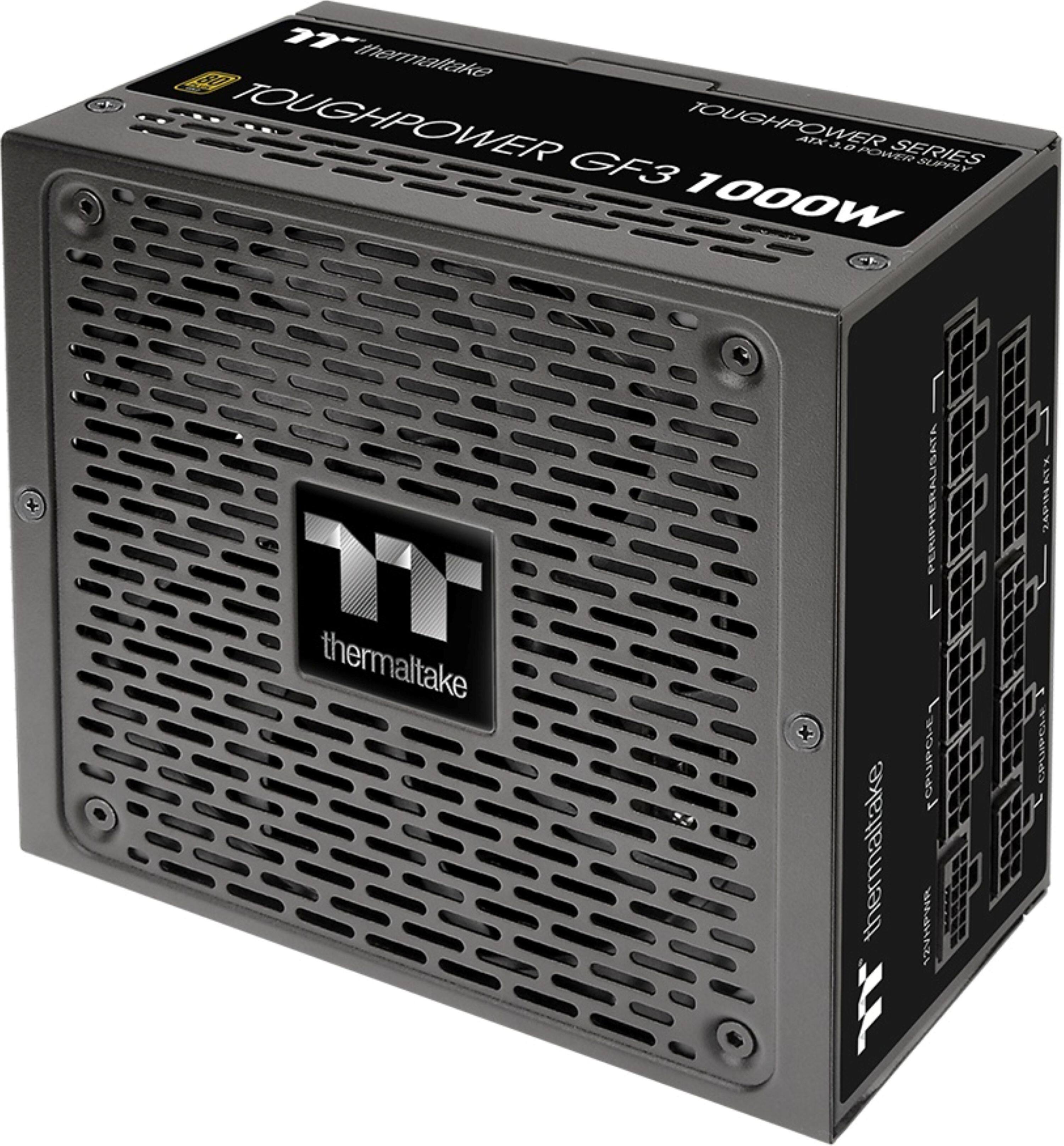

Thermaltake - Toughpower GF3 1000W 80 PLUS Gold PCIe Gen 5 ATX 3.0 Ready Fully Modular Power Supply - Black
Wattage
1000 wattsMore Buying Options from Marketplace sellers
Specifications
- Wattage1000 wattsModularFully modularEnergy Efficiency80 PLUS Gold, Cybenetics GoldATX ConnectorATX 12V 8pin connector (700mm) x 1. ATX 12V 4+4pin connector (700mm) x 1PCIe Connector1 x PCI-E 12+4Pin connectors (500mm) x 1. 2 x PCI-E 6+2Pin connectors (500mm + 150mm) x 2Peripheral Connector4 x Peripheral connectors (500mm + 150mm + 150mm + 150mm) x 1
- Key Specs
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold, Cybenetics Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)

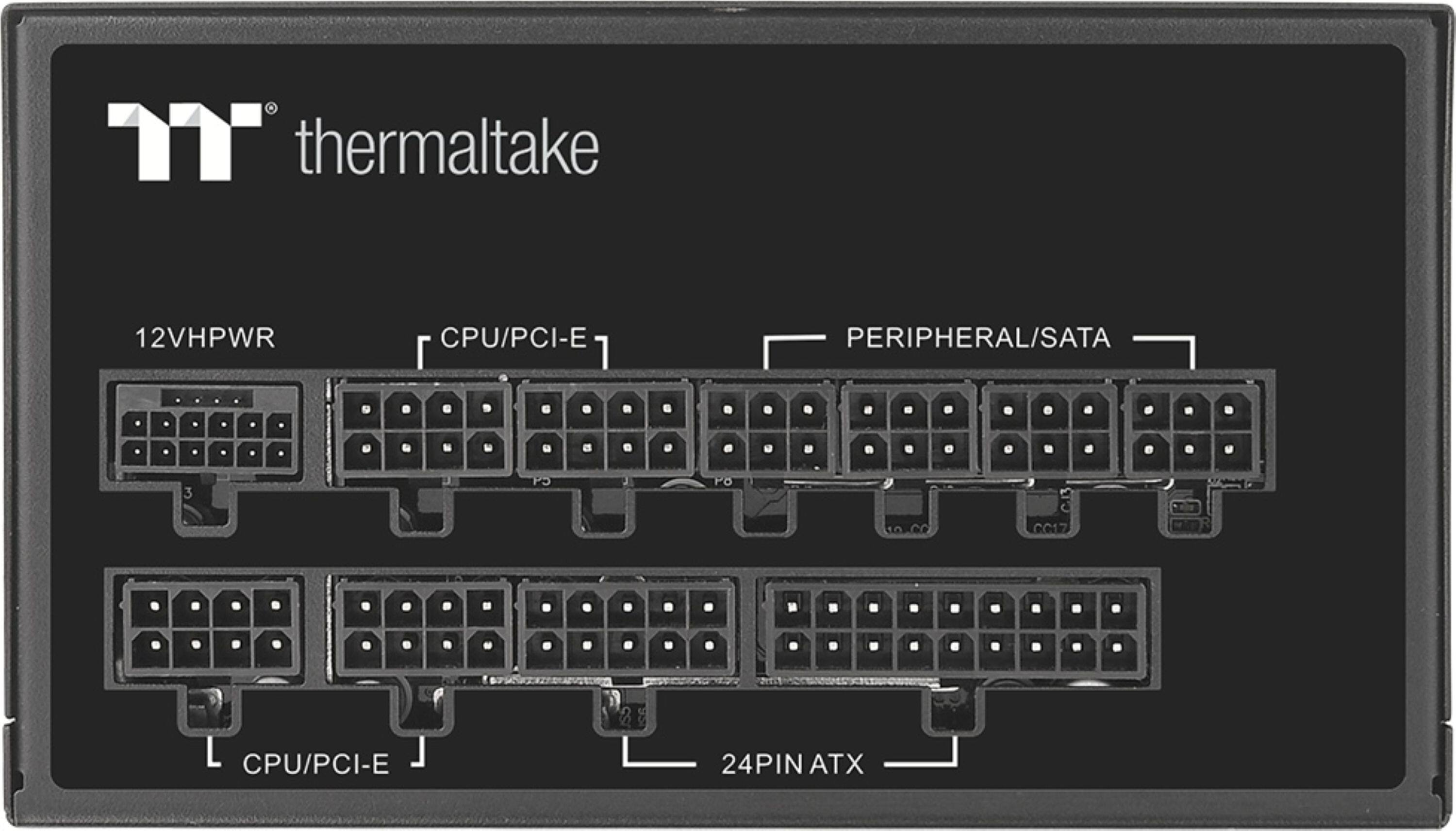

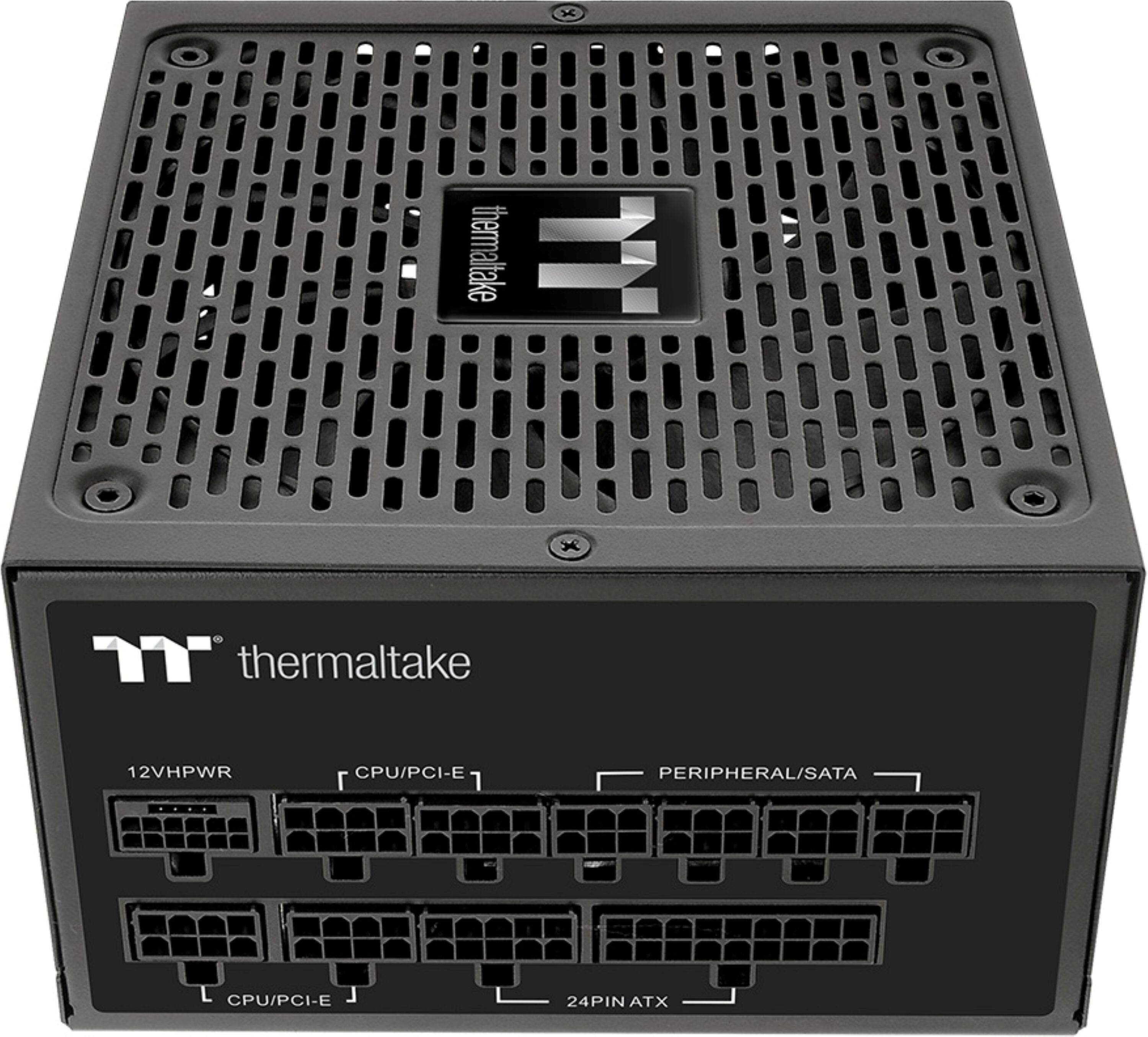

- ATX Connector: ATX 12V 8pin connector (700mm) x 1. ATX 12V 4+4pin connector (700mm) x 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 1 x PCI-E 12+4Pin connectors (500mm) x 1. 2 x PCI-E 6+2Pin connectors (500mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 x Peripheral connectors (500mm + 150mm + 150mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 4 x SATA connectors (500mm + 150mm + 150mm + 150mm) x 3 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: ATX 12V 8pin connector (700mm) x 1. ATX 12V 4+4pin connector (700mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 160.02 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: Thermaltake
- Model Number: PS-TPD-1000FNFAGU-4
- Product Name: Toughpower GF3 1000W 80 PLUS Gold PCIe Gen 5 ATX 3.0 Ready Fully Modular Power Supply
- Color: Black
- Power
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold, Cybenetics Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: ATX
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Connectivity
- ATX Connector: ATX 12V 8pin connector (700mm) x 1. ATX 12V 4+4pin connector (700mm) x 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: Peripheral to Floppy adapter cable (150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 1 x PCI-E 12+4Pin connectors (500mm) x 1. 2 x PCI-E 6+2Pin connectors (500mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 x Peripheral connectors (500mm + 150mm + 150mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 4 x SATA connectors (500mm + 150mm + 150mm + 150mm) x 3 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: ATX 12V 8pin connector (700mm) x 1. ATX 12V 4+4pin connector (700mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 86.36 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 149.86 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 160.02 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 64 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Fan Type: 135mm Fluid Bearing Fan
- Number of Fans Included: 1
- Features
- Lighting Type: None
- Warranty
- Warranty - Parts: 10 Year Limited
- Warranty - Labor: 10 Year Limited
- Other
- UPC: 841163084090
PCIe Gen 5.0 Ready! Designed with a native PCIe 12+4pin modular connector, the Toughpower GF3 series is built for the next-gen PCIe 5.0 graphics cards and is compatible with Intel ATX 3.0 specifications. The fully modular Toughpower GF3 series comes in 1650W, 1350W, 1200W, 1000W, 850W and 750W and is built to deliver 80 PLUS Gold efficiency. Aimed at providing the best performance, the Toughpower GF3 1000W includes all the critical features such as < 30mV low ripple noise design, extremely strict voltage regulation < �2%, Hold up time> 17 milliseconds, and comes with 100% high quality Japanese capacitors and other premium components to help deliver continuous and stable power.Toughpower GF3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards. The GF3 series can sustain up to 3x GPU power excursion and 2x total power excursion.
- Fully Modular: Only connect the cables your system needs, making clean and tidy builds easier.
- 1000 W Power Supply: Delivers the power needed to run your PC.
- Toughpower GF3 Power Supply: For your convenience and optimal usage.
- Specification Compliance: Provides dependable and authentic adherence to ATX compliance specification guidelines to ensure safe and reliable usage.
- Limited Warranty: 10 Year limited warranty details allow dependable replacement and time-efficient services for your maximum convenience.
Whats Included
- Thermaltake Toughpower GF3 1000W Power Supply
- Owner's manual
Product Manuals
A: Hello, Replace all cables with the new power supply cables. Using old cables could cause catastrophic failure and voids warranties. Best Regards, Thermaltake Support
Compare similar products
PCIe Gen 5.0 Ready! Designed with a native PCIe 12+4pin modular connector, the Toughpower GF3 series is built for the next-gen PCIe 5.0 graphics cards and is compatible with Intel ATX 3.0 specifications. The fully modular Toughpower GF3 series comes in 1650W, 1350W, 1200W, 1000W, 850W and 750W and is built to deliver 80 PLUS Gold efficiency. Aimed at providing the best performance, the Toughpower GF3 1000W includes all the critical features such as 17 milliseconds, and comes with 100% high quality Japanese capacitors and other premium components to help deliver continuous and stable power.Toughpower GF3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards. The GF3 series can sustain up to 3x GPU power excursion and 2x total power excursion.
PCIe Gen 5.0 Ready! Designed with a native PCIe 12+4pin modular connector, the Toughpower GF3 series is built for the next-gen PCIe 5.0 graphics cards and is compatible with Intel ATX 3.0 specifications. The fully modular Toughpower GF3 series comes in 1650W, 1350W, 1200W, 1000W, 850W and 750W and is built to deliver 80 PLUS Gold efficiency. Aimed at providing the best performance, the Toughpower GF3 1200W includes all the critical features such as 17 milliseconds, and comes with 100% high quality Japanese capacitors and other premium components to help deliver continuous and stable power.Toughpower GF3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards. The GF3 series can sustain up to 3x GPU power excursion and 2x total power excursion.
The MAG gaming power supply is equipped to support the latest NVIDIA GeForce RTX 4000 Series and AMD GPUs. The efficiency of your power supply can make a world of a difference; it's why we offer a reliable 80+ Gold power proficiency PSU and a 10-year limited warranty guaranteeing a long term reliable solution for your gaming system. Organizing cables is often the most bothersome part of building a PC. With the MPG gaming power supply's fully modular design, we've given you the option of what cables you'll need for your system and defeat the clutter. With that in mind we've gone with a flat black design to further help you create the most beautiful cable managed pc system around. The remaining cables can be nicely stored away in the included cable bag. The MAG gaming power supply comes in 160mm and 150mm wide dimensions to ensure a comfortable fit in more pc chassis so it can continue to maintain a comfortable space for your cable management needs.
Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series is compatible with Intel's ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards. It can pipe up to 600W of power to PCIe 5.0 graphics cards.
