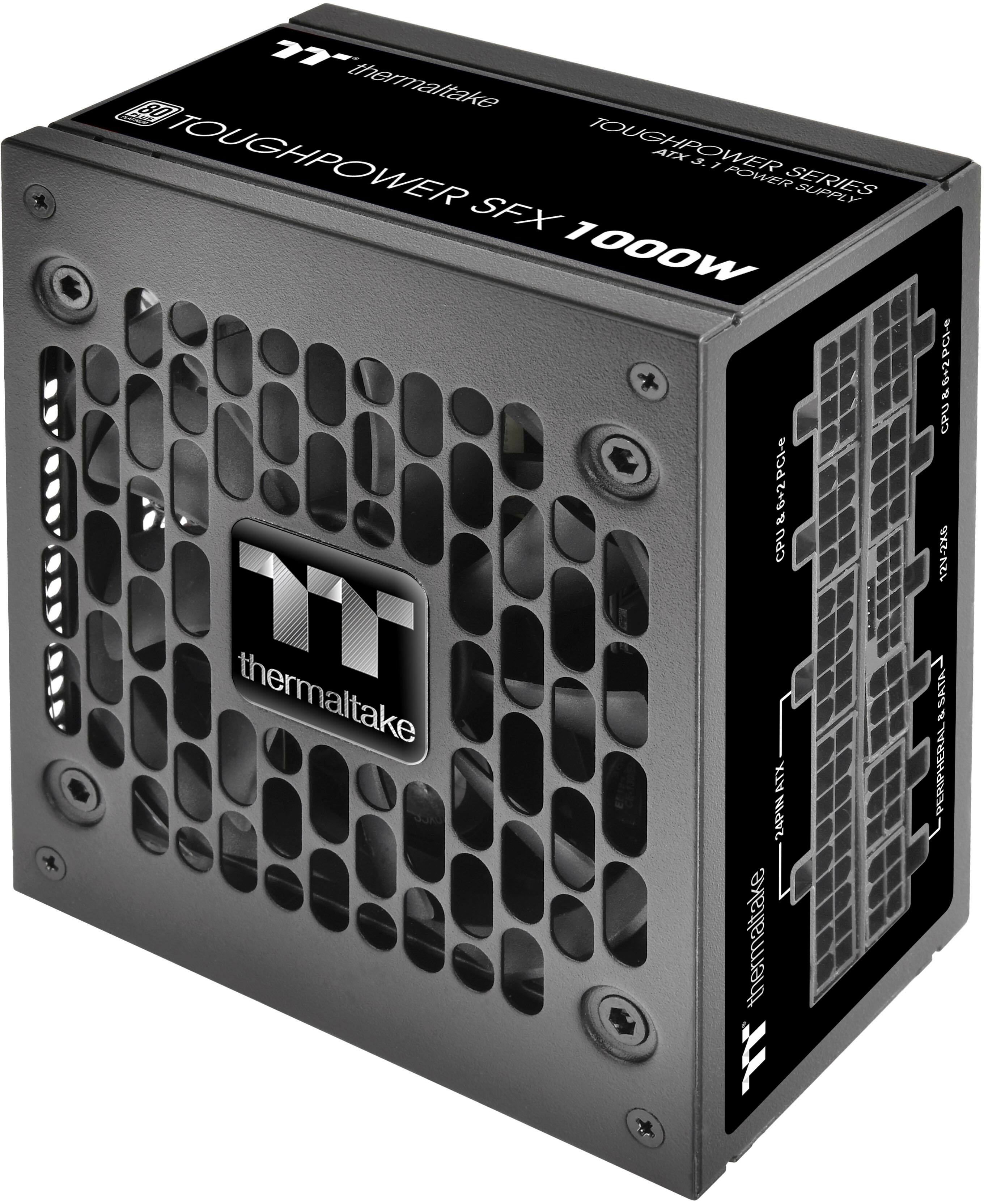

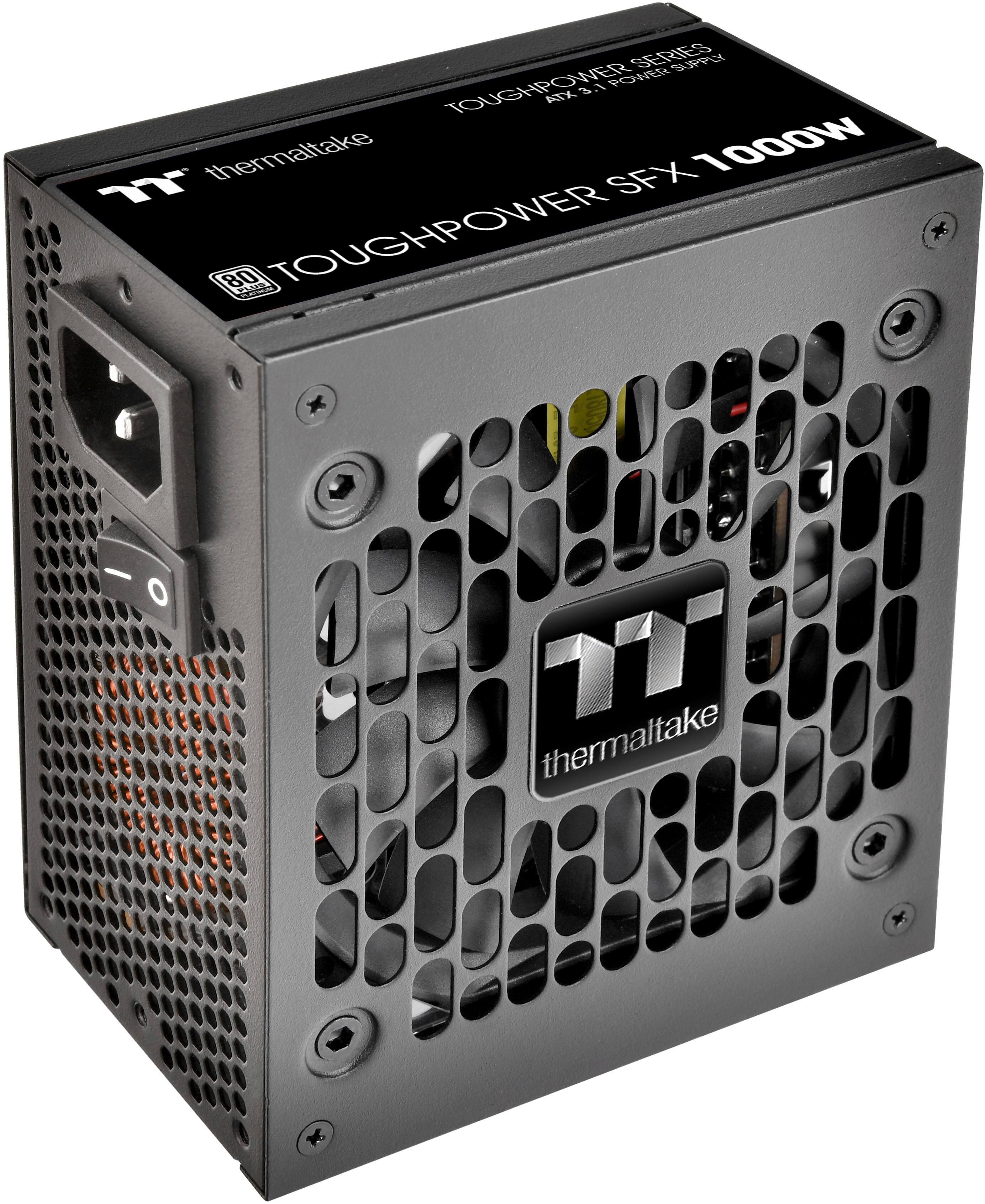

Thermaltake - Toughpower SFX 1000W 80Plus Platinum ATX 3.1 Standard Power Supply - Black
Model: PS-STP-1000FNFAPU-1
SKU: 11066773
$194.49
Save $6.00
The comparable value is $200.99
or
Wattage
1000 wattsAvailability
FREE shipping to
Sold & shipped by
(520)
More Buying Options
New
$194.49 - $249.99
Specifications

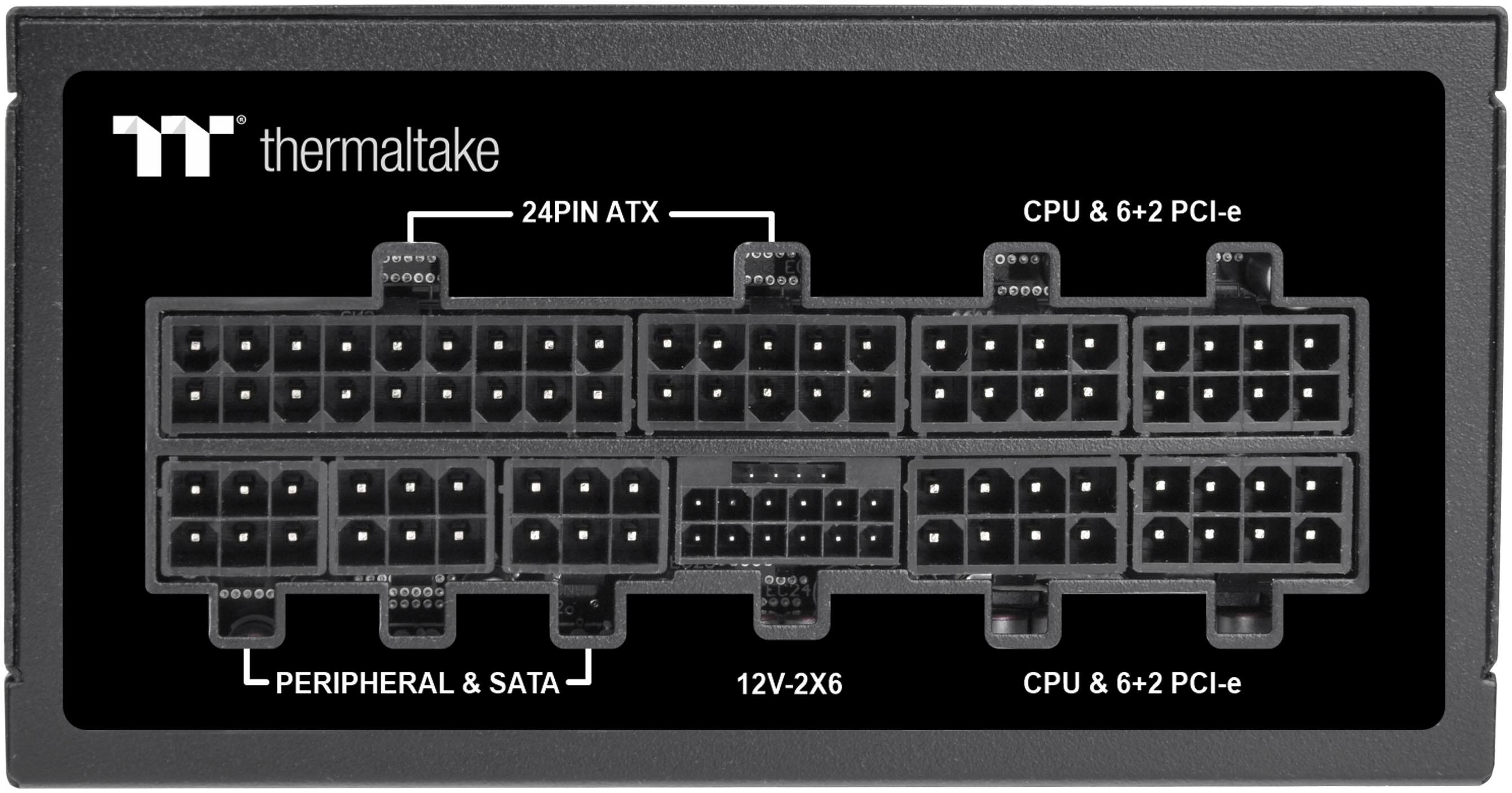

- Wattage1000 wattsModularFully modularEnergy Efficiency80 PLUS PlatinumATX Connector24pin Main connector (300mm) x 1PCIe Connector1 x PCI-E 12+4Pin connectors (400mm) x 1. 4 x PCI-E 6+2Pin connectors (450mm + 150mm) x 2Peripheral Connector4 x Peripheral connectors (300mm + 150mm + 150mm + 150mm) x 1
- Key Specs
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Platinum (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 24pin Main connector (300mm) x 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 1 x PCI-E 12+4Pin connectors (400mm) x 1. 4 x PCI-E 6+2Pin connectors (450mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 x Peripheral connectors (300mm + 150mm + 150mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 8 x SATA connectors (300mm + 150mm + 150mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 x ATX 12V 4+4Pin (400mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: SFX (The size, arrangement, and physical configuration of the product.)
- Product Length: 5 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: Thermaltake
- Model Number: PS-STP-1000FNFAPU-1
- Product Name: Toughpower SFX 1000W 80Plus Platinum ATX 3.1 Standard Power Supply
- Color: Black
- Power
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Platinum (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Connectivity
- ATX Connector: 24pin Main connector (300mm) x 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: 1 x Floppy connector (150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 1 x PCI-E 12+4Pin connectors (400mm) x 1. 4 x PCI-E 6+2Pin connectors (450mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 x Peripheral connectors (300mm + 150mm + 150mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 8 x SATA connectors (300mm + 150mm + 150mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 x ATX 12V 4+4Pin (400mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: SFX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 2.5 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 5 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 2.6 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Fan Type: 90mm Fluid Dynamic Bearing Fan
- Number of Fans Included: 1
- Features
- Lighting Type: None
- Warranty
- Warranty - Parts: 7 years
- Warranty - Labor: 7 years
- Other
- UPC: 841163093658
Toughpower SFX Platinum series is 80 PLUS Platinum certified and compatible with ATX 3.1 specifications. Designed with a native 12V-2x6 connector.
- Compact Power, Limitless Performance: The Toughpower SFX Platinum series is built to support next-gen hardware, meeting the latest Intel SFX 12V 4.1 and ATX 12V 3.1 standards. With its native PCIe 12V-2x6 (12+4pin) modular interface, it efficiently powers PCIe 12+4pin graphics cards. This series not only achieves 80 PLUS Platinum efficiency but also guarantees stability, durability, and reliability.
- No Matter the Case Size, We've Got You Covered: The dimensions of the Toughpower SFX Platinum measure 125mm(W) x 63.5mm(H) x 103.8mm(D). It comes with an SFX to ATX adapter bracket as an accessory which gives users more options when choosing the ideal case for the build.
- Fully Compatible with ATX 3.1 Standards: Toughpower SFX Platinum series is fully compatible with ATX 3.1 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.
- PCIe Gen 5.1 Ready: Toughpower SFX Platinum series comes with a PCIe 12V-2x6 connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage.The bundled PCIe Gen 5.1 (12+4pin) cable connector of the Toughpower SFX Platinum 750W can deliver up to 300W for PCIe 12+4pin graphics cards.
- Made to Comply with the Latest Graphics Cards: Ready to supply graphics cards according to their different ways of connections, the Toughpower SFX Platinum series is designed to support NVIDIA and AMD graphics cards, it supports 8-pin slots for AMD graphics cards & some RTX 40 series graphics cards, it also comes with 1 x 12V-2x6 connector for RTX 40 series cards with a PCIe 12+4pin connector.
- Be Smart, Stay Quiet: Equipped with a 90mm fluid bearing fan for superior airflow. Plus, the built-in Smart Zero Fan feature keeps it silent until the load hits 30%, reducing unwanted noise.
- 80 PLUS Platinum Certified: 80 PLUS Platinum certification means the Toughpower SFX Platinum series converts power efficiently, saves energy through its high efficiency up to 92%, resulting in lower power loss and heat buildup inside the power supply.
- ＜30mV Low Ripple Noise Design: Top-end build quality with low ripple noise. All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.
- Extremely Strict Voltage Regulation ＜±2%: The voltage regulation is more strict than Intel’s standard +5%,-7% for major rails and ±10% for -12V, is set to no more than ±2% for major rails, providing steady clean power through exceptional voltage stability.
- 17ms and up Hold Up Time: During a power interruption, your computer might shut down or reboot. We make sure that the SFX Platinum series will deliver at least 17ms at 80% workload, without system reboot or resetting.

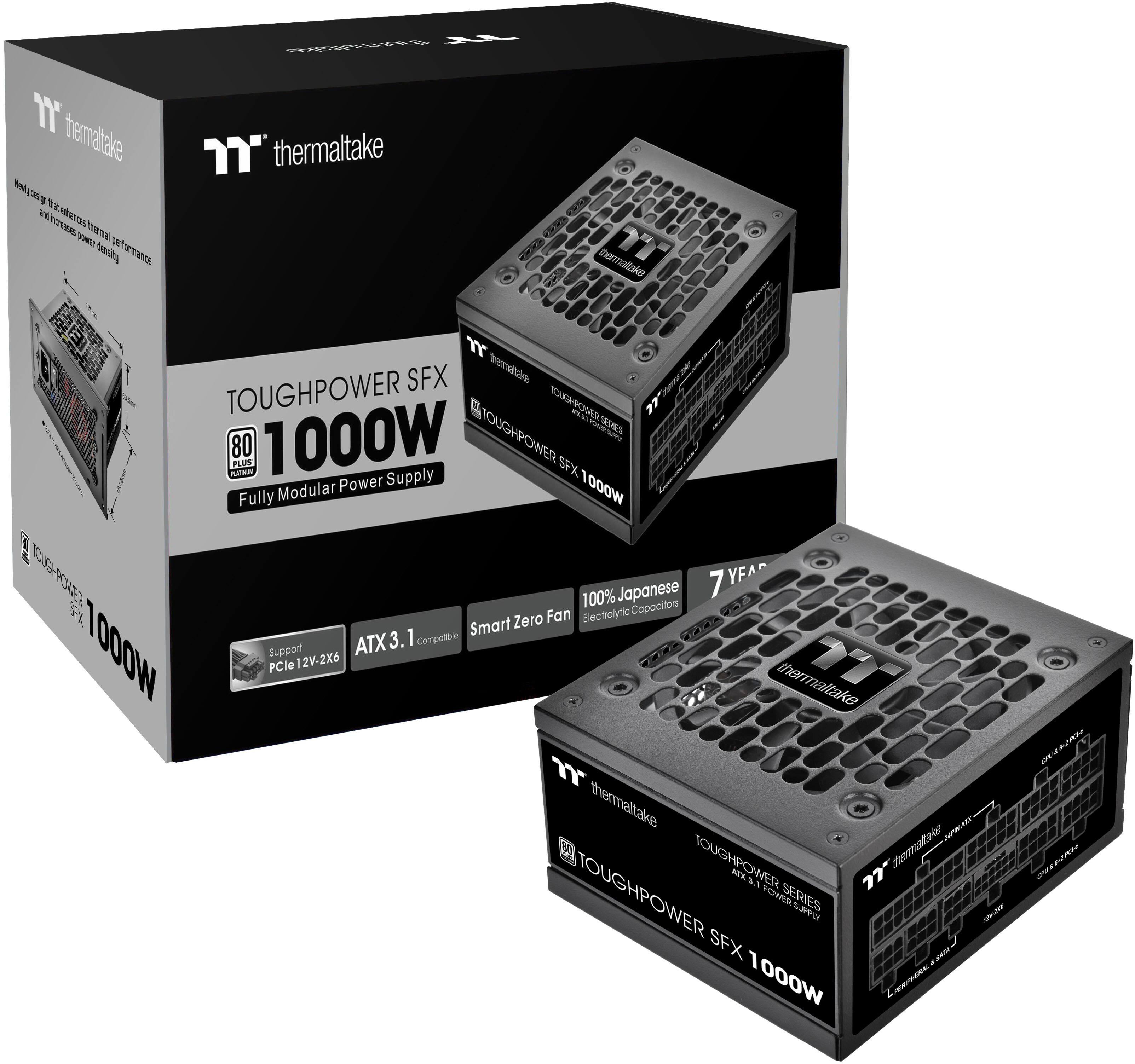

Whats Included
- 1x SFX 1000W 80+ Platinum Power Supply
Disclaimers
- Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.Please follow the recommended power requirements from the GPU manufactures before using the PCIe 12+4pin cable.
Q: Does this power supply support PCI Express 5.0?
A: Yes, this power supply supports PCI Express 5.0.
Q: Does this power supply have a modular design?
A: Yes, this power supply is fully modular.
Q: How many years is the warranty for parts on this power supply?
A: The warranty for parts is seven years.
Q: What type of fan is used for cooling in this power supply?
A: A 90mm fluid dynamic bearing fan is used for cooling.
Q: How many SATA connectors does this power supply include?
A: This power supply includes eight SATA connectors.
Q: What is the wattage of this Thermaltake power supply?
A: This Thermaltake power supply has a wattage of 1000 watts.
Q: Does this power supply come with a power cord?
A: Yes, this power supply includes a power cord.
