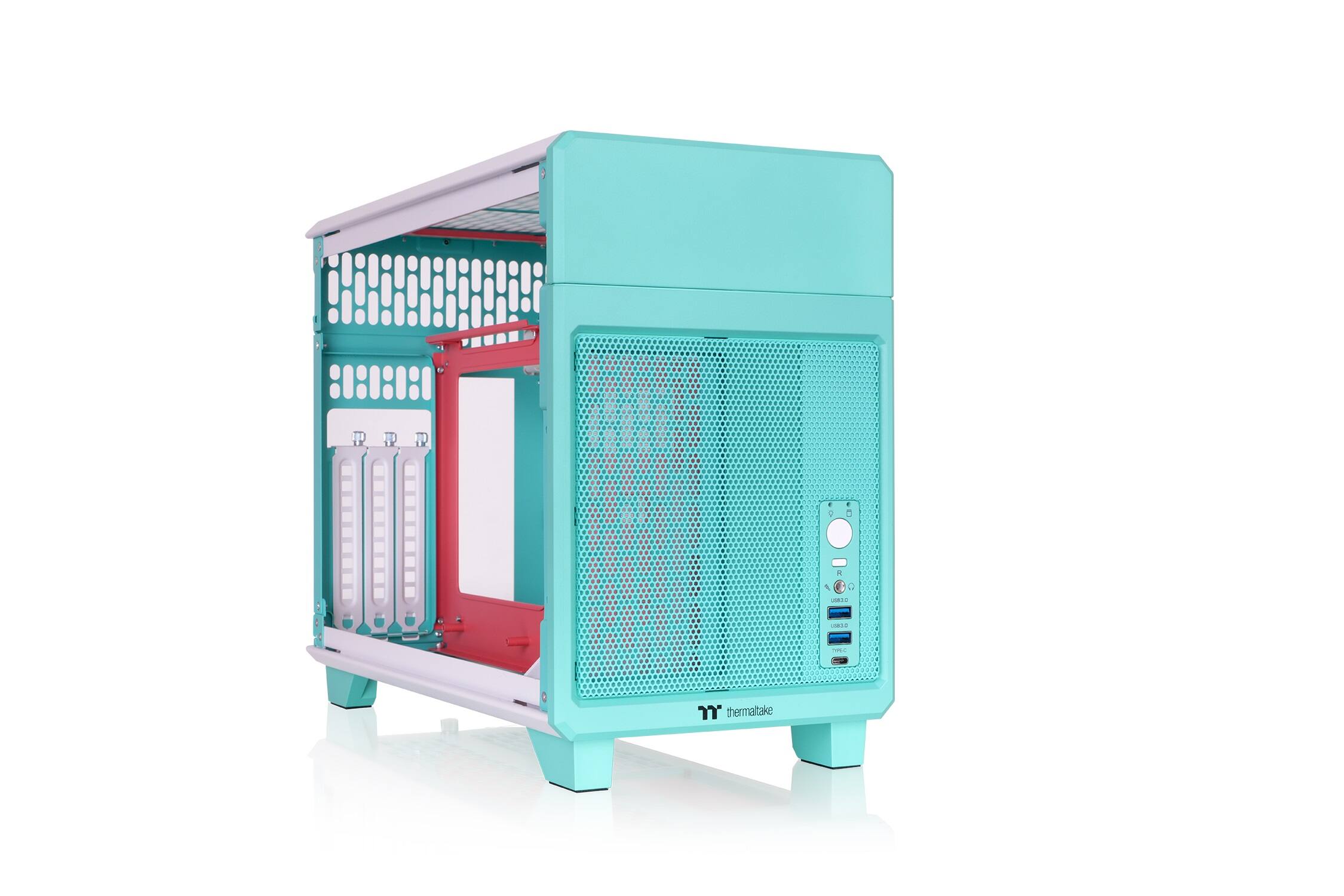

Thermaltake - TR100 SFF mITX Mini Tower PC Case with PCIe 4.0 Riser Cable Included - Mint Strawberry
Color
Mint StrawberryMore Buying Options
Related Item
Specifications
- Motherboard Form FactorMini-ITXMaximum GPU Length360 millimetersProduct Height11.6 inchesProduct Width7 inchesProduct Depth15.6 inchesWindow Panel(s)None
- Key Specs
- Motherboard Form Factor: Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 360 millimeters
- Product Height: 11.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.6 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): None
- Case Material: Steel
- General
- Brand: Thermaltake
- Model Number: CA-11A-00SLNN-00
- Product Name: TR100 SFF mITX Mini Tower PC Case with PCIe 4.0 Riser Cable Included
- Color: Mint Strawberry
- Case Material: Steel
- Assembly Required: Yes
- Compatibility
- Motherboard Form Factor: Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 130 millimeters
- Maximum GPU Length: 360 millimeters
- Number of Expansion Slots: 3
- Ports

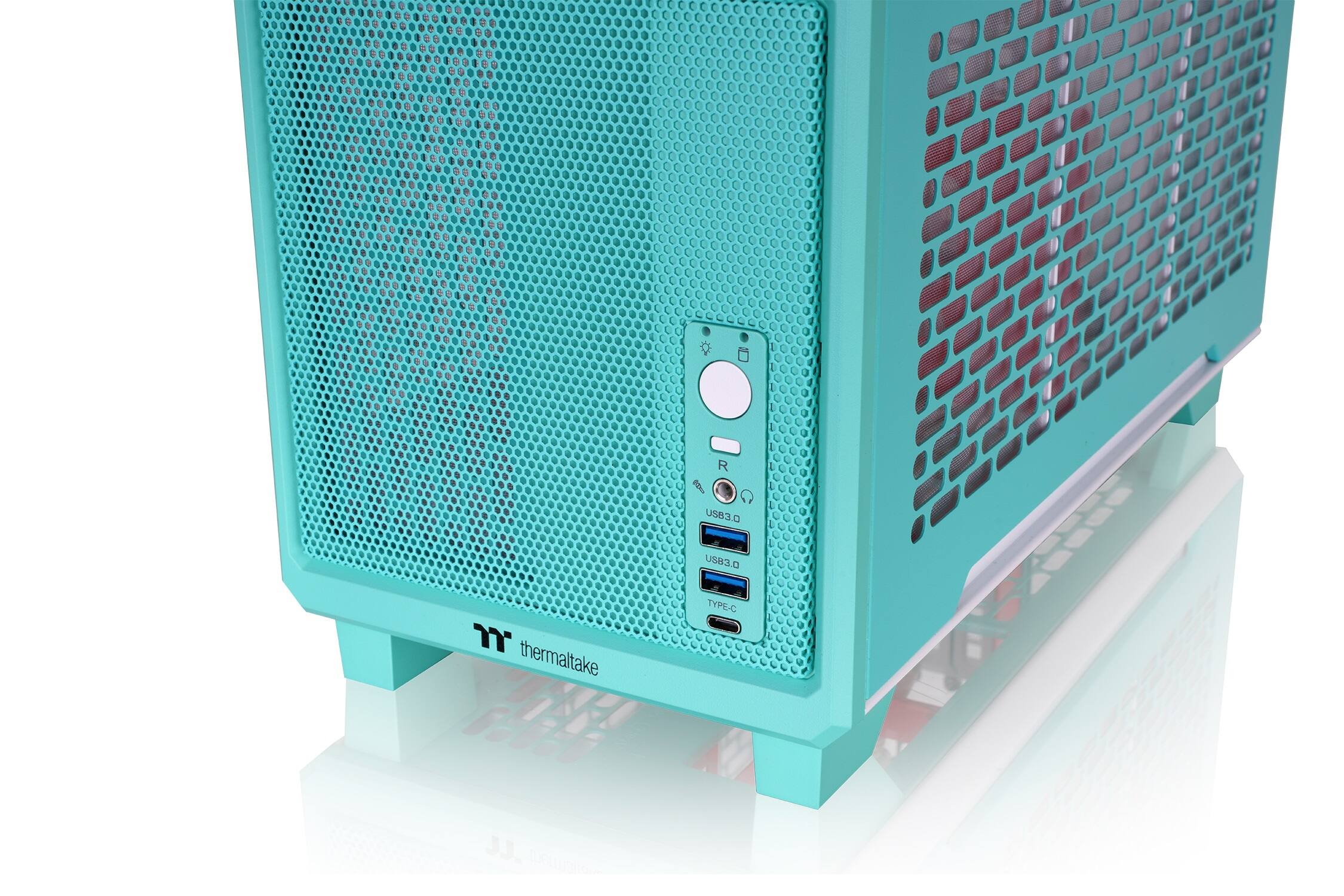

- USB Port Location: Front
- Number of USB Ports (Total): 3
- USB Ports: 2 x USB-A 3.0, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of USB-A Charging Ports: 2
- Number of Thunderbolt Ports (Total): 0
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 2
- Number Of Internal 3.5" Bays: 0
- Number Of External 2.5" Expansion Bays: 0
- Number Of External 3.5" Expansion Bays: 0
- Dimensions
- Product Height: 11.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.6 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 8.9 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mini tower
- Window Panel(s): None
- Customizable Case Lighting: false
- Lighting Type: None
- Cooling
- Maximum CPU Cooler Height: 68 millimeters
- Number of Fans Supported: 2
- Cooling System: Not included (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Number of Fans Included: 0
- Liquid Cooling Ready: true
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 841163099780
Take a trip to the Small Form Factor with the TR100 mITX Chassis. Coming in at just 18.9 liters the TR100 is one of the smallest chassis we have made to date. With handy features like removable PCIe bracket for easy GPU installation, magnetic side panels for quick tear down, and PCIe Riser Cable included just to name a few. On top of its small footprint that makes it a great on the go PC, the TR100 can also support Radiators up to 280mm in size as well as clearance for GPUs up to 360mm in size.
- Perfect for Home or Travel: Built to be portable and compact the TR100 does a great job with providing a small footprint at home and perfect for travel.
- mITX Engineered: Coming in at 18.9 liters and optimized for mITX SFF builds with its dual chamber design to provide plenty of options for components.
- Tiny but Mighty: While coming in at a small size, space for components is pretty roomy at 360mm GPU clearance, 280mm Radiator support, SFX and SFX-L PSU support, and 68mm of CPU cooler clearance.
- PCIe 4.0 Riser: The TR100 comes with an included PCIe 4.0 Riser cable to meet the demands of modern GPUs bandwidth requirements and to facilitate easy installation.

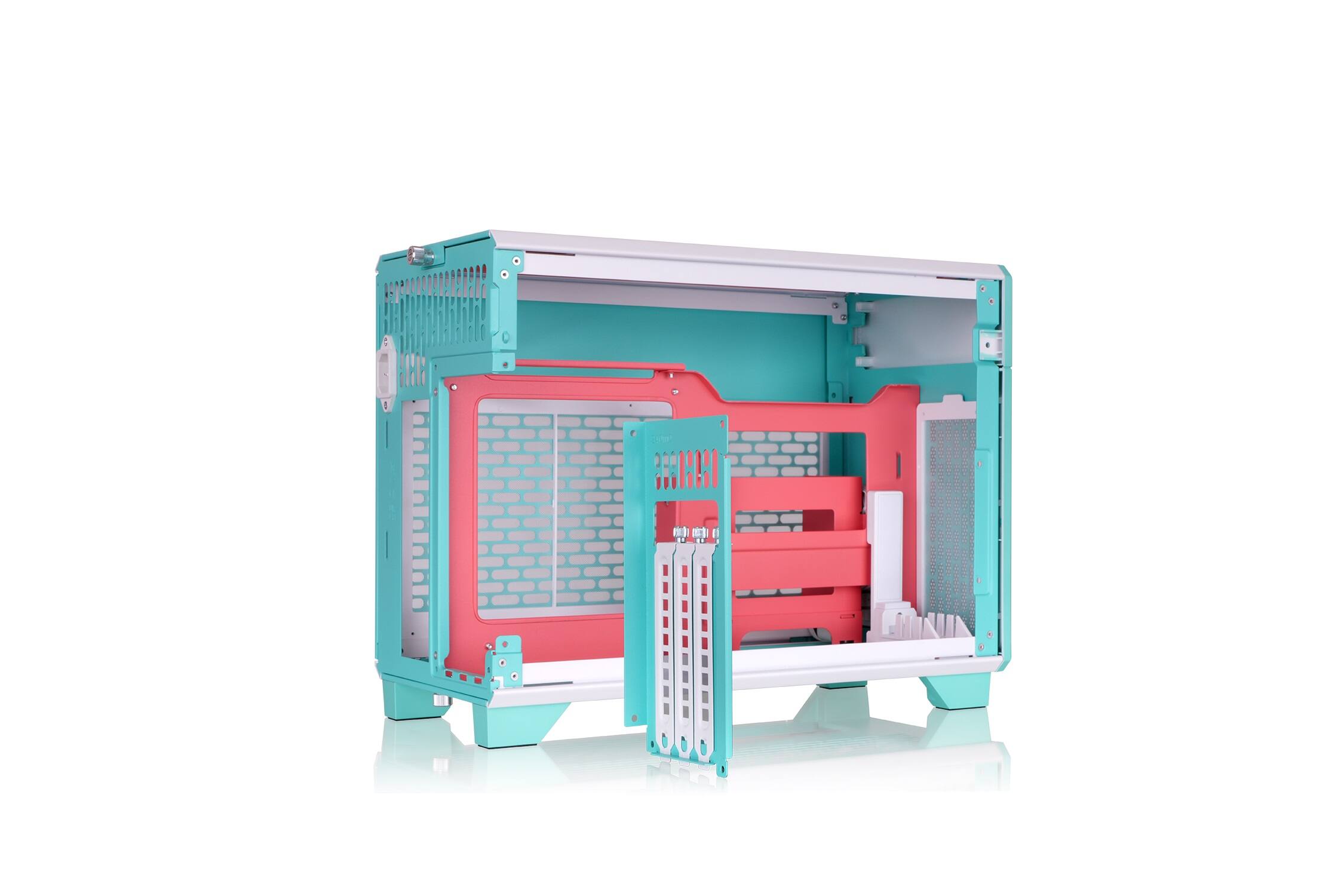

- Removable PCIe Bracket: Featuring a removable PCIe bracket for straight forward GPU installation, not to mention an integrated GPU brace for added security.
- Storage on the Go: The TR100 has mounts for 2.5" SSDs in each of its dual chambers, for some extra storage on the go.

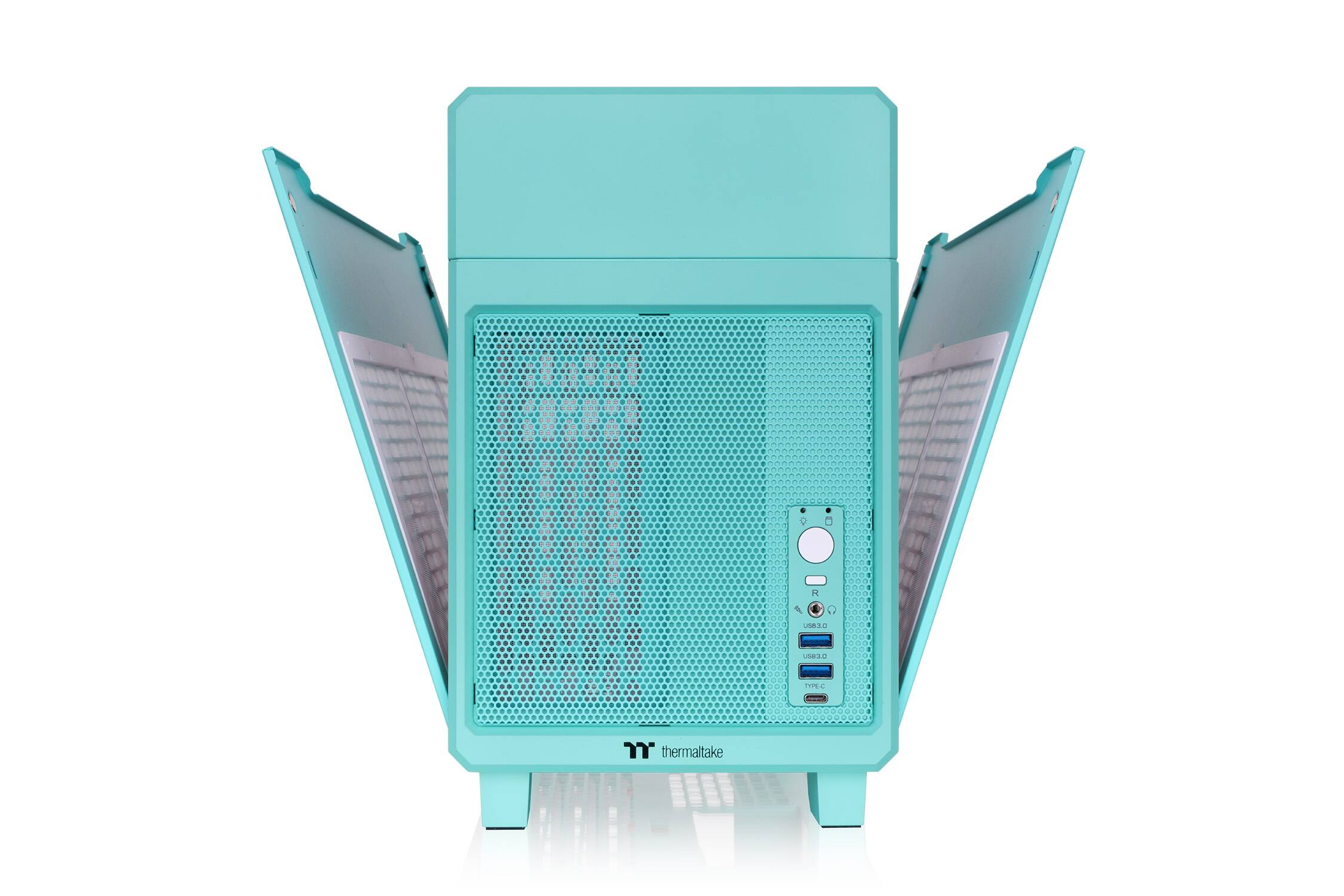

- Simple Maintenance: Utilizing magnetic side panels and magnetic captive screw top and bottom panels to make teardown simple and magnetic removable dust filters to make cleaning a breeze.

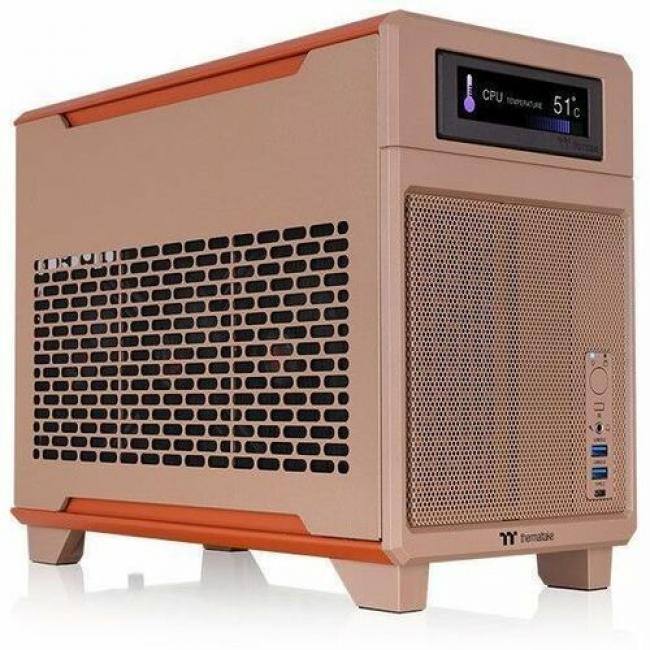

- Accessories for Every Occasion: Choose from accessories like a 3.9" LCD screen for some real time system info or custom pictures and GIFs, or even travel in style with the custom designed TT suitcase made for the TR100 and accessories. (Accessories Sold Separately)
Whats Included
- 1x TR100 mITX SFF Chassis, Strawberry Mint
Q: Does this case include any fans?
A: No, the case does not include any fans.
Q: Is this case easy to take apart for cleaning and maintenance?
A: Yes, the TR100 uses magnetic side panels and magnetic captive screws for easy disassembly, and has magnetic removable dust filters for easy cleaning.
Q: What motherboard form factor does this PC case support?
A: This PC case supports Mini-ITX motherboards.
Q: What version of PCIe riser cable is included with the TR100?
A: The TR100 includes a PCIe 4.0 riser cable.
Q: Does the TR100 support liquid cooling?
A: Yes, the TR100 supports radiators up to 280mm in size.
Q: How many 2.5" bays does the TR100 have?
A: The TR100 has mounts for two 2.5" SSDs, one in each of its dual chambers.
Q: What is the maximum length of the GPU that this case can accommodate?
A: The case can support GPUs up to 360mm in length.
A: Hello, yes, it will, but certain AIO's that are thicker than standard AIO's will not fit. Best Regard, Thermaltake Support
Compare similar products
Take a trip to the Small Form Factor with the TR100 mITX Chassis. Coming in at just 18.9 liters the TR100 is one of the smallest chassis we have made to date. With handy features like removable PCIe bracket for easy GPU installation, magnetic side panels for quick tear down, and PCIe Riser Cable included just to name a few. On top of its small footprint that makes it a great on the go PC, the TR100 can also support Radiators up to 280mm in size as well as clearance for GPUs up to 360mm in size.
The MasterBox NR200 takes all of the features found in a core performance ATX chassis and efficiently utilizes them in a space less than half the volume. Every feature is thoughtfully laid out in the 18-liter case to maximize component compatibility, ease of use, and thermal efficiency.

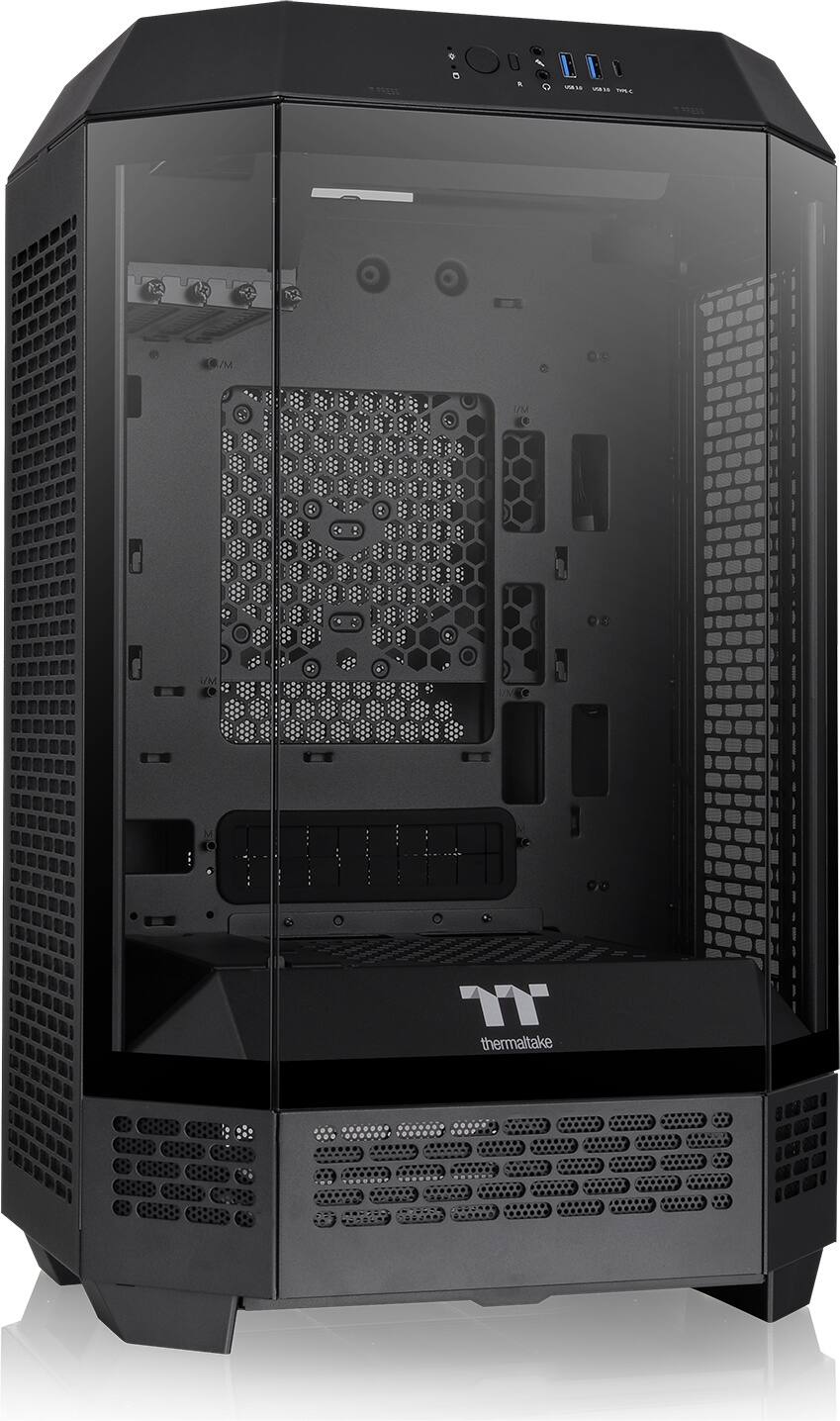

As a new member of the Tower series, The Tower 300 shares the same silhouette with its predecessors, offering full display to the system components. The most obvious appearance between its families is the octagon design. You can fit 4090 GPU and a 420mm radiator in The Tower 300, keeping the motion high and the temperature low. Besides two preinstalled top fans, you can also install two 120/140mm behind the motherboard or one 120/140mm fan on top of the power cover or three 120/140mm fans at the right side fan bracket. It provides excellent hardware expandability to accommodates latest PC hardware without compensating the building experience.
PCCOOLER CPS I100 Pro Mesh mini itx case Built with a 1.2mm high-strength SPCC steel frame for enhanced durability and stability. The ultra-compact 7.5L mini ITX case with a premium leather handle makes it easy to carry, weighing only 2.7 kg-perfect for gaming, office work, and on-the-go rendering.
Specs
Reviews
- Rated 4 out of 5 stars
Great SFF case
A great case that’s easy to cable manage in. Had some issues with the gpu riser that was fixed by unmounting and remounting it. A little bit on the pricey side for a case but still worth it.
This review is from Thermaltake - TR100 SFF mITX Mini Tower PC Case with PCIe 4.0 Riser Cable Included - Matcha Green
Posted by Korpse
