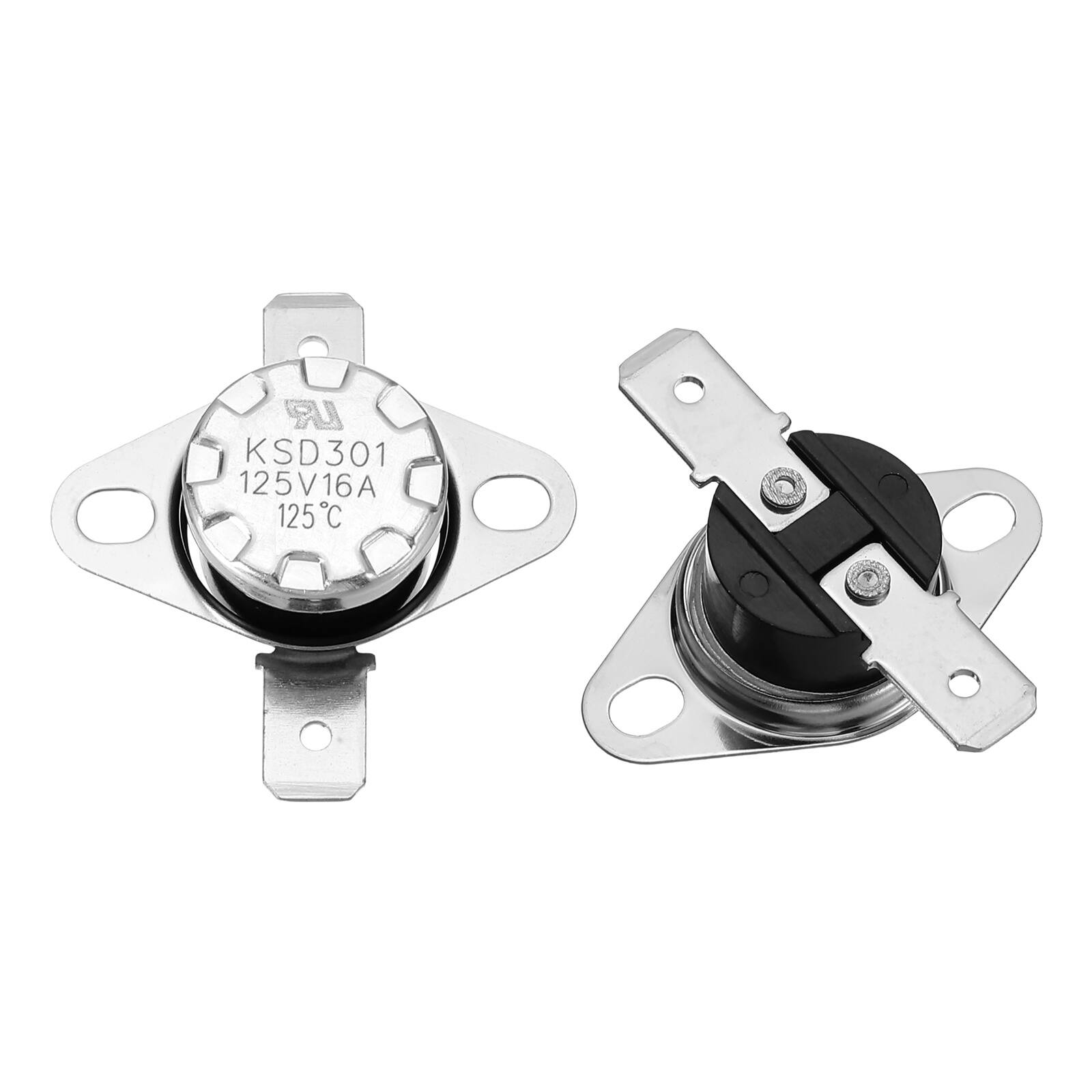

Unique Bargains - 2pcs KSD301 Thermostat 125°C/257°F 16A Normally Closed N.C Temperature Switch for Microwaves/Oven Bakelite - Silver
Reviews coming soon
About this product

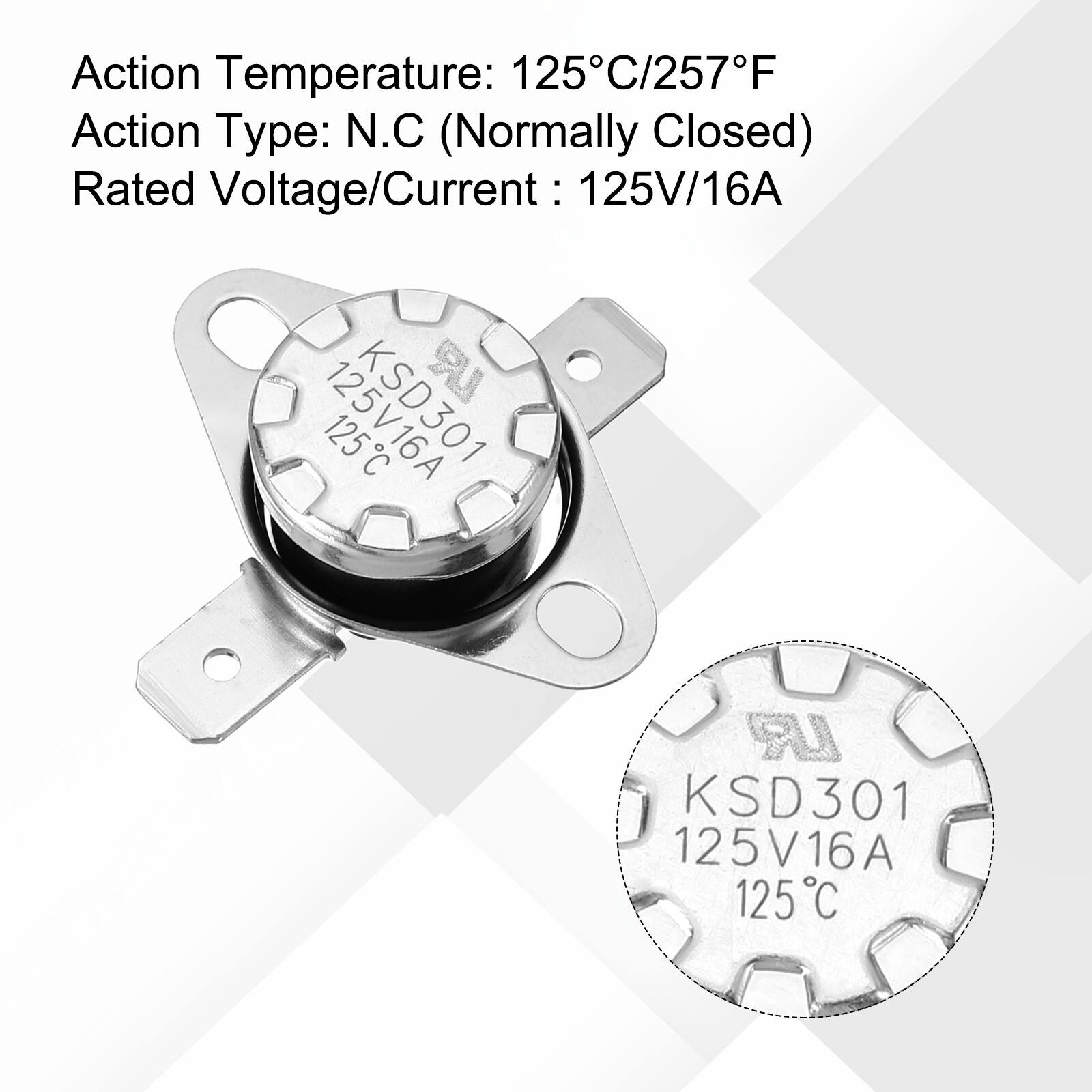

Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 125°C/257°F ; Action Type: N.C (Normally Closed); Rated Voltage/Current : 125V/16A; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 2 Pcs x Temperature Control Switch
Features
2Pcs KSD301 125°C NC 16A Thermostat Bakelite
Type: KSD301 125°C/257°F Thermal Control Switch 125V 16A N.C (Normally Closed)
Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.
Advantage: Double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon. General purpose, automatic reset, low cost, large capacity, minute current thermostats.

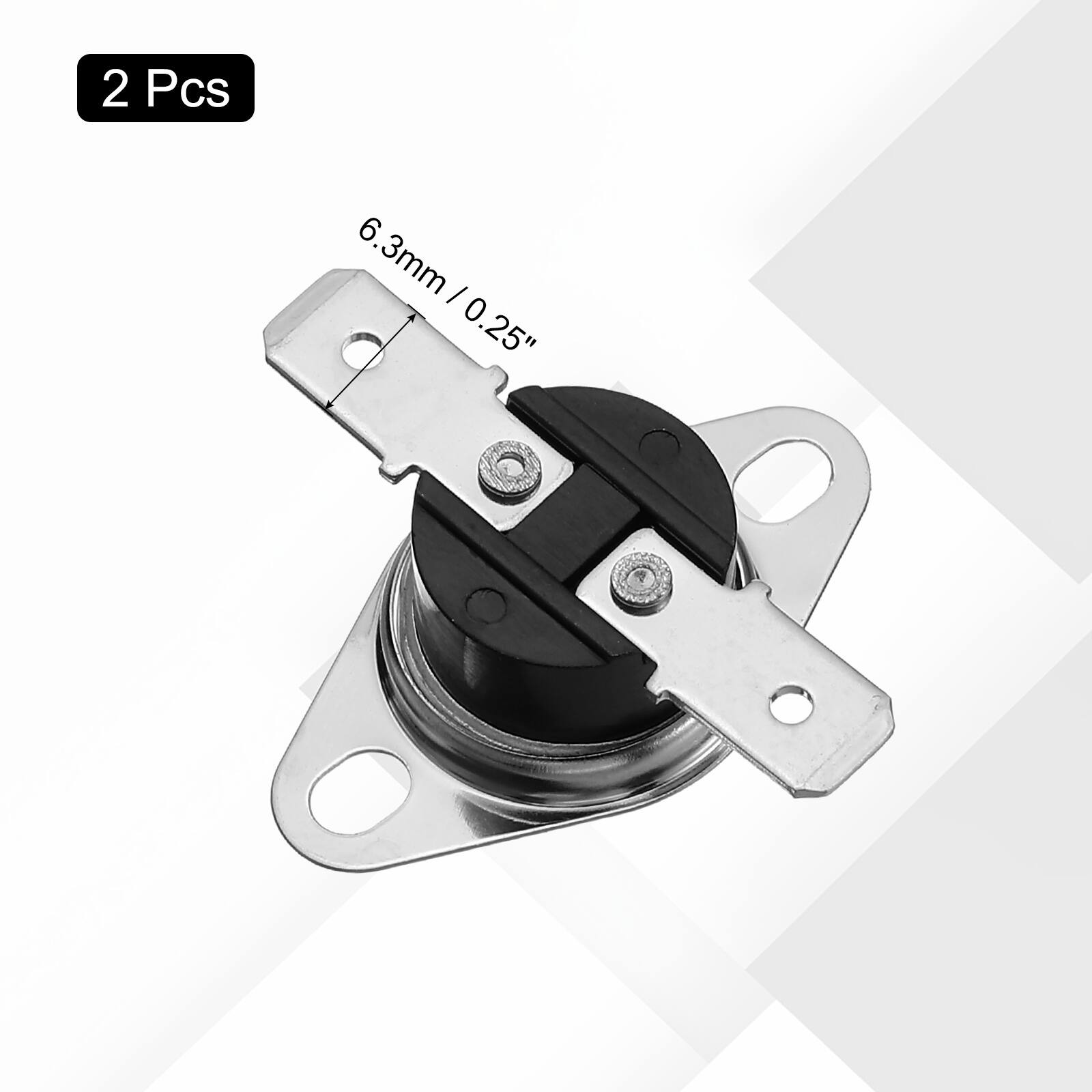

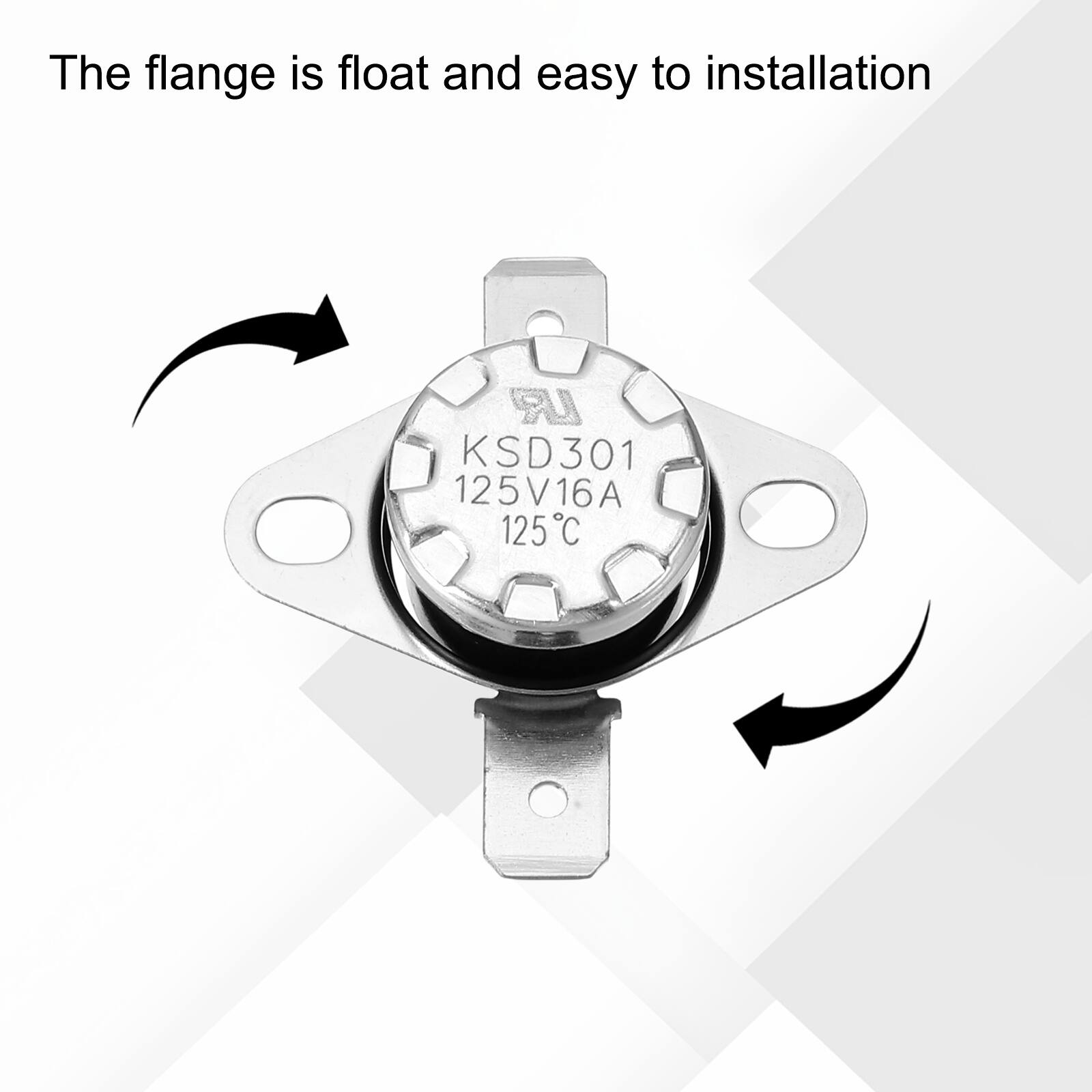

Easy to installation : The flange on the switch is float and easy to installation.The pin width is 6.3mm
Application: Mainly used for microwave,oven,coffee maker,Speed Cook oven,heater,Dryer,gas furnace,Bath Vent/Heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner
Specifications
- BrandUnique BargainsModel Numbers26060900ux2917Product Name2pcs KSD301 Thermostat 125°C/257°F 16A Normally Closed N.C Temperature Switch for Microwaves/Oven BakeliteColorSilverSwitch TypeToggleVoltage125 volts
Reviews
This product doesn't have any reviews yet.
Compare similar products
Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 125°C/257°F ; Action Type: N.C (Normally Closed); Rated Voltage/Current : 125V/16A; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 2 Pcs x Temperature Control Switch
Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 135°C/275°F ; Action Type: N.C (Normally Closed); Rated Voltage/Current : 125V/16A; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 2 Pcs x Temperature Control Switch
Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 160°C/320°F ; Action Type: N.C (Normally Closed); Rated Voltage/Current : 125V/16A; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 2 Pcs x Temperature Control Switch
Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 175℃ ; Action Type: NC (Normal Close); Rated Voltage/Current : 250V/16A; Pin Type : Right Angle; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 2 x Temperature Control Switch
