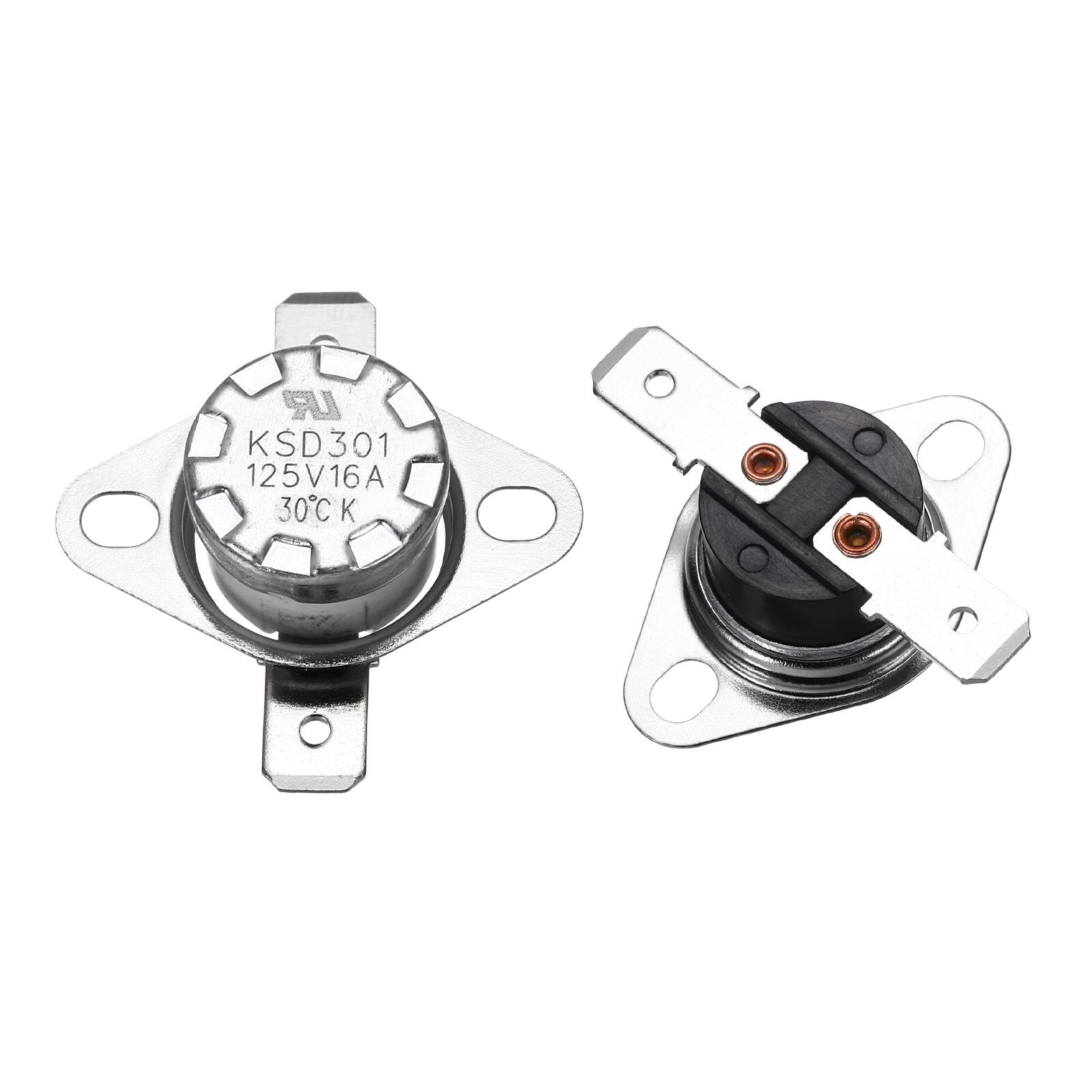

Unique Bargains - 2pcs KSD301 Thermostat 30°C/86°F 16A Normally Open N.O Adjust Snap Disc Temperature Switch Bakelite - Silver
Reviews coming soon
About this product
Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 30°C/86°F ; Action Type: N.O (Normally Open); Rated Voltage/Current : 125V/16A; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 2 Pcs x Temperature Control Switch
2Pcs KSD301 30°C NO 16A Thermostat Bakelite
Type: KSD301 30°C/86°F Thermal Control Switch 125V 16A N.O (Normally Open)
Normally Open: The original state of temperature control switch contact is open, and closed when the temperature sensing exceeds the rated temperature.
Advantage: Double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon. General purpose, automatic reset, low cost, large capacity, minute current thermostats.

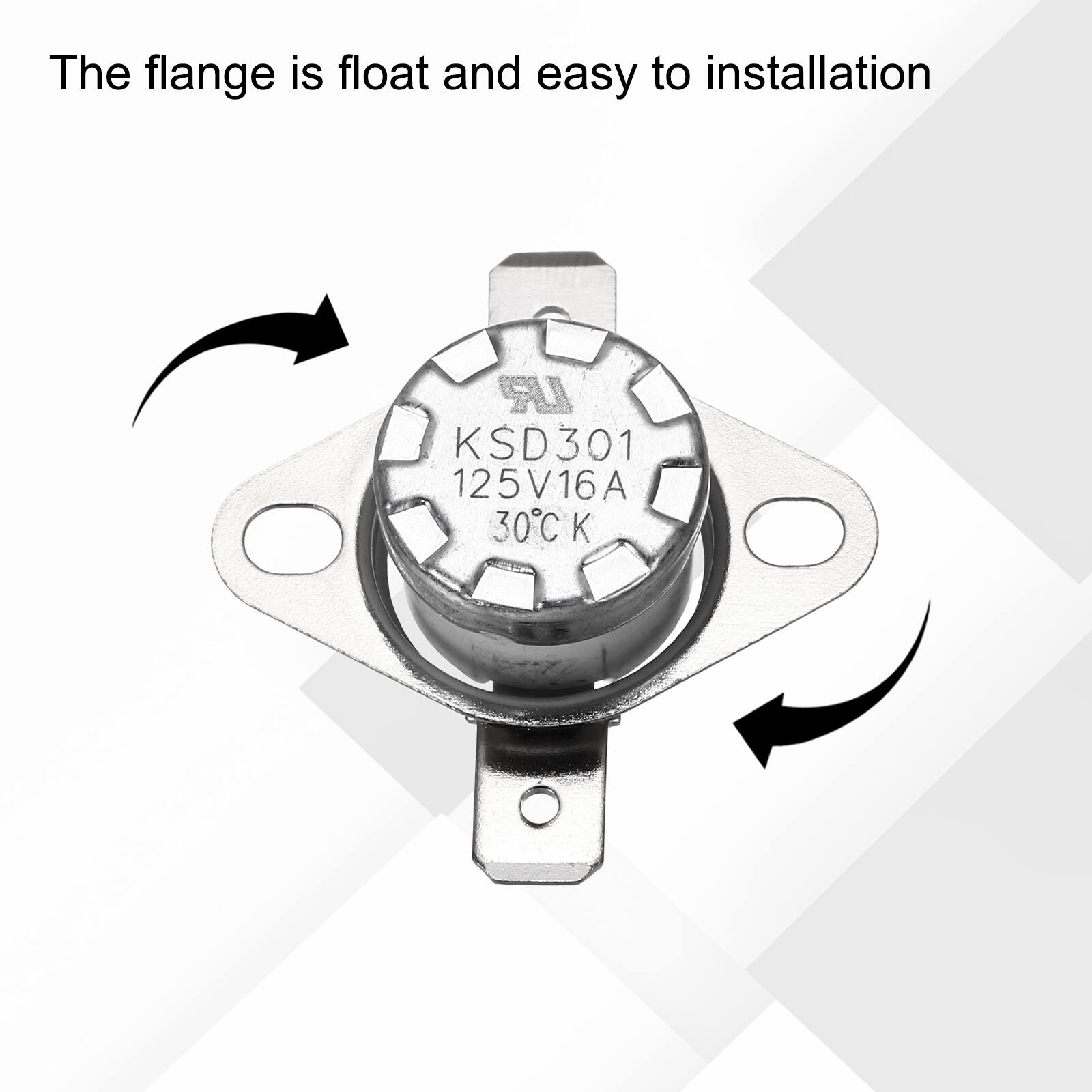

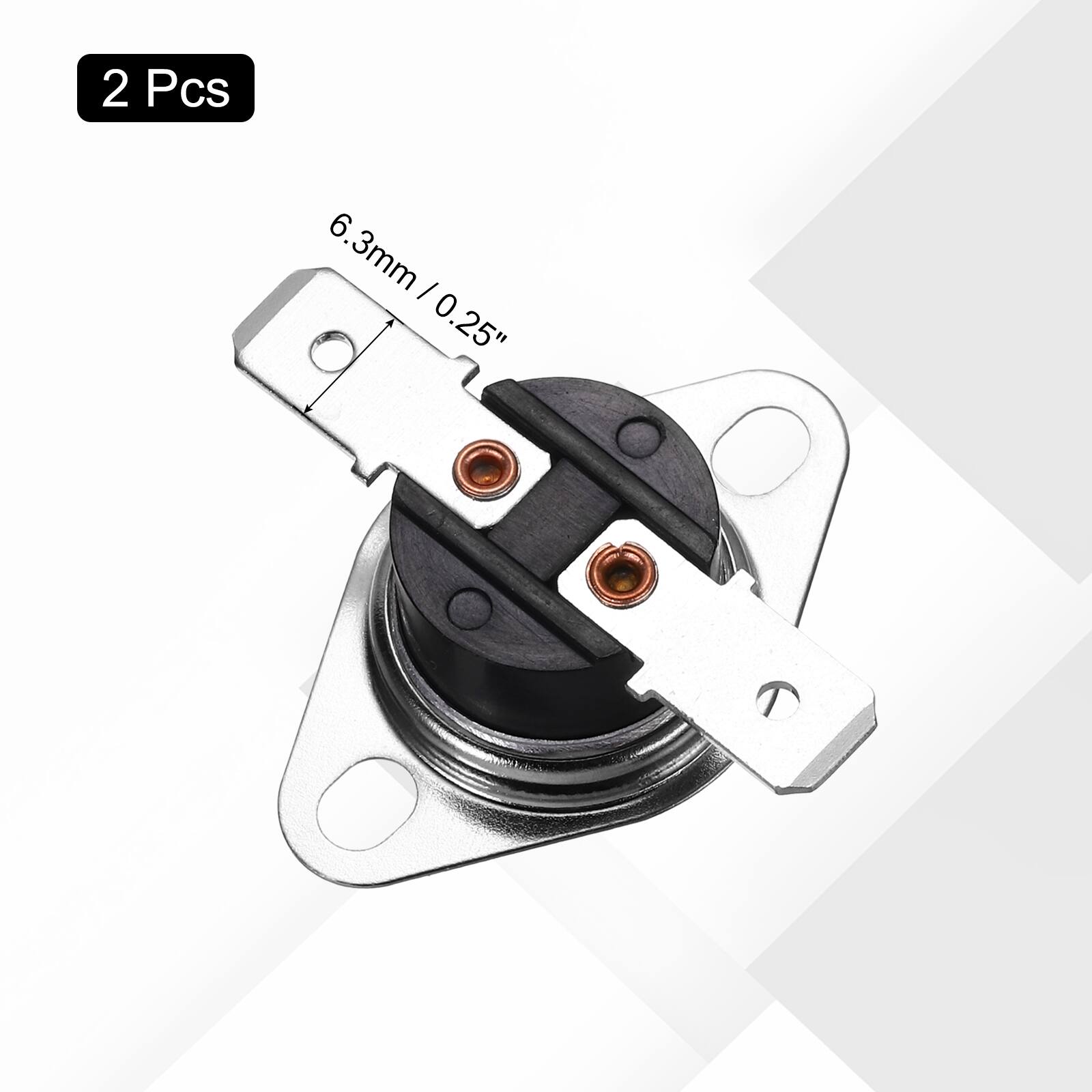

Easy to installation : The flange on the switch is float and easy to installation.The pin width is 6.3mm
Application: Mainly used for microwave,oven,coffee maker,Speed Cook oven,heater,Dryer,gas furnace,Bath Vent/Heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner
- BrandUnique BargainsModel Numbers26060900ux2768Product Name2pcs KSD301 Thermostat 30°C/86°F 16A Normally Open N.O Adjust Snap Disc Temperature Switch BakeliteColorSilverSwitch TypeToggleVoltage125 volts
Reviews
This product doesn't have any reviews yet.
Compare similar products
Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 30°C/86°F ; Action Type: N.O (Normally Open); Rated Voltage/Current : 125V/16A; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 2 Pcs x Temperature Control Switch

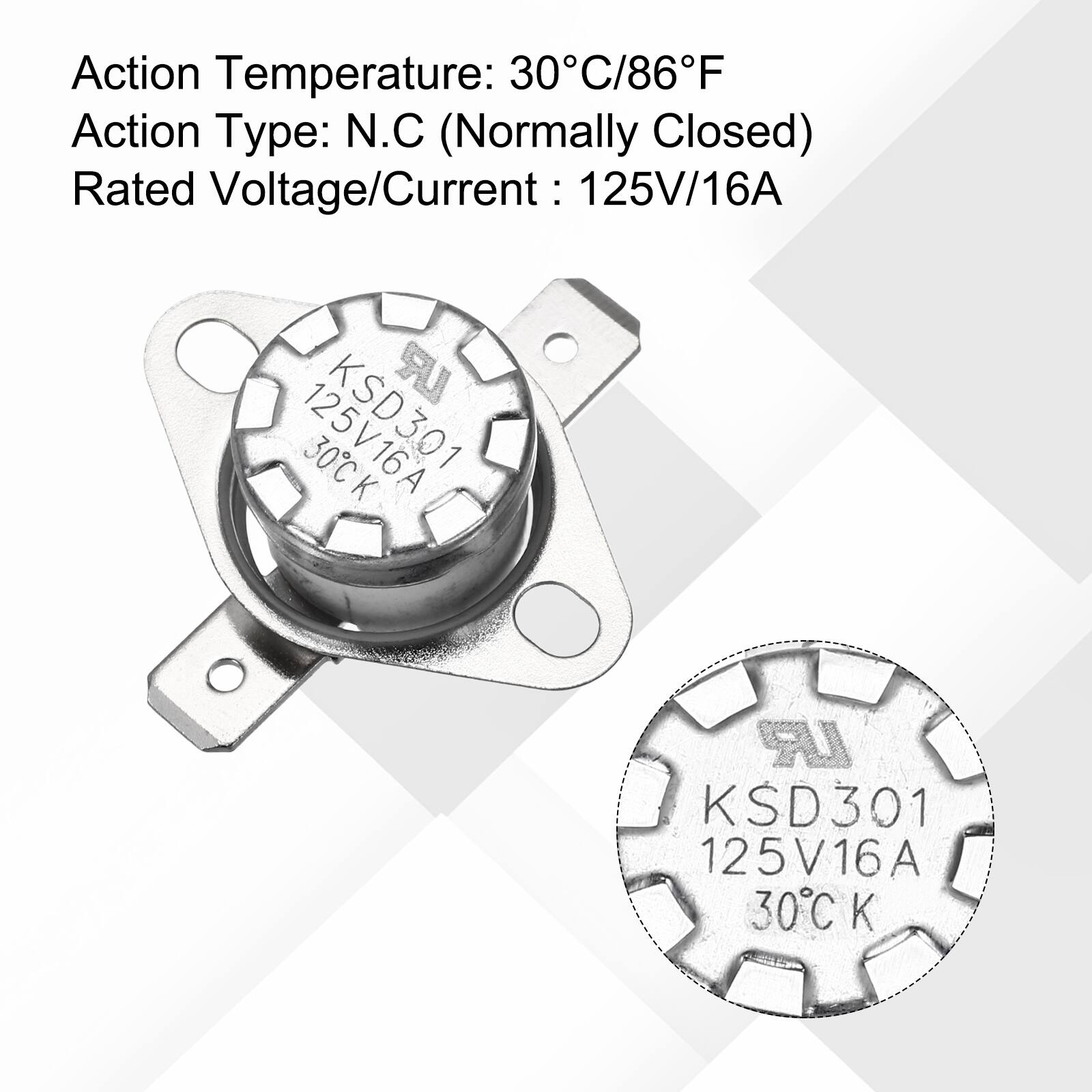

Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 30°C/86°F ; Action Type: N.C (Normally Closed); Rated Voltage/Current : 125V/16A; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 2 Pcs x Temperature Control Switch
Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 40°C/104°F ; Action Type: N.O (Normally Open); Rated Voltage/Current : 125V/16A; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 2 Pcs x Temperature Control Switch
Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 200°C/392°F ; Action Type: N.C (Normally Closed); Rated Voltage/Current : 125V/16A; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 2 Pcs x Temperature Control Switch
