Viking - 36 in. Wide 36"W. VEIL Integrated Bottom Freezer - Custom Panel Right Hinge - Custom Panel Ready
Model: FDBMIC7360R
SKU: 6643338
$10,299.00
or
$429.13/mo.
suggested payments with 24-Month Financing
Show me how
Availability
FREE delivery to
Sold by
Need-haul away?
When we deliver your new Appliance, we can haul away your old one and make sure it’s properly recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
See it in-store: Roseville has a demo model on display.
Key Accessories:
- Viking - Dishwasher - Stainless Steel$2,249.00
Related Item
Specifications
- Product Height83 1/2 inchesProduct Width35 7/8 inchesHeight To Top Of Door Hinge83.5 inchesTotal Capacity19.4 cubic feetRefrigerator StyleBottom FreezerLighting TypeLED
- Key Specs
- Product Height: 83 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 83.5 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Total Capacity: 19.4 cubic feet
- Refrigerator Style: Bottom Freezer
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Viking
- Model Number: FDBMIC7360R
- Product Name: 36 in. Wide 36"W. VEIL Integrated Bottom Freezer - Custom Panel Right Hinge
- Color: Custom Panel Ready
- Vendor Collection: Viking 7 Series (Part of a line of different product types, like kitchen appliances.)
- Side Panel Color: Dark Silver
- Dimensions
- Product Height: 83 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 83.5 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Door: 24 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 58 5/8 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 406 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 84 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 36 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 19.4 cubic feet
- Refrigerator Capacity: 13.4 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 6 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Built-in (The size, arrangement, and physical configuration of the product.)
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: Bottom Freezer
- Panel(s) Included: false
- Door-Open Alarm: true
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Electronic
- Display Type: LCD
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: false
- Hinge Setting: Fixed right
- Lighting Type: LED
- Ice & Water
- Ice Maker: Yes
- Ice Maker Location(s): Freezer
- Ice and Water Dispenser: Ice only
- Ice and Water Dispenser Location: Internal
- Storage
- Number of External Doors/Drawers: 3
- Number of Refrigerator Shelves: 2
- Refrigerator Shelf Style: Adjustable
- Refrigerator Shelf Material: Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Door Type: Pull Out Drawer
- Freezer Interior Light: true
- Quick Freeze: true (Feature that allows you to quickly reduce the temperature when needed, perfect for chilling drinks or freezing large quantities of fresh food. Fast freezing may help maintain food quality.)
- Filter Info
- Water Filtration: true
- Water Filter Model Number: RWFIC (The water filter model(s) recommended for use with the product.)
- Air Filter: true (A filter that works to remove odors and contaminants from the air within the appliance.)
- Air Filter Model Number: N/A (The air filter model(s) recommended for use with the product.)
- Electrical
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 580 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 81 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Warranty
- Warranty - Parts: 2 Years Full Warranty Parts & Labor. 6 Years Full Warranty (Parts and Labor) on Refrigeration Sealed System.
- Warranty - Labor: 2 Years Full Warranty Parts & Labor. 6 Years Full Warranty (Parts and Labor) on Refrigeration Sealed System.
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 800284088042
7-Series 36"W. 19.4 cu ft.Built-in Integrated Bottom Freezer - Custom Panel Right Hinge
- Triple Mode Convertible Drawer: Enjoy total flexibiltiy with a bottom drawer that can switch between refrigerator, fresh food space or freezer.
- Enhanced Lighting: Top and side mounted Energy-efficient LED lighting enhances visibility.
- Antibacterial stainless steel interior: The stainless steel non-porous interior surface resists bacteria and germs, creating a hygienic environment.
- Soft-close system: State-of-the-art closing system ensures refrigerator crisper drawers close smoothly and quietly, while maintaining a tight seal.

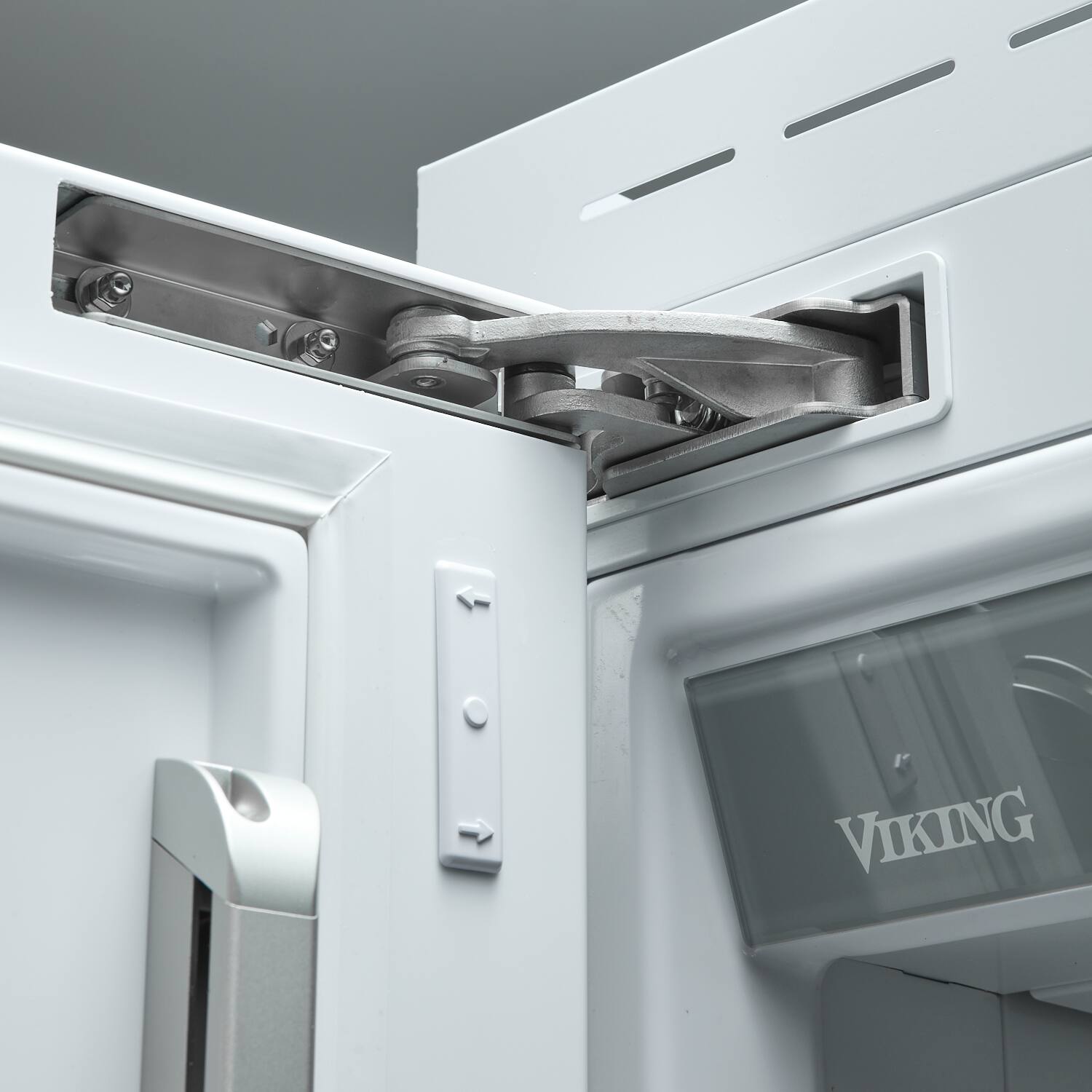

- Concealed Hinge: Achieve a seamless built-in look with Viking's patented innovative door hinge that has a dual pivoting movement and self-balancing roller.
Whats Included
- Appliance
- 3 Glass shelves
- 1 interior drawer, plus 2 freezer drawers
Product Manuals
Documents
- Energy_Guide_PDF
Disclaimers
- Panel-ready products are designed to be fitted with custom cabinetry panels and handles, allowing them to blend seamlessly into your kitchen's design. If you do not install a panel on a panel-ready product, the unit will still function properly, but it will appear unfinished and aesthetically unappealing. Panels/Handles are sold separately.
Q: Is there an alarm if the door is left open?
A: Yes, there is a door-open alarm for this refrigerator.
Q: Can the bottom drawer be used as a freezer?
A: Yes, the bottom drawer can be switched to freezer.
Q: Does this bottom freezer have interior light?
A: Yes, the freezer has interior light.
Q: Is the door hinge setting fixed?
A: Yes, the hinge setting is fixed right.
Q: Are the shelves in the refrigerator adjustable?
A: Yes, the shelves are adjustable in the refrigerator.
Q: Does this refrigerator have a water filter?
A: Yes, this refrigerator has water filtration.
Q: Does this refrigerator have an ice maker?
A: Yes, this refrigerator has an ice maker located in the freezer.
