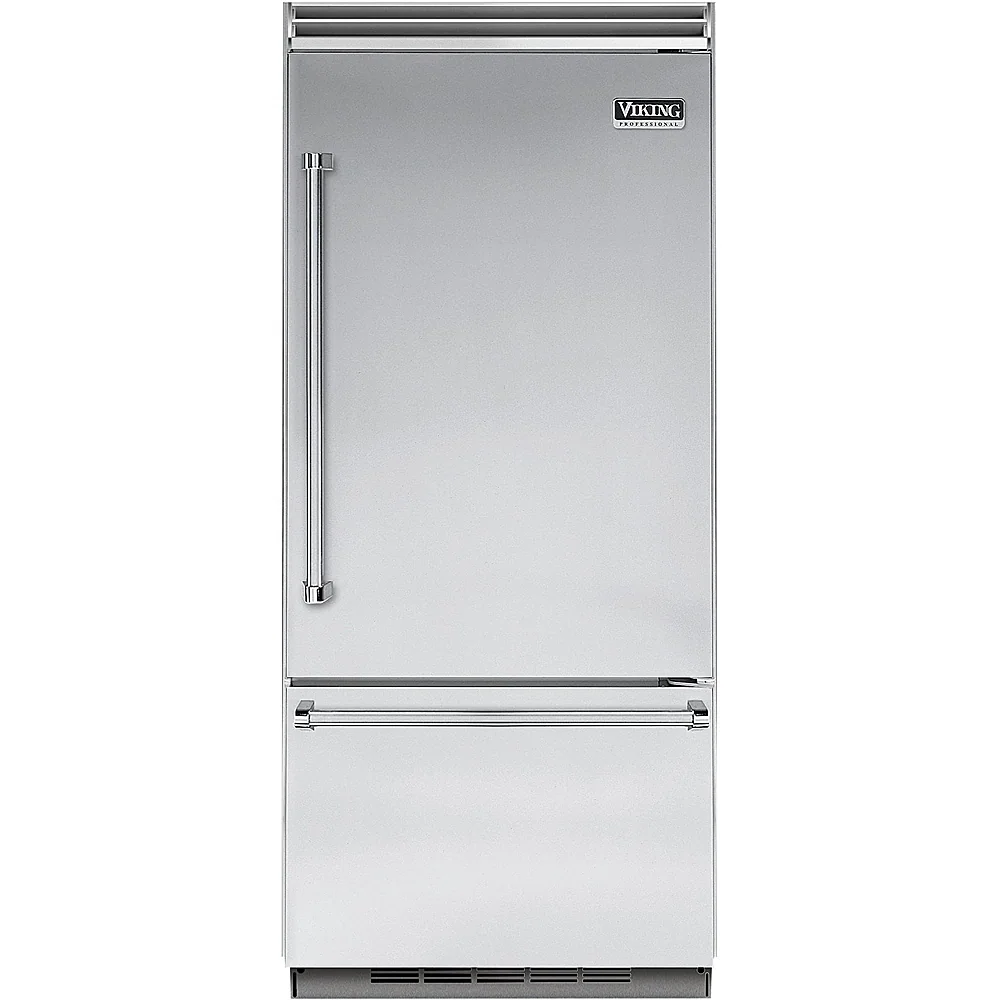

Viking - Professional 5 Series Quiet Cool 20.4 Cu. Ft. Bottom-Freezer Built-In Refrigerator - Stainless steel
Model: VCBB5363ERSS
SKU: 7742014
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 82 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 1/50 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 84 1/10 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 24 1/50 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Total Capacity: 20.4 cubic feet
- Refrigerator Style: Bottom Freezer
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Viking
- Model Number: VCBB5363ERSS
- Product Name: Professional 5 Series Quiet Cool 20.4 Cu. Ft. Bottom-Freezer Built-In Refrigerator
- Color: Stainless steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 82 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 1/50 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 84 1/10 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: false (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 24 1/50 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth Without Door: 22 1/5 inches (Measurement from the back of the product to its front, not including the door.)
- Product Weight: 565 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 82 9/10 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 35 3/4 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 20.4 cubic feet
- Refrigerator Capacity: 15.3 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 5.1 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Performance
- Minimum Operating Temperature: 55 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 110 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Configuration: Built-in (The size, arrangement, and physical configuration of the product.)
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: Bottom Freezer
- Convertible Temperature Zone: false (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Garage Ready: false (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Door-Open Alarm: true
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Electronic
- Defrost Type: Manual (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: false
- Hinge Setting: Fixed right
- Lighting Type: LED
- Ice & Water
- Ice Maker: Yes
- Ice Maker Location(s): Freezer
- Ice and Water Dispenser: None
- Storage
- Number of External Doors/Drawers: 2
- Number of Refrigerator Shelves: 3
- Refrigerator Shelf Style: Adjustable, Removable
- Dairy Center: true (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Spill-proof glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Shelf Material: Other
- Quick Freeze: true (Feature that allows you to quickly reduce the temperature when needed, perfect for chilling drinks or freezing large quantities of fresh food. Fast freezing may help maintain food quality.)
- Filter Info
- Water Filtration: true
- Water Filter Model Number: Not Available (The water filter model(s) recommended for use with the product.)
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 800284004226
Enhance food and ingredient quality by storing them in this Viking refrigerator. LED lighting on the top and side is energy efficient and illuminates the contents of your refrigerator, and you can store heavy items with confidence in the metal door bins. Automatic humidity and digital temperature controls maintain a safe food environment in this Viking refrigerator.
- DuraHinge hinges: The door aligns perfectly with any stylish kitchen design.
- Electronic controls: Make operation simple.
- 2 wire baskets: Make it easy to organize frozen food.
- Organize contents with ease: Includes 2 adjustable full-width spillproof shelves, 2 adjustable dairy compartments, 3 adjustable half-width door bins and more to provide ample space for storing items.
- LED interior lighting: Bright lights to illuminate interior.
- Fast Freeze: Rapidly freeze products for quick preservation.
- Door alarm: Alerts you when the refrigerator door is accidentally left open to save energy.
- Automatic ice maker: Provides a steady supply of ice without the mess of having to refill ice trays.
- Free delivery on appliance orders $399 and up: For new water line connections, special installation is required which is not included with delivery. Call 1-888-BEST BUY (1-888-237-8289) to find out more and to purchase installation.
- Required parts sold separately: Find essential parts for installation in the accessories section on this page.
- Need more information?: See what's included with home delivery and installation.
- DuraHinge hinges: The door aligns perfectly with any stylish kitchen design.
- Electronic controls: Make operation simple.
- 2 wire baskets: Make it easy to organize frozen food.
- Organize contents with ease: Includes 2 adjustable full-width spillproof shelves, 2 adjustable dairy compartments, 3 adjustable half-width door bins and more to provide ample space for storing items.
- LED interior lighting: Bright lights to illuminate interior.
- Fast Freeze: Rapidly freeze products for quick preservation.
- Door alarm: Alerts you when the refrigerator door is accidentally left open to save energy.
- Automatic ice maker: Provides a steady supply of ice without the mess of having to refill ice trays.
- Free delivery on appliance orders $399 and up: For new water line connections, special installation is required which is not included with delivery. Call 1-888-BEST BUY (1-888-237-8289) to find out more and to purchase installation.
- Required parts sold separately: Find essential parts for installation in the accessories section on this page.
- Need more information?: See what's included with home delivery and installation.
Whats Included
- Ice bin
- Viking Professional 5 Series Quiet Cool VCBB5363ERSS
- Ice bin
- Viking Professional 5 Series Quiet Cool VCBB5363ERSS
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: What are the dimensions of the cut-out required for installing this built-in refrigerator?
A: The dimensions of the cut-out required for installing this built-in refrigerator are: - Cut-Out Height: 82 7/8 inches - Cut-Out Width: 35 5/8 inches - Cut-Out Depth: 24 inches
Q: What type of lighting is used inside the refrigerator for illumination?
A: The interior of the Viking Professional 5 Series bottom-freezer refrigerator is illuminated with energy-efficient LED lights. These lights provide bright illumination, making it easy to see the contents of the refrigerator.
Q: How many freezer shelves and refrigerator shelves does this model have?
A: This model has 3 refrigerator shelves and 0 freezer shelves.
A: Yes, this Viking refrigerator comes with special features to enhance food preservation. It has an Odor Eliminator evaporator that removes excess humidity and odors, as well as a Plasmacluster ion air purifier that eliminates airborne bacteria and mold spores. These features work together to keep food fresher for longer.
Q: What is the total storage capacity of this Viking refrigerator?
A: The total storage capacity of the Viking Professional 5 Series Quiet Cool Bottom-Freezer Built-In Refrigerator is 20.4 cubic feet. This includes 15.3 cubic feet of refrigerator space and 5.1 cubic feet of freezer space.
Q: What type of temperature control does this refrigerator have, and is it adjustable?
A: This refrigerator has an electronic temperature control system. Yes, the temperature is adjustable. To adjust the temperature, press the "ACTIVATE CONTROLS" pad, then the "Ref Temp" or "Frz Temp" pad. Press the "HIGHER" or "LOWER" pad to adjust the temperature setting one degree at a time.
Q: Does this refrigerator have a water dispenser or an ice maker?
A: Yes, this refrigerator has an automatic ice maker that provides a steady supply of ice without the need for refilling ice trays. However, it does not have a water dispenser.
Q: What is the minimum and maximum temperature range that this refrigerator can operate in?
A: The minimum operating temperature for this refrigerator is 55 degrees Fahrenheit. The maximum operating temperature is 110 degrees Fahrenheit.
