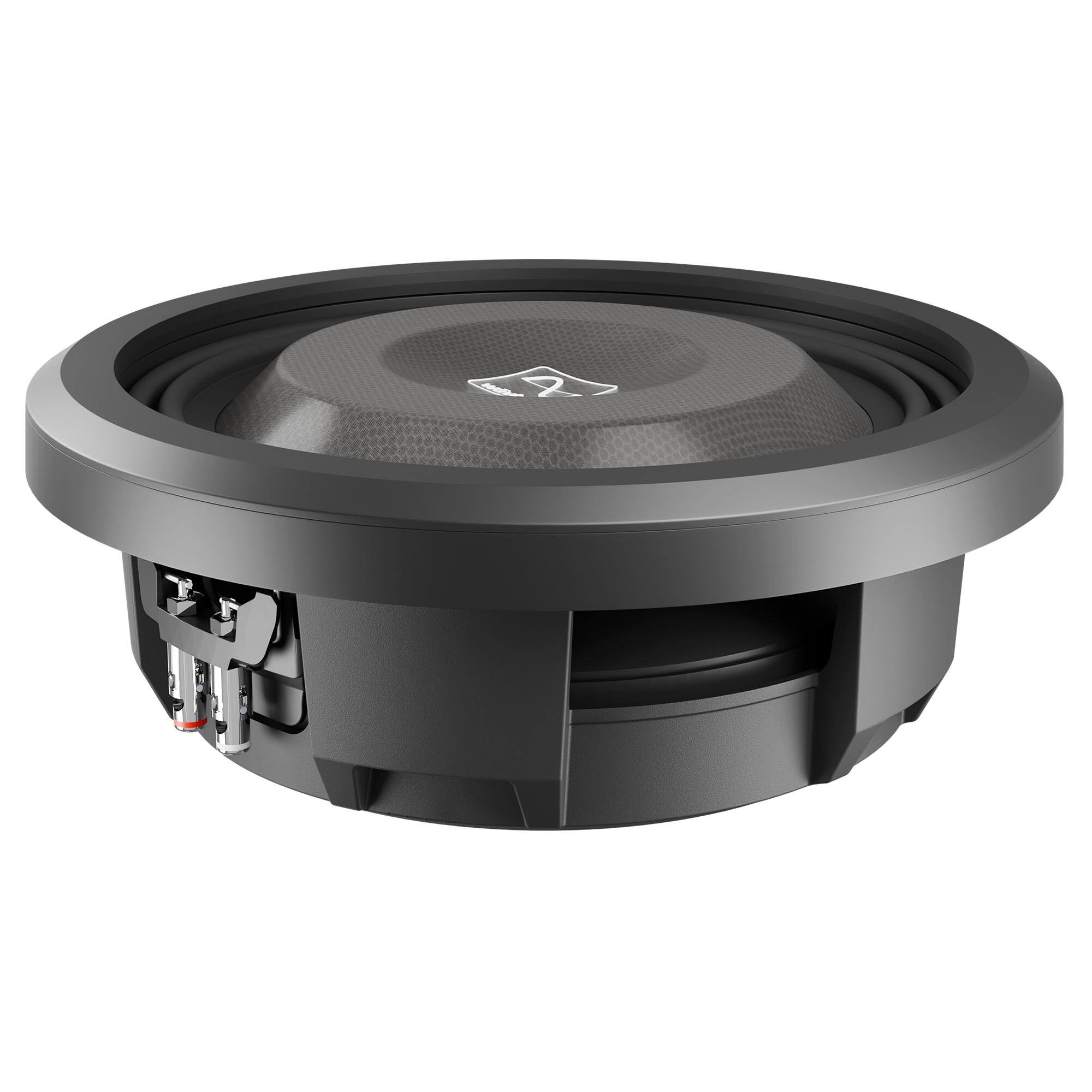

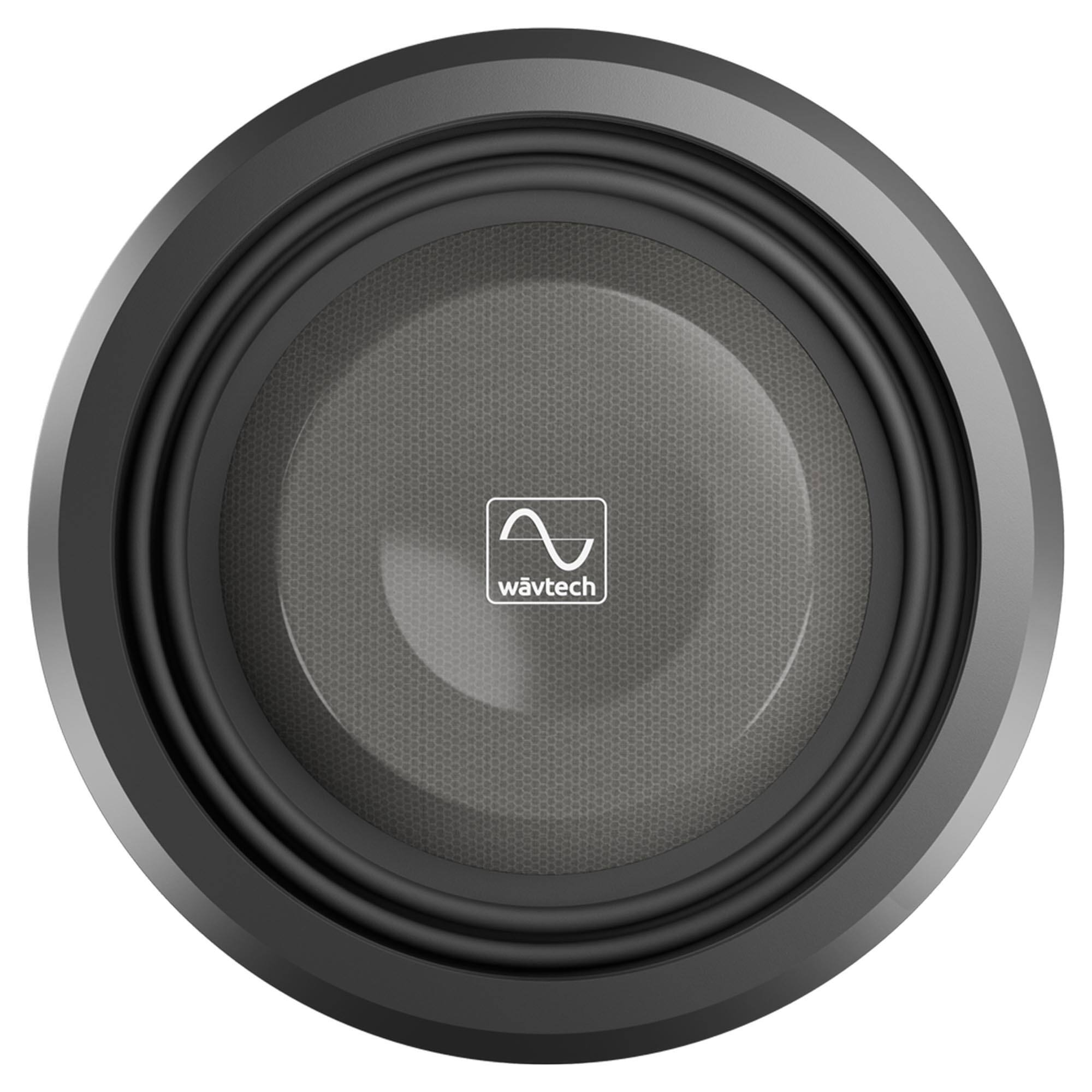

Wavtech - THINPRO10-2 10” Professional Series Shallow 2 Ohm Subwoofer - Black/Gray
Wavtech - THINPRO10-2 10” Professional Series Shallow 2 Ohm Subwoofer - Black/Gray
Specifications
- RMS Power750 wattsWoofer Size10"
- Key Specs
- RMS Power: 750 watts (The maximum amount of continuous power the device is able to handle.)
- Woofer Size: 10"
- General
- Brand: Wavtech
- Model Number: THINPRO10-2
- Product Name: Wavtech THINPRO10-2 10” Professional Series Shallow 2 Ohm Subwoofer
- Color: Black/Gray
- Audio Power
- RMS Power: 750 watts (The maximum amount of continuous power the device is able to handle.)
- Features
- Marine: true
- Dimensions
- Woofer Size: 10"
- Product Height: 12.000 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12.000 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4.000 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 10.0 pounds (The out of box weight of the item.)
- Enclosure
- Enclosed: true
- Warranty
- Warranty - Parts: 1-Year Manufacturer Warranty
- Warranty - Labor: None
- Other
- UPC: 700987201574

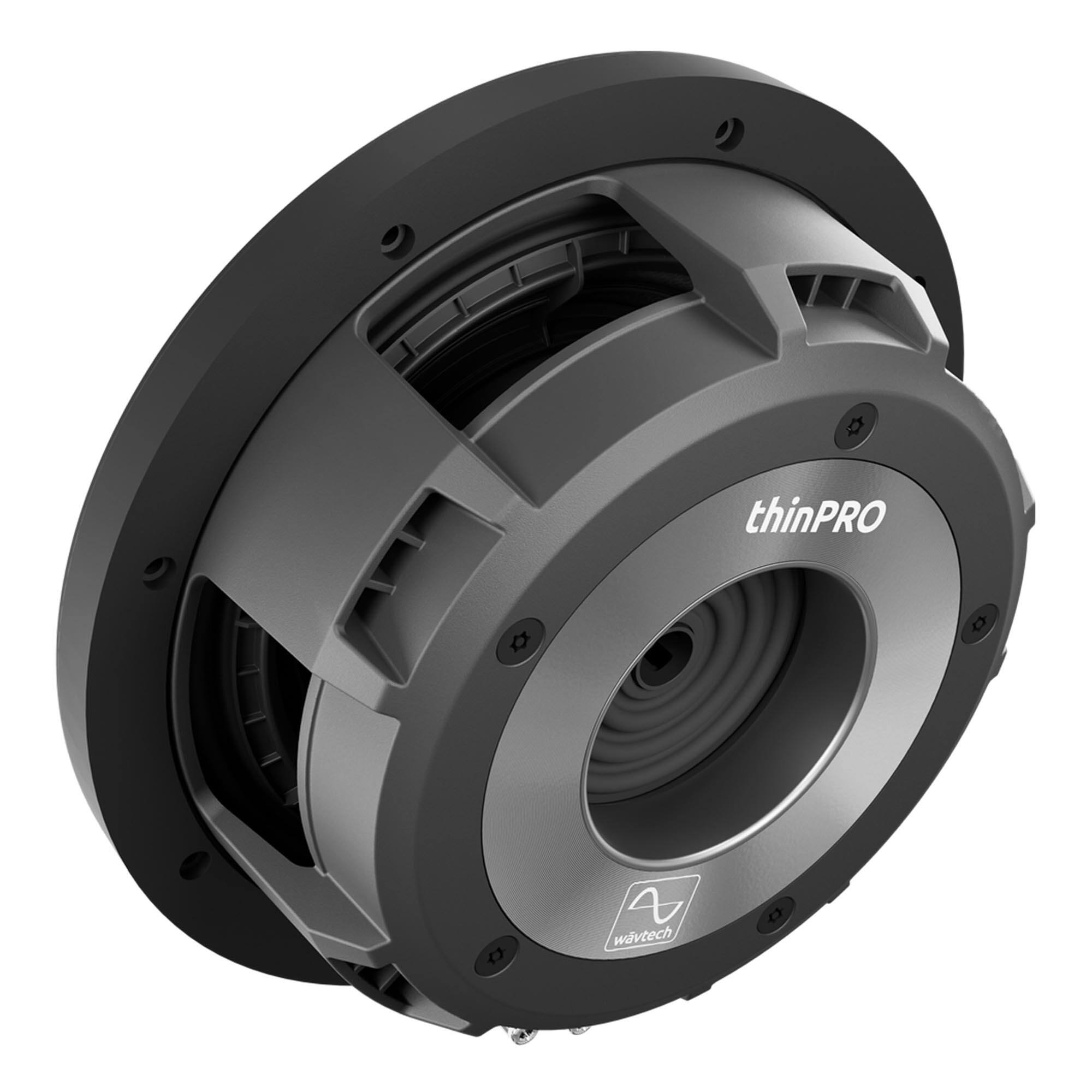

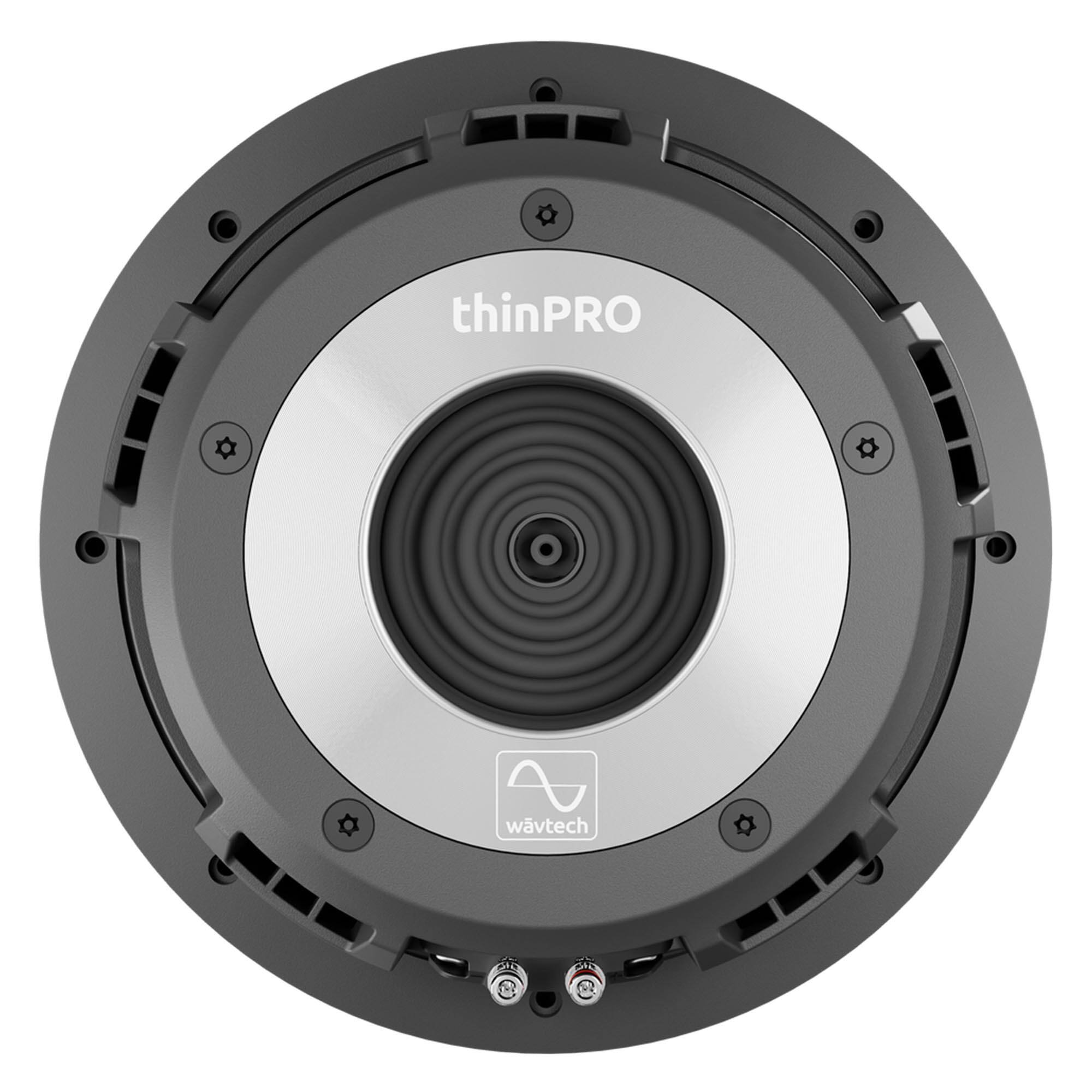

The thinPRO10 is the ultimate paradox. There really isn’t anything else like it. With a mounting depth of less than 3”, if it won’t fit in the desired location, you probably aren’t putting a subwoofer there. The dual mirrored NBR spiders and axial force transfer assembly allows for unparalleled performance in a multitude of applications. The FEA optimized dual gap motor structure features a massive motor with double stacked strontium magnets. This maximizes flux density and control for an impressive 20mm of linear xmax. The honeycomb cone is made of a composite Nomex® and glass fiber, making it incredibly rigid and very lightweight. The 4.5” voice coil, available in 2 or 4 ohm, provides a powerful moving force with 750W RMS power handling. The thinPRO10 is perfect in both small sealed and ported enclosures. Sealed box sizes range from 0.25-0.8cu ft, with the sweet spot at 0.35cu ft. Ported enclosures range from 0.4-1.0cu ft, with 0.6cu ft recommended for optimum performance. thinPRO10 Features 750 Watts RMS Power Handling 2.9” Mounting Depth 4.5” Voice Coil 4-Layer Winding on Vented Polymide Composite Former Protective Grille (TP10G Sold Separately) Honeycomb Nomex® and Glass Fiber Cone FEA Optimized Dual-Gap Motor Structure Double-Roll NBR Surround Mirrored Internal NBR Spiders 8AWG Push Terminals Vented Cast Aluminum Frame Dimensions: 9 1/8in (232mm) Standard 10” cutout Specifications: General Specifications: Nominal Size: 10" Nominal Impedance: 2 ohm Power Handling: 750W RMS, 2250W Peak Recommended Power range: 250W-750W RMS Frequency Response:
- Key Feature: 750 Watts RMS Power Handling
- Key Feature: 2.9” Mounting Depth
- Key Feature: 4.5” Voice Coil
- Key Feature: 4-Layer Winding on Vented Polymide Composite Former

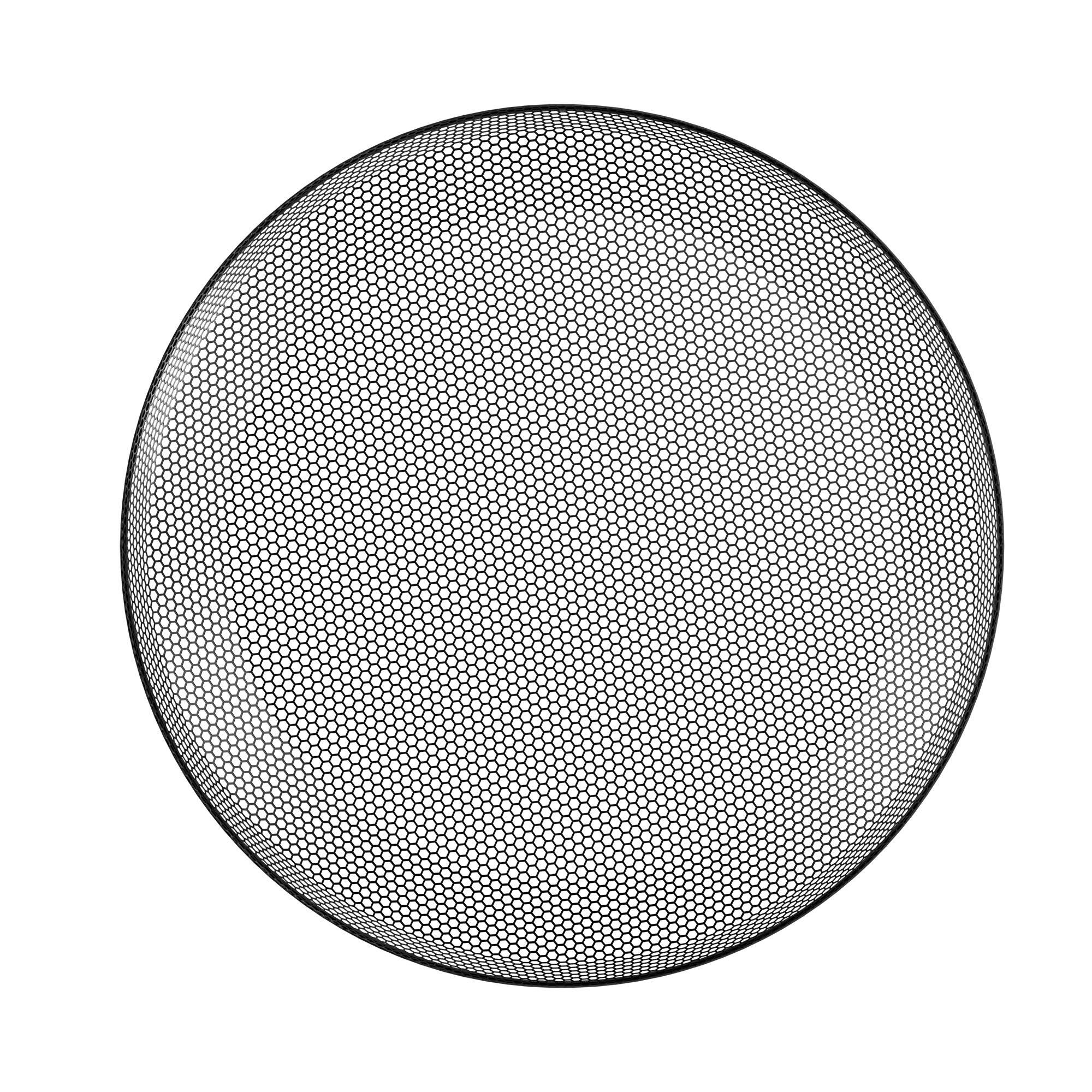

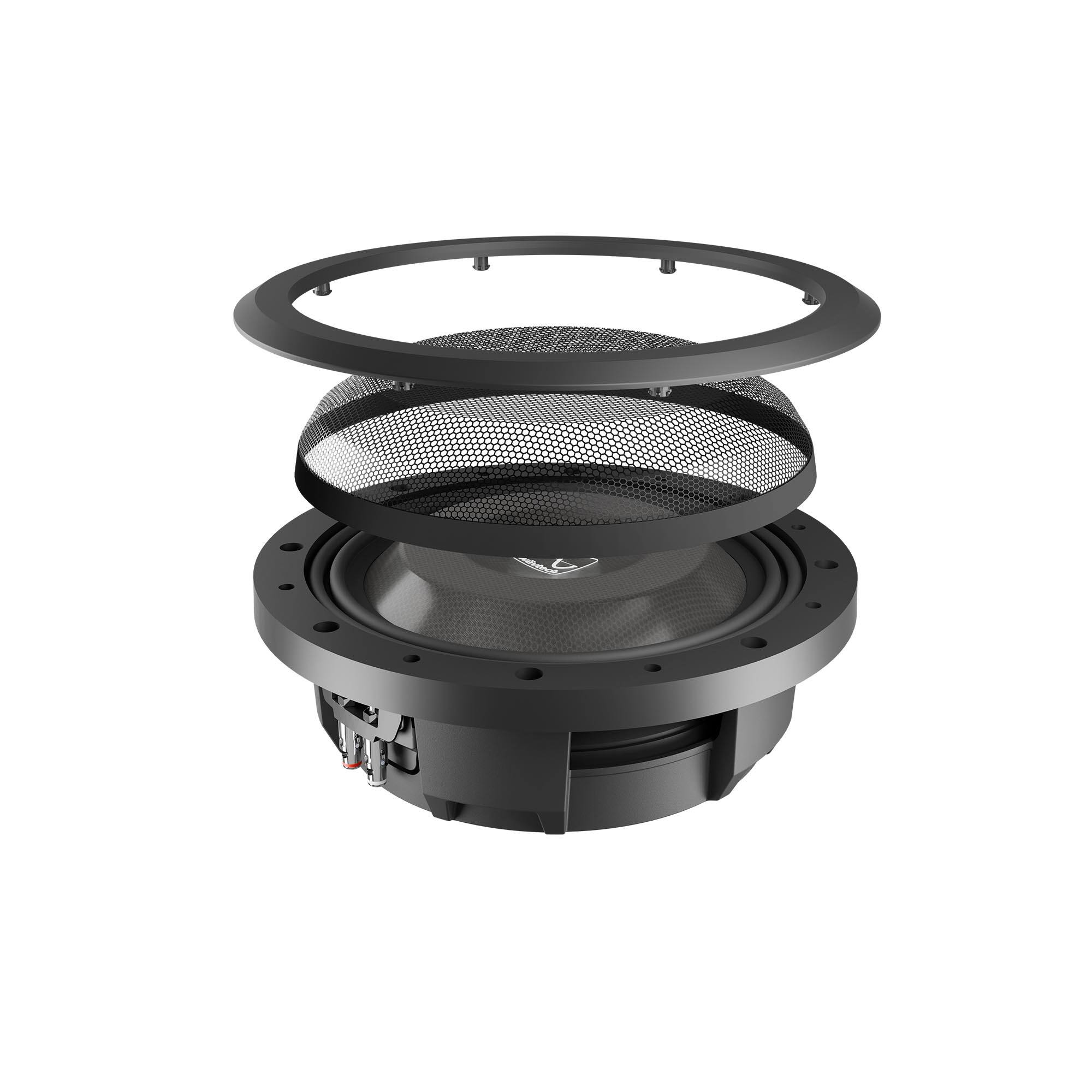

- Key Feature: Protective Grille (TP10G Sold Separately)
- Key Feature: 750 Watts RMS Power Handling
- Key Feature: 2.9” Mounting Depth
- Key Feature: 4.5” Voice Coil
- Key Feature: 4-Layer Winding on Vented Polymide Composite Former
- Key Feature: Protective Grille (TP10G Sold Separately)
Whats Included
- 1x Wavetech THINPRO10-2 10” Professional Series Shallow 2 Ohm Subwoofer
- 1x Wavetech THINPRO10-2 10” Professional Series Shallow 2 Ohm Subwoofer
Compare similar products
The thinPRO10 is the ultimate paradox. There really isn’t anything else like it. With a mounting depth of less than 3”, if it won’t fit in the desired location, you probably aren’t putting a subwoofer there. The dual mirrored NBR spiders and axial force transfer assembly allows for unparalleled performance in a multitude of applications. The FEA optimized dual gap motor structure features a massive motor with double stacked strontium magnets. This maximizes flux density and control for an impressive 20mm of linear xmax. The honeycomb cone is made of a composite Nomex® and glass fiber, making it incredibly rigid and very lightweight. The 4.5” voice coil, available in 2 or 4 ohm, provides a powerful moving force with 750W RMS power handling. The thinPRO10 is perfect in both small sealed and ported enclosures. Sealed box sizes range from 0.25-0.8cu ft, with the sweet spot at 0.35cu ft. Ported enclosures range from 0.4-1.0cu ft, with 0.6cu ft recommended for optimum performance. thinPRO10 Features 750 Watts RMS Power Handling 2.9” Mounting Depth 4.5” Voice Coil 4-Layer Winding on Vented Polymide Composite Former Protective Grille (TP10G Sold Separately) Honeycomb Nomex® and Glass Fiber Cone FEA Optimized Dual-Gap Motor Structure Double-Roll NBR Surround Mirrored Internal NBR Spiders 8AWG Push Terminals Vented Cast Aluminum Frame Dimensions: 9 1/8in (232mm) Standard 10” cutout Specifications: General Specifications: Nominal Size: 10" Nominal Impedance: 2 ohm Power Handling: 750W RMS, 2250W Peak Recommended Power range: 250W-750W RMS Frequency Response:
The thinPRO12 has a mounting depth of just 3 inches, so it is really thin, but it does not perform like a shallow subwoofer. Our Patent Pending design allows for some big performance advantages. The dual mirrored NBR spiders and axial force transfer assembly achieve over 2-inches of peak to peak excursion. The FEA optimized dual gap motor structure features a massive motor with double stacked strontium magnets. This maximizes flux density and control for an impressive 20mm of linear xmax. The honeycomb cone is made of a composite Nomex and glass fiber, making it incredibly rigid and very lightweight. The 5 inch voice coil, available in 2 or 4 ohm, provides a powerful moving force with 750W RMS power handling. thinPRO12 Features 750 Watts RMS Power Handling 3 inch Mounting Depth 5 inch Voice Coil 4-Layer Winding on Vented Polymide Composite Former Protective Grille (TP12G Sold Separately) Honeycomb Nomex and Glass Fiber Cone FEA Optimized Dual-Gap Motor Structure Double-Roll NBR Surround Mirrored Internal NBR Spiders 8AWG Push Terminals Vented Cast Aluminum Frame Dimensions: 11 1/8in (282mm) Standard 12 inch cutout Specifications: General Nominal Size: 12" Nominal Impedence: 2 Ohm Power Handling: 750W RMS/ 2250W Peak Recommended Power Range: 250W-750W Frequency Response: Fs - 300Hz Voice Coil Diameter: 127mm (5") Electro-Mechanical Parameters Fs: 25Hz Re: 1.85 Ohms Le: 2.48mH QMS: 5.02 Qes: 0.55 Qts: 0.49 SPL/Sensitivity (1W/1m): 83dB Xmax: 20mm (0.79") Xmechp-p: 54mm (2.13")
The Pioneer TS-A2000LB A Series Shallow Mount Pre Loaded Enclosure has an 8 in. subwoofer already positioned inside. Traditional subwoofer terminals are mounted horizontally or vertically. These mounts force wires to be bent to fit which can be difficult if low gauge high performance wires are used. The Pioneer shallow subwoofer’s patent-pending, angled push terminals make it easy to connect speaker wires. The straighter connection saves space and makes installation easier. And compact, space-saving dimensions make it easy to install the preloaded subwoofer enclosure in a variety of trucks—standard cab, extended cab, or crew cab.
