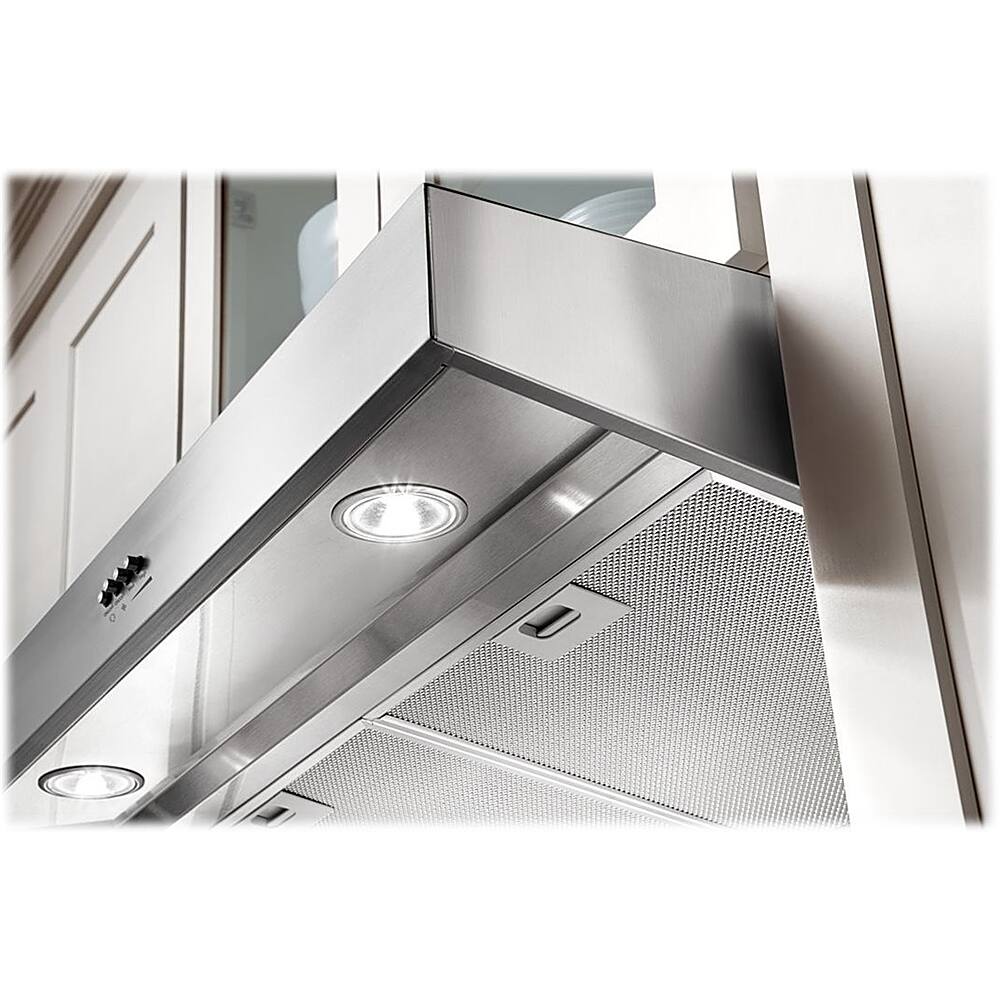

Whirlpool - 24 inches - Convertible - Under cabinet Range Hood - Stainless Steel
Reviews coming soon
Need-haul away?
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishStainless steelProduct Height6 3/8 inchesProduct Width23 15/16 inchesProduct Depth19 11/16 inchesExhaust Vent LocationTop/RearVent TypeDucted, Ductless
- Key Specs
- Color Finish: Stainless steel
- Product Height: 6 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Whirlpool
- Model Number: WVU37UC4FS
- Product Name: 24" Convertible Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 6 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Product Width: 23 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 24 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 17 pounds (The out of box weight of the item.)
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 1
- Bulb Type Required: LED
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 270 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Operating Sound Level: 13 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Other
- Dishwasher-Safe Filter: false
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 883049440804
Installing this stove hood with LED task lighting is quick and easy. The FIT system helps reduce measuring, cutting and trim for a smooth fit. The powerful 3-speed hood vent kitchen fan takes care of steam, grease, smoke and odors.
- 3-Speed, 270 CFM Motor Class: Quickly removes smoke and odors from your kitchen. Allow you to adjust ventilation to meet your needs. (Performance varies based on installation. Resources available at aham.org.)
- Full-Width Grease Filters: Make cleanup easy with full-width grease filters that help keep the kitchen clean of unwanted grease and odors.
- FIT System: The FIT system eliminates measuring, cutting and trim for a perfect fit every time. (Based on typical installation with existing electrical and ventilation connections. Consult a professional installer to ensure your installation complies with code requirements.)
- LED Task Lighting: LED lighting designed to last longer than standard incandescent light bulbs.
- Recirculation (Non-Vented/Duct-Free): By not having to connect to outside air, this hood can be installed almost anywhere, including a condo. Recirculation happens through filters to help keep the air fresh.
Whats Included
- Whirlpool 24" Convertible Range Hood
Q: What type of bulb does this range hood use?
A: This range hood uses LED bulbs.
Q: How many fan speeds does this range hood have?
A: This range hood offers 3 fan speed settings to adjust ventilation as needed.
Q: What is the maximum airflow capacity of this range hood?
A: This range hood has a maximum airflow capacity of 270 cubic feet per minute.
Q: Does this Whirlpool range hood come with a remote control?
A: No, this range hood does not come with a remote control.
Q: Why is the FIT system beneficial?
A: The FIT system eliminates the need for measuring, cutting, and trim work, ensuring a perfect fit every time.
Q: What is the minimum installation height required for this range hood above the cooktop?
A: The minimum installation height required for this range hood above the cooktop is 24 inches.
Q: Can you give me all of the demintions: width is 24", height?, depth? What does convertible mean?
A: Shopper, thanks for the inquiry. The product dimensions as followed: Depth 19 11/16 inches Width 23 15/16 inches Height 6 3/8 inches
A: It requires an electrical power source. Just had one installed, and in an older house as you indicated, as is mine, there is a potential issue with being able to open cabinet doors. So if you have any cabinets to the side, or the ones above are flush with the frame, then you may have a problem with opening the cabinet doors. The top if the unit is flat and requires at least a 1/4 inch clearance for cabinet doors to open. My stove was also right next to a corner cabinet, so the unit had to be installed a little to one side of the stove so that the corner cabinet door could be opened. You'll also need ducting to an exterior wall vent. I already had that but if you don't, you should investigate that first. Other than that, the unit is fairly quiet, has good suction and the extra light over the stove is bright. Good unit. Be sure Best Buy's installer, At Your Service (AYS) properly measures everything. I had originally purchased a 30" unit but the opening I had was like 29 3/4, and even if I had managed to somehow shave off the extra 1/4 inch, my corner cabinet would never have opened. You should be able to go on line at Whirlpool and get the manual and validate the size requirements. Attaching pictures of what I had, the empty hole (silver tape covered opening to outside and electrical while I waited for the 24" to replace the 30" that didn't fit), and the shots showing it had to be installed slightly to one side to accommodate the corner cabinet door. Hope that helps.
