Whirlpool - 24" Top Control Built-In Tub Dishwasher with Boost Cycle and 55 dBA - Stainless Steel
Model: OBX WDP540HAMZ
SKU: 6581424
$614.99
or
$34.17/mo.
suggested payments with18-Month Financing
Show me how
Finance OptionsView your offers
Handle Type
Pocket handleColor
Stainless SteelSold by
Related Item
Specifications

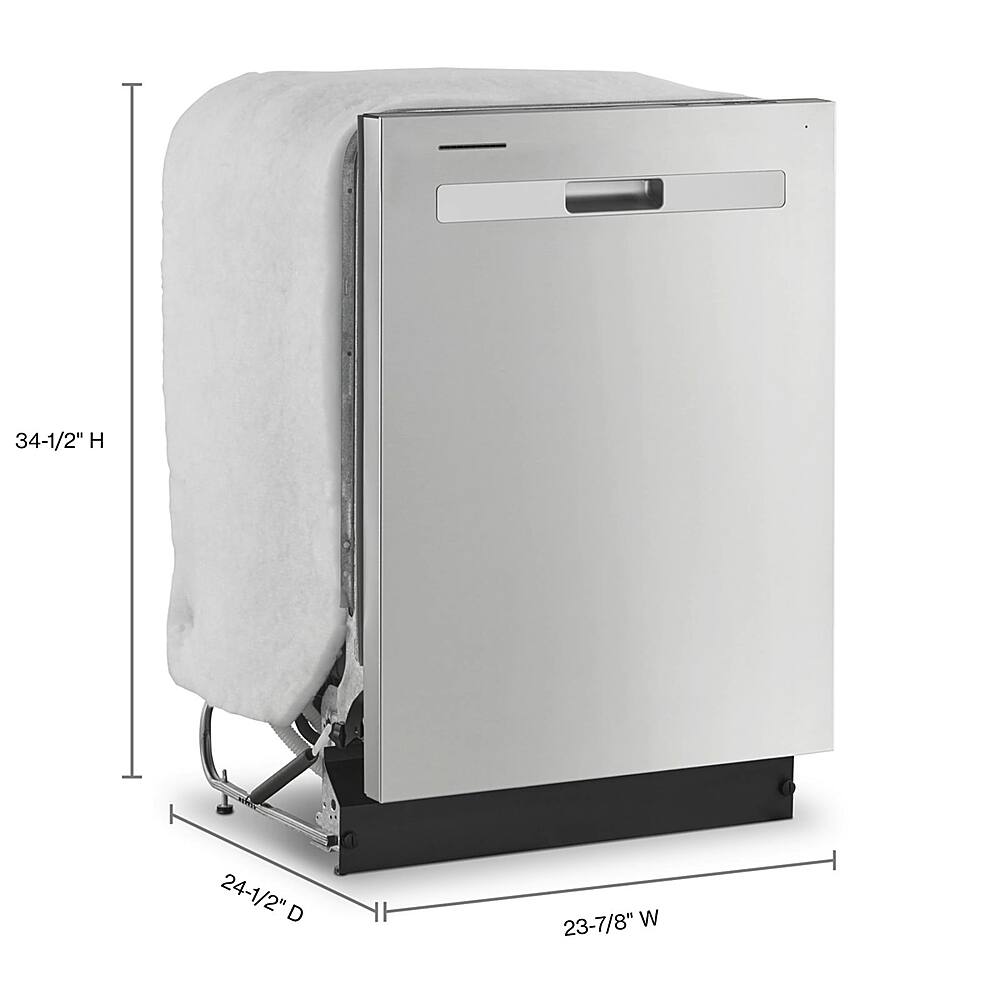

- Color FinishStainless steelProduct Height33 1/2 inchesProduct Width23 7/8 inchesProduct Depth24 1/2 inchesOperating Sound Level55 decibels adjustedNumber Of Racks2
- Key Specs
- Color Finish: Stainless steel
- Product Height: 33 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 55 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)

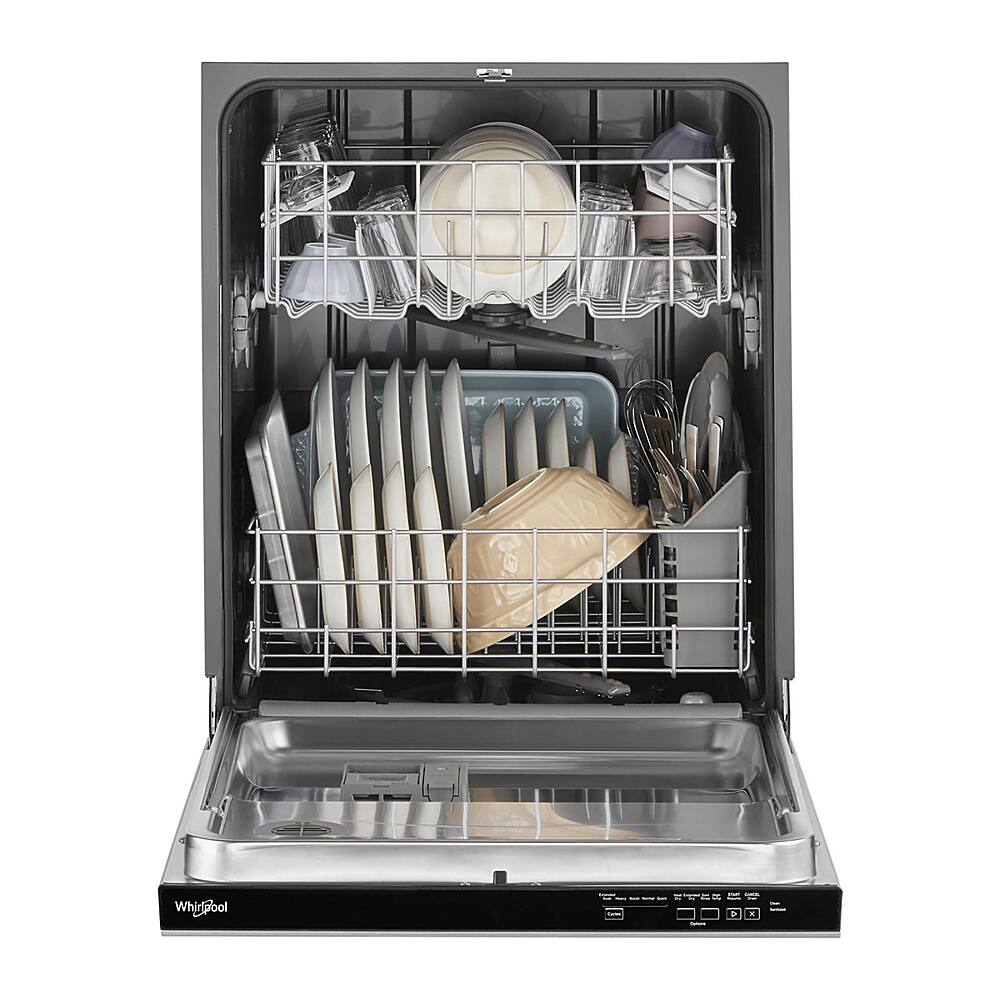

- Number Of Racks: 2
- Tub Finish: Hybrid stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 12 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Whirlpool
- Model Number: OBX WDP540HAMZ
- Product Name: 24" Top Control Built-In Stainless Steel Tub Dishwasher with Boost Cycle and 55 dBA
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 33 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 24 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 25 1/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door Open: 49 1/2 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 69 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 31 1/2 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 22 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 22 1/2 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: false (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 55 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: false (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)

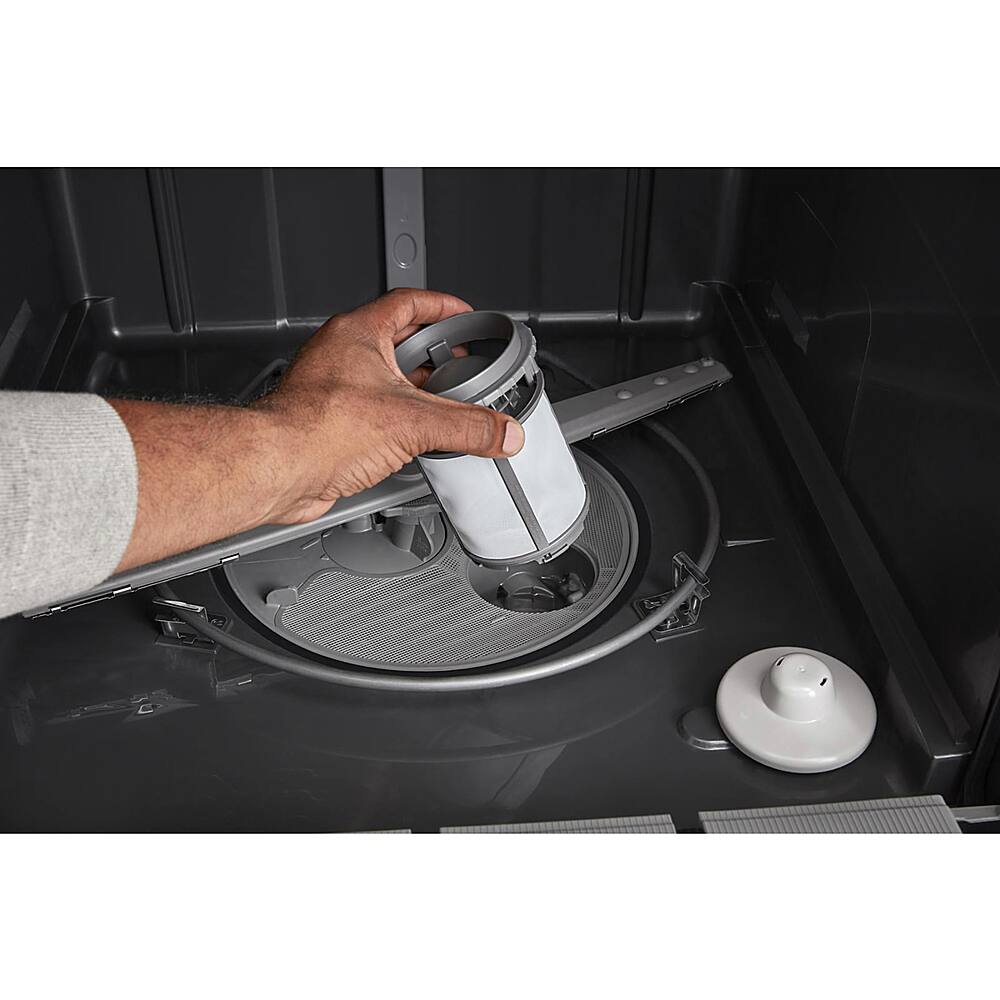

- Filtered Water: true (Internal water filter(s) remove minerals and chemicals from hard water before the wash cycle. Filtered water is less likely to leave mineral deposits or stains, meaning your dishware will look cleaner for longer.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cycle Specifications
- Number of Cycles: 4 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Dishwasher Cycles: Boost, Extended Soak, Heavy, Normal, Quick Wash
- Options and Programs: Extended Dry, Extended Soak, Heated Dry, Hi Temp Wash, Sani Rinse
- Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- Steam Cleaning: false (Wash cycle that primarily uses steam to loosen food debris and clean fragile dishware without force.)
- Steam Pre-Wash: false (Loosens food debris by creating steam inside the washer before the primary wash cycle, allowing for an easier, gentler clean of dishware.)
- NSF-Certified Sanitization Cycle: false (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Rack Features
- Number Of Racks: 2
- Upper Rack Features: Cup shelf (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)

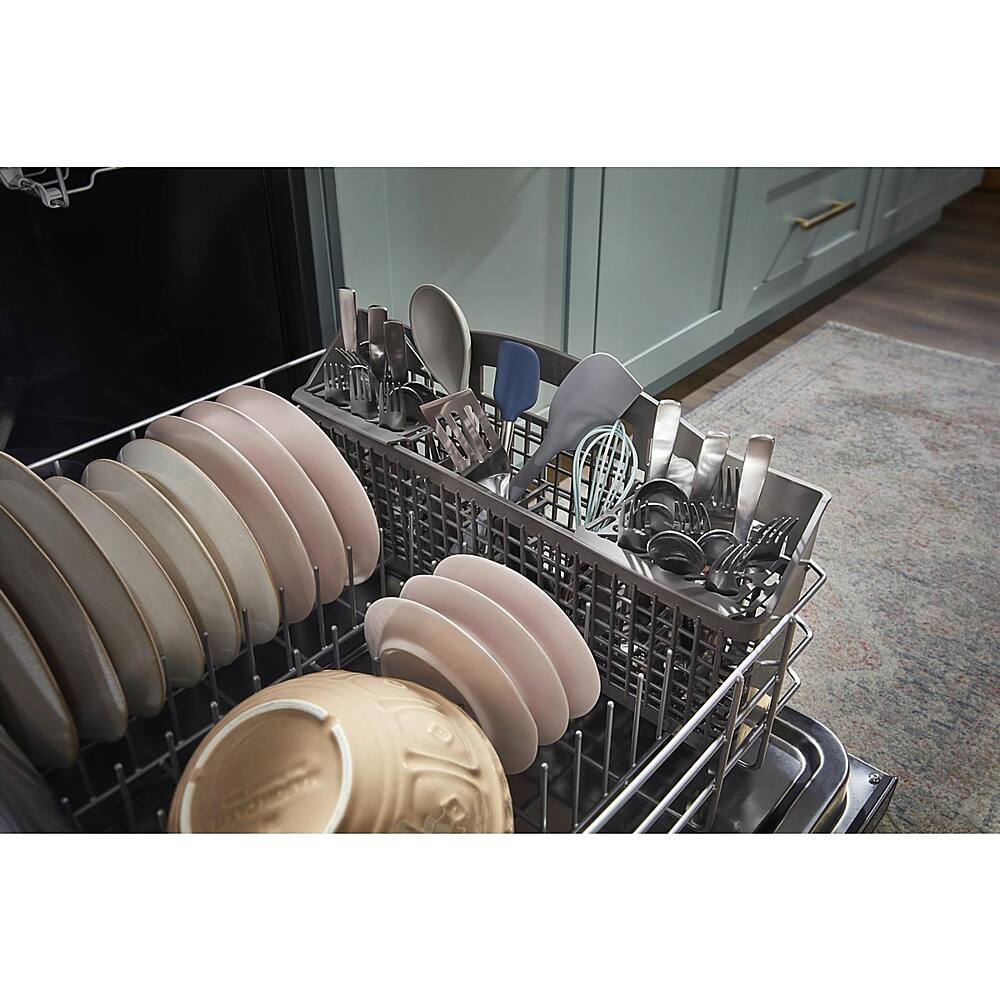

- Lower Rack Features: Silverware basket (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Rack Material: Nylon
- Design
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Hybrid stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)

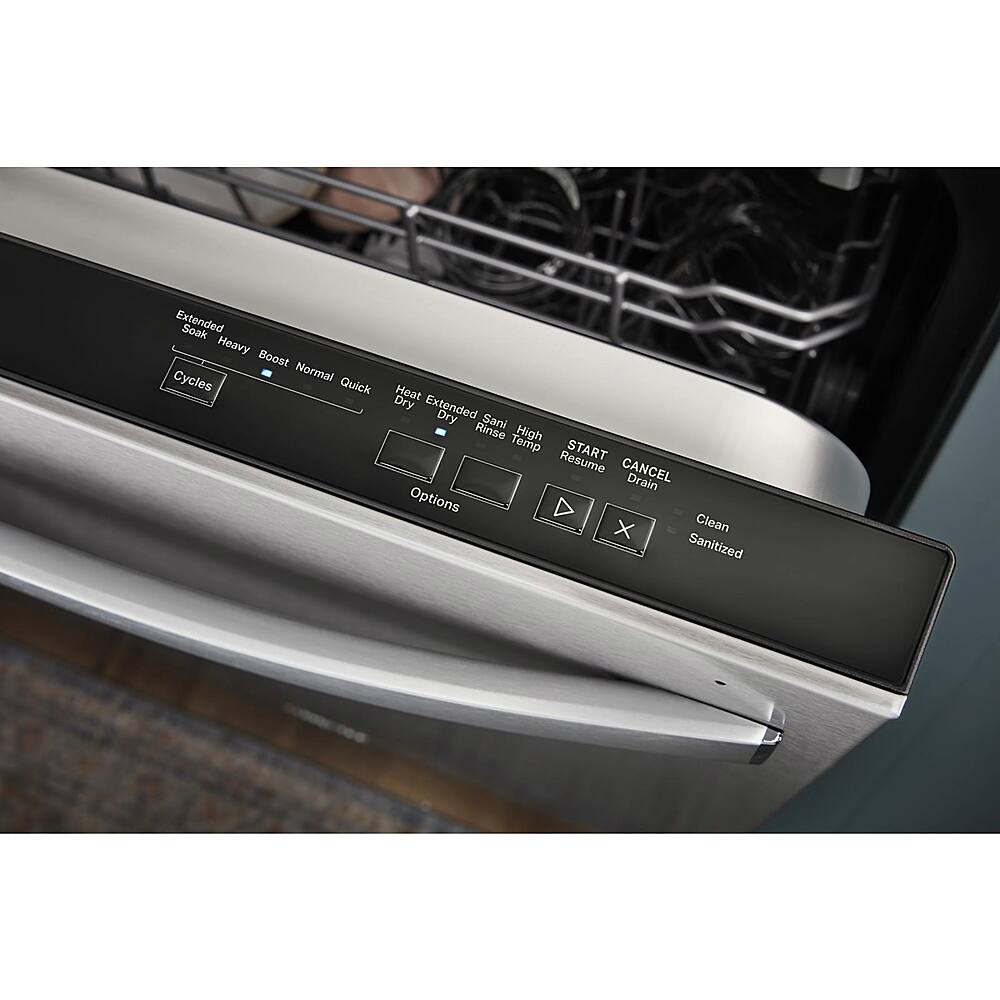

- Control Type: Touchpad
- Control Location: Top control
- Display Type: LED
- Handle Type: Pocket handle
- Fingerprint Resistant: true
- Place Setting Capacity: 12 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Electrical Specification
- Estimated Annual Electricity Use: 270 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 35 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 8.1 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 400065814244
Clean dishes with a 55 dBA quiet dishwasher. Three 5" Cup Shelves free up extra space and a Boost Cycle provides extra effort for cleaning up stubborn messes. This dishwasher includes an Extended Dry Option to elevate drying performance and a Triple Filtration Wash System that filters food particles and cleans the water between wash stages.
- 55 dBA: Keep your kitchen quiet during cleanup with a dishwasher sound level of just 55 dBA.
- Three 5" Cup Shelves: Three 5" Cup Shelves fit six additional cups or small bowls to free up extra space in the racks below and conveniently fold down to stay out of the way when not in use.
- Extended Soak Cycle: Presoak and wash in one Extended Soak Cycle to help stuck-on food dissolve away without any extra steps.
- Heavy Cycle: Extra cycle time takes care of heavily soiled messes and hard-to-clean dishes.
- Boost Cycle: Skip scrubbing and pre-rinsing with the Boost Cycle. This cycle uses more water, time and heat than the Normal Cycle and takes less time than the Heavy Cycle so you can target tough messes that need a little extra effort.
- Normal Cycle: Use the Normal Cycle for normal amounts of food soil to clean up leftover messes from your day-to-day meals.
- Quick Wash Cycle: Clean dishes fast with a cycle that thoroughly takes care of plates, pans and glasses when you need them done in a hurry.
- High Temperature Wash Option: High Temperature Wash Option raises the water temperature to help remove stubborn grease and food grime.
- Heated Dry Option: A Heated Dry Option allows you to use a clean, dry dish straight from the dishwasher thanks to added heat for drying.
- Extended Dry Option: Extended Dry Option extends your dry cycle about 30 minutes* to help elevate drying performance for any cycle. *Added time may vary per unit.
- Required for Installation: All dishwasher purchases require a dishwasher hookup kit be purchased from Best Buy. Without a hookup kit, your installation will not be completed. Find a hookup kit in the accessories section on this page.
- 55 dBA: Keep your kitchen quiet during cleanup with a dishwasher sound level of just 55 dBA.
- Three 5" Cup Shelves: Three 5" Cup Shelves fit six additional cups or small bowls to free up extra space in the racks below and conveniently fold down to stay out of the way when not in use.
- Extended Soak Cycle: Presoak and wash in one Extended Soak Cycle to help stuck-on food dissolve away without any extra steps.
- Heavy Cycle: Extra cycle time takes care of heavily soiled messes and hard-to-clean dishes.
- Boost Cycle: Skip scrubbing and pre-rinsing with the Boost Cycle. This cycle uses more water, time and heat than the Normal Cycle and takes less time than the Heavy Cycle so you can target tough messes that need a little extra effort.
- Normal Cycle: Use the Normal Cycle for normal amounts of food soil to clean up leftover messes from your day-to-day meals.
- Quick Wash Cycle: Clean dishes fast with a cycle that thoroughly takes care of plates, pans and glasses when you need them done in a hurry.
- High Temperature Wash Option: High Temperature Wash Option raises the water temperature to help remove stubborn grease and food grime.
- Heated Dry Option: A Heated Dry Option allows you to use a clean, dry dish straight from the dishwasher thanks to added heat for drying.
- Extended Dry Option: Extended Dry Option extends your dry cycle about 30 minutes* to help elevate drying performance for any cycle. *Added time may vary per unit.
- Required for Installation: All dishwasher purchases require a dishwasher hookup kit be purchased from Best Buy. Without a hookup kit, your installation will not be completed. Find a hookup kit in the accessories section on this page.
Whats Included
- Whirlpool 24" Top Control Built-In Stainless Steel Tub Dishwasher with Boost Cycle and 55 dBA
- Owner's Manual
- Whirlpool 24" Top Control Built-In Stainless Steel Tub Dishwasher with Boost Cycle and 55 dBA
- Owner's Manual
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: What is the depth of the dishwasher with the door open?
A: The depth with the door open is 49 1/2 inches.
Q: How many cycles does the dishwasher have?
A: This dishwasher has 4 cycles.
Q: Does the dishwasher have a hard food disposer?
A: This dishwasher does not have a hard food disposer.
Q: What is the operating sound level of the dishwasher?
A: The operating sound level of the dishwasher is 55 decibels adjusted.
Q: Can the dishwasher be controlled with an app?
A: This dishwasher is not app compatible.
Q: What is the estimated annual operating cost of the dishwasher?
A: The estimated annual operating cost of the dishwasher is 35 US dollars.
Q: Does the dishwasher have a hard food disposer?
A: This dishwasher does not have a hard food disposer.
Q: What is the operating sound level of the dishwasher?
A: The operating sound level of the dishwasher is 55 decibels adjusted.
