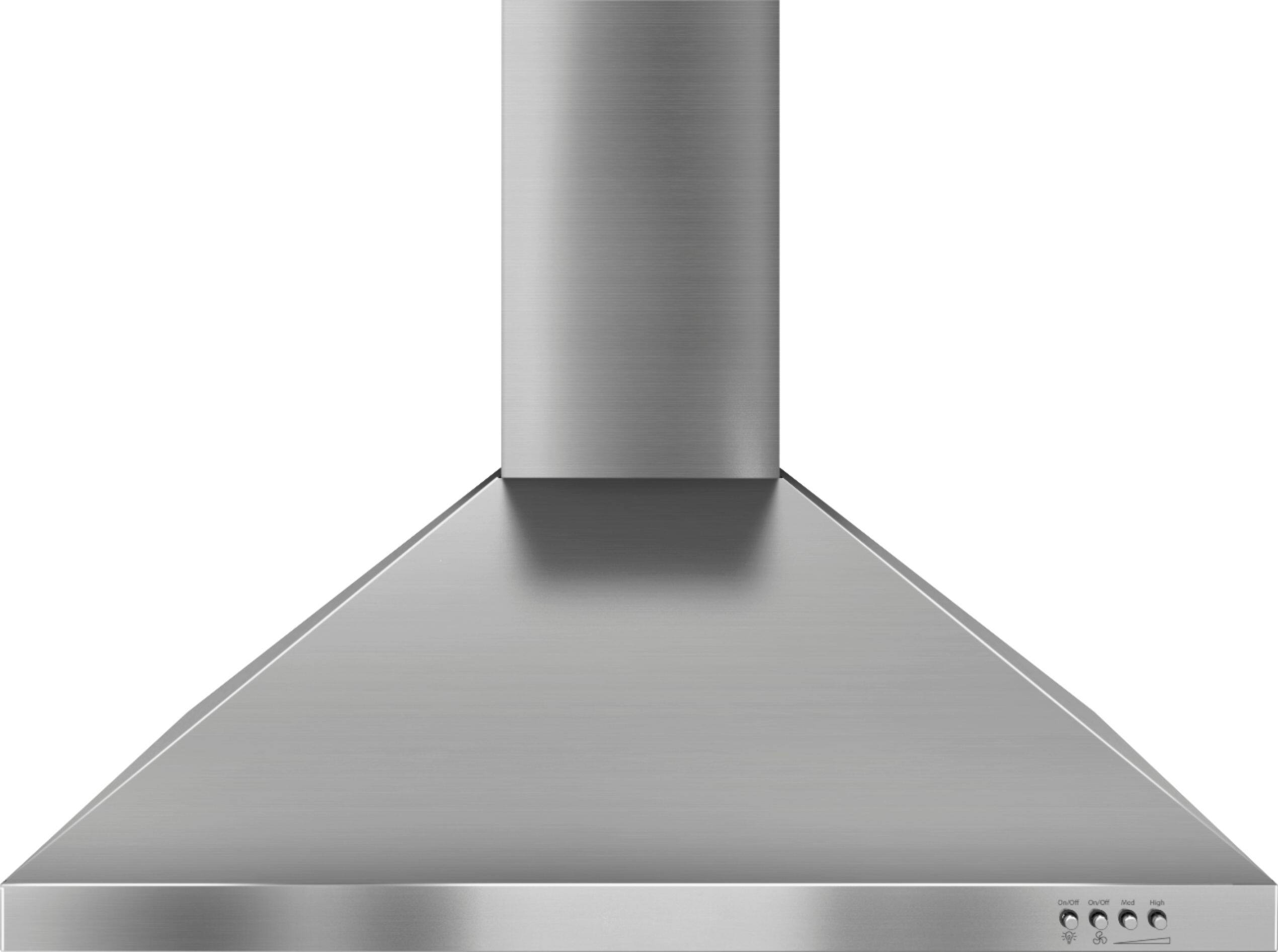

Whirlpool - 30 inches - Externally Vented - Wall Range Hood - Stainless Steel
Model: Gxw7330dxs
SKU: 1570252
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 28 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Whirlpool
- Model Number: Gxw7330dxs
- Product Name: 30" Externally Vented Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 28 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 22.9 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 6 inches
- Duct Length: 420 inches
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Rocker
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 1
- Number of Light Levels: 1
- Bulb Type Required: Fluorescent
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 300 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 150 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): CSA Listed, UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 883049213941
This range hood features a 3-speed fan to keep your kitchen smelling fresh. The externally vented design clears the area of smoke, grease and odors, while fluorescent lighting illuminates the cooking surface below.
- 300 cfm blower: Quickly removes smoke and cooking odors from the air.
- 3-speed fan: Can be easily adjusted to accommodate current exhaust needs.
- Push-button controls: Offer simple operation.
- Fluorescent lighting: Illuminates the cooktop for better visibility while cooking.
- Removable, dishwasher-safe mesh filters: For simple maintenance.
- Optional chimney extension kit W10337357 (not included): Designed for use with high ceilings.
- Included damper: Prevents smoke and odors from recirculating back into the stovetop area.
- 300 cfm blower: Quickly removes smoke and cooking odors from the air.
- 3-speed fan: Can be easily adjusted to accommodate current exhaust needs.
- Push-button controls: Offer simple operation.
- Fluorescent lighting: Illuminates the cooktop for better visibility while cooking.
- Removable, dishwasher-safe mesh filters: For simple maintenance.
- Optional chimney extension kit W10337357 (not included): Designed for use with high ceilings.
- Included damper: Prevents smoke and odors from recirculating back into the stovetop area.
Whats Included
- Fluorescent light bulbs
- Hardware
- Owner's manual
- Whirlpool 30" Externally Vented Range Hood
- Fluorescent light bulbs
- Hardware
- Owner's manual
- Whirlpool 30" Externally Vented Range Hood
A: Hi KitchenRedo, this unit is rated for ceiling heights 9'2 - 9'6 inches depending on if you are venting or recirculating. If additional height is needed you can add a chimney extension kit part number EXTKIT18FS. We hope this helps!
Q: Which model # hood extension would you use for this Hood? 9ft ceilings
A: The extension linked in the previous post is incorrect the width is way to big on that extension. the correct duct extension isnt sold on bestbuy.com the model number is W10337357. This model number can be found inside the installation guide that comes with the hood.
A: undefined
Q: Can this range hood be island mounted?
A: Model GXW7330DXS is a wall mount canopy range hood only. This cannot be installed in an Island install. If you need one for an Island installation then look into model GXI6536DXS which is a 36 inch hood.
Q: What is the noise level for this hood
A: Dear Customer, This range hood, model GXW7330DXS, has a maximum sone rating of 6 sones. Thank you for your interest in a Whirlpool range hood!
