Whynter - ARC-1230WNH 600 Sq.Ft Smart NEX Inverter Portable Air Conditioner 12000 BTU Heater - White
FREE shipping to
Specifications
- Recommended Room Size600 square feetDOE SACC Cooling Power12000 british thermal unitsNumber of Cool Settings1Number of Fan Speeds3Airflow Rate388 cubic feet per minuteRemote ControlYes
- Key Specs
- Recommended Room Size: 600 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- DOE SACC Cooling Power: 12000 british thermal units (The Seasonally Adjusted Cooling Capacity (SACC), implemented by the Department of Energy (DOE) after 2017, is a rating of a portable AC unit's cooling power. This rating is based on revised testing that more accurately measures a portable unit's performance, taking into account that these units do not vent heat in the same way as wall or window units and therefore were not cooling as effectively as the previous BTU ratings indicated (based on the ASHRAE-128 standard prior to 2017). Generally, the new cooling power ratings are lower than previous BTU ratings and can more reasonably be compared to the cooling capacities of other types of AC units.)
- Number of Cool Settings: 1
- Number of Fan Speeds: 3
- Airflow Rate: 388 cubic feet per minute
- Remote Control: true
- Integrated Heater: true
- Sleep Mode: false (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Window Venting Kit: true (Indicates whether supplies for venting the unit through a window are included.)
- Energy Efficiency Ratio: 10.7 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Combined Energy Efficiency Ratio (CEER): 12.3 (The standard used to measure energy efficiency in window and room air conditioners by the Department of Energy (DOE) as of June of 2014. CEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) in standby mode and while the unit is operating. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Air Conditioner Type: Portable
- Hose Configuration: Dual (Generally, dual hose configurations are more efficient and better suited for cooling larger areas. Single hose configurations typically consume less energy and are best for cooling smaller spaces.)
- General
- Brand: Whynter
- Model Number: ARC-1230WNH
- Product Name: ARC-1230WNH 600 Sq.Ft Smart NEX Inverter Portable Air Conditioner 12000 BTU Heater
- Color: White
- Air Conditioner Type: Portable
- Hose Configuration: Dual (Generally, dual hose configurations are more efficient and better suited for cooling larger areas. Single hose configurations typically consume less energy and are best for cooling smaller spaces.)
- Dimensions
- Product Height: 33 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 20 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 78 pounds (The out of box weight of the item.)
- Cord Length: 6 inches
- BTU Rating
- Recommended Room Size: 600 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- DOE SACC Cooling Power: 12000 british thermal units (The Seasonally Adjusted Cooling Capacity (SACC), implemented by the Department of Energy (DOE) after 2017, is a rating of a portable AC unit's cooling power. This rating is based on revised testing that more accurately measures a portable unit's performance, taking into account that these units do not vent heat in the same way as wall or window units and therefore were not cooling as effectively as the previous BTU ratings indicated (based on the ASHRAE-128 standard prior to 2017). Generally, the new cooling power ratings are lower than previous BTU ratings and can more reasonably be compared to the cooling capacities of other types of AC units.)
- BTU Heat Rating: 0 british thermal units (The number of BTUs (British Thermal Units) per hour the unit produces to heat the air, also known as heating capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to heat. The recommended capacity depends on several factors such as climate and level of insulation, but generally ranges from 30-60 BTUs per square foot.)
- Features
- Number of Cool Settings: 1
- Number of Fan Speeds: 3
- Airflow Rate: 388 cubic feet per minute
- Maximum Noise Level: 57 decibels adjusted
- Air Discharge: Top
- Air Direction/Circulation: Other
- Moisture Removal Capacity: 87 pints per day (The amount of moisture removed from the air over 24 hours. The suggested moisture removal capacity is based on a room's square footage and how damp it is. For example, a 30-pint capacity unit typically works for rooms up to 1,500 square feet.)
- Remote Control: true
- Control Type: Touchpad
- Integrated Heater: true
- Filter Indicator Light(s): false
- Sleep Mode: false (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Window Venting Kit: true (Indicates whether supplies for venting the unit through a window are included.)

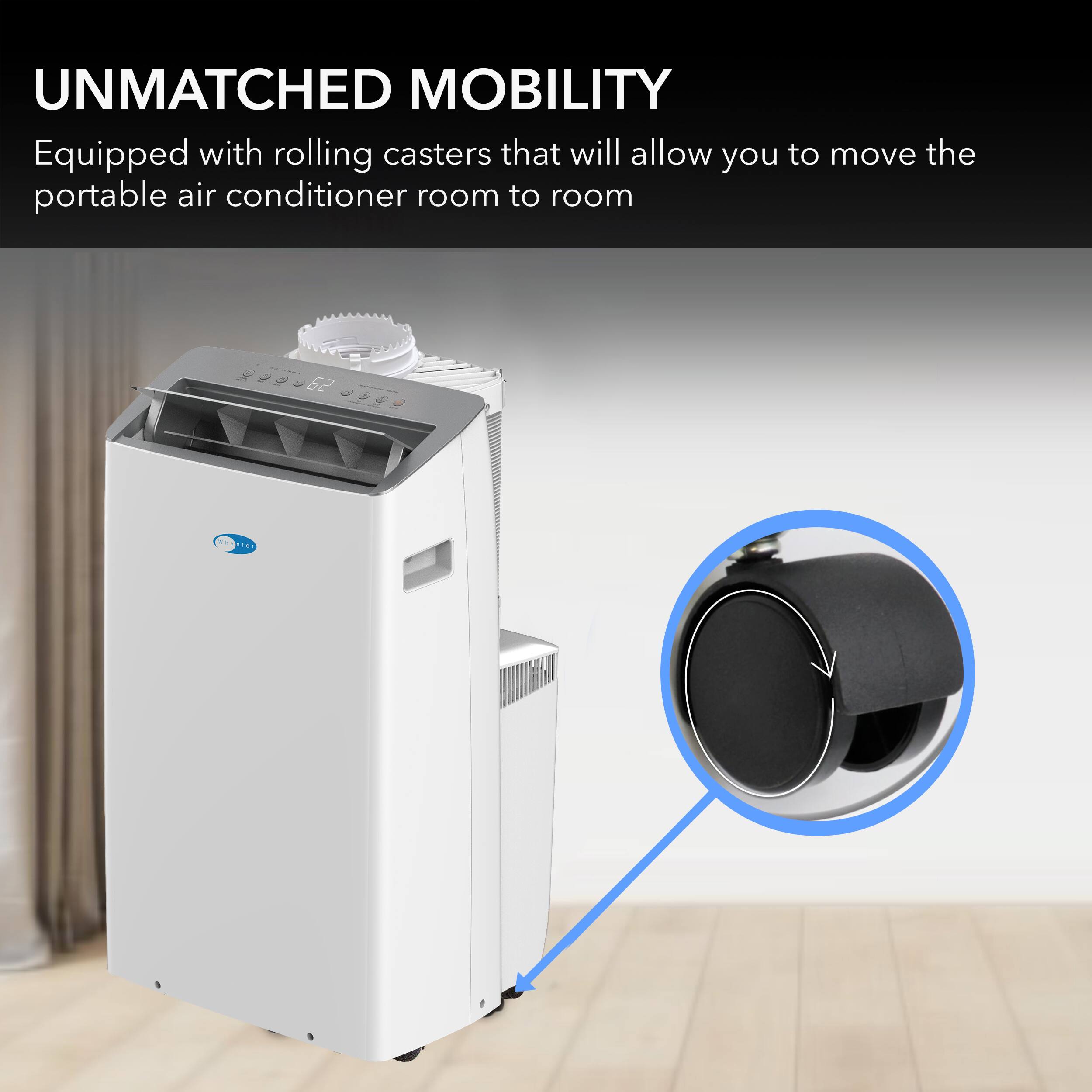

- Casters/Wheels: true
- Power
- Energy Efficiency Ratio: 10.7 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Combined Energy Efficiency Ratio (CEER): 12.3 (The standard used to measure energy efficiency in window and room air conditioners by the Department of Energy (DOE) as of June of 2014. CEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) in standby mode and while the unit is operating. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Amperage: 12 amperes (Strength of electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 850014459192
The Whynter ARC-1230WNH Inverter Dual Hose Portable Air Conditioner and Heater has the highest cooling and heating BTU (14,000 ASHRAE / 12,000 SACC) in the market. The cooling power you need to cool, dehumidify or circulate the air in up to 600 sq. ft of space. Smart functionalities include the NetHome Plus app to control your portable air conditioner through Wi-Fi from virtually anywhere. You can also control it with Amazon Alexa or Google Home voice assistant. Intelligent features such as the 24-hour Timer, Sleep Mode, Auto restart, Self-Diagnosis, Express Run Settings, Schedules, and Filter Check Reminder Light. As pioneers in the air comfort industry, we are introducing the next-generation Inverter Technology currently only being used in high-efficiency ductless mini-split air conditioners to our NEX line of portable air conditioners. The variable-speed system allows the compressor to optimize efficiency and power consumption together while maintaining a specified output. The advantages of inverter technology are estimated 40% – 50% in energy savings, 2 times quicker to achieve desired temperature, quieter operation, minimized temperature fluctuations, no voltage peaks from the compressor. The innovative two-hose-in-one design and the sealed bottom structure ensure no heat leakage. This cooling setup extracts and exhausts air from the outside, so the indoor space reaches an independent and balanced cool air circulation. As a result, the entire room can be cooled down quickly and effectively. The noise level is as low as 47dB(A) in low fan speed, almost as quite as a library. You can control your portable air conditioner anywhere with the NetHome Plus app for Android and iOS and make your home comfortable even before you arrive. Also, you can use Amazon Alexa or Google Home voice assistant to operate the air conditioner.
- Cooling and Heating: 14,000 BTU (ASHRAE) / 12,000 BTU (SACC).
- Advanced Inverter Technology: Achieves 20% more cooling capacity and over 40% energy saving.
- Smart App Compatible: Control from anywhere using the NetHome Plus app through Wi-Fi.
- Intelligent Features: 24-hour timer, sleep curve, self-diagnosis, express run settings, and schedules.
- Thermostat Range: Full thermostatic control (60°F – 86°F).
- Cooling and Heating: 14,000 BTU (ASHRAE) / 12,000 BTU (SACC).
- Advanced Inverter Technology: Achieves 20% more cooling capacity and over 40% energy saving.
- Smart App Compatible: Control from anywhere using the NetHome Plus app through Wi-Fi.
- Intelligent Features: 24-hour timer, sleep curve, self-diagnosis, express run settings, and schedules.
- Thermostat Range: Full thermostatic control (60°F – 86°F).
Product Manuals
Q: What is the cooling capacity of this Whynter air conditioner?
A: This unit has a cooling capacity of 14,000 BTU (ASHRAE) or 12,000 BTU (SACC).
Q: What is the maximum noise level of this Whynter air conditioner?
A: The maximum noise level is 57 decibels adjusted.
Q: Does the Whynter ARC-1230WNH air conditioner have a heater function?
A: Yes, this unit has both cooling and heating capabilities.
Q: How many fan speeds does the Whynter portable air conditioner have?
A: This air conditioner comes with 3 fan speeds.
Q: Does this portable air conditioner have a timer?
A: Yes, it has a 24-hour timer function.
Q: Can I control this air conditioner with my phone?
A: Yes, you can control it from anywhere using the NetHome Plus app via Wi-Fi.
A: The ARC-1230WNH also includes a heating function. Since windows come in different sizes, some customization may be needed when installing the accessories. If the included solid window kit slide bar panels do not completely cover your window or door opening, most customers purchase an additional window kit and use both sets. Alternately, a customized longer solid slide bar panel can be made by cutting Plexiglas or PVC plastic to size to be used with the panel with the hose cut outs of the original window kit.
If you have additional questions, our Customer Support Team is available Monday - Friday 8:30 AM - 4:30 PM PST at 1-866-WHYNTER (1-866-949-6837) and at [email protected].
Q: Do I need to connect the hose to the window while using this unit as a heater?
A: Since the unit uses a heat pump to heat, the exhaust hose is required for heat mode.
If you have additional questions, our Customer Support Team is available Monday - Friday 8:30 AM - 4:30 PM PST at 1-866-WHYNTER (1-866-949-6837) and at [email protected].
Compare similar products
The Whynter ARC-1230WNH Inverter Dual Hose Portable Air Conditioner and Heater has the highest cooling and heating BTU (14,000 ASHRAE / 12,000 SACC) in the market. The cooling power you need to cool, dehumidify or circulate the air in up to 600 sq. ft of space. Smart functionalities include the NetHome Plus app to control your portable air conditioner through Wi-Fi from virtually anywhere. You can also control it with Amazon Alexa or Google Home voice assistant. Intelligent features such as the 24-hour Timer, Sleep Mode, Auto restart, Self-Diagnosis, Express Run Settings, Schedules, and Filter Check Reminder Light. As pioneers in the air comfort industry, we are introducing the next-generation Inverter Technology currently only being used in high-efficiency ductless mini-split air conditioners to our NEX line of portable air conditioners. The variable-speed system allows the compressor to optimize efficiency and power consumption together while maintaining a specified output. The advantages of inverter technology are estimated 40% – 50% in energy savings, 2 times quicker to achieve desired temperature, quieter operation, minimized temperature fluctuations, no voltage peaks from the compressor. The innovative two-hose-in-one design and the sealed bottom structure ensure no heat leakage. This cooling setup extracts and exhausts air from the outside, so the indoor space reaches an independent and balanced cool air circulation. As a result, the entire room can be cooled down quickly and effectively. The noise level is as low as 47dB(A) in low fan speed, almost as quite as a library. You can control your portable air conditioner anywhere with the NetHome Plus app for Android and iOS and make your home comfortable even before you arrive. Also, you can use Amazon Alexa or Google Home voice assistant to operate the air conditioner.
The Whynter ARC-1230WN Inverter Dual Hose Portable Air Conditioner has the highest cooling BTU (14,000 ASHRAE / 12,000 SACC) in the market. The cooling power you need to cool, dehumidify or circulate the air in up to 600 sq. ft of space. Smart functionalities include the NetHome Plus app to control your portable air conditioner through Wi-Fi from virtually anywhere. You can also control it with Amazon Alexa or Google Home voice assistant. Intelligent features such as the 24-hour Timer, Sleep Mode, Auto restart, Self-Diagnosis, Express Run Settings, Schedules, and Filter Check Reminder Light. As pioneers in the air comfort industry, we are introducing the next-generation Inverter Technology currently only being used in high-efficiency ductless mini-split air conditioners to our NEX line of portable air conditioners. The variable-speed system allows the compressor to optimize efficiency and power consumption together while maintaining a specified output. Estimated 40% – 50% in energy savings with no voltage peaks from the compressor. The innovative two-hose-in-one design and the sealed bottom structure ensure no heat leakage. This cooling setup extracts and exhausts air from the outside, so the indoor space reaches an independent and balanced cool air circulation. As a result, the entire room can be cooled down quickly and effectively.
With reliable air conditioning units, Keystone produces consistent cooling to keep you comfortable, even on the hottest days. This 14,000 BTU ASHRAE/12,000 BTU DOE portable air conditioner can effectively cool rooms up to 550 square feet with dehumidification up to 2.5 pints per hour to remove moisture from the air. Perfect for medium-sized living spaces like apartments, bedrooms, living rooms, and much more. It features special Inverter technology to eliminate wasted operation in the air conditioner by controlling the motor speed to exactly the amount of power that is needed to keep the room at the desired temperature. Money saving features include energy saver mode, sleep mode, and a programmable 24-hour timer. You'll know when it's time to easily remove and clean the mesh filter with the Check Filter alert. Keystone not only provides a 1-year warranty but ensures that you stay cool and comfortable at a cost-conscious price.
Keep your home comfortable with this Whynter ARC-14SH 14,000 BTU portable air conditioner and 13,000 BTU heater that features dual-hose operation for fast, efficient cooling. The 101-pts./day dehumidification capacity helps you breathe easily.
| Pros for Whynter - ARC-1230WNH 600 Sq.Ft Smart NEX Inverter Portable Air Conditioner 12000 BTU Heater - White | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | There were no pros for this product— | Cooling, Ease of use, Installation, Performance, Size |
| Cons for Whynter - ARC-1230WNH 600 Sq.Ft Smart NEX Inverter Portable Air Conditioner 12000 BTU Heater - White | |||
| There were no cons for this product— | There were no cons for this product— | There were no cons for this product— | Noise Level |
Specs
Reviews

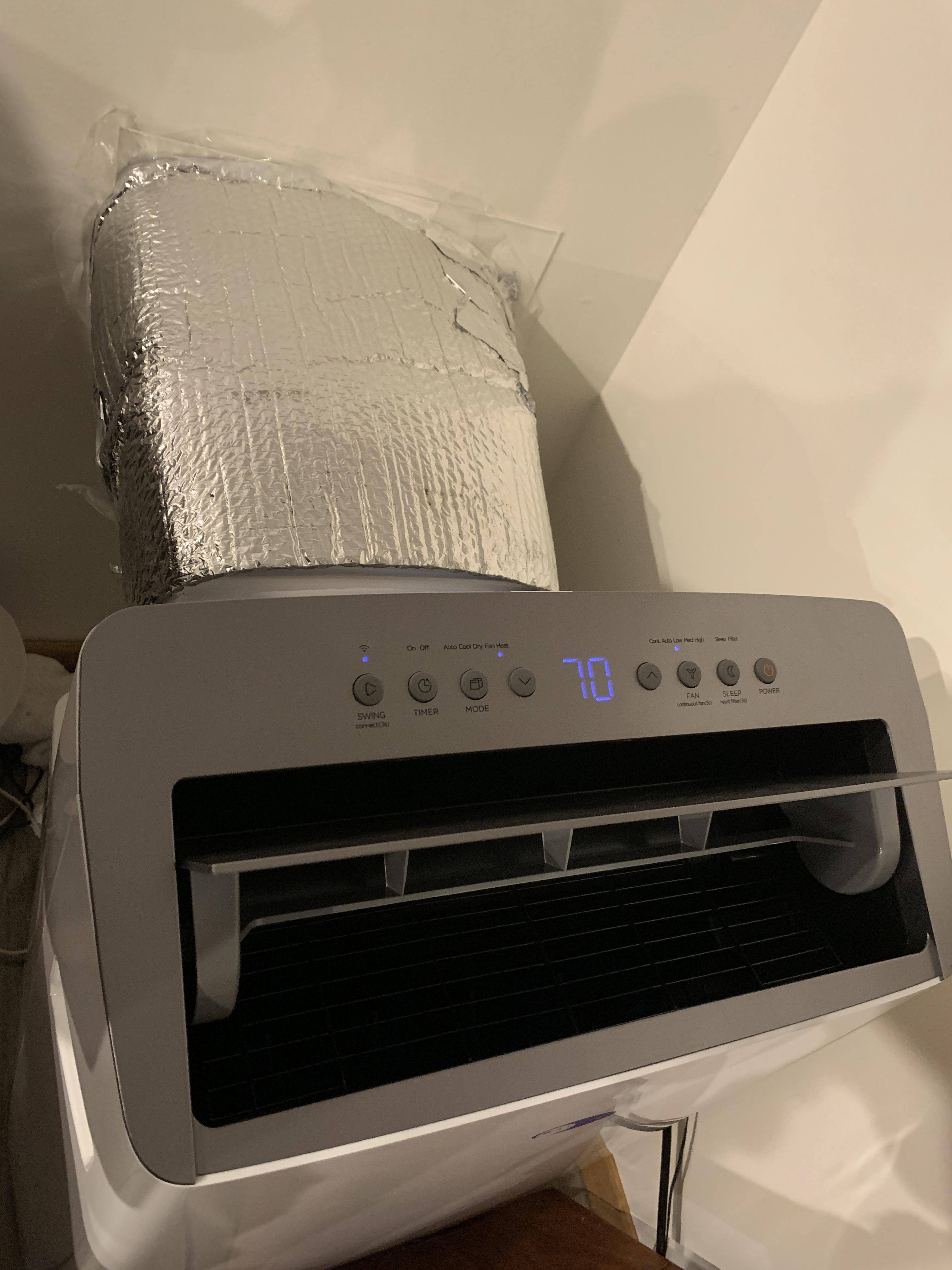

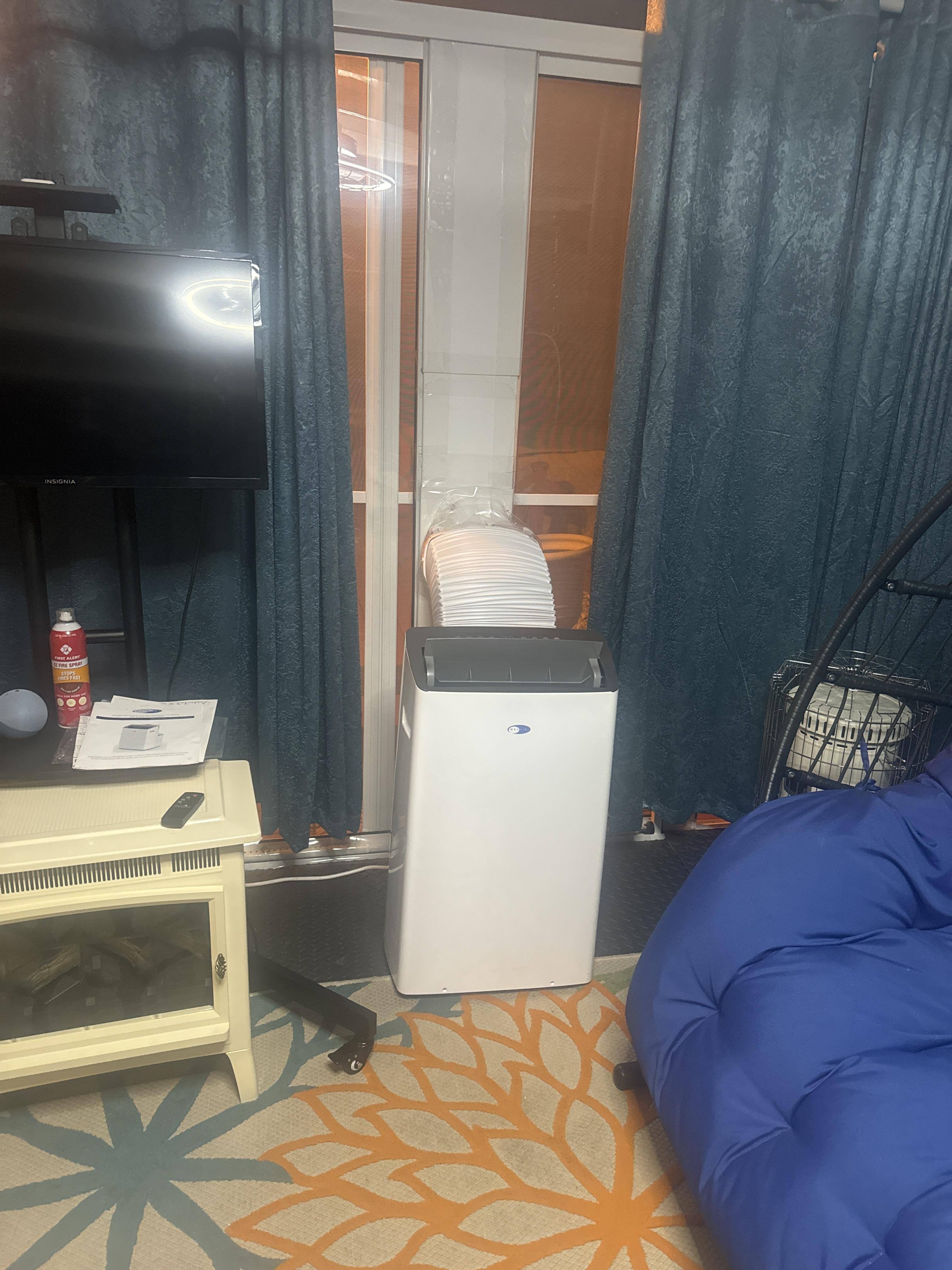

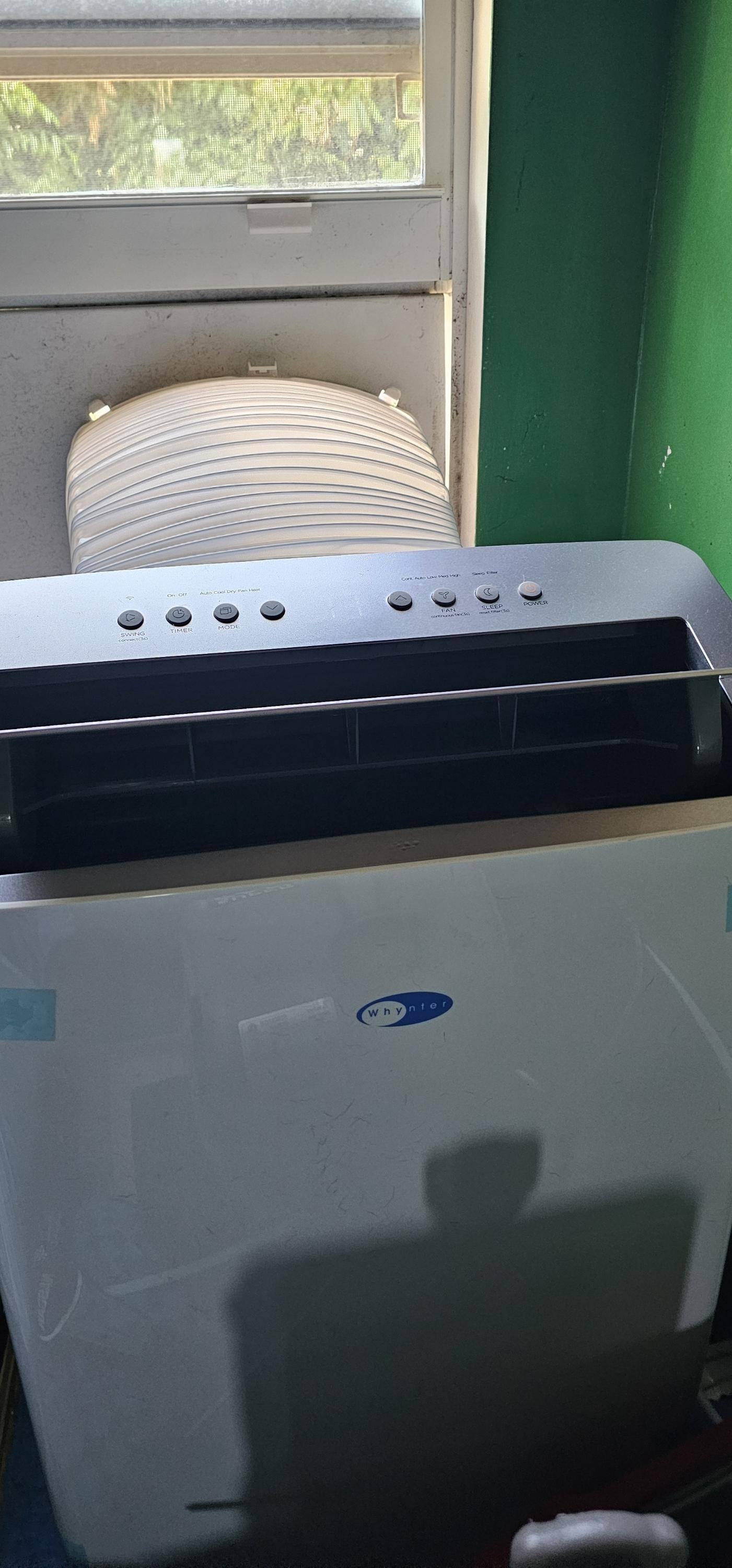

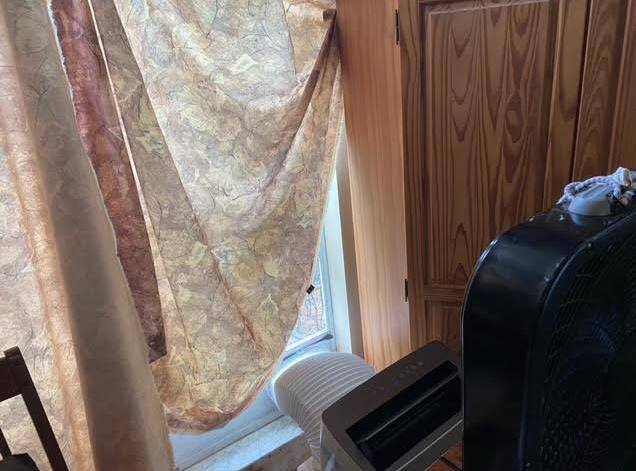

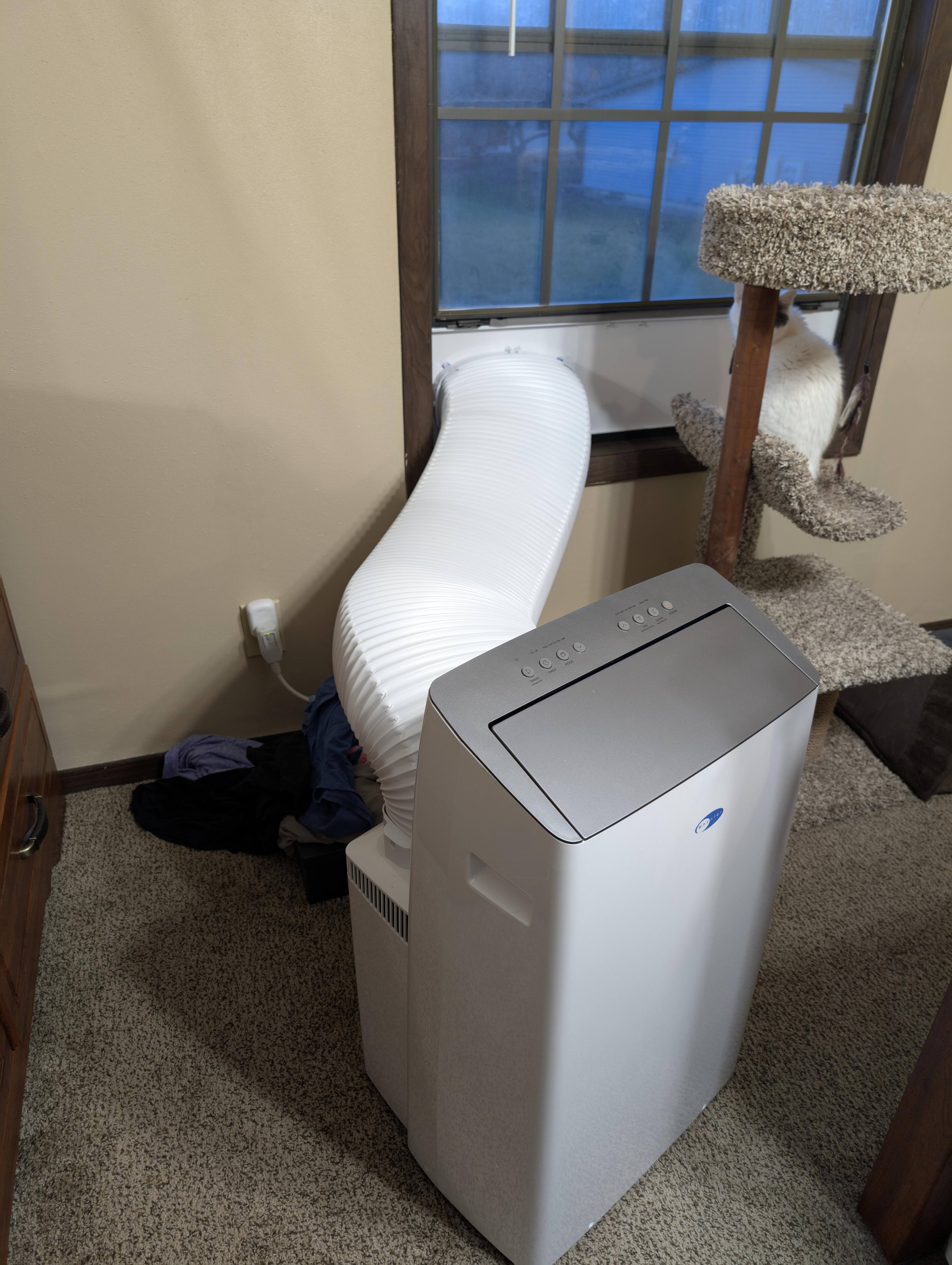

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 4 out of 5 stars
Quiet and efficient
This cools efficiently and is a very quiet unit. However: 1. I had to cut a portion of the window mount for the vent with a saw. My window is your typical window size, so it's really dumb that I had to do that for it to fit. 2. Auto mode isn't very useful because the range is way too big. It will reach above 64 before the AC turns on when you've set it to 60. 3. The app is inconsistent. Sometimes it will only let me set the fan speed by high/medium/low, other times it will let me set a percentage. Also IFTTT percentage would be nice.
This review is from Whynter - ARC-1230WNH 600 Sq.Ft Smart NEX Inverter Portable Air Conditioner 12000 BTU Heater - White
Posted by Aashishkebab
- Rated 1 out of 5 stars
Bad experience. I hope Whynter will fix the issues
When Whynter fixes all the issues, I will give it five stars and buy at least two of them. The positives: 1. The unit is quiet. 2. Cools very well the large room (around 500 sq f). Negatives: 1. I ordered a new item but got an open box item. 2. The box is funny. One side of the box says AC “Cools up to 500 sq. f” while the opposite side says AC “Cools up to 600 sq. f.” 3. Because of the open box, the window panel was broken. I contacted Whynter Support. Right away, they sent me a replacement. Guess what I got? The hose. I contacted them again. They apologized and said I could keep the hose, and they were going to send the window panel again. Guess what I got? The second hose. After that, they asked to send the hoses back. LOL. Finally, I got the window panel. 4. The AC worked perfectly for almost two months. A few days ago, it showed the error EH 06 and did not work. I contacted Support. The part of their response was, “To further assist you, please provide a photo of the unit’s display with the error code on it as well as how the unit was set up. Also, please provide the ambient room temperature.” So, if the Support does not know what this error code exactly means, how to fix it, and can not help me, I decided to return the unit. 5. When I started to move the unit from the room, I got a massive water leak from the bottom (I used this unit only in a cooling mode). Thus, it means there are problems with self-evaporating (or whatever this option calls). 6. The company does not yet start manufacturing and selling extended panels for balcony doors (I checked this info in July 2022). I am a fan of the Whynter ACs. I have 3 of them (different models). I liked the ARC-1230WNH very much, but unfortunately, I had to return it. Please fix all the issues, and I will buy at least two of them as I promised above!
This review is from Whynter - ARC-1230WNH 600 Sq.Ft Smart NEX Inverter Portable Air Conditioner 12000 BTU Heater - White
Posted by GEVSea
- Rated 5 out of 5 stars
My New Whynter Heating and Cooling Portable Unit

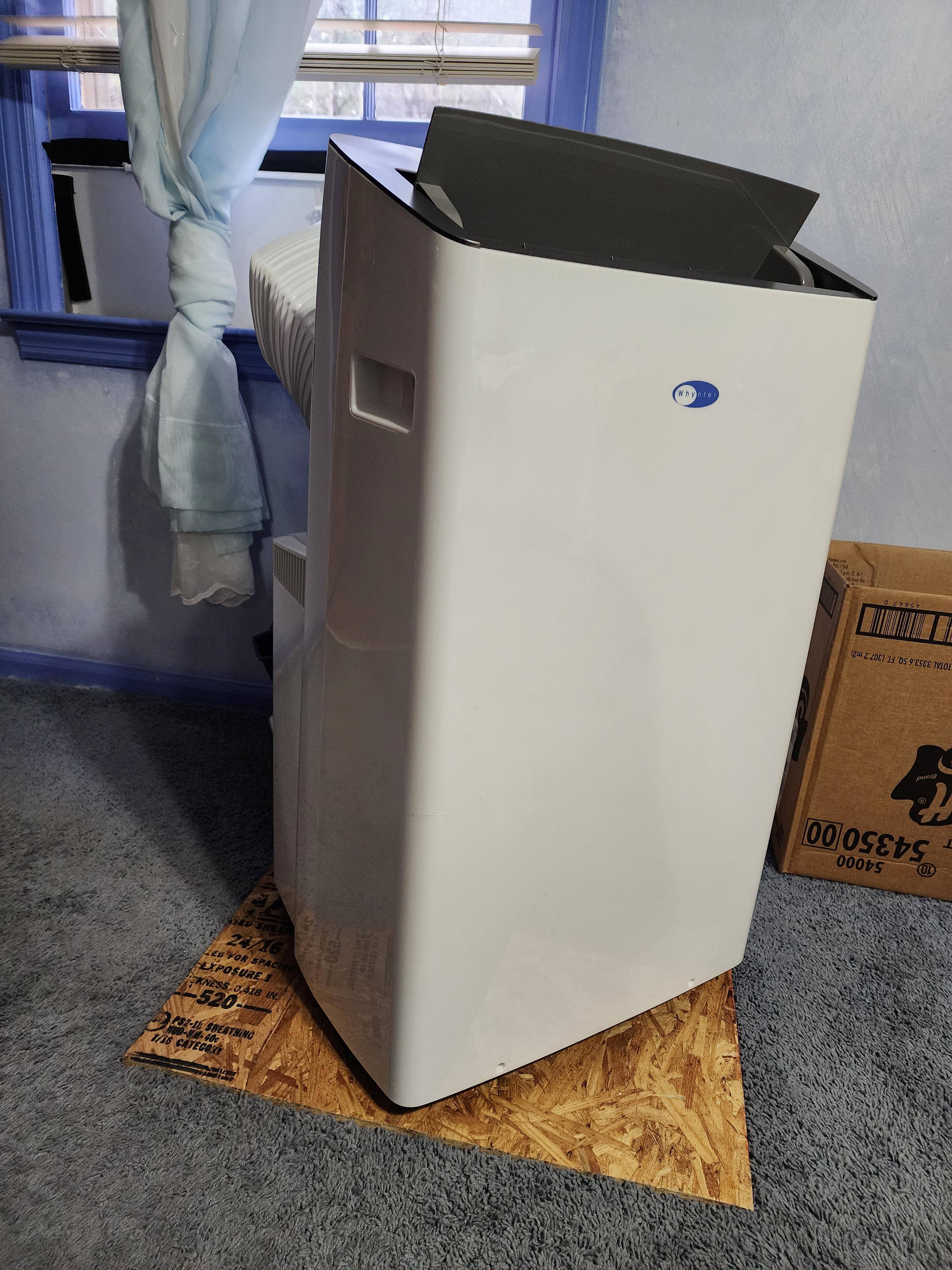

I purchased the model ARC 1230 WNH from Best Buy to cool my small unheated, no air sunroom. We installed it this past weekend and it is doing an excellent job keeping us cool and comfortable and my ceiling fan is helping to circulate the air during these hot summer days. It also has heat, so I am looking forward to seeing how well it performs on cold days and nights. It was easy to set up, and when I had a few questions, Whynter was there to answer them for me. The portable unit also operates quietly. I think this is a good purchase. I am happy with it.
This review is from Whynter - ARC-1230WNH 600 Sq.Ft Smart NEX Inverter Portable Air Conditioner 12000 BTU Heater - White
Posted by Koko
