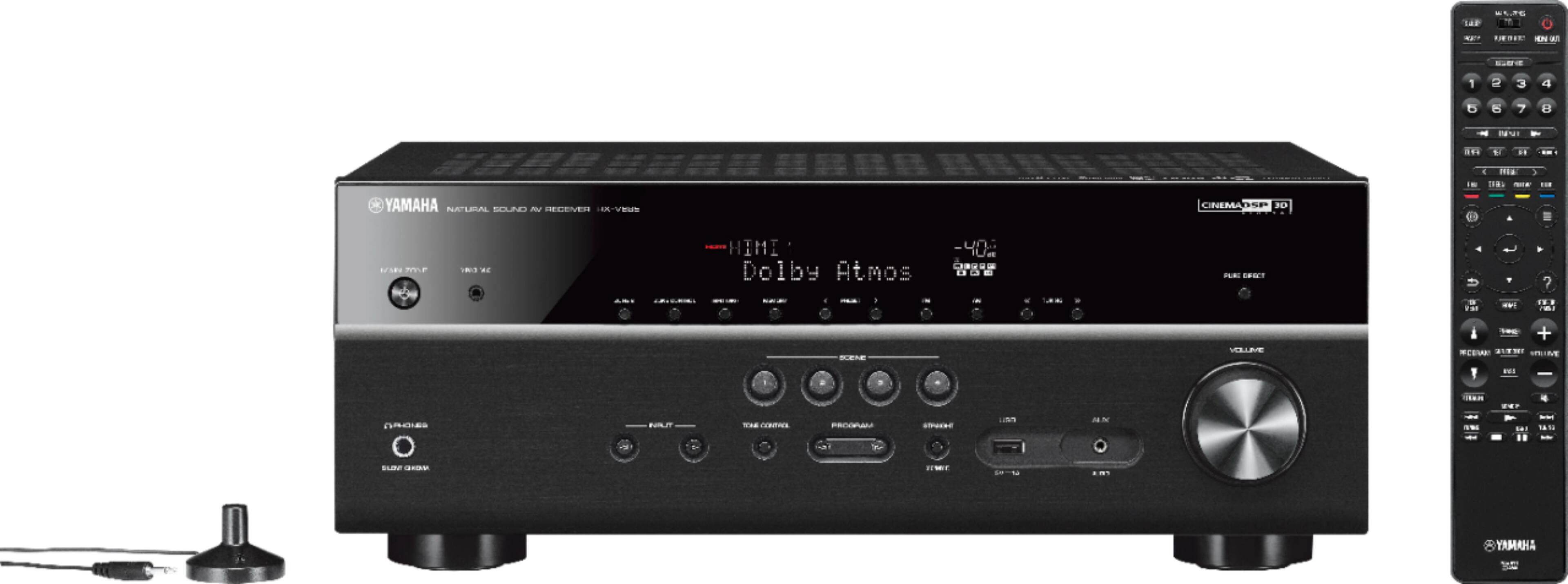

Yamaha - 630W 7.2-Ch. 4K Ultra HD A/V Home Theater Receiver - Black
Model: RX-V685BL
SKU: 6198558
This item is no longer available in new condition. See similar items below
- Key Specs
- Continuous Watts x Channel @ Ohms: 150 watts x 7 channels @ 6 ohms
- Number of Channels: 7.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 2 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Audio Only Inputs: 4 x Analog audio, 1 x 3.5mm audio, 2 x Coaxial digital audio, 1 x Optical digital audio, 1 x Phono
- Audio/Video Inputs: 5 x HDMI (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN
- Video Pass-through: 2160 (4K) (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- Audio/Video Outputs: 2 x HDMI (The number and type of HDMI outputs the product has.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Works With: Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Yamaha
- Model Number: RX-V685BL
- Product Name: 630W 7.2-Ch. 4K Ultra HD A/V Home Theater Receiver
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 150 watts x 7 channels @ 6 ohms
- Number of Channels: 7.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 2 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Surround Sound Supported: DTS 96/24, DTS Neo:6, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby Pro Logic, Dolby Pro Logic II, Dolby TrueHD (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Speaker A/B Switching: false (Allows a user to select between one of two sets of primary speakers.)
- Supported File Formats: AAC, MP3, WAV, WMA
- DSP Modes: 17 (Available sound modes that alter how the audio is processed and played back. A common example is a mode that allows stereo audio to be played on all available surround sound speakers, creating a simulated surround sound effect.)
- Equalizer: true (Allows for the control of different frequencies within an audio signal, such as adjusting treble and bass levels.)
- Tuner Type(s): AM/FM
- Inputs
- Audio Only Inputs: 4 x Analog audio, 1 x 3.5mm audio, 2 x Coaxial digital audio, 1 x Optical digital audio, 1 x Phono
- Video Only Inputs: 1 x Component video, 1 x Composite video (The number and type of video signal only inputs the product has.)
- Audio/Video Inputs: 5 x HDMI (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN
- Number of HDMI Inputs (Total): 5
- Number of USB Inputs: 1
- Video
- Video Pass-through: 2160 (4K) (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- Outputs
- Audio/Video Outputs: 2 x HDMI (The number and type of HDMI outputs the product has.)
- Speaker Connection Type: Binding posts
- Number of HDMI Outputs (Total): 2
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Auto Calibration: true (Home theater systems and receivers with an autocalibration function can automatically determine basic settings like speaker volume, crossover point, equalization, and more.)
- Digital Content Protection: HDCP 2.2 (High-bandwidth Digital Content Protection (HDCP) is designed to prevent copying of digital audio and video content as it travels across connections. Newer versions of HDCP support more connection types, increase security, and resolve weaknesses of previous versions.)
- Remote Control Included: true
- Connectivity
- Wireless Multi-Room Audio: true (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Multi-Room Technology: Apple AirPlay, Yamaha MusicCast (Proprietary technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- IP Control: true (Allows electronic devices to be controlled over a home network via a web-based interface. Typically refers to devices not traditionally controlled in this manner, such as A/V receivers.)
- Compatibility
- Works With: Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- Dimensions
- Product Height: 6.73 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 23.1 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Other
- UPC: 027108956077
Connect your home theater components to this Yamaha 7.2-channel AV-receiver to create a central operational hub. Two HDMI outputs let you connect a television and projector simultaneously, and support for Wi-Fi, Bluetooth and AirPlay provides handy streaming options. Dolby Digital audio technologies deliver crisp, clear sound for a true home theater experience. With 4K Ultra HD HDMI support, this Yamaha 7.2-channel AV-receiver brings bold color and rich visuals to your screen.
- Works with Amazon Alexa: Easily control your AV receiver with Amazon Echo devices using the Smart Home skill and MusicCast skill to play music, link rooms and more.
- Connect to the Internet: Via built-in Wi-Fi for access to: Spotify, Pandora, SiriusXM, Napster, Tidal, Deezer, SXM internet radio.
- 4K Ultra HD video technologies: Allows high-quality 4K video through the receiver straight to your media device.
- 630W total power: 150W x 7 channels @ 8 ohms, 1kHz, 10% THD, 1 channel driven for robust audio.
- Surround sound decoders: Include Dolby Atmos, Dolby Pro Logic, Dolby Pro Logic II, DTS Neo:6, DTS 96/24, Dolby Digital, Dolby Digital Plus, Dolby TrueHD for crystal surround sound.
- USB port: Enables simple connection of a variety of USB-enabled devices.
- Phono input: Hook up your turntable and enjoy your vinyl collection.
- 5 HDMI inputs, 2 HDMI output: HDMI cable not included. High-speed HDMI cable is the only connection that can deliver a full high-definition experience with a full 4K Ultra HD picture and digital surround sound.
- Hi-Res audio support: Lets you enjoy high-quality audio playback via LAN, USB, Bluetooth.
- Auto room correction: Yamaha Parametric Room Acoustic Optimizer (YPAO) analyzes the room acoustics and your system, then precisely adjusts various audio parameters to provide the best sound for your room.
- Dual-zone capability, Apple AirPlay support and MusicCast system: Support distributed audio playback in another room, so you can enjoy music throughout your home.
- Yamaha CINEMA DSP: Exclusive DSP technology transforms the dynamics of the listening environment, with acoustic reproduction of famous venues such as the Bottom Line, Roxy Theater - letting you experience their ambience right in your room.
- MusicCast: MusicCast provides wireless surrounds for a 5.1-channel audio setup.
- 10% total harmonic distortion: Ensures clear audio.
- AM/FM tuner: Lets you listen to your favorite stations.
- Remote: Lets you control the receiver from afar.
- Works with Amazon Alexa: Easily control your AV receiver with Amazon Echo devices using the Smart Home skill and MusicCast skill to play music, link rooms and more.
- Connect to the Internet: Via built-in Wi-Fi for access to: Spotify, Pandora, SiriusXM, Napster, Tidal, Deezer, SXM internet radio.
- 4K Ultra HD video technologies: Allows high-quality 4K video through the receiver straight to your media device.
- 630W total power: 150W x 7 channels @ 8 ohms, 1kHz, 10% THD, 1 channel driven for robust audio.
- Surround sound decoders: Include Dolby Atmos, Dolby Pro Logic, Dolby Pro Logic II, DTS Neo:6, DTS 96/24, Dolby Digital, Dolby Digital Plus, Dolby TrueHD for crystal surround sound.
- USB port: Enables simple connection of a variety of USB-enabled devices.
- Phono input: Hook up your turntable and enjoy your vinyl collection.
- 5 HDMI inputs, 2 HDMI output: HDMI cable not included. High-speed HDMI cable is the only connection that can deliver a full high-definition experience with a full 4K Ultra HD picture and digital surround sound.
- Hi-Res audio support: Lets you enjoy high-quality audio playback via LAN, USB, Bluetooth.
- Auto room correction: Yamaha Parametric Room Acoustic Optimizer (YPAO) analyzes the room acoustics and your system, then precisely adjusts various audio parameters to provide the best sound for your room.
- Dual-zone capability, Apple AirPlay support and MusicCast system: Support distributed audio playback in another room, so you can enjoy music throughout your home.
- Yamaha CINEMA DSP: Exclusive DSP technology transforms the dynamics of the listening environment, with acoustic reproduction of famous venues such as the Bottom Line, Roxy Theater - letting you experience their ambience right in your room.
- MusicCast: MusicCast provides wireless surrounds for a 5.1-channel audio setup.
- 10% total harmonic distortion: Ensures clear audio.
- AM/FM tuner: Lets you listen to your favorite stations.
- Remote: Lets you control the receiver from afar.
Whats Included
- AM antenna
- FM antenna
- Remote with 2 batteries
- YPAO microphone
- Yamaha 630W 7.2-Ch. 4K Ultra HD A/V Home Theater Receiver
- AM antenna
- FM antenna
- Remote with 2 batteries
- YPAO microphone
- Yamaha 630W 7.2-Ch. 4K Ultra HD A/V Home Theater Receiver
A: Yes, I have two zones for my setup. Zone 1 powers my 5.1 home theater speakers and Zone 2 powers two outdoor speakers for my deck. I have the Amazon Fire cube hooked up to HDMI1 and Verizon Fios on HDMI2. I'm able to run the FIOS through Zone 1 and listen too Amazon music through zone 2 at the same time. Zone 2 can be turned on by pressing the Zone 2 on the front of the receiver. There is a Zone 2 source selection button that allows you to select the right source for zone 2. The app does a decent job walking you through the setup process. Hope that answers your question.
A: Taking the legs off is a bad idea. Receivers need ventilation. If resting flat on a shelf a receiver can overheat.
A: Yes, I have that exact setup and it works great. The Klipsch speakers are very efficient and can easily be driven to high levels.
A: This unit does support dialogue lift, dialogue level as well as other adaptive settings to help normalize the audio.
Q: Is there different zones on this receiver that we can turn on and off at different times
A: Yes, there are two zones
A: Hello, Your satellite box receiver should plug into HDMI 4 on your receiver and Your output HDMI should be in The ARC HDMI, which should plug into HDMI 1 on your TV. Do not use the ARC port on your TV, it’s hit or miss on your TV.
Q: Can I use banana plug connectors with this stereo
A: Yes you ca
Q: Do I have to purchase antennas for the WiFi and Bluetooth to work?
A: The RX-V685 has two (2) transmitting/receiving antennas located on the back of the unit in the upper left & right corners. The antennas are identical, but transmit different frequencies, 2.4GHz and 5GHz. I know these antenna both receive and transmit because I have my RX-V685 "paired" with a tablet device, and a 21 year old Yamaha RX-596 stereo receiver at another location. A Logitech Bluetooth adapter (receiving antenna) is now the Tape-1 input. The RX-V685 allows full house coverage.
