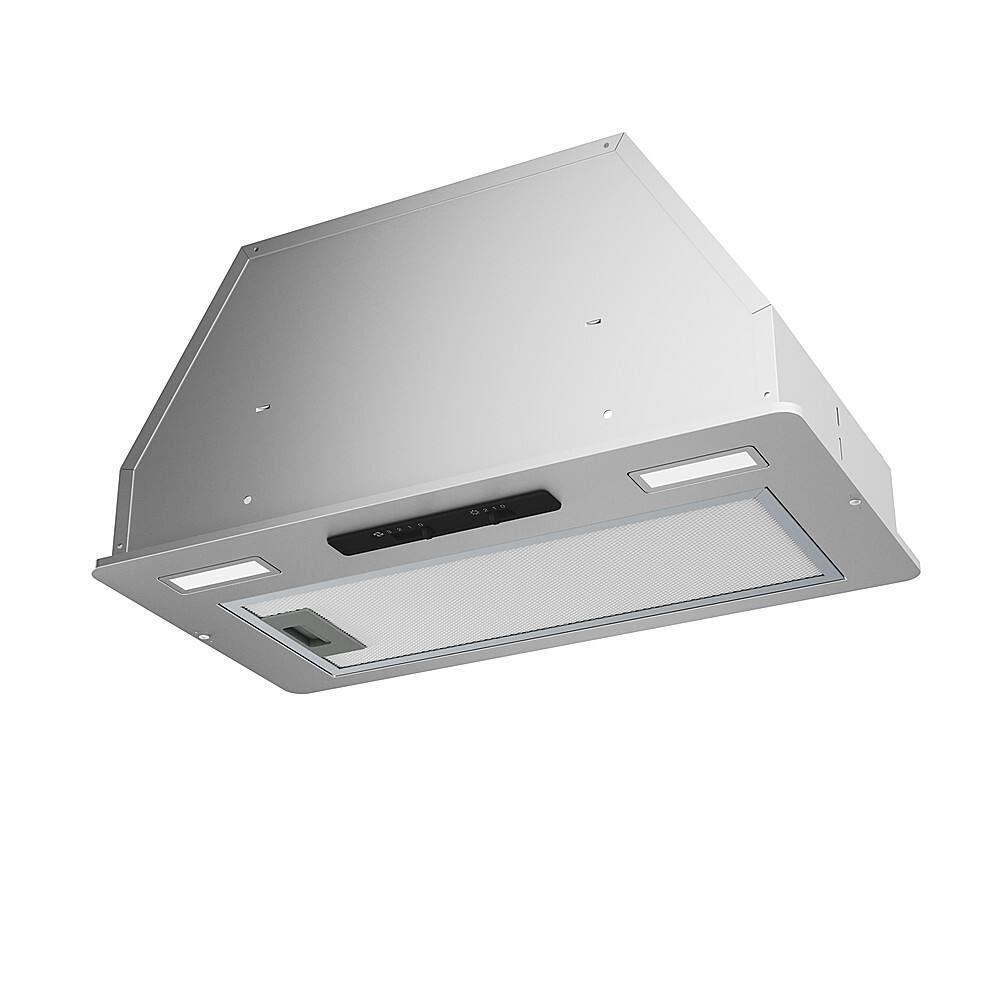

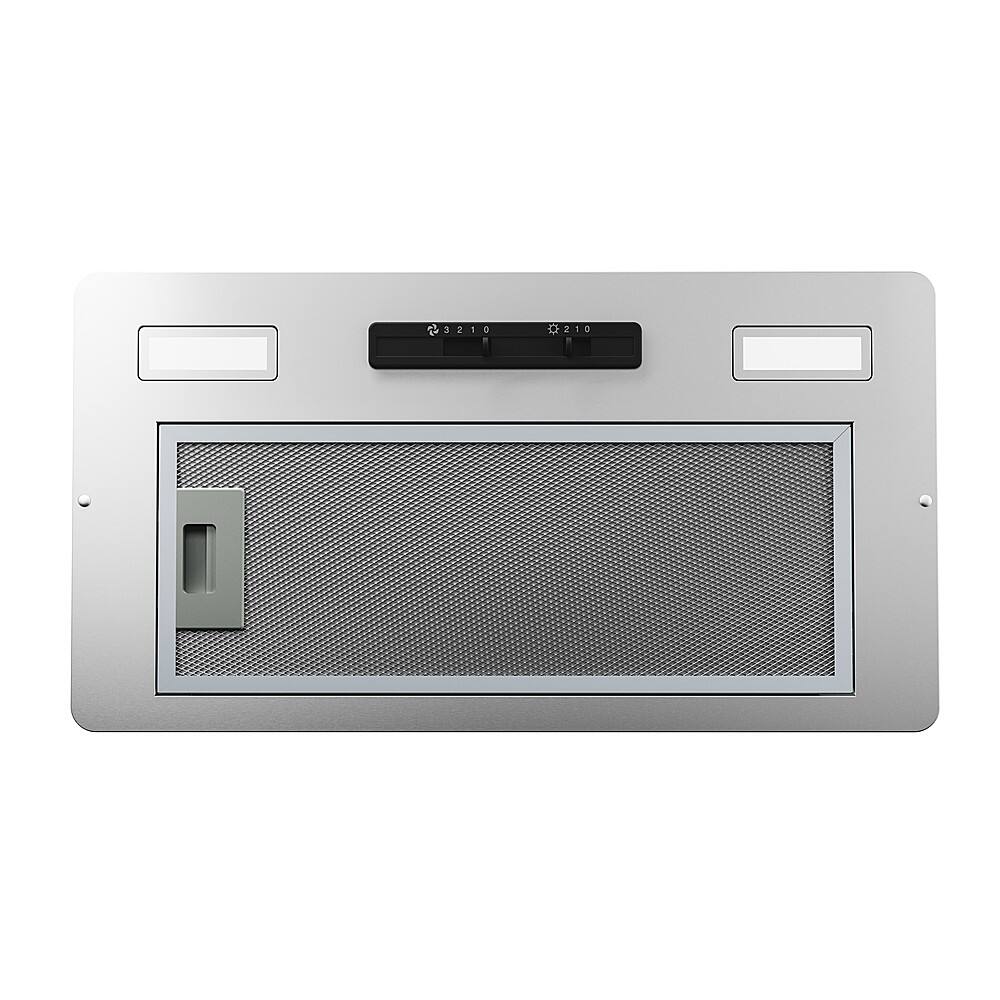

Zephyr - 21 inches - Externally Vented - Range Hood Insert - Stainless Steel
Need-haul away?
Related Item
Specifications
- Color FinishSilverProduct Height9 2/3 inchesProduct Width20 5/9 inchesProduct Depth11 inchesExhaust Vent LocationTopVent TypeDucted
- Key Specs
- Color Finish: Silver
- Product Height: 9 2/3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 20 5/9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: AK8400BS-ES
- Product Name: Tornado Mini Energy Star 21 in. 290 CFM Insert Range Hood
- Color: Stainless Steel
- Color Finish: Silver
- Dimensions
- Product Height: 9 2/3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 20 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 20 5/9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 21 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 14 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Cut-Out Dimensions
- Cut-Out Width: 19 3/4 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 10 1/4 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Slide
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 2
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 290 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 180 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 3.2 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.3 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Mesh
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 1
- Electrical
- Amperage: 2 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Other
- UPC: 646328011597
The Tornado Mini ENERGY STAR power pack is designed with energy efficiency and versatility in mind. This ENERGY STAR-certified insert has a small footprint that fits under the standard 12 cabinet depth or choose one of our optional, adjustable-depth, stainless steel liners to accommodate custom hood enclosures from 17-1/2 to 20-1/2 deep. Features include dual-level LumiLight LED lights and an ultra-quiet 290-CFM blower controlled by 3-speed mechanical slide controls.
- Energy Star certified: Energy Star models are certified for superior efficiency using 20%-30% less energy than traditional models.
- 3 speed levels: For efficiency and versatility
- Dual-level lighting: LumiLight LED Lighting
- Optional adjustable depth liner: AK0840AS, AK0846AS
- LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
Whats Included
- Tornado Mini 21 in. 290 CFM Energy Star Insert Range Hood in Stainless Steel
Product Manuals
Q: What is the maximum wattage for the bulbs in this range hood?
A: The maximum wattage for the bulbs in the Zephyr Tornado Mini Energy Star 21 in. 290 CFM Insert Range Hood is 6 watts. The product specifications clearly state "Maximum Bulb Wattage: 6 watts".
Q: How much does this range hood weigh?
A: The Zephyr Tornado Mini Energy Star 21 in. 290 CFM Insert Range Hood weighs 14 pounds.
Q: What is the product depth of this range hood?
A: The product depth of the Zephyr Tornado Mini Energy Star 21 in. 290 CFM Insert Range Hood is 11 inches. This information can be found in the product specifications section, under the "Product Depth" attribute.
Q: What is the maximum height it can be installed above the cooktop?
A: The maximum height at which the Zephyr Tornado Mini Energy Star 21 in. 290 CFM Insert Range Hood can be installed above the cooktop is 36 inches.
Q: What is the minimum height it can be installed above the cooktop?
A: The minimum height at which the Zephyr Tornado Mini Energy Star 21 in. 290 CFM Insert Range Hood can be installed above the cooktop is 20 inches.
Q: What material is used for the filter in this range hood?
A: The filter in this Zephyr Tornado Mini Energy Star 21 in. 290 CFM Insert Range Hood is made of Mesh.
Q: What is the maximum airflow capacity of this range hood?
A: The maximum airflow capacity of the Zephyr Tornado Mini Energy Star 21 in. Insert Range Hood is 290 cubic feet per minute (CFM). This information is provided in the product specifications section of the context.
Q: What type of lighting does this range hood use?
A: This range hood uses LumiLight LED lights. These lights are eco-friendly, energy-efficient, and have a lifespan of over 25,000 hours. They are also dimmable and provide uniform light distribution.
