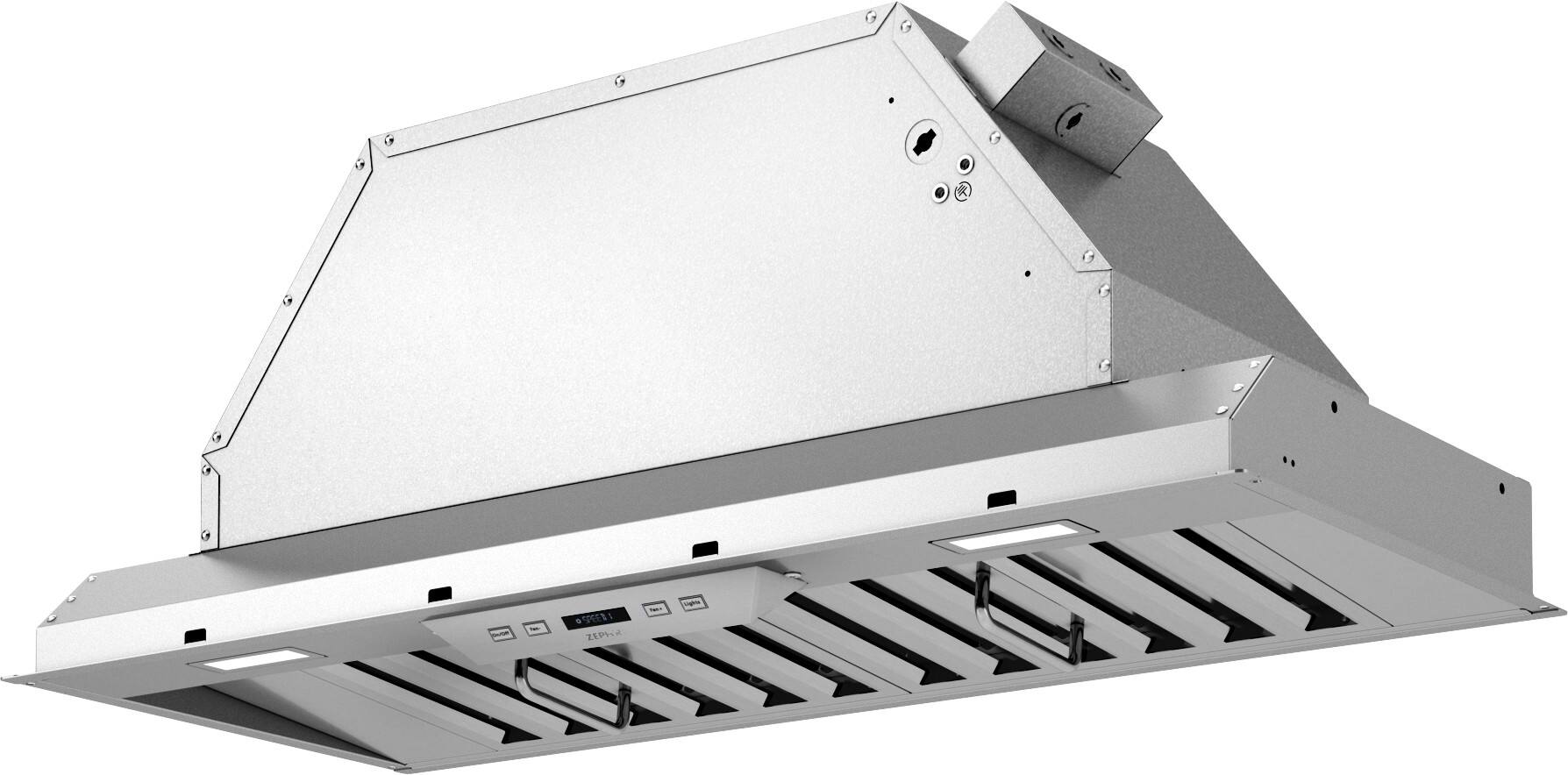

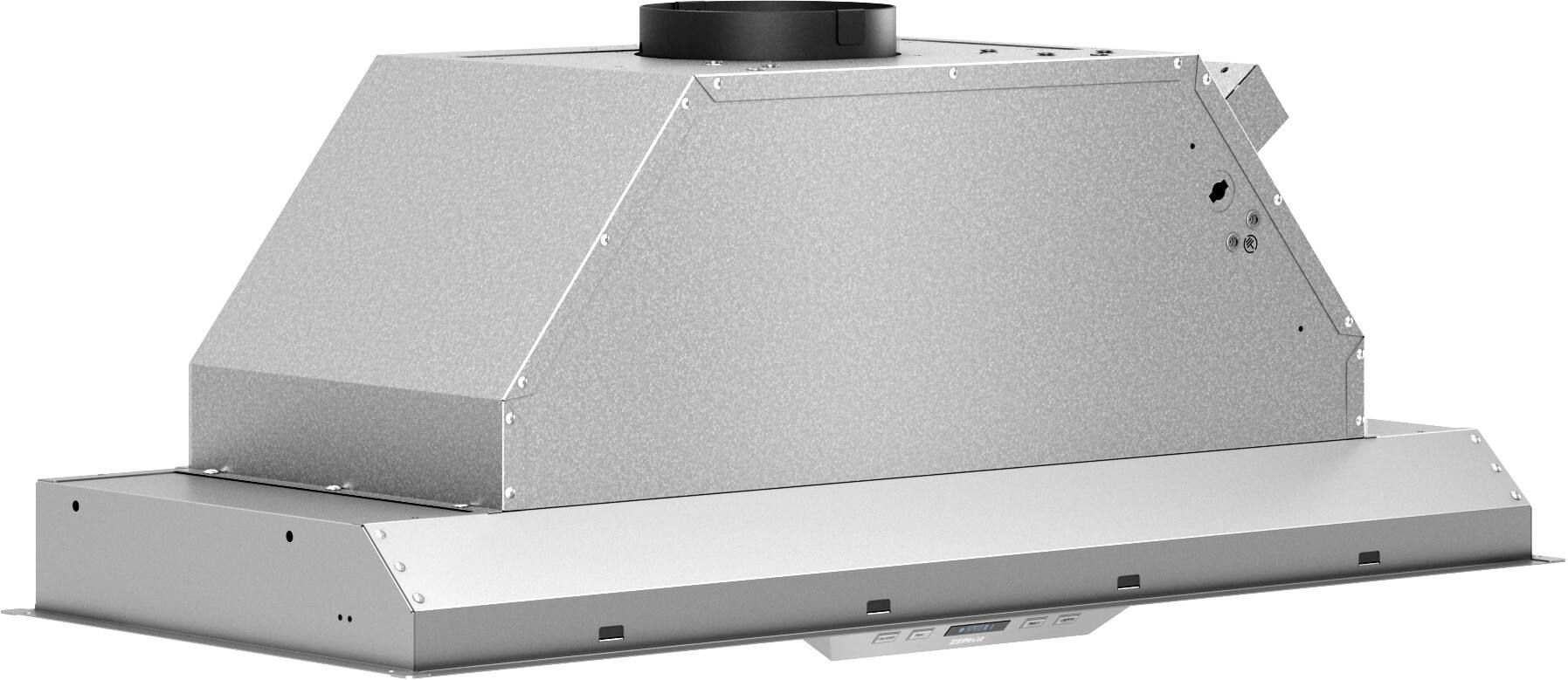

Zephyr - 34 inches - Externally Vented - Range Hood Insert - Stainless Steel
$39.99 delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Product Height14.5 inchesProduct Width33.75 inchesProduct Depth14.9 inchesExhaust Vent LocationTopVent TypeDuctedVent StyleExternal
- Key Specs
- Product Height: 14.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 33.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: AK8234AS
- Product Name: Tornado II 34 in. 600 CFM Insert Range Hood with LED Lights
- Color: Stainless Steel
- Dimensions
- Product Height: 14.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 33.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 34 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 29.5 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Cut-Out Dimensions
- Cut-Out Width: 32.875 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 14.17 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 5
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: false
- Performance
- Maximum Air Flow Capacity: 600 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 200 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 6 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.8 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Dishwasher-Safe Filter: true
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 1 year
- Other
- UPC: 646328013072
If you like professional-grade punch with all the amenities, Tornado II is your best-kept secret and will complement any kitchen’s style. Designed to fit 15-inch-deep cabinets, this powerful insert features pro baffle filters and a 600-CFM internal blower. Dual-level LumiLight LED lighting with TruHue™ technology allows you to match your hood lights to your primary lighting. An optional 1,000-CFM dual internal blower and an optional wireless remote control are also available.
- LumiLight LED Lighting with TruHue: A bright idea: customize your hoods light to harmonize with the rest of your kitchens lighting at the touch of a button with TruHue anywhere from 2700K to 5000K.
- Professional Baffle Filters: High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Electronic Touch Controls: Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
- Dual-Level Lighting: The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Auto Delay-Off: Auto delay-off feature allows you to set your hood to continue venting for 5 or 10 minutes after cooking is complete and then automatically powers your hood off.
- Optional Dual Internal Blower Kit Available: Optional dual internal blower kit available to fit your application. (PBD-1000A)
- Optional Wireless Remote Control (14000005): ADA-compliant, wireless RF remote control with battery and holder. Equipped with a magnet on the back for easy storage on any magnetic surface. Maximum remote control communication distance is 15 feet from the hood. Please check your Zephyr range hoods specification sheet to ensure compatibility.
Whats Included
- Tornado II 34 in. 600 CFM Insert Range Hood with LED Lights in Stainless Steel
Product Manuals
Compare similar products
If you like professional-grade punch with all the amenities, Tornado II is your best-kept secret and will complement any kitchen’s style. Designed to fit 15-inch-deep cabinets, this powerful insert features pro baffle filters and a 600-CFM internal blower. Dual-level LumiLight LED lighting with TruHue™ technology allows you to match your hood lights to your primary lighting. An optional 1,000-CFM dual internal blower and an optional wireless remote control are also available.
We are bringing professional-quality range hoods to your home with our Chef Series UC-PS18 under-cabinet kitchen range hood. Backed by dual motors, this range hood is designed to make extracting odors, fumes, and chemicals from your kitchen a breeze. Plus, our UC-PS18 under-cabinet kitchen range hood comes with a unique, versatile venting system designed to fit most ducts and save you time and money.
The Tornado I provides muscle and flexibility in a small, barely-visible packaged beneath your custom hood enclosure. This 600-CFM insert is upgraded with two hybrid baffle filters, dual-level LumiLight LED lighting, and an angled housing for a better fit within any custom hood. An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.
Tucked neatly out of sight within your cabinetry, Pisa is a minimal alternative to your typical under-cabinet range hood. Adorned with LumiLight LED Lighting and powered by the strength of a 500-CFM or 290-CFM blower, Pisa’s low-profile body delivers stunning design and quality performance. Its retractable visor helps with the capture of air and puts control at your fingertips. Pisa is ideal for kitchens that require a more discreet, sophisticated look.
