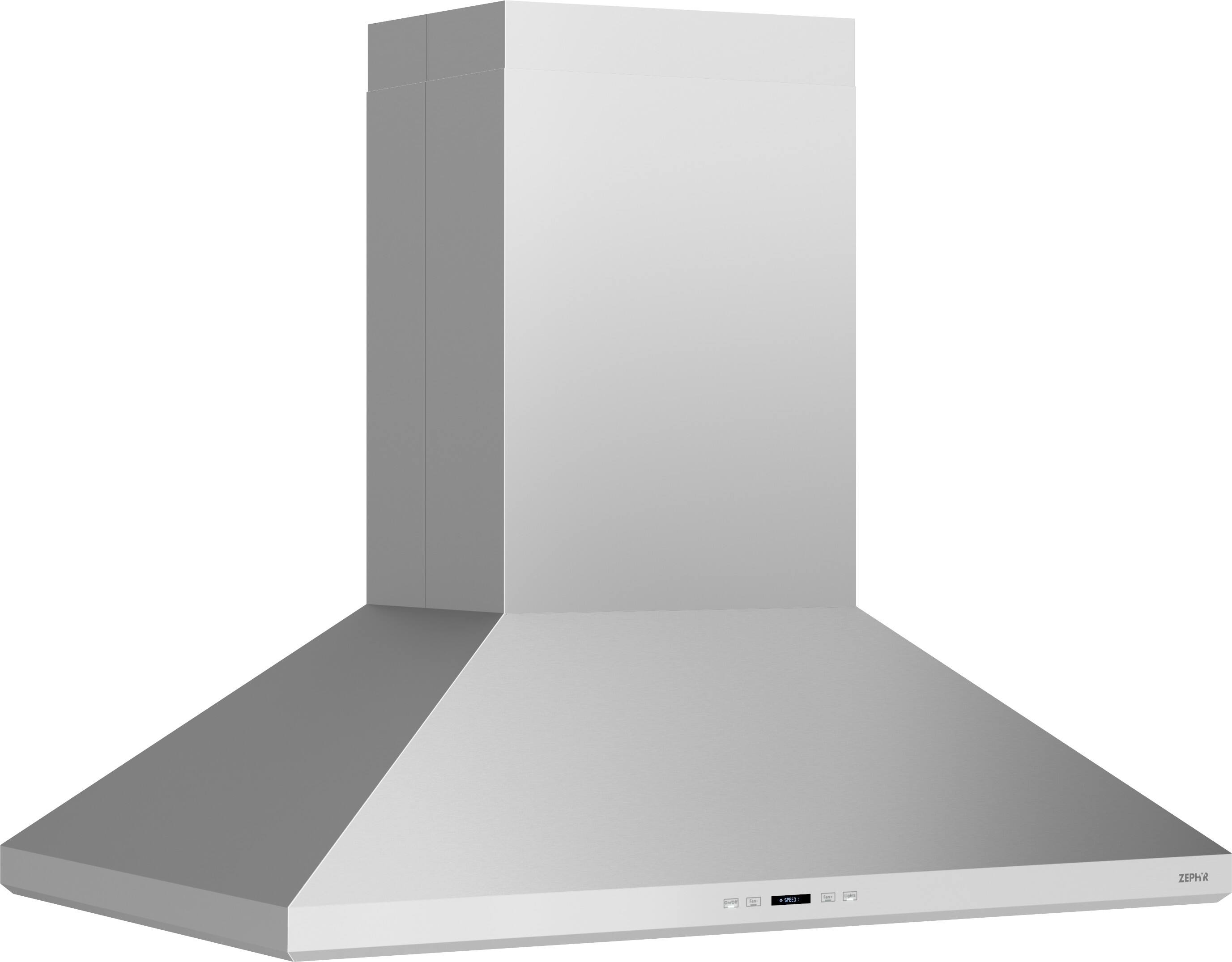

Zephyr - 36 inches - Externally Vented - Island Range Hood - Stainless Steel
Delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Product Height34 inchesProduct Width35.9375 inchesProduct Depth28 inchesExhaust Vent LocationTopVent TypeDuctedVent StyleExternal
- Key Specs
- Product Height: 34 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35.9375 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: ZSL-E36DS
- Product Name: Siena Pro 36 in. 1200 CFM Island Mount Range Hood with LED Lighting
- Color: Stainless Steel
- Dimensions
- Product Height: 34 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Product Width: 35.9375 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 48 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Island
- Number of Fan Speeds: 5
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: false
- Performance
- Maximum Air Flow Capacity: 1200 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 350 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 9 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 2 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Dishwasher-Safe Filter: true
- Electrical Specification
- Amperage: 8 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Other
- UPC: 646328013041
With its classic, professional-style design, Siena Pro Island encompasses a wealth of features perfect for the culinary pro or any aspiring home chef. Equipped with magnetic duct covers, the unique Quick-Lock Installation System is easier than ever. Featuring a welded, polished and seamless body as well as dual-level LumiLight LED lighting with TruHue technology to match your hood lights to your primary lighting. Also houses a 1200-CFM blower, new ICON Touch LCD controls, and Airflow Control Technology (ACT). Available with an optional ADA-compliant remote control.
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- ICON Touch LCD Controls: ICON Touch controls include a convenient LCD screen that displays fan speed level, light level, clean filter reminders, and TruHue info control at a glance.
- Quick-Lock Installation System: Zephyrs Quick-Lock Installation System is an innovative, hassle-free method for installing island range hoods. A quick-lock motion lets the user assemble the frame, lift the hood and lock it into place on the frame and then assemble the 4-piece duct covers. This easy three-step process ensures the island hood is securely installed without additional build-out required.
- Dual-Level Lighting: The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- ICON Touch LCD Controls: ICON Touch controls include a convenient LCD screen that displays fan speed level, light level, clean filter reminders, and TruHue info control at a glance.
- Quick-Lock Installation System: Zephyrs Quick-Lock Installation System is an innovative, hassle-free method for installing island range hoods. A quick-lock motion lets the user assemble the frame, lift the hood and lock it into place on the frame and then assemble the 4-piece duct covers. This easy three-step process ensures the island hood is securely installed without additional build-out required.
- Dual-Level Lighting: The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
Whats Included
- Siena Pro 36 in. 1200 CFM Island Mount Range Hood with LED Lighting in Stainless Steel
- Siena Pro 36 in. 1200 CFM Island Mount Range Hood with LED Lighting in Stainless Steel
Q: Does the Zephyr Siena Pro range hood have a delay shut-off feature?
A: Yes, the Zephyr Siena Pro range hood has a delay shut-off feature.
Q: What type of filters does the Zephyr Siena Pro range hood use?
A: This range hood does not use hybrid baffle filters.
Q: How many fan speeds does the Zephyr range hood have?
A: The Zephyr Siena Pro range hood has 5 fan speeds.
Q: What is the maximum airflow capacity of this range hood?
A: This range hood has a maximum airflow capacity of 1200 cubic feet per minute.
Q: What is the minimum height requirement for installing this range hood above the cooktop?
A: The minimum installation height above the cooktop for this range hood is 24 inches.
Q: Does this Zephyr range hood come with a damper?
A: No, the Zephyr Siena Pro range hood does not include a damper.
Compare similar products
With its classic, professional-style design, Siena Pro Island encompasses a wealth of features perfect for the culinary pro or any aspiring home chef. Equipped with magnetic duct covers, the unique Quick-Lock Installation System is easier than ever. Featuring a welded, polished and seamless body as well as dual-level LumiLight LED lighting with TruHue technology to match your hood lights to your primary lighting. Also houses a 1200-CFM blower, new ICON Touch LCD controls, and Airflow Control Technology (ACT). Available with an optional ADA-compliant remote control.
Strong and sophisticated with upward-angled walls, Napoli makes a striking impression in any kitchen. Enhanced with a 700-CFM PowerWave blower; Zephyr Connect technology; and tri-level, LumiLight LED Lighting, Napoli is a technological feat that stands above the rest. Including an enhanced Quick-Lock Installation System with magnetic duct covers, Napoli is as easy to install as it is to enjoy. Available with an optional wireless remote control.
With its low-profile, bell-shaped design, Anzio adds style to any kitchen project. Its 600-CFM blower, ICON Touch controls, and new LumiLight LED lighting move it ahead of the competition. Add the Quick-Lock Installation System with magnetic duct covers, and Anzio stands alone in terms of performance, design and value. Now available with an optional ADA-compliant remote control.
Strong and sophisticated with upward-angled walls, Napoli makes a striking impression in any kitchen. Enhanced with a 700-CFM PowerWave blower; Zephyr Connect technology; and tri-level, LumiLight LED Lighting, Napoli is a technological feat that stands above the rest. Including an enhanced Quick-Lock Installation System with magnetic duct covers, Napoli is as easy to install as it is to enjoy. Available with an optional wireless remote control.
