Zephyr - 36 inches - Externally Vented - Range Hood Insert - Stainless Steel
Delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishStainless steelProduct Height12 inchesProduct Width34 3/8 inchesProduct Depth22 1/2 inchesExhaust Vent LocationTopVent TypeDucted
- Key Specs
- Color Finish: Stainless steel
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 34 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: AK9834BS
- Product Name: Spruce 36 in. 1200 CFM Insert Mount Range Hood with LED Lighting
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 32 inches
- Maximum Installation Height Above Cooktop: 42 inches
- Product Width: 34 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 62 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Cut-Out Dimensions
- Cut-Out Width: 34 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 22 5/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Switch
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 4
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 1200 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 450 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Filter Info
- Filter Material: Stainless Steel
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical Specification
- Amperage: 8 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 1 year
- Other
- UPC: 646328010620

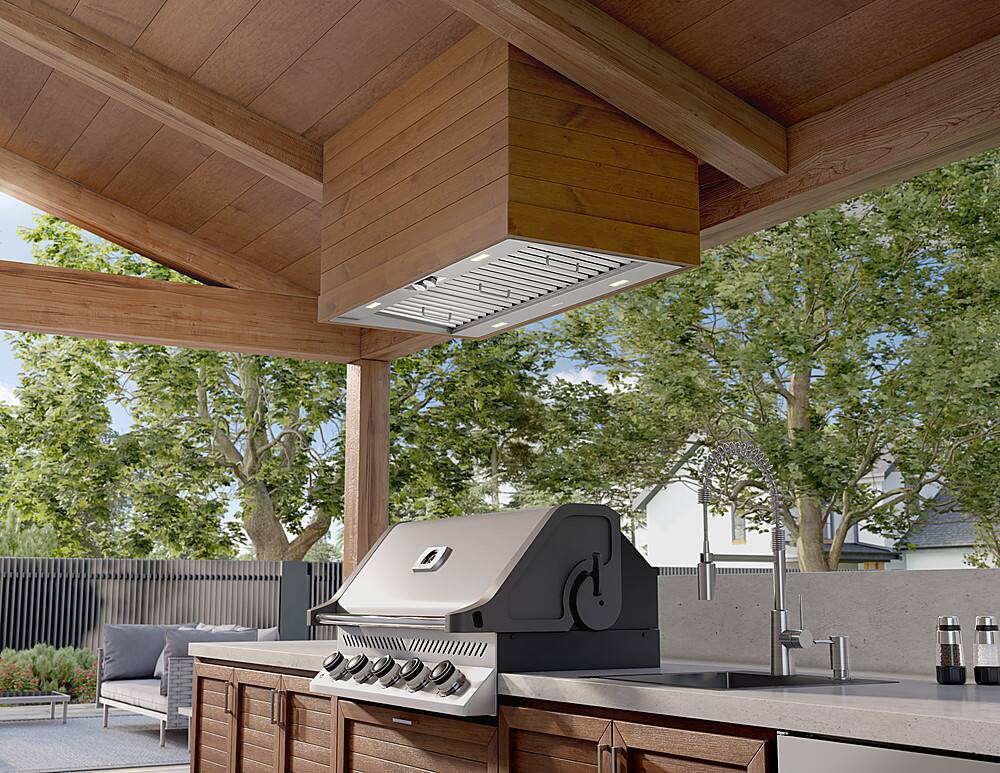

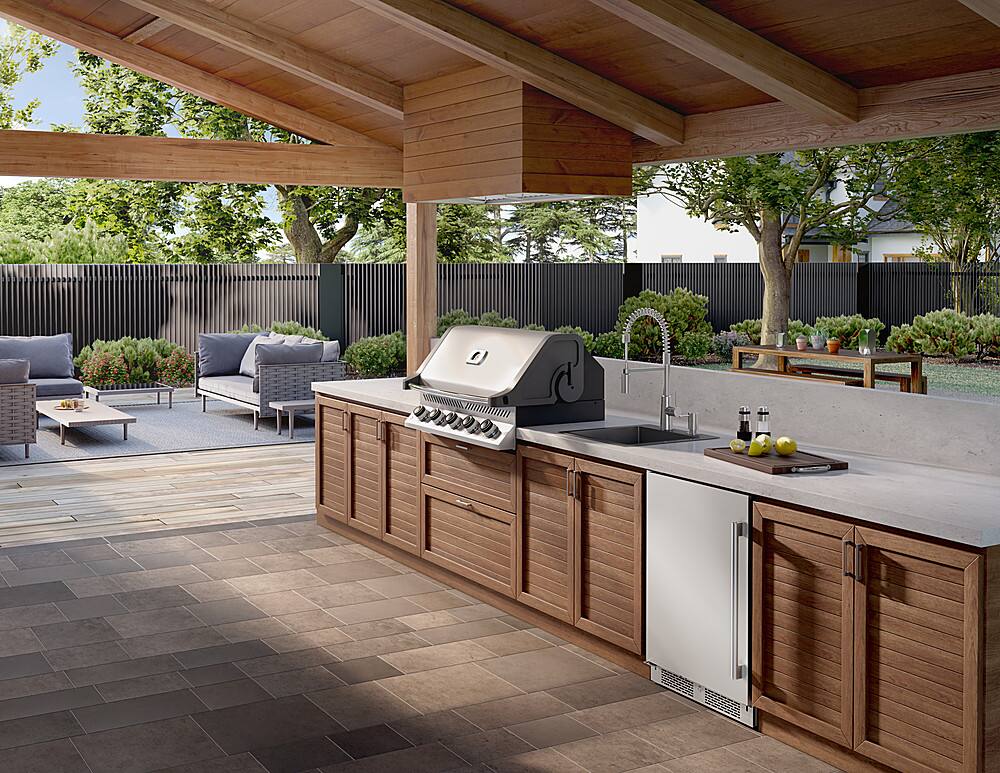

The Spruce outdoor insert is a one-piece liner that can be installed in wall or island applications. Spruce includes corrosion-resistant, 304-grade stainless steel and powerful 1,200-CFM internal blowers to handle the most intense grilling. Also featuring 3-speed metallic knob controls, LumiLight LED lighting, and pro baffle filters to enhance airflow.
- LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Hight Quality 304S Stainless Steel: Built with durable high-grade stainless steel.
- Outdoor Rated: Zephyr range hoods are tested for use in outdoor environments and feature a full corrosion-resistant, 304-grade-stainless-steel exterior.
- Professional Baffle Filters: High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance. (Part # 50210031)
- 3 Speed Metallic Knob Dial: Metallic knob controls are tested for use in outdoor environments and are built with corrosion-resistant, 304-grade stainless steel to withstand extreme heat and moisture.
- Powerful 1200 CFM Blowers: The range hood performance is measured in Cubic Feet per Minute (CFM). This is a measure of how much air can be removed from a given space in a single minute.
Product Manuals
Q: What is the minimum airflow capacity of this range hood?
A: The minimum airflow capacity of this Zephyr range hood is 450 cubic feet per minute.
Q: How many fan speeds does the Zephyr Spruce range hood have?
A: The Spruce range hood has 3 fan speeds.
Q: What type of filters does this range hood use?
A: This range hood uses professional baffle filters that are dishwasher safe.
Q: What type of lighting does this range hood have?
A: The Spruce range hood features LumiLight LED lighting.
Q: Can this range hood be used outdoors?
A: Yes, this Zephyr range hood is outdoor rated and tested for use in outdoor environments.
Q: Does this range hood come with a warranty?
A: Yes, this range hood comes with a 3-year warranty on parts and a 1-year warranty on labor.
Q: What is the noise level on low and high speed?
A: Hello, This model has a max sone of 9 at the highest level. Thank you for your inquiry! -Zephyr
Q: what type or grade of stainless steel
A: Hello, The stainless steel is grade 430. Thank you for your inquiry! -Zephyr
