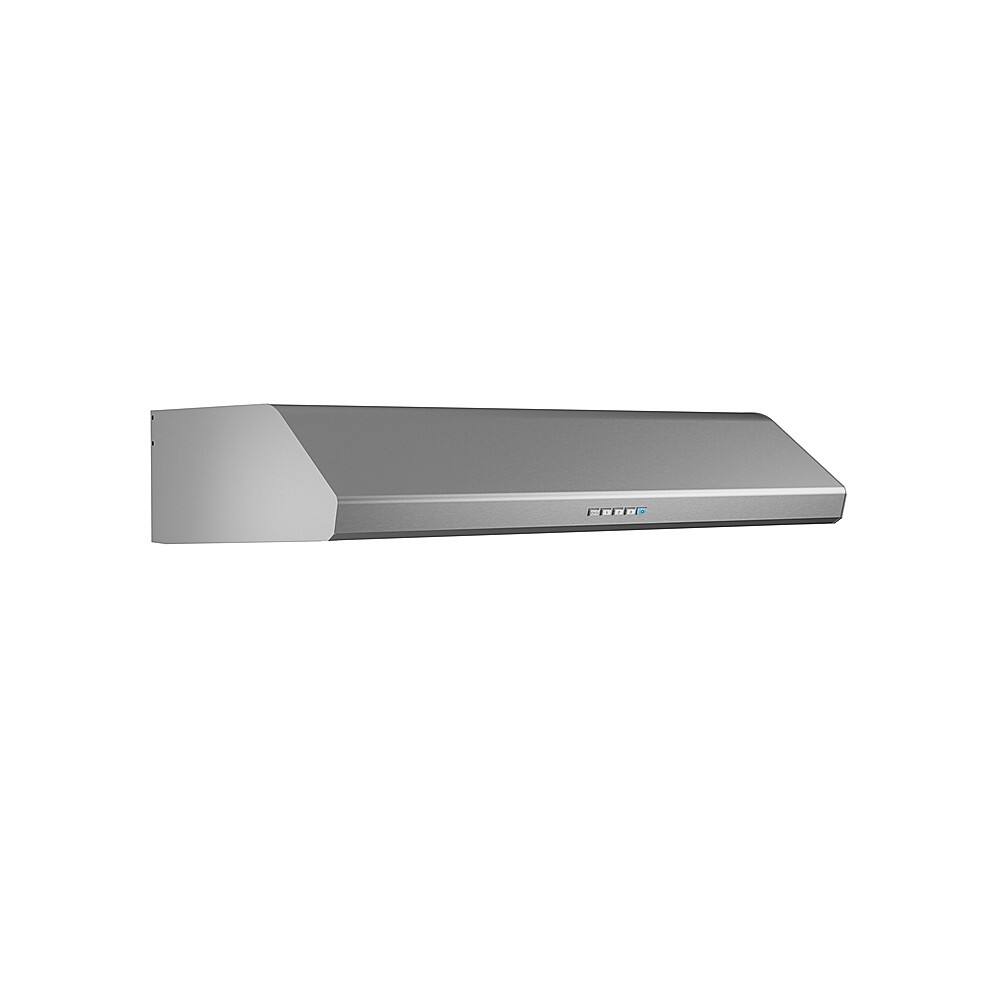

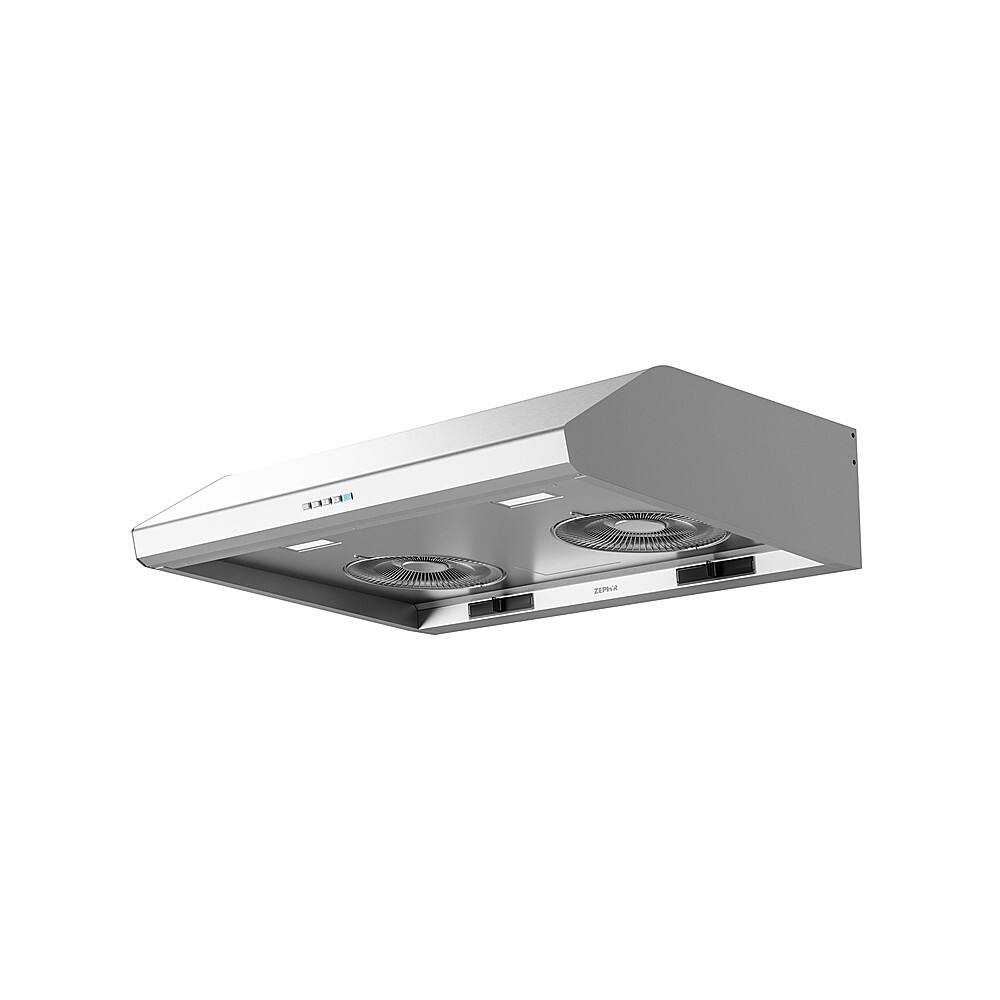

Zephyr - 36 inches - Externally Vented - Under cabinet Range Hood - Stainless Steel
Color
Stainless Steel$39.99 delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishStainless steelProduct Height7 inchesProduct Width35 7/8 inchesProduct Depth20 1/8 inchesExhaust Vent LocationTop/RearVent TypeDucted
- Key Specs
- Color Finish: Stainless steel
- Product Height: 7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 1/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: AK2536CS
- Product Name: Hurricane 36 in. 695 CFM Under Cabinet Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 32 inches
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 1/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 33 pounds (The out of box weight of the item.)
- Duct Shape: Rectangular
- Duct Length: 3.25 inches
- Duct Width: 10 inches
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Display Type: None
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 695 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 290 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 5.5 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.5 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Removable Grease Filter: false
- Electrical Specification
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Other
- UPC: 646328009402
High tech meets high style with the Hurricane under-cabinet. Electronic touch controls take charge of the 3-speed, 695-CFM blowers and dual-level LumiLight LED Lighting — all designed to make your life easier. Available with Airflow Control Technology (ACT) and in black, white and stainless steel finishes.
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- Electronic Touch Controls: Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
- 3 Speed Levels: Quiet and efficient, three speed levels allow you to control proper airflow depending on your cooking needs.
- LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Dual-Level Lighting: The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- 2 Removable Safety Grilles: High-quality safety grilles designed to enhanced protection during use and improve the overall aesthetic.
- Filter-Less Self-Cleaning System: Designed to work without filters, the centrifugal blower wheel pushes air downwards and away from the center, separating cooking vapors and grease from the air. Remaining cooking contaminates are then trapped in a residue tray which drains into residue cups when cleaned. This blower system ensures that the hood is effective, quiet and easy to use.
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- Electronic Touch Controls: Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
- 3 Speed Levels: Quiet and efficient, three speed levels allow you to control proper airflow depending on your cooking needs.
- LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Dual-Level Lighting: The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- 2 Removable Safety Grilles: High-quality safety grilles designed to enhanced protection during use and improve the overall aesthetic.
- Filter-Less Self-Cleaning System: Designed to work without filters, the centrifugal blower wheel pushes air downwards and away from the center, separating cooking vapors and grease from the air. Remaining cooking contaminates are then trapped in a residue tray which drains into residue cups when cleaned. This blower system ensures that the hood is effective, quiet and easy to use.
Q: Can the vent (where the duct goes) hole be cut out on top more to the right?
A: Hello, please refer to page 10 of the Use and Care Manual for Mounting Height, Clearance, & Ducting instructions. A minimum of 7” round for AK25 or 3-1/4” x 10” rectangular duct must be used to maintain maximum air flow efficiency for vertical ducting. For horizontal ducting, 3-1/4” x 10” rectangular duct is the minimum size. Thank you for your inquiry! -Zephyr
Q: Are the removable grease filters dishwasher safe?
A: Hello, Zephyr Typhoon, Hurricane and Cyclone hoods are filter-less with a self cleaning feature. The centrifugal blower system automatically liquefies cooking residue in its internal housing. All hoods are equipped with dishwasher safe residue cups to collect cooking residue during the self cleaning function. Cleaning should be performed approximately once a month under normal usage of 1 hour per day. The hood may need to be cleaned more often if you cook heavily. Thank you for your inquiry! - Zephyr
A: Hello, Yes, press the light button and the lights will turn on/off. Thank you for your inquiry! - Zephyr
Q: Any info available on how many lumens the lights produce?
A: Hello, 300 lumens per light. Thank you for your inquiry! - Zephyr
Q: How loud is this range hood? How many sones/decibels?
A: Hello, The Hurricane has 3 speeds and the sone measurements are 1.5- 5.5 . Thank you for your inquiry!
A: Hello, THe Hurricane CFM is 695. You can view more details on Zephyr website here: https://zephyronline.com/product/hurricane-under-cabinet-hood/ Thank you for your inquiry!
