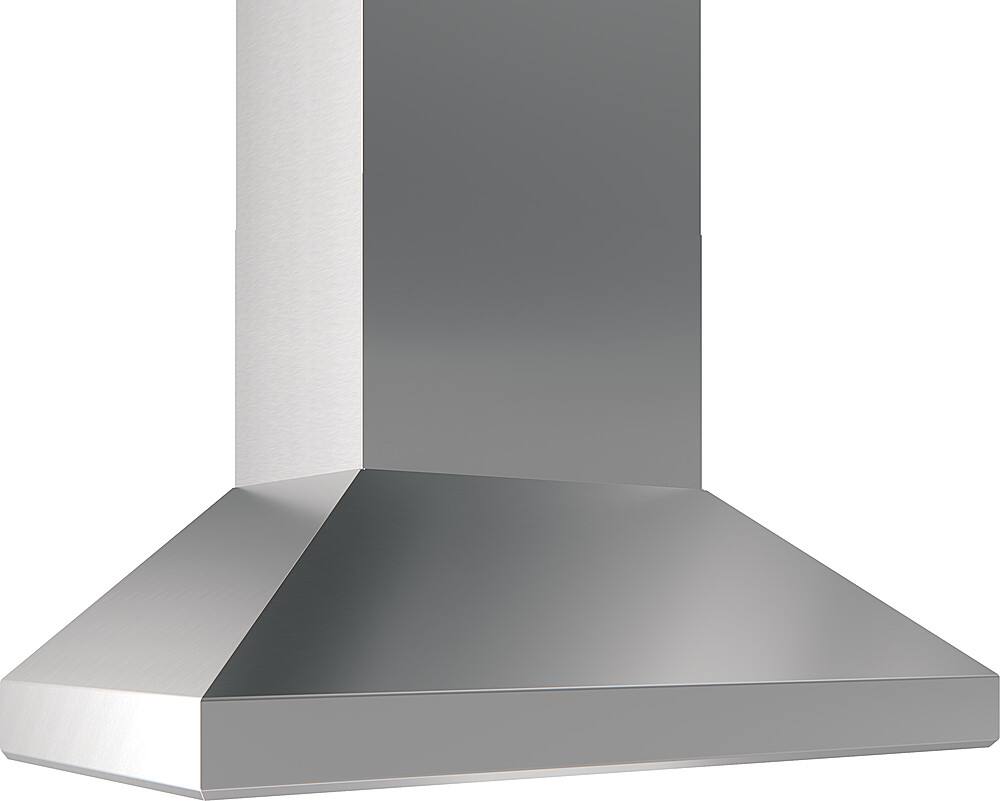

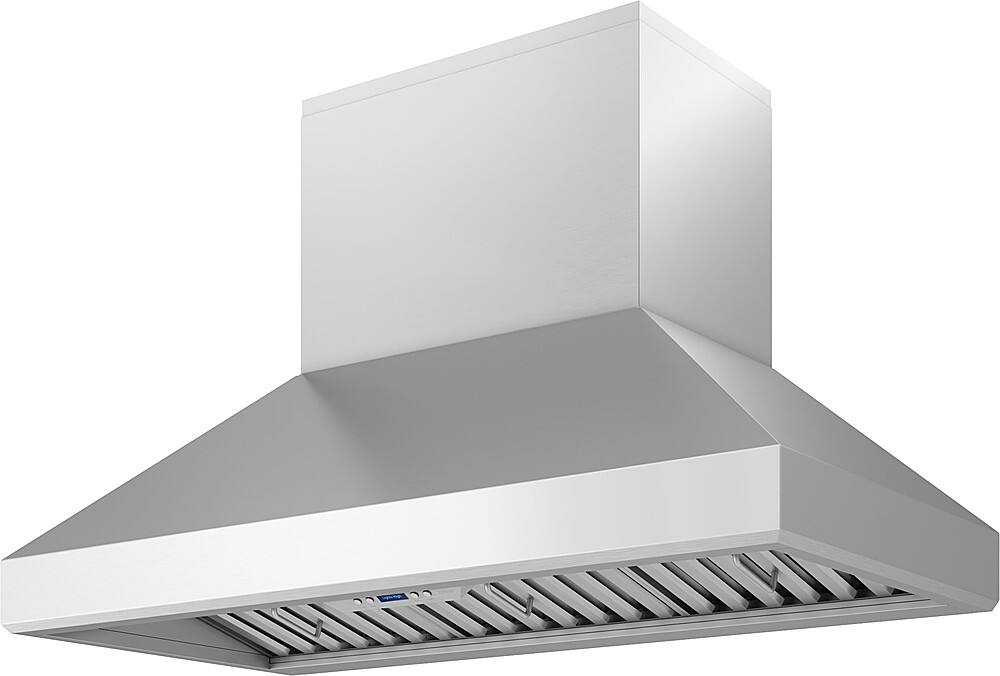

Zephyr - 48 inches - Externally Vented - Wall Range Hood - Stainless Steel
Zephyr - 48 inches - Externally Vented - Wall Range Hood - Stainless Steel
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Product Height30 inchesProduct Width47 15/16 inchesProduct Depth24 inchesExhaust Vent LocationTop/RearVent TypeDuctedVent StyleExternal
- Key Specs
- Product Height: 30 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 47 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: AK7648BS
- Product Name: Titan 48 in. 750 CFM Wall Mount Range Hood with LED Light
- Color: Stainless Steel
- Dimensions
- Product Height: 30 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 47 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 85 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 8 inches
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 6
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touch pad
- Display Type: LCD
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 4
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 750 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 200 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 7 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 0.5 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Stainless Steel
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 3
- Electrical
- Amperage: 8 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Other
- UPC: 646328010514
Titan challenges the definition of pro-style hoods with its impressive size, powerful blower, and stunning good looks. Featuring Zephyr’s PowerWave technology, Titan features a 750-CFM blower with the option to combine two blowers together to achieve 1,300 CFM. Its unique aerodynamic blades improve efficiency with unparalleled quiet operation. The ultimate workhorse in the kitchen, Titan is available up to 60-inches and features pro baffle filters and LumiLight LED lighting.
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- Professional Baffle Filters: High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance. (Part # 50210031)
- Tri-Level lighting: Tri-Level lighting illuminates cooking area
- Welded and Polished Body: A welded and polished body ensures a high quality, seamless appearance.
- CleanAir Feature: The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Optional Wireless Remote Control: Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.(Part # 14000005)
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details). (Part # Z1C-0176)
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- Professional Baffle Filters: High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance. (Part # 50210031)
- Tri-Level lighting: Tri-Level lighting illuminates cooking area
- Welded and Polished Body: A welded and polished body ensures a high quality, seamless appearance.
- CleanAir Feature: The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Optional Wireless Remote Control: Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.(Part # 14000005)
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details). (Part # Z1C-0176)
Q: What type of filters does this range hood use?
A: The Zephyr Titan range hood uses professional, high-airflow baffle filters that are dishwasher safe.
Q: Does this range hood come with a remote control?
A: No, this model does not include a remote control, but an optional wireless remote control is available (Part # 14000005).
Q: How many fan speeds does the Zephyr Titan range hood have?
A: This Zephyr Titan range hood features 6 fan speeds.
Q: What is the minimum airflow capacity of this range hood?
A: The minimum airflow capacity of this Zephyr range hood is 200 cubic feet per minute.
Q: Does the range hood have a delay shut-off feature?
A: Yes, the Zephyr Titan range hood has a delay shut-off feature.
Q: What is the diameter of the round duct required for this range hood?
A: The Zephyr Titan range hood requires a round duct with a diameter of 8 inches.
Q: What type of plug for this hood?
A: Hello, This hood is hardwired. This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product. Thank you for your inquiry! - Zephyr
