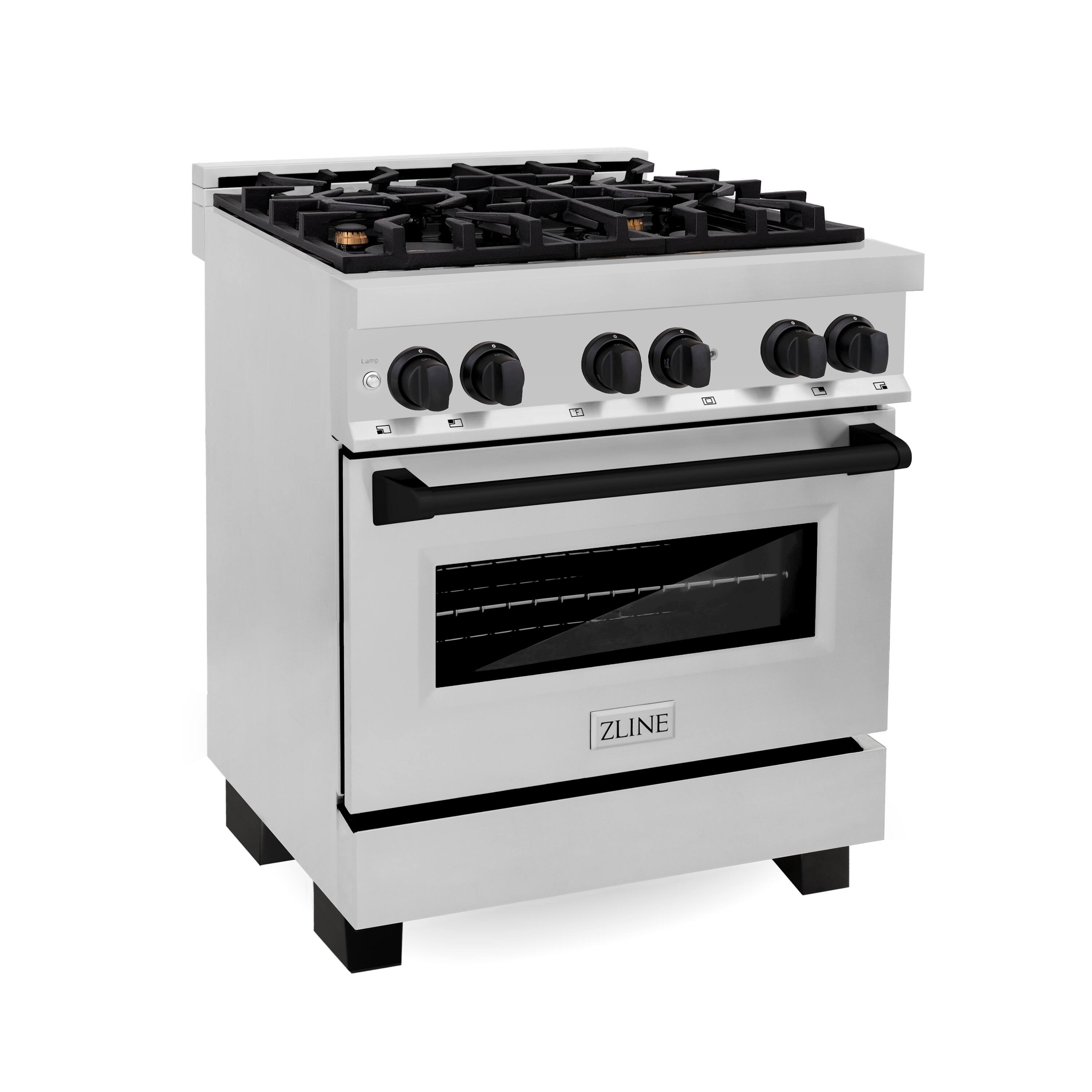

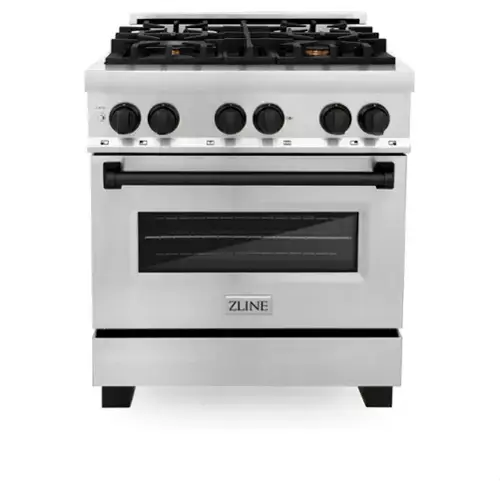

ZLINE - Autograph 30" Legacy Dual Fuel Range w/ 4 Burners & Matte Black Accents (RAZ-30-MB) - Stainless Steel/Matte Black Accents
Color
Stainless Steel/Matte Black AccentsDelivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishStainless steelProduct Height36 1/8 inchesProduct Width29 3/4 inchesProduct Depth27 1/2 inchesRange TypeFreestandingOven Cleaning MethodManual cleaning
- Key Specs
- Color Finish: Stainless steel
- Product Height: 36 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Manual cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Number of Burners: 4
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: ZLINE
- Model Number: RAZ-30-MB
- Product Name: Autograph 30" Legacy Dual Fuel Range w/ 4 Burners & Matte Black Accents (RAZ-30-MB)
- Color: Stainless Steel/Matte Black Accents
- Color Finish: Stainless steel

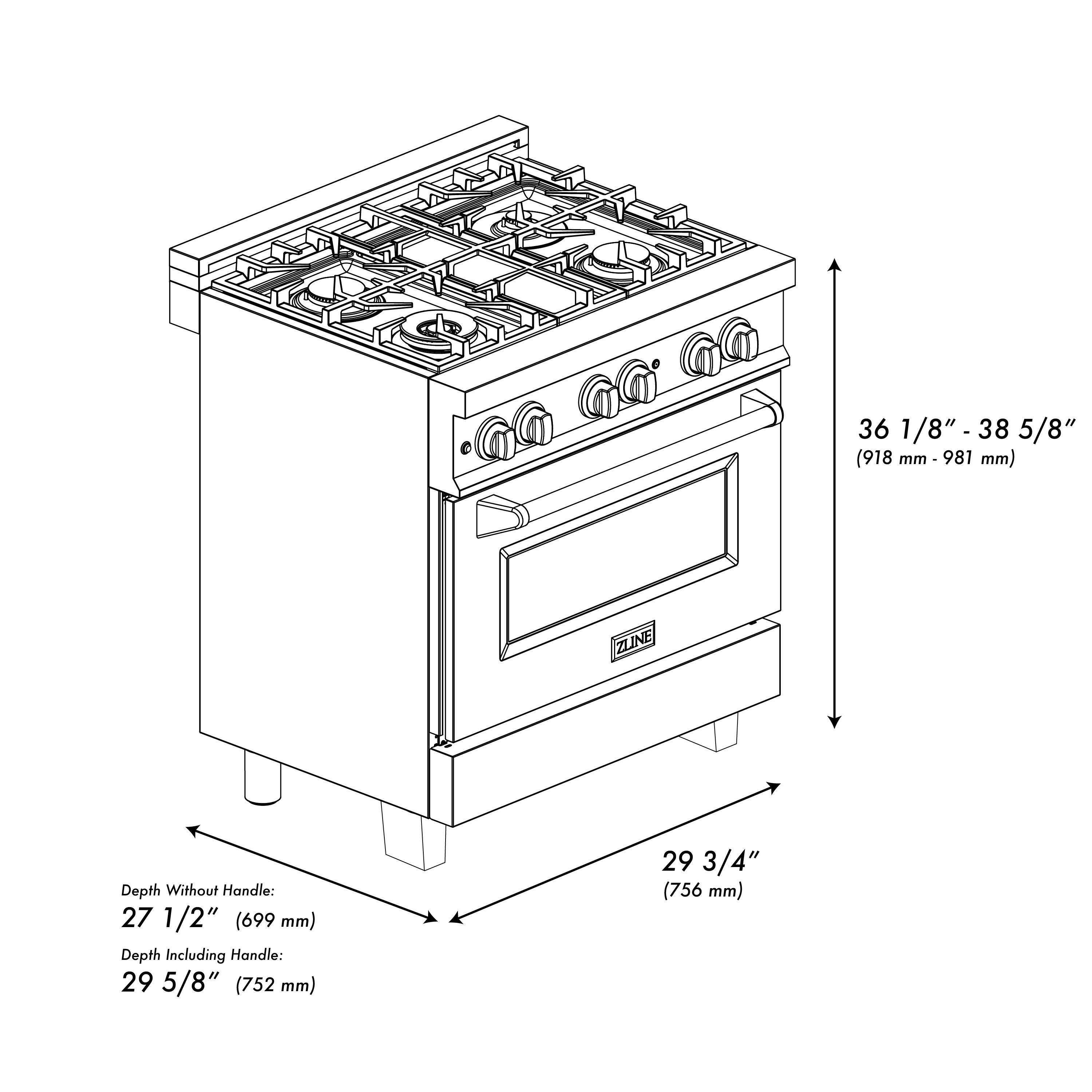

- Dimensions
- Product Height: 36 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 230 pounds (The out of box weight of the item.)
- Capacity
- Oven Capacity: 4 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Gas Type: Natural gas
- Range Power Source: Dual fuel
- Oven Control Location: Front panel
- Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Propane (LP) Convertible: true
- Propane Kit Model Compatibility: RA-HG-PK-30
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Oven Cooking Modes: Convection, Bake, Broil
- Oven Settings: Bake, Broil
- Oven Features
- Oven Cleaning Method: Manual cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Single/Double Oven: Single Oven
- Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Cooktop Features
- Number of Burners: 4
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Auxiliary, Dual, Rapid, Semi (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron, Cast iron, Cast iron, Cast iron, Cast iron
- Griddle Included: false
- Burner Rating
- Total Maximum BTU Rating: 45000 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Electrical Specification
- Amperage: 50 amperes (Strength of electrical current.)
- Voltage: 220 volts (Amount of power needed to support an electrical current.)
- Included
- Propane Conversion Kit Included: true
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: nickel (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 810058127440
Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 30 in. 4.0 cu. ft. Legacy Dual Fuel Range with 4 Burner Gas Cooktop and Electric Convection Oven in Stainless Steel and Matte Black Accents (RAZ-30-MB) pairs a powerful gas cooktop with 4 Italian-crafted burners, an electric convection oven with a Landscape oven door window design, and elegant matte black knobs and handle. With innovative features designed to enhance your kitchen’s capability, ZLINE Legacy Dual Fuel Ranges provide a professional culinary experience by pairing unmatched performance with timeless style.
- ZLINE Legacy Series: The Legacy Professional Range Series represents the foundation for ZLINE’s family-focused mission of attainable luxury

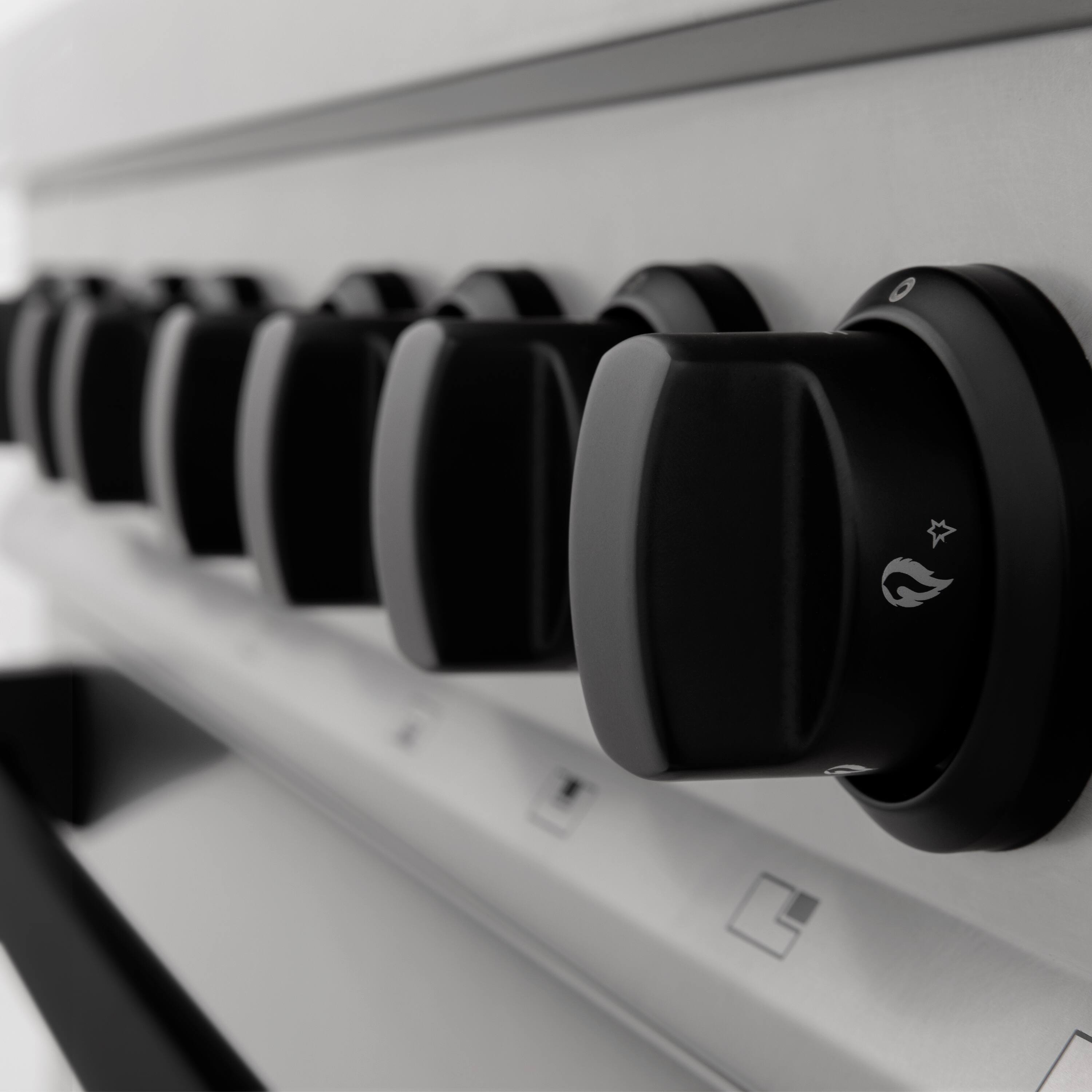

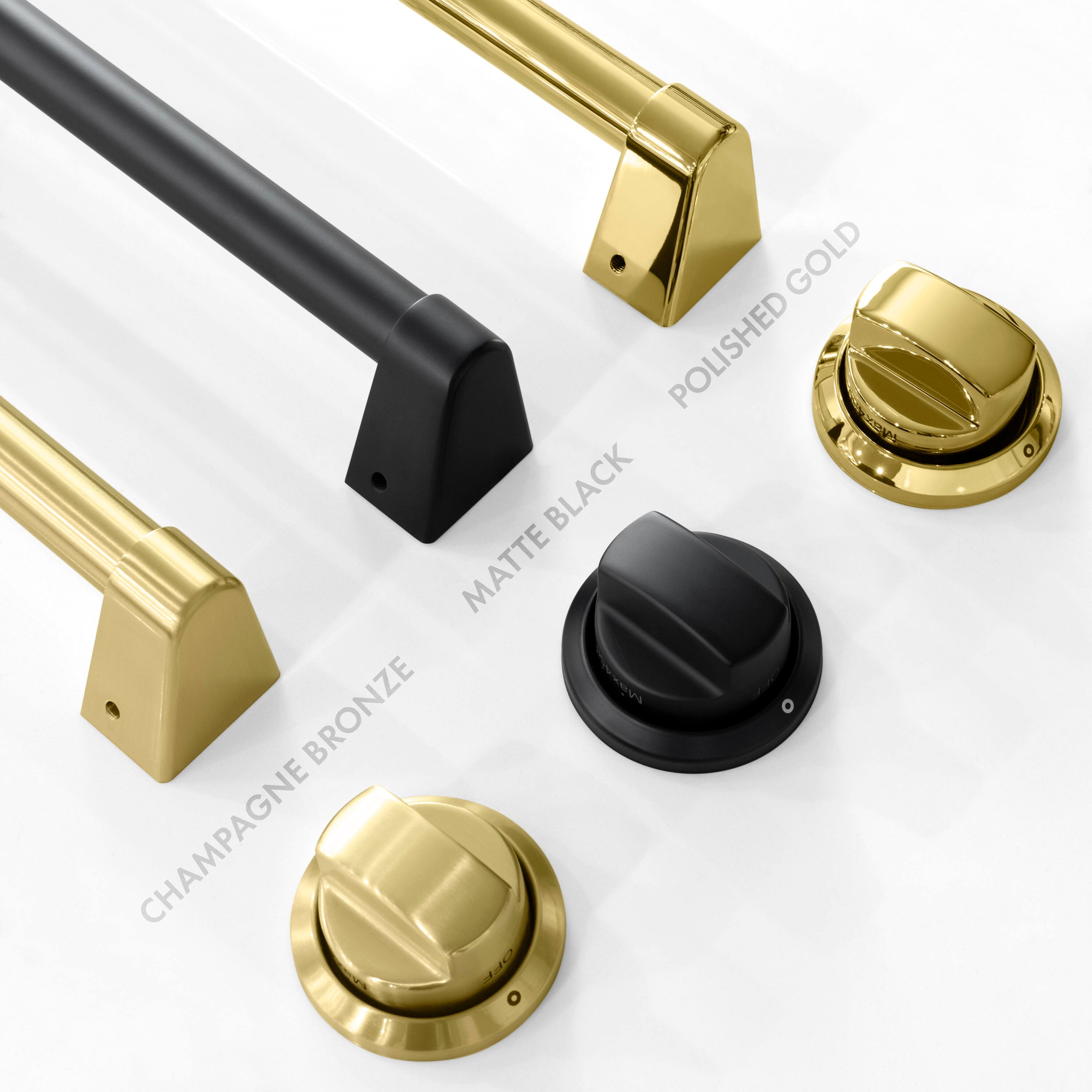

- Exclusive Knobs and Handle: Customize your ZLINE Autograph Edition Dual Fuel Range with elegant Matte Black knob and handle accents
- Professional Dual Fuel Cooking: Optimize every meal with even heat distribution thanks to high-performance technology of a gas cooktop and an electric convection oven

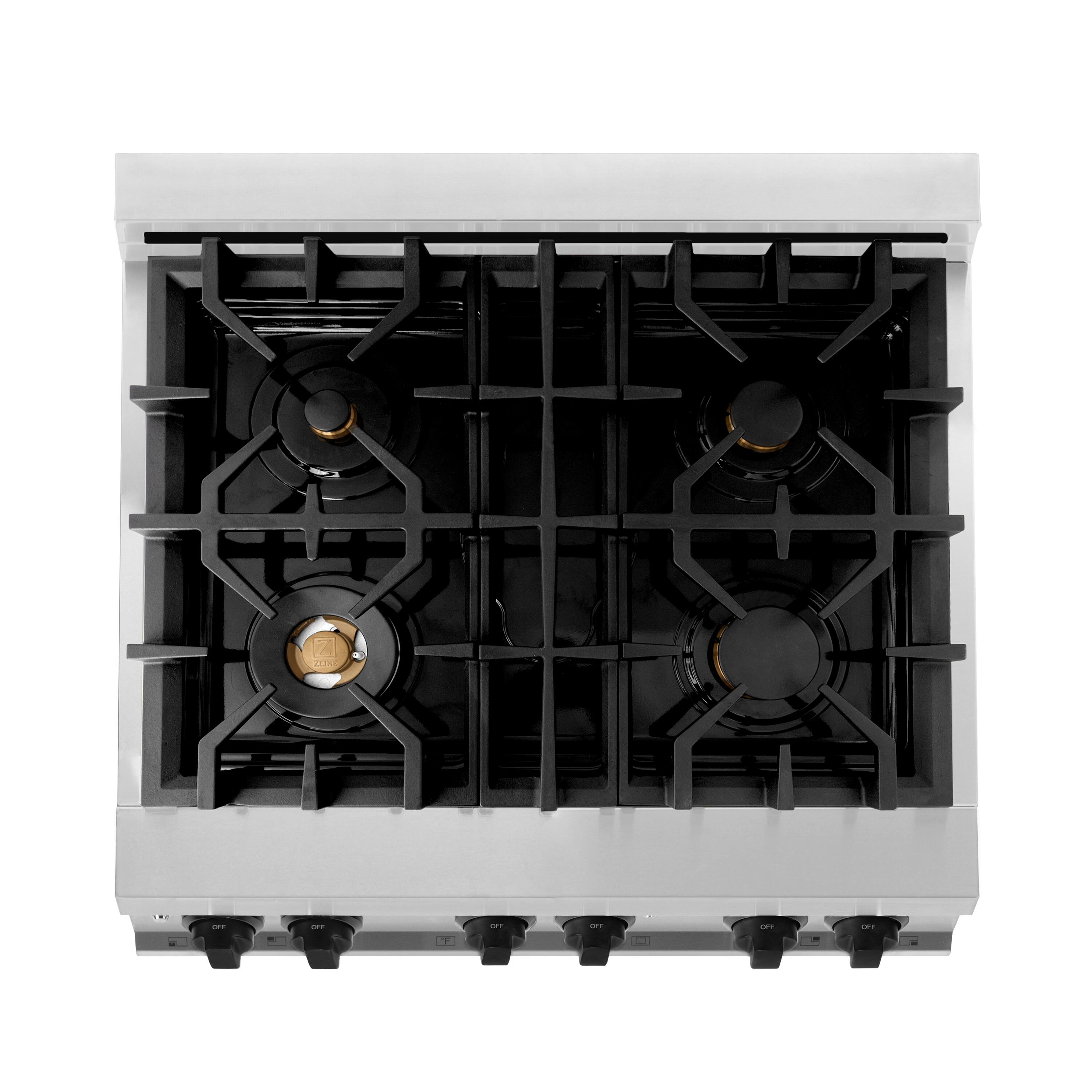

- Italian-Made Sealed Burners: Industry-leading gas cooktop includes 4 hand-cast burners with 1,000 - 18,000 BTUs of cooking power
- Landscape Oven Window: ZLINE Legacy Series ranges feature a sleek Landscape oven door design that provides ample viewing space to ensure your dishes are perfectly cooked

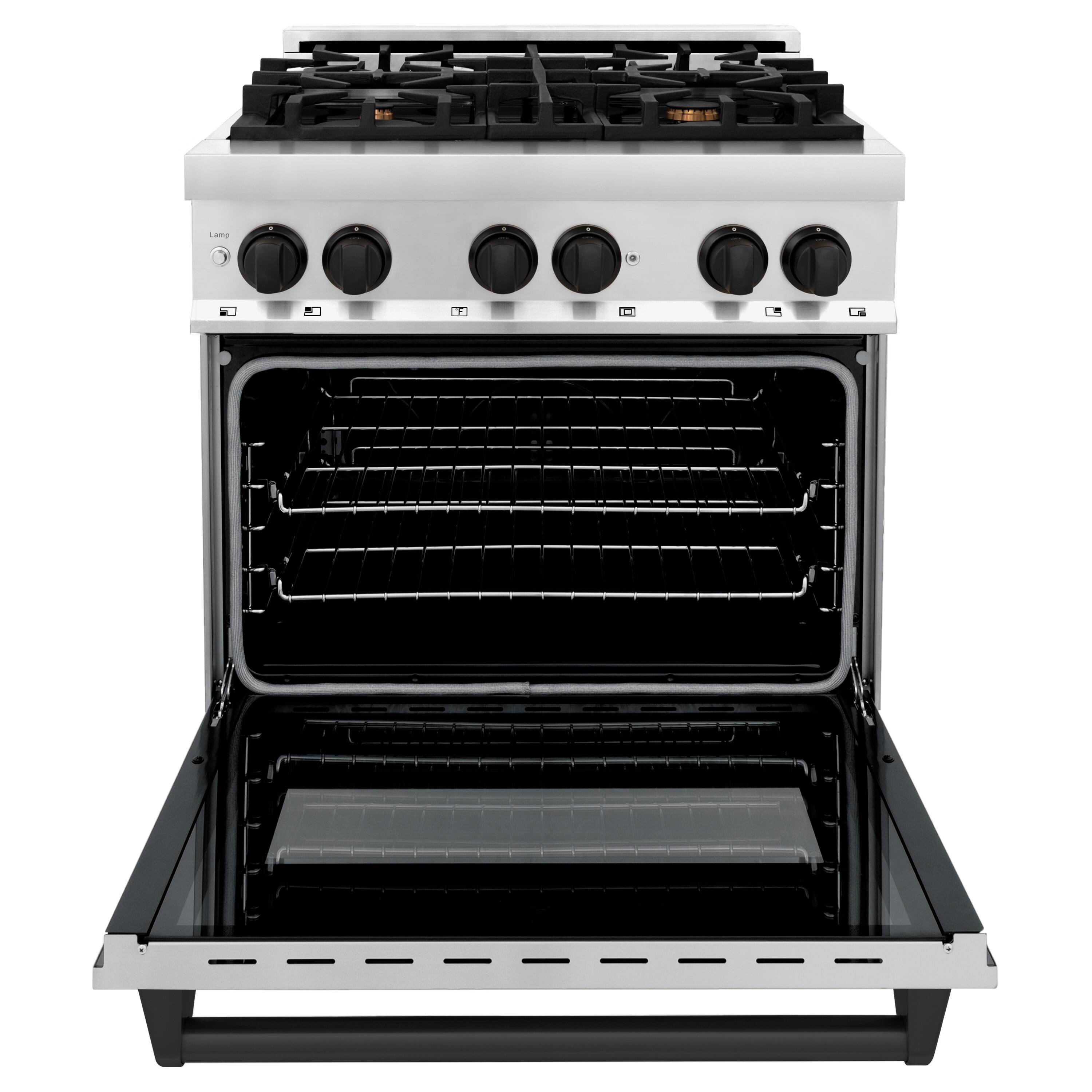

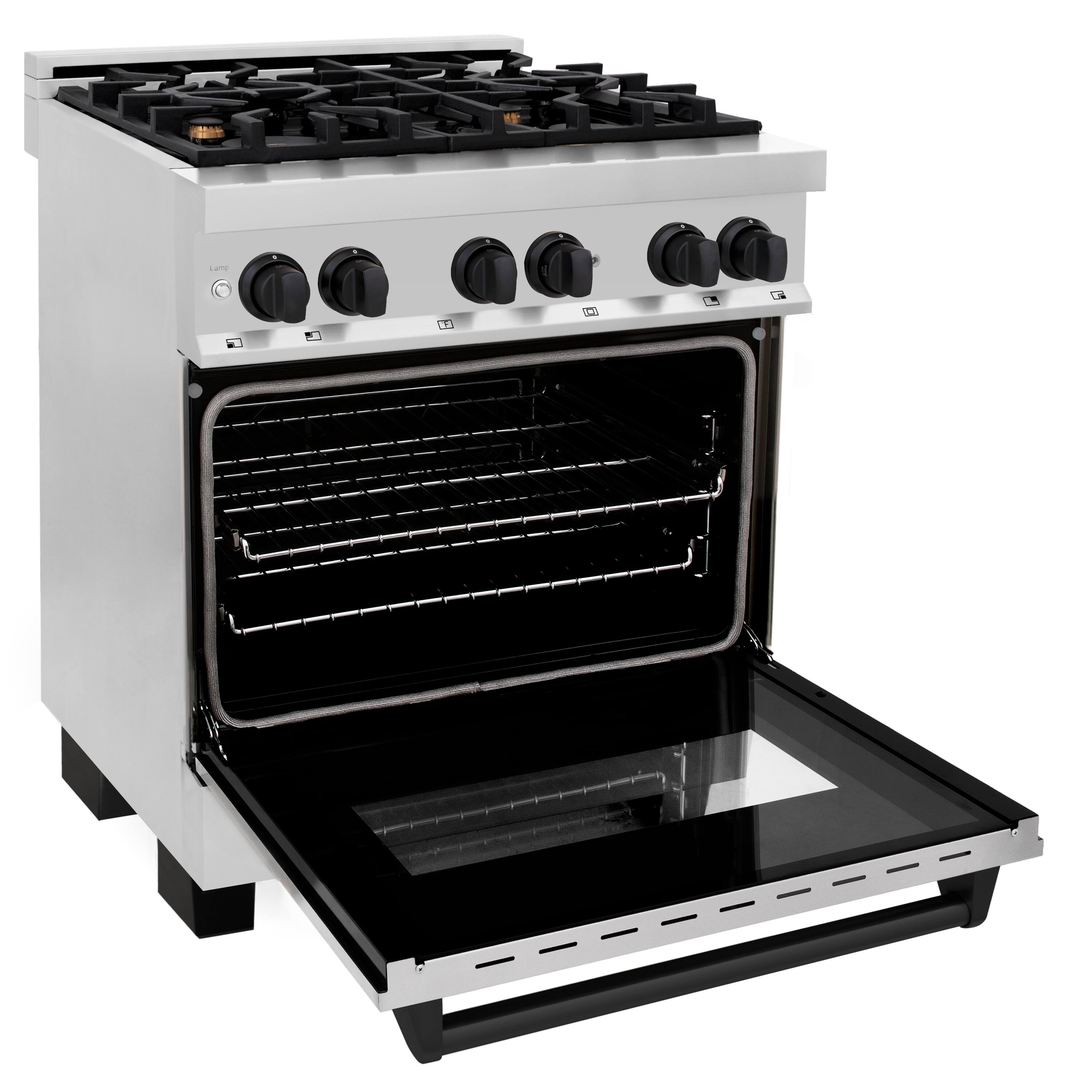

- Large Oven Capacity: A 4.0 cu. ft oven fits pans up to 23 in. wide for maximum space and convenience with everyday cooking

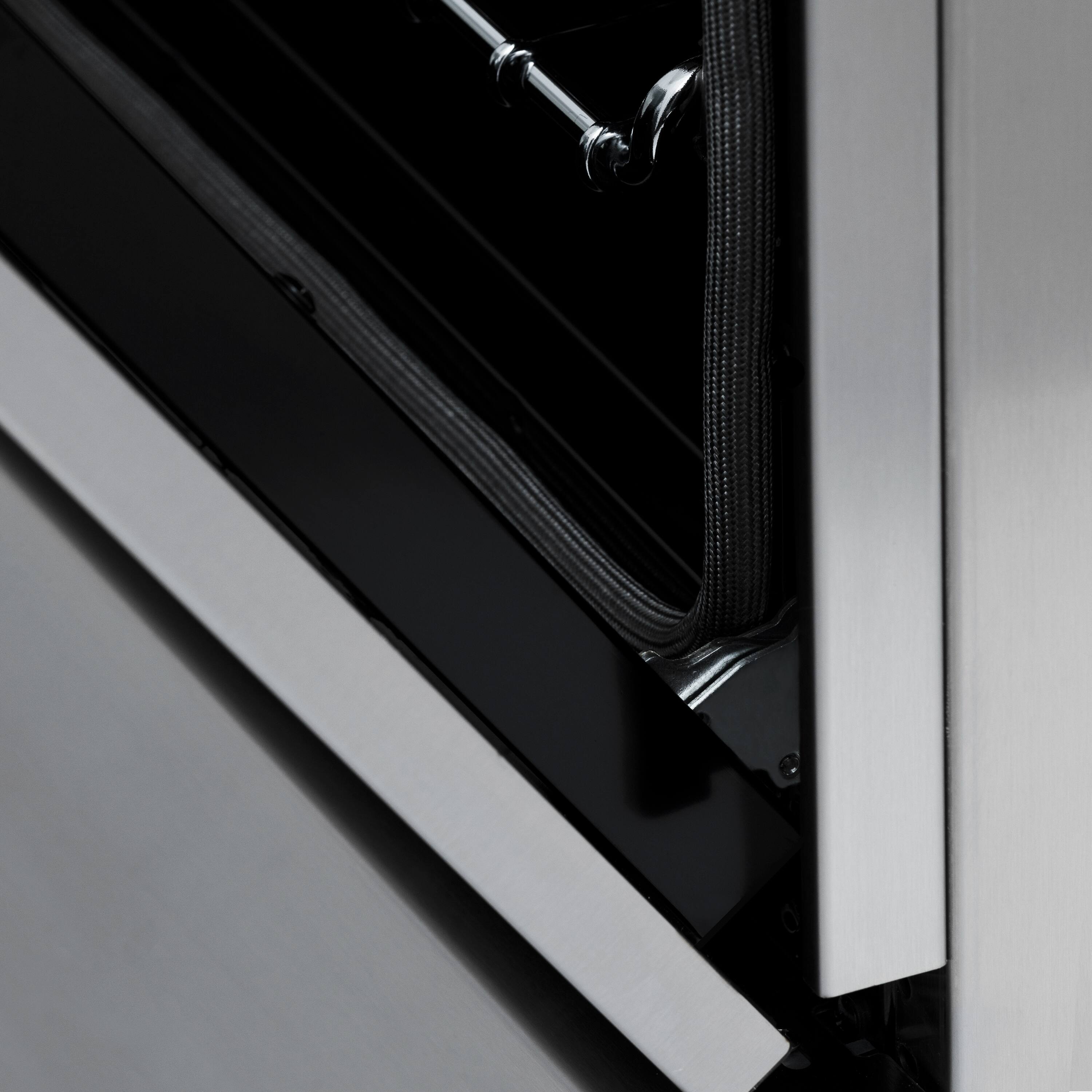

- Premium Oven Insulation: Triple layered glass and an aluminum mesh seal offers superior heat retention and consistent temperatures
- Stunning Stainless Steel: Featuring high-grade 304 grade stainless steel with durable cast iron grates that exceed industry standards
- Adjustable Range Height: Easy adjustable legs let you modify the total range height anywhere from 36 inches to 38.5 inches
- StayPut Oven Door Hinges: Designed to support the full weight of the oven door, offering additional convenience and safety

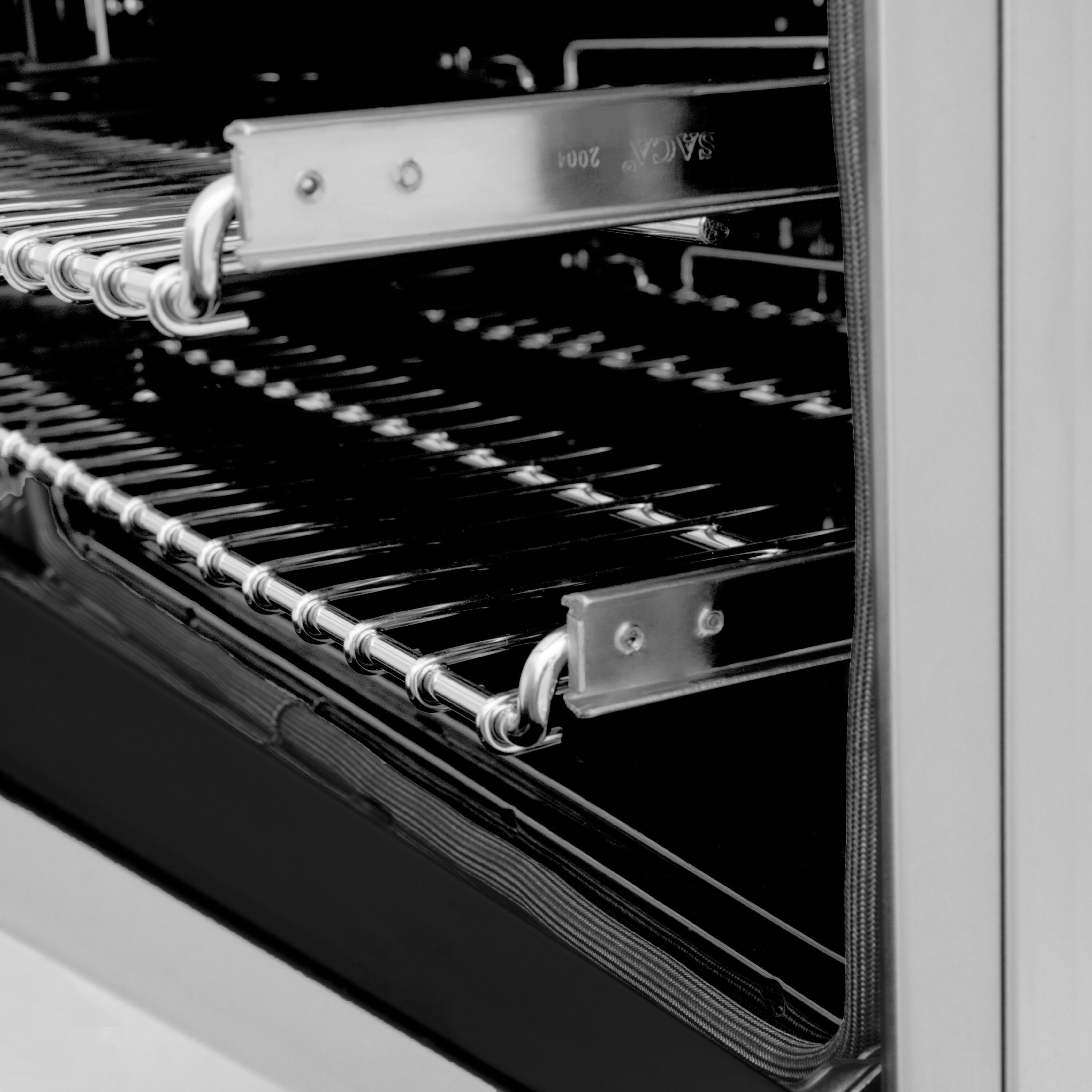

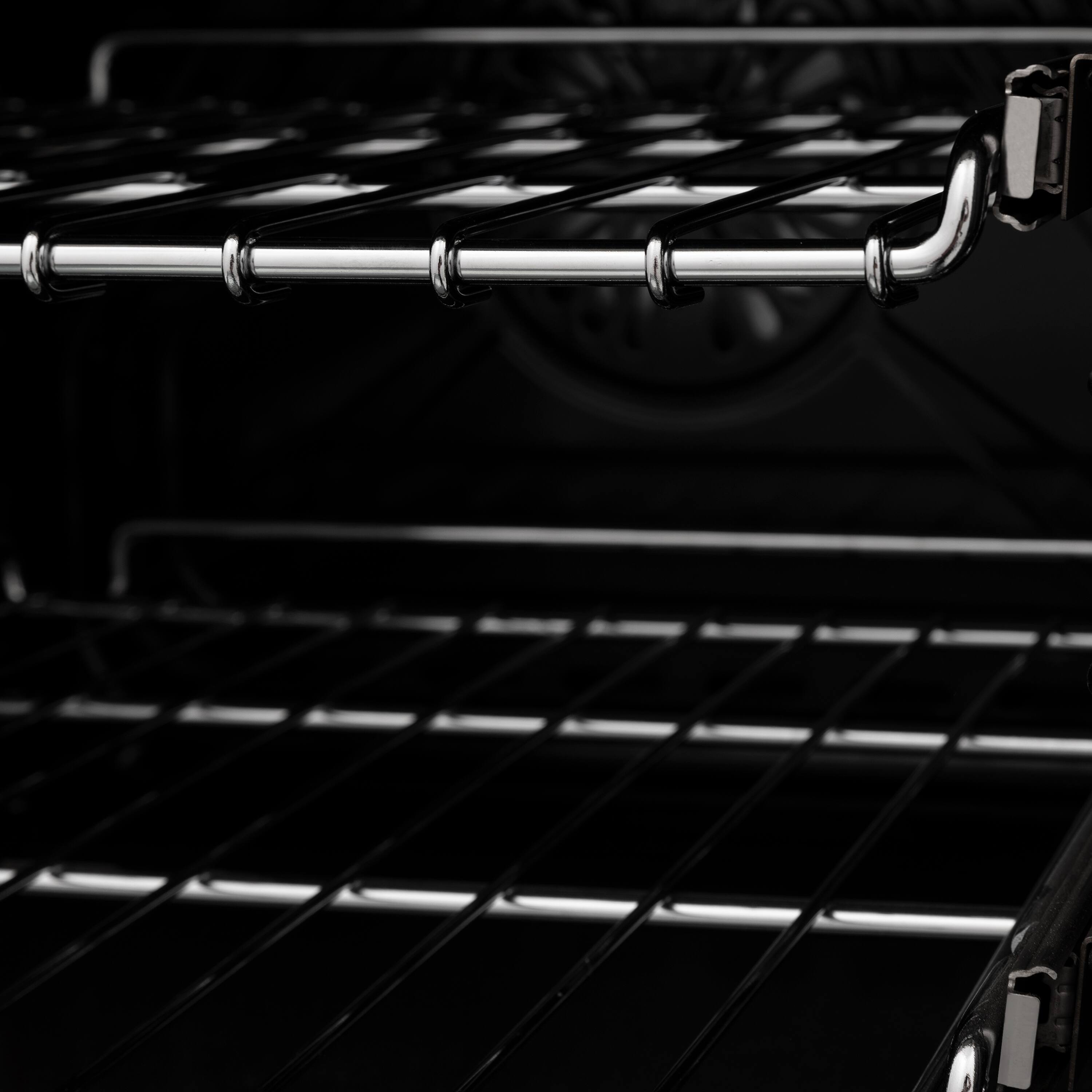

- Smooth Glide Ball-Bearing Oven Racks: 2 durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes
- Dual Oven Lights: Illuminate your oven space with dual halogen lighting, controlled by a switch located on the front control panel
- Minimal Cleaning: Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance
- LP Conversion Kit: Comes equipped with an LP conversion kit to convert the cooktop from natural gas to liquid propane (must be done by a professional), offering versatility with your cooking preference

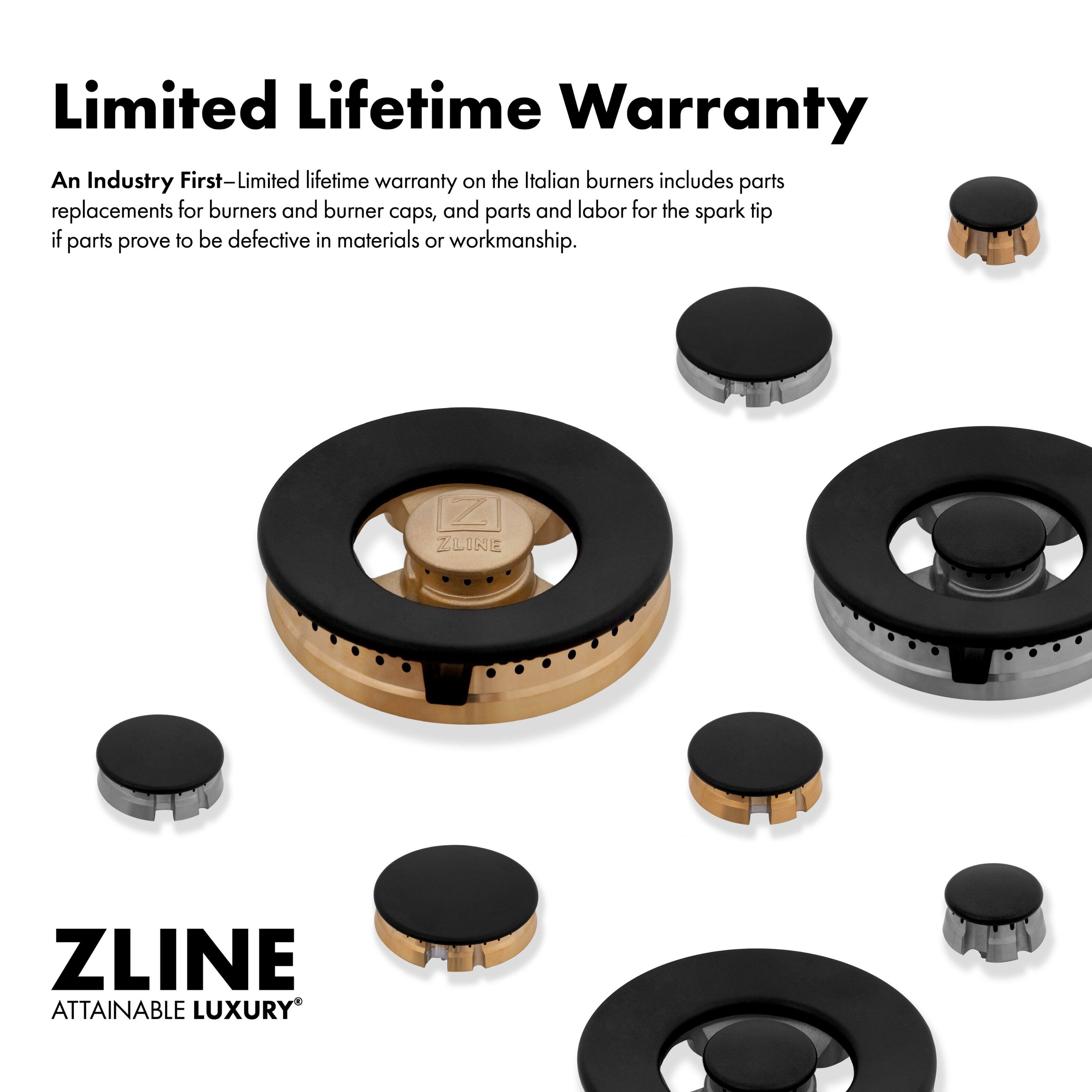

- Industry First Lifetime Burner Warranty: Limited lifetime warranty on ZLINE Italian burners includes part replacements for burners and burner caps, and parts and labor for spark tips if parts prove to be defective in materials or workmanship
- Manufacturer Warranty: 1-year parts and service warranty
- ZLINE Legacy Series: The Legacy Professional Range Series represents the foundation for ZLINE’s family-focused mission of attainable luxury
- Exclusive Knobs and Handle: Customize your ZLINE Autograph Edition Dual Fuel Range with elegant Matte Black knob and handle accents
- Professional Dual Fuel Cooking: Optimize every meal with even heat distribution thanks to high-performance technology of a gas cooktop and an electric convection oven
- Italian-Made Sealed Burners: Industry-leading gas cooktop includes 4 hand-cast burners with 1,000 - 18,000 BTUs of cooking power
- Landscape Oven Window: ZLINE Legacy Series ranges feature a sleek Landscape oven door design that provides ample viewing space to ensure your dishes are perfectly cooked
- Large Oven Capacity: A 4.0 cu. ft oven fits pans up to 23 in. wide for maximum space and convenience with everyday cooking
- Premium Oven Insulation: Triple layered glass and an aluminum mesh seal offers superior heat retention and consistent temperatures
- Stunning Stainless Steel: Featuring high-grade 304 grade stainless steel with durable cast iron grates that exceed industry standards
- Adjustable Range Height: Easy adjustable legs let you modify the total range height anywhere from 36 inches to 38.5 inches
- StayPut Oven Door Hinges: Designed to support the full weight of the oven door, offering additional convenience and safety
- Smooth Glide Ball-Bearing Oven Racks: 2 durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes
- Dual Oven Lights: Illuminate your oven space with dual halogen lighting, controlled by a switch located on the front control panel
- Minimal Cleaning: Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance
- LP Conversion Kit: Comes equipped with an LP conversion kit to convert the cooktop from natural gas to liquid propane (must be done by a professional), offering versatility with your cooking preference
- Industry First Lifetime Burner Warranty: Limited lifetime warranty on ZLINE Italian burners includes part replacements for burners and burner caps, and parts and labor for spark tips if parts prove to be defective in materials or workmanship
- Manufacturer Warranty: 1-year parts and service warranty
Product Manuals
Q: How much does this dual fuel range weigh?
A: The product weighs approximately 229.28 pounds. The context mentions "Product Weight: 229" and "0.28 pounds". Adding these two values gives the total weight of the product as 229.28 pounds.
Q: Does this range have a hot surface indicator?
A: No, this range does not have a hot surface indicator. The context explicitly states that "Hot Surface Indicator(s): false".
Q: Does this range come with a propane conversion kit?
A: Yes, the ZLINE Dual Fuel Range with Gas Stove and Electric Oven comes with a Propane Conversion Kit included. The Propane Kit Model Compatibility for this range is RA-HG-PK-30.
Q: What material are the grates on the stovetop made of?
A: The grates on the stovetop of the ZLINE Dual Fuel Range with Gas Stove and Electric Oven are made of cast iron. This information can be found in the product specifications section of the product description, where it states "Grate Material: Cast iron".
Q: Does this range have a Sabbath mode?
A: The product specifications indicate that the Sabbath Mode feature is disabled for this range. "Sabbath Mode: false"
Q: Are the burners on this range sealed?
A: Yes, the burners on this range are sealed. The product specifications clearly state "Sealed Burners: true".
Q: Does this range come with a griddle?
A: The product does not come with a griddle. However, the manufacturer recommends regular seasoning of a griddle if the user has one.
Q: What is the BTU range for the burners on the stovetop?
A: The BTU range for the burners on the stovetop of the ZLINE Dual Fuel Range with Gas Stove and Electric Oven is from 4,200 up to 18,000 BTUs.
