j5create - USB-C Multi-Adapter - HDMI/Ethernet/USB 3.1 HUB/PD 3.0 - Champagne Metallic
j5create - USB-C Multi-Adapter - HDMI/Ethernet/USB 3.1 HUB/PD 3.0 - Champagne Metallic
More Buying Options
Related Item
Specifications
- Number of USB Port(s)3
- Key Specs
- Number of USB Port(s): 3
- General
- Brand: j5create
- Model Number: JCA374
- Product Name: USB-C Multi-Adapter - HDMI/Ethernet/USB 3.1 HUB/PD 3.0
- Color: Champagne Metallic
- Network
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Features
- Hub Type: USB hubs (The type of connection, such as Ethernet or USB, used to connect peripheral devices to the hub for shared access.)
- Plug and Play Operation: true
- Rotating or Stationary: Stationary
- Ports
- Number of USB Port(s): 3
- Port Type(s): USB, HDMI, RJ-45 (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Speed
- Rated Speed: 5000 megabits per second (The rate of data that can be transmitted by the networking device.)
- Compatibility
- System Requirements: Available USB-C port that supports DisplayPort Alt Mode and USB Power Delivery 2.0 or 3.0. DisplayPort v1.2 required on graphics card or video source to support 4K @ 30Hz resolution. (The software that a product must have for it to be able to integrate with another product.)
- Dimensions
- Product Height: 0.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 3.8 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.2 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 year limited
- Warranty - Labor: 2 year limited
- Other
- UPC: 847626001628

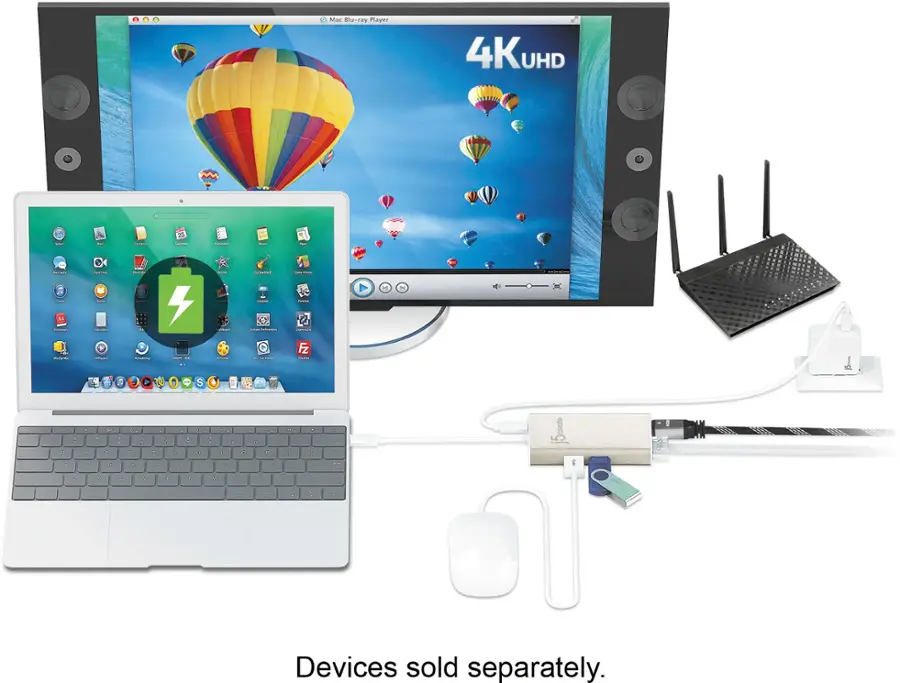

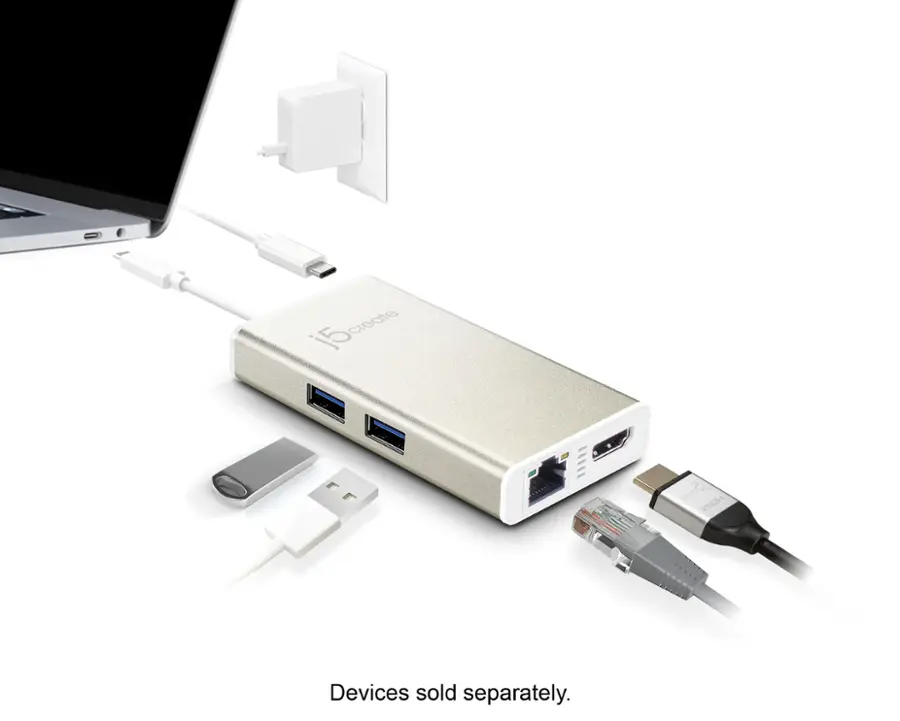

Add extra functionality to your laptop with the USB-C Multi-Adapter. This device allows you to add two additional USB peripherals, a 4K or 1080p HDMI display, and Gigabit Ethernet through your USB-C port. With high-speed transmission up to 5 Gbps, data transfer is quick and easy. With USB Power Delivery 3.0, it supports upstream streaming ensuing your connected laptop powered up while in use.
- 4K video: Transmits both audio and video from a USB-C computer or tablet to a 4K Display.

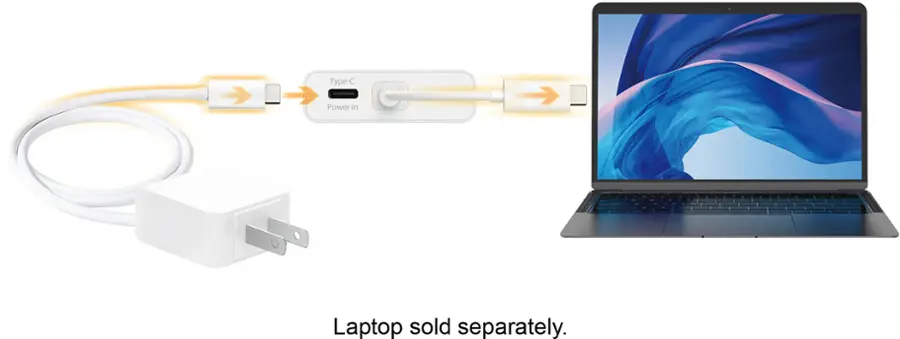

- Power Delivery: Supports upstream charging & power delivery 3.0 via USB-C charging port with a maximum output of 60W.
- Gigabit Ethernet: Reliable network connectivity via the Gigabit Ethernet port with LED indicators.
- USB-C Compatible: Designed to work with computers equipped with the newest USB-C port.
- Thin and Sleek Design: Premium Gold Aluminum Casing with a 9.8 inch cable. Perfect for your notebook.
- Data transfer speeds up to 5 Gbps: Allow you to quickly upload and download photos, videos, music and other files.
- Small form factor: Permits easy portability.
- 9.8" USB Type-C cable: Enables flexible placement.
- Compatible with a variety of network standards: Including IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab and IEEE 802.3x for use with many networks and protocols.
- System requirements: Mac OS X 10.6 or higher; Windows XP, 7 or higher; Chrome OS; available USB Type-C port.
Whats Included
- 1 - JCA374 USB-C Multi-Adapter
- 1 - Quick Installation Guide (QIG)
Product Manuals
Q: How long is the USB Type-C cable on this adapter?
A: The USB Type-C cable on this adapter is 9.8 inches long, enabling flexible placement.
Q: What is the maximum data transfer speed of this USB-C adapter?
A: This USB-C adapter supports data transfer speeds of up to 5 Gbps, allowing for quick and easy data transfers.
Q: Is this USB-C multi-adapter compatible with Windows operating systems?
A: Yes, this adapter is compatible with Windows XP, 7, and higher operating systems.
Q: Does this adapter support Power Delivery?
A: Yes, this adapter supports Power Delivery 3.0 via its USB-C charging port, with a maximum output of 60W, ensuring your connected laptop stays powered while in use.
Q: How many USB ports does this multi-adapter have?
A: This multi-adapter has 2 USB ports that allows you to connect up to 2 USB 3.0, 2.0 or 1.1 devices to your computer via a single USB Type-C port.
Q: Why is this adapter good for portability?
A: This adapter is designed with a small form factor, making it easy to carry around.
Q: Does this adapter support Gigabit Ethernet?
A: Yes, this adapter offers reliable network connectivity through its Gigabit Ethernet port, which also features LED indicators.
Q: What is the maximum resolution supported by the HDMI port on this adapter?
A: The HDMI port on this adapter supports displays with a maximum resolution of up to 4K at 30Hz.
Compare similar products
Add extra functionality to your laptop with the USB-C Multi-Adapter. This device allows you to add two additional USB peripherals, a 4K or 1080p HDMI display, and Gigabit Ethernet through your USB-C port. With high-speed transmission up to 5 Gbps, data transfer is quick and easy. With USB Power Delivery 3.0, it supports upstream streaming ensuing your connected laptop powered up while in use.
Whether you’re working in a cushy office, a cramped home workspace, or on the go, the Plugable USBC-9IN1E is the preferred USB C hub for productive people. This versatile USB dock expands your laptop’s capabilities by offering a 4K 60Hz HDMI port, a high-speed 10Gbps USB-C port, two 10Gbps USB-A ports (one with BC 1.2 charging), a dedicated USB 2.0 port for input devices, SD and MicroSD (UHS-II) card readers, Gigabit Ethernet, and an impressive 140W (125W to host) EPR pass-through charging, all in a portable package. Designed for maximum flexibility, this USB-C hub works with most USB-C, USB4, and Thunderbolt laptops including MacBook Pro/Air, Dell XPS, Lenovo, HP, Surface, and Chromebooks. As a powerful MacBook dock, it offers reliable charging, data, and display support when connected to compatible MacBooks and other leading devices. For full charging and 4K video, your laptop’s USB-C port must support Power Delivery and DisplayPort Alt Mode.
Connect your laptop to a 4K monitor, projector, and other devices with our USB-C 4-in-1 Multiport Adapter. This compact USB-C adapter is the perfect solution for home, the office, or in-between workstations. It features two USB-A ports to charge and connect your smartphone, tablet, keyboard, thumb drive, mouse, or other high consumption device while its HDMI port connects your MacBook Pro, Chromebook, or other USB-C laptop to a display with up to 4K resolutions. This Belkin USB-C Hub supports pass-through charging up to 100W so you don’t have to choose between port expansion and power. Gain up to 5 Gbps of bandwidth between connected devices, for quick data transfer between computer and peripheral devices. This computer docking station also supports high-definition display resolutions up to 4K through the HDMI Port. Encased in a sleek aluminum finishing that matches popular devices, this compact USB port hub is a stylish addition for your work, study, or play setup.
If you’re like many busy people, you have a dozen things going on at once, and working on the computer is no different. There’s a good chance you’re already using all your computer’s ports and wish you had extras to connect new devices. Thankfully, this hub helps optimize your workspace by adding two extra USB ports, an ethernet port, an HDMI port, a USB-C Power Delivery port, and SD and Micro SD slots. Simply plug it into your computer’s USB-C port and start connecting your mouse, keyboard and other accessories. Transfer speeds up to 5 Gbps move files quickly and efficiently and its compact size makes it perfect for slipping into a purse or backpack. Don’t limit your connected devices – enjoy more options with the Insignia 7-Port USB-C Hub.
| Pros for j5create - USB-C Multi-Adapter - HDMI/Ethernet/USB 3.1 HUB/PD 3.0 - Champagne Metallic | |||
|---|---|---|---|
| HDMI, Ease of use, Overall Performance, Connectivity, Size | There were no pros for this product— | Overall Performance, Ease of use, HDMI, Connectivity, Size | Ease of use, Overall Performance, Connectivity, USB-C, Compatibility |
| Cons for j5create - USB-C Multi-Adapter - HDMI/Ethernet/USB 3.1 HUB/PD 3.0 - Champagne Metallic | |||
| Price, Heat, Power Delivery | There were no cons for this product— | Price, Heat, Cable Length | There were no cons for this product— |
Specs
Reviews
Customers are saying
Customers commend the USB-C Multi-Adapter for its HDMI functionality, ease of use, and overall performance. Users appreciate its connectivity options and compact size, as well as its compatibility across different operating systems. However, some customers have expressed concerns about the product's price, power delivery, and heat generation.
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Pretty fast, maybe pass
Pros: fast connectivity to my MacBook, iPad, even my phone and good heat distribution. Make sure it has its own power line though, or it will chow your battery down. Inputs are secured well. Convenient for travel. It just lives in my laptop bag and has been useful more often than you might think Cons: cheap casing, feels flimsy and the little screws holding it together are in bizarre places. Not built to last and should have a more rugged design. The main connector cable doesn’t feel like it is going to hold up and is showing signs of stress.
MatthewF Posted
- Rated 5 out of 5 stars
Fantastic USB-C Dock
I purchased this hub to connect all my devices to my MacBook pro. I was very pleasantly surprised at the usefulness and added capability from the ethernet port to HDMI and additional USB ports. Work plug and play and the build quality is fantastic. The size is perfect not to large and small enough when i travel to fit in my case. Great products as always from J5create and thanks to the educated sales person who recomended it.
Zam01 Posted
- Rated 5 out of 5 stars
Great product for newer laptops
I bought this product for my new DELL 2-in-1 which does not have the regular USB port. It came with only one adaptor to convert the newer USB 3.0 to the older type of USB port. I used all the features without any issue. What I like the most is that it is well built and it comes with everything needed for connecting a laptop to other devices. It is easy to connect cables to the different ports. I connect the HDMI to my TV and to a secondary monitor. With HDMI at 1080p worked with my TV, which is not a 4K. This is my first time using this type of product on newer laptops with USB 3.0 port. After many uses without issues, I recommend this product.
AlGonz Posted
