Specifications
Speaker TypeIn-WallRMS Power125 watts
Key Specs
Speaker TypeIn-WallRMS Power125 watts
General
Product NameMasterpiece CI Series Icon 3XW, 2-Way In-Wall Speaker with Dual 5.25" Drivers, and FMT XT Obsidian TweeterBrandMartinLoganModel NumberICON3XWColorBlackColor CategoryBlack
Audio
Speaker TypeIn-WallEnclosure TypeSealedRMS Power125 wattsPeak Power Handling250 wattsImpedance4 ohmsMinimum Frequency Response78 hertzMaximum Frequency Response25 kilohertzSensitivity94 decibelsTweeter TypeFolded motionMidrange TypeConeNumber of Tweeters1Tweeter Size2.4 inchesNumber of Midranges2Midrange Size5.25 inchesWoofer Size5.25 inches
Connectivity
Wireless Multi-Room AudioNo
Dimension
Product Height16 inchesProduct Width9.9 inchesProduct Depth4.1 inchesProduct Weight15.4 pounds
Material
Woofer MaterialCarbon Fiber
Included
Cable(s) IncludedNone
Warranty
Manufacturer's Warranty - Parts5 yearsManufacturer's Warranty - Labor5 years
Other
UPC810123024452
Fill your home with music using this MartinLogan Icon 3XW in-wall speaker. The Folded Motion XT Obsidian tweeter makes the high-frequency sounds come alive, while the dual 5.25-inch low-frequency drivers deliver clean, thundering bass. This MartinLogan Icon 3XW in-wall speaker features a sealed-back box enclosure to help reduce fidelity-robbing vibrations.
The MartinLogan Sound
Regardless of the environment, our speakers sound better, more articulate, detailed, and realistic. With Controlled Dispersion and one of the clearest tweeters in the industry, our architectural models can compete with and often exceed the performance of traditional speakers.

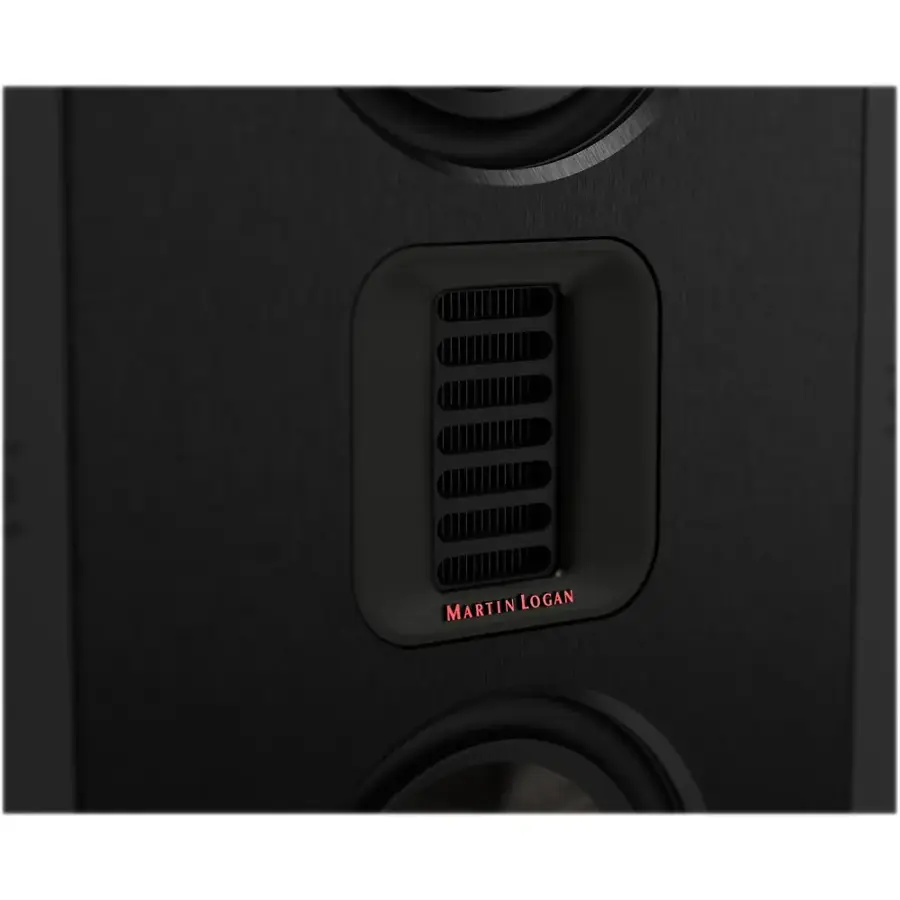

Folded Motion XT Obsidian Tweeters
Masterpiece CI Series steps up the game with the Folded Motion XT Obsidian tweeters, which advance thin-film transducer technology even further. The result is superior realism and alarming specificity. Folded Motion XT takes tweeter technology to the next level
Unidirectional Carbon Fiber Woofers
Icon 3XW features cones using unidirectional carbon fiber, a material that is twice as strong as steel but with a sixth of the density, for exceptional rigidity without the weight. They are designed in multiple sections to take full advantage of this material.
Nomex Backers
Each cone is reinforced by a Nomex backer, for added damping that prevents ringing and reduces breakup modes in these extremely rigid cones. The drivers feature powerful, efficient magnet structures, enabling massive excursion and huge sound output, while preserving deep bass details.
Advanced Driver Engineering
To deliver more accuracy in the critical midrange, the mid-frequency drivers have their suspensions "stiffened." This raises the driver's resonant frequency and optimizes performance to achieve a natural roll-off, inherently keeping it in an ideal range for mid-frequencies
Proprietary Vojtko Crossover Networks
Vojtko Crossovers are named after MartinLogan's chief audio technologist, Joe Vojtko. Vojtko Crossovers are hand-built from the highest quality components and avoid overly complex topologies. This crossover has a straightforward objective: breathtaking realism.
Performance Meets Aesthetics
While there are many choices of CI speakers out there, MartinLogan stands out for bringing unique, high-performance technologies together in a package that perfectly blends discrete sound with noticeable quality. Performance and Aesthetics, both without compromise.
Controlled Dispersion
Room acoustics are extremely important. Everything in the listening room has an impact on the sound of your speakers, so we try to minimize the harmful effects by focusing the sound directly on your ears. This increases clarity, and detail regardless of the rooms design.
What's Included
MartinLogan Dual 5-1/4" 125-Watt Passive 2-Way In-Wall Speaker (Each)
Search
Q: QuestionWhat is the weight and dimensions of the speaker?(1 answer)
A: AnswerThe speaker weighs 15.4 pounds and measures 9.9 inches wide, 16 inches high, and 4.1 inches deep.This question and answer was generated by AI based on customer and product data.Q: QuestionHow many drivers are included in the speaker?(1 answer)
A: AnswerThis speaker includes three drivers.This question and answer was generated by AI based on customer and product data.Q: QuestionWhat is the maximum frequency response of the speaker?(1 answer)
A: AnswerThe maximum frequency response of this speaker is 25 kilohertz.This question and answer was generated by AI based on customer and product data.Q: QuestionWhat is the size of the woofer?(1 answer)
A: AnswerThe woofer size is 5.25 inches.This question and answer was generated by AI based on customer and product data.Q: QuestionWhat is the sensitivity of the speaker?(1 answer)
A: AnswerThe sensitivity of the speaker is 94 decibels.This question and answer was generated by AI based on customer and product data.Q: QuestionDoes the speaker come with any cables?(1 answer)
A: AnswerThis speaker does not include any cables.This question and answer was generated by AI based on customer and product data.
