Specifications
- Motherboard Form FactorATX, EATX, Mini-ITX, microATXMaximum GPU Length410 millimetersProduct Height18.3 inchesProduct Width8.9 inchesProduct Depth16.9 inchesWindow Panel(s)Left side
- Key Specs
- Motherboard Form Factor: ATX, EATX, Mini-ITX, microATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 410 millimeters
- Product Height: 18.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Left side
- Case Material: Steel
- General
- Brand: NZXT
- Model Number: CC-H52FW-01
- Product Name: H5 Flow 2024 Compact ATX Mid-Tower Airflow PC Case
- Color: White
- Case Material: Steel
- Assembly Required: No
- Compatibility
- Motherboard Form Factor: ATX, EATX, Mini-ITX, microATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 200 millimeters
- Maximum GPU Length: 410 millimeters
- Number of Expansion Slots: 7
- Ports
- USB Port Location: Top
- Number of USB Ports (Total): 2
- USB Ports: 1 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 1
- Number Of Internal 3.5" Bays: 1
- Dimensions
- Product Height: 18.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 251.5 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Left side
- Customizable Case Lighting: false
- Lighting Type: None
- Screwless Rail Design: true
- Cooling
- Maximum CPU Cooler Height: 175 millimeters
- Number of Fans Supported: 8
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Support: Water cooling ready
- Number of Fans Included: 2
- Radiator Support: Yes
- Liquid Cooling Ready: true
- Warranty
- Warranty - Parts: 2 Years
- Warranty - Labor: 2 Years
- Other
- UPC: 810074845908
The H5 Flow boosts airflow and GPU cooling with its fully-perforated PSU shroud, mesh panels, and robust radiator support.
- The Coolest Graphics: Designed for enhanced GPU cooling, the mesh PSU shroud maximizes air intake from bottom-mounted fans.
- Go Big On Cooling: The front supports up to a 360mm radiator, and the top supports up to 240mm—or 280mm if using low-profile RAM—for powerful cooling potential.
- Performance Paneling: Ultra-fine mesh panels optimize airflow for intake and exhaust while doubling as dust filters
- Ready-Made Thermals: Equipped with two 120mm fans—one in front, one in rear—for strong out-of-the-box cooling.
- More Room To Breathe: Holds up to eight total fans-three in front, two on the bottom, two up top, and one in the rear.

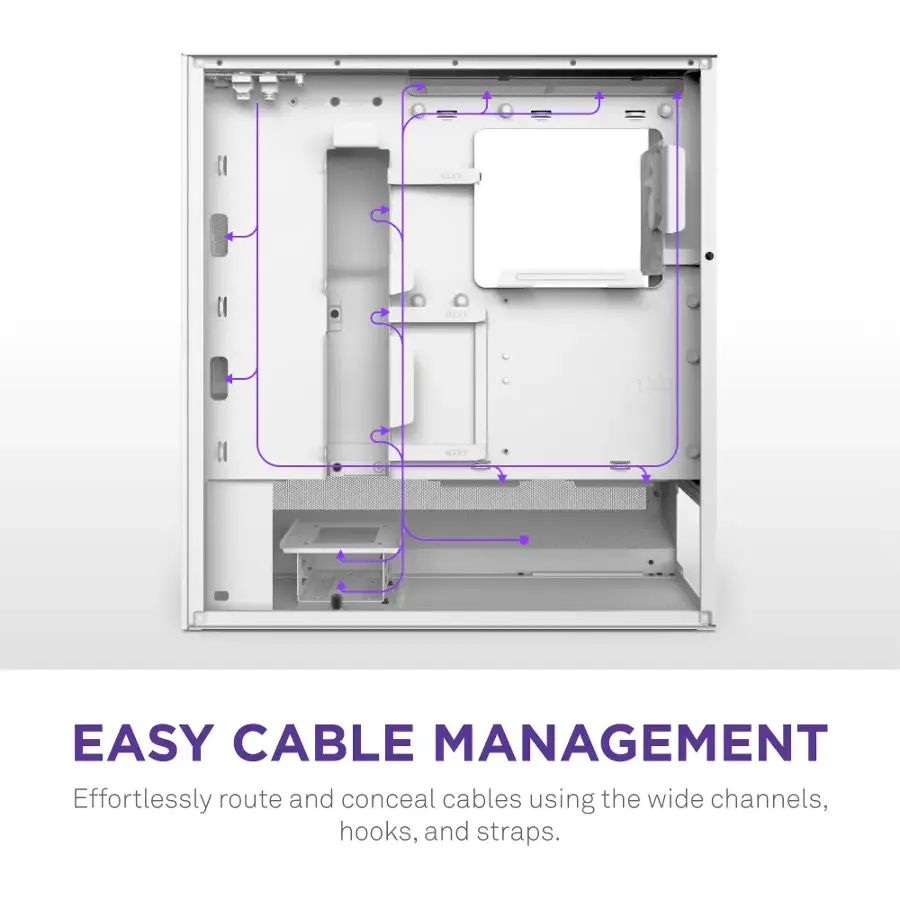

- Routing Made Easy: Intuitive cable management system features wide channels, straps, and tie points.

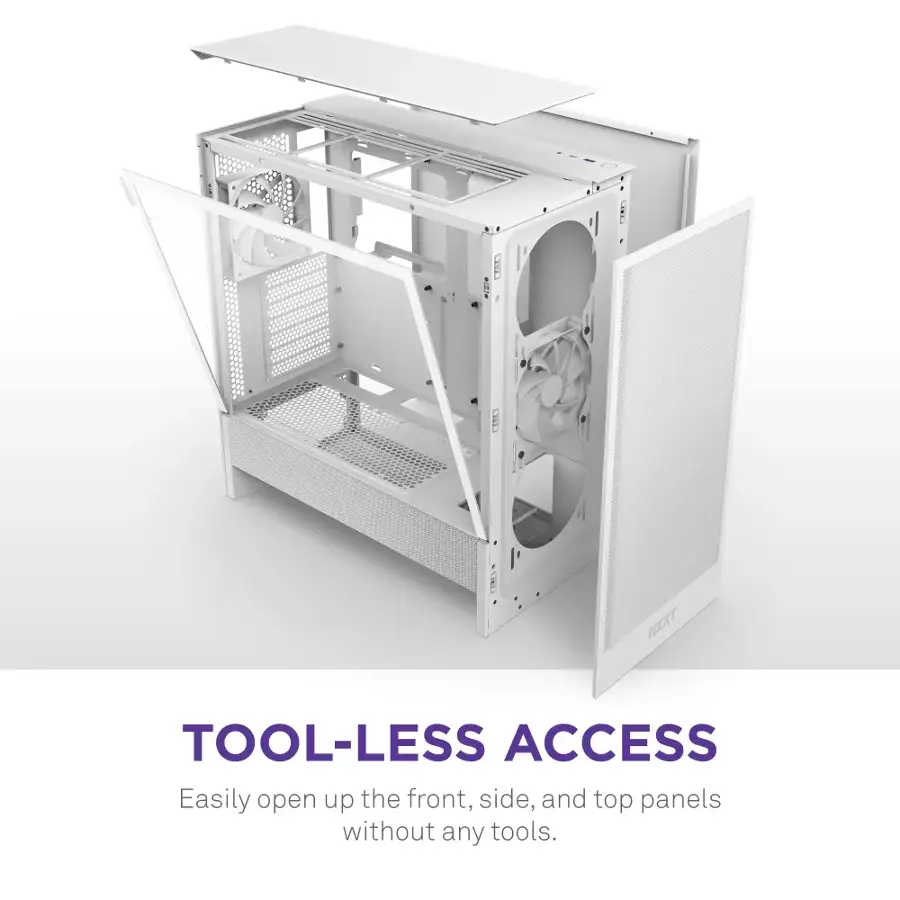

- Get In And out: Tool-less access to front, side, and top panels makes upgrading and tinkering swift and simple.

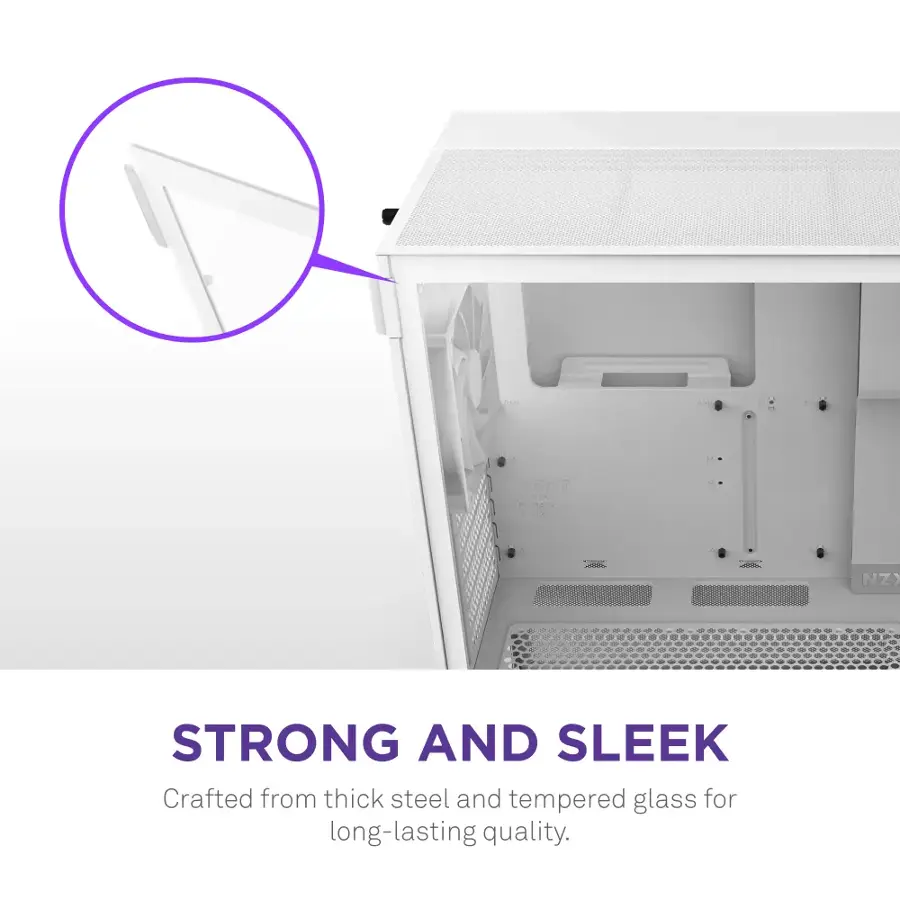

- Strong And Sleek: The thick steel chassis and tempered glass side panel ensure durability and a clean aesthetic.
Whats Included
- 2 x F120Q Case Version included
Q: Can the case support water cooling?
A: This case offers support for water cooling.
Q: Are there any screwless rails for installing drives?
A: This PC case has a screwless rail design.
Q: Does the case have a window panel?
A: The case has a window panel on the left side.
Q: What is the maximum height of a CPU cooler that can be installed?
A: The maximum CPU cooler height that can be installed is 175 millimeters.
Q: How many fans are included with the case?
A: The case includes two fans.
Q: What is the maximum length of a graphics card that can be installed?
A: The maximum length of a graphics card that can be installed is 410 millimeters.
Q: How many fans are included with the case?
A: The H5 Flow 2024 Compact ATX Mid-Tower Airflow PC Case includes two fans.
Q: What is the maximum height of a CPU cooler that can be installed?
A: The maximum CPU cooler height that can be installed is 175 millimeters.
NZXT - H5 Flow 2024 Compact ATX Mid-Tower Airflow PC Case - White
Color
WhiteCompare similar products
$79.99
The H5 Flow boosts airflow and GPU cooling with its fully-perforated PSU shroud, mesh panels, and robust radiator support.
$109.99
Experience performance with a fresh perspective. The H6 Flow's innovative compact design emphasizes GPU cooling with a strategically angled front corner, so the fans direct air where it's most needed. The panoramic glass proudly showcases the interior, while the dual-chamber layout frees up space for a cleaner look and better cooling performance.
$94.99
The CORSAIR 3500X ARGB Mid-Tower Glass PC Case is your gateway to a superior PC build with easy lighting, combining builder-friendly features with a stunning wraparound tempered glass aesthetic. Three pre-installed RS120 ARGB fans deliver high cooling performance and simple motherboard lighting control. Multiple side, roof, and bottom fan mounting options ensure that even high-performance components stay cool. The 3500X ARGB’s spacious interior will fit most large graphics cards and CPU coolers, with multiple radiators up to 360mm to support liquid-cooled builds. Compatibility with ASUS BTF and MSI Project Zero reverse connection motherboards give you a cable-free view of your PC.
$164.99
The H9 Flow is designed to cool off powerful GPUs with its expansive thermal capabilities, featuring a ten fan capacity and numerous 360mm radiator mounting options.
| Pros for NZXT - H5 Flow 2024 Compact ATX Mid-Tower Airflow PC Case - White | |||
|---|---|---|---|
| There were no pros for this product— | Airflow, Cable management, Great design, Dual chamber, Space | Spacious, Cable management, Airflow, Design, Easy to build in | Airflow, Spacious, Cable management, Design, Easy to build |
| Cons for NZXT - H5 Flow 2024 Compact ATX Mid-Tower Airflow PC Case - White | |||
| There were no cons for this product— | Black color, Intermittent usb-c, Screw holes are tough | Loud fans, Defective, Nightmare, Rgb control | Fans, No rgb fans, Noise, Graphics card compatibility |
Specs
Explore tech essentials Sponsored
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products or points for an honest, helpful review.
- Rated 4 out of 5 stars
Onlyfan 140mm
This case deserves more stars, it has onlyfan issues. The top of the case has enough room for a triple 120mm or a double 140mm radiator... but it does not allow for 3x 120mm fans to be mounted directly. The alignment is off even with two 120mm fans mounted. Same with 140mm fans. The back of the case has an adjustable position which can take a single 120mm fan... but not a 140mm. The bottom of the case only allows for mounting 120mm fans on the outside of the basement, not the inside, and there is interference with the PSU. The front of the case is the only place where you can mount your choice of 3x 120mm or 3x 140mm fans directly to the case. Bonus: There is a large vent on both sides of the case on the bottom, ensuring air will flow directly to all the components. Overall I can only give 4 stars because it was actually more time consuming to figure out what I could mount where, when it could have been more straightforward.
This review is from NZXT - H5 Flow 2024 Compact ATX Mid-Tower Airflow PC Case - Black
Posted by JeremyH
- Rated 5 out of 5 stars
Bang for buck
Impressive case for the money. Great airflow, impressive cable management and easy access to all areas of the case.
Posted by jkmakw
- Rated 5 out of 5 stars
Perfect
Perfect case for a beginner with great build quality.
This review is from NZXT - H5 Flow 2024 Compact ATX Mid-Tower Airflow PC Case - Black
Posted by CiskoC
