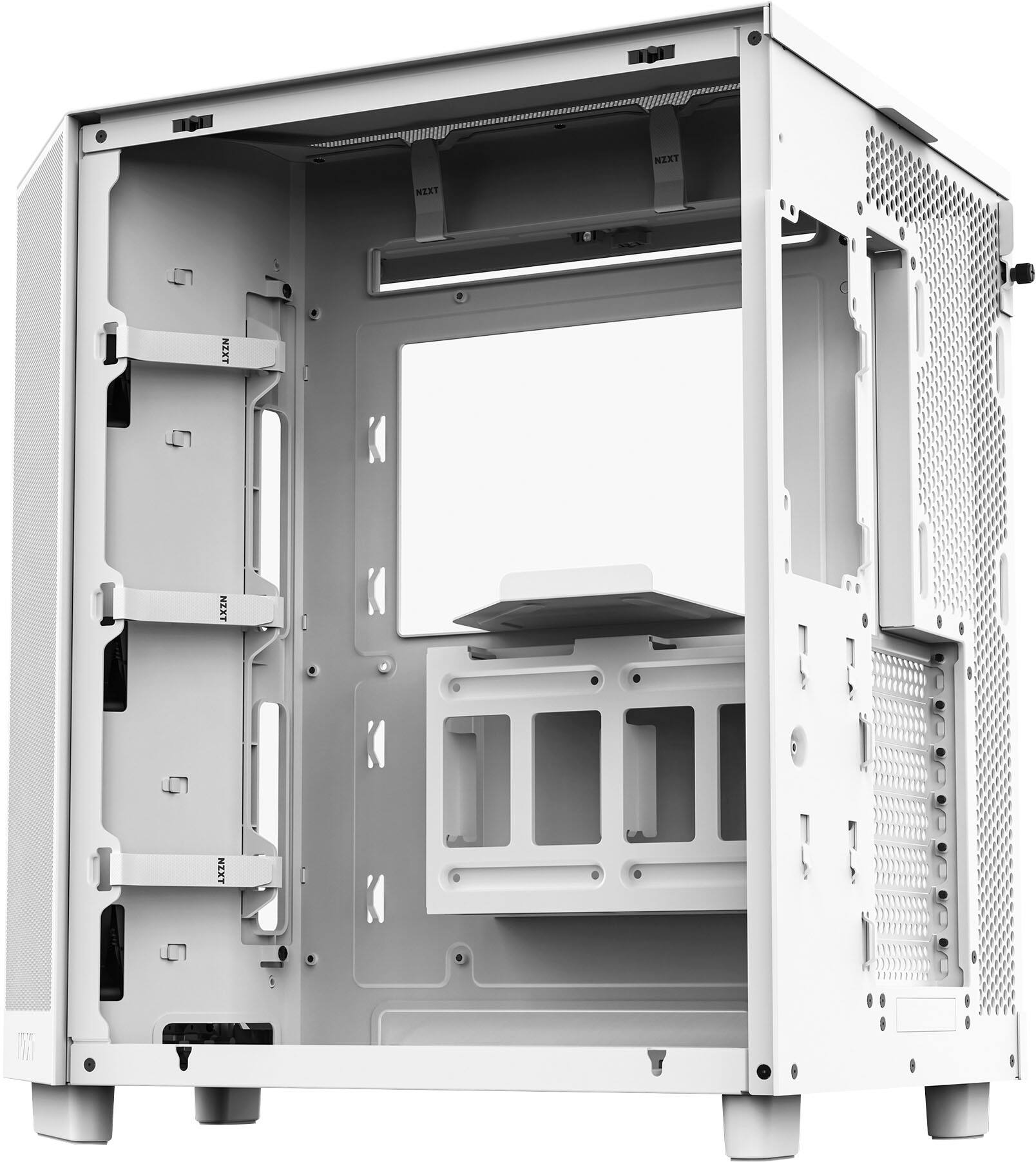

NZXT - H6 Flow ATX Mid-Tower PC Case with Dual Chamber - White
Color
White
Intel - Core i7-12700KF Desktop Processor 12 (8P+4E) Cores up to 5.0 GHz Unlocked LGA1700 600 Series Chipset 125W - Grey/Black/Gold$229.99$409.99
More Buying Options
Specifications
- Motherboard Form FactorATXMaximum GPU Length365 millimetersProduct Height17.1 inchesProduct Width11.2 inchesProduct Depth16.3 inchesWindow Panel(s)Panoramic, Left side, Front
- Key Specs
- Motherboard Form Factor: ATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 365 millimeters
- Product Height: 17.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16.3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Panoramic, Left side, Front
- Case Material: Steel
- General
- Brand: NZXT
- Model Number: CC-H61FW-01
- Product Name: H6 Flow ATX Mid-Tower PC Case with Dual Chamber
- Color: White
- Case Material: Steel
- Assembly Required: No
- Compatibility
- Motherboard Form Factor: ATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 200 millimeters
- Maximum GPU Length: 365 millimeters
- Number of Expansion Slots: 7
- Ports
- USB Port Location: Front, Front
- Number of USB Ports (Total): 3
- USB Ports: 2 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of Thunderbolt Ports (Total): 0
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 2
- Number Of Internal 3.5" Bays: 1
- Dimensions
- Product Height: 17.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16.3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 331.5 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Panoramic, Left side, Front
- Customizable Case Lighting: false
- Lighting Type: None
- Cooling
- Maximum CPU Cooler Height: 163 millimeters
- Number of Fans Supported: 9
- Cooling System: Air, Liquid (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Number of Fans Included: 3
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 810074844130
Experience performance with a fresh perspective. The H6 Flow's innovative compact design emphasizes GPU cooling with a strategically angled front corner, so the fans direct air where it's most needed. The panoramic glass proudly showcases the interior, while the dual-chamber layout frees up space for a cleaner look and better cooling performance.
- A seameless showcase: Tempered glass front and side panels offer an uninterrupted view of components, while the dual-chamber design hides PSU and storage for a sleek, compact and standout look.

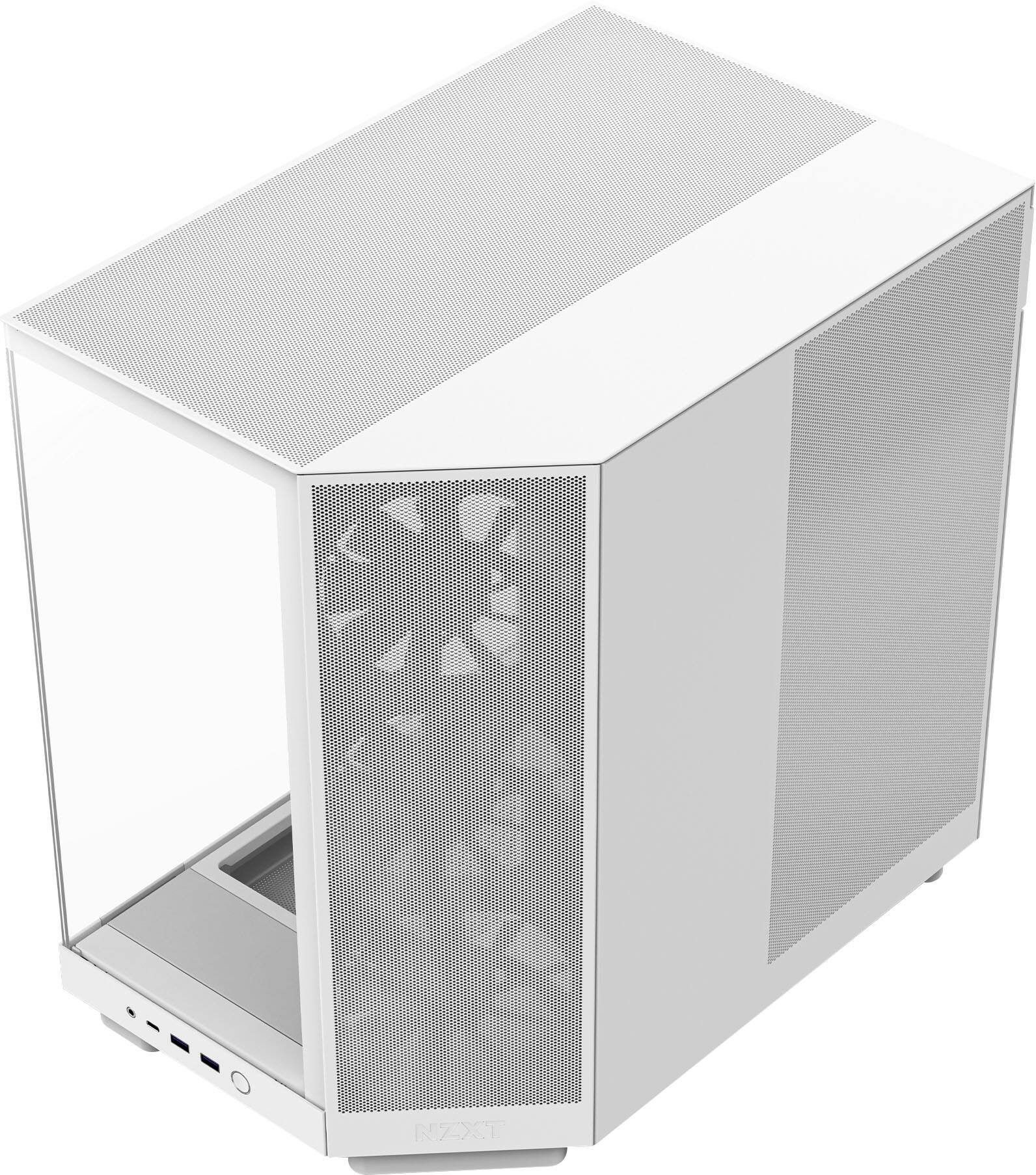

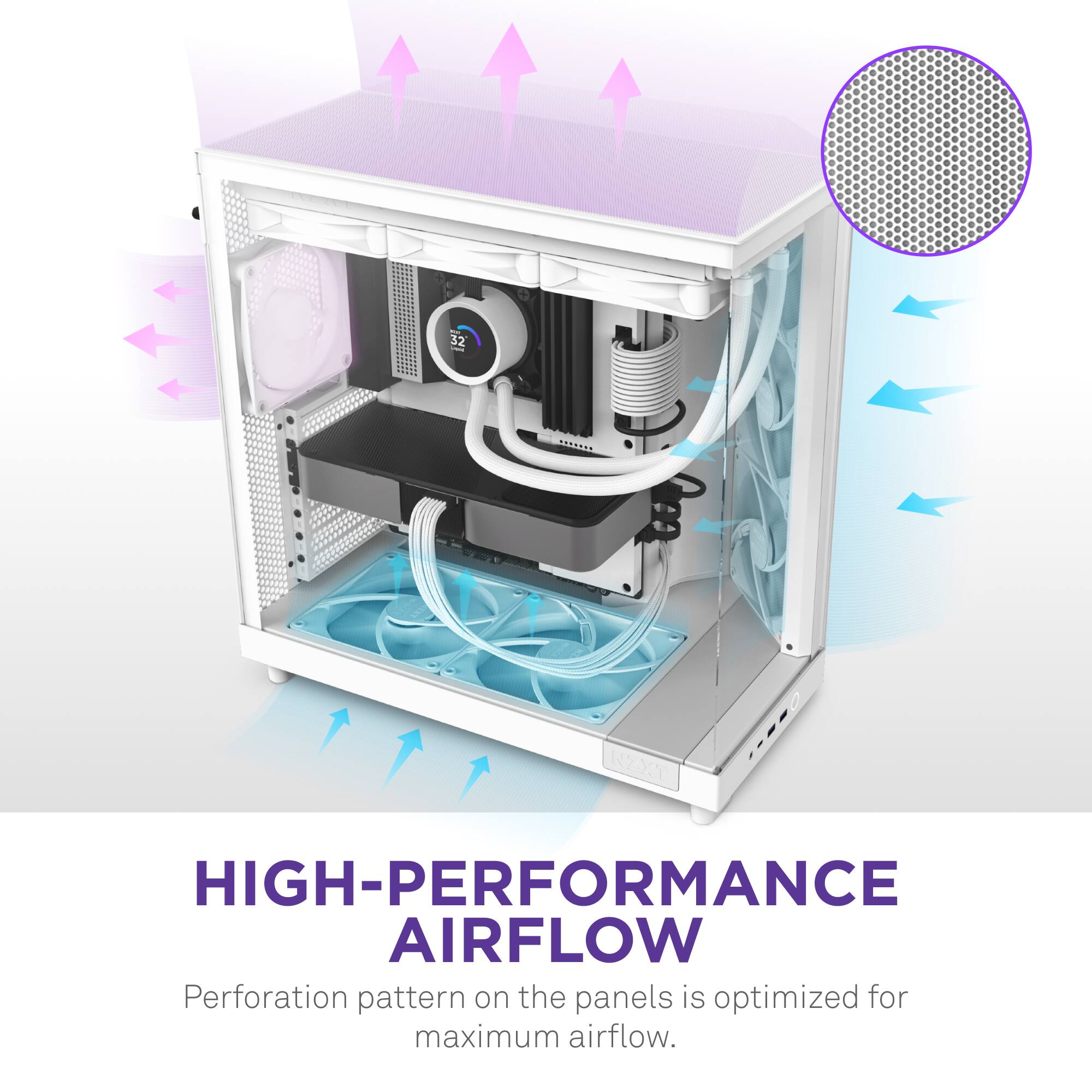

- Angled airflow: The angled front-right corner with 3x 120mm fans targets heat-prone components. Supports 2x 140mm fans beneath the GPU for optimall cooling while perforated panels enhance airflow.

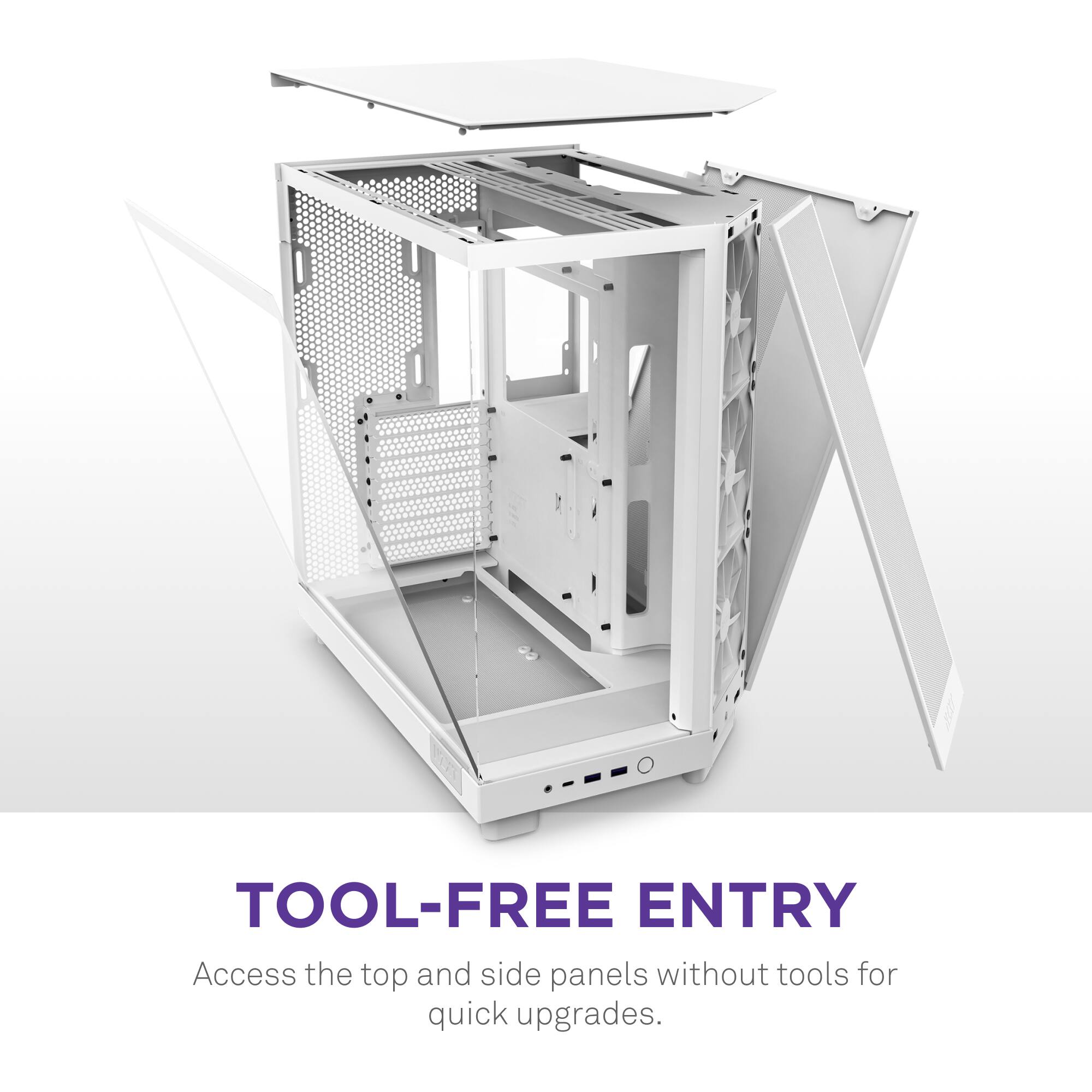

- Building made simple: H6 Flow's intuitive design makes building a breeze. Wide channels and included straps air cable management. Tool-less access to top and side panels simplifies tinkering and upgrading.
Q: Can this fit my evga 750 bp psu
A: According to the NZXT website, the H6 Flow case supports PSUs up to 200mm in length1. The EVGA 750W Gold PSU has a length of 150mm, so it should fit without any issues.
A: Hey, Michelle, good question! Intake or exhaust mainly depends on how you'd install the fans on your case and other cooling components, and if the fans themselves are reversible/have reversed blades. In the H6 Flow, there are 3 pre-installed F120 Quiet fans set up by default as intake fans. You can, however, flip them over or transfer them to the top so that you'd have them as exhaust fans. I hope this helps!
Q: What comes in the accessories box?
A: The accessory box includes screw packets A-H the baggies where the screws are located are not labeled but on the manual it says “A hexagon Screw 6-32 x 6mm” the baggie is not labeled A but it says “Hexagon screw 6-32*6mm” it also includes average sized cable ties.
Q: How do I install an aio on this case? I’m thinking about istalling a 360 aio water cooled.
A: Hello, I’m glad you’re wondering on what it would look like and how would you do things before ordering! Now, let’s say you have your motherboard, cpu, ram, ssd all in and your ready for your AIO you first detach the top part of the case by unscrewing one screw manually (easy). Next, you put you aio (where the fans are) on the top by the inside like any other case. Screw in your provided screws then put the cover back on and etc.
Q: how big of fans can you put in the case
A: Case will fit two 140mm fans on bottom (ONLY 140MM... 120mm won't fit on the bottom). You can also place 3 120mm fans on top and 3120mm fans on the side.
Q: Does the fans come with hub or where do I connect it the cables of fans
A: No hub. I have myne into the motherboard. But if running enought fans ud have room in back to put a hub. I have the non rgb version.
A: Thanks for the question! While 5080's can vary in size we are confident that this case can fit virtually any 5080 graphics card
Q: can it fit a 13-gen intel (r) core(tm) i7-13700f
A: Thanks for the question! yes it will work with that CPU
Compare similar products
Experience performance with a fresh perspective. The H6 Flow's innovative compact design emphasizes GPU cooling with a strategically angled front corner, so the fans direct air where it's most needed. The panoramic glass proudly showcases the interior, while the dual-chamber layout frees up space for a cleaner look and better cooling performance.

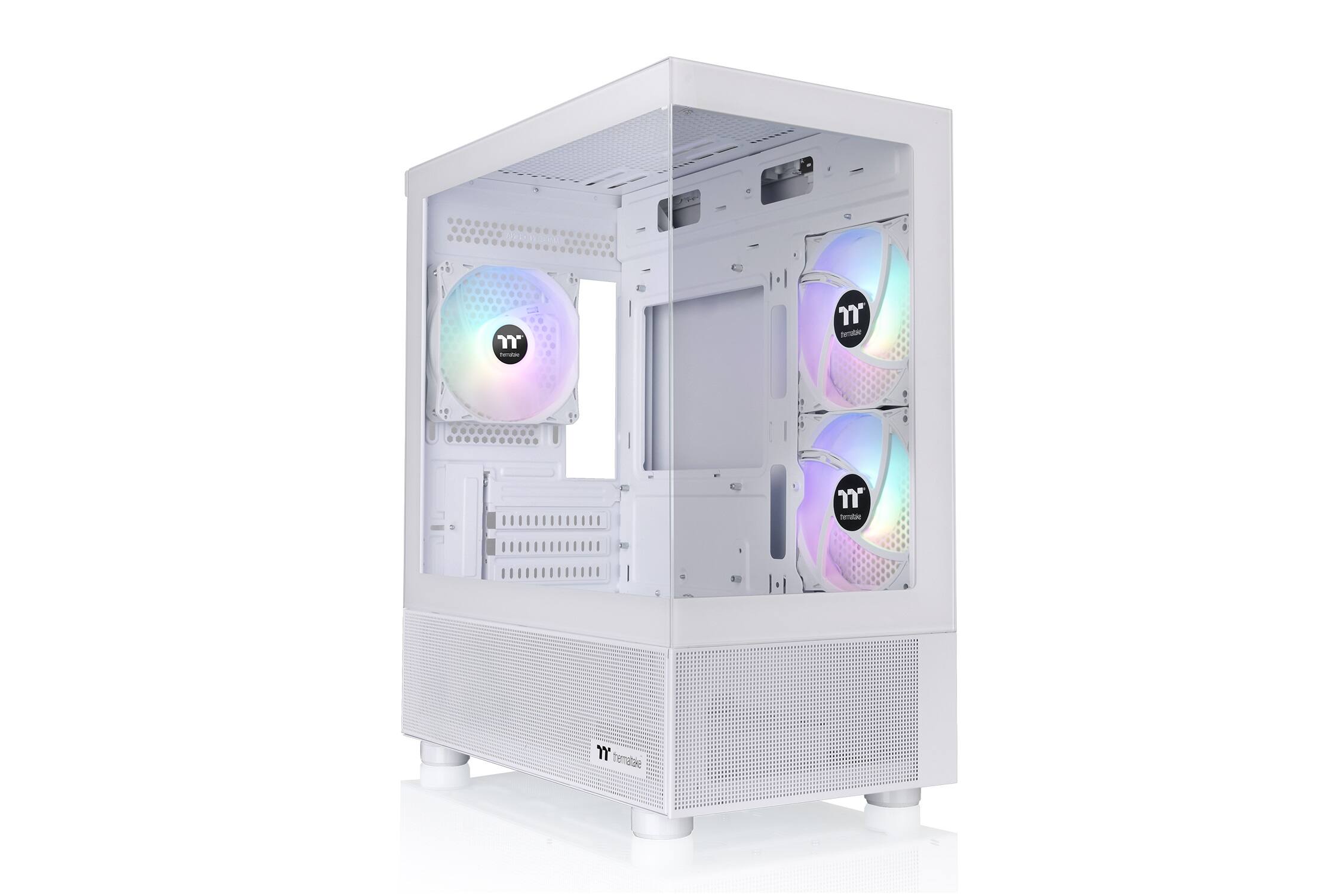

Built for amazing views thanks to the front and side tempered glass side panels the View 170 TG ARGB Snow is sure to impress. Supporting M-ATX builds, mounting points for up to 7 fans, and a ventilated bottom shroud the View 170 TG ARGB Snow brings flexibility in a small package.
The H9 Flow is a spacious mid-tower ATX case designed for high-performance builds, offering a balanced blend of airflow and aesthetics. Its dual-chamber design enhances cooling efficiency and cable management, while fine-mesh perforated panels, angled fans, and generous radiator and fan capacity deliver optimal thermal performance.
Experience performance with a fresh perspective. The H6 Flow's innovative compact design emphasizes GPU cooling with a strategically angled front corner, so the fans direct air where it's most needed. The panoramic glass proudly showcases the interior, while the dual-chamber layout frees up space for a cleaner look and better cooling performance.
| Pros for NZXT - H6 Flow ATX Mid-Tower PC Case with Dual Chamber - White | |||
|---|---|---|---|
| Airflow, Cable Management, Size, Space, Design | There were no pros for this product— | Airflow, Internal Space, Cable Management, Size, Ease of Assembly | Airflow, Cable Management, Internal Space, Size, Case Design |
Specs
Reviews
Customers are saying
Customers enjoy the H6 Flow ATX Mid-Tower PC Case's excellent airflow and spacious interior, making it easy to build in and manage cables. They also praise the case's size and design, finding it aesthetically pleasing and functional. Many appreciate the ease of assembly and the inclusion of pre-installed fans. The overall value for the price point is also frequently highlighted.

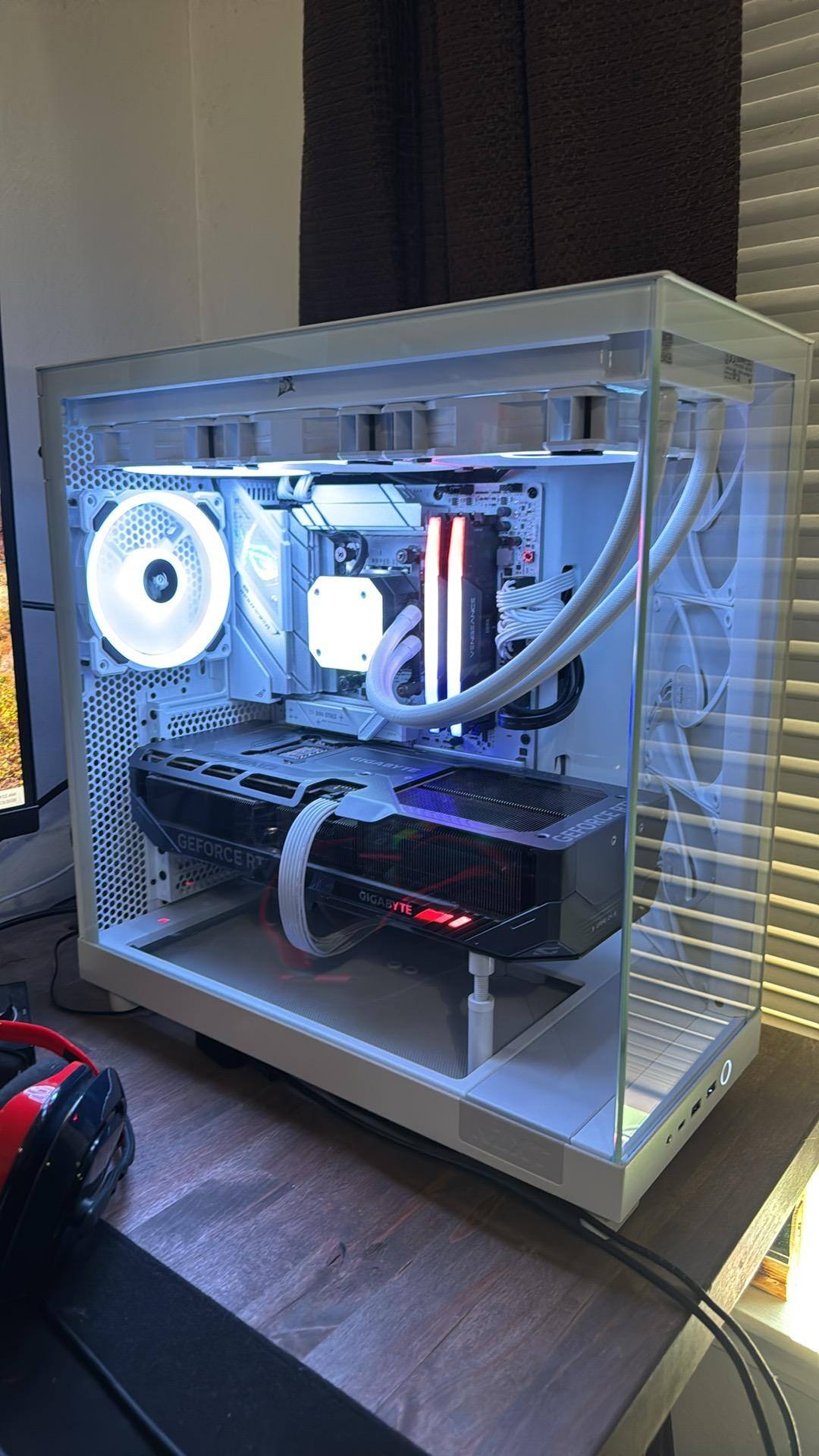

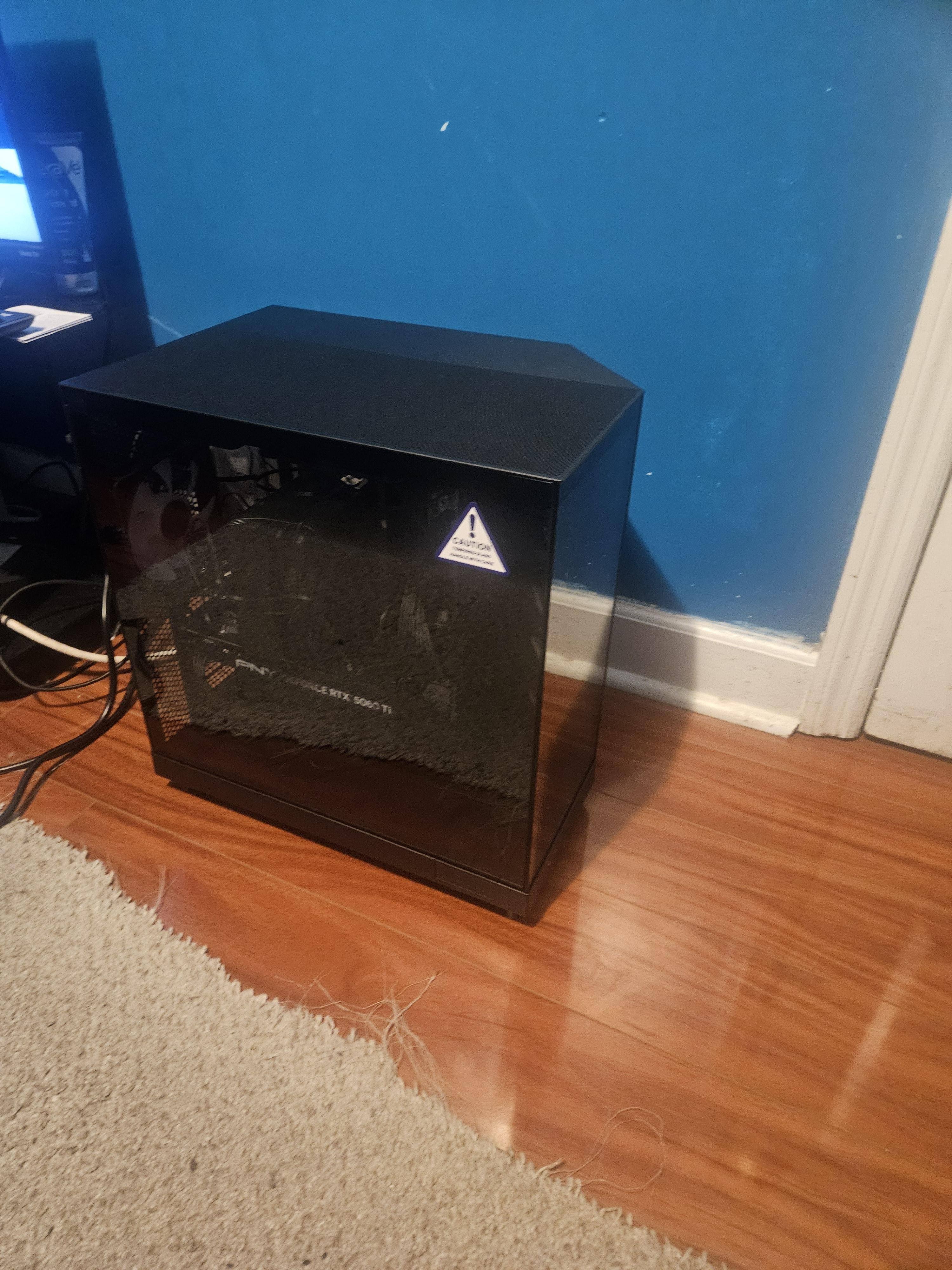

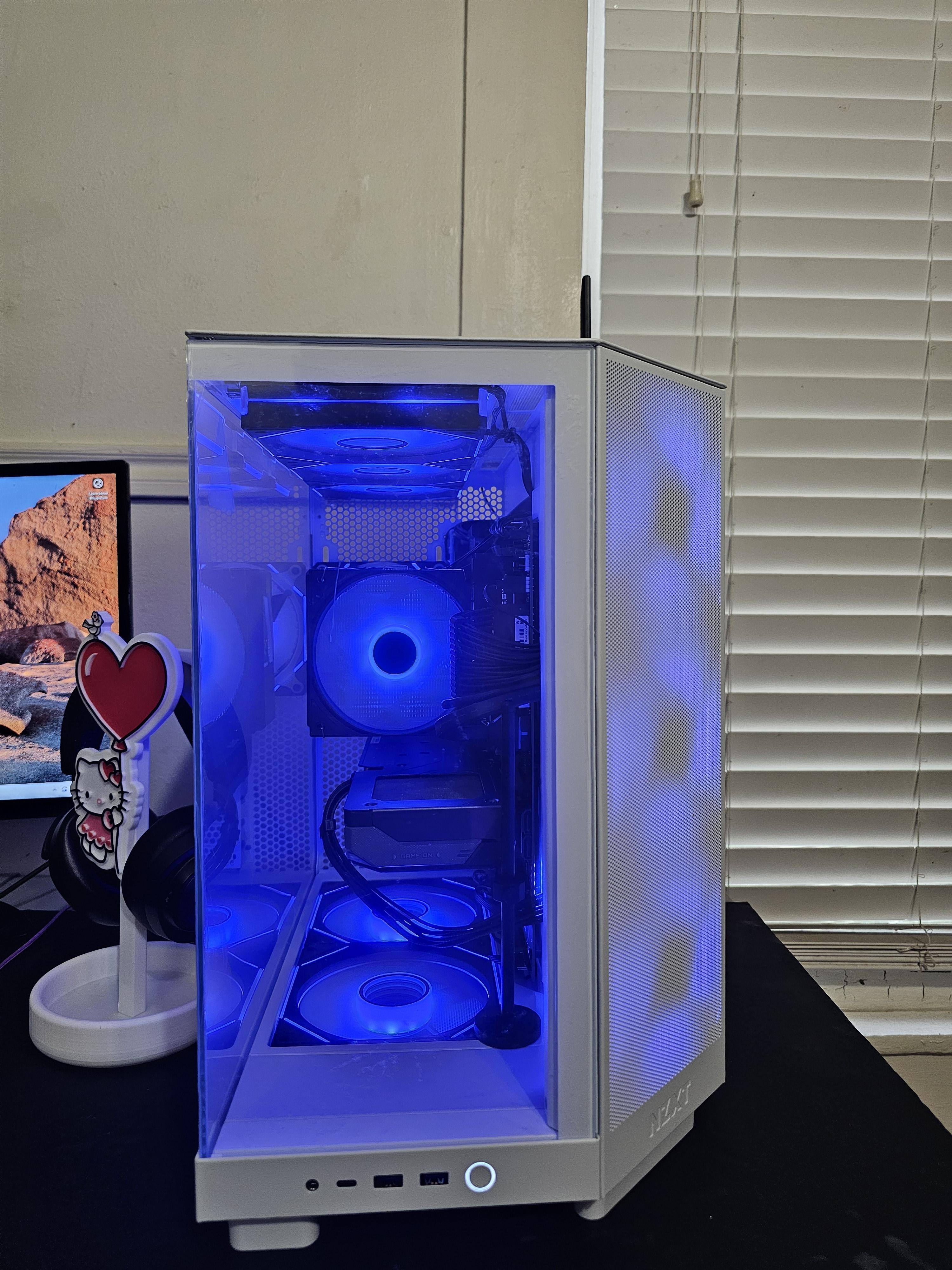

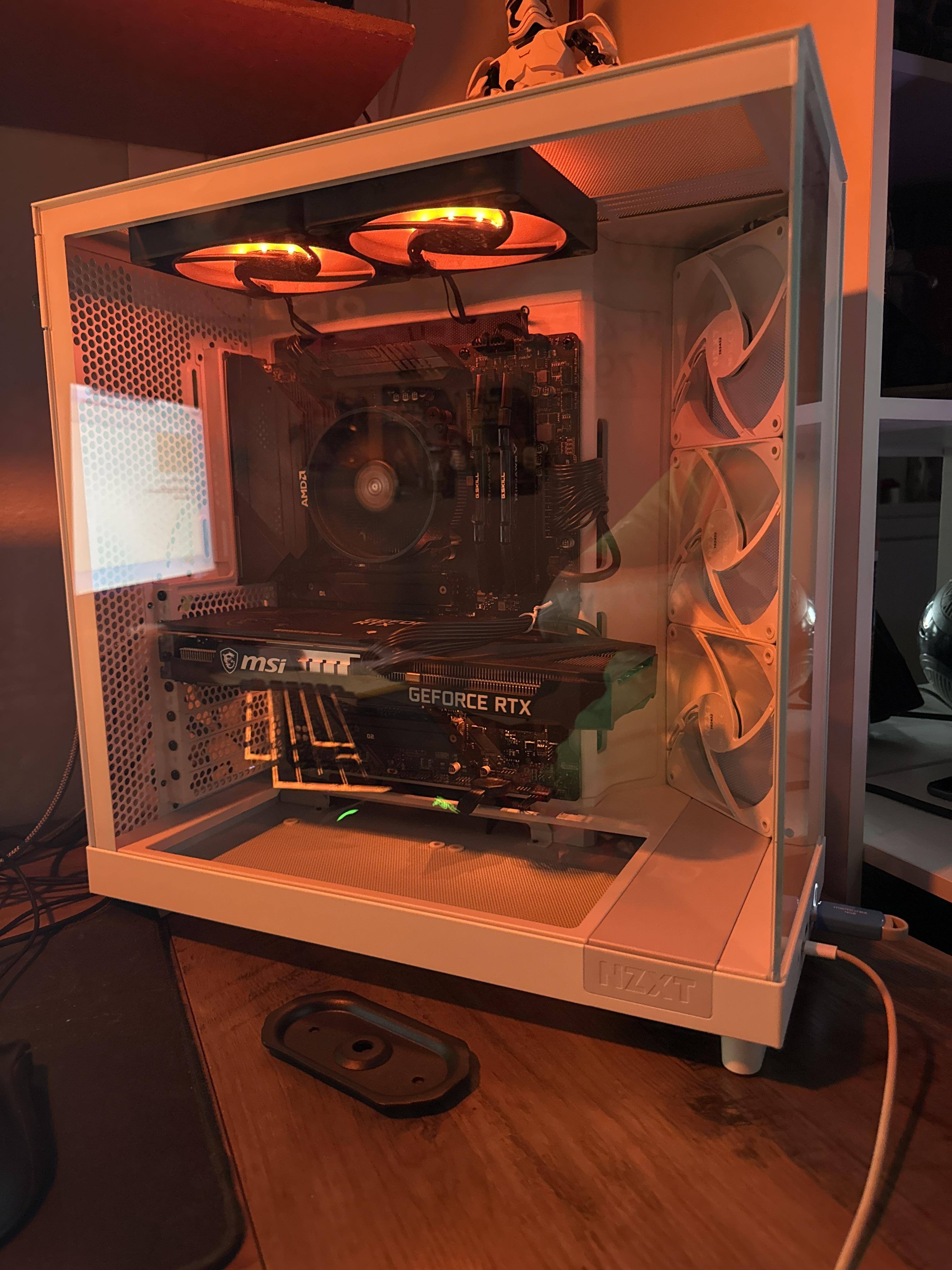

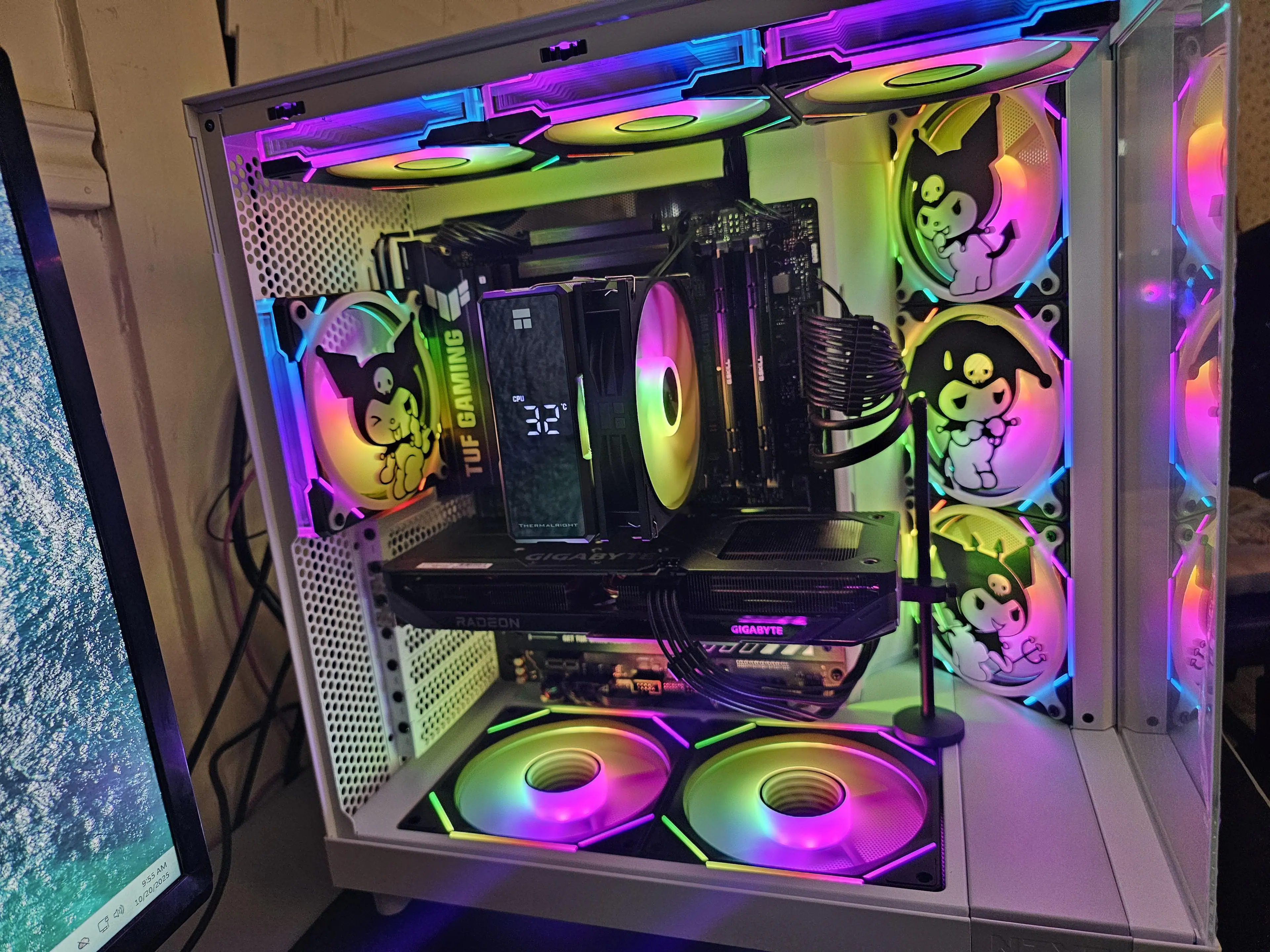

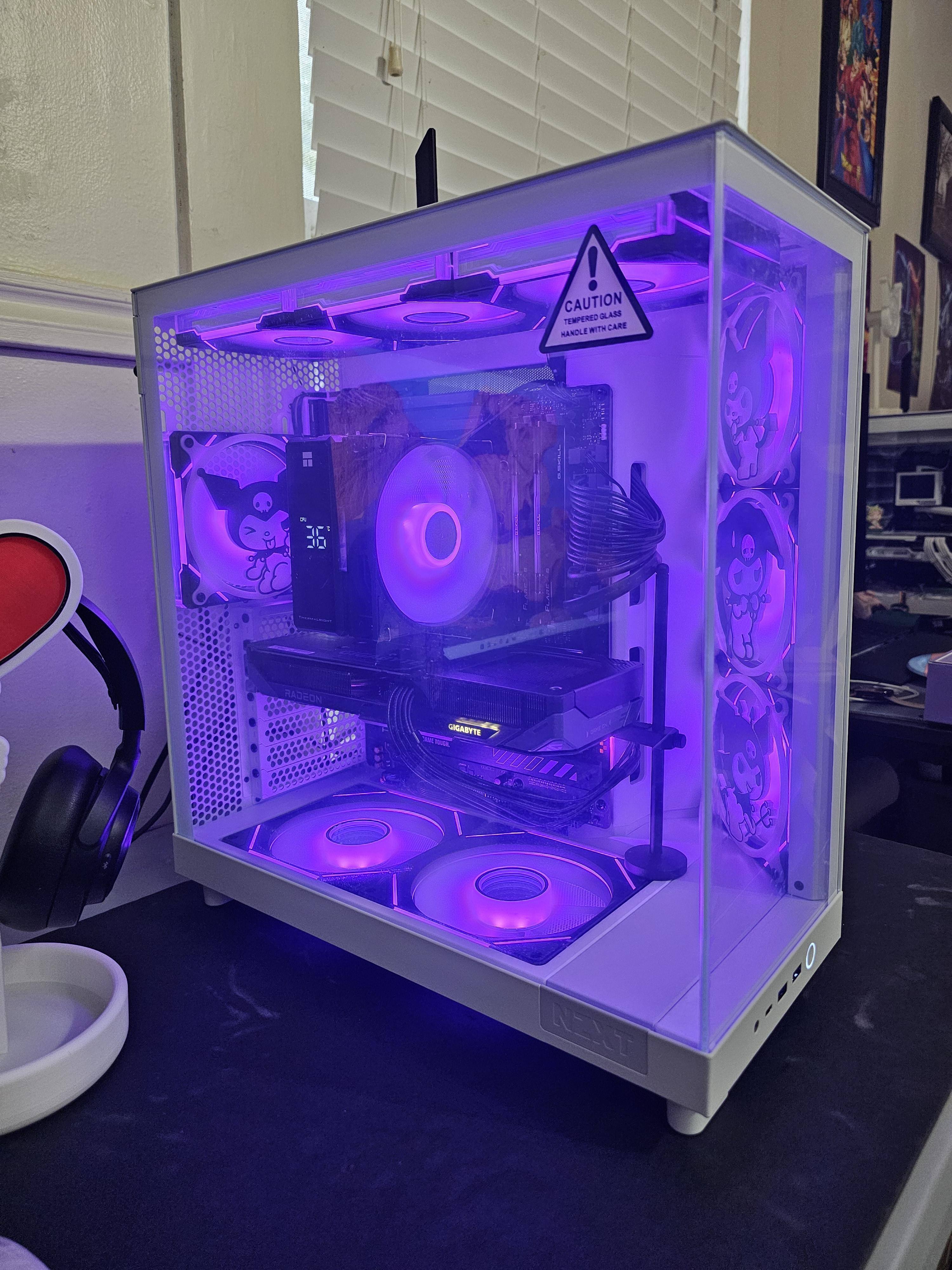

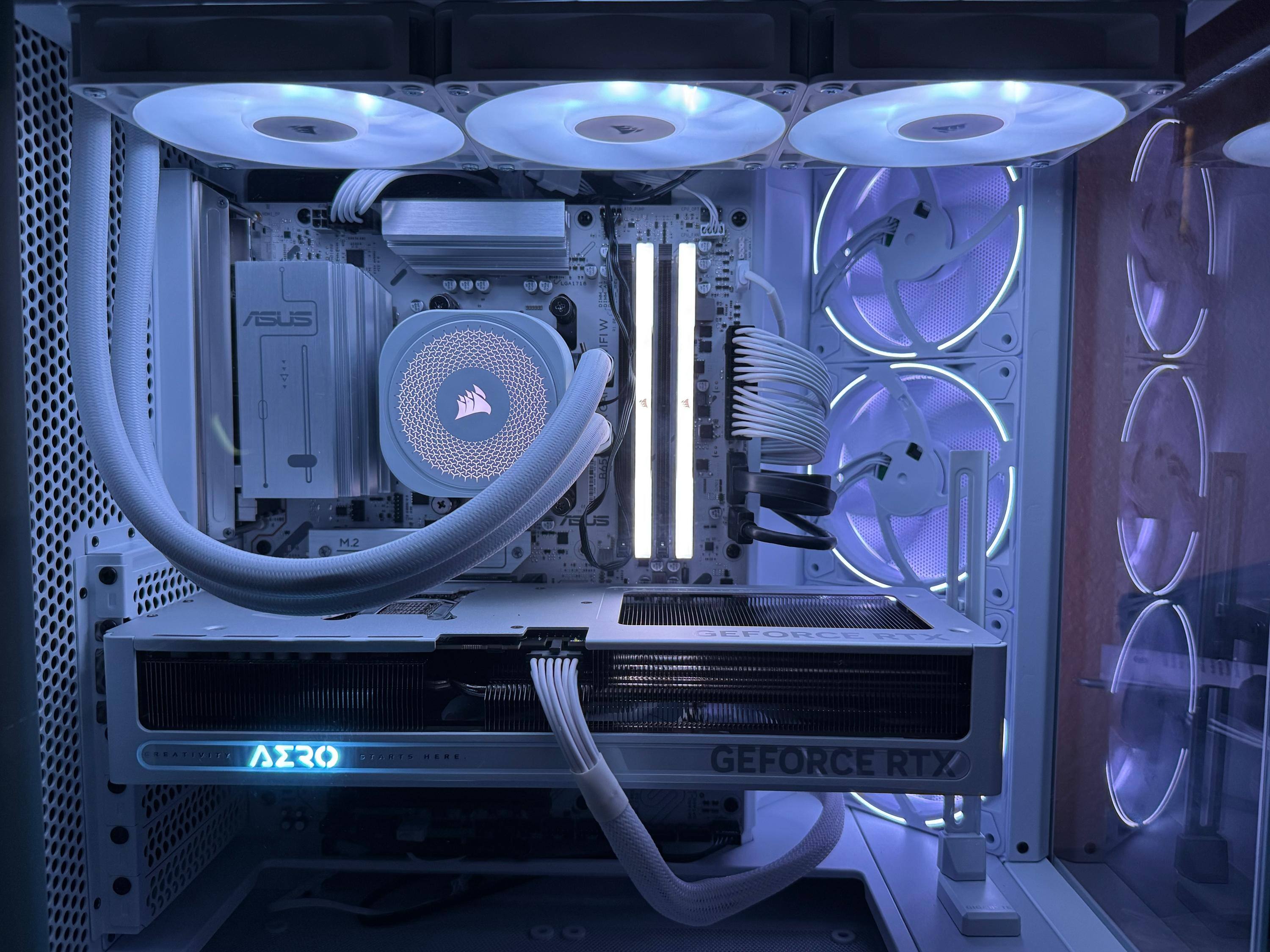

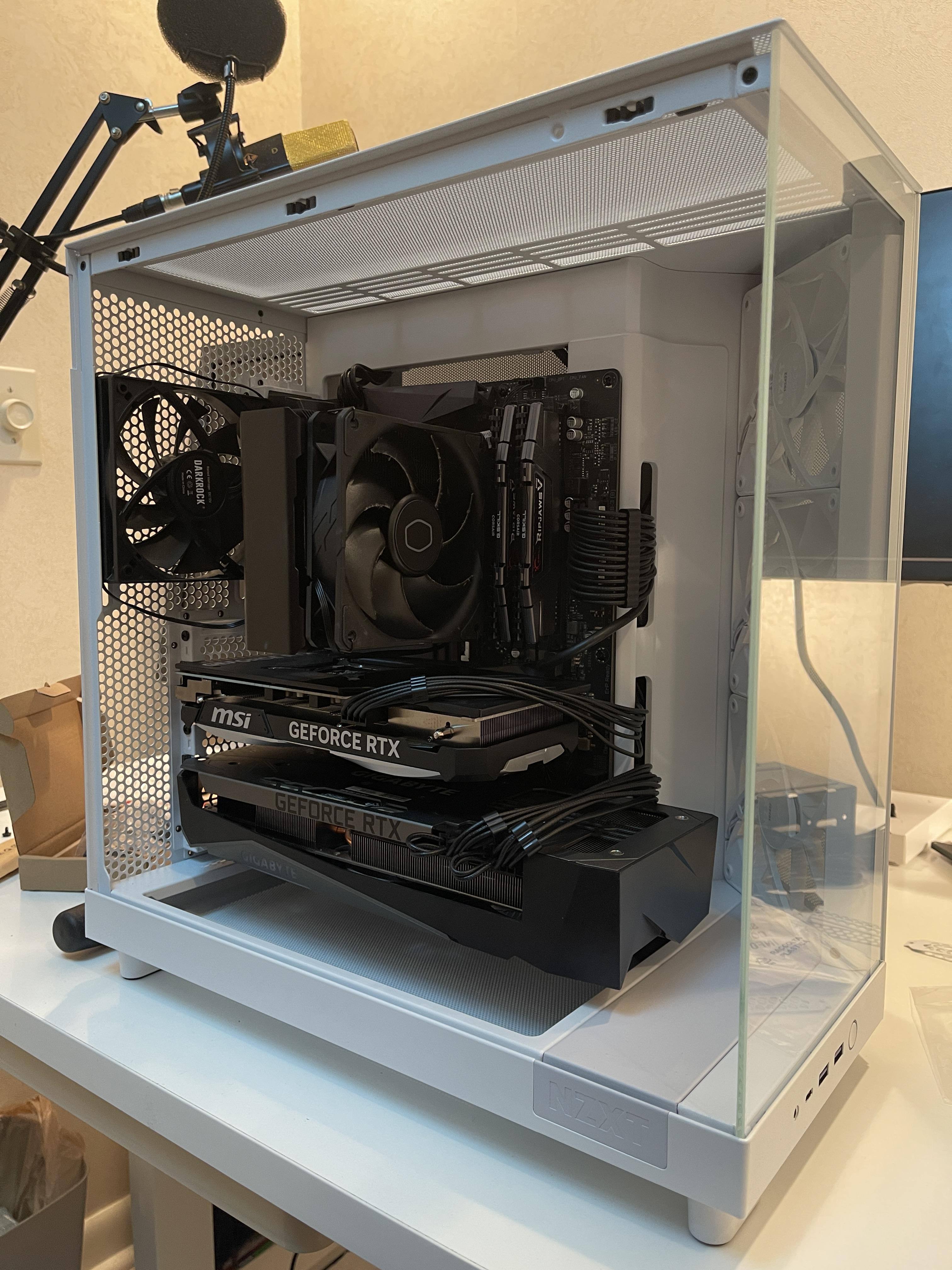

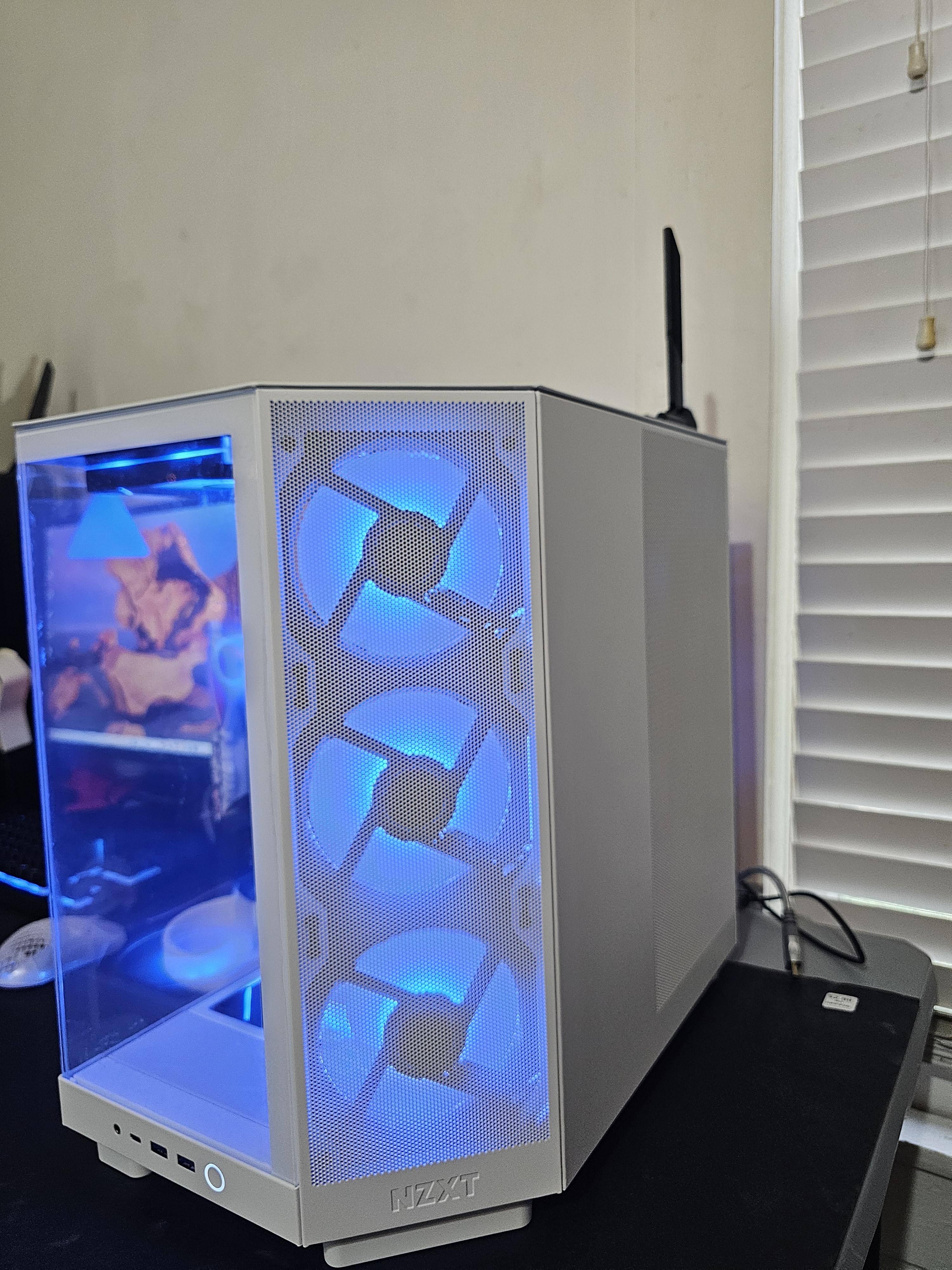

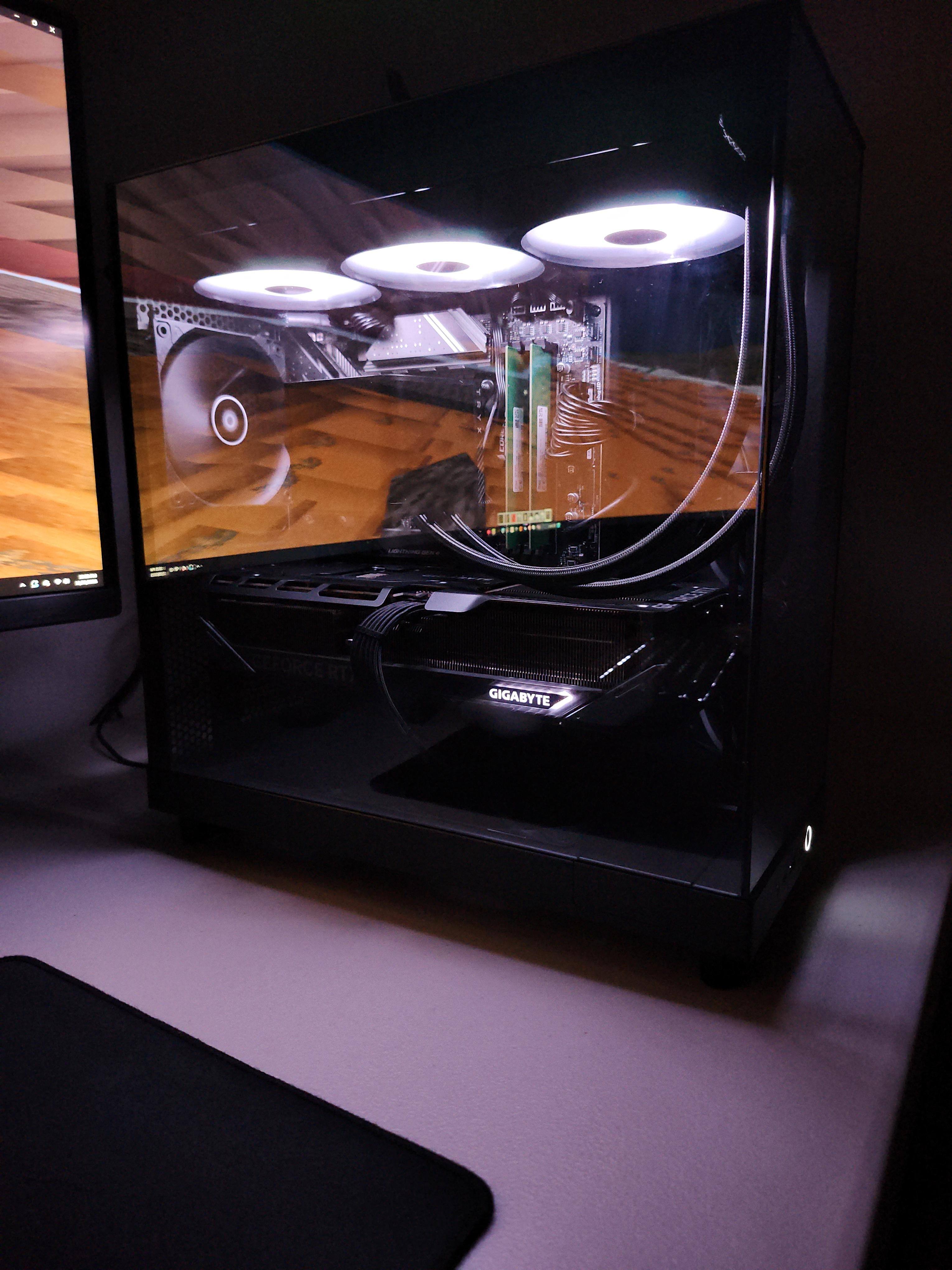

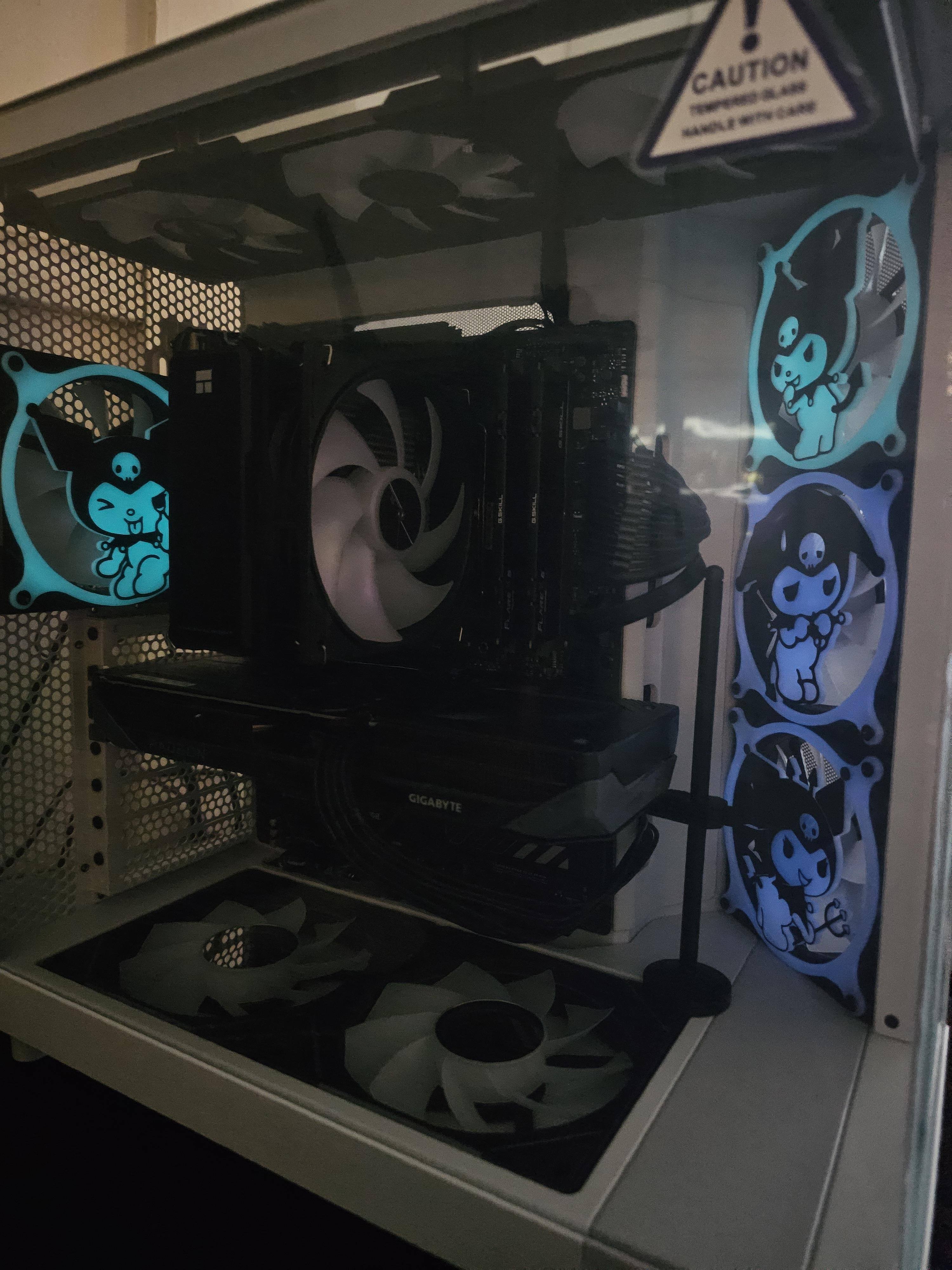

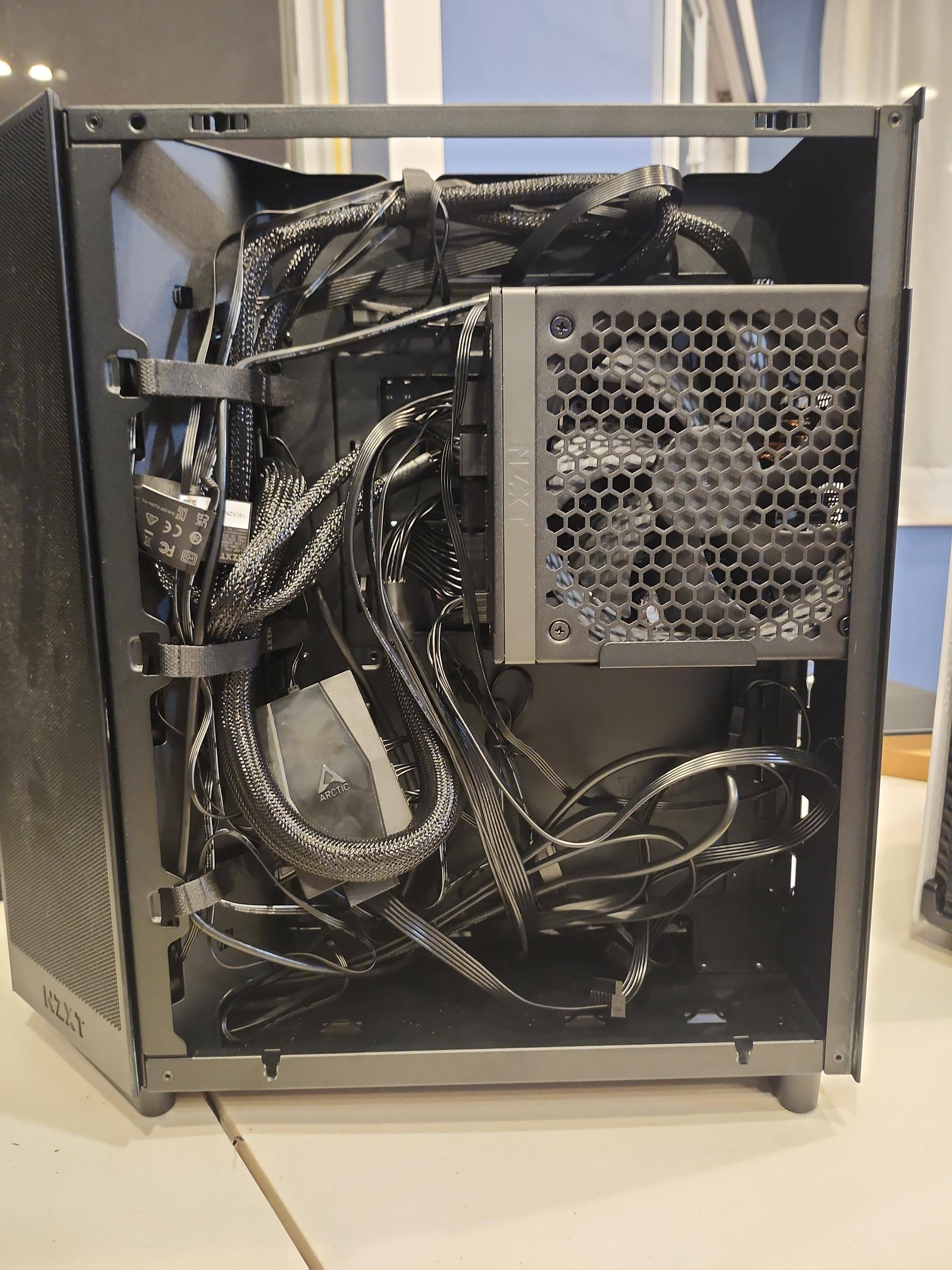

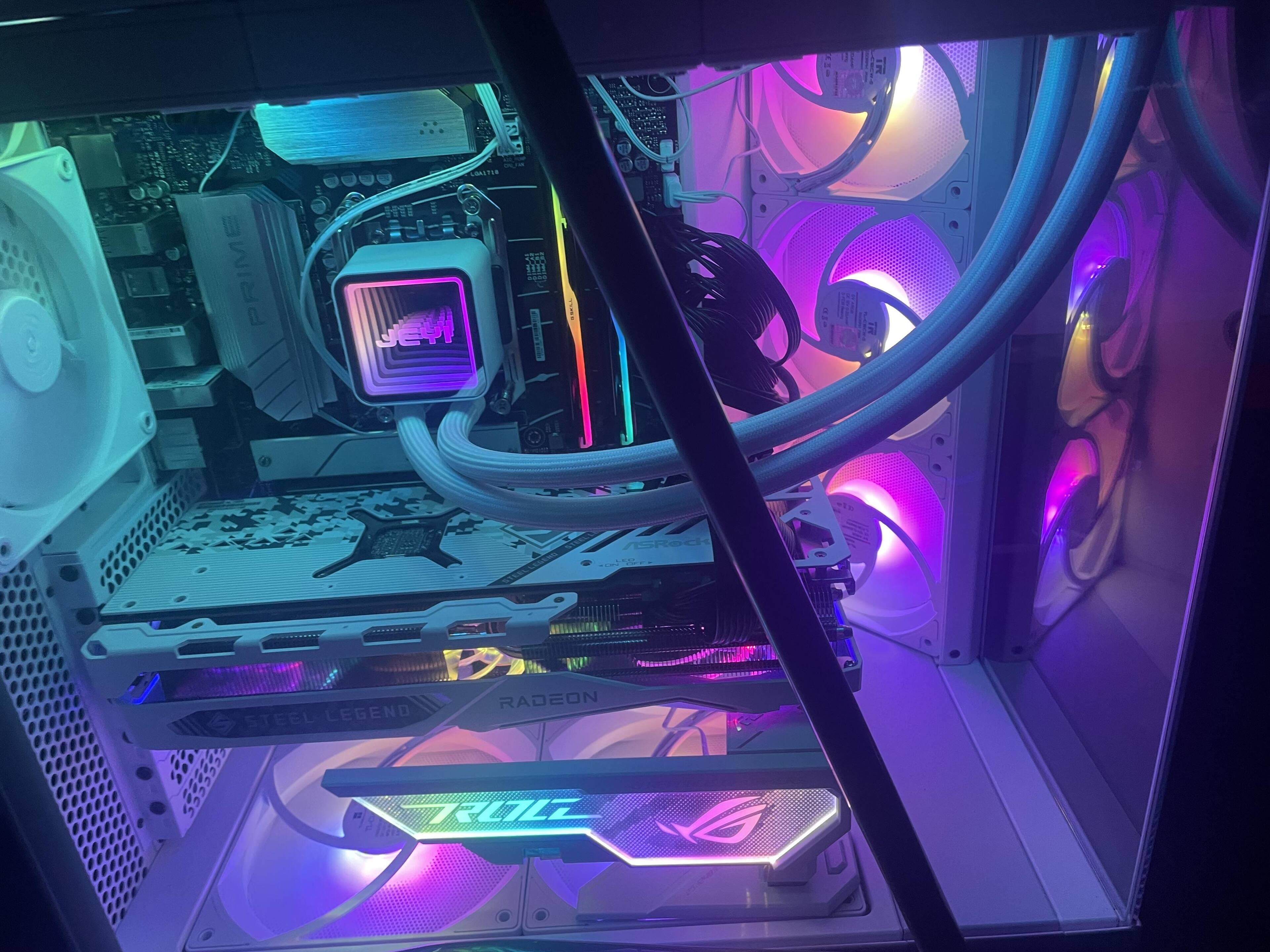

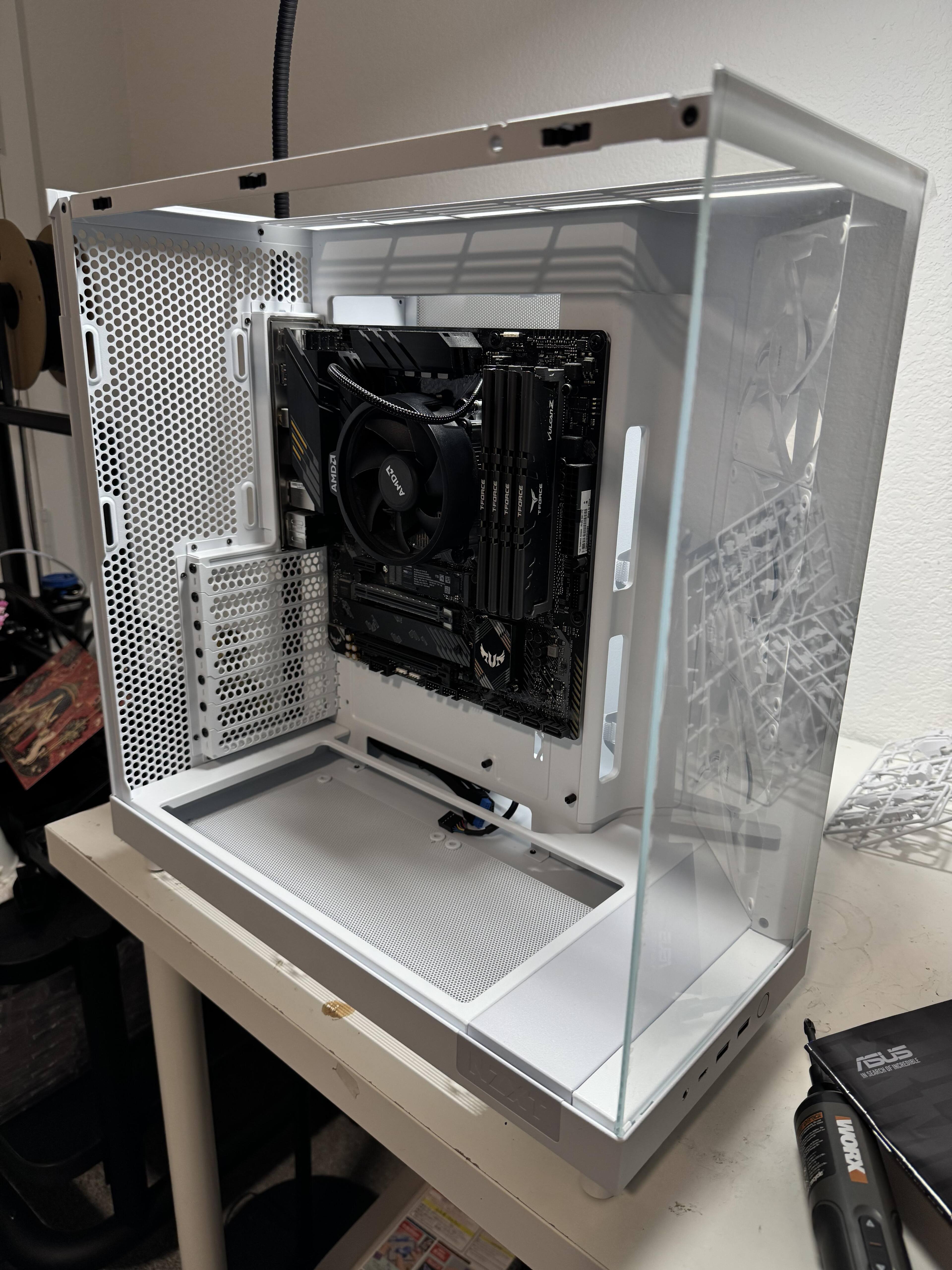

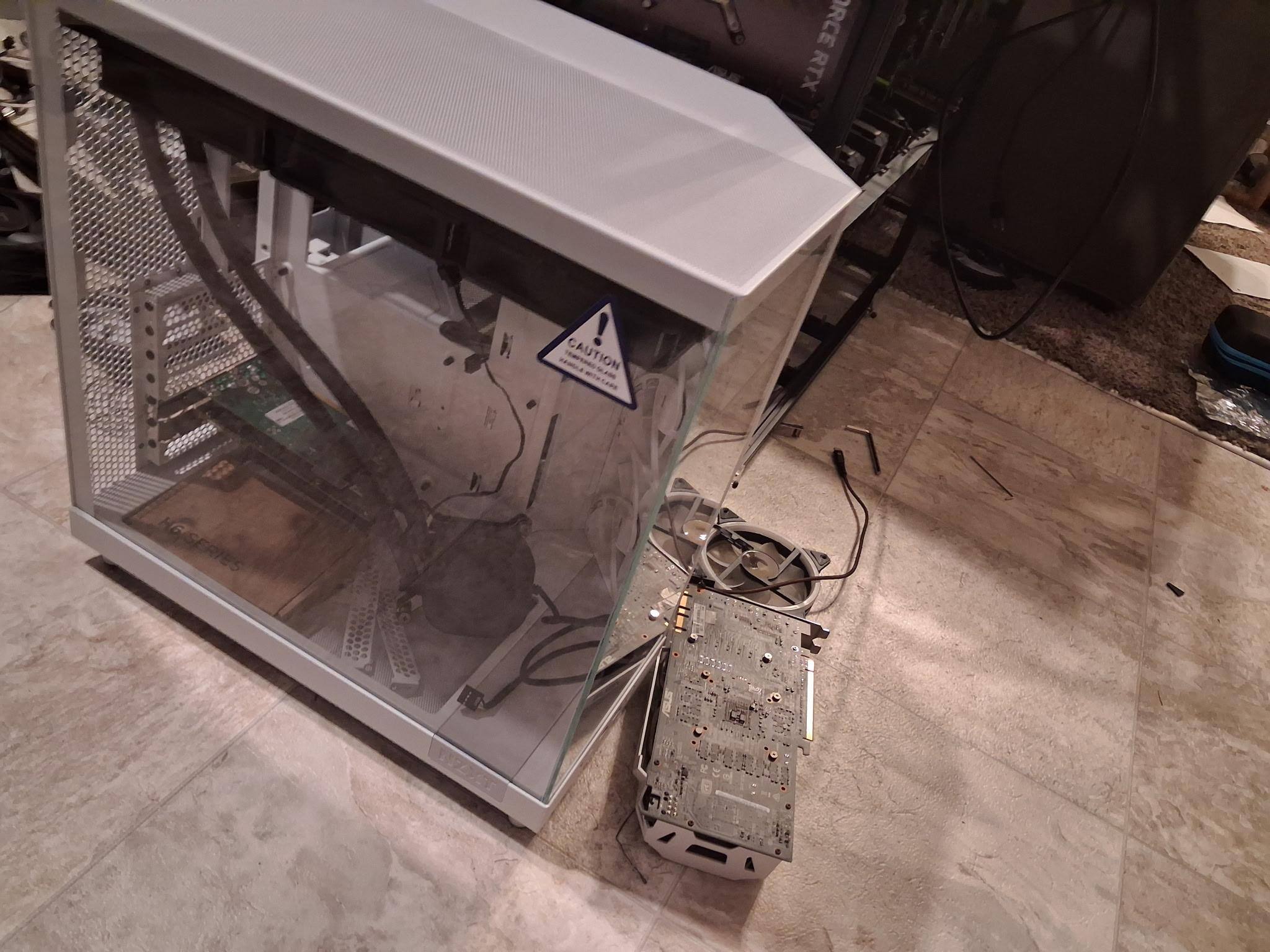

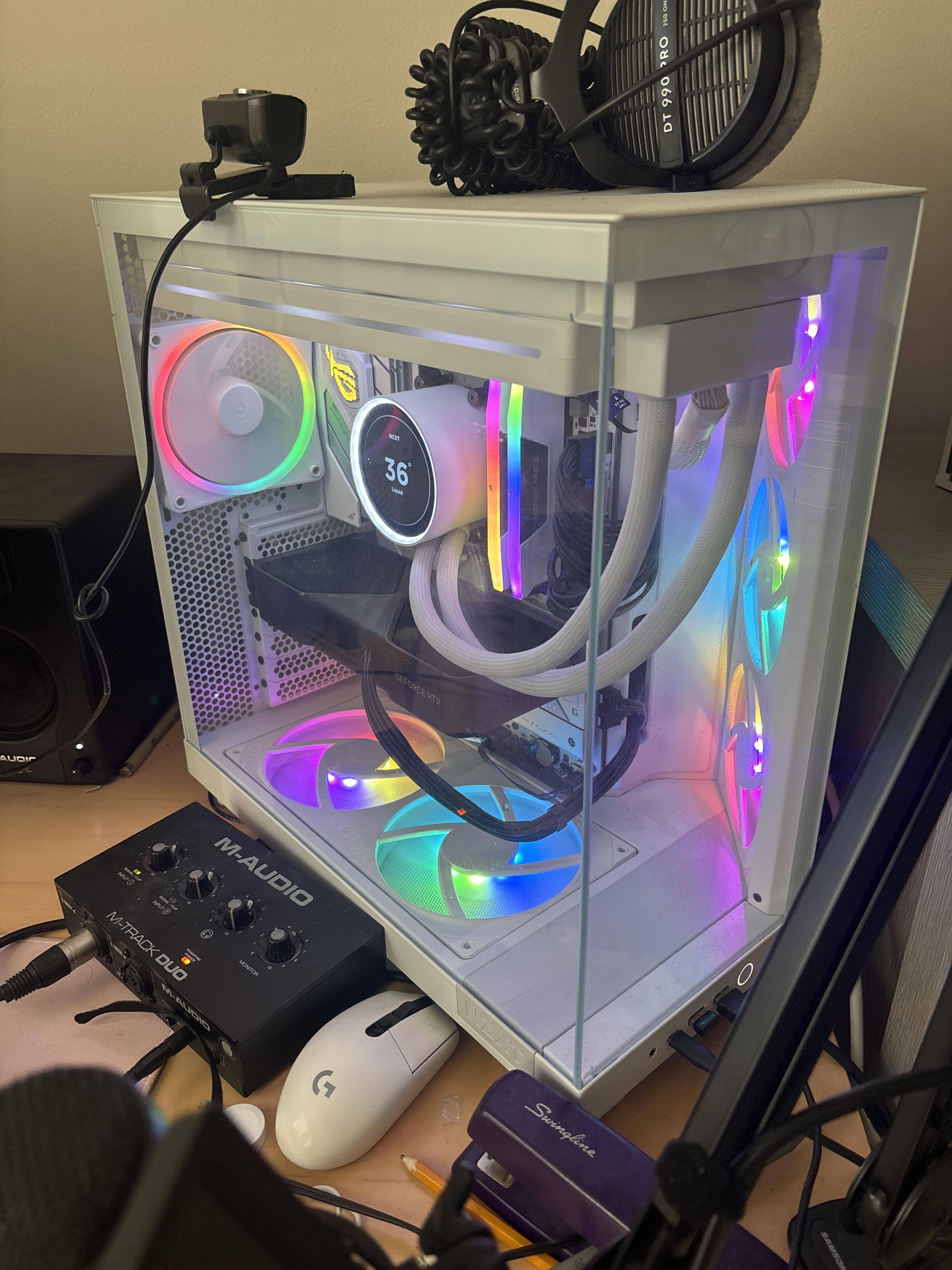

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Great for my First Pc Build
It was my first time building a PC and I found this case extremely beginner-friendly. I'm not too versed in dual chamber builds, but this NZXT H6 Flow is great for beginner level cable management and has good air flow as implied in the model name. It is a lot more wider than anticipated, but it has a really sleek design.
Posted by Computer
- Rated 5 out of 5 stars
A masterpiece of glass and airflow
The NZXT H9 is, simply put, a masterpiece of case design, striking a perfect balance between stunning aesthetics and practical, high-performance cooling. If you're looking for a case that will truly showcase your components while keeping them running cool, look no further. The standout feature is undoubtedly the panoramic tempered glass panels, offering an unobstructed view of your entire build. It feels less like a PC case and more like a high-end display cabinet. Every RGB component, every custom cable, and every detail you put into your rig is beautifully highlighted. Beyond the visuals, the H9's dual-chamber design is a game-changer for cooling and cable management. By moving the power supply, drives, and excess cabling into the hidden second chamber, it ensures the main compartment is completely clean for optimal airflow. Building in this case is a dream; the dedicated cable routing channels make achieving a professional, tidy look surprisingly easy. With support for up to ten fans and multiple large radiators, the thermal performance is fantastic. This case easily handles modern, high-power CPUs and GPUs without breaking a sweat. It’s a premium case with a premium price tag, but given the quality, ease of build, and phenomenal end result, it is absolutely worth the investment. The H9 doesn't just house a PC; it elevates it.
Posted by Rixo
- Rated 5 out of 5 stars
Best bang for your buck
Best case for the money, hands down. Extremely generous with space and cable management requires zero thought at all. Plenty of room with great airflow.
Posted by MaxP
