NZXT - H3 Flow Micro-ATX High-Airflow PC Case - White
Color
WhiteKey Accessories:
- CORSAIR - iCUE LINK RX120 RGB 120mm PWM Computer Case Fan Expansion Fan - White$26.99The price was $34.99
More Buying Options
Related Item
Specifications
- Motherboard Form FactormicroATX, Mini-ITXMaximum GPU Length377 millimetersProduct Height15.75 inchesProduct Width10.04 inchesProduct Depth15.32 inchesWindow Panel(s)Side
- Key Specs
- Motherboard Form Factor: microATX, Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 377 millimeters

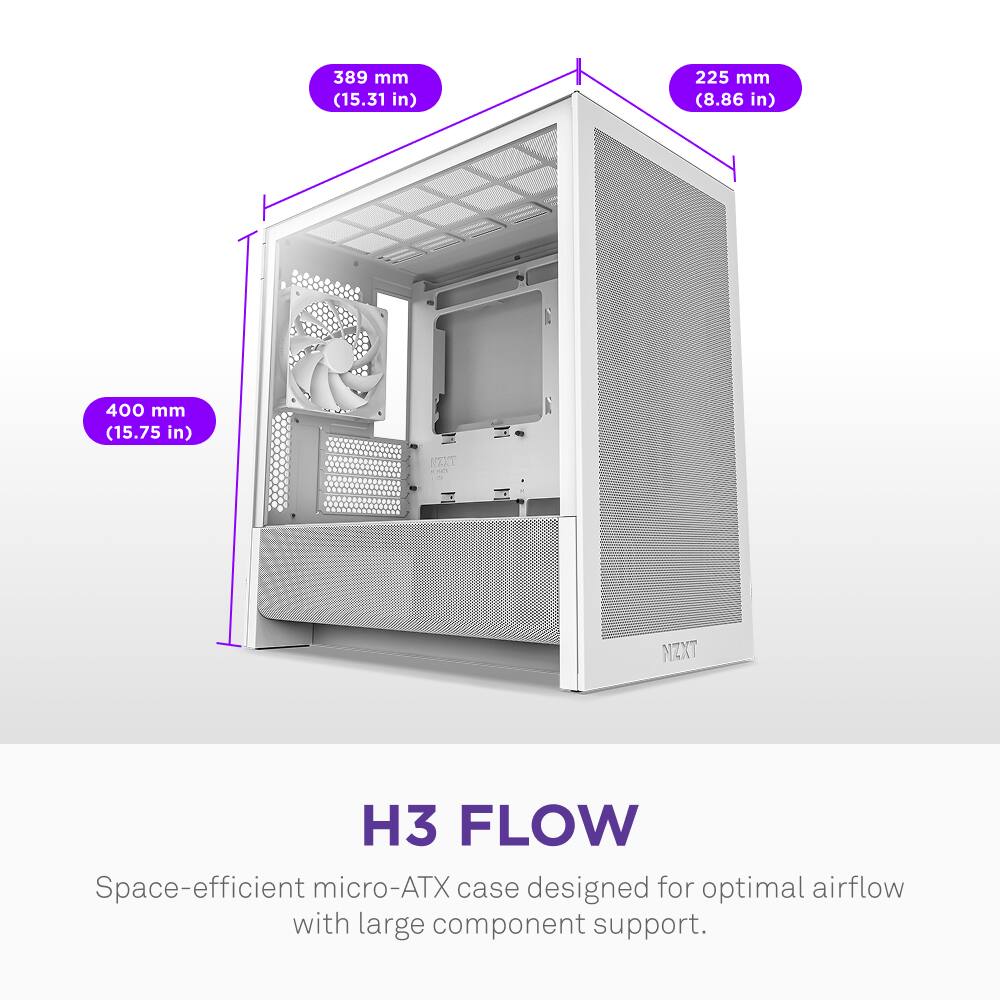

- Product Height: 15.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10.04 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.32 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Side
- Case Material: Metal
- General
- Brand: NZXT
- Model Number: CC-H31FW-01
- Product Name: NZXT - H3 Flow Micro-ATX High-Airflow PC Case
- Color: White
- Case Material: Metal
- Assembly Required: No
- Compatibility
- Motherboard Form Factor: microATX, Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 185 millimeters
- Maximum GPU Length: 377 millimeters
- Number of Expansion Slots: 4
- Ports
- Number of USB Ports (Total): 2
- USB Ports: 1 x USB-C 3.2, 1 x USB-A 3.2 (The number and type of USB ports the product has.)
- Number of Thunderbolt Ports (Total): 0
- Headphone Jack: false (The device features an interface that allows for the connection of headphones.)
- Microphone Input: false (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 1
- Number Of Internal 3.5" Bays: 1
- Dimensions
- Product Height: 15.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10.04 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.32 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 169.32 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mini tower
- Window Panel(s): Side
- Customizable Case Lighting: true
- Lighting Type: RGB
- Cooling
- Maximum CPU Cooler Height: 170 millimeters
- Number of Fans Supported: 7
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Number of Fans Included: 1
- Radiator Support: Yes
- Liquid Cooling Ready: true
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 810074848039
The H3 Flow is a space-efficient micro-ATX PC case delivering exceptional airflow and versatile component compatibility. Designed for optimal cooling, the mesh panels and ventilated PSU shroud keep high-performance components running smoothly.

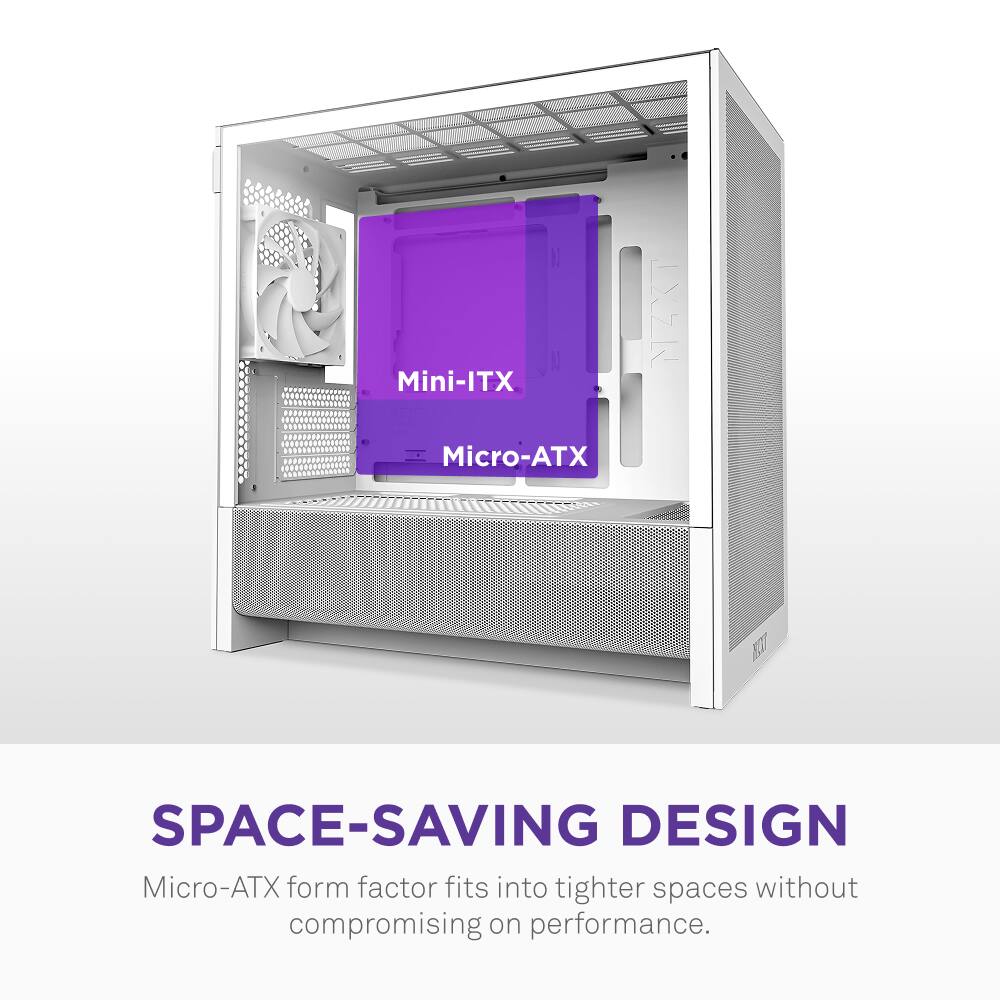

- Space-Saving Size: A space-efficient micro-ATX chassis accommodates standard high-performance components without compromise.

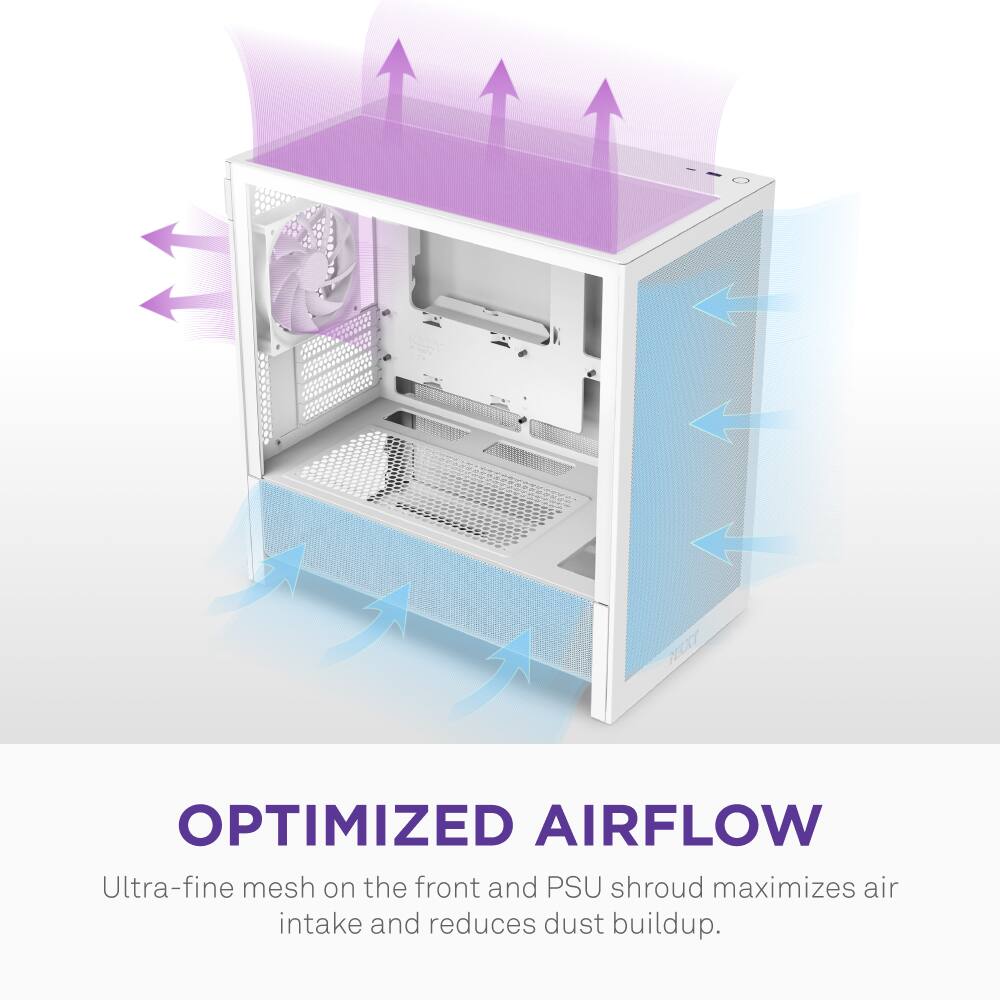

- High-Airflow Design: Ultra-fine steel mesh on the panels and PSU shroud maximizes airflow while effectively filtering dust.

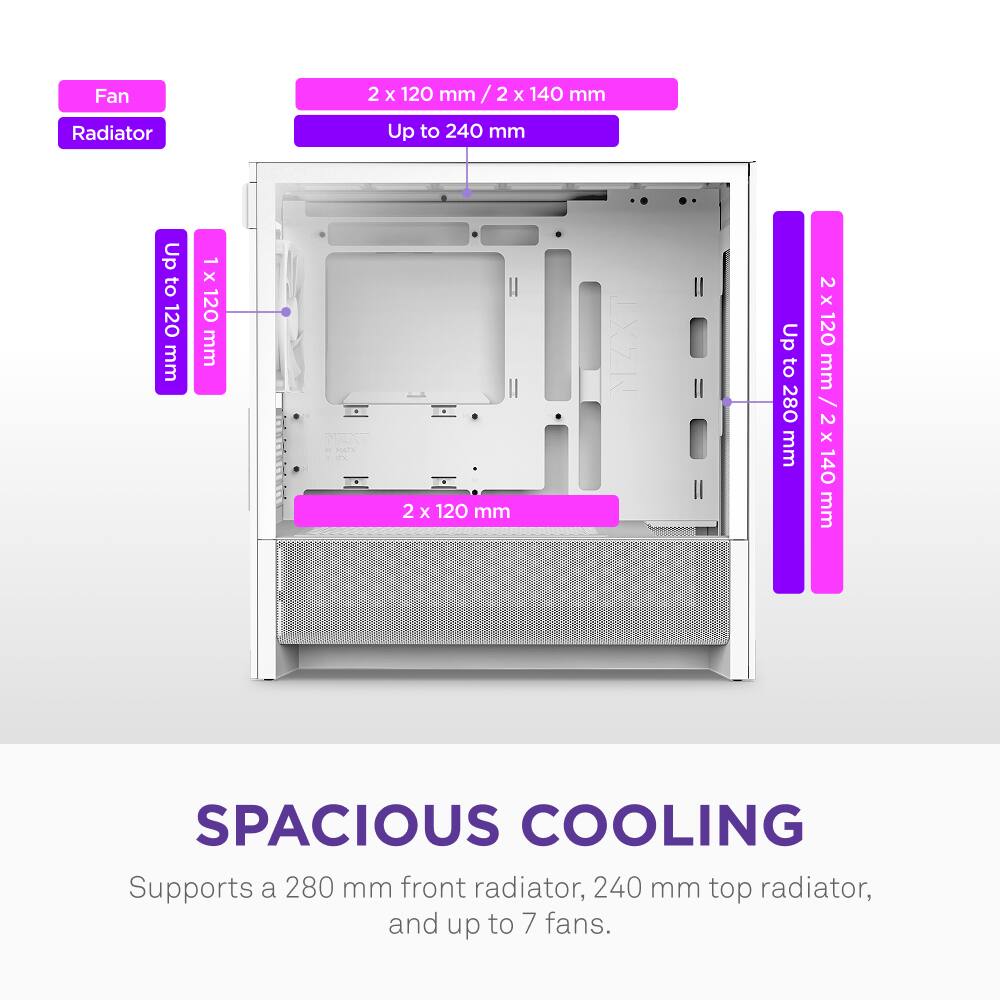

- Extensive Cooling Support: Supports up to a 280 mm radiator at the front, a 240 mm radiator at the top, and up to seven fans for powerful cooling performance.

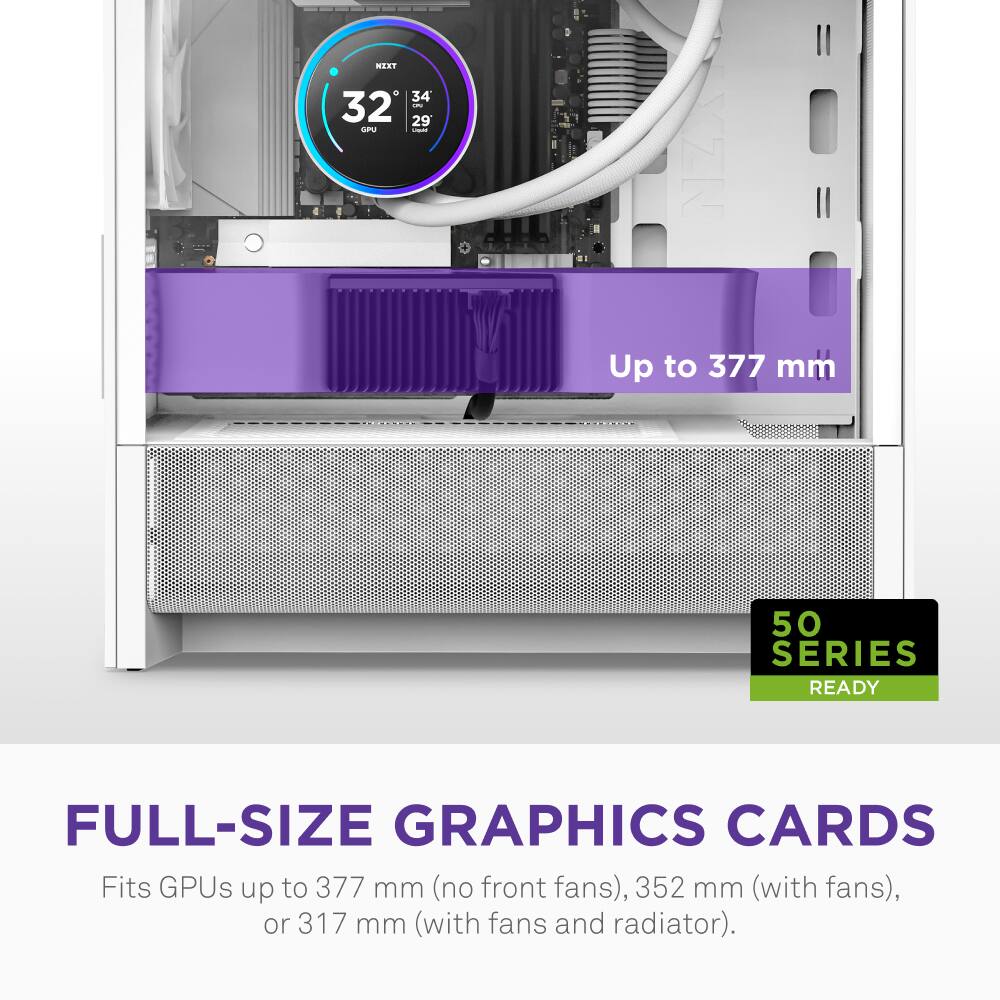

- Full-Size Graphics Cards: Fits GPUs up to 377 mm (without front fans), 352 mm (with front fans), and 317 mm (with front radiator and fans installed).

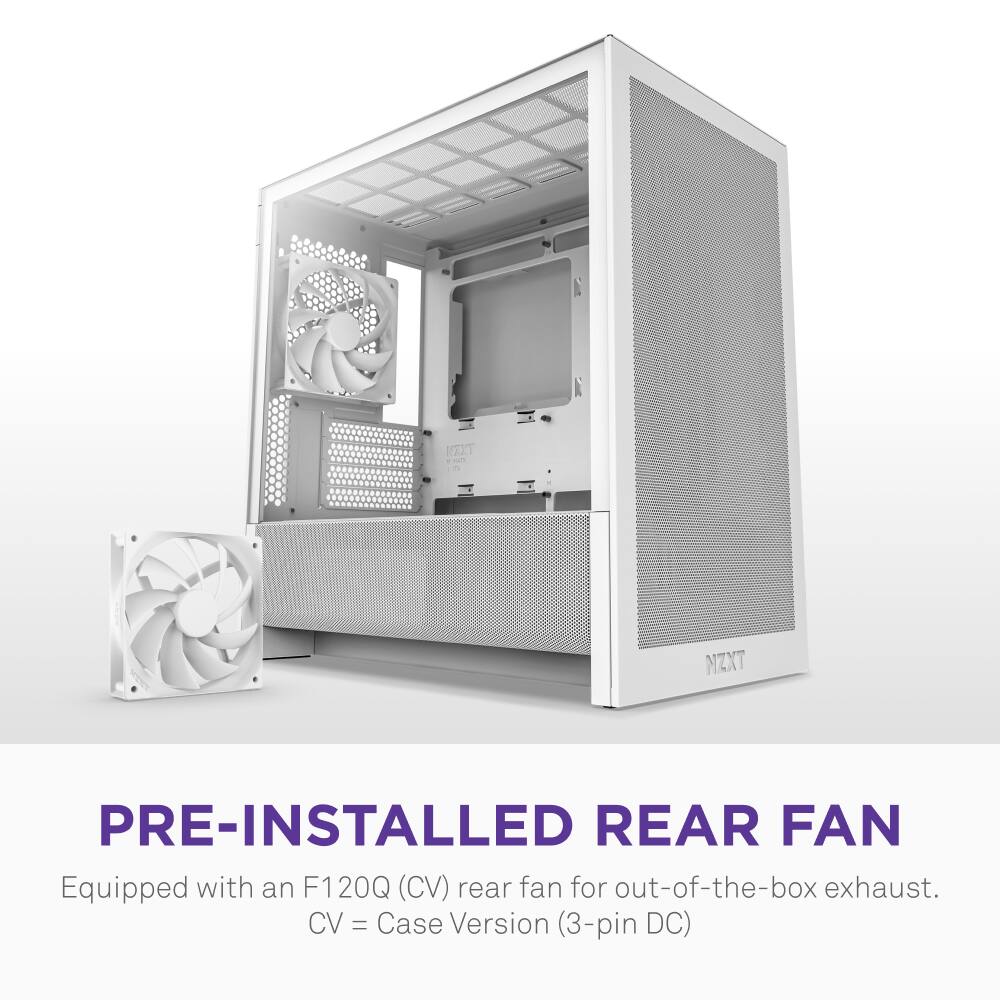

- Pre-Installed Rear Fan: Comes equipped with an F120Q (CV) fan at the rear for efficient exhaust airflow right out of the box.
- Easy Cable Management: Integrated cable channels and tie-down points simplify cable routing for a clean and organized build.

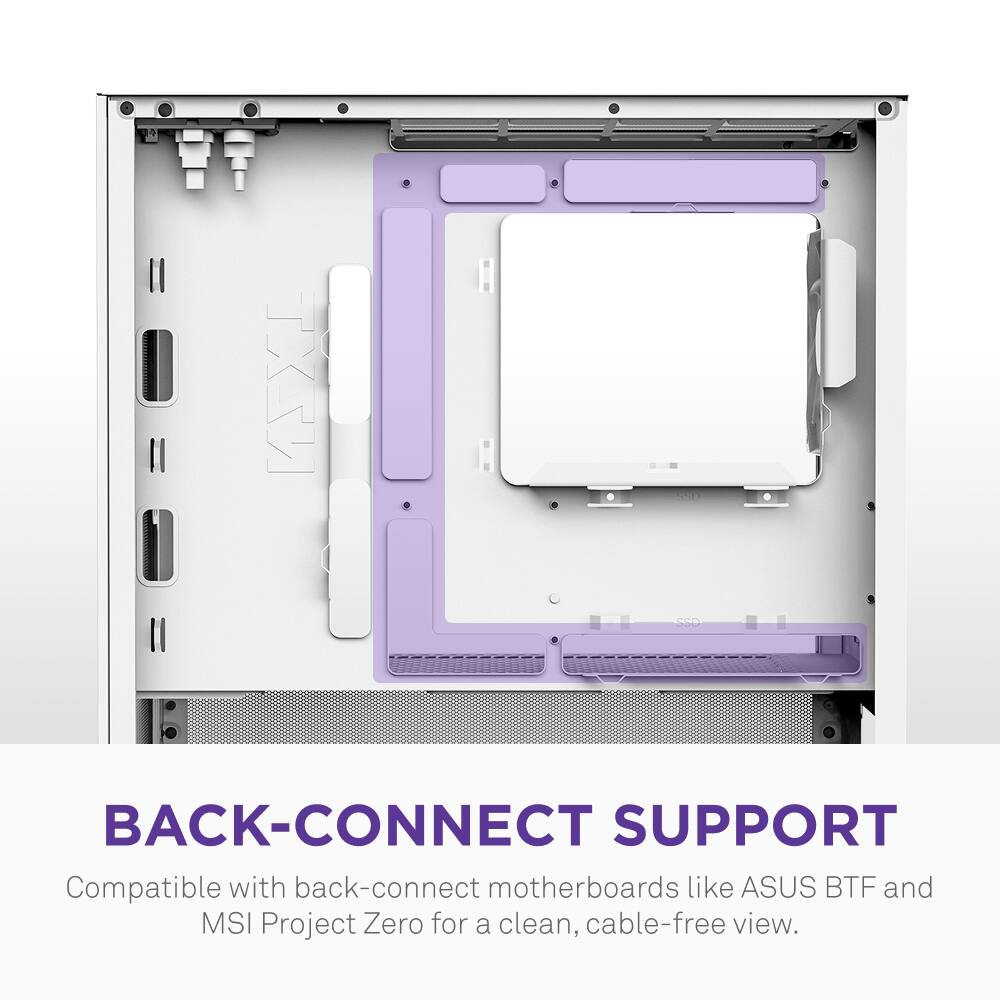

- Back-Connect Motherboard Ready: Fully compatible with rear-connect motherboards like ASUS BTF and MSI Project Zero, enabling a sleek, cable-free appearance.

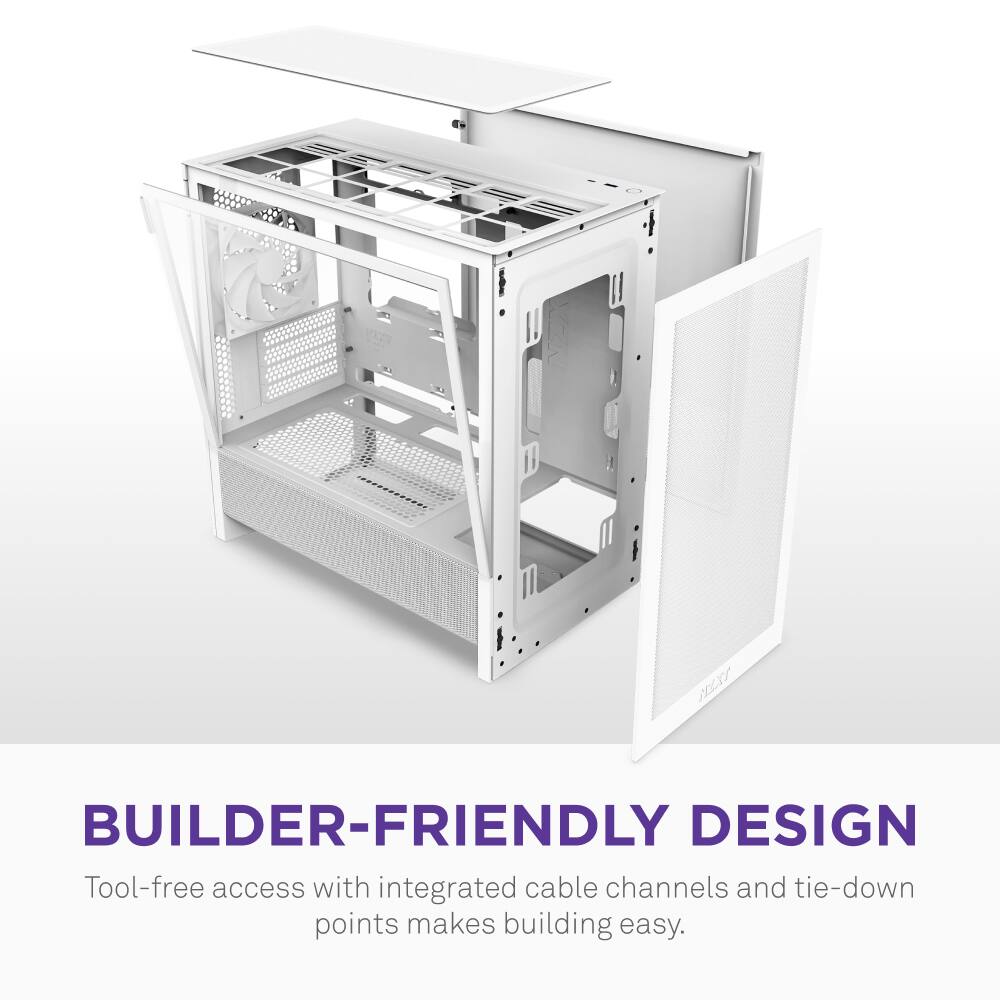

- Tool-Free Entry: Removable top, front, and side panels allow quick, easy access for upgrades and cleaning—no tools required.
Q: How many fans are included with this PC case?
A: This PC case includes one fan.
Q: What is the maximum GPU length supported by this PC case?
A: This PC case supports a maximum GPU length of 377 millimeters.
Q: Does this PC case support liquid cooling?
A: Yes, this PC case is liquid cooling ready.
Q: Does this PC case have an integrated cable management system?
A: Yes, this PC case has integrated cable channels and tie-down points.
Q: What type of motherboard form factor does this PC case support?
A: This PC case supports microATX motherboard form factor.
Q: Are any tools required to open this PC case?
A: No, this PC case allows tool-free entry.
Q: Is it possible to customize the lighting on this PC case?
A: Yes, the PC case has customizable case lighting.
A: undefined
Compare similar products
The H3 Flow is a space-efficient micro-ATX PC case delivering exceptional airflow and versatile component compatibility. Designed for optimal cooling, the mesh panels and ventilated PSU shroud keep high-performance components running smoothly.
The H5 Flow boosts airflow and GPU cooling with its fully-perforated PSU shroud, mesh panels, and robust radiator support.
Built for amazing views thanks to the front and side tempered glass side panels the View 170 TG ARGB Snow is sure to impress. Supporting M-ATX builds, mounting points for up to 7 fans, and a ventilated bottom shroud the View 170 TG ARGB Snow brings flexibility in a small package.
The CORSAIR 3500X RS-R ARGB Mid-Tower Glass PC Case delivers bold lighting, strong airflow, and a clean, modern look with wraparound tempered glass. Three pre-installed RS-R reverse rotor fans connect via a +5V ARGB header, while its spacious interior fits large GPUs and 360mm radiators. Includes GPU support and reverse motherboard compatibility.
| Pros for NZXT - H3 Flow Micro-ATX High-Airflow PC Case - White | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | There were no pros for this product— | Appearance, Case Design, Airflow, Ease of Use, Cable Management |
Specs
Reviews
Rating 4.8 out of 5 stars with 37 reviews

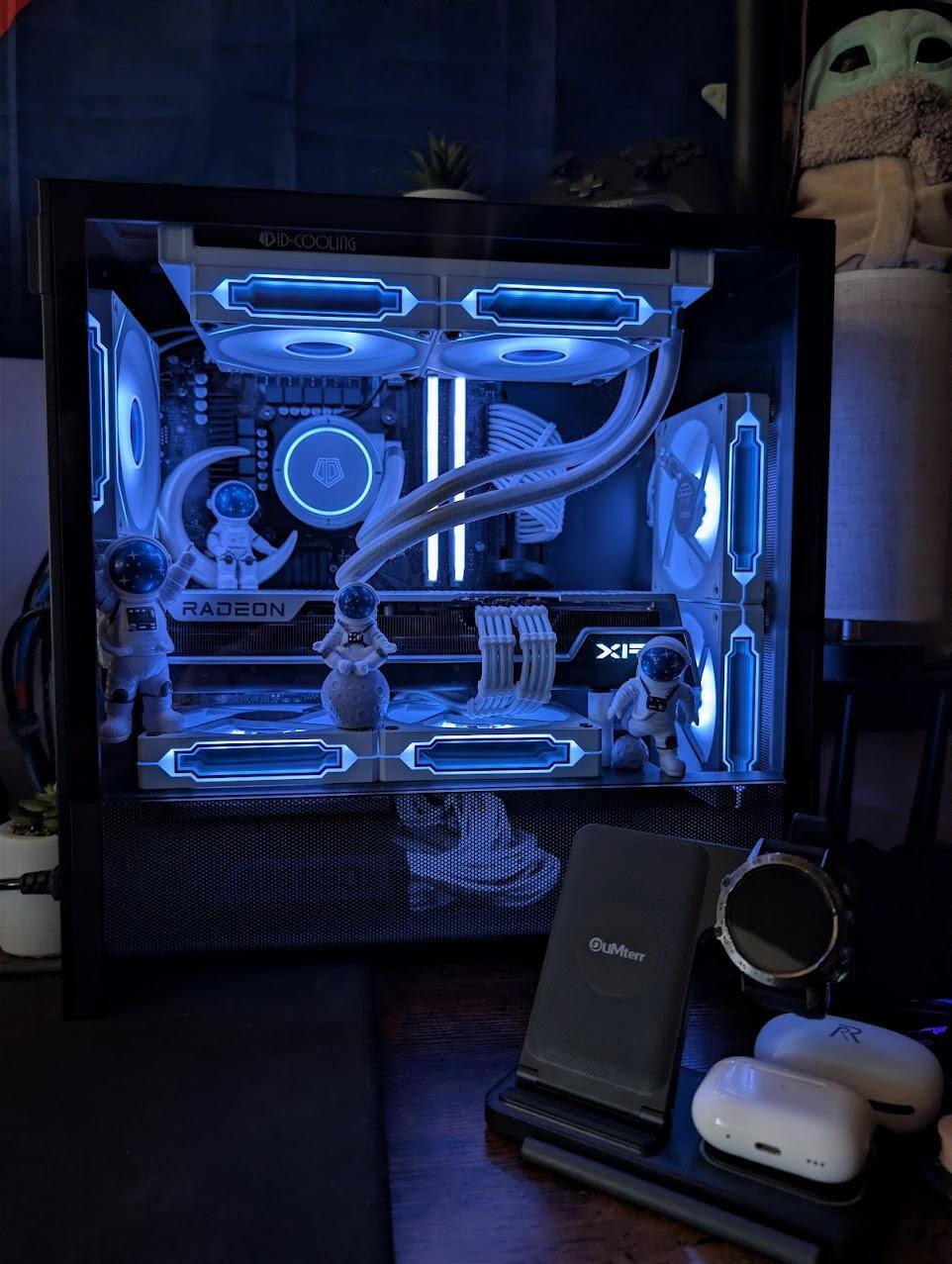

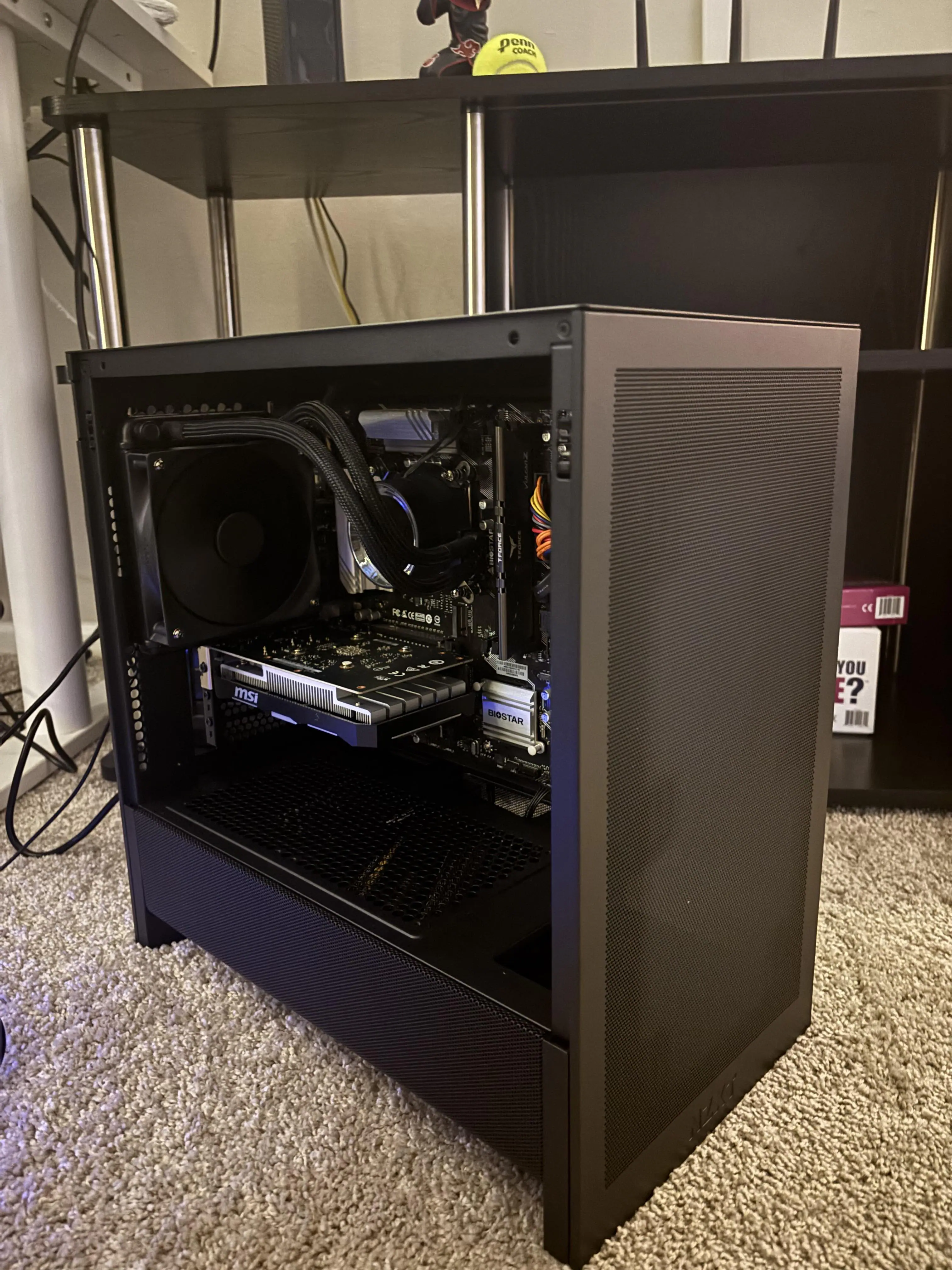

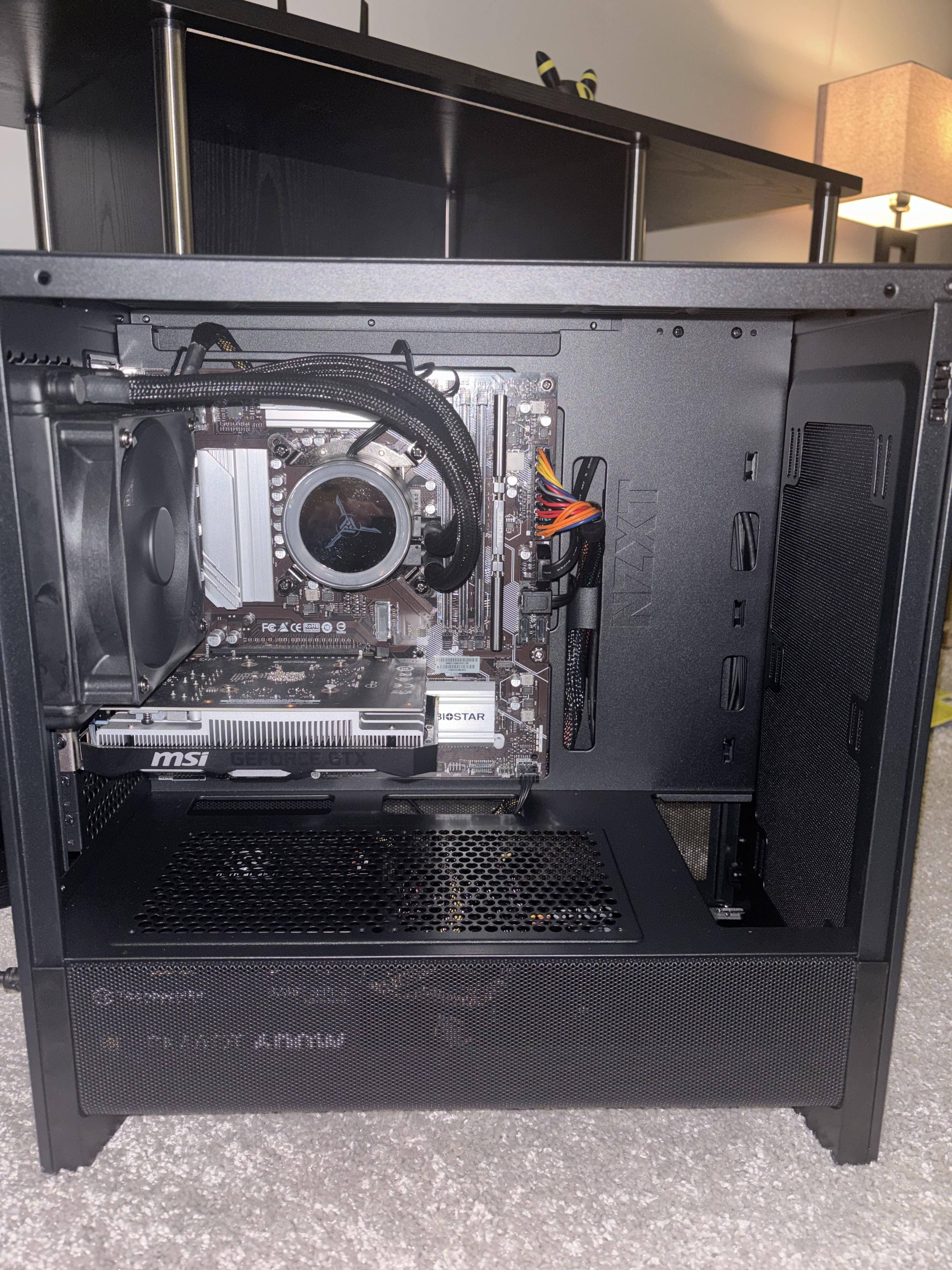

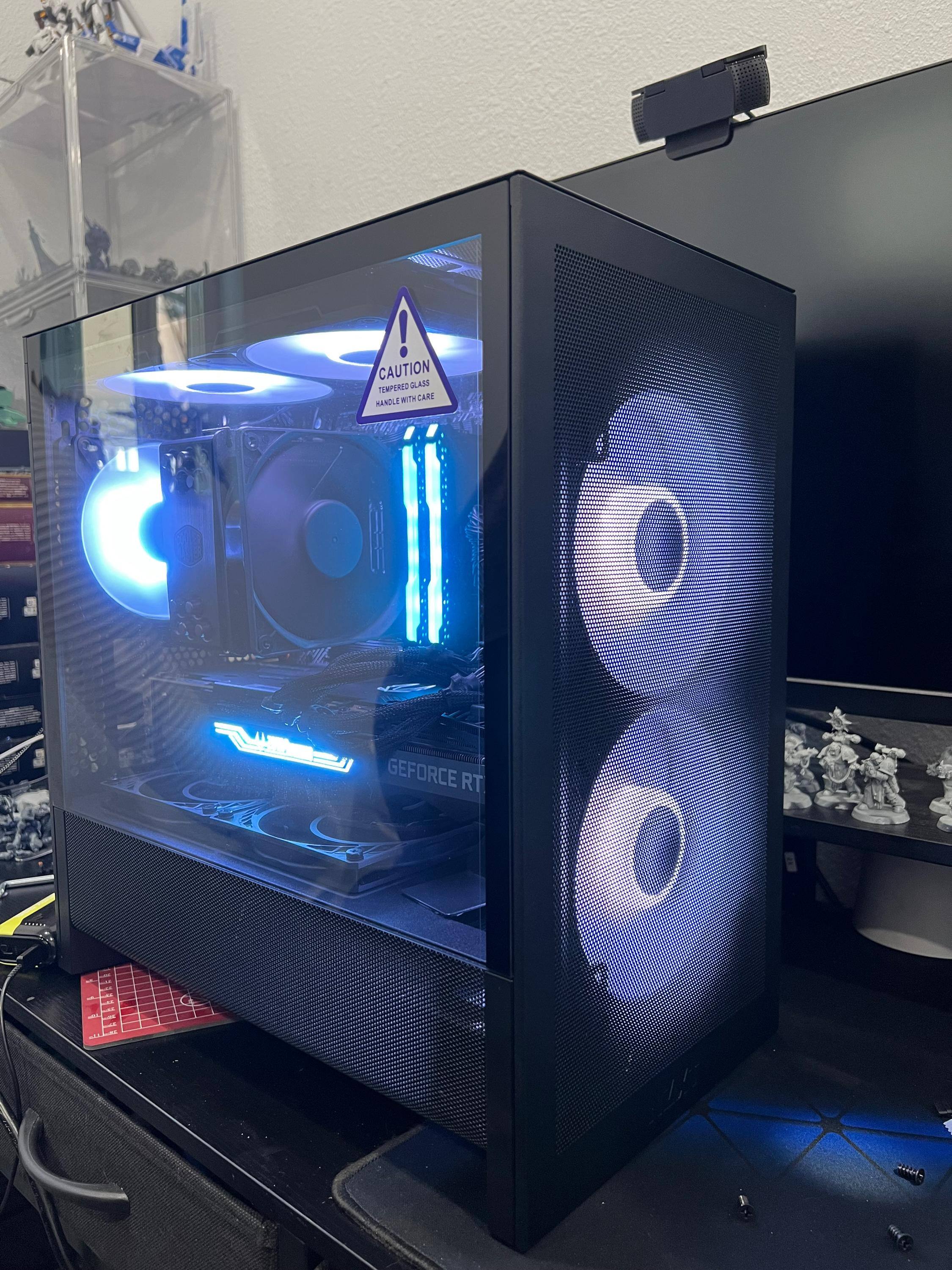

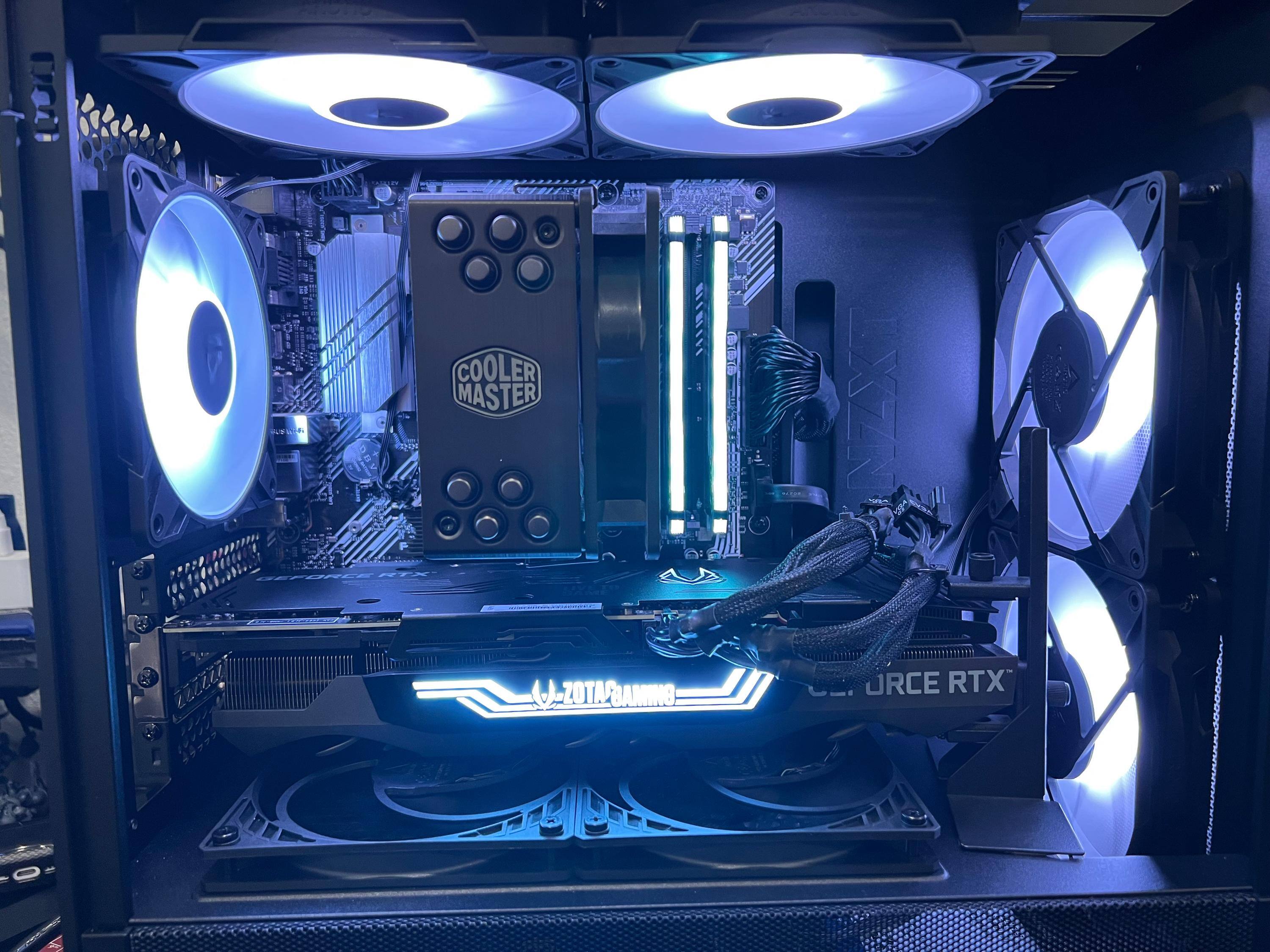

Customer Images
