  • Renogy Battery Monitor: 85% 84Ah V 08:44 V 136W OK 13.2v-10.3A

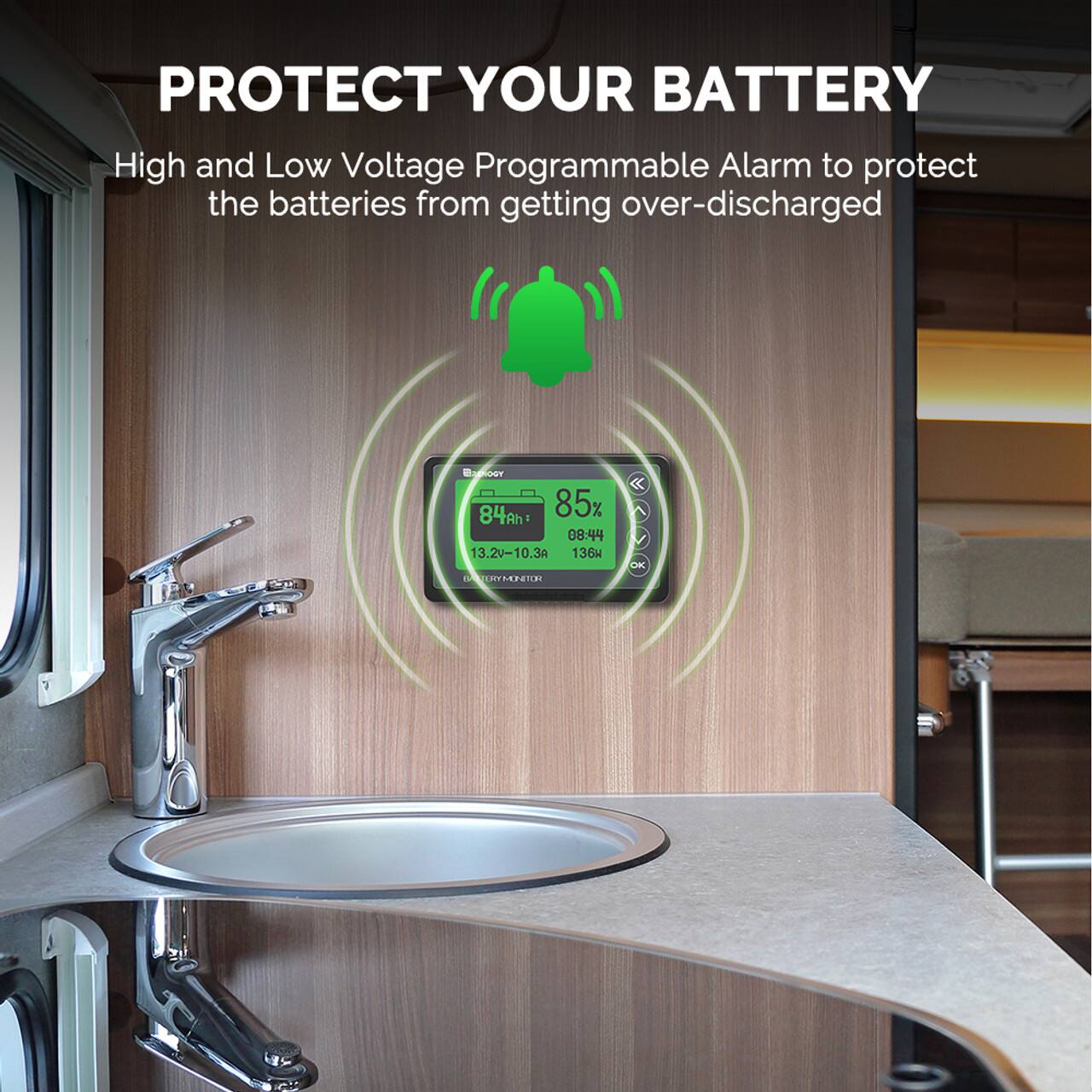

  • Protect Your Battery: High and Low Voltage Programmable Alarm to protect the batteries from getting over-discharged. 84Ah 85% 08:44 13.2v-10.34 1364 Fault Protected OK.

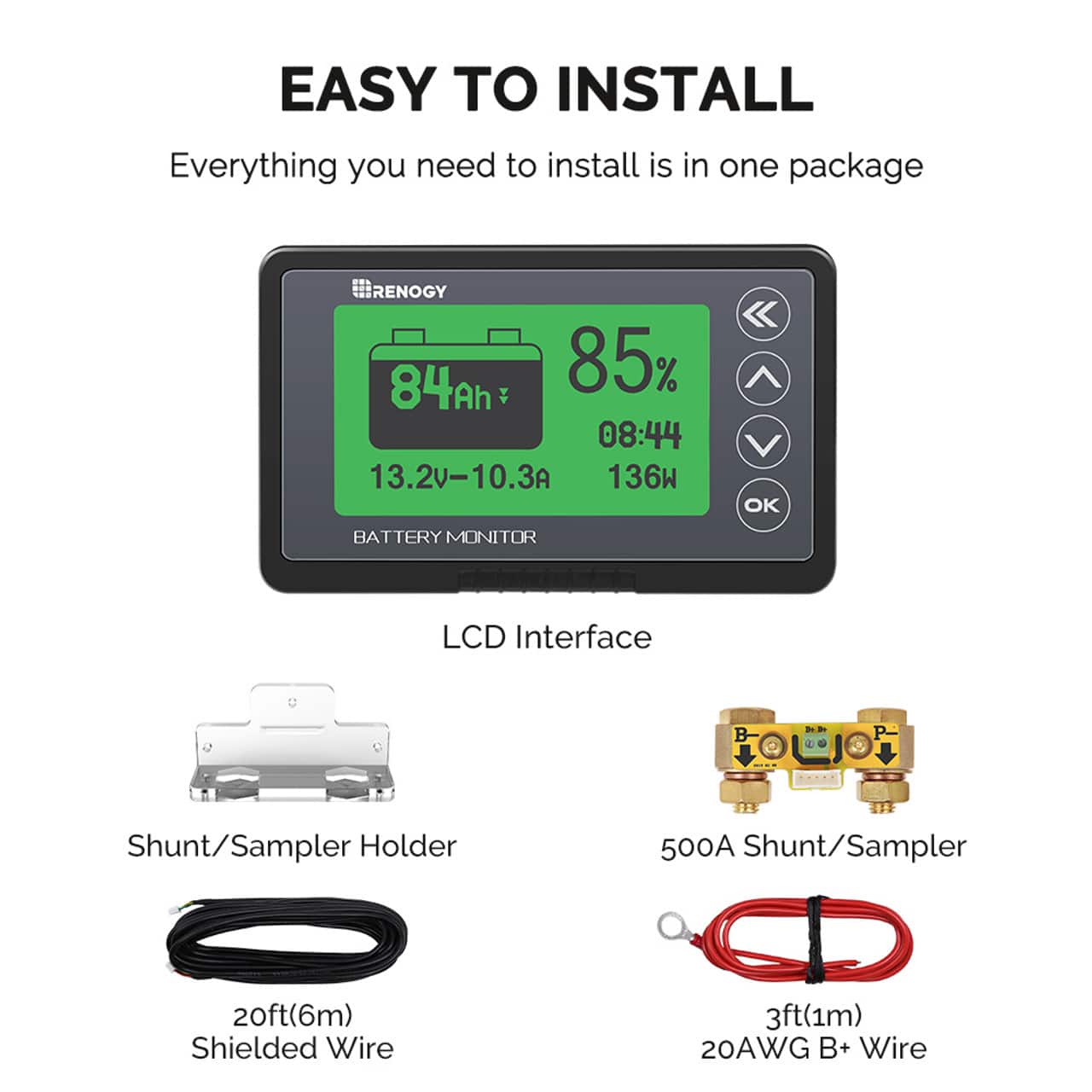

  • The text on the image has been grouped and corrected as follows: Easy to install: Everything you need to install is in one package. Renogy 84Ah 85% 08:44 13.20-10.3A 136W OK Battery Monitor LCD Interface 4 P 2 Shunt/Sampler Holder 500A Shunt/Sampler 20ft(6m) Shielded Wire 3ft(1m) 20AWG B+ Wire

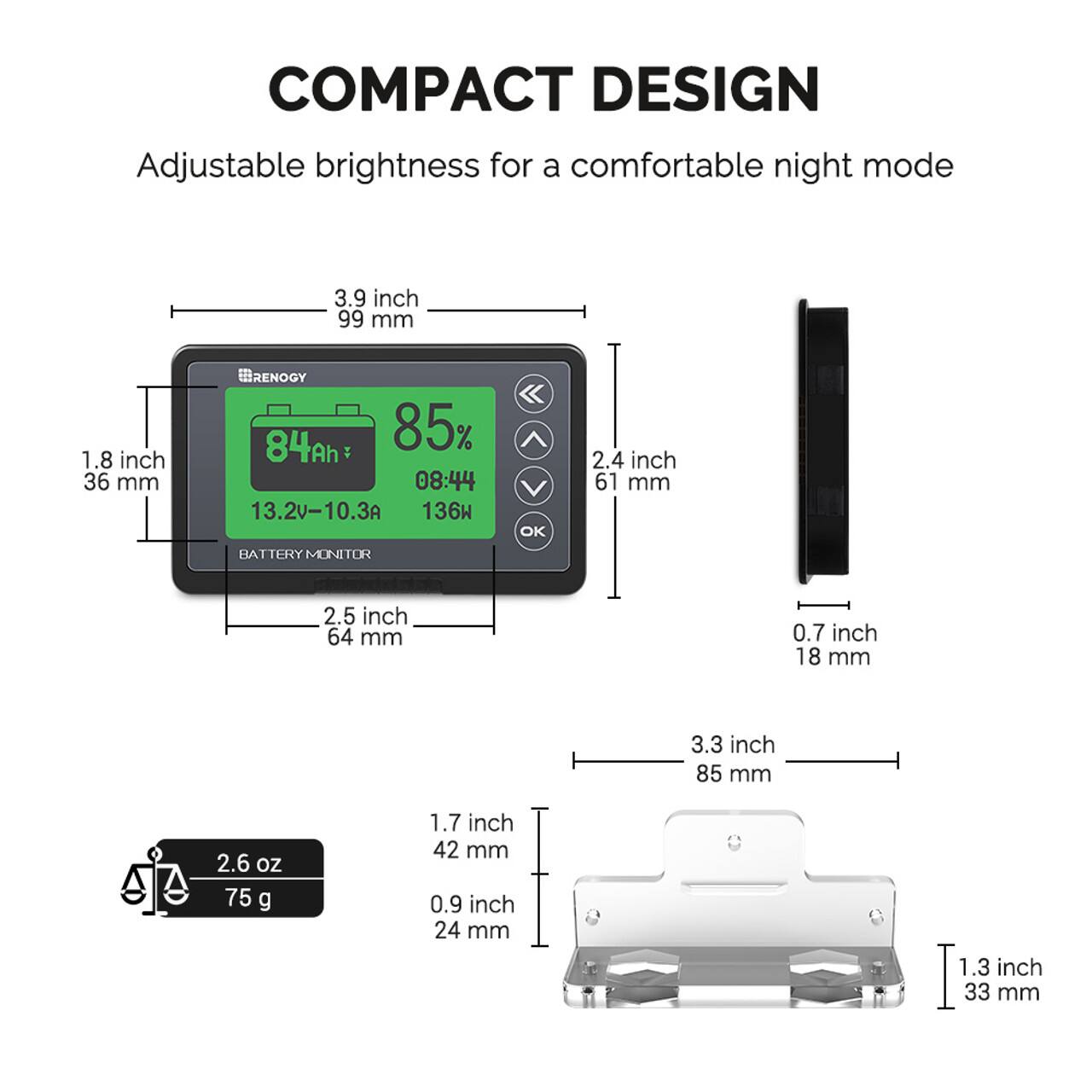

  • COMPACT DESIGN Adjustable brightness for a comfortable night mode 3.9 inch 99 mm 1.8 inch 36 mm BRENOGY 84Ah 85% 08:44 13.20-10.3A 136W BATTERY MONITOR mee 2.5 inch 64 mm OK 2.4 inch 61 mm 0.7 inch 18 mm 3.3 inch 85 mm 2.6 oz 75 g 1.7 inch 42 mm 0.9 inch 24 mm 1.3 inch 33 mm

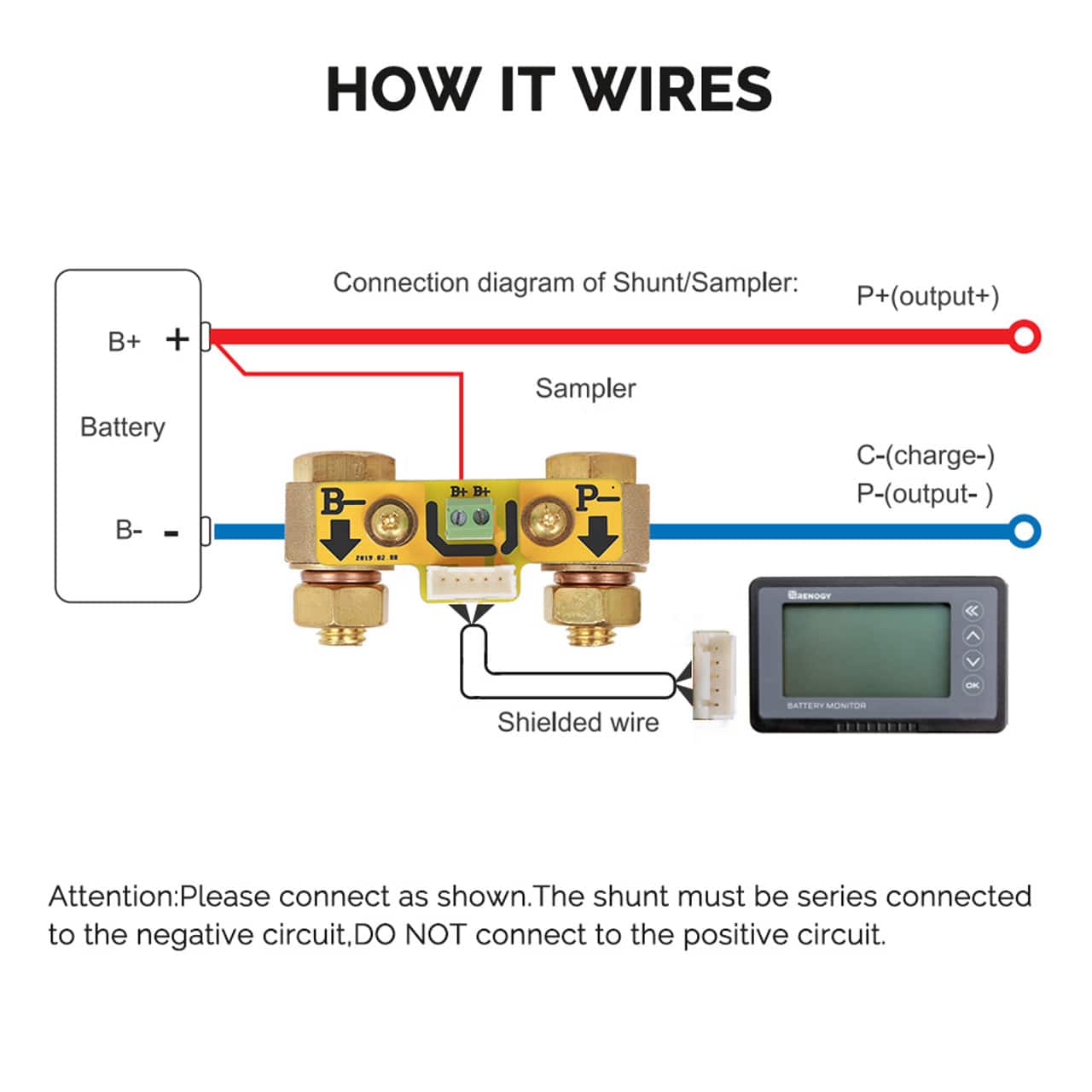

  • HOW IT WIRES: Connection diagram of Shunt/Sampler: P+(output+) - Battery B- - B- B+ - B+ Sampler P - C-(charge-) P-(output-) Attention: Please connect as shown. The shunt must be series connected to the negative circuit, DO NOT connect to the positive circuit.

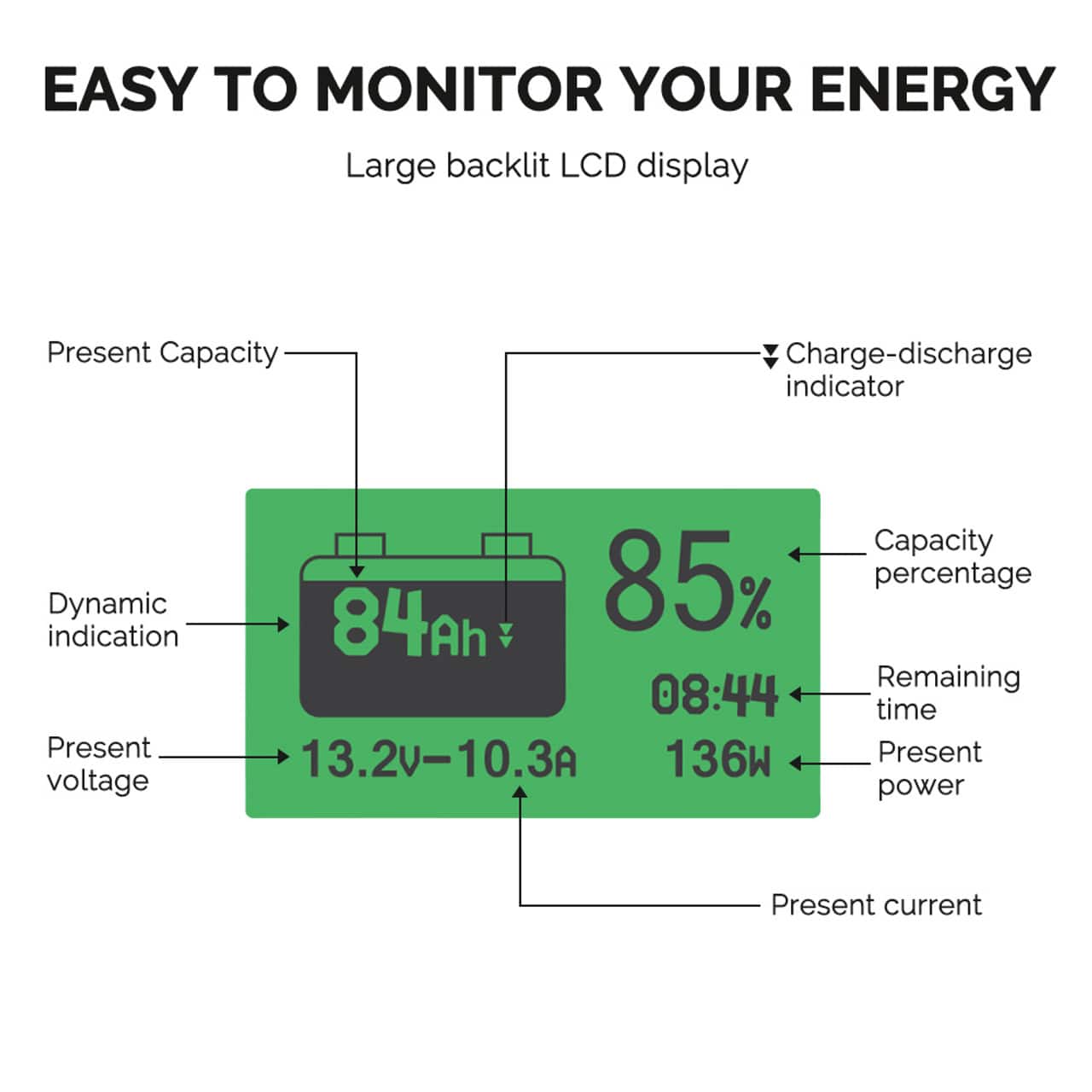

  • Easy to Monitor Your Energy: Large Backlit LCD Display, Present Capacity, Charge-discharge Indicator, Dynamic Indication, Present Voltage, 84Ah, 85%, 08:44, 13.20-10.3A, 136W, Capacity Percentage, Remaining Time, Present Power, Present Current.

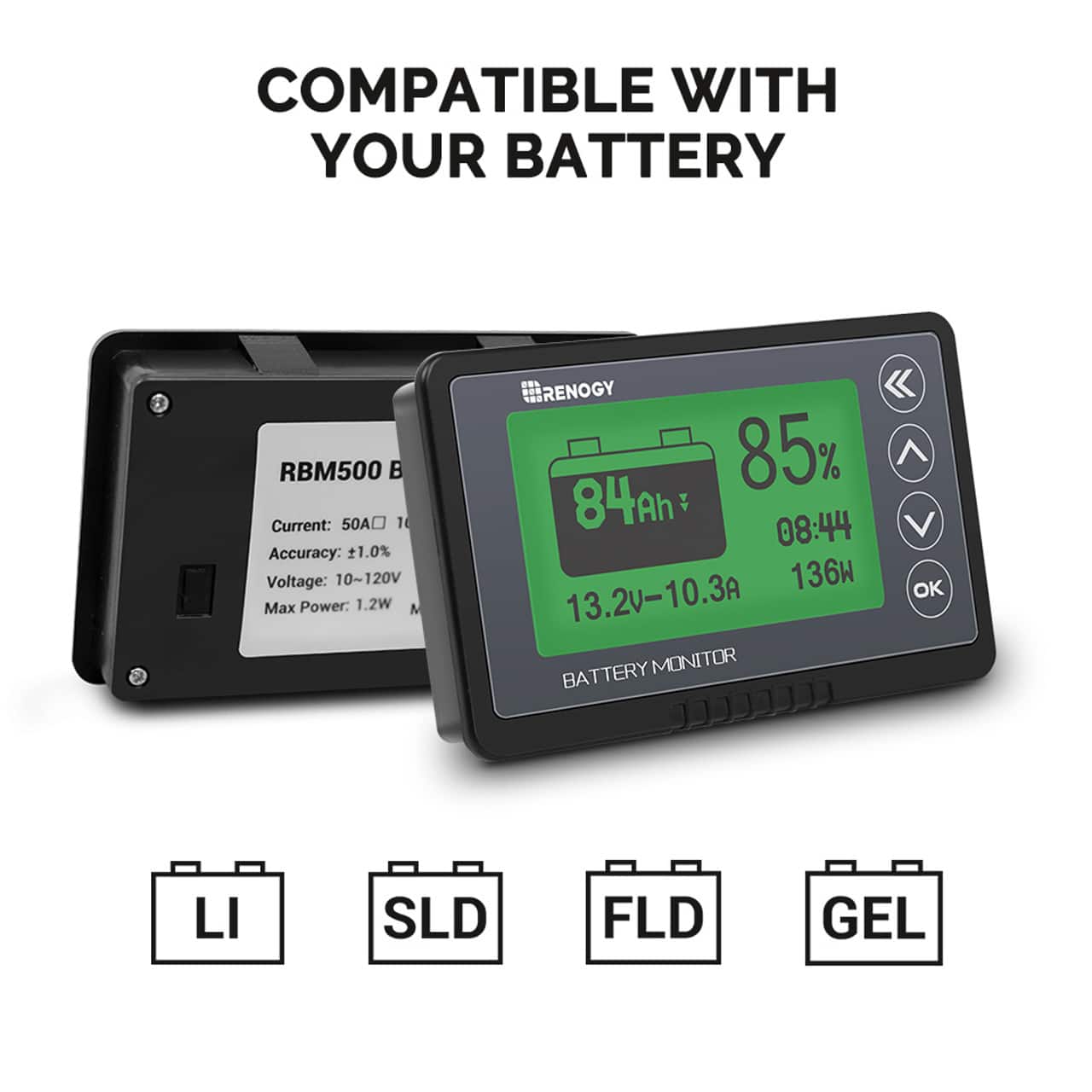

  • The text on the image is already grouped and correctly formatted. It reads: COMPATIBLE WITH YOUR BATTERY RBM500 B Current: 50A 1 Accuracy: 1.0% Voltage: 10~120V Max Power. 1.2W M RENOGY 85% 84Ah 08:44 136W 13.20-10.3A BATTERY MONITOR OK LI SLD FLD GEL

Renogy - 500A Battery Monitor With Shunt - Black

Model:
RBM500-G3-US
SKU:
6612691
Your price for this item is $63.99
The comparable value price is $89.99
Page Showing 1-5 of 5 questions
Ask a Question

  • QuestionWhat are the dimensions of the battery monitor?

    • Answer The battery monitor has a width of 2.4 inches, a height of 0.7 inches, and a depth of 3.9 inches.
    This question and answer was generated by AI based on customer and product data.

  • QuestionWhat is the voltage range that the battery monitor can handle?

    • Answer The battery monitor can handle a voltage range from 10V to 120V.
    This question and answer was generated by AI based on customer and product data.

  • QuestionWhat types of batteries is the battery monitor compatible with?

    • Answer The Renogy Battery Monitor is compatible with 12V lithium sealed, gel, and flooded batteries.
    This question and answer was generated by AI based on customer and product data.

  • QuestionWhat is the weight of the battery monitor?

    • Answer The product weight is 0.16 pounds.
    This question and answer was generated by AI based on customer and product data.

  • QuestionWill this monitor work with a lead acid BATTERY?

    Asked by johne.

    • Answer Hi Johne, thank you for reaching out to Renogy! Yes, the 500A Battery Monitor is compatible with lead acid batteries. You’ll just need to reference the battery’s SOC chart when configuring the monitor settings. If you have any additional questions, feel free to give us a call at (1) 909-287-7111. Our team is available Monday through Friday from 6 am to 5 pm PST.

      Answered by RENOGY
