Schumacher Electric - Level 2 240V NEMA 14-50 Plug-in EV Wall Charger with Wi-Fi/Bluetooth and J1772 Connector - Gray
Installation: Get your EV charger professionally installed by our service partner Helm Smart Energy
General
Product NameLevel 2 240V NEMA 14-50 Plug-in EV Wall Charger with Wi-Fi/Bluetooth and J1772 ConnectorBrandSchumacher ElectricModel NumberSEV1600P1450ColorGray
Power
Electric Vehicle Charging LevelLevel 2Input Wiring TypeNEMA 14-50Charging Cable Length25 feet
Connectivity
Connector Type(s)SAE J1722 (Type 1)Wireless ConnectivityWi-Fi, Bluetooth
Compatibility
App CompatibleYes
Features
Number of Vehicles Charged Simultaneously1Mount TypeWall
Certifications Listings & Approvals
ENERGY STAR CertifiedNo
Dimensions
Product Height12.00 inchesProduct Width17.50 inchesProduct Depth19.50 inchesProduct Weight24.4 pounds
Warranty
Manufacturer's Warranty - Parts3 years limitedManufacturer's Warranty - Labor3 years limited
Other
UPC026666826006
Electric Vehicles are quickly occupying a growing share of the new automobile market. Owners of EVs prefer charging their vehicle at home and are updating their home with the newest EV charging technology. With the Schumacher SEV1600P1450 Level 2 EV Wall Charger, homeowners can enjoy the convenience of fast charging in their own home garage or driveway. The Schumacher SEV1600P1450 NEMA 14-50 Level 2 EV Wall Charger has a configurable current up to 50A (when hardwired), allowing it to charge up to eight times faster than a standard Level 1 charger. The included charging gun with an SAE-J1772 (universal) connector is compatible with most North American EVs, although Tesla vehicles will require an adapter (sold separately). The charger is also easy to use. Simply plug the charging gun into the EV’s charging port and charging is automatic. Integrated Wi-Fi and Bluetooth then let users connect to the SchuPower app to monitor and schedule charging. A low-profile design and built-in cord management with the flexible cable cradle prevent the unit from cluttering up the garage or drive, giving homeowners plenty of clearance when pulling a vehicle into or out of the space. There is also an interchangeable dock with dual docking capability letting users customize their usage for added comfort and convenience. A 25-foot charging cable makes it possible to easily charge vehicles parked in a garage or driveway whether the charger is installed indoors or outdoors. The Schumacher SEV1600P1450 Level 2 EV Wall Charger must be installed by a licensed electrician. Any changes to the wall charger’s electrical settings must also be made by a licensed electrician.
Rapid Charging
The SEV1600P1450 employs Level 2 charging, which is up to eight times faster than a level 1 charger.
Adds Range Quickly
The Schumacher Level 2 EV charger can add from 15 to 48 miles of range per hour.
Industry Leading Power
With output power of 240V and a rated current of 50A (hardwired only), the SEV1600P1450 is one of the fastest chargers on the market.

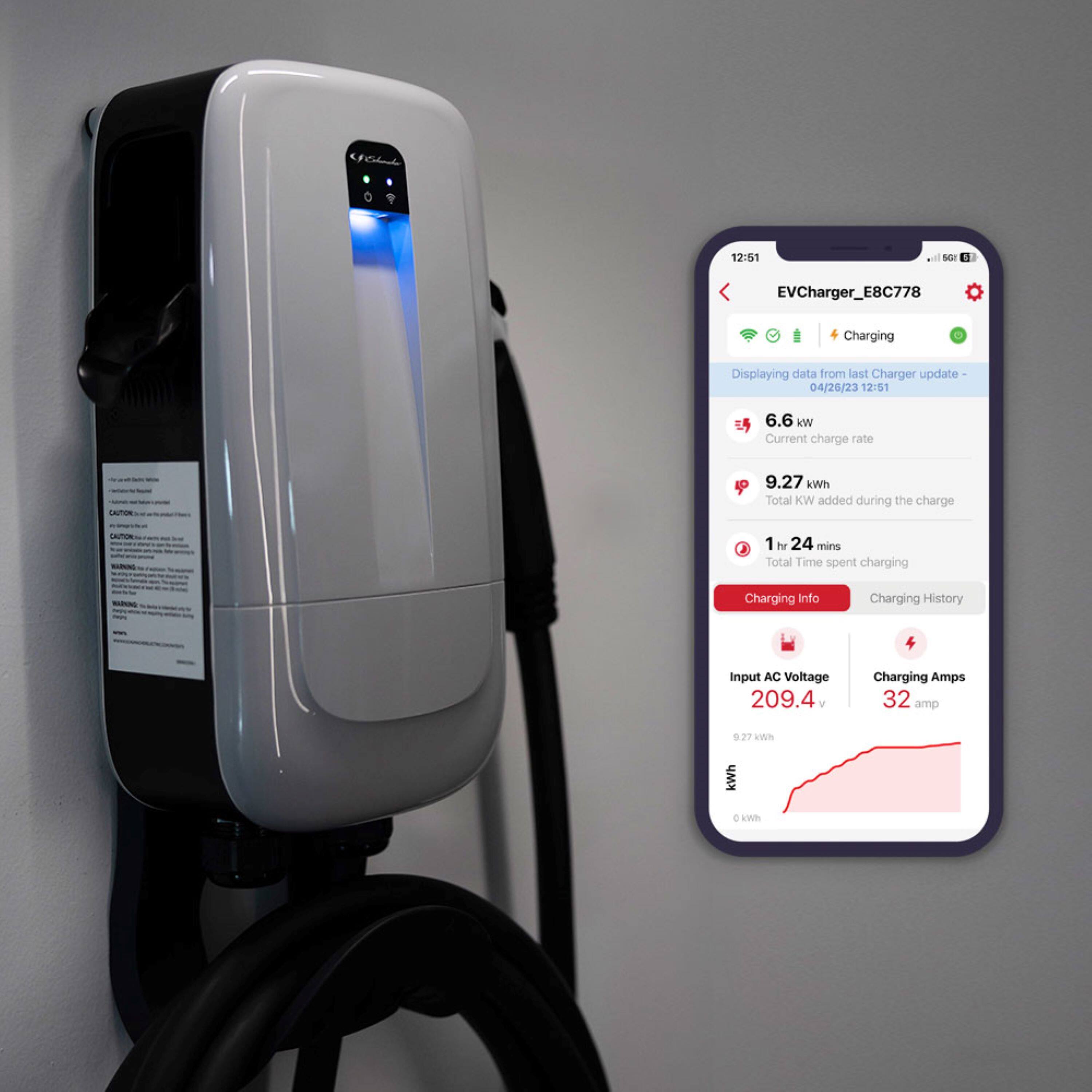

Bluetooth/Wi-Fi Connected
The integrated Wi-Fi and Bluetooth provide a secure connection to the SchuPower App.

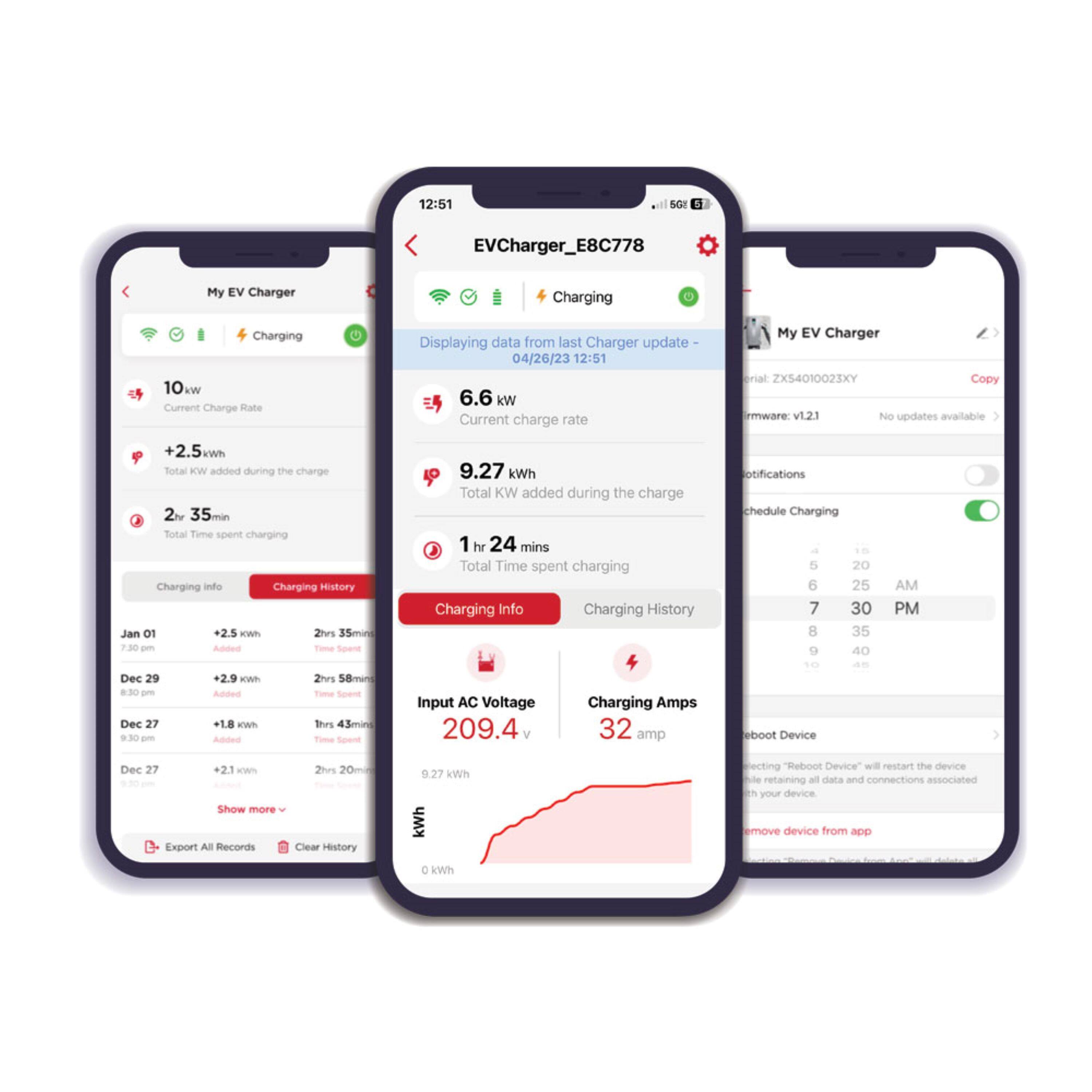

SchuPower App
The SchuPower App allows users to schedule charging, start and stop a charging session in real time, track charging history, see any faults or errors that occur during charging, and monitor charging in real time with a “pull down to refresh” feature.

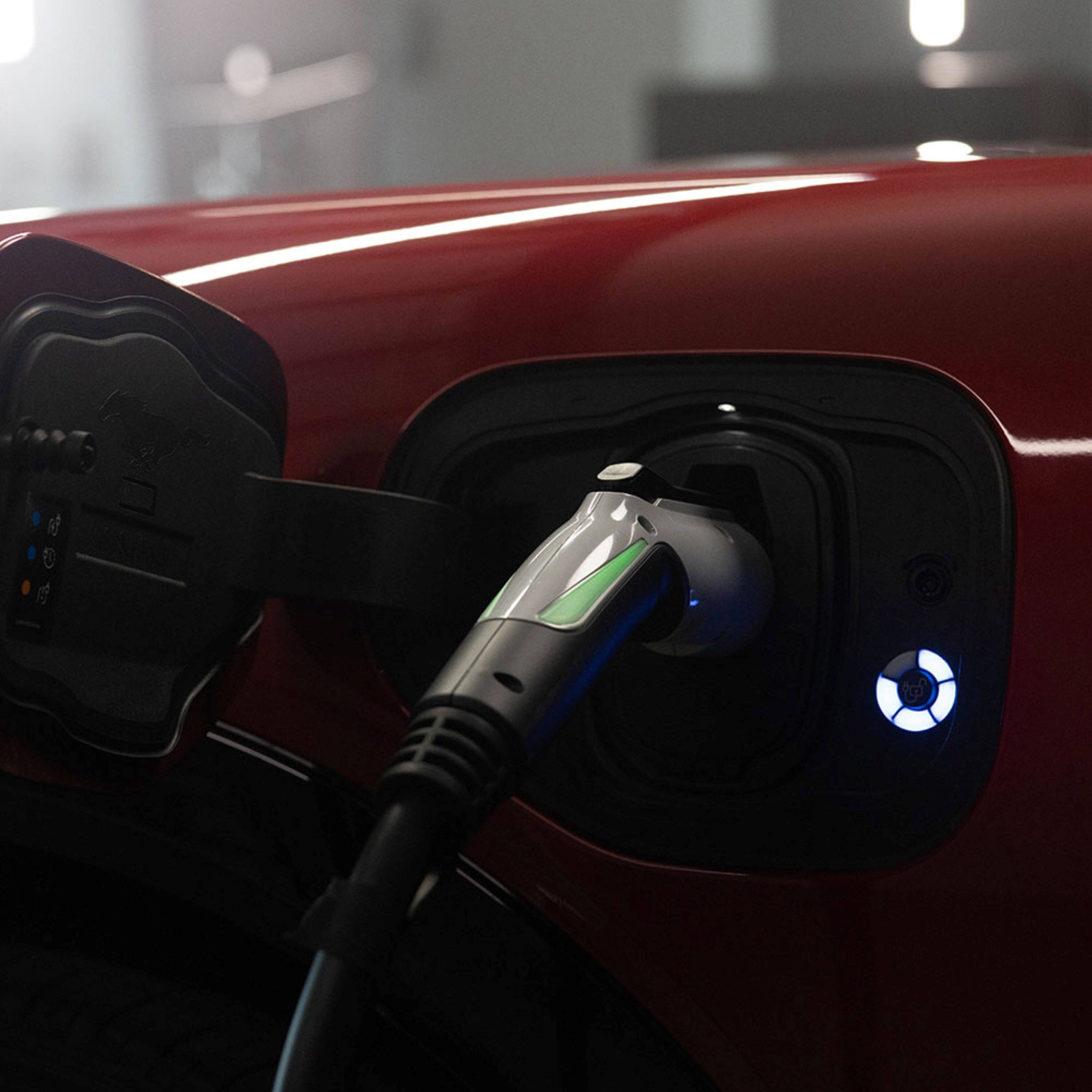

Universal Connector
The charging gun features a J1772 universal connector that is compatible with most North American EVs. Tesla vehicles will need an adapter (sold separately).
Extra-long Charging Cable
With an impressive 25-foot charging cable, the SEV1600P1450 can be installed nearly anywhere in a garage or driveway and still provide easy charging of multiple vehicles.
Configurable Current
The unit’s current can be configured to work with your home’s power system with current settings of 16A, 24A, 32A, 40A, 48A (hardwired only), and 50A (hardwired only).
Configurable Power
The unit’s power can be configured to work with your home’s power system with power settings of 3.8kW, 5.8kW, 7.7kW, 9.6kW, 11.5kW (hardwired only), and 12.0kW (hardwired only).
Cord Management
Easily store the charging cable in the built-in cable cradle.

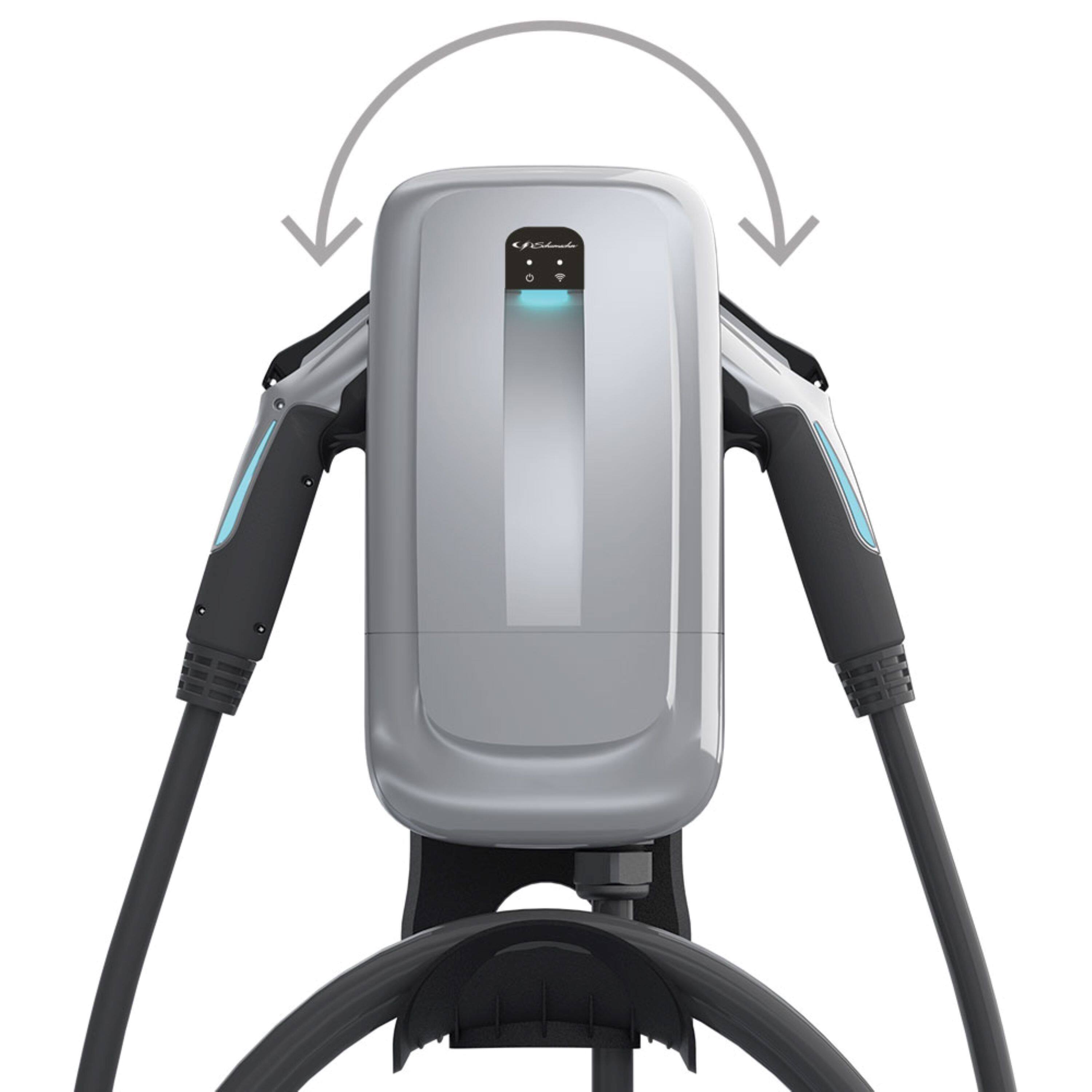

Interchangeable Dock
The interchangeable dock lets you store the charging gun on either side of the unit.
Low-Profile Design
The compact design ensures that the unit only extends 4.25 inches from the wall to allow plenty of clearance for vehicles.
Weather-Resistant
The weather-resistant enclosure allow homeowners to install the charger indoors or outdoors with peace of mind.
Tax Credits and Rebates
The SEV1600P1450 may be eligible for federal, state, and local tax credits and rebates.
Energy Star and MET Certified
The Schumacher SEV1600P1450 is certified by Energy Star for energy efficiency and MET for safety.
Three-year Warranty
The Schumacher SEV1600P1450 features a three-year manufacturer warranty.
What's Included
Schumacher Electric Level 2 240V NEMA 14-50 Plug-in EV Wall Charger with Wi-Fi/Bluetooth and J1772 Connector
Output cable with EV charging gun
Cable cradle
(2) 5.5 mm (0.22 in.) x 50 mm (2 in.) lag screws for wall mounting
(2) 4 mm (0.16 in.) x 16 mm (0.63 in.) self-tapping screws to attach the cable cradle
Mounting template
User manual
Search
Q: QuestionCan I use this charger outdoors?(1 answer)
A: AnswerYes, the charger has a weather-resistant enclosure, allowing for both indoor and outdoor installation.This question and answer was generated by AI based on customer and product data.Q: QuestionWhat type of connector does the charging gun use?(1 answer)
A: AnswerThe charging gun uses a J1772 universal connector, which is compatible with most North American Electric Vehicles.This question and answer was generated by AI based on customer and product data.Q: QuestionHow long is the charging cable?(1 answer)
A: AnswerThe charging cable is 25 feet long.This question and answer was generated by AI based on customer and product data.Q: QuestionIs the current adjustable on this charger?(1 answer)
A: AnswerYes, the current can be configured to 16A, 24A, 32A, 40A, 48A (hardwired only), or 50A (hardwired only).This question and answer was generated by AI based on customer and product data.Q: QuestionDoes this charger have smart features?(1 answer)
A: AnswerYes, it has built-in Wi-Fi and Bluetooth, allowing you to monitor and schedule charging through the SchuPower app.This question and answer was generated by AI based on customer and product data.Q: QuestionHow much faster is Level 2 charging compared to Level 1?(1 answer)
A: AnswerLevel 2 charging is up to eight times faster than Level 1 charging.This question and answer was generated by AI based on customer and product data.Q: QuestionHow do. i. get it to. release from the vehicle after. charging?(0 answers)
