Wallbox - Cable Pulsar Plus J1772 Level 2 NEMA 14-50 Electric Vehicle (EV) Charger up to 40A - 25' - Black
Related Item
- General
- Brand: Wallbox
- Model Number: PUP1-U-1-5-N-002-A
- Product Name: Cable Pulsar Plus J1772 Level 2 NEMA 14-50 Electric Vehicle (EV) Charger up to 40A - 25'
- Color: Black
- Power
- Electric Vehicle Charging Level: Level 2 (Level 1 chargers connect to a standard 120V outlet but may take nearly a day to charge a vehicle. Level 2 chargers connect to a dedicated 240V outlet and charge most vehicles within a few hours. Level 3 chargers require a specialized charger and are typically found in public, fast charging stations. Charging requirements vary by vehicle.)
- Input Wiring Type: NEMA 14-50
- Power Requirements: 240/208V
- Circuit Breaker Needed: 50A
- Charging Rate: 9.6kW
- Charging Cable Length: 25 feet
- Surge Protection: Yes
- Connectivity
- Connector Type(s): SAE J1722 (Type 1) (Type of interface connection found on the device.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Features
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Number of Vehicles Charged Simultaneously: 1
- Display Type: None
- Mount Type: Wall
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Certifications and Standards: UL
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Environmental
- Indoor or Outdoor Use: Indoor, Outdoor
- Minimum Operating Temperature: -22.0 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 104 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Maximum Operating Altitude: 6500 feet
- NEMA Enclosure Rating: Type 4
- Ingress Protection (IP) Rating: IP56 (A 4 to 6 character code classifying a product's degree of protection against intrusion of solid particles and liquids as well as impact. Each number in the IP Code denotes a level of protection, determined through testing and published by the International Electrotechnical Commission (IEC). The first digit represents the degree of protection against solid foreign objects or particles and the second digit represents the degree of protection against water ingress.)
- Dimensions
- Product Height: 10.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 18.7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 18.34 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 860004620808
The Wallbox Pulsar Plus level 2 smart EV charger offers the best of both small size and powerful performance for faster electric vehicle charging at home. This unit comes with a NEMA plug for installation. Designed for easy installation, Pulsar Plus’ J1772 connector can charge any electric car on the market today up to 7x faster than standard (120v) charging cables that come with most EVs. This home EV charging station is simple and efficient with the integrated myWallbox app, which allows you to control your electric vehicle charger from your smart devices via WiFi or Bluetooth. With Pulsar Plus, you are in control of your energy use. Schedule and manage your charging sessions to maximize efficiency and save money when electrical demand and rates are low. Get the Pulsar Plus EV charger and start charging smarter.

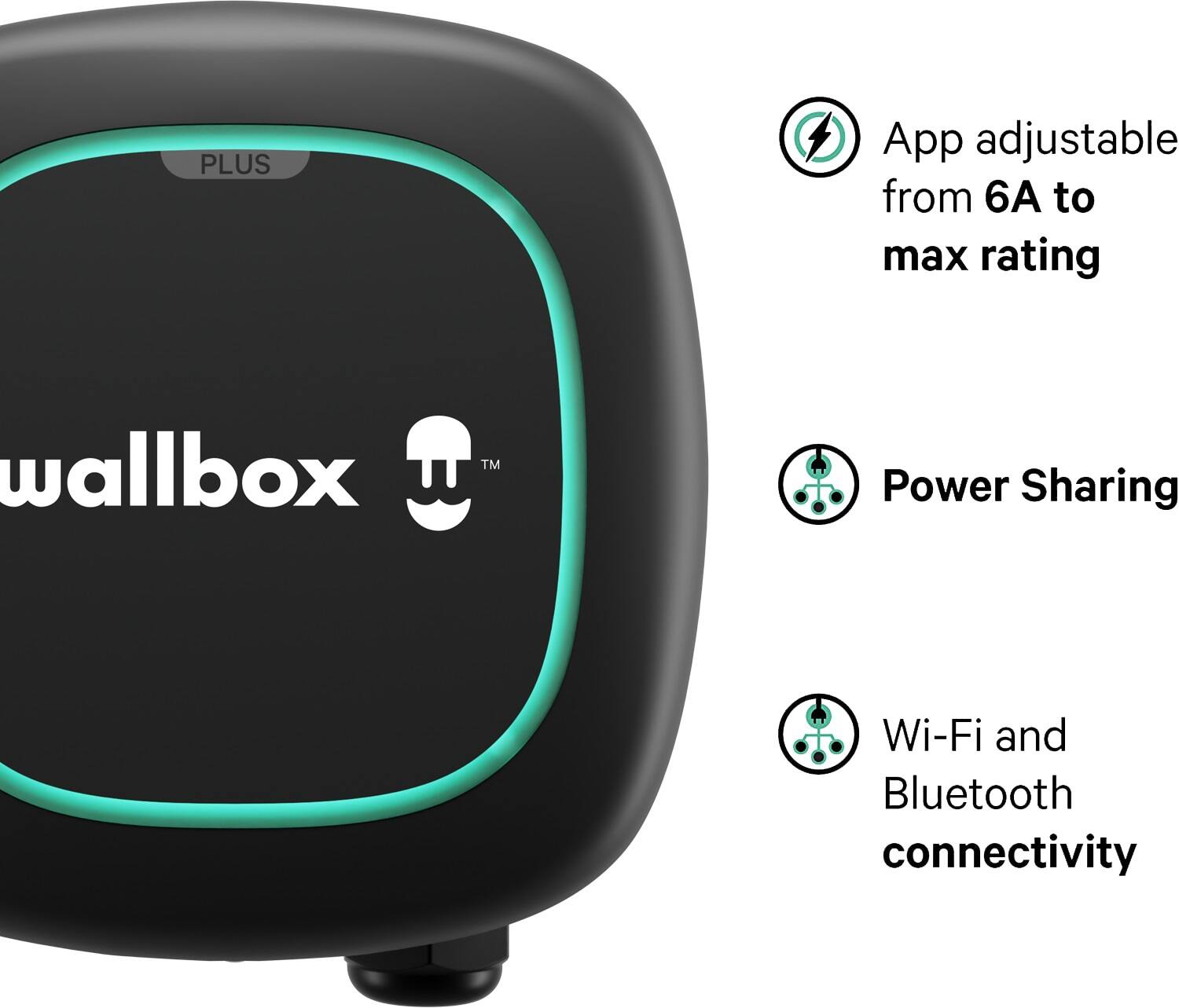

- Compact design, powerful performance: 240V, Level 2 charging technology in an incredibly small size. Adjustable capacity from 16A to 40A. Charges 7x faster than the standard Level 1 (120V) charging cables.
- Connected and Smart: Connect Pulsar Plus to your smart devices using the myWallbox app to wirelessly control and monitor your charger via Wi-Fi or Bluetooth.
- Power Sharing: Connect two or more Pulsar Plus chargers to the same electrical circuit to safely charge multiple EVs at one time.
- Onboard Intelligence: Pulsar Plus lets you plug in, charge, and manage your schedules even when you can’t connect to the internet.

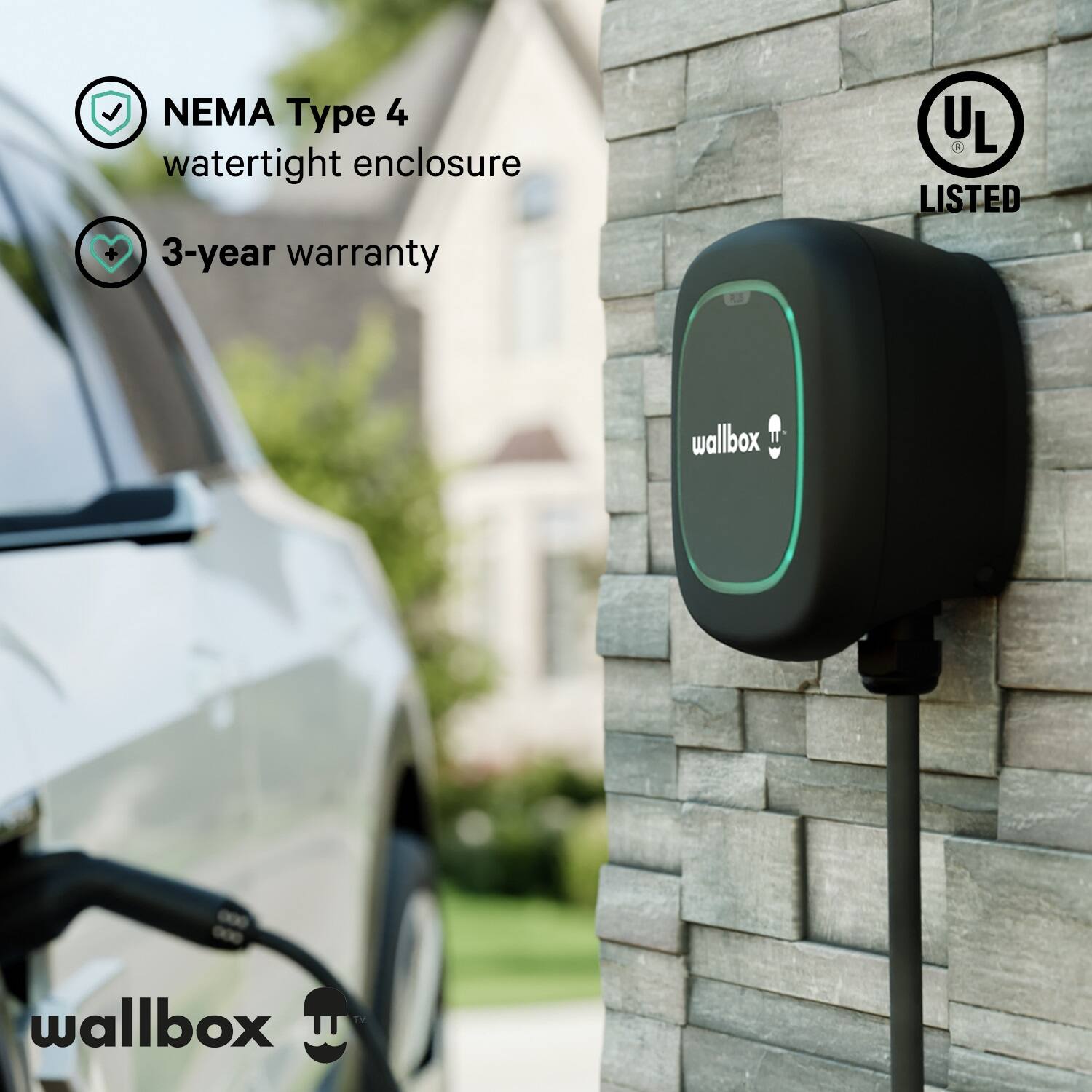

- Safe and Reliable: UL listed for electrical safety, NEMA Type 4 rated for dust/water resistance, backed by a 3-year warranty.
- Rebate Eligible: Pulsar Plus is widely eligible for federal, state, and local tax credits and rebates where available.
- Savings: Save money by scheduling your charging sesssions when energy is cheapest.
- Voice control-enabled: When connected to your home Wi-Fi network, you can control and manage your Pulsar Plus charger using Amazon Alexa or Google Assistant.

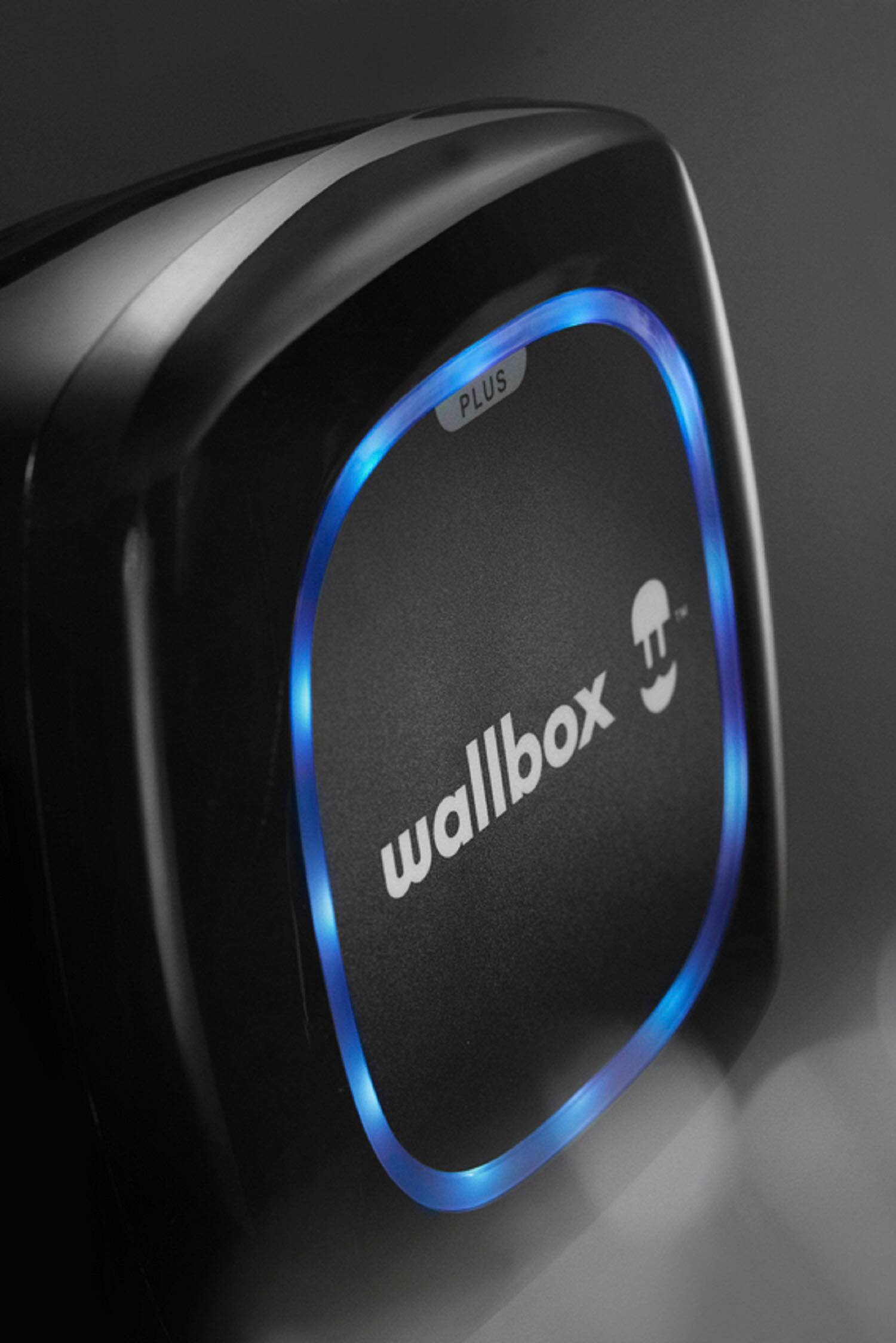

- myWallbox app: Control your wallbox through the myWallbox app.
- Remote Control: Monitor the status of your charger and control it from anywhere via your smart devices.
- Real-time Statistics: Get energy use and spending statistics in real-time.
- Security at your fingertips: Secure your charger with remote locking and unlocking.
- Energy Management Solutions: Pulsar Plus comes standard with Energy Management Solutions from Wallbox built inside. With the addition of a power meter (available from Wallbox), you can take control over your home energy use, including integrating your EV charging with your rooftop solar PV.
- Eco-Smart: Integrated EV charging and PV power management: Connect your EV charging to your home rooftop solar energy system and choose how to charge your EV--with 100% green power for maximum sustainability or with a blend of solar and grid power for maximum charging speed.
- Power Boost: With Power Boost you can dynamically balance power delivery to your connected EV in harmony with your overall household energy consumption. Power Boost allows homeowners to install their Wallbox Pulsar Plus up to full power (either 40A or 48A) and not be limited by panel bandwidth.
- Compact design, powerful performance: 240V, Level 2 charging technology in an incredibly small size. Adjustable capacity from 16A to 40A. Charges 7x faster than the standard Level 1 (120V) charging cables.
- Connected and Smart: Connect Pulsar Plus to your smart devices using the myWallbox app to wirelessly control and monitor your charger via Wi-Fi or Bluetooth.
- Power Sharing: Connect two or more Pulsar Plus chargers to the same electrical circuit to safely charge multiple EVs at one time.
- Onboard Intelligence: Pulsar Plus lets you plug in, charge, and manage your schedules even when you can’t connect to the internet.
- Safe and Reliable: UL listed for electrical safety, NEMA Type 4 rated for dust/water resistance, backed by a 3-year warranty.
- Rebate Eligible: Pulsar Plus is widely eligible for federal, state, and local tax credits and rebates where available.
- Savings: Save money by scheduling your charging sesssions when energy is cheapest.
- Voice control-enabled: When connected to your home Wi-Fi network, you can control and manage your Pulsar Plus charger using Amazon Alexa or Google Assistant.
- myWallbox app: Control your wallbox through the myWallbox app.
- Remote Control: Monitor the status of your charger and control it from anywhere via your smart devices.
- Real-time Statistics: Get energy use and spending statistics in real-time.
- Security at your fingertips: Secure your charger with remote locking and unlocking.
- Energy Management Solutions: Pulsar Plus comes standard with Energy Management Solutions from Wallbox built inside. With the addition of a power meter (available from Wallbox), you can take control over your home energy use, including integrating your EV charging with your rooftop solar PV.
- Eco-Smart: Integrated EV charging and PV power management: Connect your EV charging to your home rooftop solar energy system and choose how to charge your EV--with 100% green power for maximum sustainability or with a blend of solar and grid power for maximum charging speed.
- Power Boost: With Power Boost you can dynamically balance power delivery to your connected EV in harmony with your overall household energy consumption. Power Boost allows homeowners to install their Wallbox Pulsar Plus up to full power (either 40A or 48A) and not be limited by panel bandwidth.
Whats Included
- Charging Cord, Device, Adapter
- Charging Cord, Device, Adapter
Q: Can I use this charger outdoors?
A: This charger is designed for indoor use.
Q: Does this charger have any safety certifications?
A: Yes, the Wallbox Pulsar Plus is UL listed for electrical safety.
Q: Does this EV charger come with a warranty?
A: Yes, the Wallbox Pulsar Plus is backed by a 3-year warranty for both parts and labor.
Q: What is the maximum charging rate of this EV charger?
A: The Wallbox Pulsar Plus has a charging rate of 9.6kW.
Q: Can I control this charger with my smartphone?
A: Yes, you can control and monitor the charger wirelessly using the myWallbox app via Wi-Fi or Bluetooth.
Q: How long is the charging cable that comes with this charger?
A: The Wallbox Pulsar Plus comes with a 25 feet charging cable.
A: The correct breaker should be 50A, but a 40A breaker could also be used if the EV charge is set to a lower amperage (I.e.: 35A, 30A - depending on the vehicle available settings). The point is that the breaker should not be subject to pass a current around its maximum limit for long periods (as charging an EV will normally take hours and that will surely cause overheating of the breaker). Safety first!
A: Companies often have vendors change the part number slightly, to frustrate price matching policies. The "5" indicates the connected 40A amp version, a "6" would indicate the hardwire ready version. You can hard wire either one (hardwiring is recommended for most cases). The PUP1 is the older model, the PUP2 is newer, but they function similarly for residential use. See the attached part number guide uploaded as an image. A - PUP1 or PUP2 revision B- U indicates 25 ft cable C 1 indicates Type 1 cable D Here a 5 is for 9.6kW, and 6 for 11.5kW E See "O-Hardwire" "N-Plug in" F The only value is 002 for black G 'Revision', in other words packaging for a particular vendor.
