Specifications
  • Color Finish
    Black stainless steel
    Product Height
    15 7/8 inches
    Product Width
    23 7/8 inches
    Product Depth
    23 1/99 inches
    App Compatible
    No
    Microwave Type
    Drawer
  • Key Specs
    • Color Finish: Black stainless steel
    • Product Height: 15 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 23 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 23 1/99 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
    • Microwave Type: Drawer (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
    • Control Type: Touchscreen
    • Sensor Cook: true (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
    • Wattage: 1000 watts (Measurement of electrical power.)
  • General
    • Brand: Sharp
    • Model Number: SMD2470AH
    • Product Name: 1.2 Cu. Ft. Built-in Microwave Drawer with Sensor Cooking
    • Color: Black Stainless Steel
    • Color Finish: Black stainless steel
  • Dimensions
    • Product Height: 15 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 23 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 23 1/99 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Product Weight: 74 pounds (The out of box weight of the item.)
  • Cut-Out Dimensions
    • Cut-Out Height: 15 9/16 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
    • Cut-Out Width: 22 3/25 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
  • Capacity
    • Capacity: 1.2 cubic feet
    • Microwave Size: Mid-size
  • Connectivity
    • App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
  • Features
    • Microwave Type: Drawer (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
    • Timer: true
    • Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
    • Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
    • Interior Light(s): false
    • Compatible Trim Kit Available: false
  • Controls
    • Control Type: Touchscreen
    • Sensor Cook: true (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
    • Display Type: LED
    • Number of Preset Programs: 21
    • Number of Power Levels: 11
  • Functions
    • Oven Cooking Modes: Defrost
    • Oven Preset Settings: Popcorn
  • Electrical Specification
    • Amperage: 14.5 amperes (Strength of electrical current.)
    • Voltage: 120 volts (Amount of power needed to support an electrical current.)
    • Wattage: 1000 watts (Measurement of electrical power.)
  • Certifications Listings & Approvals
    • ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
    • CEE Qualified: false (Rated by the Consortium for Energy Efficiency.)
    • Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
    • Chemical Disclosures: N/A (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
  • Warranty
    • Warranty - Parts: 1 Year; additioNot Availablel 4 years on the magnetron tube
    • Warranty - Labor: 1 Year
  • Other
    • UPC: 074000620001

Integrate a powerful cooking device into your kitchen with this Sharp microwave drawer. It opens and closes with a touch, and it has Even Cook technology for impressive performance whether reheating liquids or defrosting meats. The concealed display of this Sharp microwave drawer ensures it completely blends in with your kitchen.

  • 1000W for standard microwave cooking: Cook frozen meals in a snap, or heat coffee, soup and leftovers in no time.
  • Compact 1.2 cu. ft. interior provides enough room for snacks: Reheat a small portion of leftovers or cook a treat, such as popcorn.
  • A variety of cooking programs to fit your needs: 6 automatic defrost functions, keep warm, 12 automatic cooking functions and 2 automatic reheat functions.
  • Black stainless steel casing provides durability and style: The exterior offers an attractive complement to your existing kitchen décor.
  • LCD display: Offers a clear view of available settings.
  • Touch sensitive controls: Convenient cooking controls make heating up food fast and simple.
  • Control lockout feature provides peace of mind: Locks the oven and disables the control panel to prevent accidental activation.
  • Design flexibility: The Microwave Drawer can be placed below an island, peninsula, or standard cabinetry, and can also be installed adjacent to your wall oven.
Whats Included
  • Sharp 24" 1.2 Cu. Ft. Built-In Microwave Drawer

Q: Hello, What is the difference between 24" and 30" sharp drawer microwave? both of them are 1.2 cu. ft.

A: That Sharp answer was hilarious. What the consumer probably wanted when asking about the 1.2 cu ft capacity, is that the microwave internal cavity is the same size between the 24 and 30 inch models. I've seen both side-by-side in a store. The only difference is that the 30 inch model has a wider door and filler plate on either side of the microwave to cover the extra 3 inches between the 30 inch cabinet cutout and the 24 inch microwave. The 30 inch model looks better when stacked with other 30 inch appliances. If on it's own in a cabinet, say in an island, then the 24" model would use less space.

Q: How long is the power cord? And where is it on the back of the unit?

A: Hello Madison, the power cord is approximately 3FT and is located to the top left of the unit at the back.

Q: Space for microwave measures 26" long (25" at front lip), 24" deep, and 18" high. Would this microwave fit perfectly in this space? I'm including a photo. Thanks

A: Go online and check their website for the product specs which say exactly what dimensions are needed to install. However I would not recommend this microwave to anyone. Doesn't work properly and died within 13 months of usage.

Q: How does the drawer open? A handle isn't obvious. Do you push to open?

A: Hello, the unit does have an open/close button on the control panel. Also, if you wish to manually open the unit you can hold both sides of the drawer and pulls it gently towards you.

Q: If I am removing two drawers and installing this microwave in their place, how does the steam vent out. Do I need to cut a hole somewhere in the cabinet so the steam does not eventually ruin the cabinet underneath?

A: Hello Shari, for standard installation if installed correctly, with enough space to ventilate the unit will not damage your cabinet. For flushed installation, you should purchase a deflector vent which should help the unit to ventilate properly. Please be advised that there should be no closed cabinet installed directly beneath the unit. Please have your carpenter or installer view the installation manual for proper installation. For further advise please contact us at [email protected] and include the model number in your email.

Q: We are looking at the 24 inch drawer microwave. Our opening is 25 7/16" x 17". The 24" drawer microwave will fit. Would we need a trim kit to make it look right?

A: I would think you will need to do something to fill extra space. I too had too large of an opening but the depth was not enough. So we added trim board all the way around to get the depth we needed and to fill the vacant space. We were able to match the paint color of our cabinets. I love the drawer!

Q: What is the difference between Model SmD2470ASY and SMD2470AS

A: Hello, the SMD2470AS was released in 2014 while the SMD2470ASY is a 2016 model.

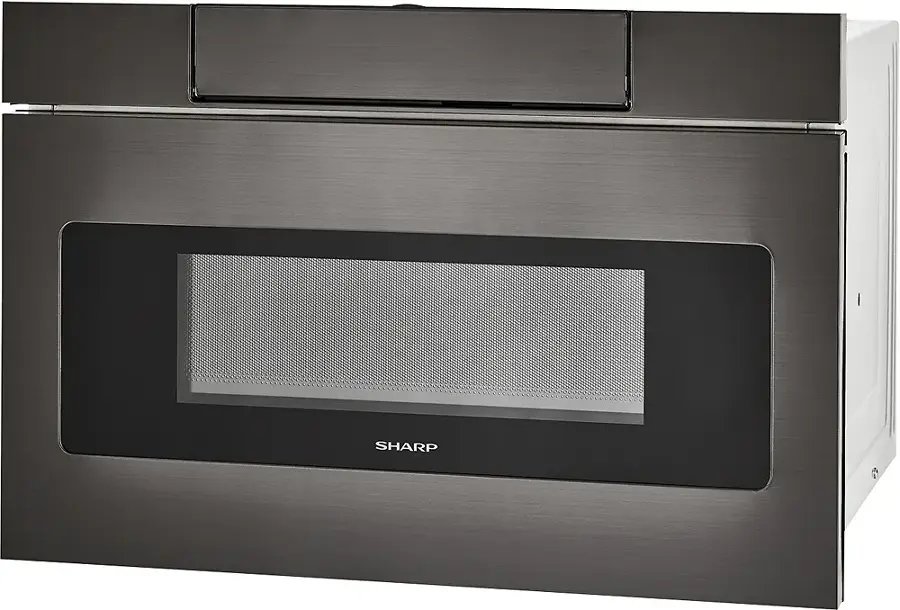

Sharp - 1.2 Cu. Ft. Built-in Microwave Drawer with Sensor Cooking - Black Stainless Steel

Model: SMD2470AH
SKU: 5715800
$1,499.99
Standard Geek Squad Protection
Items are covered under Best Buy's Return & Exchange Promise
No content
No content

Have everything you need?

See other appliances that work well with this one

  • KitchenAid - 20 Cu. Ft. French Door Refrigerator with Interior Water Dispenser - Black Stainless Steel
  • Plus
  • Bosch - 800 Series 4.6 cu. ft. Slide-In Electric Induction Range with Self-Cleaning - Black Stainless Steel
  • Plus
  • Samsung - 24" AutoRelease Dry Smart Built-In Stainless Steel Tub Dishwasher with 3rd Rack, StormWash+, 42 dBA - Black Stainless Steel
  • Plus
  • Sharp - 30 In Smart Convection Wall Oven and Microwave Drawer Combination for Single Cutout with Alexa Compatibility - Stainless Steel
Sponsored

Compare similar products

Sharp - 1.2 Cu. Ft. Built-in Microwave Drawer with Sensor Cooking - Black Stainless Steel
Sharp - 1.2 Cu. Ft. Built-in Microwave Drawer with Sensor Cooking - Black Stainless Steel

$1499.99

Integrate a powerful cooking device into your kitchen with this Sharp microwave drawer. It opens and closes with a touch, and it has Even Cook technology for impressive performance whether reheating liquids or defrosting meats. The concealed display of this Sharp microwave drawer ensures it completely blends in with your kitchen.

Fisher & Paykel - 1.2 Cu. Ft. Built-In Microwave Drawer with Sensor Cooking - Black

$2249

This microwave drawer is a smart addition to any kitchen, offering a convenient and versatile solution for cooking, warming, and defrosting. It has a sleek black finish that matches the Contemporary or Minimal style family of appliances. It has a spacious 1.2 cu. ft. capacity and 10 power levels, including melt, warm, and soften. It has a handle-free, push-to-open design with intuitive touch controls. It also has a built-in sensor that automatically adjusts cooking times and power levels based on the moisture levels in your food. It has safety features such as a child lock and a safety interlock system

Sharp - 1.2 Cu. Ft. Microwave Drawer Works with Alexa and Easy Wave Open - Stainless Steel
4.2(83)

$1599.99

The Sharp Smart Microwave Drawer is the first, built-in microwave drawer with Wi-Fi connectivity for seamless integration with your modern smart-home. Download the Sharp kitchen app to enable the Smart features. Built-in airflow venting allows you to choose the traditional mount installation or flush mounting for a streamlined finish without additional trim-kits or vent deflectors. With our Easy Wave open feature for touchless operation - simply wave up-and-down near the motion sensor and the microwave drawer will glide open. With the touch of a button or a gentle nudge, our patented Easy Touch automatic drawer system smoothly closes the oven to avoid messy spills. Plus, it will stay closed when you walk by, so children and pets won’t accidentally open it. The concealed, glass touch control panel is easy-to-see and operates at a convenient 45° angle, keeping all of the controls at your fingertips when you need them, and completely out of sight when you don’t.

Sharp - 30" 1.2 Cu. Ft. Built-in Microwave Drawer - Stainless Steel
4.5(92)

$1499.99

Enjoy design flexibility with this 30-inch Sharp microwave drawer. Its hidden control panel provides an easy-to-read display so you can quickly input operations, and the Easy Touch Automatic Drawer system prevents liquids from being jarred during use. The 1.2 cu. ft. capacity of this Sharp microwave drawer accommodates a 4-quart casserole dish or 20-oz. coffee cup.

Pros for Sharp - 1.2 Cu. Ft. Built-in Microwave Drawer with Sensor Cooking - Black Stainless Steel
Ease of use, Design, Size, Appearance, InstallationThere were no pros for this productEase of use, Design, Size, Microwave, Space SaverEase of use, Appearance, Design, Size, Microwave Drawer
Cons for Sharp - 1.2 Cu. Ft. Built-in Microwave Drawer with Sensor Cooking - Black Stainless Steel
Price, Control Panel, Turntable, Drawer, KeypadThere were no cons for this productPrice, DoorControls

Specs

Compare Additional Products
Sponsored

Reviews

Customers are saying

Customers value the ease of use, sleek design, and convenient size of the 24" 1.2 Cu. Ft. Built-in Microwave Drawer. Many appreciate the ease of installation and the microwave's performance, particularly its fast and even heating capabilities. However, some find the price to be high and express concerns about the control panel's lack of backlighting and the absence of a turntable. A few users also reported issues with the keypad and timer functionality.

This summary was generated by AI based on customer reviews.

Customer Images

The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.

  • Rated 5 out of 5 stars

    Good Product

    Good product. Pros: Heats evenly. Looks fancy. Has all the options required in a microwave Installed myself, no big deal just requires a bit of research. Cons: The drawer when opening doesn’t stop smooth in the end. If you have a full cup of liquid, it will spill. Installation instruction was pretty clear except the tilt block. Either they should provide one or say what exactly is it. I eventually used a wooden block of 2x4x6.

    This review is from Sharp - 1.2 Cu. Ft. Built-in Microwave Drawer with Sensor Cooking - Stainless Steel

    Posted by Ashhegde

  • Rated 5 out of 5 stars

    Nice microwave

    Great microwave, love the integrated clean look and the drawer vs a swing out door. A bit pricey but worth it for remodel.

    This review is from Sharp - 1.2 Cu. Ft. Built-in Microwave Drawer with Sensor Cooking - Stainless Steel

    Posted by ADDH

  • Rated 4 out of 5 stars

    Many compliments!

    The microwave drawer looks great in my new kitchen but I miss my old traditional microwave with spinning tray. I feel this drawer does not heat my food evenly. The foot gets very hot on top but the bottom stays cool. The interior space is also short so it will not fit tall items. It’s higher in cost as well but it does the job and looks very nice.

    This review is from Sharp - 1.2 Cu. Ft. Built-in Microwave Drawer with Sensor Cooking - Stainless Steel

    Posted by LuckyLulu
