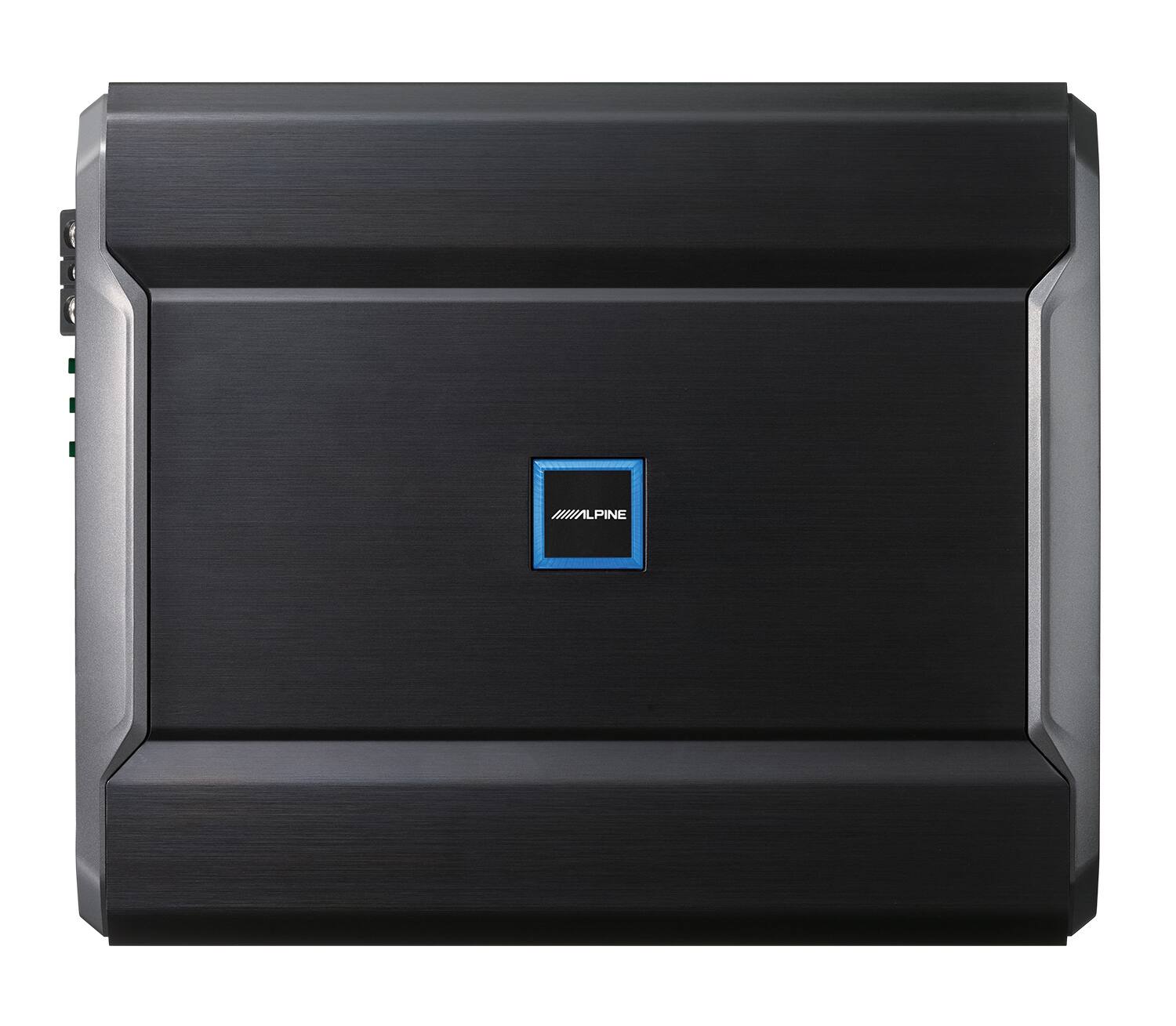

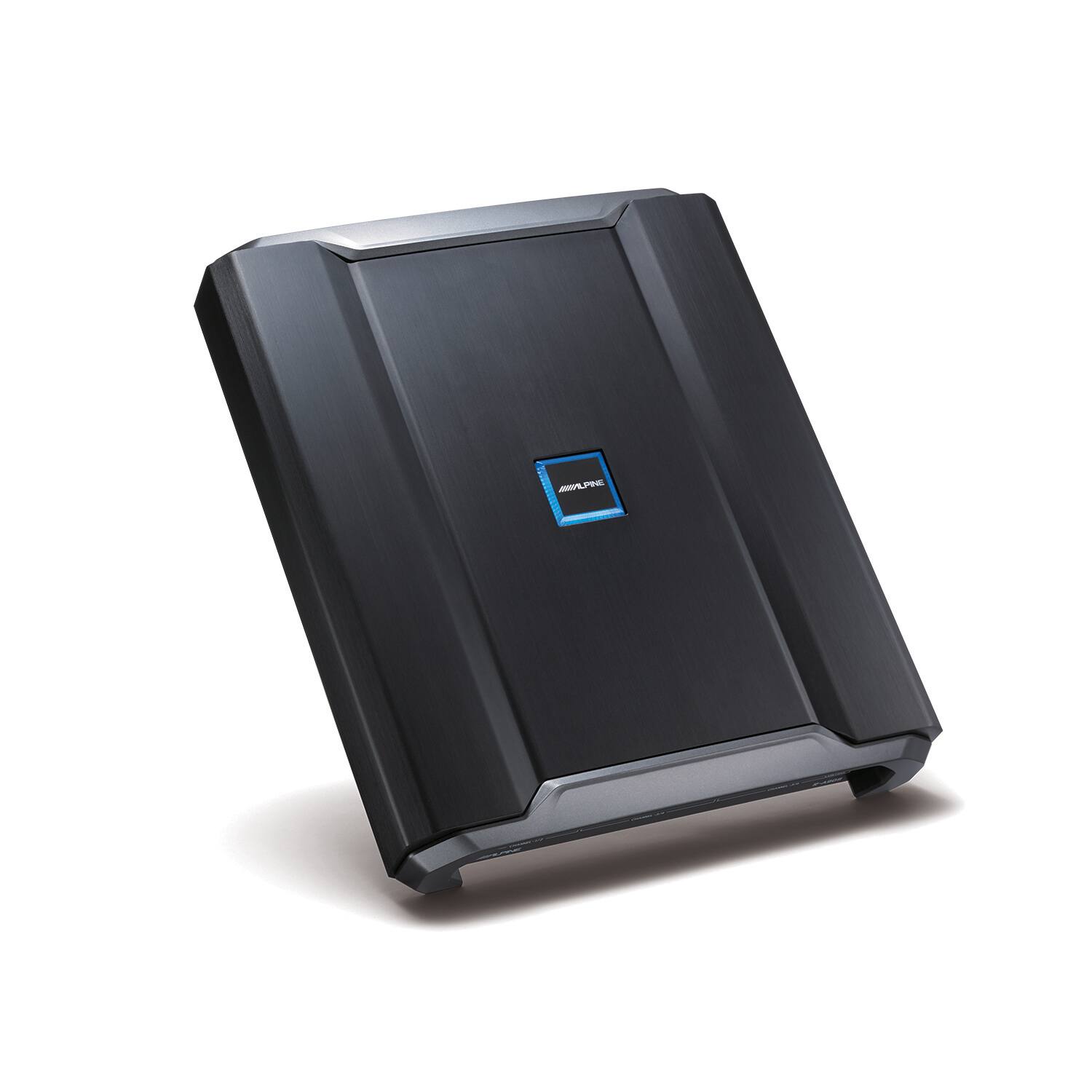

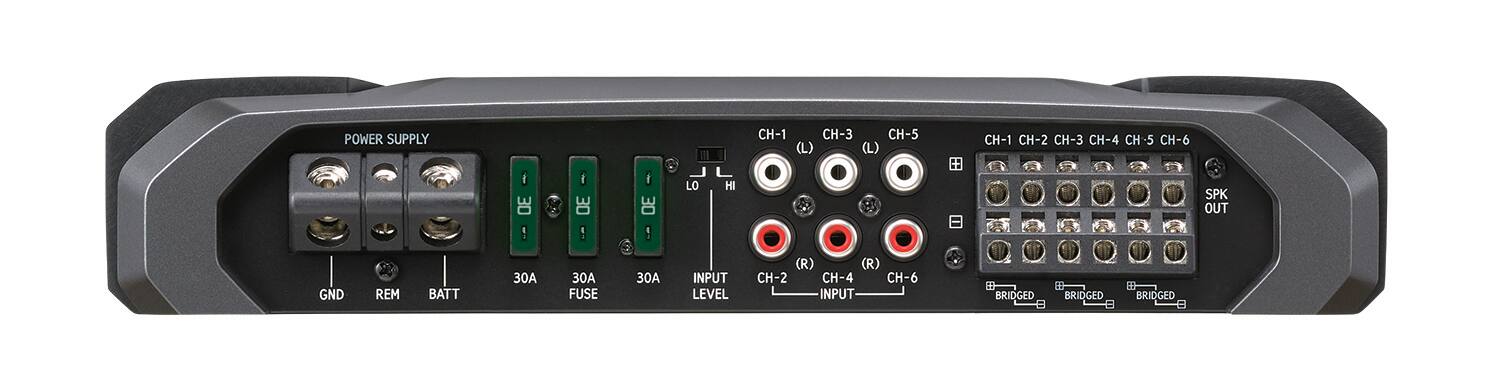

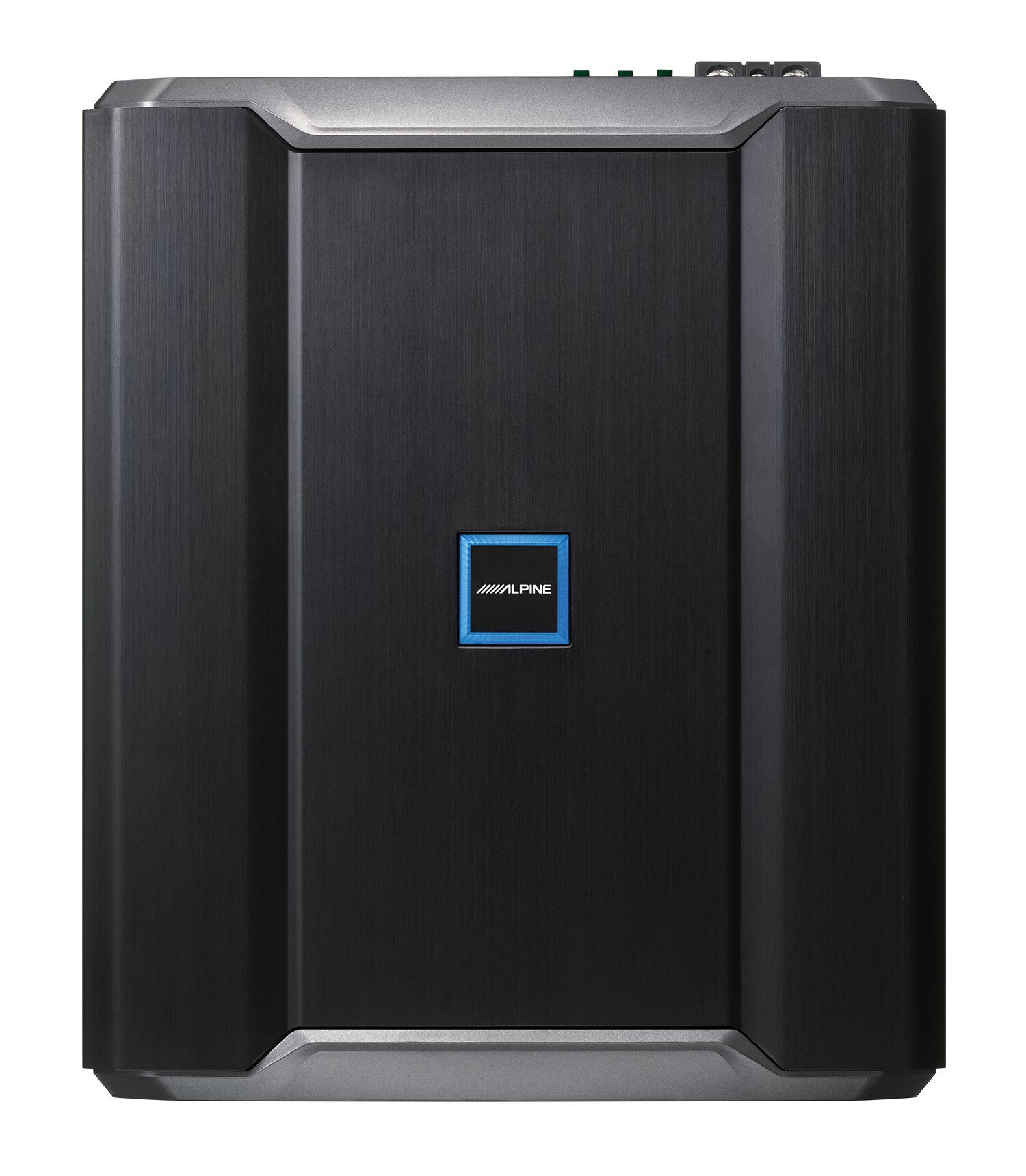

Alpine - R-A90S - Black
FREE shipping to
More Buying Options
Specifications
- Continuous Watts x Channel @ Ohms100x4 @2 ohmsAmplifier ClassDNumber Of Channels6Bass BoostNoneLow-Pass CrossoverVariableHigh-Pass CrossoverVariable
- Key Specs
- Continuous Watts x Channel @ Ohms: 100x4 @2 ohms
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 6
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Variable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: Alpine
- Model Number: R-A90S
- Product Name: R-A90S
- Color: Black
- Mounting Hardware Included: true
- Audio Power
- Continuous Watts x Channel @ Ohms: 100x4 @2 ohms
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 6
- Signal-to-Noise Ratio (SNR): 85 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Variable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Fan Cooled: false
- Input
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Output
- Preamp Outputs: false
- Dimensions
- Product Height: 2.06 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 14 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 10.75 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 6 pounds (The out of box weight of the item.)
- Other
- UPC: 793276242952
Alpine R-Series 6/5/4/3 Channel Power Amplifier
- Hi-Res Audio compliant: 40k Hz
- Staggered Power channel layout: Allows each channel to host different levels of power, compared to traditional, multi-channel amplifiers
- Remote Bass Knob ready: Add optional RUX-KNOB2 remote bass knob
- Hi-Res Audio compliant: 40k Hz
- Staggered Power channel layout: Allows each channel to host different levels of power, compared to traditional, multi-channel amplifiers
- Remote Bass Knob ready: Add optional RUX-KNOB2 remote bass knob
Whats Included
- 6-Channel Amplifier
- 3x 30-Amp ATO fuses (installed)
- 4 mounting feet
- Screws
- Owners Manual
- 6-Channel Amplifier
- 3x 30-Amp ATO fuses (installed)
- 4 mounting feet
- Screws
- Owners Manual
Compare similar products
Listen to your favorite Hi-Res music and podcasts with this Alpine four-channel amplifier. The Next-Generation R-Series Amplifiers are Hi-Res Audio Certified and able to reproduce up to 45kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy. The R2-A60F features a reduced footprint that’s 15% smaller than the previous model (R-A60F), making it easier than ever to install in most vehicle applications while still getting the same powerhouse performance.
The Alpine “R-Series” line of speakers, subwoofers and amplifiers have a heritage of sound quality you can hear from a block away, and the newly added R-Series amplifiers are no exception. Aside from their best-in-class performance, these amplifiers are tuned to emphasize the characteristics of the R-Series speakers and subwoofers, giving you that legendary R-Series experience. They have a 15% reduced footprint compared to the previous models and are easier to install. FEATURES Install Terminal Layout: One side Small footprint for easy installation Screw terminals (for speaker and power cables) General Class-D Amplification (Digital) Channel Design: Mono Channel Top panel controls Thermal Management Control Top Mounted LED Power/Status Indicator Speaker Level Input with remote turn on Crossover: Adjustable Low-pass (LPF) and Variable Subsonic filter Adjustable Gain Control Bass EQ Remote Bass Control (RUX-KNOB2) Ready SPECIFICATIONS Max Power Output Ratings Total Max Power: 2300W RMS Power Ratings Per Channel into 1 Ohms, 14.4V (≤1%THD+N): 1 x 1500W Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 1 x 1200W Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 1 x 700W Sound Tuning Crossover: Variable LPF: 50-400Hz (-24dB/oct) Crossover: Variable Subsonic: 8Hz-40Hz (-24dB/oct) General Power Requirements: 14.4 V.DC (9 - 16 V allowable) Input Sensitivity (RCA Input): Hi: 0.4V - 10V / Low: 0.1V - 4.0V High Level Input with automatic power on Cable size: Power Cable AWG 4, SPK Cable AWG 8 Frequency Response: 10Hz – 400Hz THD+N (@ 10W into 4 Ohms): 250 Weight: 5kg Dimensions Heat Sink (WxHxD) mm: 341 x 65 x 185
Experience the impressive power and exceptional performance of the Next-Gen R-Series R2-A75M Mono Amplifier, now featuring a more compact design. Built with Alpine's cutting-edge Class D Amplifier Circuit, this next-generation R-Series amp offers exceptional sound quality and efficiency, making it the perfect addition to any car audio system.
