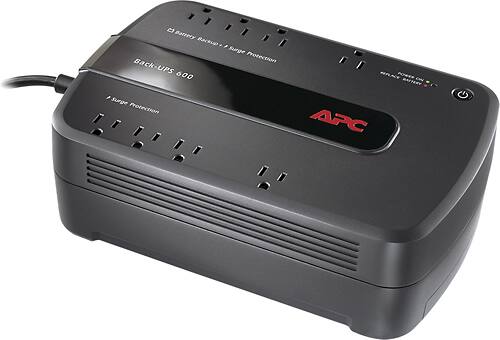

This APC Back-UPS BN600G UPS features 8 outlets to accommodate your computer and peripheral devices. The 340-joule rating absorbs a high amount of energy to help keep your equipment protected.
A: With a quick look at the I Mac specs, it appears that this will provide reasonable support for just the computer and monitor. It has a capacity of about 360 watts, (I Mac G5 = 180W) which should be adequate. The I Mac shows a frequency range of 47 to 63 Hertz, so the stepped wave form should not be too damaging. The UPS is an off line unit so "normal" operation does not use the inverter. That being said, there may be issues with the transition from utility to UPS power according to the ability of the I Mac to withstand a sub-second wave form disruption. This is a simple, inexpensive UPS. If you use the I Mac for serious use you may want an online, double conversion, sine wave unit, which is much more expensive. Home use is probably OK.
Q: How many outlets are power protected
A: The outlets on the side of the label provides the protection as listed. One side is battery backed up plus surge protected and the other side is only surge protected.
A: It depends on the power consumption of your equipment, the capacity of the UPS and the duration of the power failure. First, add up the wattage ratings of all the devices you want to connect to the UPS. Next look at the specifications of various UPS's and select one that can deliver that much (or more) power for a period equal to the longest blackout you anticipate. Example: if you need 50 watts, a UPS that can deliver 100 watts for 60 minutes will provide 50 watts for about 120 minutes. However, I recommend buying the highest VA rating you can afford. The higher capacity UPS's are better built, have better surge suppressors, often have replaceable batteries, and they run proportionately longer. Reserve capacity is always desirable.
Q: PowerChute Management Software ?
A: When plugged into your PC via the USB cable, when the software detects that there is less than a certain percentage of battery remaining, it will shut down your computer for you
A: Thank you for your inquiry. Yes, this UPS does have slotted holes on the back and can be wall mounted.
Q: does it have a replaceable battery?
A: Yes the battery is replaceable. Part # is listed on the battery cover.
Q: Please diagram the correct cable connection to the battery. It seems possible to connect improperly.
A: All you do is plug 1 connection in. the other is already plugged in...
