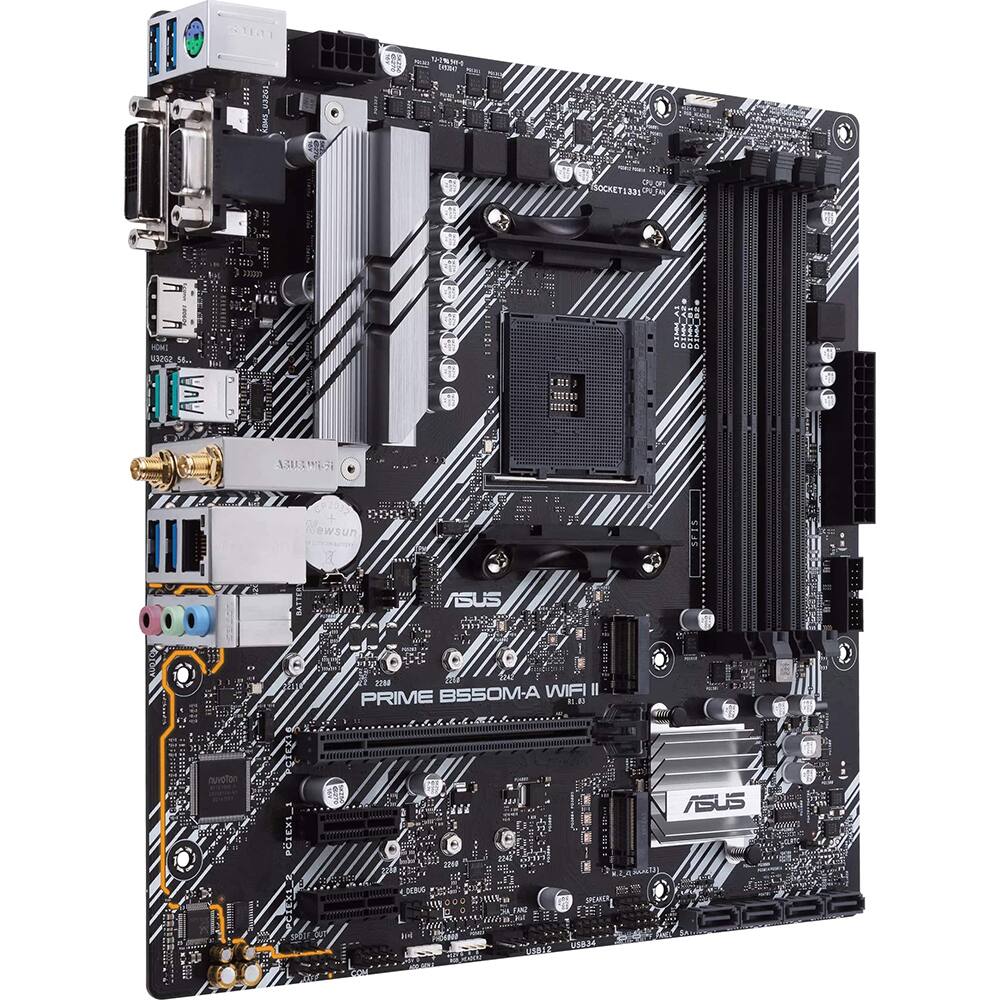

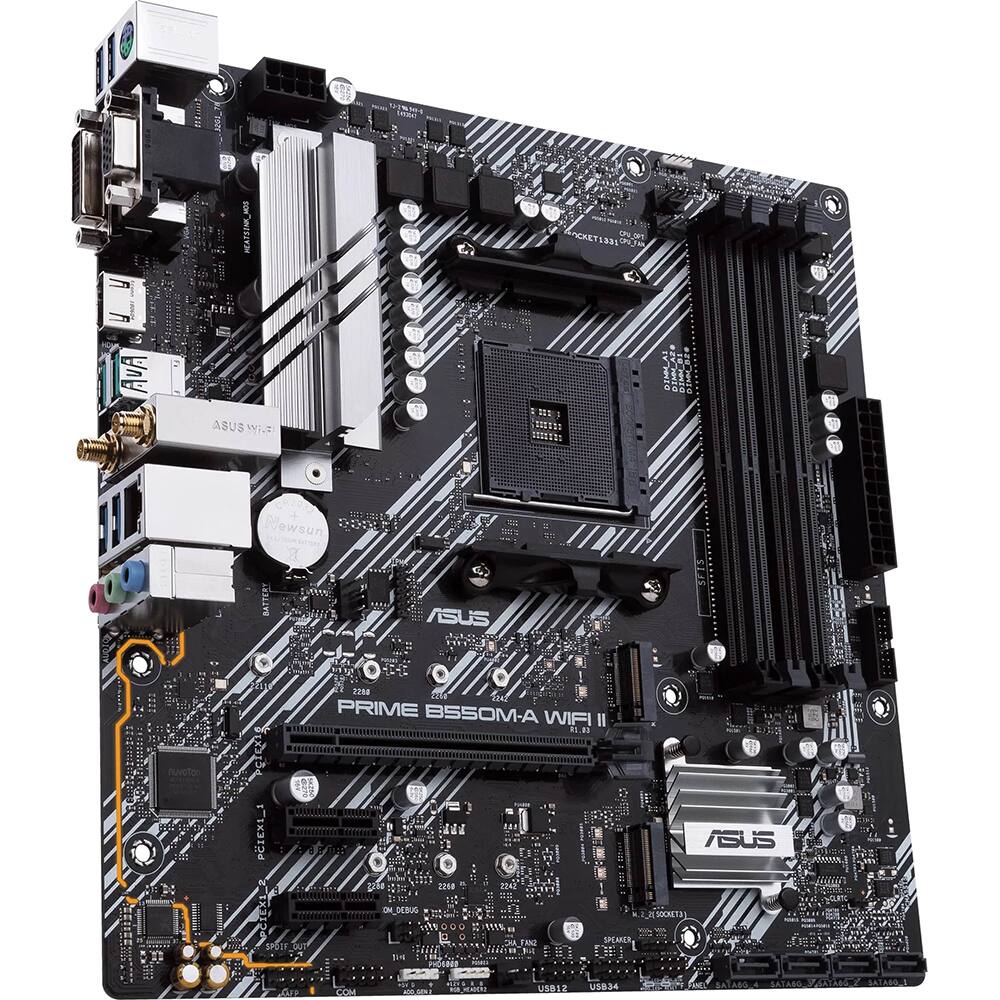

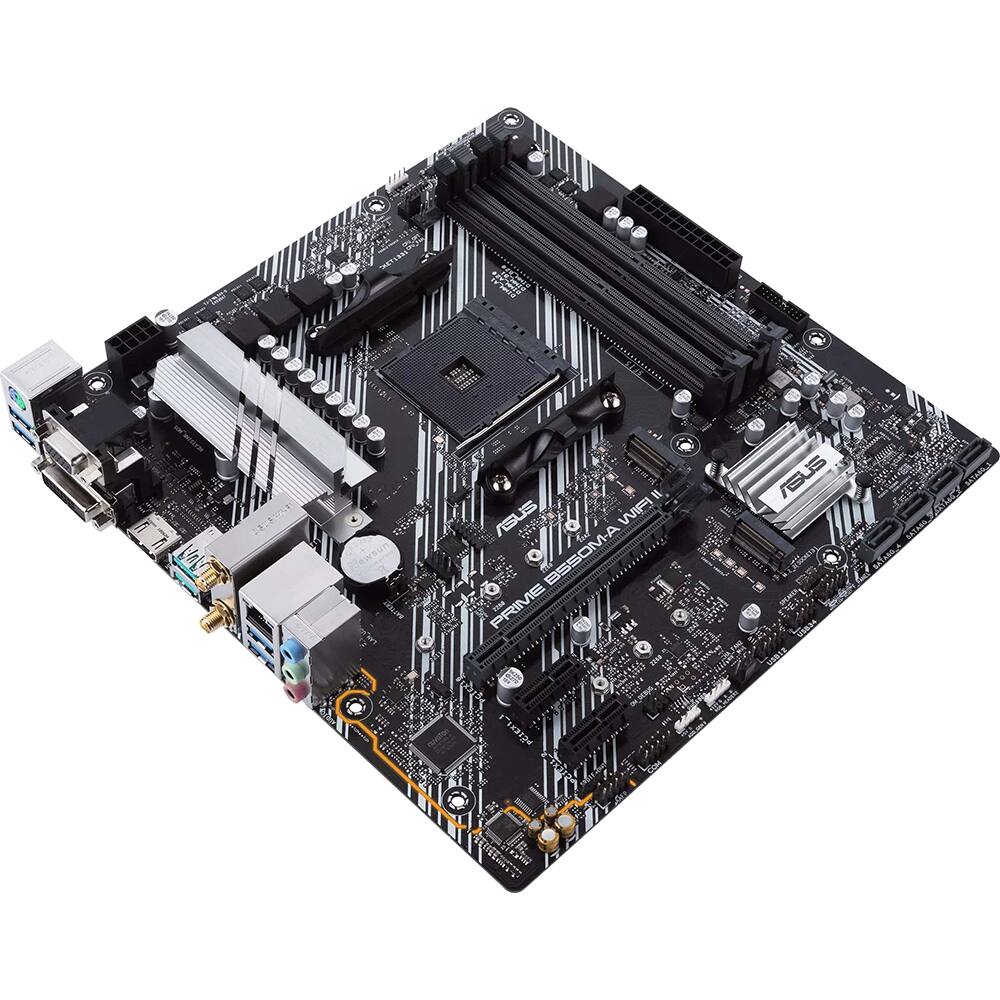

ASUS - Prime B550M-A WIFI II mATX Motherboard PRIMEB550M-AWIFIII
- Thermaltake - TH120 ARGB Sync V2 120mm Radiator AIO CPU Liquid Cooler with Mirror Rotating Cap Design - Black$69.99The price was $79.99
More Buying Options
Specifications
- ChipsetAMD B550Form FactormicroATXProcessor SocketSocket AM4 (PGA 1331)Wireless Networking StandardWi-Fi 6Number Of Memory Slots4Maximum Memory Supported128 gigabytes
- Key Specs
- Chipset: AMD B550
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM4 (PGA 1331) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR4
- General
- Brand: ASUS
- Product Name: Prime B550M-A WIFI II mATX Motherboard PRIMEB550M-AWIFIII
- Compatibility
- Chipset: AMD B550
- Chipset Compatibility: AMD
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM4 (PGA 1331) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 3 3000 Series, AMD Ryzen 5 3000 Series, AMD Ryzen 7 3000 Series, AMD Ryzen 9 3000 Series, AMD Ryzen 3 5000 Series, AMD Ryzen 5 5000 Series, AMD Ryzen 7 5000 Series, AMD Ryzen 9 5000 Series
- Slot
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 2
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports

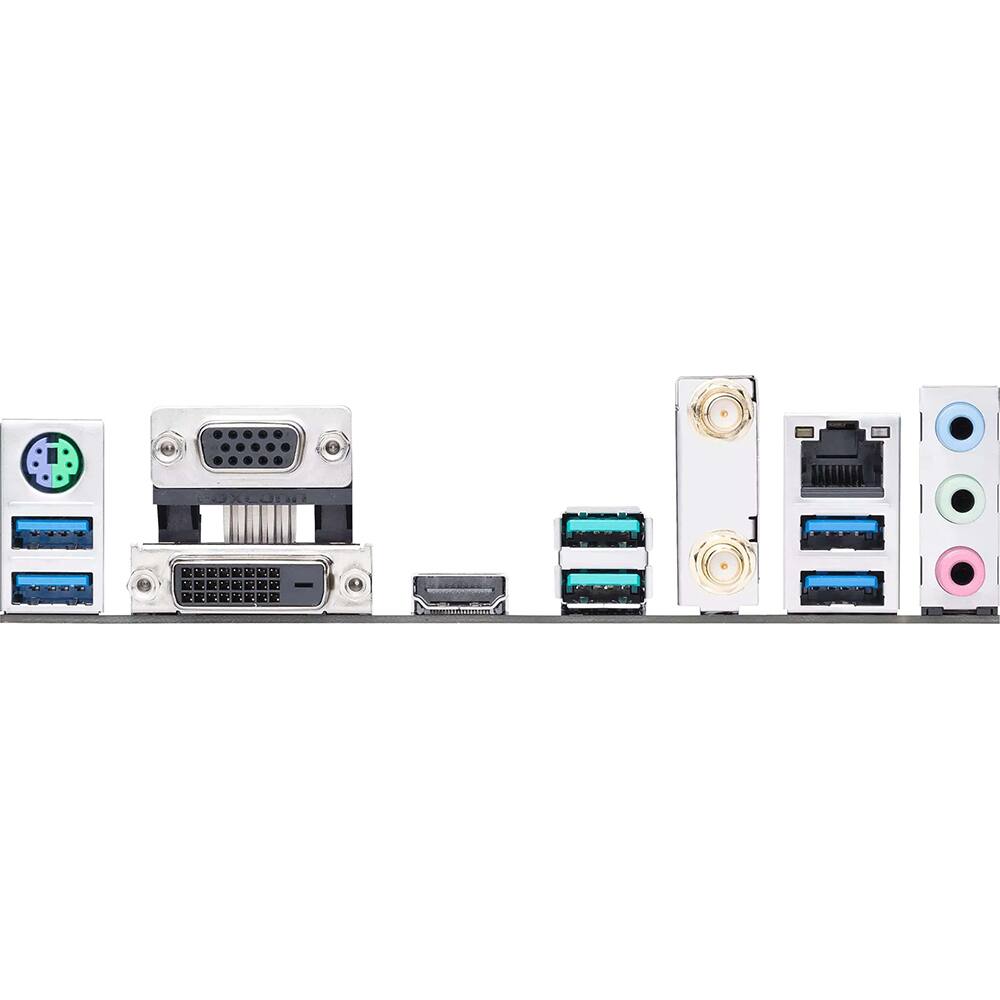

- USB Ports: 6 x USB-A 3.2, 2 x USB-A 2.0 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 244 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 29.8 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR4
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4866OC|4800OC|4600OC|4466OC|4400OC|4333OC|4266OC|4200OC|4133OC|4000OC|3866OC|3733OC|3600OC|3466OC|3400OC|3333OC|3200|3000|2933|2800|2666|2400|2133 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: Full Manufacturers Warranty
- Warranty - Labor: Full Manufacturers Warranty
- Other
- UPC: 195553309752
Prime. ASUS Prime series is expertly engineered to unleash the full potential of 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series AMD Ryzen platform. Boasting a robust power design; comprehensive cooling solutions and intelligent tuning options; Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
- Digi+ VRM Control: The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
- Memory Support: Equipped with 4 DIMM slots, supporting up to 128GB of DDR4 memory at speeds up to 4866MHz (OC).
- Expansion Slots: Includes 1 PCIe 4.0 x16 slot, 1 PCIe 3.0 x16 slot, and 2 PCIe 3.0 x1 slots for versatile expansion.
- Storage Options: Features 2 M.2 slots and 4 SATA 6Gb/s ports, supporting RAID 0, 1, and 10 configurations.
- Connectivity: Offers Wi-Fi 6 (802.11ax), Bluetooth 5.2, 1Gb Ethernet, and multiple USB ports including USB 3.2 Gen 2 Type-A.
- Digi+ VRM Control: The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
- Memory Support: Equipped with 4 DIMM slots, supporting up to 128GB of DDR4 memory at speeds up to 4866MHz (OC).
- Expansion Slots: Includes 1 PCIe 4.0 x16 slot, 1 PCIe 3.0 x16 slot, and 2 PCIe 3.0 x1 slots for versatile expansion.
- Storage Options: Features 2 M.2 slots and 4 SATA 6Gb/s ports, supporting RAID 0, 1, and 10 configurations.
- Connectivity: Offers Wi-Fi 6 (802.11ax), Bluetooth 5.2, 1Gb Ethernet, and multiple USB ports including USB 3.2 Gen 2 Type-A.
- Digi+ VRM Control: The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
- Memory Support: Equipped with 4 DIMM slots, supporting up to 128GB of DDR4 memory at speeds up to 4866MHz (OC).
- Expansion Slots: Includes 1 PCIe 4.0 x16 slot, 1 PCIe 3.0 x16 slot, and 2 PCIe 3.0 x1 slots for versatile expansion.
- Storage Options: Features 2 M.2 slots and 4 SATA 6Gb/s ports, supporting RAID 0, 1, and 10 configurations.
- Connectivity: Offers Wi-Fi 6 (802.11ax), Bluetooth 5.2, 1Gb Ethernet, and multiple USB ports including USB 3.2 Gen 2 Type-A.
