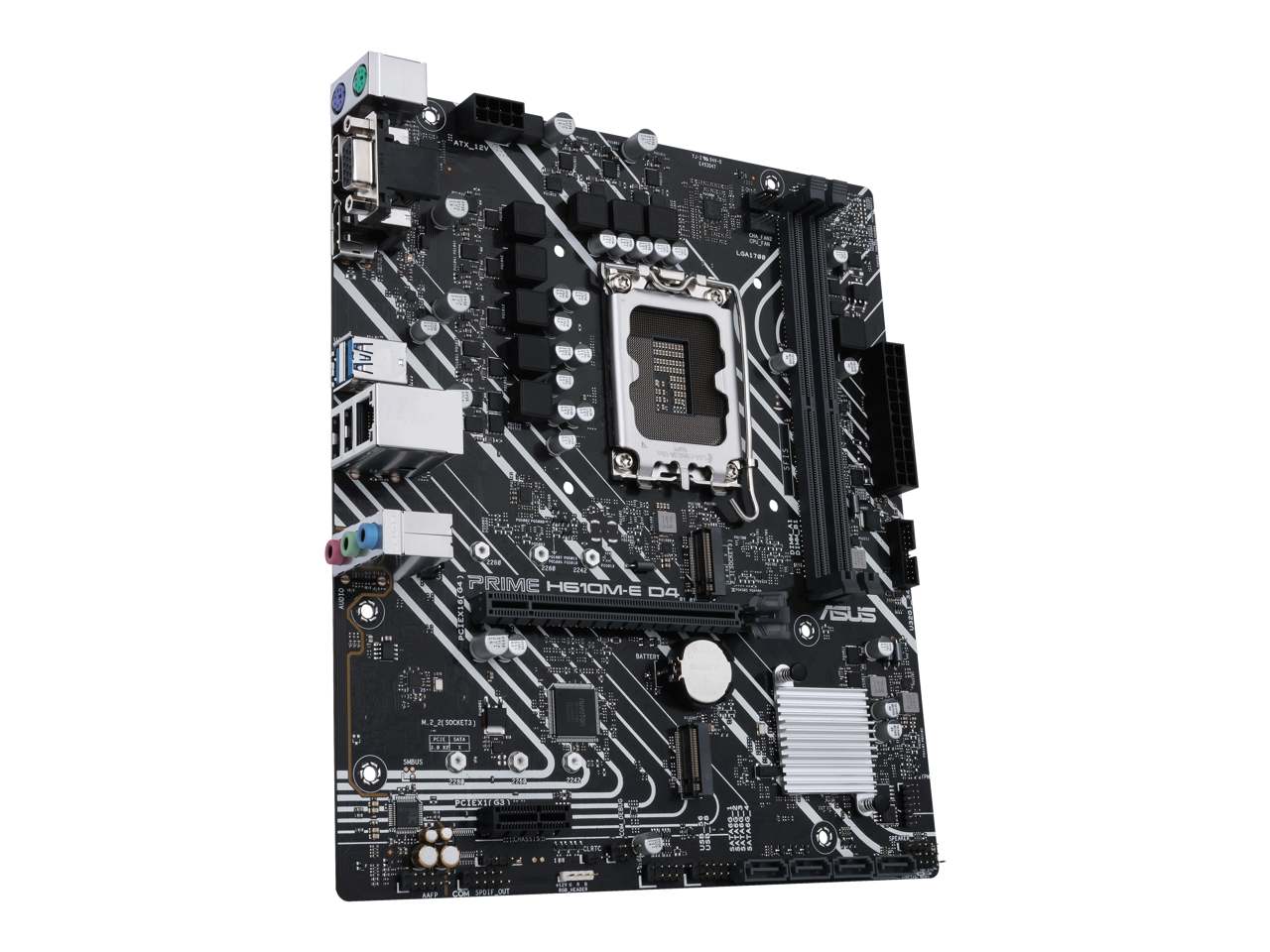

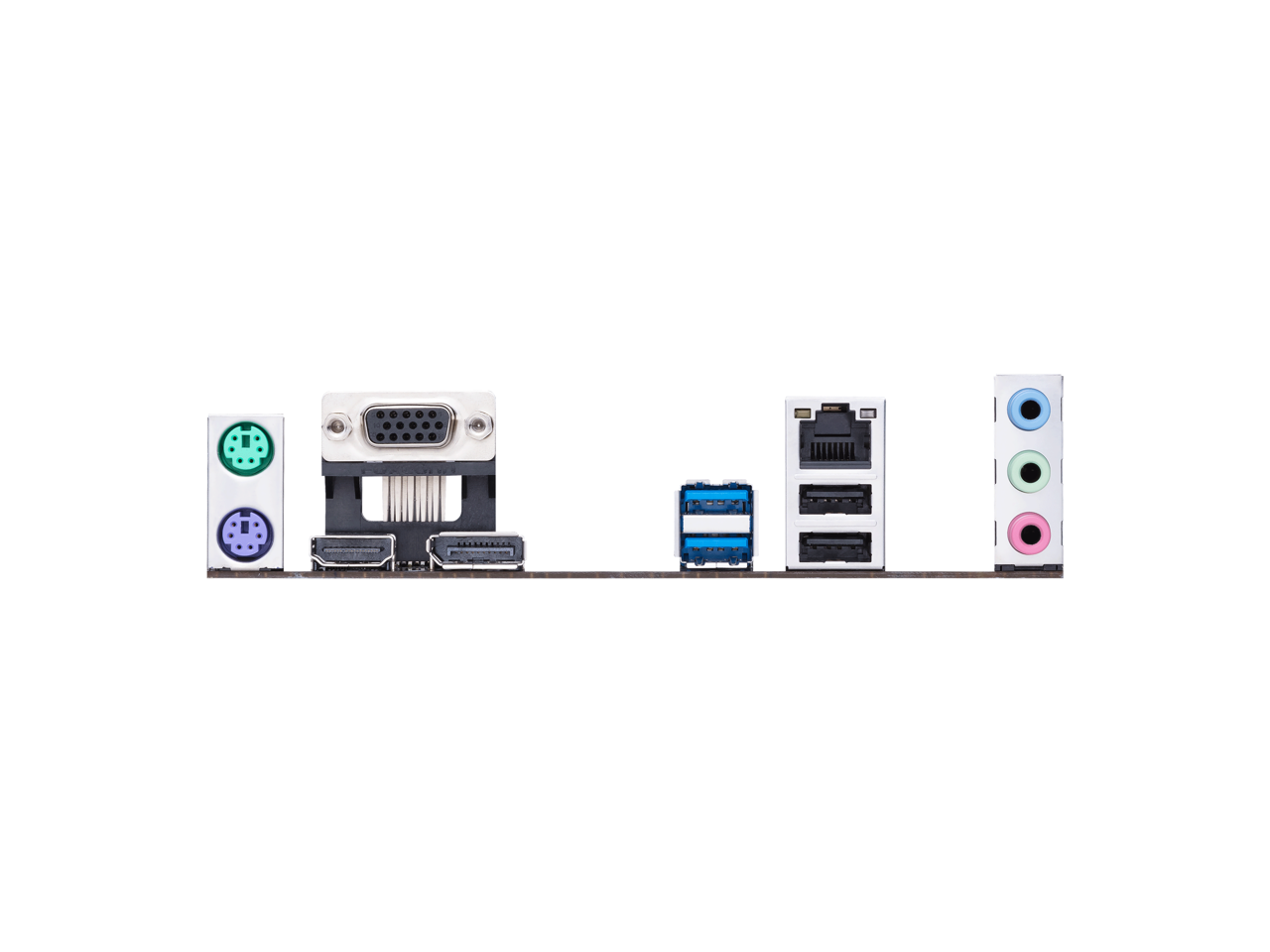

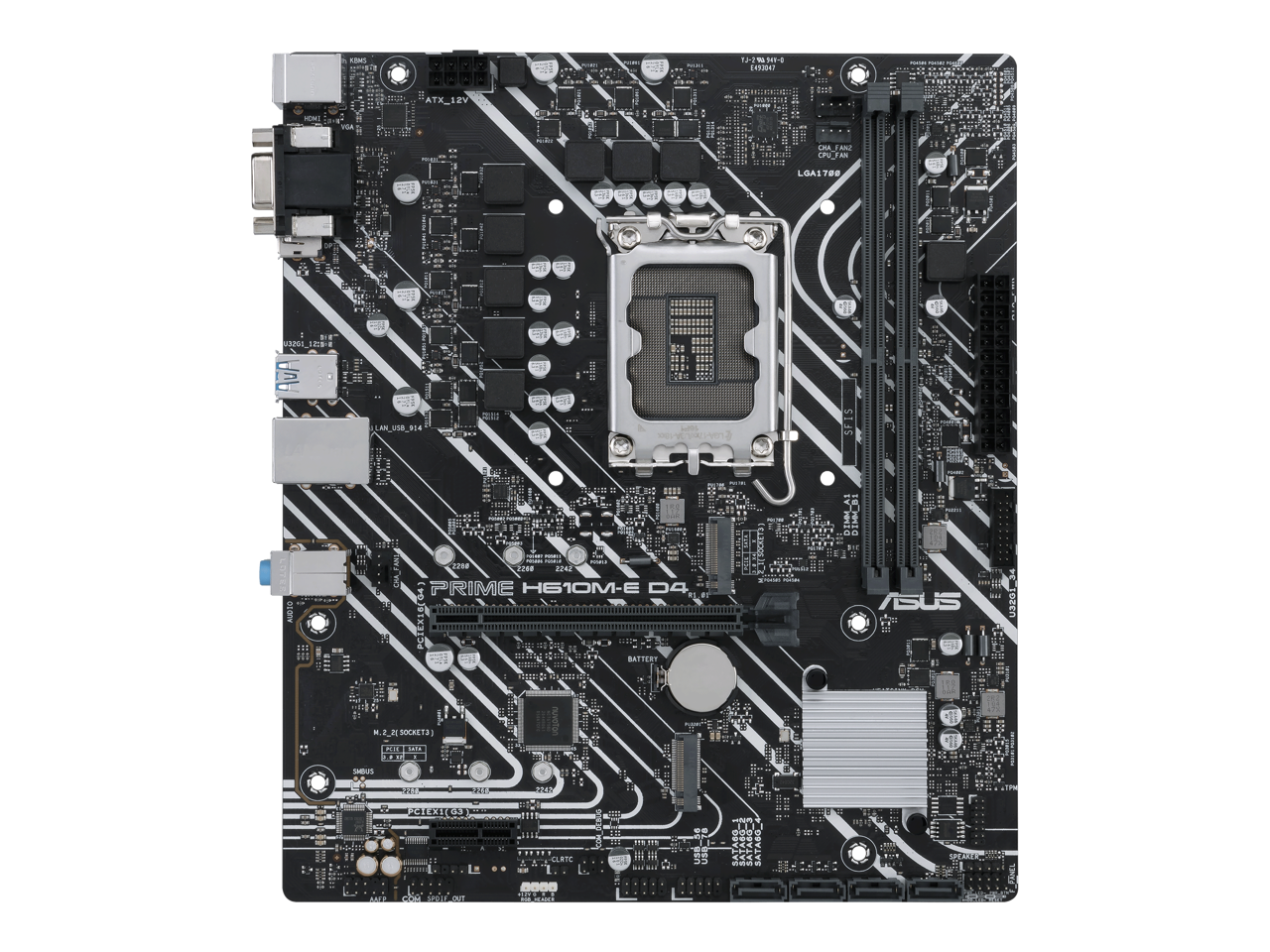

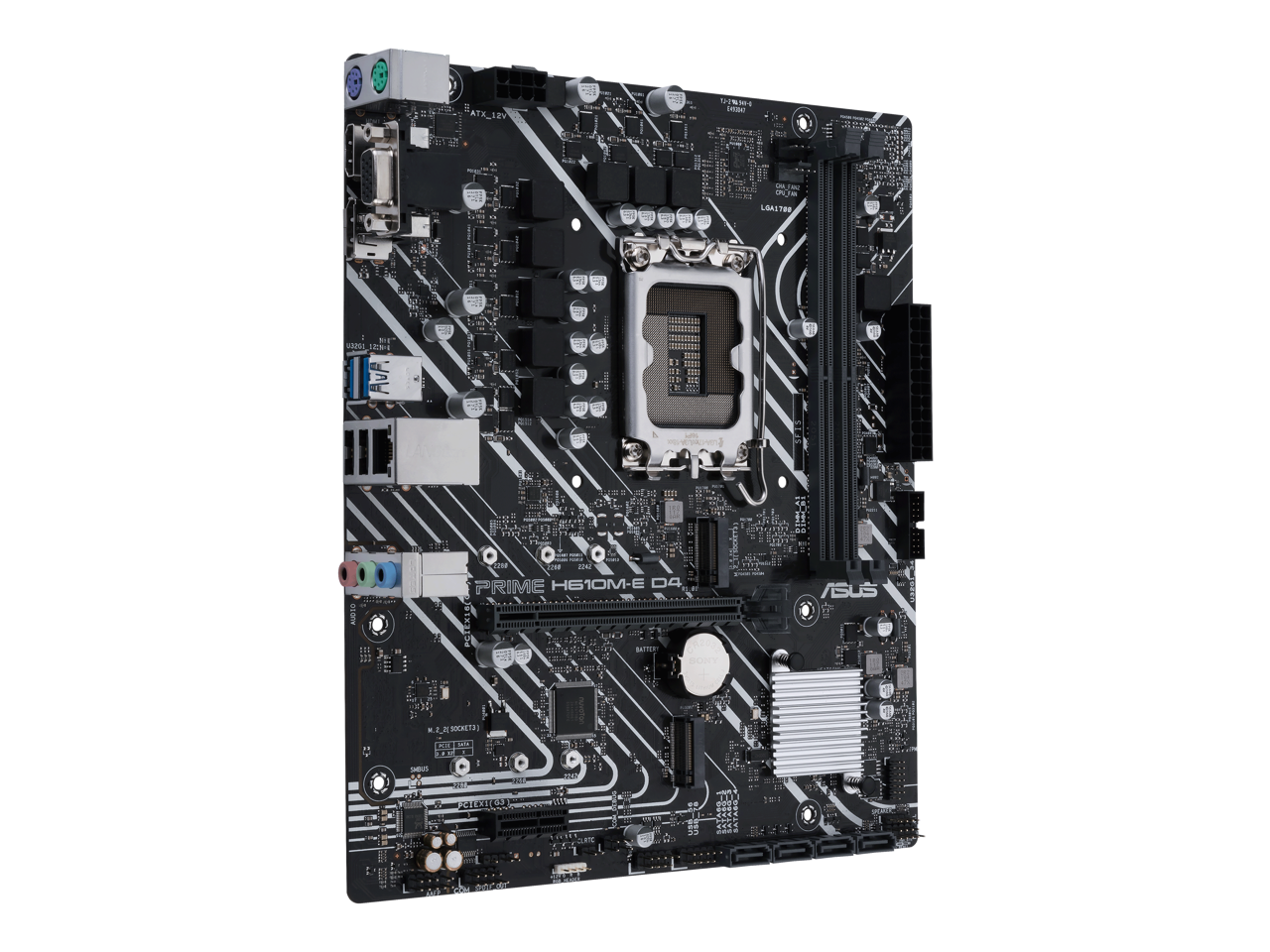

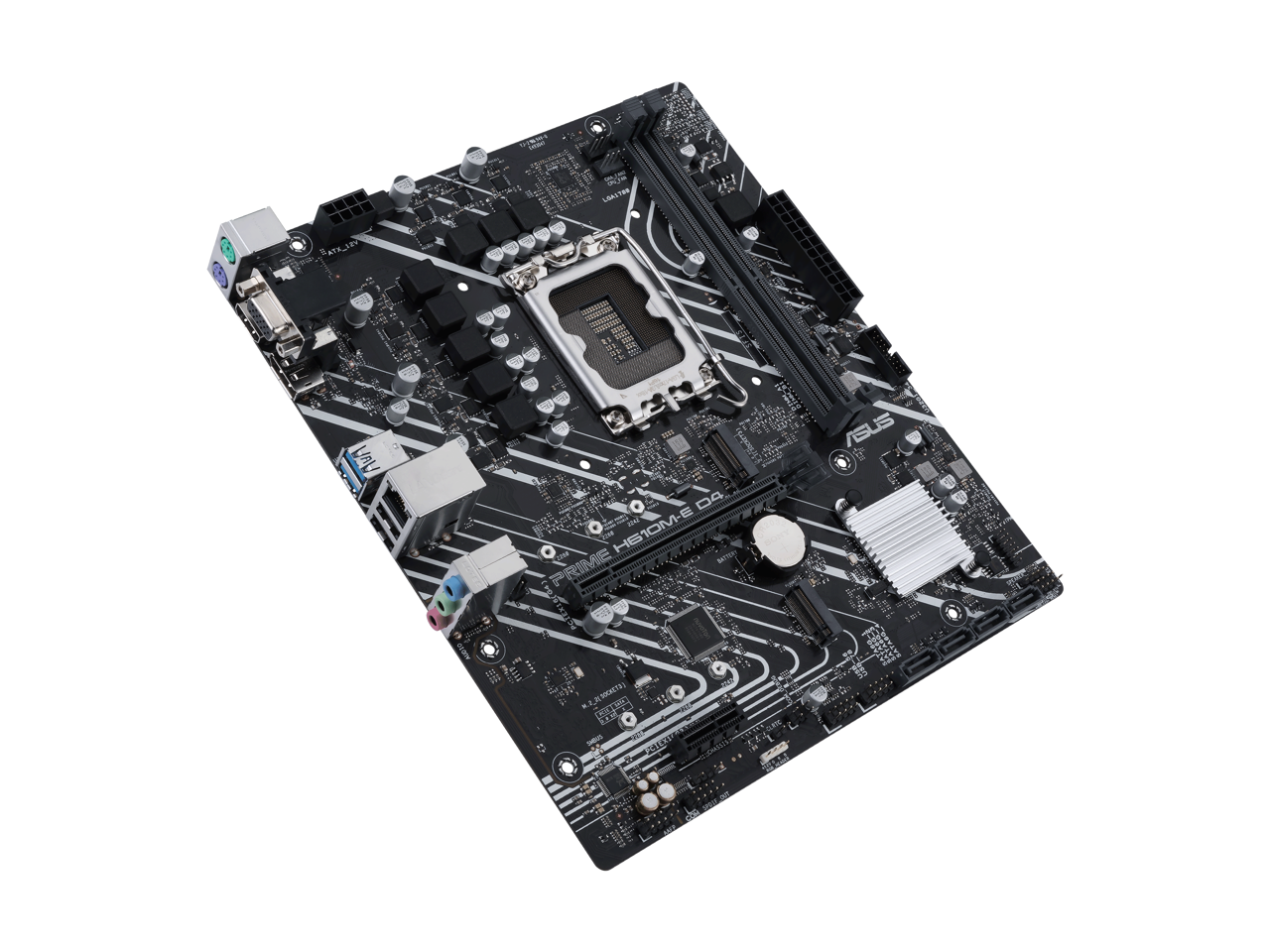

ASUS - PRIME H610M-E D4 CSM LGA1700 mATX MB (PCIe 4.0, DDR4, 2x M.2, 1Gb LAN, DP/HDMI/D-Sub, USB 3.2, RGB, COM)
More Buying Options
Specifications
- ChipsetIntel H610Form FactormicroATXProcessor SocketSocket LGA 1700Wireless Networking StandardWi-Fi 6Number Of Memory Slots4Maximum Memory Supported64 gigabytes
- Key Specs
- Chipset: Intel H610
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 64 gigabytes
- Memory Type Supported: DDR4
- General
- Brand: ASUS
- Model Number: PRIME H610M-E D4-CSM
- Product Name: ASUS PRIME H610M-E D4 CSM LGA1700 mATX MB (PCIe 4.0, DDR4, 2x M.2, 1Gb LAN, DP/HDMI/D-Sub, USB 3.2, RGB, COM)
- Compatibility
- Chipset: Intel H610
- Chipset Compatibility: Intel
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel 12th Generation Core i3
- Slot
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 2 x USB-A 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 270.00 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 260.10 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 32.48 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 64 gigabytes
- Memory Type Supported: DDR4
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: DDR4 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: Limited Warranty period (parts): 3 years
- Warranty - Labor: Limited Warranty period (labor): 3 years
- Other
- UPC: 195553514804
ASUS PRIME H610M-E D4-CSM LGA 1700(Intel 12th&13th Gen) mATX commercial motherboard (PCIe 4.0,DDR4,2xM.2 slots,1Gb LAN,DisplayPort/HDMI/D-Sub,USB 3.2 Gen 1 ports,COM header, RGB header,ACCE
- Compatible with 12th & 13th Gen Intel® CPUs: Intel LGA 1700 socket: Ready for 12th&13th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Memory Support: Comprehensive cooling: PCH heatsink and Fan Xpert 2+
- Expansion Slots: Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen
- Storage Options: ASUS CSM motherboard: ASUS Corporate Stable Model, with 12-month Supply, EOL notice & ECN control.
- Connectivity: ASUS Control Center Express(ACCE) to make IT endpoint management.
Whats Included
- ASUS PRIME H610M-E D4 CSM LGA1700 mATX MB (PCIe 4.0, DDR4, 2x M.2, 1Gb LAN, DP/HDMI/D-Sub, USB 3.2, RGB, COM)
