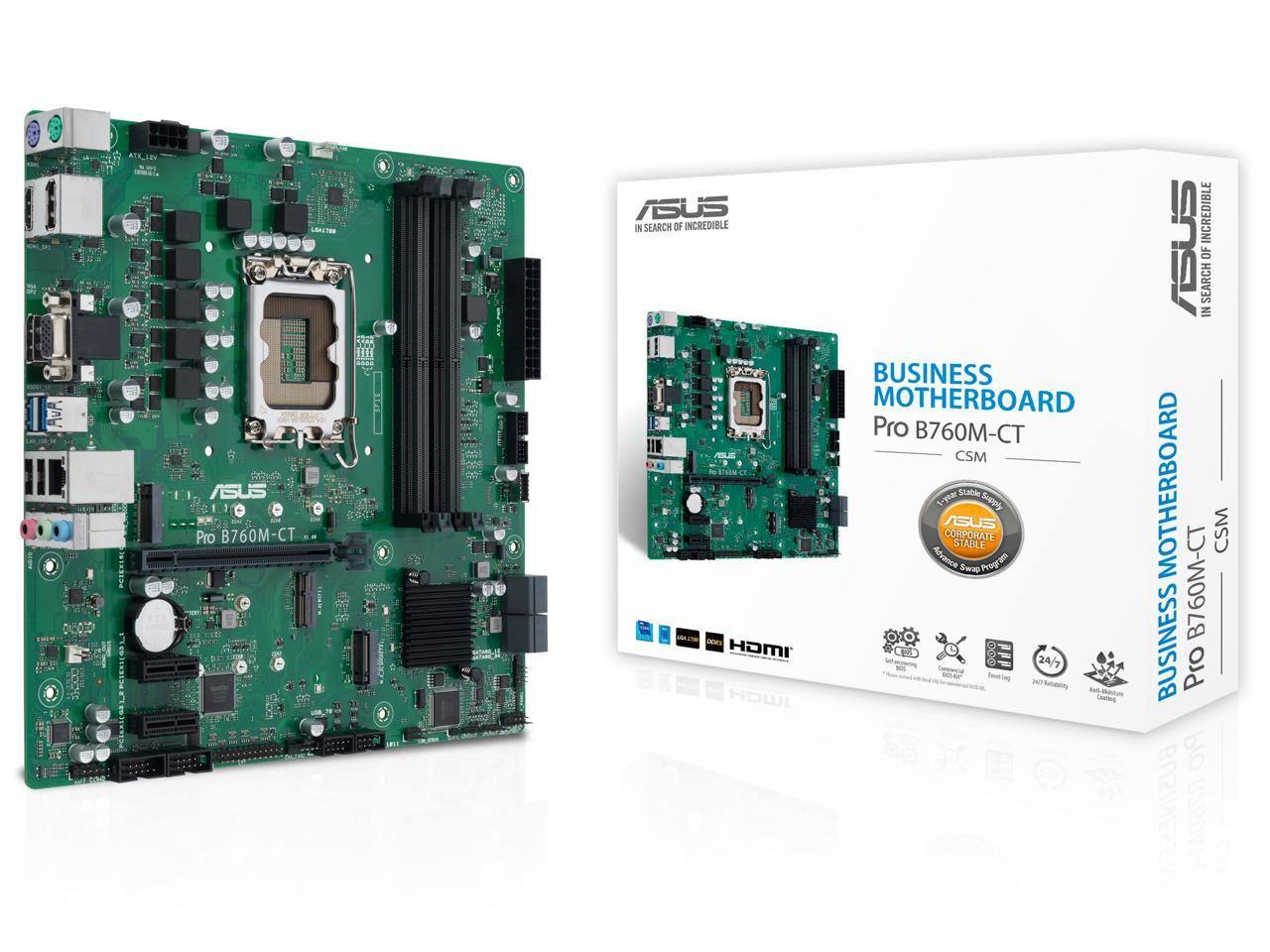

ASUS - Pro B760M-CT-CSM Industrial Motherboard
- Intel - Core i9-14900K 14th Gen 24-Core 32-Thread - 4.4GHz (6.0GHz Turbo) Socket LGA 1700 Unlocked Desktop Processor - Multi$468.99The price was $499.99
More Buying Options
Specifications
- ChipsetIntel B760Form FactormicroATXProcessor SocketSocket LGA 1700Wireless Networking StandardNo Wi-Fi standardNumber Of Memory Slots4Maximum Memory Supported192 gigabytes
- Key Specs
- Chipset: Intel B760
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: No Wi-Fi standard (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5 SDRAM
- General
- Brand: ASUS
- Product Name: Pro B760M-CT-CSM Industrial Motherboard
- Compatibility
- Chipset: Intel B760
- Chipset Compatibility: Intel
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Celeron, Intel Pentium Gold
- Slot
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: No Wi-Fi standard (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 1 x USB-A 2.0, 1 x USB-A 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 9.6 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 9.6 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 3.0 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5 SDRAM
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4800,5000,5200,5400,5600,5800,6000,6200 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 Year
- Other
- UPC: 197105019614
The Pro B760M-CT-CSM Industrial Motherboard is designed for 12th and 13th Gen Intel Core processors, offering robust features for business applications. It supports up to 192GB of DDR5 memory at speeds up to 6200MHz (OC) and includes multiple graphics outputs, including dual DisplayPort 1.4, HDMI 2.1, and VGA ports, all supporting up to 4K resolution at 60Hz. The motherboard features one PCIe 4.0/3.0 x16 slot and two PCIe 3.0 x1 slots for expansion, along with two M.2 slots and four SATA 6Gb/s ports for storage, supporting RAID 0/1/5/10 configurations. Enhanced security features include ASUS Boot Defender, a self-recovering BIOS, and TPM 2.0 IC onboard. The motherboard also offers ASUS Control Center Express for IT management and is compliant with the ASUS Corporate Stable Model (CSM) program, ensuring long-term availability and support.
- Processor Compatibility: Supports 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors with Intel Turbo Boost Technology 2.0 and 3.0.
- Memory Support: Equipped with 4 DIMM slots, supporting up to 192GB of DDR5 memory at speeds up to 6200MHz (OC), with Intel Extreme Memory Profile (XMP) support.
- Graphics Outputs: Offers dual DisplayPort 1.4, HDMI 2.1, and VGA ports, supporting up to 4K resolution at 60Hz.
- Expansion Slots: Includes one PCIe 4.0/3.0 x16 slot and two PCIe 3.0 x1 slots for versatile expansion options.
- Storage Interfaces: Provides two M.2 slots (Key M) supporting PCIe 4.0 x4 mode and four SATA 6Gb/s ports, with RAID 0/1/5/10 support.
- Processor Compatibility: Supports 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors with Intel Turbo Boost Technology 2.0 and 3.0.
- Memory Support: Equipped with 4 DIMM slots, supporting up to 192GB of DDR5 memory at speeds up to 6200MHz (OC), with Intel Extreme Memory Profile (XMP) support.
- Graphics Outputs: Offers dual DisplayPort 1.4, HDMI 2.1, and VGA ports, supporting up to 4K resolution at 60Hz.
- Expansion Slots: Includes one PCIe 4.0/3.0 x16 slot and two PCIe 3.0 x1 slots for versatile expansion options.
- Storage Interfaces: Provides two M.2 slots (Key M) supporting PCIe 4.0 x4 mode and four SATA 6Gb/s ports, with RAID 0/1/5/10 support.
