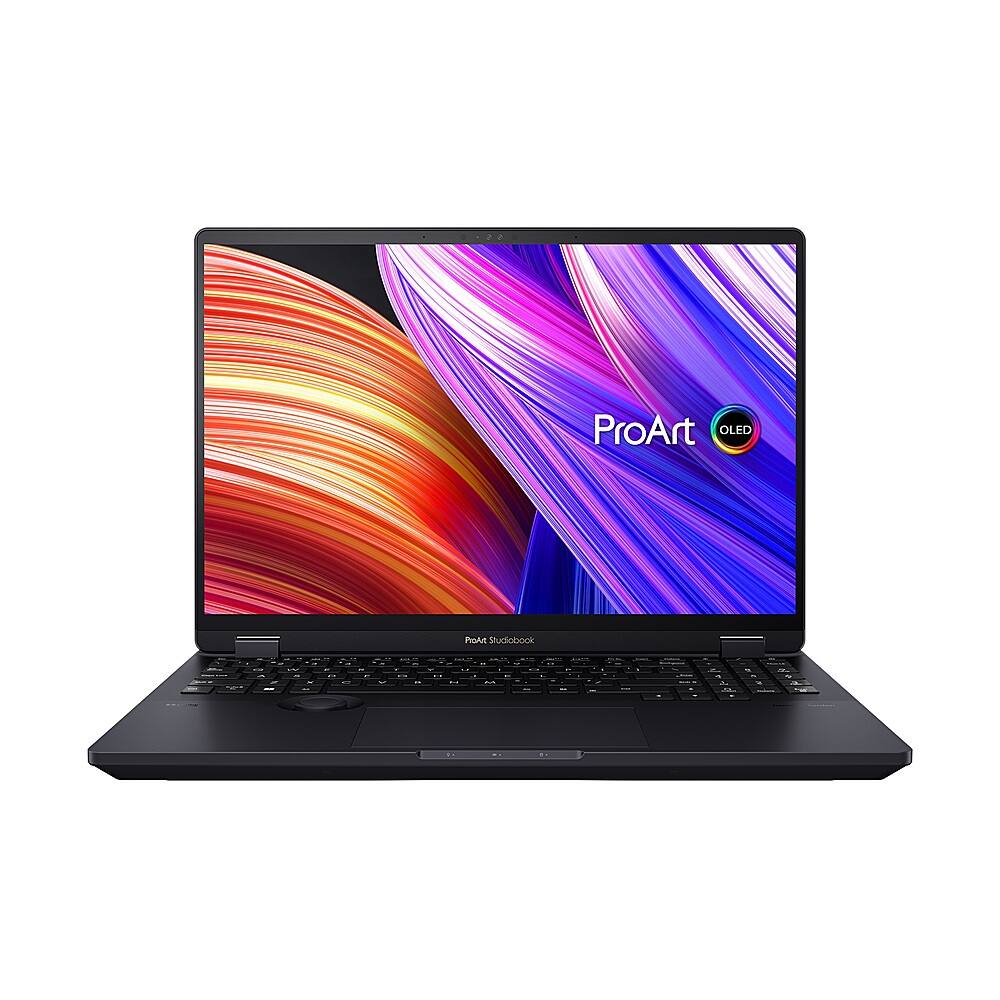

ASUS - ProArt Studiobook 16" OLED Touch Laptop - Intel 13 Gen Core i9 with 16GB RAM - NVIDIA GeForce RTX 4060 - 1TB SSD - Mineral Black
Model: H7604JV-PS94T
SKU: 6551325
This item is no longer available in new condition. See similar items below
- Key Specs
- Screen Size: 16 inches (Size of the screen, measured diagonally from corner to corner.)
- Screen Resolution: 3200 x 2000 (Screens come in a range of resolutions (measured in pixels, horizontal x vertical). The higher the resolution, the greater the picture quality.)
- Touch Screen: true (Touch-screen devices make navigating more intuitive. Using a touch-screen display, you can do things such as tap to select, hold and drag to move items, swipe to scroll, and pinch to zoom.)
- Refresh Rate: 120Hz (The number of frames per second the device can produce natively without enhancement. Higher rates help produce smooth, seamless pictures.)
- Brightness: 400 nits (A measure of the total light output.)
- Processor Model: Intel 13th Generation Core i9 (Your computer's processor is like its brain. Working in combination with system memory, the power of the processor determines the complexity of software you can run, how many programs you can have open at the same time, and how fast those programs will run. Most computers feature an AMD, Intel or Snapdragon processor.)
- Storage Type: SSD
- Total Storage Capacity: 1000 gigabytes
- System Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Graphics: NVIDIA GeForce RTX 4060 (Often referred to as a "graphics processing unit" (GPU), this device is responsible for displaying image content and decoding/encoding video content in programs and games.)
- Display Connector(s): 1 x HDMI 2.1, 2 x Thunderbolt 4 (The number and type of connectors used to connect to an external display.)
- Battery Chemistry: Lithium-ion
- Backlit Keyboard: true (Integrated lights allow for visibility of the keys in low-light conditions.)
- General
- Brand: ASUS
- Model Number: H7604JV-PS94T
- Product Name: ProArt Studiobook 16" OLED Touch Laptop - Intel 13 Gen Core i9 with 16GB RAM - NVIDIA GeForce RTX 4060 - 1TB SSD
- Color: Mineral Black
- Year of Release: 2023
- Display
- Display Type: OLED
- Screen Size: 16 inches (Size of the screen, measured diagonally from corner to corner.)
- Screen Resolution: 3200 x 2000 (Screens come in a range of resolutions (measured in pixels, horizontal x vertical). The higher the resolution, the greater the picture quality.)
- Touch Screen: true (Touch-screen devices make navigating more intuitive. Using a touch-screen display, you can do things such as tap to select, hold and drag to move items, swipe to scroll, and pinch to zoom.)
- Refresh Rate: 120Hz (The number of frames per second the device can produce natively without enhancement. Higher rates help produce smooth, seamless pictures.)
- Brightness: 400 nits (A measure of the total light output.)
- Processor
- Processor Brand: Intel
- Processor Model: Intel 13th Generation Core i9 (Your computer's processor is like its brain. Working in combination with system memory, the power of the processor determines the complexity of software you can run, how many programs you can have open at the same time, and how fast those programs will run. Most computers feature an AMD, Intel or Snapdragon processor.)
- Processor Model Number: 13980HX
- Neural Processing Unit (NPU): false (Whether the product comes with an integrated neural processing unit (NPU) that performs computations for AI (artificial intelligence) functions to increase proficiency of the CPU and reduce power consumption.)
- Storage
- Storage Type: SSD
- Total Storage Capacity: 1000 gigabytes
- Solid State Drive Capacity: 1000 gigabytes (The amount of data that can be stored on the device's solid state drive (SSD). SSD is a flash-based storage with faster speeds than a hard disk drive (HDD).)
- Memory
- System Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Type of Memory (RAM): DDR5 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Number Of Memory Slots: 2
- Number of Memory Sticks Included: 1
- Graphics
- Graphics Type: Dedicated (Dedicated graphics uses a separate graphics card for processing video images. Because it does not use memory from the system's RAM, there is no extra burden on the CPU and graphics are processed more efficiently. Integrated graphics shares system RAM to process video images.)
- GPU Brand: NVIDIA
- Graphics: NVIDIA GeForce RTX 4060 (Often referred to as a "graphics processing unit" (GPU), this device is responsible for displaying image content and decoding/encoding video content in programs and games.)
- Compatibility
- Operating System: Windows 11 Home (The operating system manages all software and hardware, including files, memory and connected devices. Most importantly, it lets you interact with your device and your programs in a visual way; otherwise, you'd be typing computer code to get anything done.)
- Voice Assistant Built-in: Amazon Alexa, Cortana (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Connectivity
- Display Connector(s): 1 x HDMI 2.1, 2 x Thunderbolt 4 (The number and type of connectors used to connect to an external display.)
- Number of HDMI Outputs (Total): 1
- Number of DisplayPort Outputs (Total): 3
- Number of Thunderbolt Ports (Total): 2
- USB Ports: 3 x USB-A 3.2 (The number and type of USB ports the product has.)
- Number of USB Ports (Total): 2
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number Of Ethernet Ports: 1
- Power
- Battery Cells: 4-cell
- Battery Chemistry: Lithium-ion
- Camera
- Front-Facing Camera: true
- Features
- Backlit Keyboard: true (Integrated lights allow for visibility of the keys in low-light conditions.)
- Casing Material: Magnesium alloy, Aluminum
- Dimensions
- Product Height: 0.82 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 14.02 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 10.67 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 5.29 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- EPEAT Qualified: false (The Electronic Product Environmental Assessment Tool (EPEAT) was designed to provide an environmental assessment tool for purchasers. In order to qualify for EPEAT, a product must meet all 23 required criteria.)
- Included
- Numeric Keypad: true
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 197105006546
The new ProArt Studiobook 16 OLED is a powerful mobile workstation that exceeds all expectations and goes far beyond the extraordinary. Its unstoppable 13th Gen Intel Core i9-13980HX processor, up to NVIDIA GeForce RTX 4060 Laptop GPU, vast amounts of memory and ultrafast storage will supercharge your content creation workflow and let your imagination do what it does best. The certified color-accurate 16-inch 3.2K 120 Hz OLED touchscreen will do full justice to your creative vision, and you’ll enjoy unrivaled precision control of your apps with the large, stylus-compatible haptic touchpad and intuitive ASUS Dial rotary control. Take your creativity to the next level with ProArt Studiobook 16 OLED
- Windows 11 Operating System: Family, friends, passions, music, creations, games – Windows 11 is the one place for it all. With a fresh new feel and tools that make it easier to be efficient, it has what you need for whatever’s next.
- 16” OLED touchscreen: 3200 x 2000 OLED 16:10 aspect ratio with 120Hz refresh rate, 100% DCI-P3 color gamut, PANTONE Validated, TÜV Rheinland-certified with 4096 pressure-level MPP 2.0 stylus support
- 13th Gen Intel Core i9-13980HX processor: It has an unprecedented 24 cores for effortless multithreading performance, a Turbo Boost speed of up to 5.6 GHz, and its 110 W maximum TDP makes light work of CPU-heavy tasks, so you can enjoy desktop-grade performance wherever you are.
- NVIDIA GeForce RTX 4060 8GB GDDR6 Graphics: NVIDIA GeForce RTX 4060 discrete graphic card Studio Ready for graphic designing that delivers the optimal visual experience
- 16GB of 5,200 MHz DDR5 memory: Reams of high-bandwidth DDR5 RAM to smoothly run your video-editing applications, as well as numerous programs and browser tabs all at once. Dual upgradable SO-DIMM slots
- 1TB M.2 NVMe PCIe 4.0 Performance SSD: Save files fast and store more data. With massive amounts of storage and advanced communication power, PCI-e SSDs are great for major gaming applications, multiple servers, backups and more. Dual upgradable M.2 slots, up to 8TB SSD and 7,000 MB/s transfer speed
- ASUS IceCool Pro thermal technology: Liquid metal thermal materials on the CPU, five heat pipes and larger 102-blade dual fans ensure optimum cooling performance. The new per-key keyboard lighting with air-intake design also helps maximize airflow. Noise levels below 40 dBA in Standard cooling mode.
- Make magic happen with ASUS Dial: ASUS Dial is an intuitive physical controller that gives you instant and precise fingertip control over parameters in your creative apps. You can easily change brush size, or rapidly undo actions to make your creative workflow smoother.
- The professional haptic touch: The new 16:10 haptic touchpad on ProArt Studiobook 16 OLED is a boon for efficient creativity. It’s the world’s first haptic touchpad with stylus support.
- 180° lay-flat hinge and Anti-fingerprint coating: The 180° lay-flat hinge makes it easy to share ideas and designs with clients or colleagues. There’s a high-tech anti-fingerprint nano-coating that helps keep the Mineral Black low-reflectivity finish of your ProArt Studiobook 16 OLED spotless.
- MUX Switch: A MUX switch allows you to choose between maximum direct-to-screen low-latency performance and optimal battery life at any time.
- All the ports, all the productivity: Two Thunderbolt 4 USB-C ports with Power Delivery, DisplayPort and VR support; two USB 3.2 Gen 2 ports; a 2.5 Gbps LAN port; the latest HDMI 2.1 FRL port; and an SD Express 7.0 card reader.
- US MIL-STD 810H military-grade standard: Passed 12 test methods and 26 test procedures. These factors inherently benefit longevity and thus sustainability, so you can work, travel or relax with the confidence that your ASUS laptop is ready for the real world — today, and long into the future
- For Efficient On-the-Go Life: The ProArt Studiobook 16 has a long-lasting 90 WHrs battery that keeps on going — just like your creativity.
- Adobe Creative Cloud: Complimentary 3-month Adobe Creative Cloud subscription with the purchase. Learn more on ASUS website for more details
Whats Included
- Asus ProArt Studiobook H7604JV-PS94T Notebook
- 240W AC Adapter
- Lithium Ion Battery
- Warranty Card
- User Manual
A: Yes. I’ve upgraded mine to 64 GB in two sticks of 32GB at 5600 MHz from Crucial.
A: No, upgrading the RAM yourself will not void warranty as long as no physical or customer induced damage will occur during the process.
Q: Which model of i9 is in this laptop? (i9-13900HX, i9-13950HX or i9-13980HX)
A: This laptop comes with a 13th Gen Intel Core i9-13980HX processor.
Q: Does this laptop come with 1x16GB or 2x8GB of ram?
A: One stick of 16GB in mine.
Q: If I buy from US then warranty available in india
A: Yes, the warranty coverage of this laptop is available in India,
Q: Possible to add a second drive to this unit? what format and bus?
A: Yes. It’s PCIe (NVMe)
Q: Hi,' What is he mx RAM for this laptop?
A: The ASUS ProArt Studiobook 16 OLED (H7604JV) laptop comes with 16GB DDR5 SO-DIMM memory, which is upgradeable to a maximum of 64GB. The device has 2 memory slots.
