ASUS - ROG Thor 3000W 80 Plus Titanium Fully Modular ATX 3.1 PCIe 5.1 Power Supply with Dual-Voltage Adaptive Design - 20th Edition
Reviews coming soon
Specifications
- Wattage3000 wattsModularFully modularEnergy Efficiency80 PLUS TitaniumATX ConnectorATX ConnectorPCIe Connector3x PCI-E 6+2-pin and 4x PCI-E 16-pin (12V-2x6/ROG EQUALIZER) ConnectorsEPS12V Connector3x EPS12V connectors (4+4‑pin CPU)
- Key Specs
- Wattage: 3000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Titanium (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: ATX Connector (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)

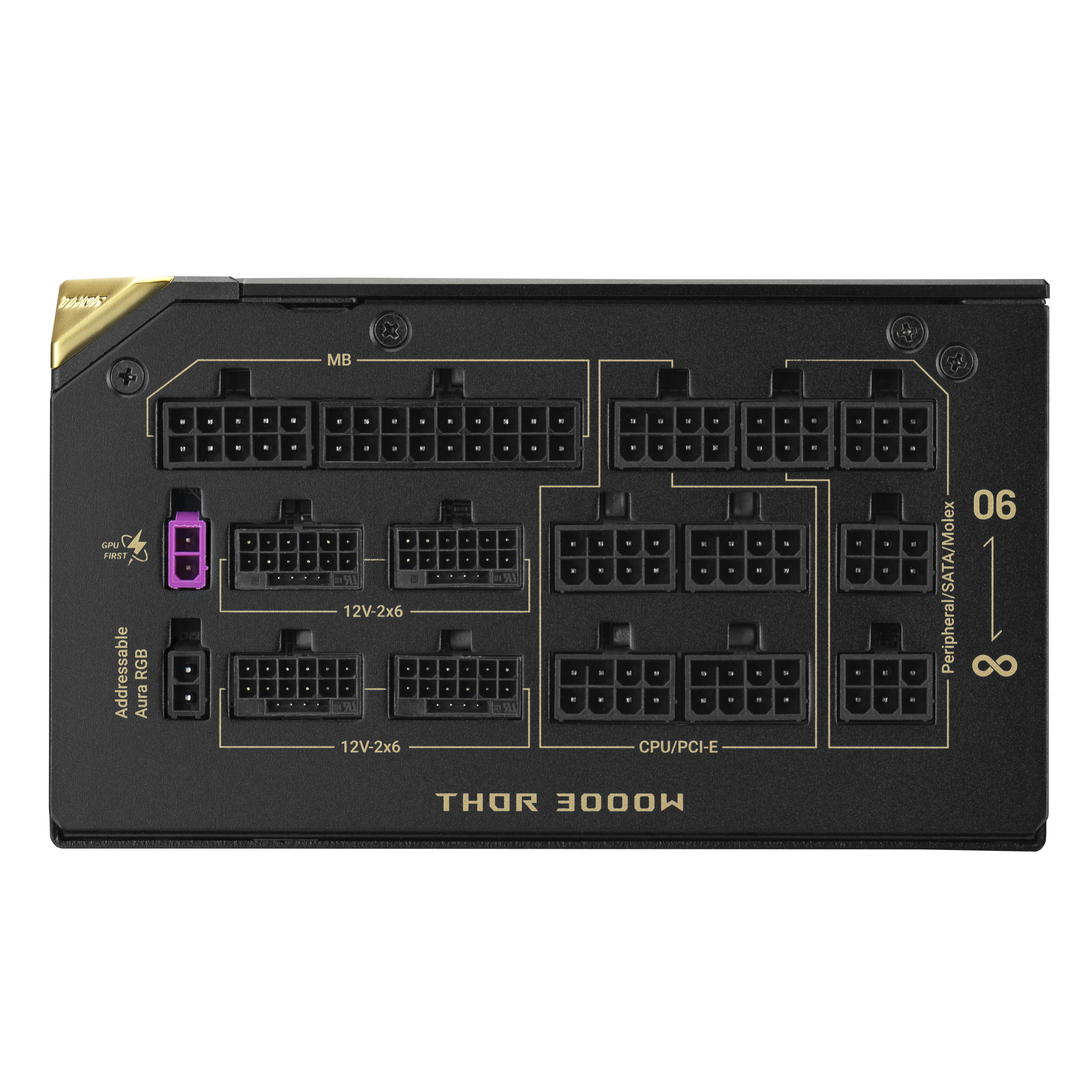

- PCIe Connector: 3x PCI-E 6+2-pin and 4x PCI-E 16-pin (12V-2x6/ROG EQUALIZER) Connectors (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- EPS12V Connector: 3x EPS12V connectors (4+4‑pin CPU) (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.1
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 190 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: ASUS
- Model Number: ROG-THOR-3000T3-GAMING-20TH
- Product Name: ROG Thor 3000W 80 Plus Titanium Fully Modular ATX 3.1 PCIe 5.1 Power Supply with Dual-Voltage Adaptive Design
- Color: 20th Edition
- Power
- Wattage: 3000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Titanium (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Connectivity
- ATX Connector: ATX Connector (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 3x PCI-E 6+2-pin and 4x PCI-E 16-pin (12V-2x6/ROG EQUALIZER) Connectors (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- EPS12V Connector: 3x EPS12V connectors (4+4‑pin CPU) (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.1
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 86 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 150 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 190 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 88.18 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Features
- Lighting Type: RGB
- Warranty
- Warranty - Parts: 10 years
- Warranty - Labor: 10 years
- Other
- UPC: 199291587267
The ROG Thor 3000W Titanium III 20th Edition is the pinnacle ROG power supply, engineered to support extreme configurations of up to four GeForce RTX 5090 graphics cards. It leverages a server-grade GaN MOSFET to efficiently deliver massive power at much lower temperatures than standard designs. To safely manage this unprecedented output, the ROG Equalizer 12V-2x6 PCIe power cable actively reduces system thermal stress. Meanwhile, the GPU-First Intelligent Voltage Stabilizer ensures unmatched voltage stability during peak overclocking. The OLED Display & Extender lets you monitor real-time power metrics right where you need them.

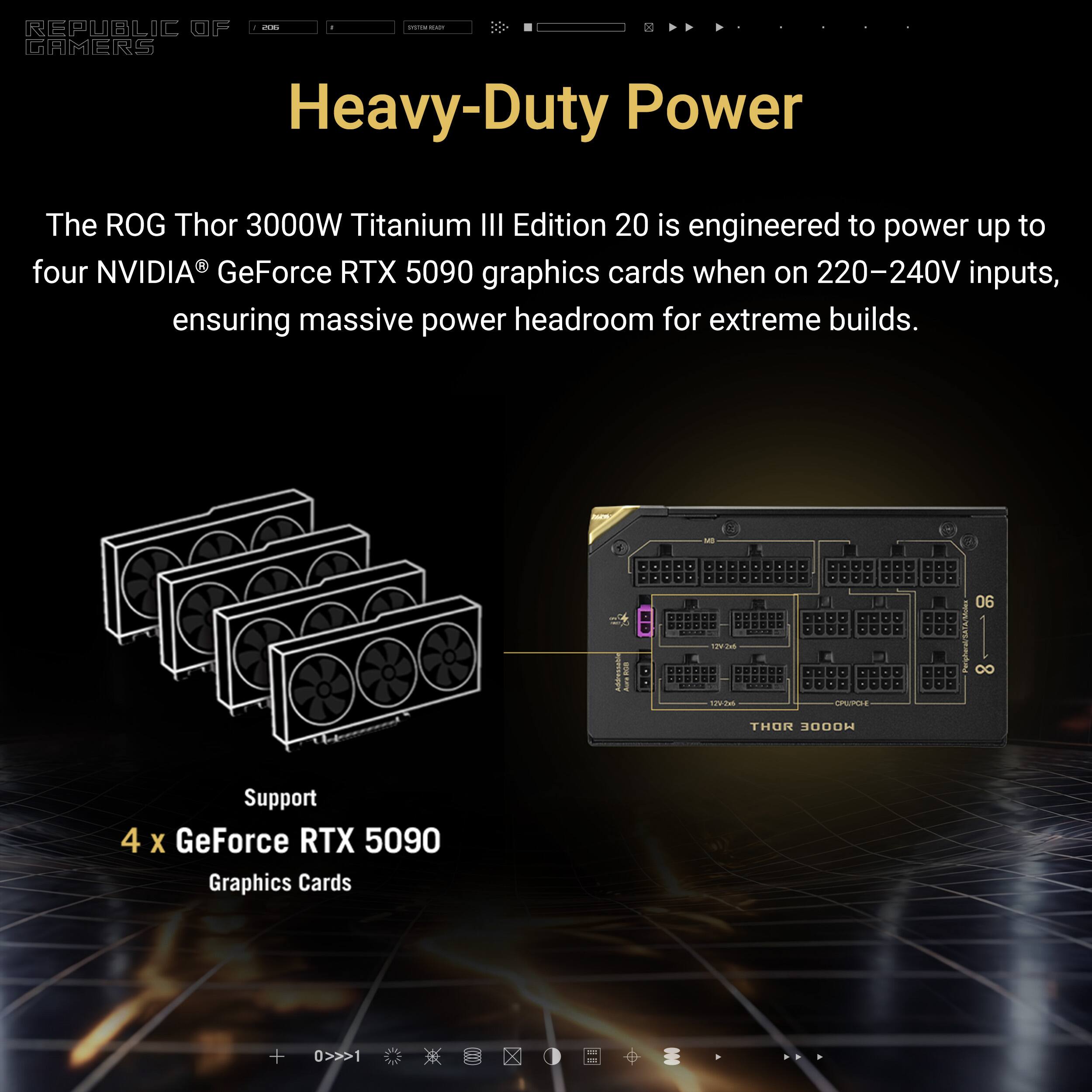

- Heavy Duty Power: Delivers up to 3000 watts on 220–240V inputs, supporting up to four NVIDIA GeForce RTX 5090 graphics cards

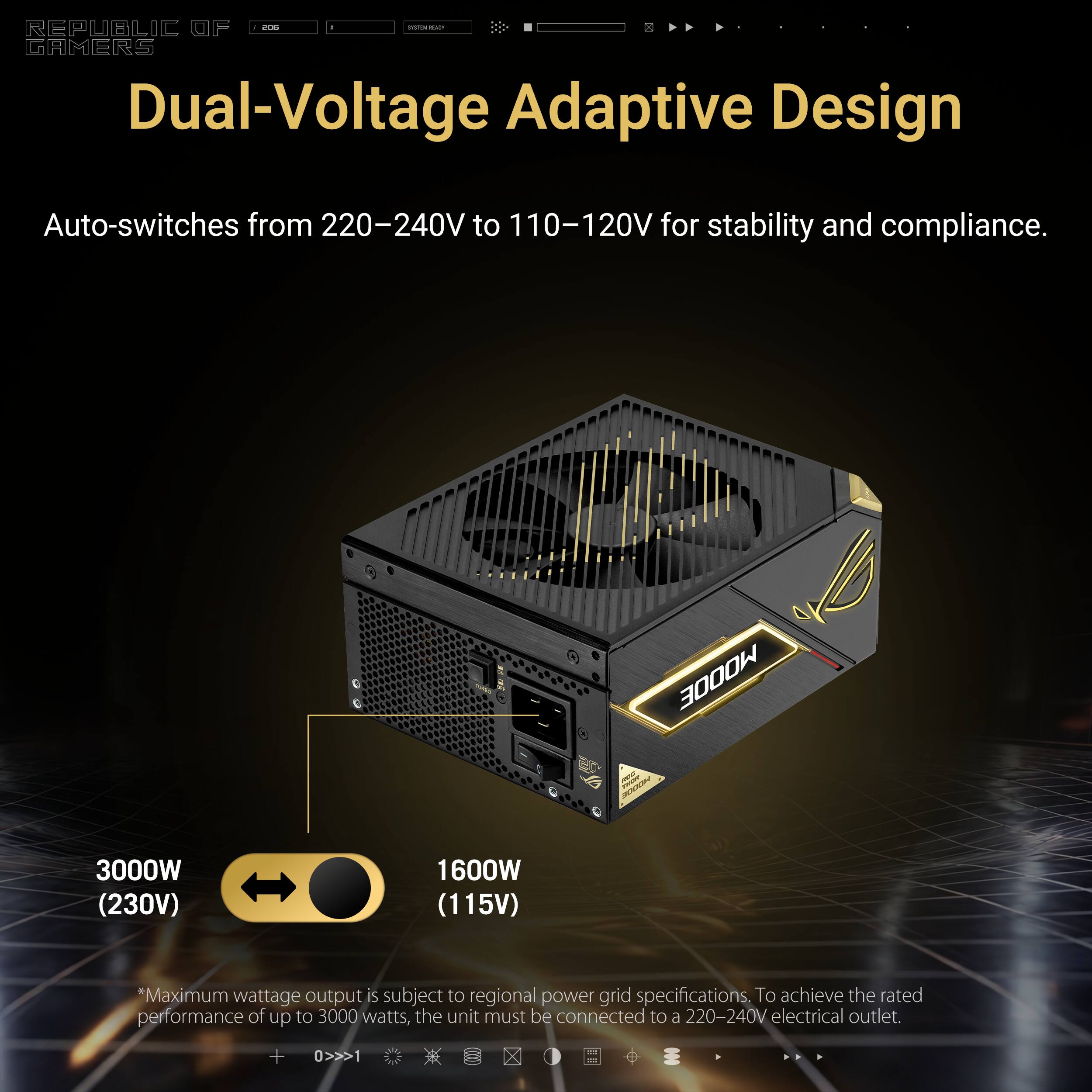

- Dual Voltage Adaptive Design: Auto-switches from 220–240V to 110–120V for stability and compliance

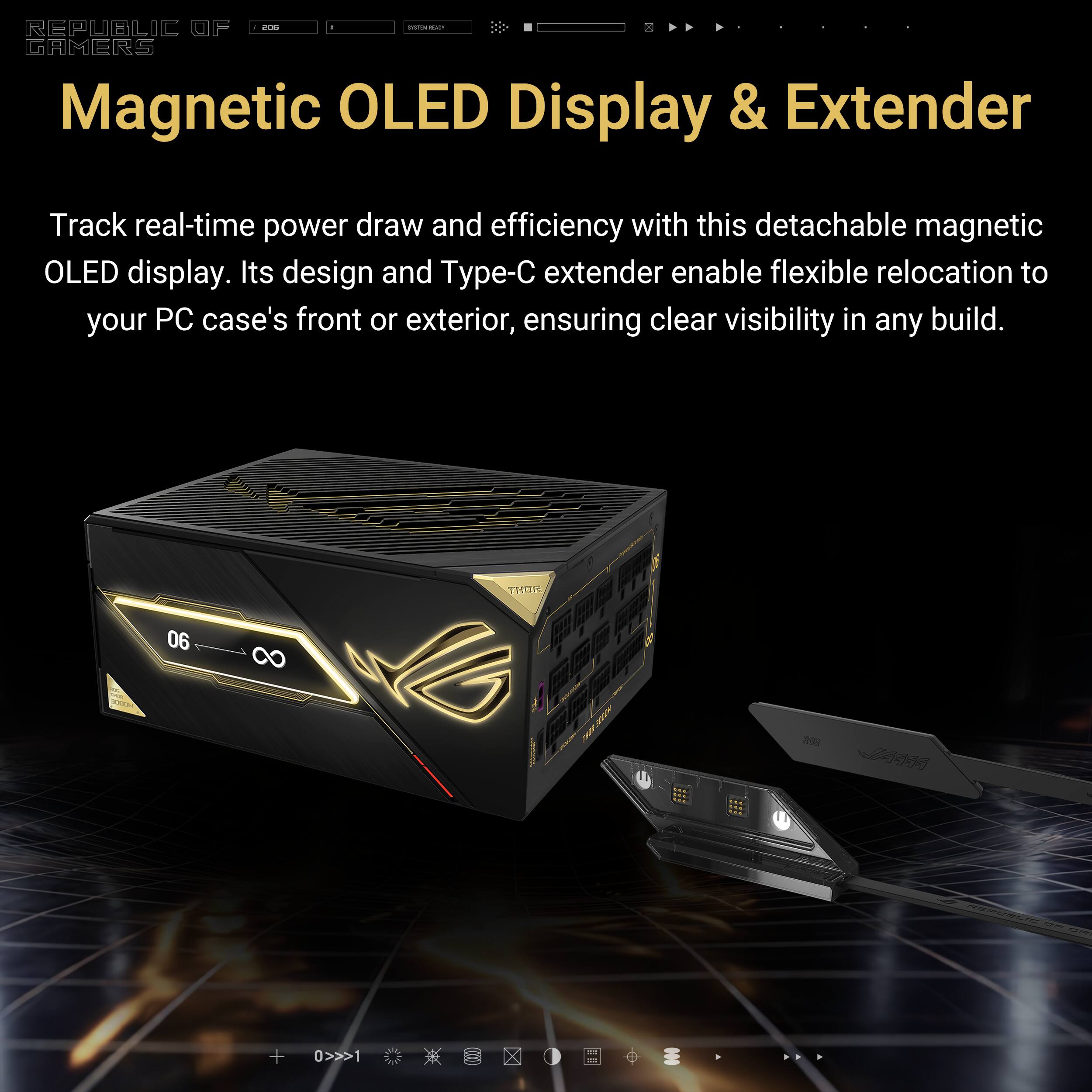

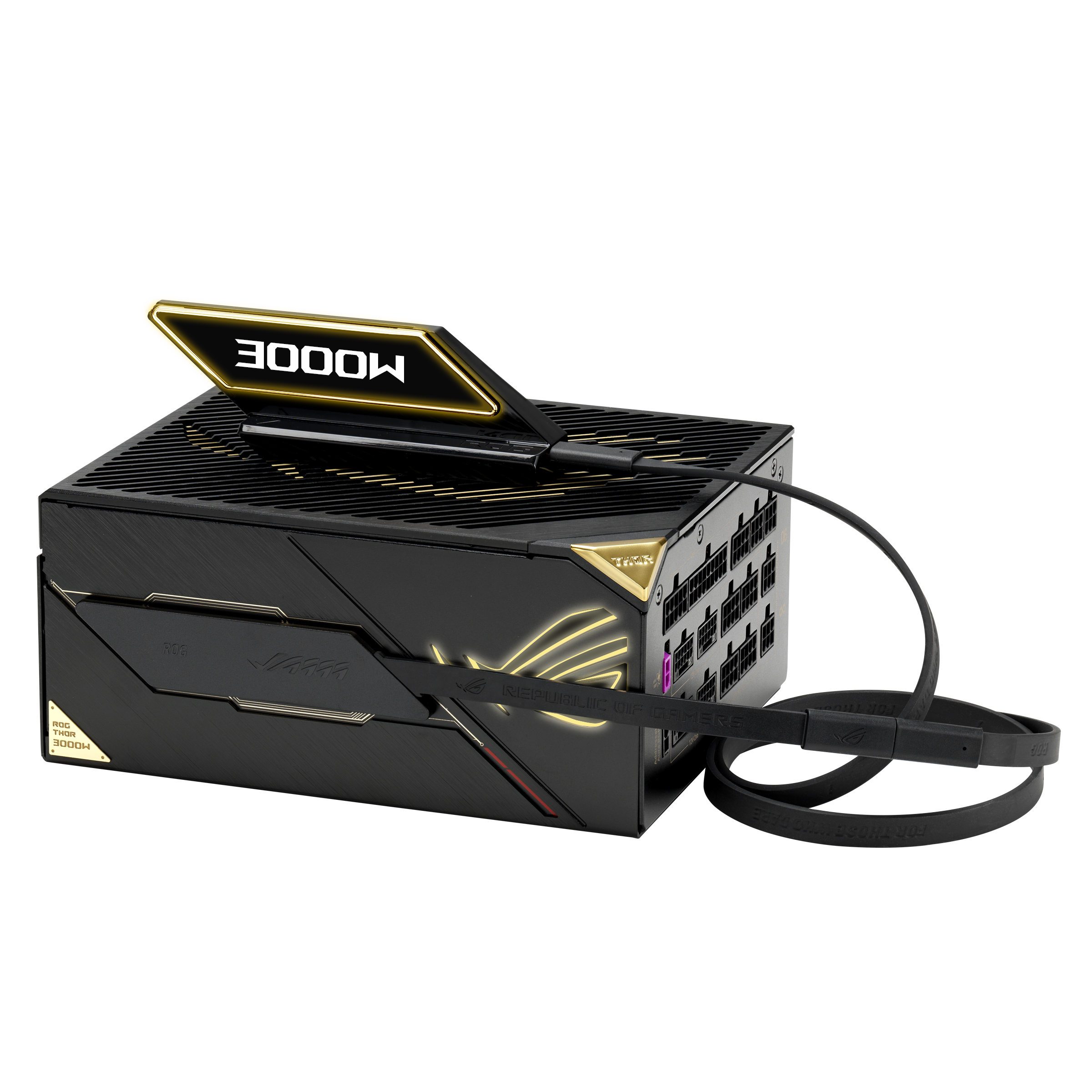

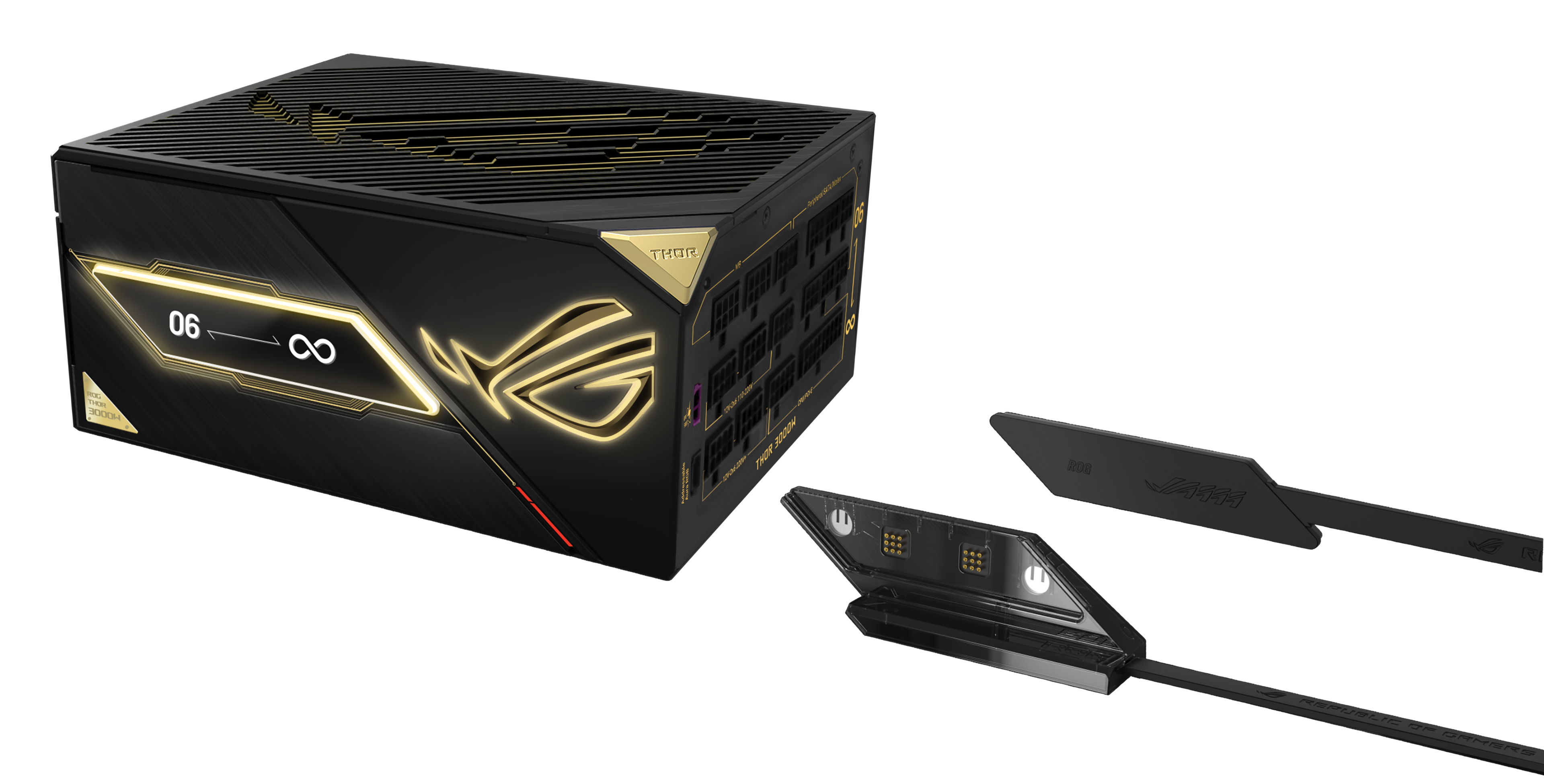

- Magnetic OLED Display & Extender: Enables real time power and efficiency monitoring, with a detachable design for flexible side or exterior chassis placement and clear visibility
- GaN MOSFET: Delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation

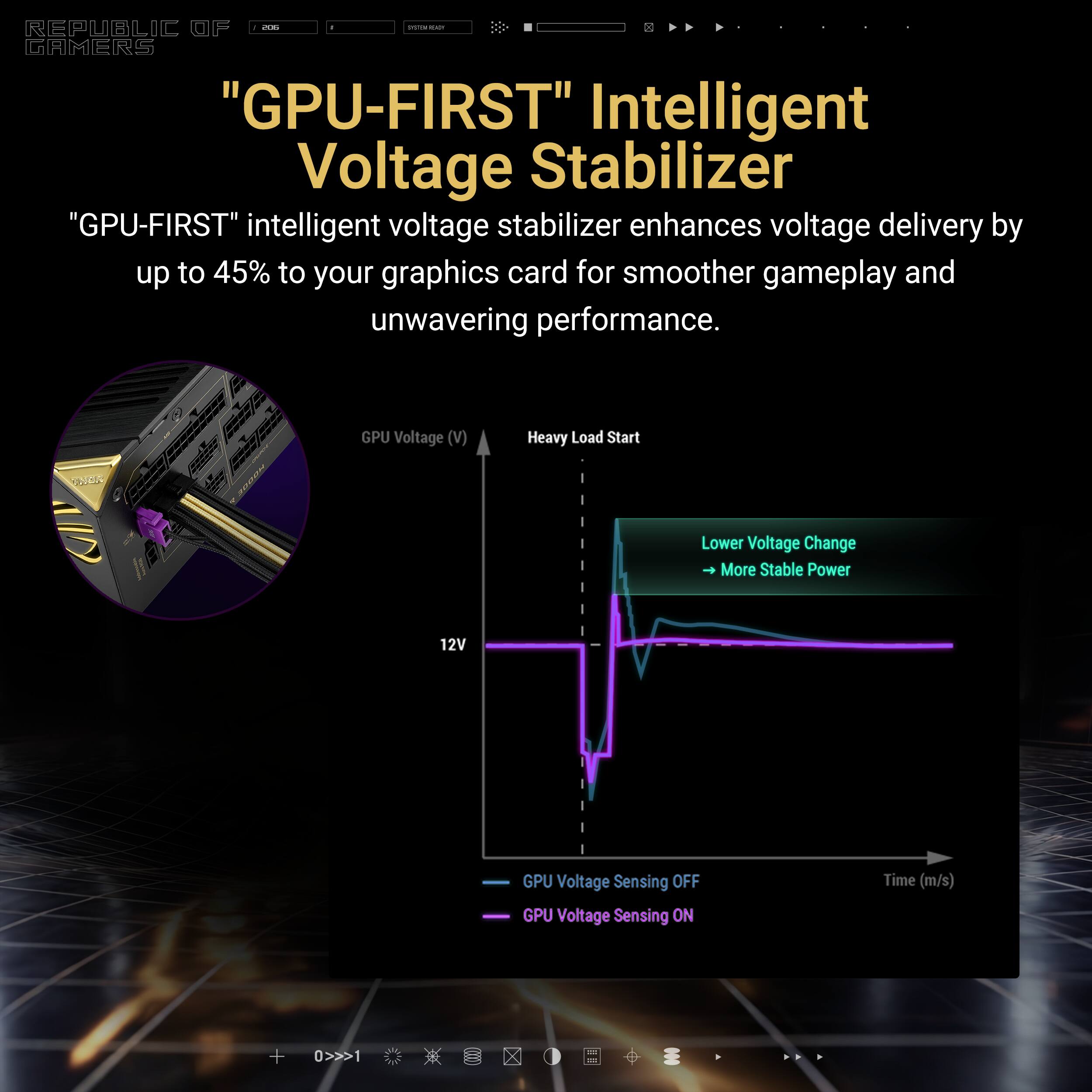

- Patented GPU-First Intelligent Voltage Stabilizer: Enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance

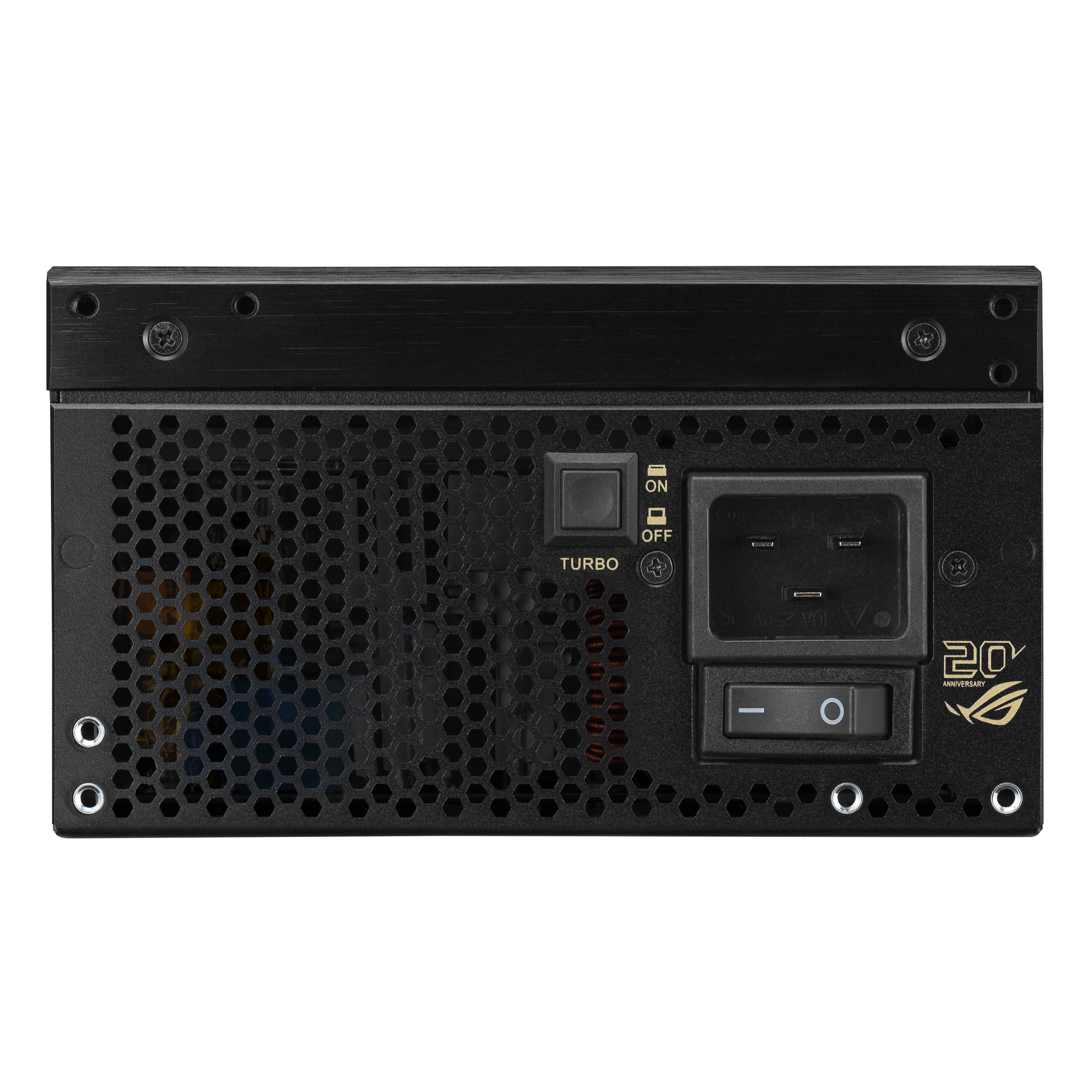

- User-Selectable Turbo Mode: Enables premium components and a fine-tuned fan curve to unlock support for extended power excursions

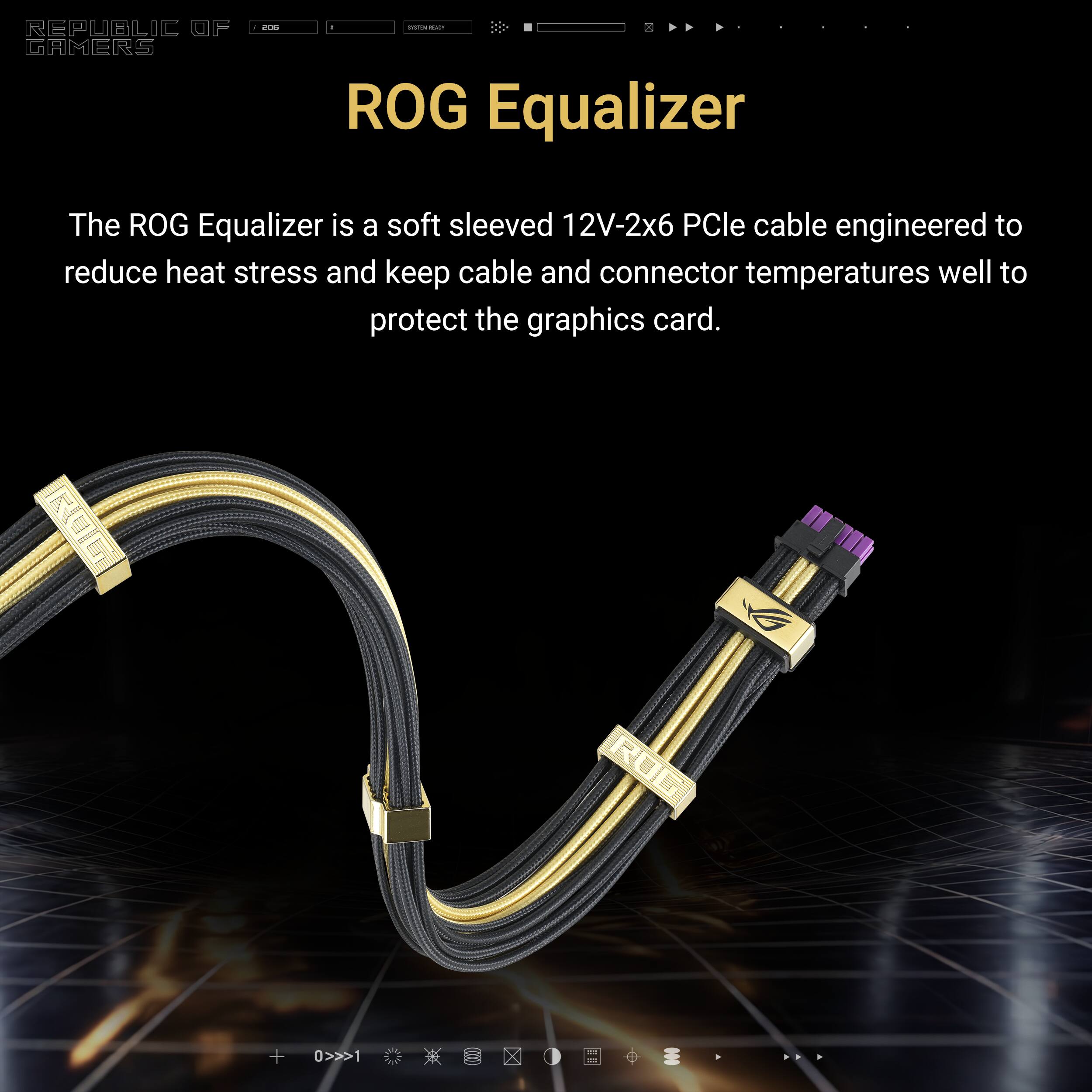

- ROG Equalizer 12V-2x6 PCIe Power Cable Included: Redefines power protection by reducing heat stress and keep cable and connector temperatures well to protect the graphics card
- ROG Heatsinks and a Fully Aluminum Enclosure: Synergize for high-end cooling, keeping your system thermals under control
- Dual-Ball Fan Bearing Design: Lasts up to twice as long as sleeve bearing designs

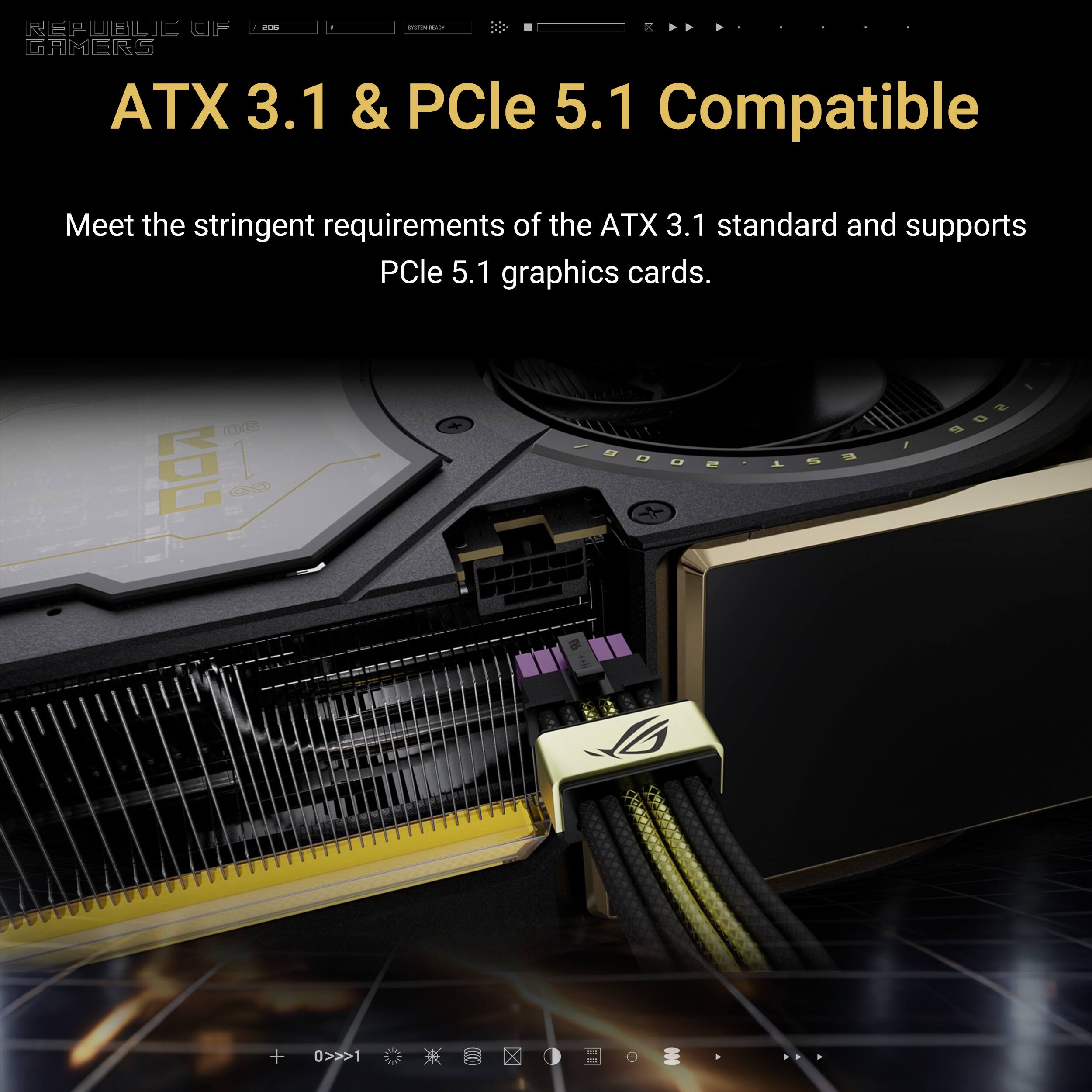

- Compliance with the ATX 3.1: Standard ensures enhanced voltage and current regulation for the latest hardware
- Sleeved Modular Cables: With a pliable premium material ensure effortless cable management and exceptional safety

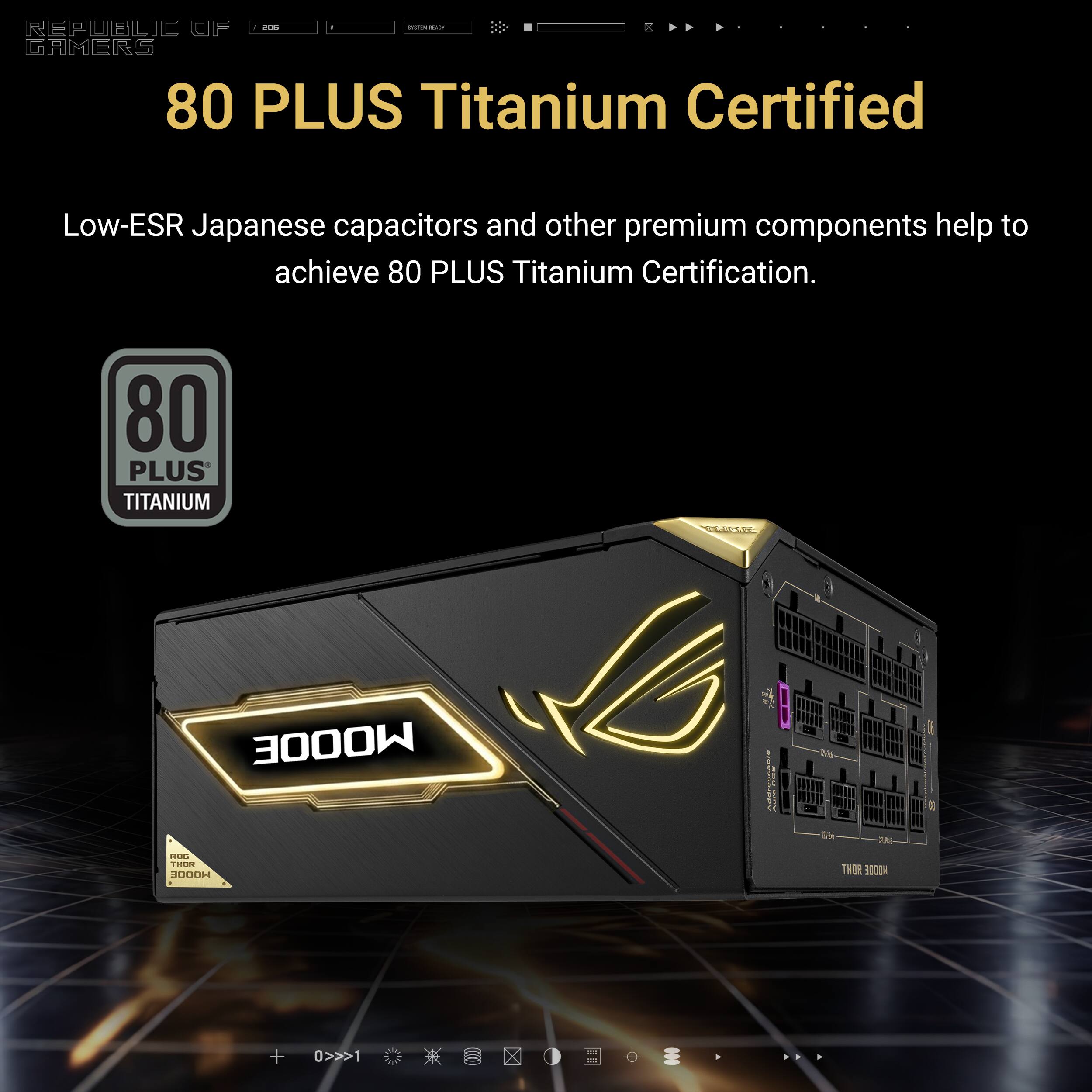

- 80 PLUS Titanium certification: Achieved through low-ESR capacitors and premium components, for industry-leading power efficiency
- 10-Year Warranty: is fully included
Whats Included
- ROG-THOR-3000T3-GAMING-20TH Power Supply
- 1x Power Cord
- 1x Motherboard Power Cable (2 ft), 3x CPU Cable (3.3 ft)
- 1x ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First (2.5 ft)
- 3x ROG EQUALIZER 12V-2x6 PCI-E Cable (2.5 ft)
- 3x PCI-E Cable 1-to-1 (2.5 ft), 1x Addressable RGB Cable (2.6 ft)
- 3x SATA 1-to-3 Cable (1.3 + 0.4+ 0.4 ft)
- 6x ROG Cable Ties, 12x Standard Cable Ties
- 1x Chassis Screws Package
- 1x OLED Stand, 1x ROG Sticker
