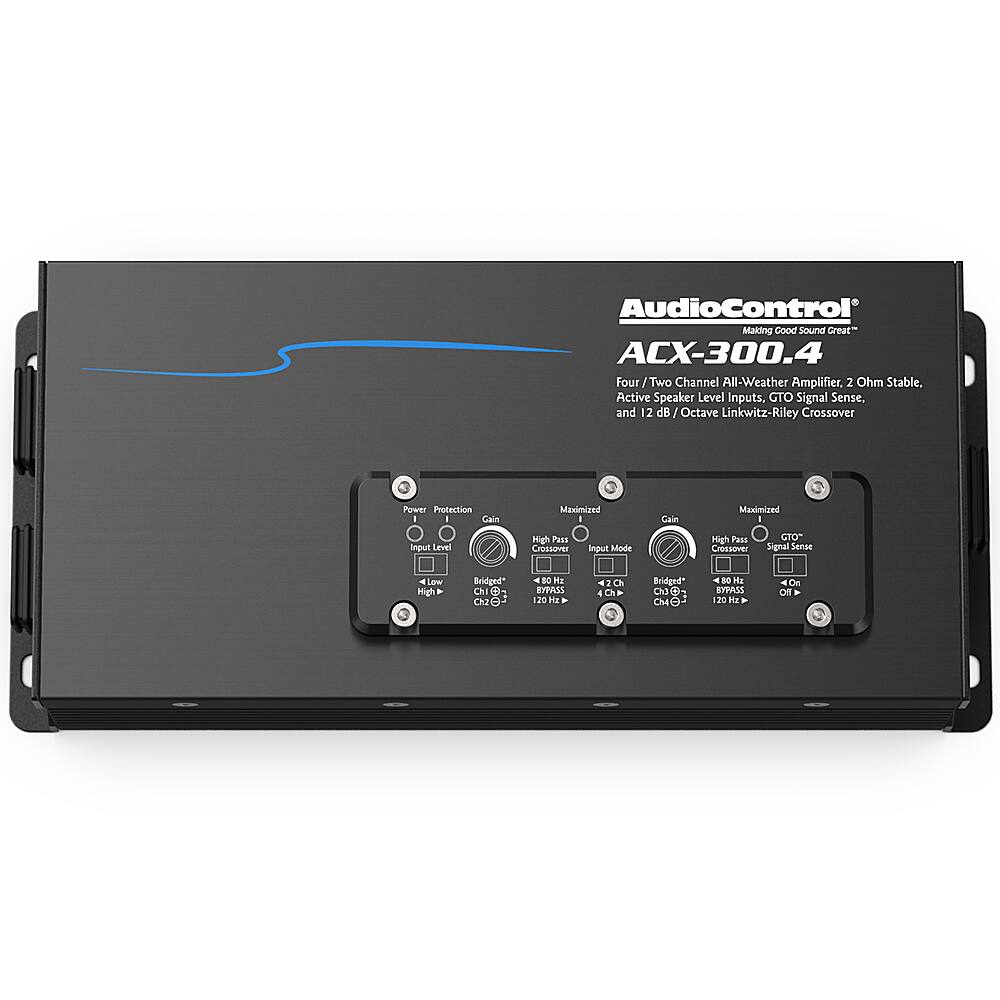

AudioControl - All-Weather Series 300W 4-Channel Class D Amplifier - Black

Model: ACX-300.4
SKU: 6482926
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Continuous Watts x Channel @ Ohms: 75W RMS x 4 @ 2 ohms, 50W RMS x 4 @ 4 ohms
    • Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
    • Number Of Channels: 4
    • Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
    • Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
    • Low-Pass Crossover: None (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
    • High-Pass Crossover: Selectable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
    • Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
  • General
    • Brand: AudioControl
    • Model Number: ACX-300.4
    • Product Name: All-Weather Series 300W 4-Channel Class D Amplifier
    • Color: Black
    • Mounting Hardware Included: true
  • Audio Power
    • Continuous Watts x Channel @ Ohms: 75W RMS x 4 @ 2 ohms, 50W RMS x 4 @ 4 ohms
    • Total Power Handling RMS: 300 watts
    • Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
  • Audio
    • Number Of Channels: 4
    • Minimum Frequency Response: 26 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
    • Maximum Frequency Response: 22 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
    • Total Harmonic Distortion: 0.2 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
    • Signal-to-Noise Ratio (SNR): 106 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
    • Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
  • Features
    • Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
    • Low-Pass Crossover: None (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
    • High-Pass Crossover: Selectable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
    • MOSFET Power Supply: false (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
    • Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
    • Remote Control Included: No
    • Marine: true
    • Fan Cooled: false
  • Input
    • Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
    • Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
  • Output
    • Preamp Outputs: false
  • Dimensions
    • Product Height: 2.25 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 3.88 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Product Weight: 7.2 pounds (The out of box weight of the item.)
  • Warranty
    • Warranty - Parts: 5 years
    • Warranty - Labor: 5 years
  • Other
    • UPC: 851523007836

Enjoy powerful audio off-road or on the water with this All-Weather Series 300W 4-Channel Class D Amplifier by AudioControl. The ACX-300.4 features a compact, water-tight chassis with fully sealed wiring to enable use in marine and powersports applications. This four-channel amplifier also features quick connect wiring for easy installation.

  • 4-channel full range Class D amplifier: Compact chassis fits easily in boats, motorcycles, ATVs, UTVs, and more. Configurable for 4-channel and 2-channel audio systems.
  • IPX6-rated weatherproof design: Protects against the elements for long-lasting use in marine and powersports applications.
  • Handles up to 75W RMS (continuous) x 4 @ 2 ohms or 50W RMS x 4 @ 4 ohms: To deliver powerful audio. Up to 150W RMS @ 4 ohms bridged.
  • 4 and 2 ohms impedance: Conducts power evenly to keep speakers working at optimal levels.
  • Selectable input modes: Accepts both high-level (speaker level) and low-level (RCA line level) signals for integration with your existing audio system.
  • High-pass crossover: Ensures flexible operation.
  • <0.2% THD (Total Harmonic Distortion): For clean sound.
  • >106dBa signal-to-noise ratio: Ensures crisp audio.
  • Great Turn On (GTO) Signal Sense: Automatically powers the amplifier when the radio is turned on.
  • Heavy gauge quick connects: Provide added installation ease and serviceability.
  • 5-year warranty: To protect against defects in materials and workmanship.
Whats Included
  • AudioControl All-Weather Series 300W 4-Channel Class D Amplifier
  • Quick start guide
