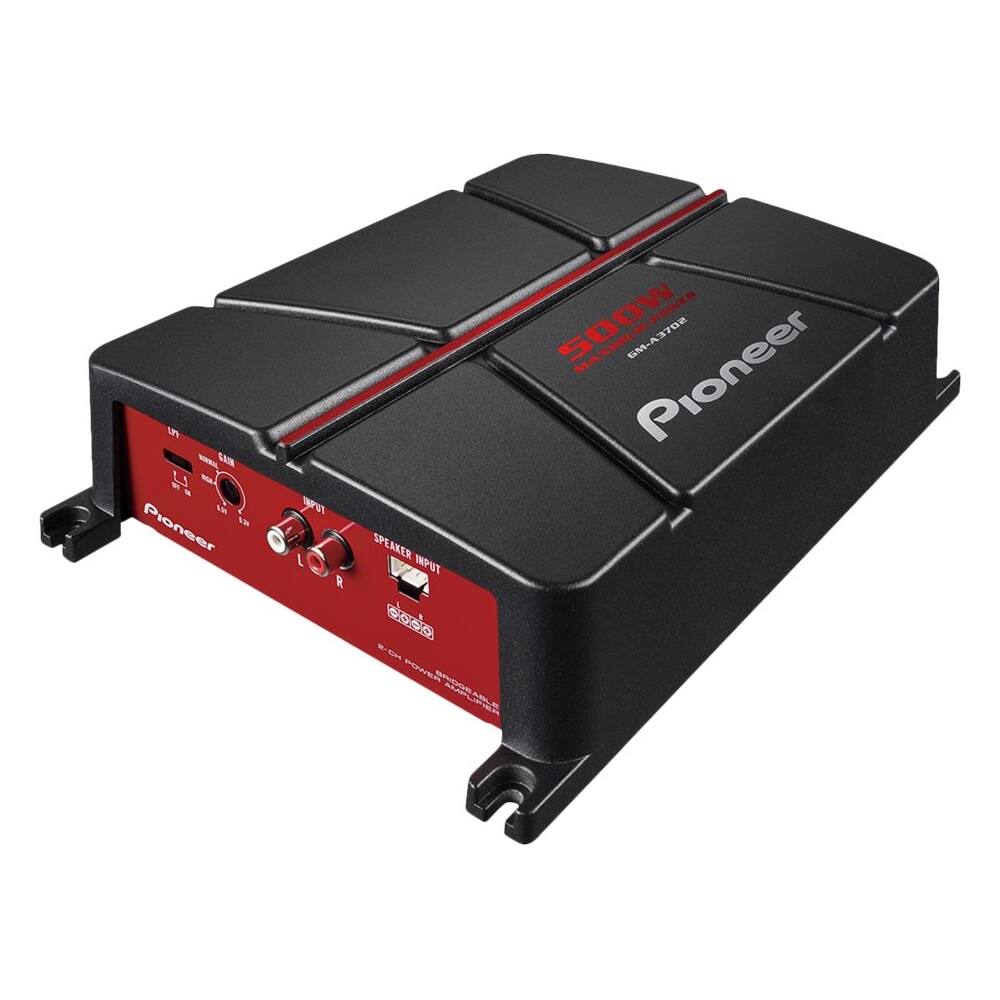

Pioneer - GM 500W Class AB Bridgeable 2-Channel Amplifier with Low-Pass Crossover - Red/Black
Pioneer - GM 500W Class AB Bridgeable 2-Channel Amplifier with Low-Pass Crossover - Red/Black
Specifications
- Continuous Watts x Channel @ Ohms95 W x 2 x 2 Ohms; 60 W x 2 x 4 Ohms; 190 W x 1 x 4 OhmsMaximum Watts x Channel @ Ohms60w x 2, 500w x 1 @4ohmsAmplifier ClassABNumber Of Channels2Bass BoostNoneBridgeableYes
- Key Specs
- Continuous Watts x Channel @ Ohms: 95 W x 2 x 2 Ohms; 60 W x 2 x 4 Ohms; 190 W x 1 x 4 Ohms
- Maximum Watts x Channel @ Ohms: 60w x 2, 500w x 1 @4ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 2
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Fixed (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Variable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: Pioneer
- Model Number: GMA3702
- Product Name: GM 500W Class AB Bridgeable 2-Channel Amplifier with Low-Pass Crossover
- Color: Red/Black
- Mounting Hardware Included: true
- Audio Power
- Continuous Watts x Channel @ Ohms: 95 W x 2 x 2 Ohms; 60 W x 2 x 4 Ohms; 190 W x 1 x 4 Ohms
- Watts Per Channel RMS: 500 watts
- Maximum Watts x Channel @ Ohms: 60w x 2, 500w x 1 @4ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Watts Per Channel Maximum: 500 watts
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 2
- Minimum Frequency Response: 10 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 70 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.5 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 95 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Fixed (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Variable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- MOSFET Power Supply: false (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Remote Control Included: No
- Marine: false
- Fan Cooled: false
- Input
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Output
- Preamp Outputs: false
- Dimensions
- Product Height: 2.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 7.1 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 5.8 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Compatibility
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 884938340168
Add 500W of power to an existing mobile sound system with this Pioneer GM series amplifier. Its compact size fits in tight car spaces, so you can easily install it in most vehicles. This Pioneer GM series amplifier recognizes input signals from the receiver and powers itself automatically when the receiver comes on, saving time and effort.
- 500W total power: RMS rating of 95W x 2 @ 2 ohms, 2 channels driven for robust audio.
- Low-pass crossover: Ensures flexible operation.
- 4 ohms impedance: Conducts power evenly to keep the speaker at an appropriate level.
- 0.05% THD (Total Harmonic Distortion): Provides clean sound.
- 95dB signal-to-noise ratio: Offers crisp audio.
- Bass boost: Delivers pounding audio.
- 2-channel output: Allows easy system expansion.
- Class AB circuitry: Ensures reliable power handling.
- 500W total power: RMS rating of 95W x 2 @ 2 ohms, 2 channels driven for robust audio.
- Low-pass crossover: Ensures flexible operation.
- 4 ohms impedance: Conducts power evenly to keep the speaker at an appropriate level.
- 0.05% THD (Total Harmonic Distortion): Provides clean sound.
- 95dB signal-to-noise ratio: Offers crisp audio.
- Bass boost: Delivers pounding audio.
- 2-channel output: Allows easy system expansion.
- Class AB circuitry: Ensures reliable power handling.
Whats Included
- Pioneer GM 500W Class AB Bridgeable 2-Channel Amplifier with Low-Pass Crossover
- Pioneer GM 500W Class AB Bridgeable 2-Channel Amplifier with Low-Pass Crossover
A: Hello Ceci, No, it doesn't fit your 2010 Honda Accord CT. Pioneer Support, Merjorie https://www.pioneerelectronics.com/
A: undefined
Q: Can it support pioneer 1300 watt subwoofer?
A: undefined
Compare similar products
Add 500W of power to an existing mobile sound system with this Pioneer GM series amplifier. Its compact size fits in tight car spaces, so you can easily install it in most vehicles. This Pioneer GM series amplifier recognizes input signals from the receiver and powers itself automatically when the receiver comes on, saving time and effort.
Enhance music with this KICKER CX-Series Mono amplifier. The three-second delay when turning this device on or off eliminates unwanted interference, while the subsonic filter removes potentially damaging frequencies. This KICKER CX-Series Mono amplifier has a compact design for easy installation, and the Fail-safe Integration Technology-PLUS provides compatibility to work with almost any radio.
The Pioneer GM-DX874 four-channel amplifier will deliver up to 150 watts RMS to each of your front and rear speakers for powerful music. Highly efficient Class D technology keeps this powerful amp running as cool as it looks, and allows for a compact chassis that fits in a lot of out of the way spaces. The frequency response of this amplifier stretches up to 50,000 Hz, for Hi-Res Audio Certified playback. Pioneer uses high-grade electronic parts and gold-plated RCA connections to ensure maximum performance. Speaker-level inputs allow you to install this amp in a factory system with no RCA connections. The amplifier switches its input mode automatically when it detects the high-level signal, eliminating the need to run a turn-on lead to your receiver or fuse box. Built-in high- and low-pass filters let you adjust the sound for your vehicle's interior, whether you're driving speakers or subs.
The GM-DX871 mono subwoofer amplifier can deliver up to 800 watts RMS to your subwoofer, for powerful bass that will give every song a strong and heavy beat. Highly efficient Class D technology keeps this powerful amp running as cool as it looks, and allows for a small chassis that fits in a lot of out of the way spaces.
| Pros for Pioneer - GM 500W Class AB Bridgeable 2-Channel Amplifier with Low-Pass Crossover - Red/Black | |||
|---|---|---|---|
| There were no pros for this product— | Power, Sound Quality, Size, Ease of use, Bass | Sound Quality, Power, Size, Installation Ease | Power, Sound Quality, Size, Ease of use, Price |
| Cons for Pioneer - GM 500W Class AB Bridgeable 2-Channel Amplifier with Low-Pass Crossover - Red/Black | |||
| There were no cons for this product— | Heat | Heat Dissipation | Heat |
Specs
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Almost Perfect
For what it is and what you should expect this amp is 5 stars. It works like it should and seems to put out the rated power. I do however have one issue with this amp: it doesn't have a high pass filter. I'm running this amp at 2 ohms with each channel driving two 6x8 pioneer speakers (they make great speakers too!) and would love to be able to high pass them but unfortunately this amp only has a low pass crossover. I don't know if adding this feature would have added significant expense to the amp but considering this is the only reputable company selling amps this cheap I would have happily paid a few extra bucks for this feature. I would just high pass at the radio but my particular radio doesn't support this feature either. All and all though if you read the description for this amp you'll know what to expect and if you've made it this far in the review I'd like to recommend this amp unless you need high pass filtering on the amp itself. If you do, consider another pioneer amp. This amp and their speakers are fantastic in my experience.
This review is from Pioneer - GM 500W Class AB Bridgeable 2-Channel Amplifier with Low-Pass Crossover - Red/Black
Brendan Posted
- Rated 5 out of 5 stars
Great amp
I have this amp in my Jeep connected to a single 10” kicker in the rear cargo area. The box is a down firing set up. The amp is in bridge mode. The sound is great. It hits hard enough to compliment the rest of the speakers.
This review is from Pioneer - GM 500W Class AB Bridgeable 2-Channel Amplifier with Low-Pass Crossover - Red/Black
Mark Posted
- Rated 5 out of 5 stars
Great Mid Range Amp
This amplifier has been awesome! I have it running a single Pioneer 12" SVC 600W RMS subwoofer in bridged-mode. The performance has been exceptional. I have it seat mounted connected to a side slot-ported cube enclosure. There is a fair spacing on the terminal block to allow for higher gauge cables to connect to firmly. The adjustable output helps with running and low pass filter cuts into line noise very well. I would definitely buy again.
This review is from Pioneer - GM 500W Class AB Bridgeable 2-Channel Amplifier with Low-Pass Crossover - Red/Black
Gambit Posted
