Bosch - 500 Series 24" Built-In Gas Cooktop with 4 burners - Stainless Steel
Delivery to
- Delivery of new cooktop up to the 3rd floor or any level serviced by an elevator. Removal of all packaging. Install new cooktop to existing gas supply with a new gas line kit (required). Secure cooktop to counter, install all trim pieces and accessories included with the unit. Not included: additional parts, extensive labor/counter modifications, and permit fees.
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishSilverProduct Height2 3/4 inchesProduct Width22 inchesProduct Depth20 1/2 inchesCooktop Surface TypeGrateNumber of Burners4
- Key Specs
- Color Finish: Silver
- Product Height: 2 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 22 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 4
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: Not Applicable (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Bosch
- Model Number: NGM5453UC
- Product Name: 500 Series 24" Built-In Gas Cooktop with 4 burners
- Color: Stainless Steel
- Color Finish: Silver
- Vendor Collection: Bosch 500 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 2 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 22 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 24 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 32 pounds (The out of box weight of the item.)

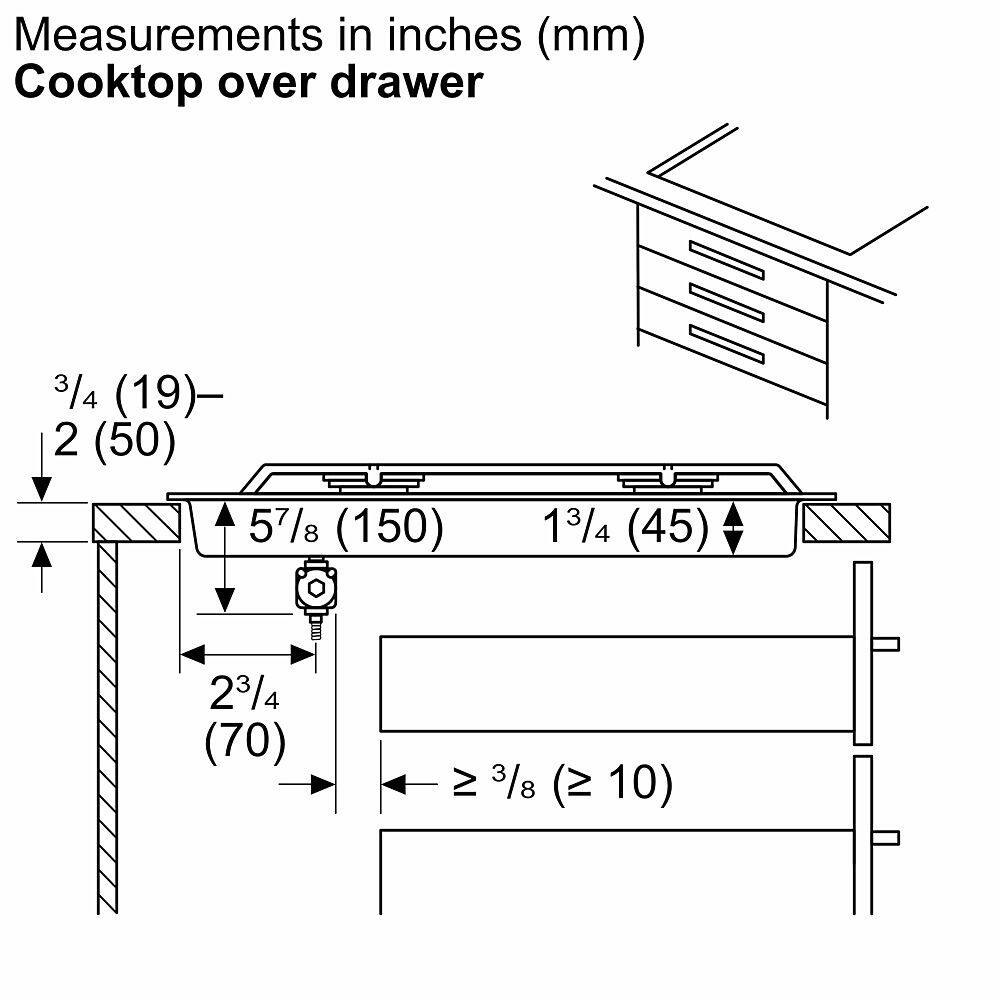

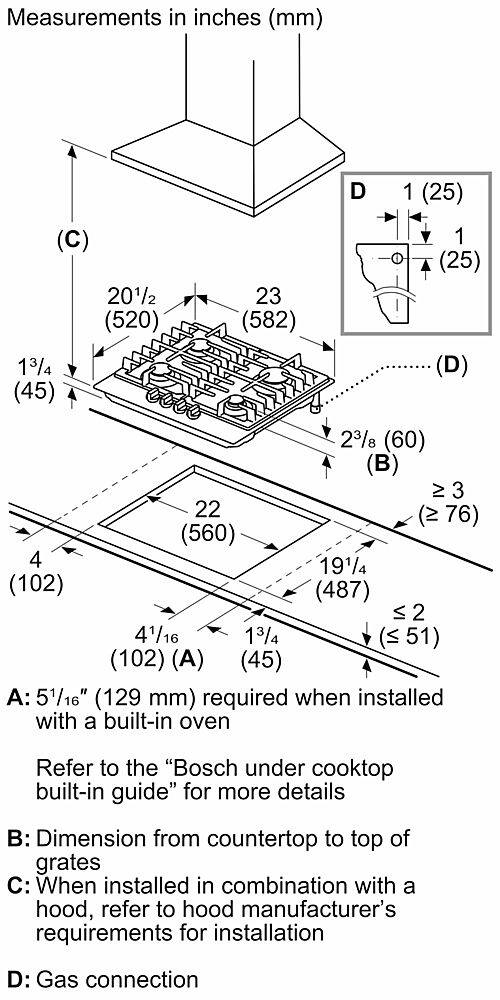

- Cut-Out Dimensions
- Cut-Out Height: 2 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 22 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 19 1/4 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)

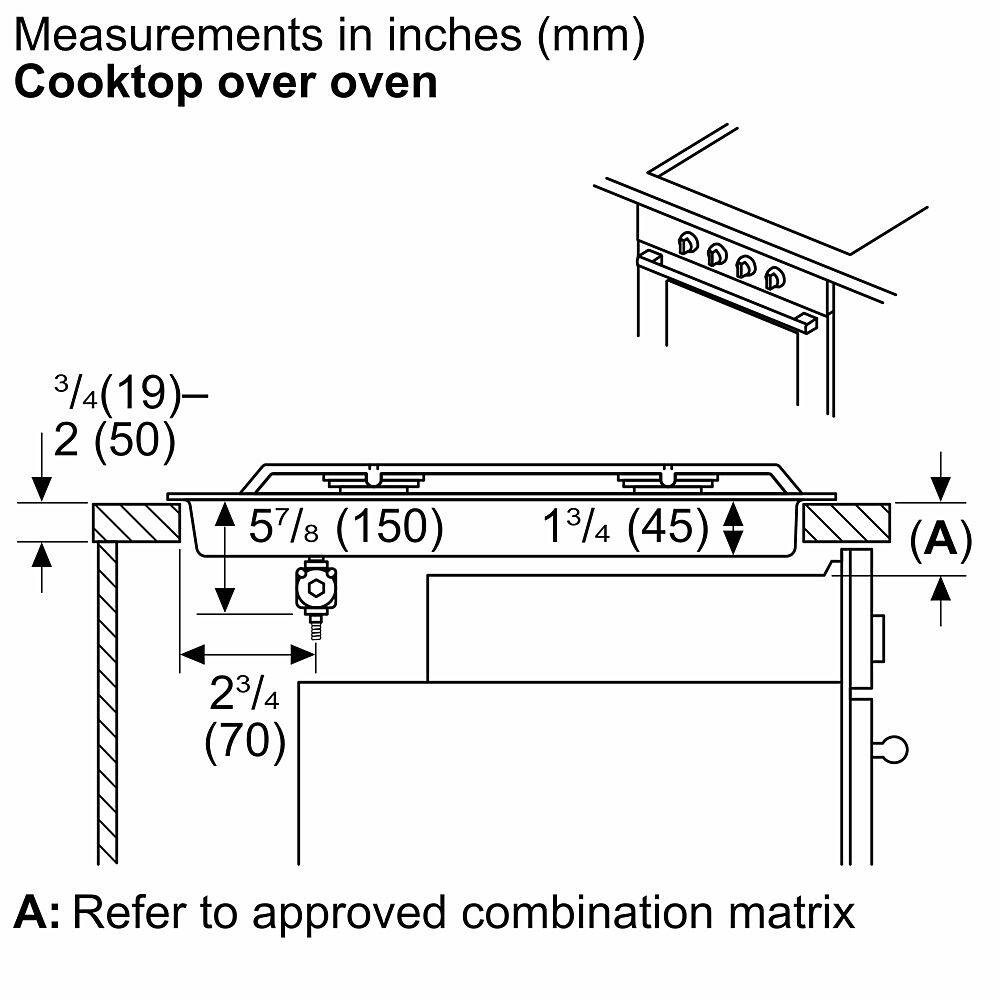

- Installs Over Built-In Oven: true
- Control Type: Knob (Infinite switch)
- Control Location: Top
- Digital Display: false
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Gas Type: Natural gas
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Stainless steel
- Number of Cooking Zones: 4
- Number of Burners: 4
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Grate Type: Continuous (Continuous grates allow cookware to be slid from burner to burner, while individual grates require the pot or pan to be lifted when moving around the cooktop.)
- Grate Material: Cast iron
- Dishwasher-Safe Grates: true (Cooktop grates are safe to be washed in a dishwasher if they are treated with a special coating that withstands the high heat, water pressure, and detergent used in a standard wash cycle.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Burner Rating
- Burner 1 Rating: 6000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 6000 british thermal units
- Burner 3 Rating: 10300 british thermal units
- Burner 4 Rating: 3400 british thermal units
- Total Maximum BTU Rating: 25700 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Power
- Cooktop Power Source: Gas
- Ignition Type: Electric
- Propane (LP) Convertible: true
- Propane Conversion Kit Included: true
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Product Safety Certifications and Standard(s): CSA Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. For more information about PFAS chemicals, visit https://bshpersona.com/productdisclosures/. Libre de PFAS, PFOA, plomo, y cadmio. Para obtener más información sobre las sustancias químicas PFAS, visite https://bshpersona.com/productdisclosures/. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: Not Applicable (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 825225969471
The Bosch 24" 500 Series gas cooktop in stainless steel adds a little more ease and a touch of thrill to cooking. Designed to perform and ideal for kitchens with a smaller footprint, you have flexibility to cook multiple dishes with a full range of BTU performance. Bold in design and crafted from premium materials, Bosch gas cooktops are designed to withstand the test of time — and cooking.
- 4 high efficiency burners: 4 high-efficiency burners use less gas to heat up pans quickly, with a max 10,300 BTU burner

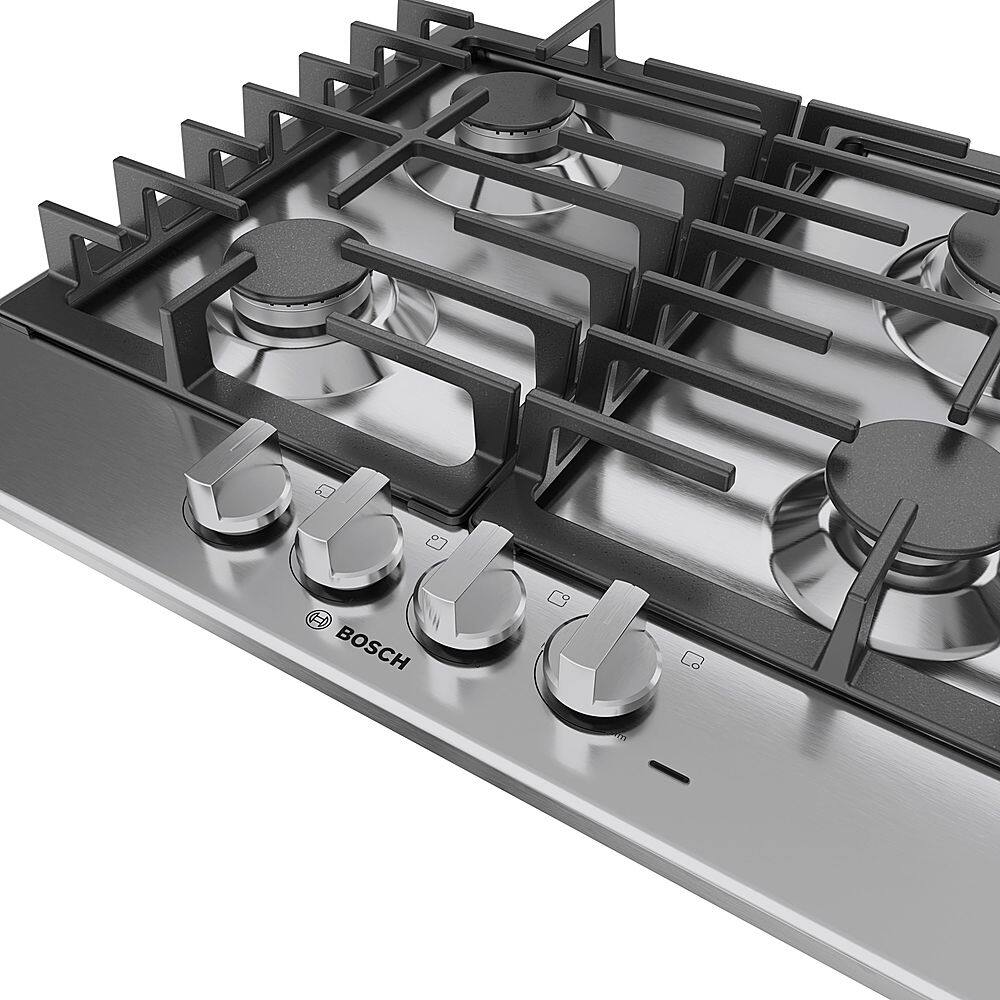

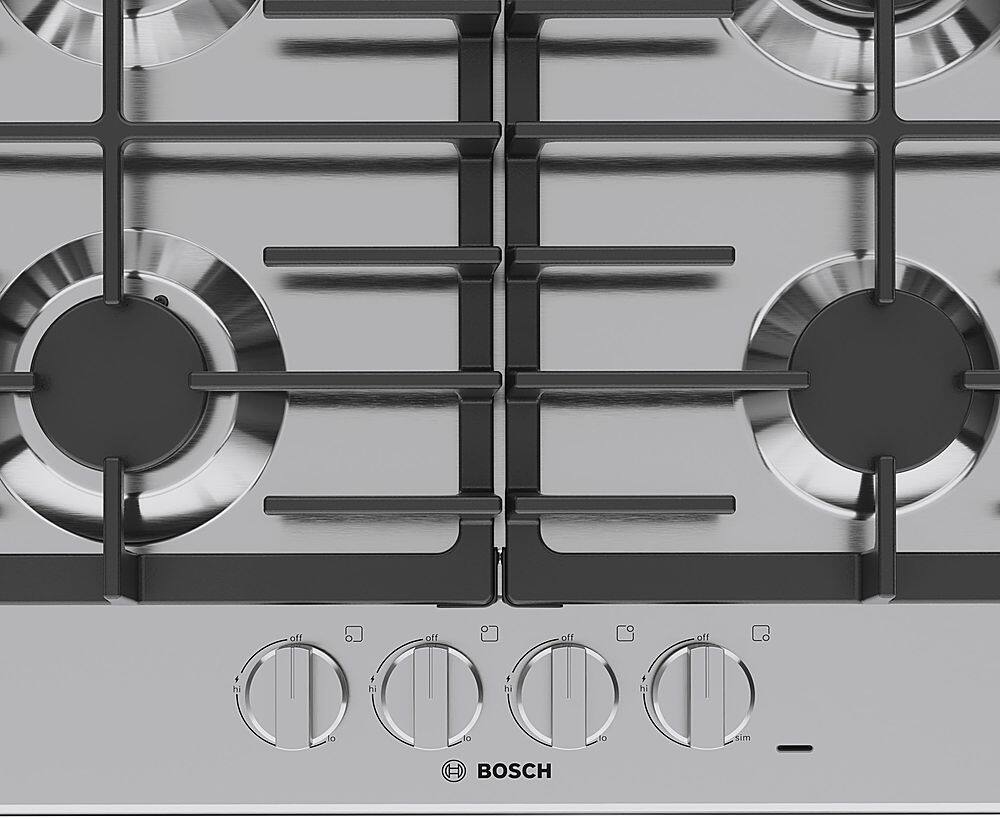

- Heavy duty metal knobs: Heavy-duty stainless steel knobs allow you to easily adjust heat level
- Sealed burners: Sealed burners prevent spills from entering the burner box
- Continuous grates: Continuous grates make moving pots easier
- Stainless steel surface: Seamless and low profile one-piece, 24" stainless steel design makes clean-up simple
- 4 high efficiency burners: 4 high-efficiency burners use less gas to heat up pans quickly, with a max 10,300 BTU burner
- Heavy duty metal knobs: Heavy-duty stainless steel knobs allow you to easily adjust heat level
- Sealed burners: Sealed burners prevent spills from entering the burner box
- Continuous grates: Continuous grates make moving pots easier
- Stainless steel surface: Seamless and low profile one-piece, 24" stainless steel design makes clean-up simple
Whats Included
- 500 Series 24" Built-In Gas Cooktop
- LP Conversion Kit
- Owner's manual
- 500 Series 24" Built-In Gas Cooktop
- LP Conversion Kit
- Owner's manual
Product Manuals
Disclaimers
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
Q: Can the cooktop be installed over a built-in oven?
A: This cooktop can be installed over a built-in oven.
Q: Is the cooktop compatible with propane?
A: This cooktop is compatible with propane and a conversion kit for propane is included.
Q: How many burners does the cooktop have?
A: This cooktop has four burners.
Q: What type of grate material is used on the cooktop?
A: The grate material used on the cooktop is cast iron.
Q: What is the total maximum BTU rating of the cooktop?
A: The total maximum BTU rating of the cooktop is 25,700.
