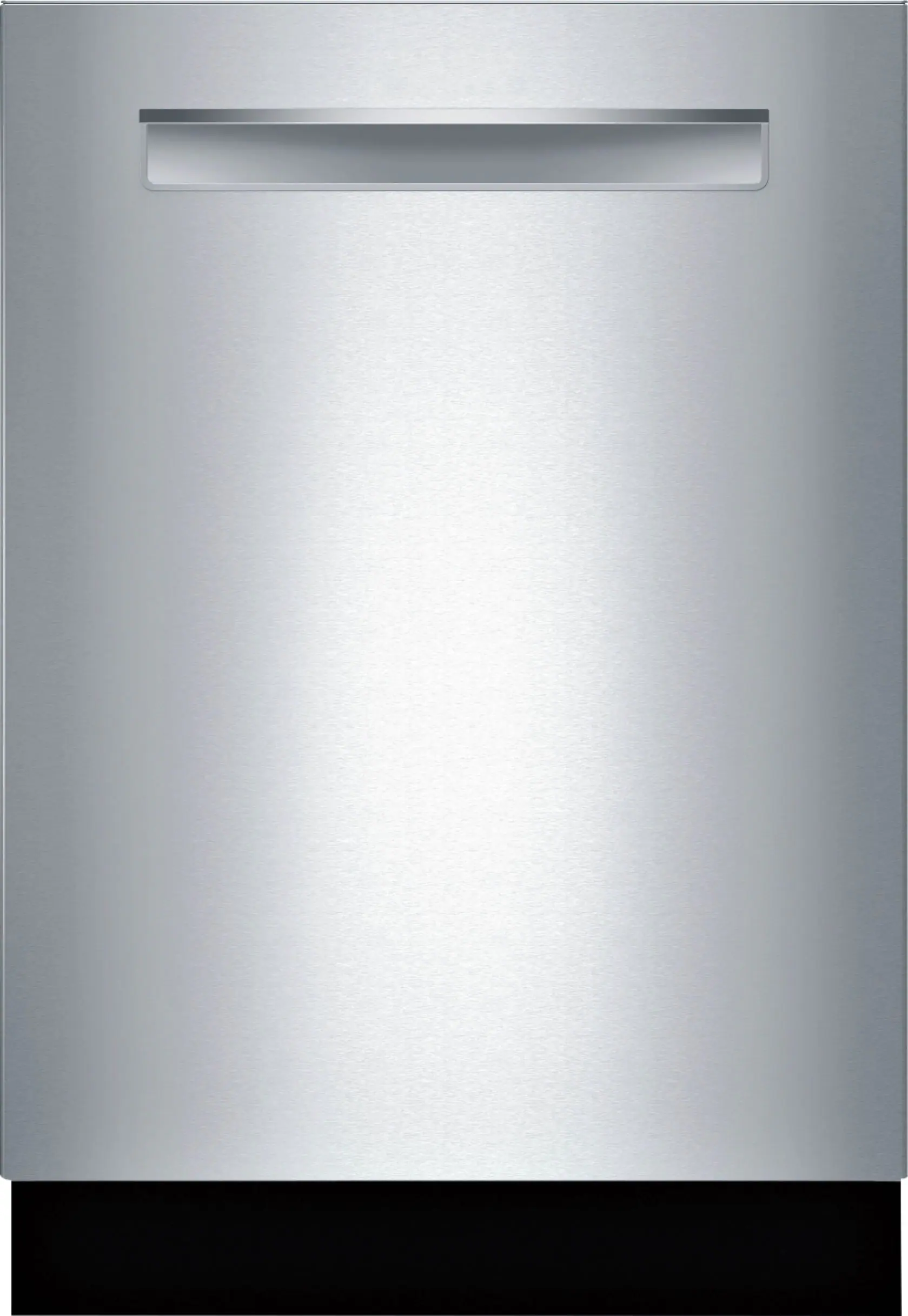

Bosch - 800 Series 24" Top Control Built-In Tub Dishwasher with 3rd Rack and CrystalDry, 42 dBa - Stainless Steel
Model: SHPM78Z55N
SKU: 6360644
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 33 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 42 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 3
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Bosch
- Model Number: SHPM78Z55N
- Product Name: 800 Series 24" Top Control Built-In Stainless Steel Tub Dishwasher with 3rd Rack and CrystalDry, 42 dBa
- Color: Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: Bosch 800 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 33 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 23 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Door Open: 48 1/4 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 102.1 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 33 7/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 23 5/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: false (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 42 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Filtered Water: false (Internal water filter(s) remove minerals and chemicals from hard water before the wash cycle. Filtered water is less likely to leave mineral deposits or stains, meaning your dishware will look cleaner for longer.)
- Water Soil Sensor: true (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cycle Specifications
- Number of Cycles: 6 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Dishwasher Cycles: 6
- Options and Programs: Half load, delicate wash, normal, auto, rinse, eco wash, heavy wash, sanitary, 1 hour, CrystalDry option
- Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- Steam Cleaning: false (Wash cycle that primarily uses steam to loosen food debris and clean fragile dishware without force.)
- Steam Pre-Wash: false (Loosens food debris by creating steam inside the washer before the primary wash cycle, allowing for an easier, gentler clean of dishware.)
- NSF-Certified Sanitization Cycle: false (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Water Consumption Per Cycle: 3.5 gallons (Estimated amount of water used during a standard wash cycle. Most standard-size dishwashers today use an average of 3-6 gallons.)
- Rack Features
- Number Of Racks: 3
- Third Rack Features: Rack handle, Utensil separator (Aspects of third rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Upper Rack Features: Rack handle, Adjustable tines, Stemware holders (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Rack handle, Adjustable tines (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Rack Material: Nylon
- Design
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Button
- Control Location: Top control
- Display Type: LED
- Handle Type: Pocket handle
- Fingerprint Resistant: false
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Integrated Water-Softener: false (A built-in water softener that automatically filters minerals from hard water to clean your dishes, reducing clouding, streaks, hard-water stains, or mineral deposit build-up.)
- Electrical Specification
- Estimated Annual Electricity Use: 269 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 35 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 12 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1440 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 825225958642
Tidy up the kitchen with this Bosch 24-inch dishwasher. Touch control buttons with quick response simplify operation, while the EasyGlide rack system ensures effortless loading and unloading of items. This Bosch 24-inch dishwasher features InfoLight beams at the bottom to indicate when the dishwasher is running and a sanitize option to eliminate bacteria and enhance drying results.
- The ultimate clean. The ultimate dry, even on plastics: Patented CrystalDry technology transforms moisture into heat to get dishes 60% drier, including plastics.
- Simple setting navigation: Electronic controls and LED display allow ease of use.
- The pocket handle: Seamlessly integrates into your kitchen and installs flush.
- Enjoy a quiet kitchen: EcoSilence drive helps reduce disruptive sounds.
- 24-hour delay-start: Lets you set the dishwasher to start running while you're working, sleeping or running errands.
- Accommodates up to 16 place settings: Generous interior space means more clean dishes, less loads.
- Half load, delicate wash, normal, auto, and more: Offer a variety of cleaning choices.
- The ultimate clean. The ultimate dry, even on plastics: Patented CrystalDry technology transforms moisture into heat to get dishes 60% drier, including plastics.
- Simple setting navigation: Electronic controls and LED display allow ease of use.
- The pocket handle: Seamlessly integrates into your kitchen and installs flush.
- Enjoy a quiet kitchen: EcoSilence drive helps reduce disruptive sounds.
- 24-hour delay-start: Lets you set the dishwasher to start running while you're working, sleeping or running errands.
- Accommodates up to 16 place settings: Generous interior space means more clean dishes, less loads.
- Half load, delicate wash, normal, auto, and more: Offer a variety of cleaning choices.
Whats Included
- Bosch 800 Series 24" Top Control Built-In Dishwasher with Stainless Steel Tub, 3rd Rack, 42 dBa
- Cutlery basket
- Drain hose
- Power cord
- Bosch 800 Series 24" Top Control Built-In Dishwasher with Stainless Steel Tub, 3rd Rack, 42 dBa
- Cutlery basket
- Drain hose
- Power cord
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
A: The delivery men charged me an extra charge of $80 for the electrical box and power cord installation. This was a charge on top of the installation charge by the retail store.
Q: What is the difference between the Bosch 800 Series Dishwashers Models #SHPM78Z55N and SHPM88Z75N?
A: Hi ANA, thank you for your question and interest in Model:SHPM78Z55N. Model:SHPM88Z75N has 6 Cycles and 6 Options, it is 40 dBA, it has the My Way 3rd rack. Model:SHPM78Z55N has 6 Cycles and 5 Options, is 42 dBA, has a standard 3rd rack.
Q: does this dishwasher heat the water?
A: Hi char. Thank you for your question. All Bosch Dishwashers have a flow through water heater. Bosch dishwashers' flow-through water heaters increase water temperature inside the appliances, eliminating the need to pump hot water into them. The heaters can raise water temperature as high as 162 degrees Fahrenheit.
A: Yes, they do. I don't know where the odor comes from. I thought it might've been just because it was a new dishwasher, but now that we have had it for about 2 months, the odor is still there.
Q: Is this product made in the USA ?
A: Bosch Dishwashers are made in their factory in New Bern, North Carolina, which has been there for over 20 years
Q: what are the advantages or disadvantages to front controls or hidden controls other than looks?
A: PRO: They are hidden from kids who want to push the buttons. Also it has a better look. CON: there is a led that shines on the floor to let you know it’s running and the Door beeps when it closes. Your just not sure how far along you are at a glance. It’s easy to restart but you need to interrupt the cycle.
A: Yes, 33.9" is the height with the foot at their highest.
Q: Is this machine have knives for food disposal?
A: Hi marie. Thank you for your question. Model:SHPM78Z54N does not have a hard food disposer. Bosch dishwashers do not have or need a "garbage disposal" since Bosch dishwashers have a three stage filtration process which removes 100% of food particles from the wash water. Plus, the up to 162 degree wash and rinse water softens and breaks down foods. In fact, Bosch recommends users DO NOT PRE-RINSE your dishes prior to placing into dishwasher, simply scrap off the larger food debris and place "dirty" dishes into the dishwasher. The remaining food activates the enzymes in today's detergents for maximum cleaning results.
