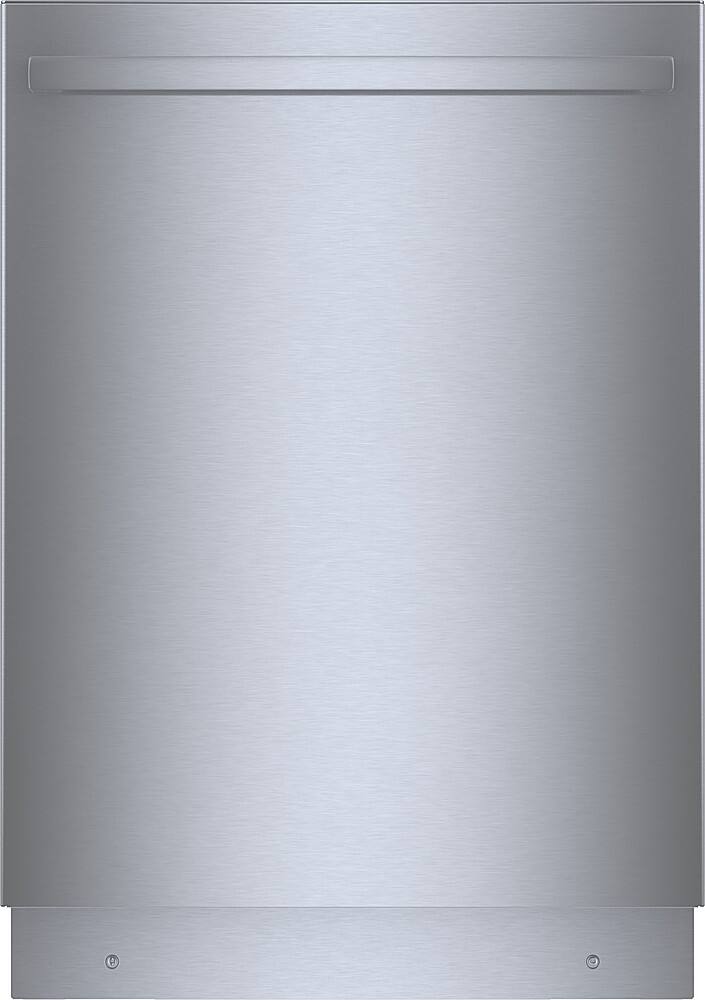

Bosch - 800 Series 24” Top Control Smart Built-In Tub Dishwasher with Flexible 3rd Rack - Stainless Steel
Model: SHX78B75UC
SKU: 6545171
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 34 1/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 9/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 42 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 3
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 15 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Bosch
- Model Number: SHX78B75UC
- Product Name: 800 Series 24” Top Control Smart Built-In Stainless Steel Tub Dishwasher with Flexible 3rd Rack
- Color: Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: Bosch 800 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 34 1/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 9/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 22 9/16 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 23 3/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 105 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 34 1/16 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: false (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 42 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Filtered Water: true (Internal water filter(s) remove minerals and chemicals from hard water before the wash cycle. Filtered water is less likely to leave mineral deposits or stains, meaning your dishware will look cleaner for longer.)
- Water Soil Sensor: true (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cycle Specifications
- Number of Cycles: 6 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Dishwasher Cycles: 6
- Options and Programs: Heavy, Auto, Normal, Speed60 (1hr Wash), Favorite, Delicate, Rinse, MachineCare
- Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- Steam Cleaning: false (Wash cycle that primarily uses steam to loosen food debris and clean fragile dishware without force.)
- Steam Pre-Wash: false (Loosens food debris by creating steam inside the washer before the primary wash cycle, allowing for an easier, gentler clean of dishware.)
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Water Consumption Per Cycle: 3.5 gallons (Estimated amount of water used during a standard wash cycle. Most standard-size dishwashers today use an average of 3-6 gallons.)
- Rack Features
- Number Of Racks: 3
- Third Rack Features: Utensil separator (Aspects of third rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Upper Rack Features: Adjustable tines, Stemware holders, Adjustable height (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Adjustable tines, Removable silverware basket (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Rack Material: Nylon
- Design
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Touchpad
- Control Location: Top control
- Display Type: LCD
- Handle Type: Bar handle
- Fingerprint Resistant: true
- Place Setting Capacity: 15 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Integrated Water-Softener: true (A built-in water softener that automatically filters minerals from hard water to clean your dishes, reducing clouding, streaks, hard-water stains, or mineral deposit build-up.)
- Electrical Specification
- Estimated Annual Electricity Use: 265 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 35 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 12 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1440 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Warranty
- Warranty - Parts: 1-year limited
- Warranty - Labor: 1-year limited
- Compatibility
- Works With: Amazon Alexa, Google Home, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 825225968573
This German-made Bosch 800 Series dishwasher delivers the ultimate clean and dry with advanced PrecisionWash technology and patented CrystalDry technology. With PrecisionWash, intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful spray arms target every item of every load, for the ultimate clean. Patented CrystalDry technology transforms moisture into heat up to 176F for the ultimate dry, even for plastics. The Flexible 3rd Rack provides a versatile space for utensils. A built-in water softener provides spot-free and shiny dishes. Wi-Fi enabled Home Connect allows you to remotely monitor and control your dishwasher from your smart phone. And AquaStop Plus 4-Part leak protection prevents water damage 24/7.
- Hidden top touch controls: Hidden integrated electronic controls maintain a clean exterior and InfoLight shines a red beam on the floor to indicate when the dishwasher is running
- Extremely quiet operation at 42 dBA: Creating a dishwasher so quiet, you can't always tell it's running. For you, that means never having to wait until going to bed to run the dishwasher.
- Large interior provides ample space and loading flexibility: Large interior provides the space and loading flexibility to easily accommodate 15 place settings, and the Flexible 3rd rack adds space for cooking utensils and ramekins
- Choose the perfect wash cycle and options for all of your loads: Offers 7 standard wash cycles, including the following: Heavy, Auto, Normal, Speed60, Express, Favorite, and 7 standard options, including: Delay, Remote Start, Half Load, Sanitize, CrystalDry, Extra Scrub and Machine Care
- Beautiful stainless steel interior: Full stainless steel tub is sleek, durable and long-lasting
- Optimized detergent tray: Precisely engineered detergent tray holds detergent tabs in place for a dedicated spray jet to directly dissolve them, preventing buildup for a deeper clean
- Fit in tall items with RackMatic: RackMatic easily adjusts to 3 different heights and up to 9 separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below
- Create room for bulky items with FlexSpace Tines: The FlexSpace Tines let you fold down every other tine in one simple step, so it’s easier to fit your largest, bulkiest items. It helps to hold pots and pans upright, leaving more room for your other dishes.
- The Flexible 3rd Rack provides a versatile space for utensils: The Flexible 3rd Rack has expandable wings that easily lower to accommodate more of your deeper items. Meanwhile adjustable tines let you customize the rack’s loading space to fit awkward or bulky utensils.
- A smarter clean with PrecisionWash: With Bosch PrecisionWash, simply start your dishwasher and walk away. Intelligent sensors scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item. So when your dishes are done, so are you.
- Sanitization for your dishes: Sanitize Option eliminates up to 99.9% of bacteria and meets NSF requirements for sanitization
- Great wash performance, even with the Half Load Option: Half Load Option allows you to load half of the normal dishes anywhere in the dishwasher to reduce water usage without sacrificing wash performance
- Installation requirements: A dishwasher water connection kit is required for installation
- Get more from your Bosch dishwasher with Wi-Fi enabled Home Connect.: From remote monitoring, to cycle status notifications, to running diagnostics, the Home Connect app allows you to remotely monitor and control your Bosch dishwasher from your smartphone or tablet for greater convenience
- Choose your favorite cycle/option with Home Connect: The Favorite button on the control panel lets you select and save your favorite cycle/option combo that you preset in the Home Connect app
- Added leak protection with 24/7 AquaStop Plus: AquaStop Plus 4-Part leak protection prevents water damage 24/7. So your floors stay beautifully dry, just like your dishes
- The ultimate dry with CrystalDry: Patented CrystalDry technology transforms moisture into heat up to 176 degrees F to give dishes, including plastics, the ultimate dry
- Water Softener provides spot-free dishes: A built-in water softener removes hard water spots caused by lime deposits, softening the water to the appropriate level to ensure spot-free, shiny dishes
- Always keep your dishwasher interior clean with Machine Care: Machine Care cycle removes grease and limescale build up from the dishwasher's interior when partnered with a cleaning/descaling agent
- Required for Installation: All dishwasher purchases require a dishwasher hookup kit be purchased from Best Buy. Without a hookup kit, your installation will not be completed. Find a hookup kit in the accessories section on this page.
- Hidden top touch controls: Hidden integrated electronic controls maintain a clean exterior and InfoLight shines a red beam on the floor to indicate when the dishwasher is running
- Extremely quiet operation at 42 dBA: Creating a dishwasher so quiet, you can't always tell it's running. For you, that means never having to wait until going to bed to run the dishwasher.
- Large interior provides ample space and loading flexibility: Large interior provides the space and loading flexibility to easily accommodate 15 place settings, and the Flexible 3rd rack adds space for cooking utensils and ramekins
- Choose the perfect wash cycle and options for all of your loads: Offers 7 standard wash cycles, including the following: Heavy, Auto, Normal, Speed60, Express, Favorite, and 7 standard options, including: Delay, Remote Start, Half Load, Sanitize, CrystalDry, Extra Scrub and Machine Care
- Beautiful stainless steel interior: Full stainless steel tub is sleek, durable and long-lasting
- Optimized detergent tray: Precisely engineered detergent tray holds detergent tabs in place for a dedicated spray jet to directly dissolve them, preventing buildup for a deeper clean
- Fit in tall items with RackMatic: RackMatic easily adjusts to 3 different heights and up to 9 separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below
- Create room for bulky items with FlexSpace Tines: The FlexSpace Tines let you fold down every other tine in one simple step, so it’s easier to fit your largest, bulkiest items. It helps to hold pots and pans upright, leaving more room for your other dishes.
- The Flexible 3rd Rack provides a versatile space for utensils: The Flexible 3rd Rack has expandable wings that easily lower to accommodate more of your deeper items. Meanwhile adjustable tines let you customize the rack’s loading space to fit awkward or bulky utensils.
- A smarter clean with PrecisionWash: With Bosch PrecisionWash, simply start your dishwasher and walk away. Intelligent sensors scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item. So when your dishes are done, so are you.
- Sanitization for your dishes: Sanitize Option eliminates up to 99.9% of bacteria and meets NSF requirements for sanitization
- Great wash performance, even with the Half Load Option: Half Load Option allows you to load half of the normal dishes anywhere in the dishwasher to reduce water usage without sacrificing wash performance
- Installation requirements: A dishwasher water connection kit is required for installation
- Get more from your Bosch dishwasher with Wi-Fi enabled Home Connect.: From remote monitoring, to cycle status notifications, to running diagnostics, the Home Connect app allows you to remotely monitor and control your Bosch dishwasher from your smartphone or tablet for greater convenience
- Choose your favorite cycle/option with Home Connect: The Favorite button on the control panel lets you select and save your favorite cycle/option combo that you preset in the Home Connect app
- Added leak protection with 24/7 AquaStop Plus: AquaStop Plus 4-Part leak protection prevents water damage 24/7. So your floors stay beautifully dry, just like your dishes
- The ultimate dry with CrystalDry: Patented CrystalDry technology transforms moisture into heat up to 176 degrees F to give dishes, including plastics, the ultimate dry
- Water Softener provides spot-free dishes: A built-in water softener removes hard water spots caused by lime deposits, softening the water to the appropriate level to ensure spot-free, shiny dishes
- Always keep your dishwasher interior clean with Machine Care: Machine Care cycle removes grease and limescale build up from the dishwasher's interior when partnered with a cleaning/descaling agent
- Required for Installation: All dishwasher purchases require a dishwasher hookup kit be purchased from Best Buy. Without a hookup kit, your installation will not be completed. Find a hookup kit in the accessories section on this page.
Whats Included
- 800 Series 24” Top Control Built-In Stainless Steel Tub Dishwasher
- 800 Series 24” Top Control Built-In Stainless Steel Tub Dishwasher
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
A: Hi Houston2024, thanks for your question. You can complete a Cancel-Reset by following these steps: 1) Press Start/Reset for approximately 4 seconds (all displays light up). 2) As soon as the displays are off, the display shows "00h:01m" and residual water is pumped out. The cycle is cancelled and ends after about one minute. We hope this information helps and thank you for choosing Bosch!
A: Hi Payam, thank you for your question and interest in Bosch dishwashers. The model you asked about, SHX78B75UC, is not identical to the SHXM78Z55N model. It is taller, has a different handle, and includes a stainless steel toe kick panel.
A: Hi Todd, thank you for your question. The SHX78B75UC does not feature the EasyGlide™ Racks, however it does feature the InfoLight® beam that shines on the floor during operation.
Q: Can you please help determine the differences in the 2 models? SHX78B75UC OR SHX78CM5N
A: Hi Gwizbud, thanks for your question. Both of these models have a noise level of 42dBA and Home Connect. They also have Crystal Dry, as well as the InfoLight. The SHX78CM5N has dimensions of approximately 23 9/16 inches wide, 33 7/8 inches high, and 23 3/4 inches deep. It also does not has a water softener. The SHX78B75UC has dimensions of approximately 23 9/16 inches wide, 34 1/16 inches high, and 22 9/16 inches deep. It also includes a water softener. You can find a full list of features directly on the Bosch website. If you have additional questions, please call us at 1-800-944-2904.
A: Hi APC, thanks for your question. If your existing installation kit is in good condition and compatible with the new dishwasher model, you may be able to reuse it. However, it's important to note that compatibility can vary depending on the specific models and any changes in design or requirements. It is recommended to consult the installation manual of the new dishwasher and compare it with the existing installation kit to ensure compatibility. If you are unsure or if the existing installation kit is damaged or not compatible, it may be advisable to purchase a new installation kit specifically designed for the new dishwasher model. This will ensure a proper and secure installation.
A: Hi JimRac, thanks for your interest in the SHX78B75UC. The SHX78B75UC does feature a water softener system.
Q: What are the box dimensions? I'm trying to figure out if it will fit in my car. Thanks!
A: Hi Ripley, thanks for your interest in the SHX78B75UC. The dimensions of the SHX78B75UC packed are as follows: H: 36 13/16 ", W: 26 ", D: 28 ".
A: Hi, thanks for your interest in model SHX78B75UC. This dishwasher has the The AquaStop® leak protection system which contains leaks through a precisely engineered system, giving you the ultimate peace of mind whether you are away or at home.
