Bowers & Wilkins - HTM71 S3 Signature Center Channel with 1" Tweeter On Top and Two 6.5" Bass Drivers (Each) - Datuk Gloss
Specifications
- Speaker TypeCenter channelRMS Power200 watts
- Key Specs
- Speaker Type: Center channel
- RMS Power: 200 watts (The maximum amount of continuous power the device is able to handle.)
- General
- Brand: Bowers & Wilkins
- Model Number: HTM71S3SignatureDatuk
- Product Name: HTM71 S3 Signature Center Channel with 1" Tweeter On Top and Two 6.5" Bass Drivers (Each)
- Color: Datuk Gloss
- Audio
- Speaker Type: Center channel
- Enclosure Type: Ported
- RMS Power: 200 watts (The maximum amount of continuous power the device is able to handle.)
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 45 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 33 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 89 decibels
- Tweeter Type: Dome
- Midrange Type: Cone
- Woofer Type: Cone
- Number of Speakers: 1
- Number of Tweeters: 1
- Tweeter Size: 1 inches
- Number of Midranges: 1
- Midrange Size: 5 inches
- Number of Drivers: 4
- Number of Woofers: 2
- Woofer Size: 5 inches
- Connectivity
- Speaker Connectivity: Wired
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Audio Only Inputs: No audio only inputs
- Network Connector(s): No network connectors

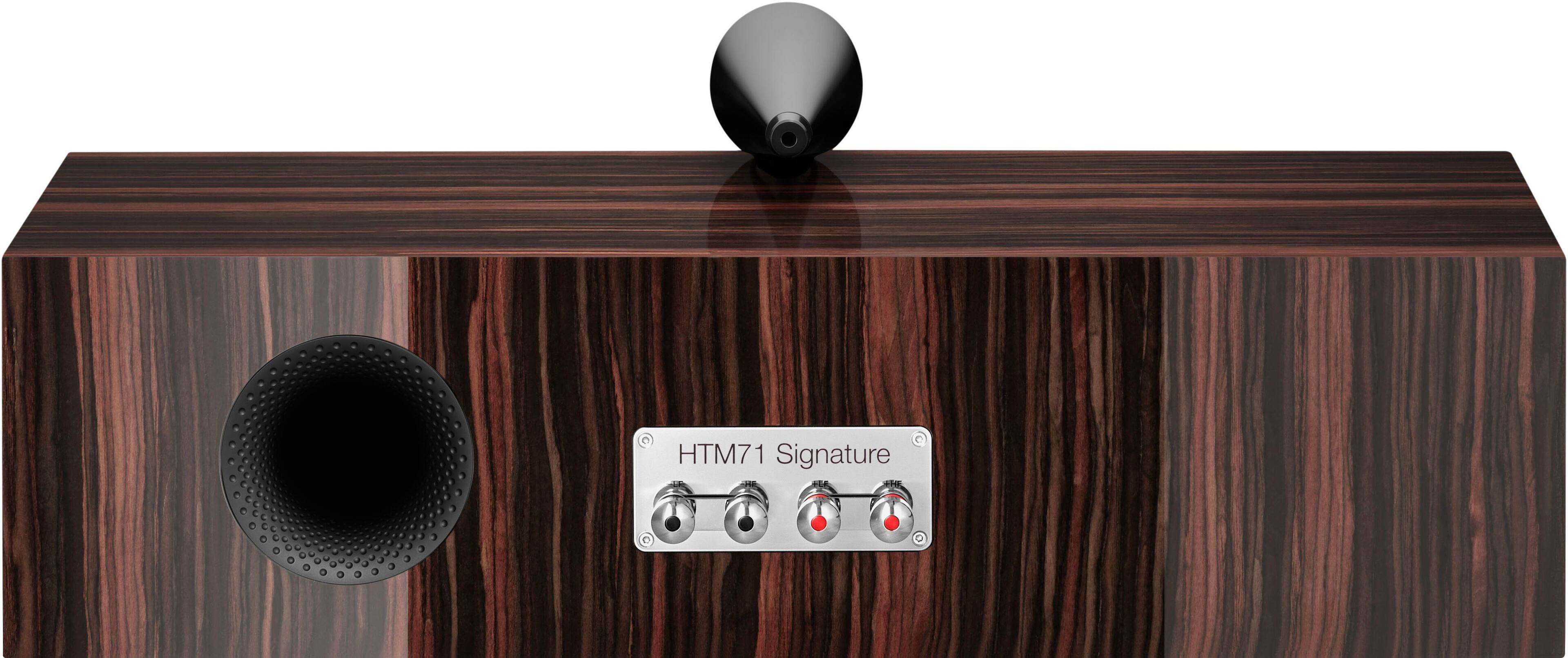

- Speaker Wire Connection Type: Binding posts
- Features
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 9.17 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 14.02 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24.72 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 38.48 pounds (The out of box weight of the item.)
- Included
- Speaker Wire Included: false
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 years
- Other
- UPC: 714346339921

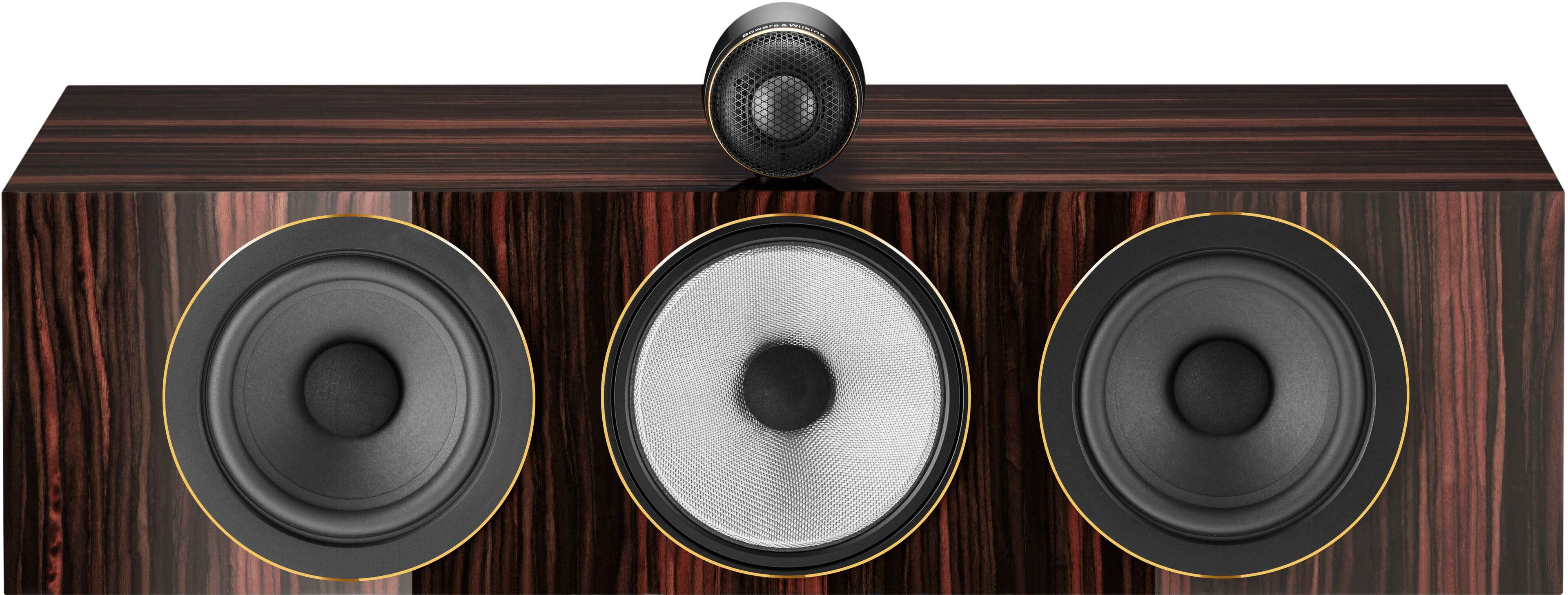

HTM71 S3 Signature offers performance upgrades over existing HTM71 S3 models. New luxury finishes include Midnight Blue Metallic or Datuk Gloss wood veneer with trimmed gold detailing. It features a Carbon Dome drive unit housed in a Tweeter-On-Top enclosure, making it the perfect match for its 705 S3 Signature, 703 S3 Signature and 702 S3 Signature stablemates. This approach allows for outstanding integration and an even-more-immersive listening experience across our premium 700 Series-based surround sound systems. The HTM71 S3 Signature also features a 5” Continuum Cone FST midrange driver complete with our Biomimetic Suspension– particularly important for clarity with dialogue. Twin aerofoil profile bass drivers provide create a rock-solid foundation for dynamic performance.
- Audio Upgrades Include: Introduction of new, more open tweeter grille mesh, as developed for 800 Series Signature loudspeakers, new Mundorf EVO Silver Gold Oil capacitor, Bevenbi MPAZ-E polypropylene capacitors, air-core inductors, upgraded poles with larger venting and lower inductance, brass speaker terminal posts for cleaner signal path, and optimized bypass capacitors.
- Carbon Dome Tweeter: Carbon Dome tweeters deliver a dramatic improvement over the aluminium double dome tweeter, raising the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail. The closest performance to our Diamond Dome Tweeters.
- Solid Body Tweeter: Our redesigned Solid Body Tweeter-on-Top housing. A more elongated form incorporates a longer tubeloading system to produce an even more free and open sound. The decoupled housing is milled from a single solid block of aluminium to better resist resonance.
- Continuum Cone: Continuum is a woven composite that blends control with flexibility. The result is breathtaking clarity. Hear voices, guitars and bass instruments with precision and transparency.
- Biomimetic Suspension: Biomimetic Suspension revolutionizes midrange cone performance by greatly reducing the unwanted air pressure and coloration that a conventional fabric spider can generate. The result? Midrange transparency you wouldn’t believe possible.
- Aerofoil Bass: Advanced computer modeling carbon fiber and a syntactic core are used to produce a cone with maximum stiffness where it’s needed most. This optimized shape means the cone displays pistonic behaviour further up the audible range, producing precise, controlled and utterly lifelike bass.
- Magnetic Grills: Each model includes magnetic speaker grills.
Whats Included
- Loudspeaker
- Grille
- Literature Pack
- Foam Plug
- Self-adhesive Rubber Feet
Q: What is the purpose of the Biomimetic Suspension in the midrange driver?
A: The Biomimetic Suspension in the 5” Continuum Cone FST midrange driver is particularly important for dialogue clarity.
Q: What are the dimensions of the center channel?
A: The product dimensions are 9.17 inches high, 24.72 inches deep, and 14.02 inches wide.
Q: What is the minimum frequency response of the center channel?
A: The minimum frequency response of the center channel is 45 hertz.
Q: Is the center channel compatible with other 700 Series speakers?
A: This center channel speaker is the perfect match for the 705 S3 Signature, 703 S3 Signature, and 702 S3 Signature speakers.
Q: Does this speaker have any audio only inputs?
A: No, this speaker does not have any audio only inputs.
Q: What is the size of the tweeter in this speaker?
A: The tweeter size in this speaker is 1 inches.
Q: Does this speaker have wireless multi-room audio capability?
A: No, this speaker does not have wireless multi-room audio.
Q: What type of tweeter does this speaker have?
A: This speaker has a Carbon Dome tweeter.
