Cable Leader - OM3 LC to SC Fiber Optic Patch Cable Multimode 50/125 Duplex for SFP Transceivers, Patch Panels, Media Converters - Aqua
Reviews coming soon
About this product
Need a OM3 optical fiber cable from a LC port to a SC port? This Cable Leader OM3 LC to SC fiber optic patch cable, also sold as a LC to SC multimode fiber optic cable, fiber optic network cable or patch cord, uses Corning 50/125 OM3 glass in a 2.0 mm OFNR riser-rated zipcord with a duplex LC/UPC connector on one end and a duplex SC/UPC connector with 31.8 mm boots on the other, insertion loss 0.30 dB or less and return loss 35 dB or better. OM3 fiber is specified by TIA-492AAAC at 2000 MHz-km effective modal bandwidth, which carries 10GBASE-SR up to 300 m and 25GBASE-SR up to 70 m under IEEE 802.3. Works with 10GBASE-SR and 1000BASE-SX multimode optics and equipment from Cisco, Ubiquiti UniFi, MikroTik, TP-Link, Netgear, TRENDnet, StarTech, Dell and HPE Aruba. Each cable is sample-tested during production, and Cable Leader handles replacement requests directly. Best for: 10G links between LC and SC gear, patch panels, media converters. Not for: LR or LX single-mode optics on yellow OS2 cable, green APC ports, or Toslink audio.
Cable Length
65.62'Features
OM3 50/125 Corning Multimode Fiber
Corning OM3 50/125 glass carries 10GBASE-SR up to 300 m and 25GBASE-SR up to 70 m under IEEE 802.3. Rated 2000 MHz-km at 850 nm, it stays backward compatible with gigabit optics on the same fiber.

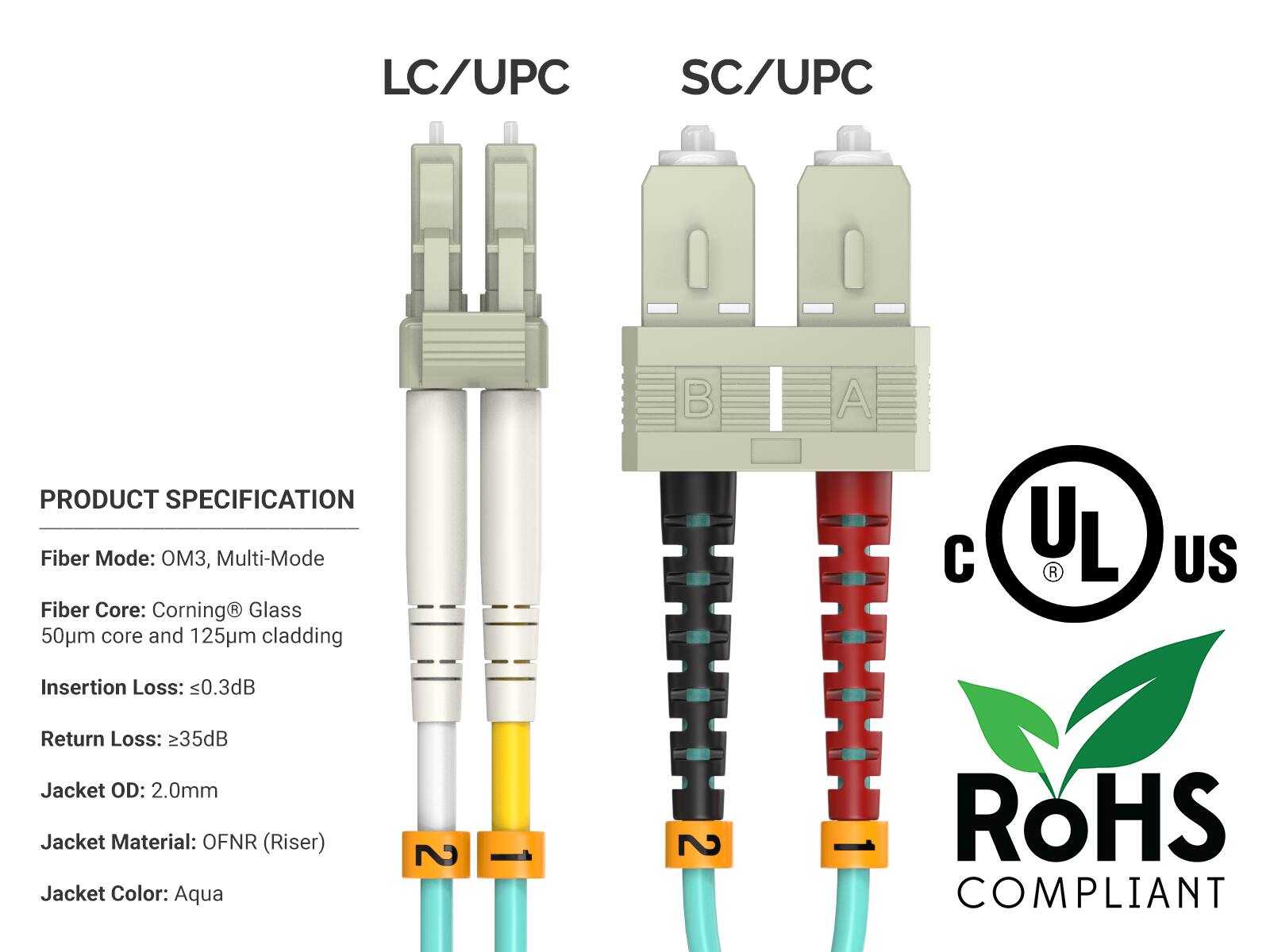

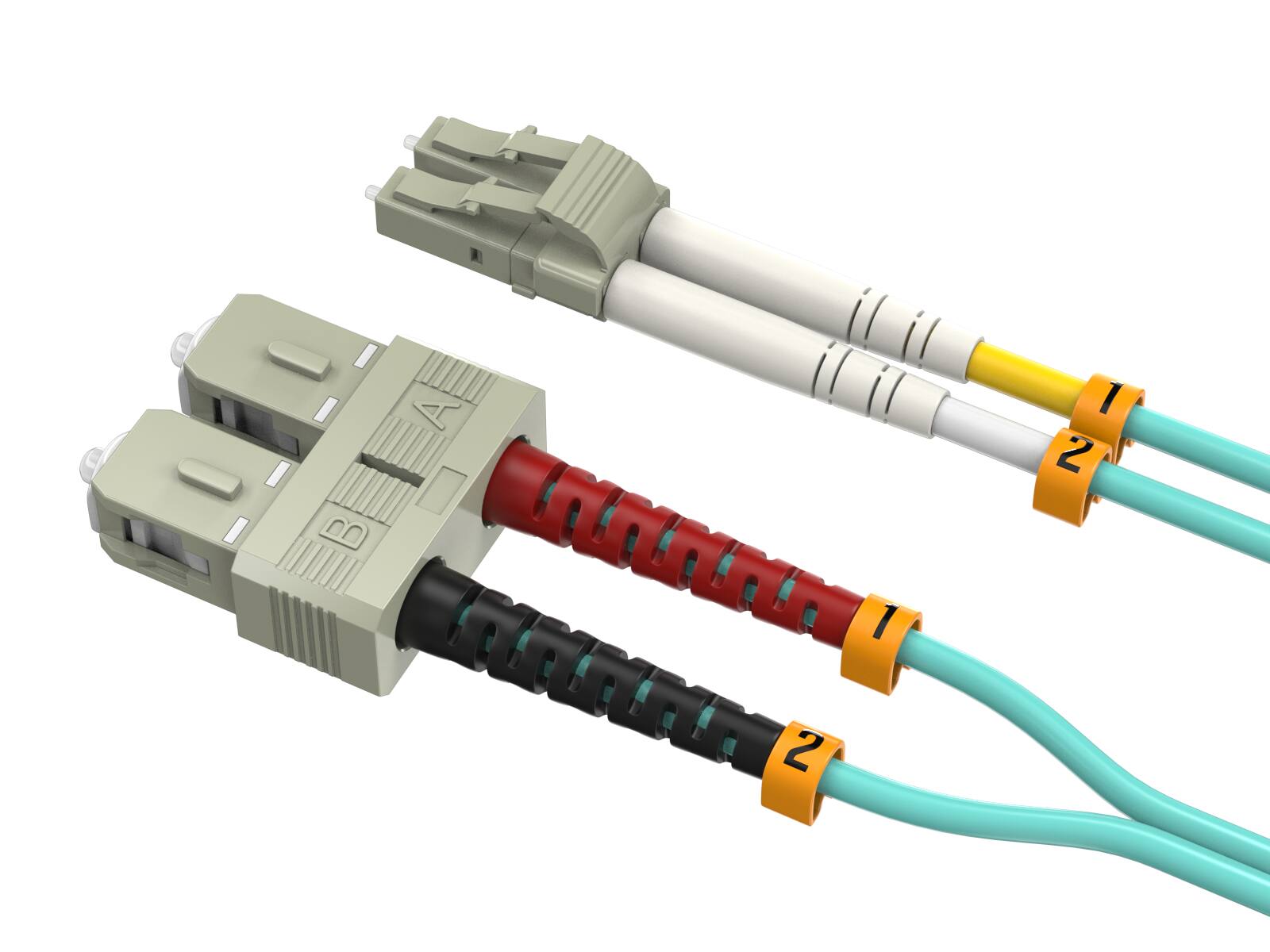

LC/UPC to SC/UPC Duplex Connectors, LC to SC
This cable has a duplex LC/UPC connector on one end and a duplex SC/UPC connector with 31.8 mm boots on the other, so one jumper links LC SFP or SFP+ ports on one side and SC patch panels, media converters or legacy GBIC ports on the other. Insertion loss is 0.30 dB or less and return loss 35 dB or better per connector at 850 nm.
Not for Single-Mode or APC Ports: Quick Check
LC SFP or SFP+ transceiver on one end (Cisco, Ubiquiti, MikroTik, TP-Link, Netgear, Dell, HPE Aruba) - Yes. SC duplex patch panel, coupler or media converter (TP-Link, TRENDnet, StarTech) on the other end - Yes. LR or LX single-mode optics on yellow OS2 cable - No. Green APC ports - No. Toslink optical audio - No.
OFNR Riser-Rated 2.0 mm Zipcord Jacket
The 2.0 mm duplex zipcord jacket is OFNR riser-rated for vertical runs between floors and standard indoor use, with aramid yarn strength members and a tight buffer around each fiber, rated -25 to 60 C operating. Numbered boots and color bands at both ends make polarity easy to trace in a dense rack.
Sample-Tested Production, Cable Leader Direct Support
All Cable Leader fiber optic cables are sample-tested during production for insertion loss and return loss, then packed one per zip bag with the connectors capped. If your cable arrives defective or stops working in normal use, Cable Leader handles replacement requests directly, no manufacturer redirects.
Specifications
- Cable Length65.62 feetConnector Type (End 1)LC/UPCGender (End 1)MaleConnector Type (End 2)SC/UPCGender (End 2)MaleMaximum Data Transfer Rate10000 megabits per second
