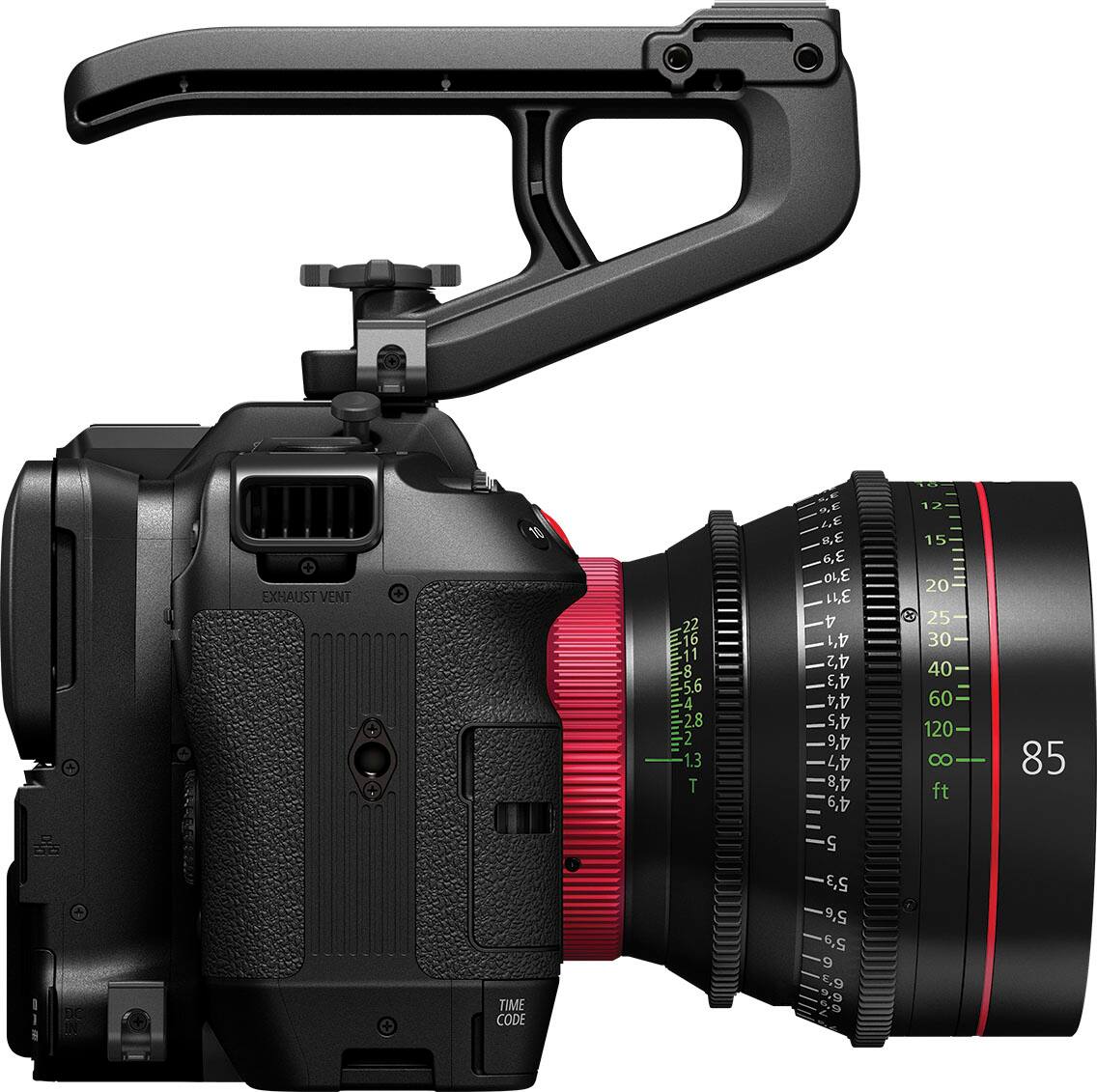

Canon - EOS C80 6K Video Mirrorless Cinema Camera (Body Only) - Black
More Buying Options
Related Item
Specifications
- Image Sensor Size35mm Full Frame (36 x 24 mm)Effective Pixels19.05 megapixelsStandardized Video Resolution6K
- Key Specs
- Image Sensor Size: 35mm Full Frame (36 x 24 mm)
- Effective Pixels: 19.05 megapixels (The actual number of pixels which make up the viewable image.)
- Standardized Video Resolution: 6K (An approximated measurement of the product’s video resolution. This may not be the exact resolution of the product, which may be slightly more or less when using a pixel-by-pixel measurement.)
- General
- Brand: Canon
- Model Number: 6389C002
- Product Name: EOS C80 6K Video Mirrorless Cinema Camera (Body Only)
- Color: Black
- Product Set: Body Only
- Camera Model Family: Canon C80
- Digital Camera Type: Mirrorless Camera Body Only
- Imaging
- Image Sensor Type: Stacked CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Image Sensor Size: 35mm Full Frame (36 x 24 mm)
- Total Pixels: 26.67 megapixels (Generally, the more pixels, the higher the image resolution and the finer the detail that can be seen.)
- Image Resolution (Display): Approx. 2.76 million dots (1280xRGBx720) (Refers to the number of pixels, both horizontally and vertically, used to either capture an image or display it. The higher the resolution the finer the image details.)
- Zoom Capability: true (This function allows for magnification of the subject.)
- Digital Zoom: None (A digital zoom is accomplished electronically, with no adjustment of the camera's optics, and no optical resolution gained in the process. The existing data is not enhanced or added to, merely displayed at a lower resolution, thereby giving an illusion of an enlarged image.)
- In-Camera Image Stabilization: true (This feature helps reduce image blurring from camera motion. In-camera stabilization means the image sensor itself moves to counteract detected motion.)
- Low Light/High Sensitivity: true (High sensitivity digital imaging devices are designed to work in low light conditions to produce a high dynamic range image.)
- Image File Format(s): JPEG (Standardized software format(s) of storing digital images. The type of format chosen for capturing and compressing the image can determine quality, level of detail, and storage space required.)
- Focus
- Autofocus: true (Allows the camera to automatically focus through the lens, rather than by adjusting the lens manually.)
- Eye Autofocus (Eye AF): true (Automatically seeks out and focuses on the subject's eye and holds it as the camera and subject move and as the photographer shoots at high frame rates.)
- Exposure Control
- Shutter Speeds: 1/2000 to 1 Second (The length of time the shutter remains open when the shutter release is activated, expressed in fractions of seconds. The longer the shutter is open, the more light that is able to be captured by the camera sensor.)
- Minimum ISO: 100 (ISO is the measurement of a camera image sensor's light sensitivity. When there is plenty of light, using the lowest ISO setting available will typically result in a higher quality image.)
- Maximum ISO: 25600 (ISO is the measurement of a camera image sensor's light sensitivity. In low-light environments, using a higher ISO setting helps to capture a sharp, bright image.)
- Maximum Expandable ISO: 102400 (ISO is the measurement of a camera image sensor's light sensitivity. Expandable ISO settings use software to simulate brighter images than the device's native ISO range is capable of capturing.)
- Brightness Control: true (Allows the camera to adjust the brightness of a captured image for optimal exposure.)
- White Balance Modes: 2000 to 15000K, Presets: AWB, Daylight, Set A, Set B, Tungsten (Settings that calibrates how the color white is rendered in an image/video, reducing the appearance of unnatural contrasts caused by various light sources.)
- Effective Pixels: 19.05 megapixels (The actual number of pixels which make up the viewable image.)
- Lens
- Lens Mount Compatibility: Canon RF
- Flash
- Integrated Flash: false
- Display
- Display Type: LCD
- Screen Size: 3.5 inches (Size of the screen, measured diagonally from corner to corner.)
- Touch Screen: true (Touch-screen devices make navigating more intuitive. Using a touch-screen display, you can do things such as tap to select, hold and drag to move items, swipe to scroll, and pinch to zoom.)
- Varying Angle Screen: true (The camera's screen can be flipped out and adjusted to rotate, tilt, and/or swivel.)
- Video
- Standardized Video Resolution: 6K (An approximated measurement of the product’s video resolution. This may not be the exact resolution of the product, which may be slightly more or less when using a pixel-by-pixel measurement.)
- Video Resolution(s) and Frame Rate(s): Full-frame: 6000x3164/30P, 4096x2160/120P. 2048x1080/180P; Super35mm Crop: 4368x2304/60P, 4096x2160/120P, 2048x1080/120P (Refers to the number of pixels, both horizontally and vertically, and the frame rate used to capture the video. The higher the resolution the finer the video detail that can be seen. The faster the frame rate the smoother the playback for higher motion activities like sports.)
- Slow Motion Recording: true
- Storage
- Number of Memory Card Slots: 2
- Compatibility
- Tripod/Monopod Mountable: true (A support function that allows the device to be mounted to monopods and tripods for leveling and stability.)
- Socket Size: 1/4 in.
- Memory Card Compatibility: Secure Digital, Secure Digital Extended Capacity (SDXC), Secure Digital High Capacity (SDHC) (The type of memory card(s) recommended for use with the product.)
- Remote Compatible: true
- Features
- Face Detection: true (A function that automatically detects human faces and then sets focus and appropriate exposure to capture them.)
- Smile Mode: false (When enabled, this mode works in conjunction with face detection to automatically take a photo when a smile is detected.)
- Integrated GPS: No
- Records Audio: true
- Connectivity
- Wireless Connectivity: WiFi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Output(s): SDI, BNC, HDMI, 3.5mm audio, USB-C, XLR, XLR, Ethernet
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- PictBridge Enabled: false (PictBridge allows digital cameras, camcorders and other image capture devices to connect and print directly to photo printers and other output devices without using a computer.)
- Power
- Rechargeable Battery: true
- Removable Battery: true
- Number of Batteries Required: 1
- Performance
- Protective Qualities: None
- Included
- Number of Lenses Included: 0
- Camera Bag/Case Included: false
- Batteries Included: true (Indicates whether the product comes with the required batteries for its operation.)
- Memory Card Included: false (Indicates whether a memory card is included.)
- Dimensions
- Product Height: 5.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 6.3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4.6 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 3.4 pounds (The out of box weight of the item.)
- Camera Body Weight: 2.9 pounds
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 013803371970
The EOS C80 camera is designed for limitless creative vision. The compact, full-featured camera body includes Canon's 6K full frame Back-Illuminated Stacked CMOS sensor, Cinema RAW Light and 4K/120p internal recording, Canon’s next-generation Dual Pixel CMOS AF II and a 12G-SDI interface. The EOS C80 seamlessly integrates into almost any production providing the ultimate flexibility and outstanding image quality.
- 6K Full Fram Back-illuminated Stacked CMOS Sensor with 26.67 total megapixels: The EOS C80 features a 6K back-illuminated stacked full-frame CMOS sensor. The sensor offers exceptional low noise, enabling the camera to excel in a wide variety of lighting situations and maximizing the camera’s full dynamic range.

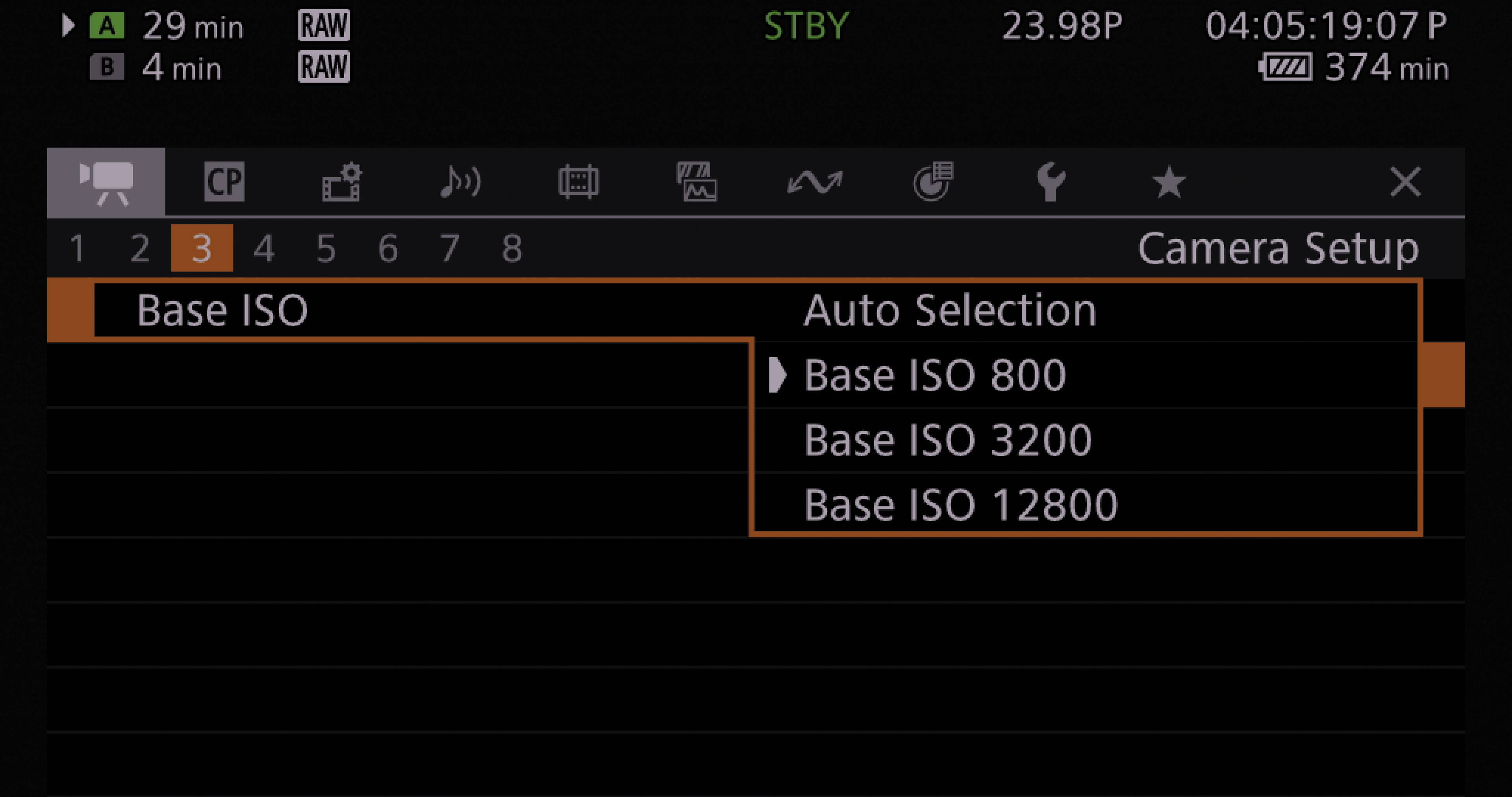

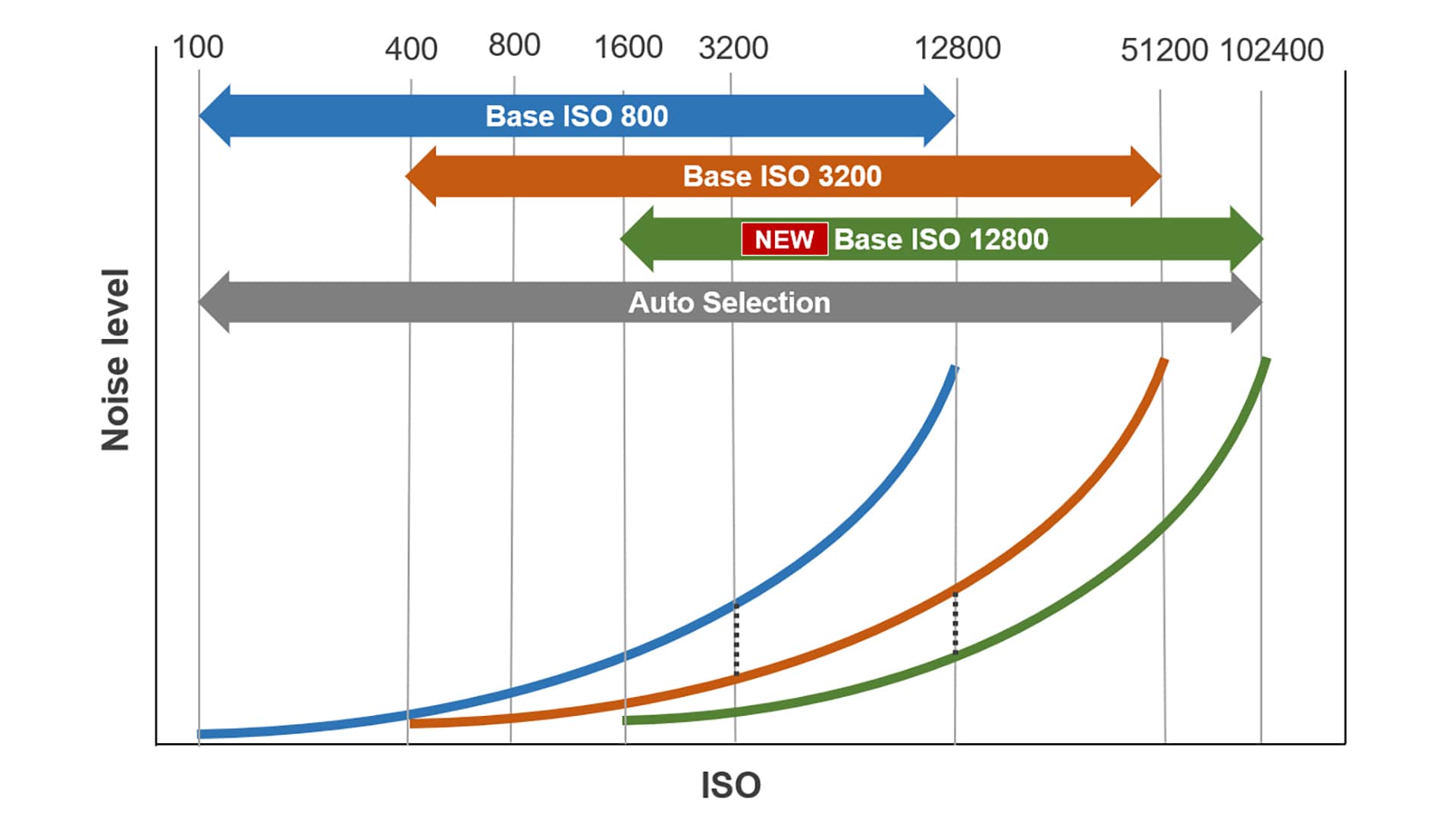

- Triple Base ISO (800, 3200 and 12,800): Our newly developed, full frame 6K back-illuminated stacked sensor offers triple-base ISO, which allows the EOS C80 to deliver stunning imagery in a wide range of lighting conditions. With base ISOs of 800, 3200, and 12,800, you will be able to maximize the full dynamic range of the sensor in brilliantly lit or low-light shooting conditions.
- Internal Recording: 6K 30P Cinema RAW Light, XF-AVC, XF-HEVC S and XF-AVC S: The EOS C80 can record up to 6K 30P in Cinema RAW Light. Other recording options include our standard XF-AVC codec which can record in 10-bit 4:2:2 with oversampling from the 6K sensor, creating rich detail and smooth imagery, at frame rates up to 120P, without the need for cropping the image from the sensor. For slow or fast motion recording, the C80 can support up to 4K 120P and 2K 180.
- High-frame Rate Recording With Auto Focus and Subject Detection: When recording in slow and fast motion (Slow & Fast, 4:2:2 10-bit), the EOS C80 enables Dual Pixel AF II for frame rates of 100 and 120fps and Subject Detection for frame rates between 72-120fps.
- Dual SD Card Slots: The EOS C80 features two SD Card slots supporting simultaneous recording[i] and a variety of recording modes, such as simultaneous recording for backup or proxy files for editing, simultaneous recording of different formats and resolutions, and relay recording, which is critical for lengthy video shoots. The slots are compatible with SD UHS-II, V90-class cards.

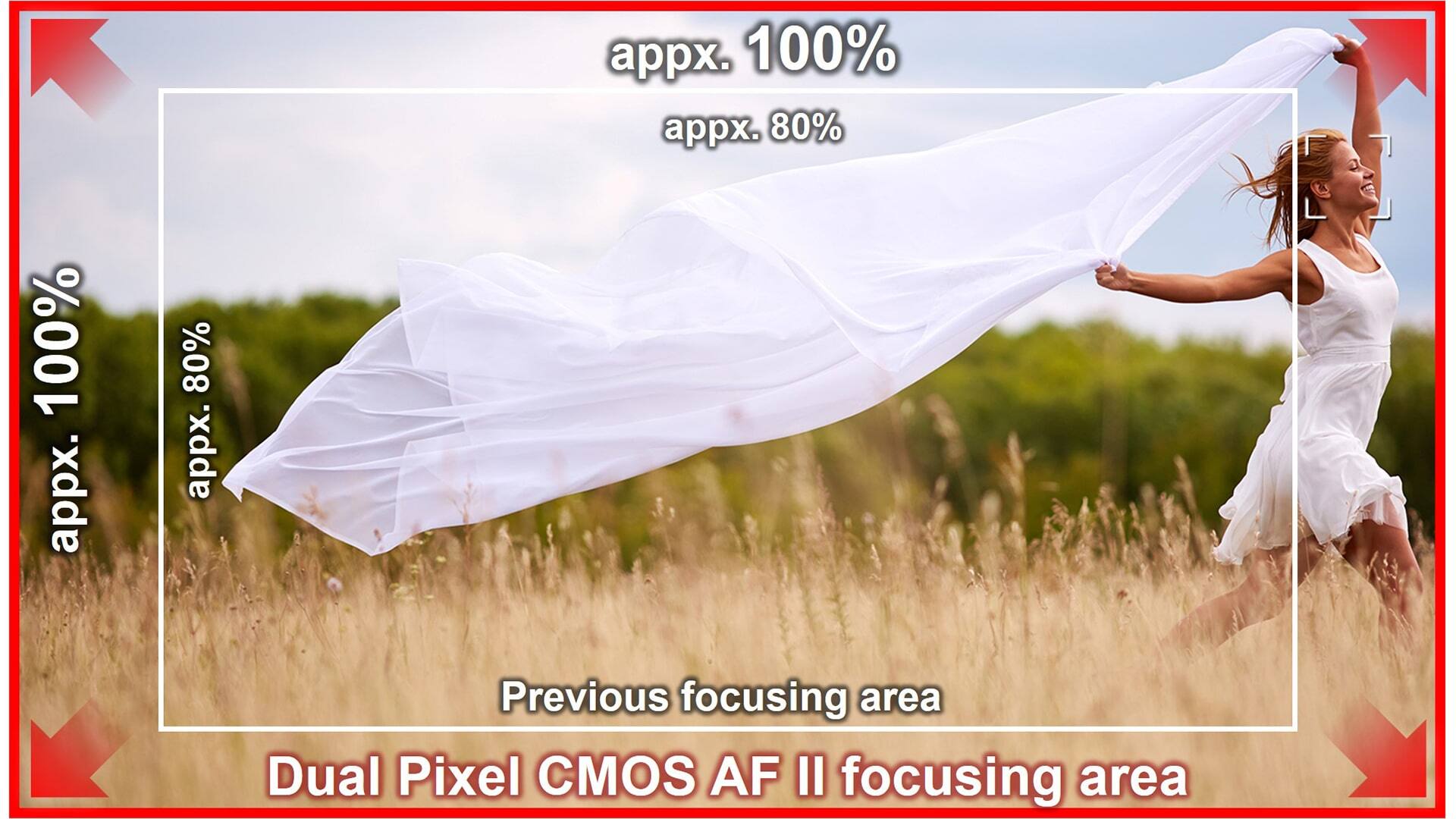

- Dual Pixel CMOS AF II: The EOS C80 supports the next generation of Canon’s acclaimed Dual Pixel CMOS Autofocus, Dual Pixel CMOS AF II. The camera’s back-illuminated stacked sensor provides better light-capturing efficiency, widening the area of the sensor that can be used for AF.
- EOS iTR AF X (People Detection): With outstanding speed, precision, and a wide autofocus range, Dual Pixel CMOS AF II uses the EOS Intelligent Tracking and Recognition (iTR AF X) algorithm, developed with deep learning technology, to enable high-performance detection of human beings. In addition to human eyes, face, and head, the camera can detect a human body and follow it with high accuracy.
- EOS iTR AF X (Animal Detection): iTR AF X Animal Detection detects the eyes, face, or the entire body of an animal to enable highly accurate focusing and tracking not affected by subject size or face orientation[i].

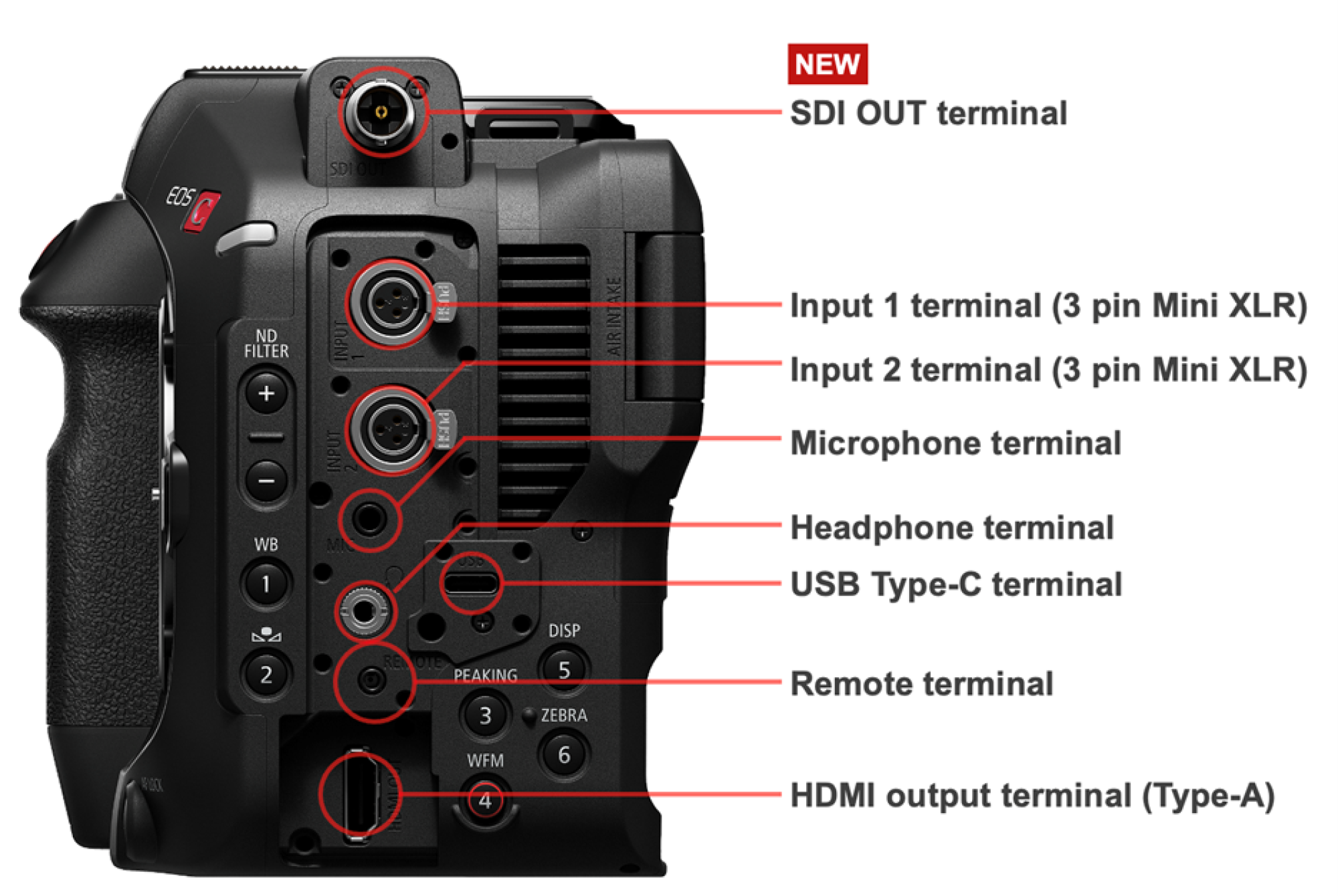

- 12G-SDI and a Variety of Interfaces: The EOS C80 has diverse set of interfaces making it a versatile camera for variety of productions. The EOS C80 distinguishes itself from its predecessor with built-in SDI (1x 12-G/3-G SDI OUT, BNC terminals), which enable uncompressed video signal transfer with a secure cable connection.
- Ethernet, and Wi-Fi Control: The built-in Ethernet port and Wi-Fi enable Canon's IP-based remote control XC Protocol. XC Protocol maximizes operability and remote control of camera settings. Using the XC Protocol, the camera can be operated by Canon’s RC-IP1000 and RC-IP100 controllers (sold separately), and XC Protocol-enabled third-party remote control panels (RCP) can remotely shade the camera.
- Built-in ND Filters, Improved Body Design, Compact and Lightweight: The EOS C80’s compact mechanical ND filter assembly is specifically designed for the RF mount's short flange back. Buttons for direct control of ND filters are located on the right-hand side of the camera. The EOS C80 provides up to ten stops of ND filtration, allowing users to shoot in various lighting conditions. The use of ND filters allows a camera operator to adjust exposure while maintaining the depth of field.
- 3.5" touch screen LCD display: The camera also has an ergonomic design with a new, lightweight handle assembly, and the Multi-function Shoe is located just above the LCD screen.
- Joystick controller: The newly-designed joystick controller provides easy control and menu navigation.
- New baseplate: Adding to the versatility of this camera, a new quarter-inch baseplate mounting hole under the front of the EOS C80 will add even more options for securing and positioning the camera in a variety of shooting situations.

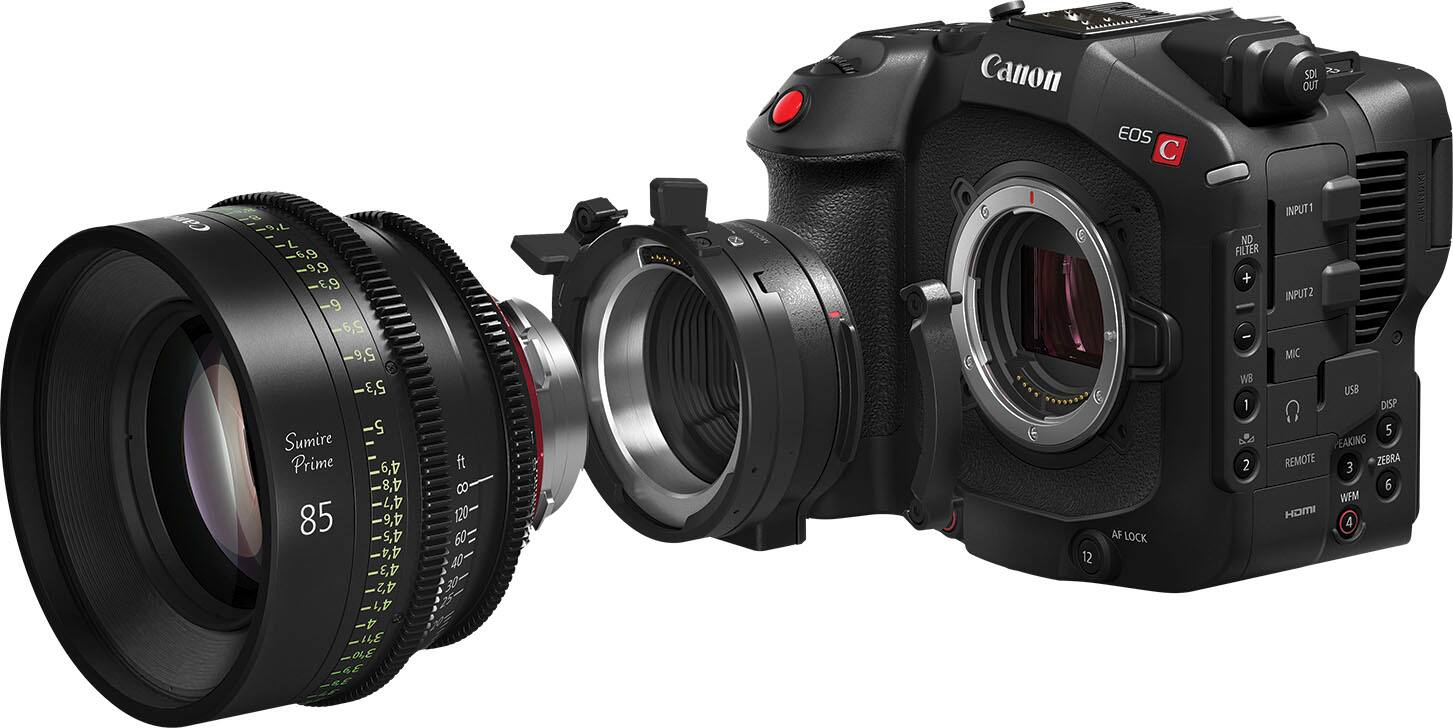

- Mount Adapter PL-RF with Cooke/i Compatibility: The Mount Adapter PL-RF, new to the RF ecosystem, unlocks a broad assortment of PL mount lenses for Canon’s RF cameras. The adapter is compatible with Cooke/i Technology’s metadata protocol and includes lock plates to ensure a secure lens mount.
- Auto clear scan mode: The Auto Clear Scan setting available in the C80, is an automatic shutter mode setting that can detect the frequency of light sources between 50.0 Hz to 2011.2 Hz to help reduce or virtually eliminate the flickering in some LED walls.
- Canon Multi-Camera Control App: The EOS C80 is compatible with the Canon Multi-Camera Control App for iPhone. This app empowers camera operators to have control over recording start and stop, focus, zoom and iris, ND Filters, ISO, Shutter, White Balance, Custom Picture and more, all while viewing the image from the camera.

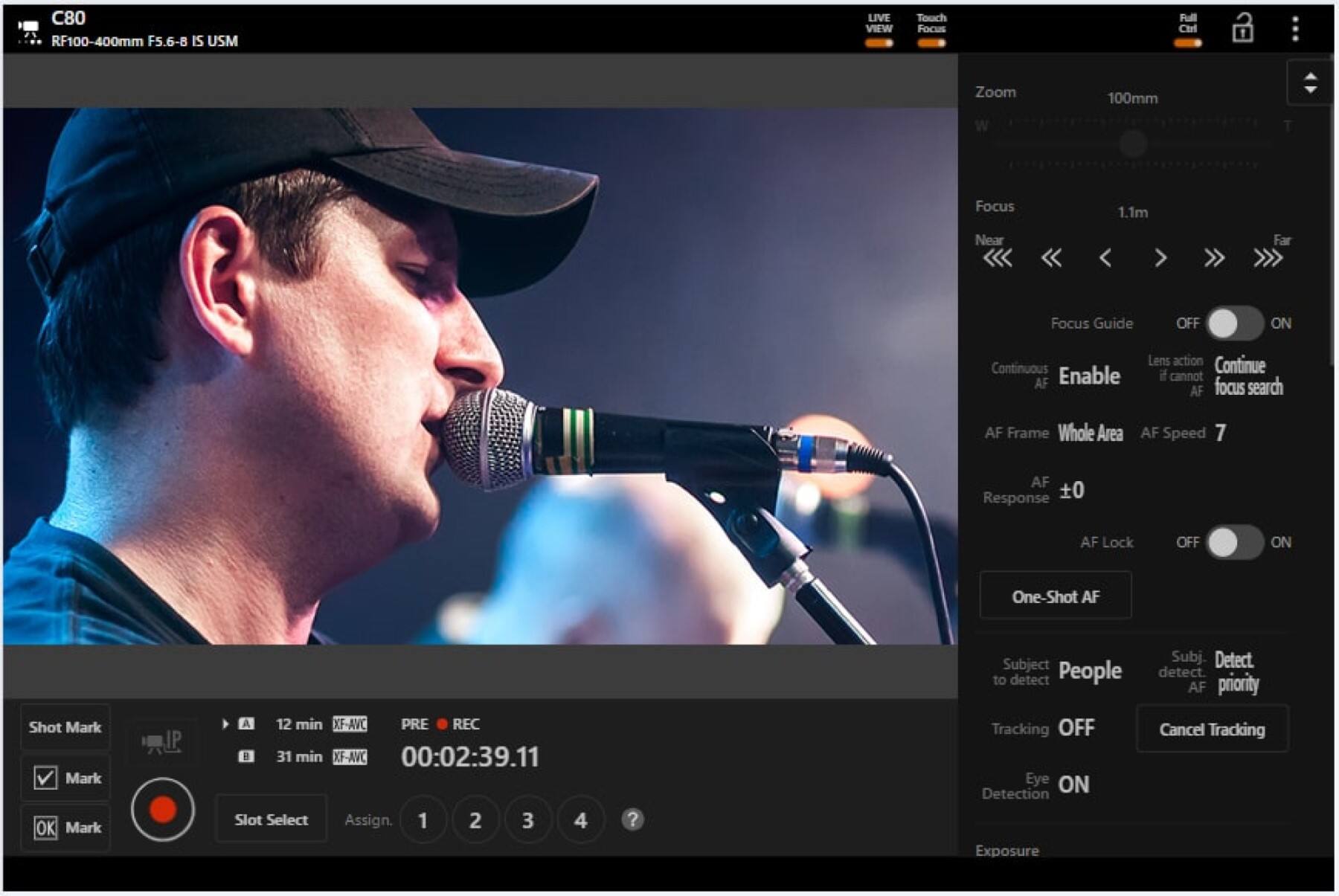

- Remote control camera application: The C80’s built-in Ethernet and Wi-Fi connectivity enables centralized control via the Remote Camera Control Application (RCCA). RCCA provides simultaneous camera control for up to nine cameras with video - achieving a "multi-camera operation". At a video production or broadcasting site, an operator can select a camera from the videos displayed on the "Connected Camera List", within the application
- 1- year warranty: Have peace of mind with a 1-year warranty.
- 6K Full Fram Back-illuminated Stacked CMOS Sensor with 26.67 total megapixels: The EOS C80 features a 6K back-illuminated stacked full-frame CMOS sensor. The sensor offers exceptional low noise, enabling the camera to excel in a wide variety of lighting situations and maximizing the camera’s full dynamic range.
- Triple Base ISO (800, 3200 and 12,800): Our newly developed, full frame 6K back-illuminated stacked sensor offers triple-base ISO, which allows the EOS C80 to deliver stunning imagery in a wide range of lighting conditions. With base ISOs of 800, 3200, and 12,800, you will be able to maximize the full dynamic range of the sensor in brilliantly lit or low-light shooting conditions.
- Internal Recording: 6K 30P Cinema RAW Light, XF-AVC, XF-HEVC S and XF-AVC S: The EOS C80 can record up to 6K 30P in Cinema RAW Light. Other recording options include our standard XF-AVC codec which can record in 10-bit 4:2:2 with oversampling from the 6K sensor, creating rich detail and smooth imagery, at frame rates up to 120P, without the need for cropping the image from the sensor. For slow or fast motion recording, the C80 can support up to 4K 120P and 2K 180.
- High-frame Rate Recording With Auto Focus and Subject Detection: When recording in slow and fast motion (Slow & Fast, 4:2:2 10-bit), the EOS C80 enables Dual Pixel AF II for frame rates of 100 and 120fps and Subject Detection for frame rates between 72-120fps.
- Dual SD Card Slots: The EOS C80 features two SD Card slots supporting simultaneous recording[i] and a variety of recording modes, such as simultaneous recording for backup or proxy files for editing, simultaneous recording of different formats and resolutions, and relay recording, which is critical for lengthy video shoots. The slots are compatible with SD UHS-II, V90-class cards.
- Dual Pixel CMOS AF II: The EOS C80 supports the next generation of Canon’s acclaimed Dual Pixel CMOS Autofocus, Dual Pixel CMOS AF II. The camera’s back-illuminated stacked sensor provides better light-capturing efficiency, widening the area of the sensor that can be used for AF.
- EOS iTR AF X (People Detection): With outstanding speed, precision, and a wide autofocus range, Dual Pixel CMOS AF II uses the EOS Intelligent Tracking and Recognition (iTR AF X) algorithm, developed with deep learning technology, to enable high-performance detection of human beings. In addition to human eyes, face, and head, the camera can detect a human body and follow it with high accuracy.
- EOS iTR AF X (Animal Detection): iTR AF X Animal Detection detects the eyes, face, or the entire body of an animal to enable highly accurate focusing and tracking not affected by subject size or face orientation[i].
- 12G-SDI and a Variety of Interfaces: The EOS C80 has diverse set of interfaces making it a versatile camera for variety of productions. The EOS C80 distinguishes itself from its predecessor with built-in SDI (1x 12-G/3-G SDI OUT, BNC terminals), which enable uncompressed video signal transfer with a secure cable connection.
- Ethernet, and Wi-Fi Control: The built-in Ethernet port and Wi-Fi enable Canon's IP-based remote control XC Protocol. XC Protocol maximizes operability and remote control of camera settings. Using the XC Protocol, the camera can be operated by Canon’s RC-IP1000 and RC-IP100 controllers (sold separately), and XC Protocol-enabled third-party remote control panels (RCP) can remotely shade the camera.
- Built-in ND Filters, Improved Body Design, Compact and Lightweight: The EOS C80’s compact mechanical ND filter assembly is specifically designed for the RF mount's short flange back. Buttons for direct control of ND filters are located on the right-hand side of the camera. The EOS C80 provides up to ten stops of ND filtration, allowing users to shoot in various lighting conditions. The use of ND filters allows a camera operator to adjust exposure while maintaining the depth of field.
- 3.5" touch screen LCD display: The camera also has an ergonomic design with a new, lightweight handle assembly, and the Multi-function Shoe is located just above the LCD screen.
- Joystick controller: The newly-designed joystick controller provides easy control and menu navigation.
- New baseplate: Adding to the versatility of this camera, a new quarter-inch baseplate mounting hole under the front of the EOS C80 will add even more options for securing and positioning the camera in a variety of shooting situations.
- Mount Adapter PL-RF with Cooke/i Compatibility: The Mount Adapter PL-RF, new to the RF ecosystem, unlocks a broad assortment of PL mount lenses for Canon’s RF cameras. The adapter is compatible with Cooke/i Technology’s metadata protocol and includes lock plates to ensure a secure lens mount.
- Auto clear scan mode: The Auto Clear Scan setting available in the C80, is an automatic shutter mode setting that can detect the frequency of light sources between 50.0 Hz to 2011.2 Hz to help reduce or virtually eliminate the flickering in some LED walls.
- Canon Multi-Camera Control App: The EOS C80 is compatible with the Canon Multi-Camera Control App for iPhone. This app empowers camera operators to have control over recording start and stop, focus, zoom and iris, ND Filters, ISO, Shutter, White Balance, Custom Picture and more, all while viewing the image from the camera.
- Remote control camera application: The C80’s built-in Ethernet and Wi-Fi connectivity enables centralized control via the Remote Camera Control Application (RCCA). RCCA provides simultaneous camera control for up to nine cameras with video - achieving a "multi-camera operation". At a video production or broadcasting site, an operator can select a camera from the videos displayed on the "Connected Camera List", within the application
- 1- year warranty: Have peace of mind with a 1-year warranty.

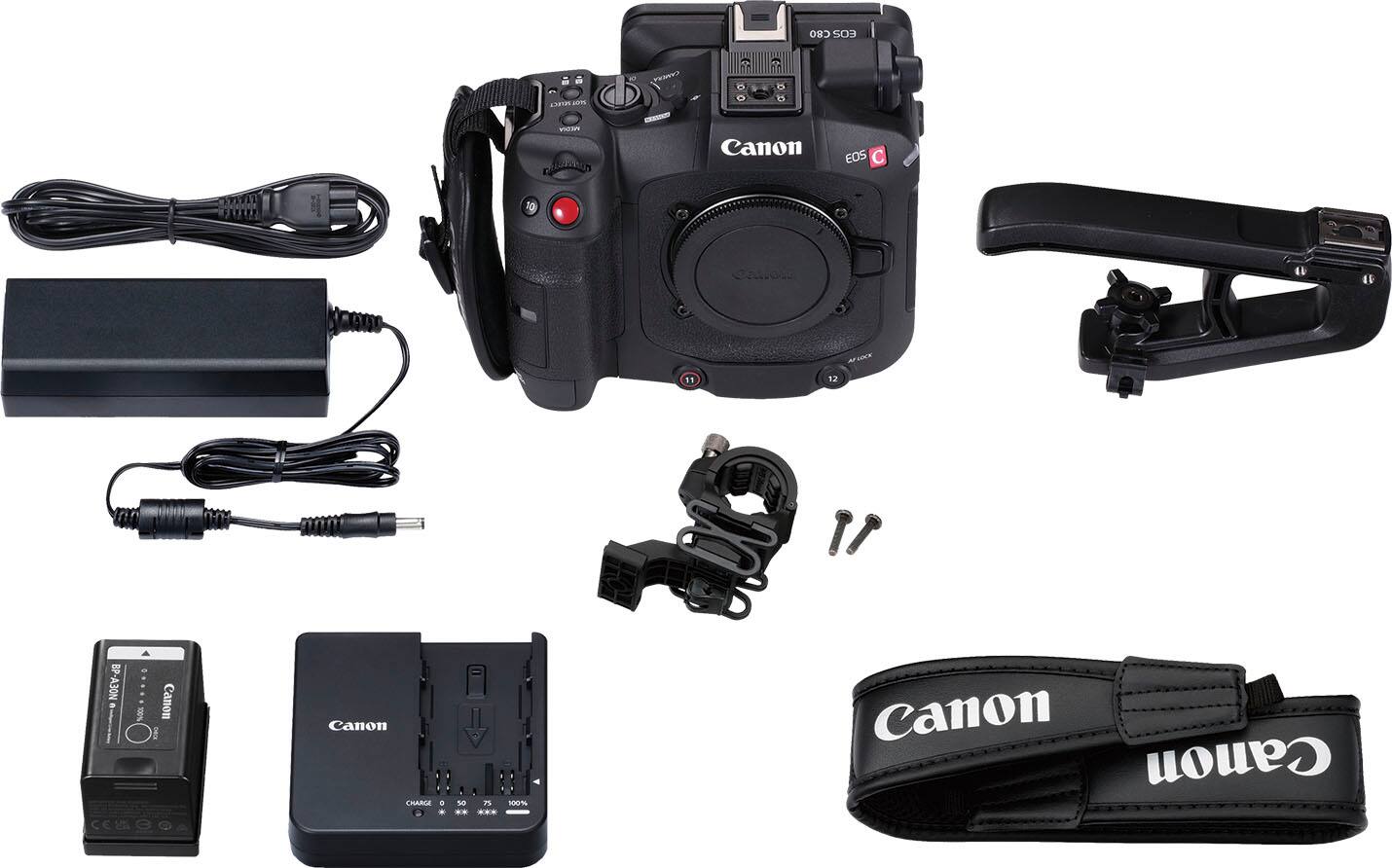

Whats Included
- EOS C80 Digital Cinema Camera
- Handle Unit & Microphone Holder
- BP-A30N Battery Pack
- CA-CP300 B Compact Power Adapter
- CG-A20 Battery Charger
- SS-1200 Shoulder Strap
- EOS C80 Digital Cinema Camera
- Handle Unit & Microphone Holder
- BP-A30N Battery Pack
- CA-CP300 B Compact Power Adapter
- CG-A20 Battery Charger
- SS-1200 Shoulder Strap
Product Manuals
Disclaimers
- [1] When recording in XF-AVC, XF-HEVC S and XF-AVC S in full-frame sensor mode at a frame rate of 60p or lower.
- [2] During slow-motion recording, simultaneous recording may not be possible depending on frame rate.
- [3] Animal detection may not be possible with some animals. Subjects that are not dogs or cats may be detected as animals in some cases.
- [4] Warranty programs are subject to certain conditions and restrictions. See www.usa.canon.com/support for details.
- [1] When recording in XF-AVC, XF-HEVC S and XF-AVC S in full-frame sensor mode at a frame rate of 60p or lower.
- [2] During slow-motion recording, simultaneous recording may not be possible depending on frame rate.
- [3] Animal detection may not be possible with some animals. Subjects that are not dogs or cats may be detected as animals in some cases.
- [4] Warranty programs are subject to certain conditions and restrictions. See www.usa.canon.com/support for details.
Q: Is the camera compatible with Canon RF lenses?
A: The camera is compatible with Canon RF lenses.
Q: Does the camera have a headphone jack?
A: The Canon EOS C80 does have a headphone jack.
Q: What is the size of the camera's LCD screen?
A: The screen size of this camera is 3.5 inches.
Q: How many memory card slots does the camera have?
A: The camera has two memory card slots.
Q: What is the maximum expandable ISO?
A: The maximum expandable ISO is 102400.
Q: Can the camera record in slow motion?
A: This camera offers slow-motion recording.
Compare similar products
The EOS C80 camera is designed for limitless creative vision. The compact, full-featured camera body includes Canon's 6K full frame Back-Illuminated Stacked CMOS sensor, Cinema RAW Light and 4K/120p internal recording, Canon’s next-generation Dual Pixel CMOS AF II and a 12G-SDI interface. The EOS C80 seamlessly integrates into almost any production providing the ultimate flexibility and outstanding image quality.
The EOS C50 camera is designed to maximize creative freedom. The compact, full-featured camera body includes Canon's newly developed 7K full frame CMOS sensor with 3:2 open gate internal recording capabilities, 4K/120P and Cinema RAW Light up to 7K/60P. The EOS C50 features Canon’s next-generation Dual Pixel CMOS AF II, simultaneous 2K crop recording, built-in Frame.io Camera-to-Cloud integration, and supports XC protocol which allows for remote control over IP via Wi-Fi or a compatible third-party USB-C ethernet adapter. The included detachable top handle adds two full-size XLR audio inputs, a start-stop button, and a zoom rocker. In addition, this camera can capture 32MP still images in Photo mode. The EOS C50 seamlessly integrates into almost any production environment, delivering flexibility and outstanding image quality in a package that practically fits in the palm of your hand.
EOS R5 C Full-frame, 8K Cinema EOS System Camera: Compact and lightweight, the EOS R5 C is a true hybrid camera, boasting many of the video formats and features from the Cinema EOS lineup as well as many of the still-imaging capabilities of the EOS R5 camera in a beautifully designed body. The EOS R5 C is a complete package that offers filmmakers, multimedia journalists, and advanced amateurs a cost-effective 8K, 4K, and FHD video camera to help unlock their creative potential. Shares Common Features & Technology with the EOS R5 Camera: Canon’s 45 Megapixel full-frame, CMOS imaging sensor is at the heart of the EOS R5 C camera’s superb image quality, which also leads the way for impressive 8K/60P RAW cinematic video shooting. Focus and speed are paramount in the EOS R5 C camera, providing impressive still-image continuous capture at speeds of up to 20 frames per second, and with Dual Pixel CMOS AF II capability, to track split second movements of even the most elusive subjects. With 1,053 Automatic AF zones, it is easy to photograph people with the use of Eye, Face and Head Detection AF, or intuitively track the whole body, face or eye of cats, dogs, or birds with Animal Detection AF. For those with the need for speed, Canon has also included still-image vehicle subject detection to assist with accurate tracking of cars and motorcycles. Connectivity like 5GHz and 2.4GHz Wi-Fi and Bluetooth, is also included for the transfer of still images. Video control for the dedicated video professional: As soon as the EOS R5 C’s main switch is moved to the “video” position, the familiar Cinema EOS menu system and interface take over. Expected high-level video features such as waveform monitors, video codec options, and extensive audio control become available — greatly expanding the EOS R5 C’s video potential for the experienced camera operator or video content creator. During “photo” operation, menus are nearly the same as on the EOS R5 camera.

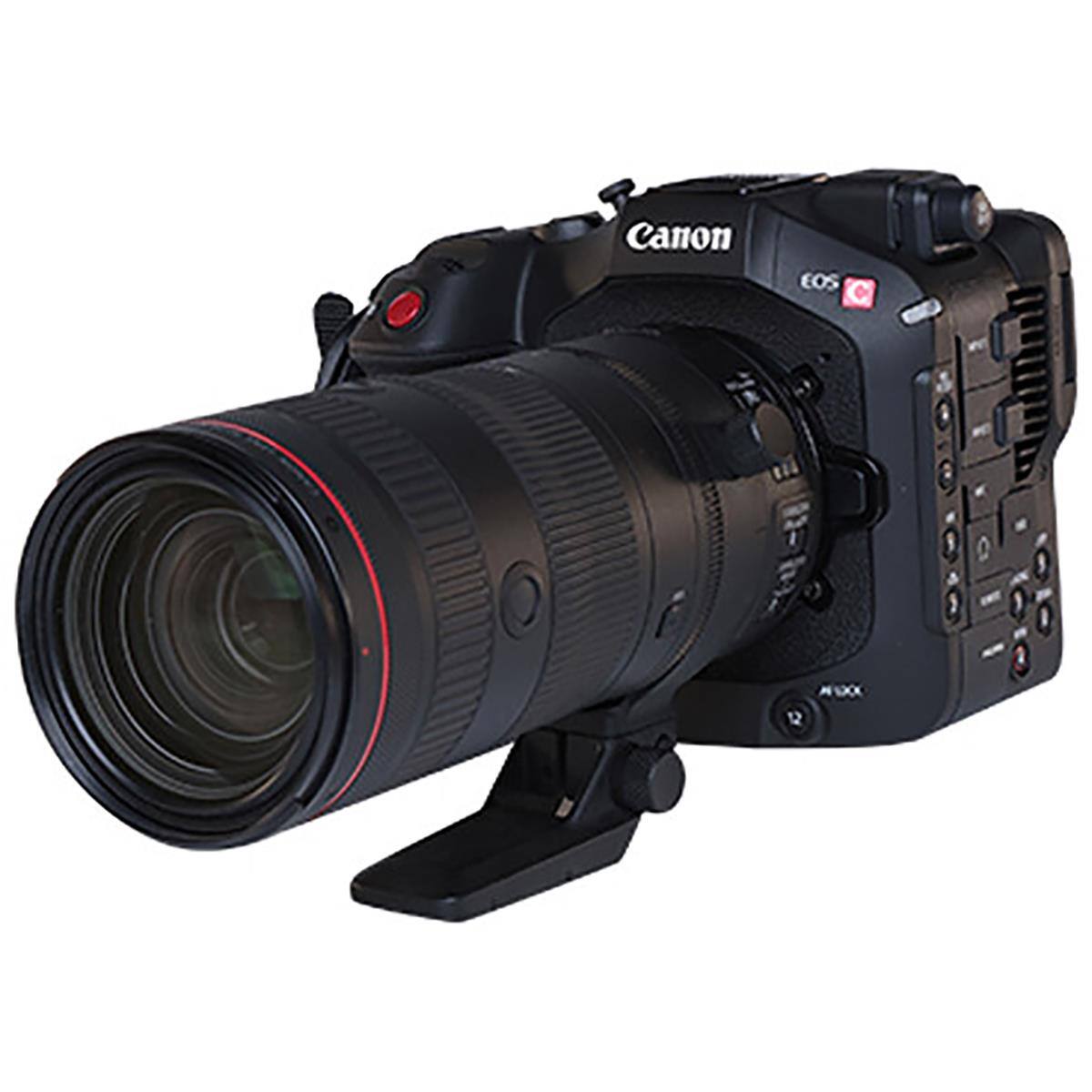

The Canon EOS C70 offers exceptional cinema capabilities in a compact package. Enjoy stunning images with a 4K Super 35mm DGO Sensor and all the built-in features you could ask for, including ND Filters, mini XLRs, direct touch rotatable LCD screen, Dual Pixel CMOS Autofocus, and excellent battery life. Making the EOS C70 even more powerful is compatibility with Canon's expanding line of high-performance RF Lenses. The lens kit includes the RF24-70 f/2.8L IS USM lens—a a standard zoom lens featuring advanced optics and NANO USM for smooth, fast, virtually silent AF, plus bright f/2.8 maximum aperture and 5-stop-effective image stabilization for richly detailed photos and videos.
